Flanged tapered roller bearing cup, 5.5115 in outside diameter, 1.1250 in wide, Timken precision Class 3, for 572-series assemblies. Cup only, sold as 1 Pc.
List Price
$121.61
8 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Timken |
|---|---|
| MPN | 572B-3 |
| GTIN | 053893059563 |
| Model | 572B3 |
| Bearing Type | Tapered Roller Bearing Cup |
| OD | 140 mm |
| Series | 575 |
|---|---|
| Base Number | 572B |
| Industry Terms | taper bearing cup, flanged cup, outer race, tapered roller race, bearing cup only, Class 3 cup |
| Common Misspellings | Timken 572B3, Timkin 572B-3, Timpken 572B, 572-B3, Timken 572 B-3 |
| Application Types | Wheel ends, industrial gearboxes, agricultural drives, conveyor and mill shafts |
| Flange Outer Diameter | 5.7575 in |
| Cup Flange Width | 0.250 in |
| Bearing Width To Flange | 0.250 in |
| Housing Style | Flanged cup |
| Mpn Variants | 572B-3, 572B3, 572-B-3, 572 B 3, 572B, 572B*3, 572B#3 |
| Manufacturer Status | Timken active production |
| Compatible With Replaces | Mating cones 575, 575-S, 576, 577, 578, 580, 580X, 581, 582; assemblies SET401 (580/572) and SET402 (582/572) |
| Number Of Rows | 1 |
| Harmonization Code | 8482.20.00 |
| Cup Part Number | 572B |
| Cup Width | 1.1250 in |
| Cup Backface To Clear Radius | 0.13 in |
| Part Number | 572B-3 |
| Cup Frontface Backing Diameter | 5.31 in |

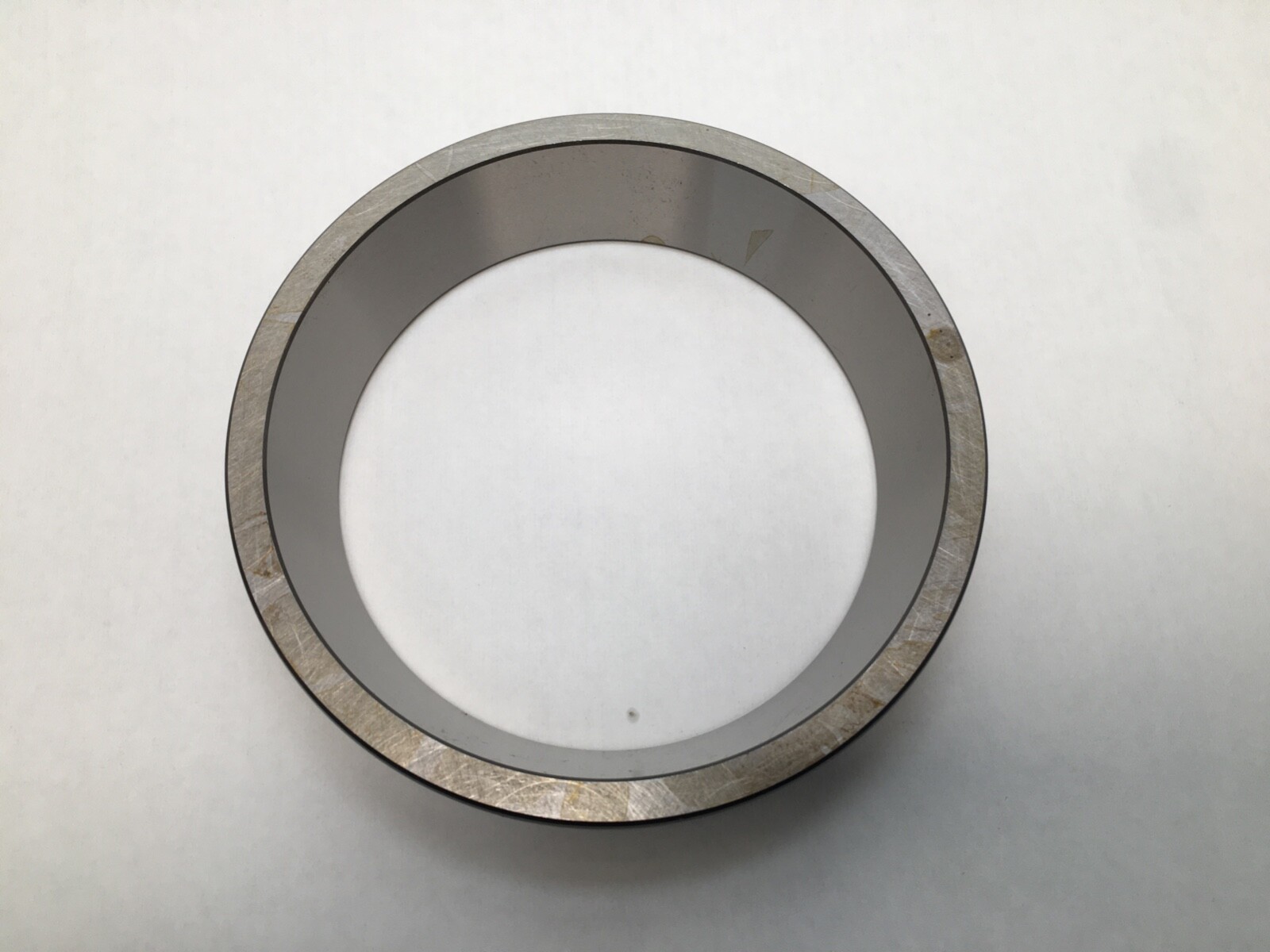

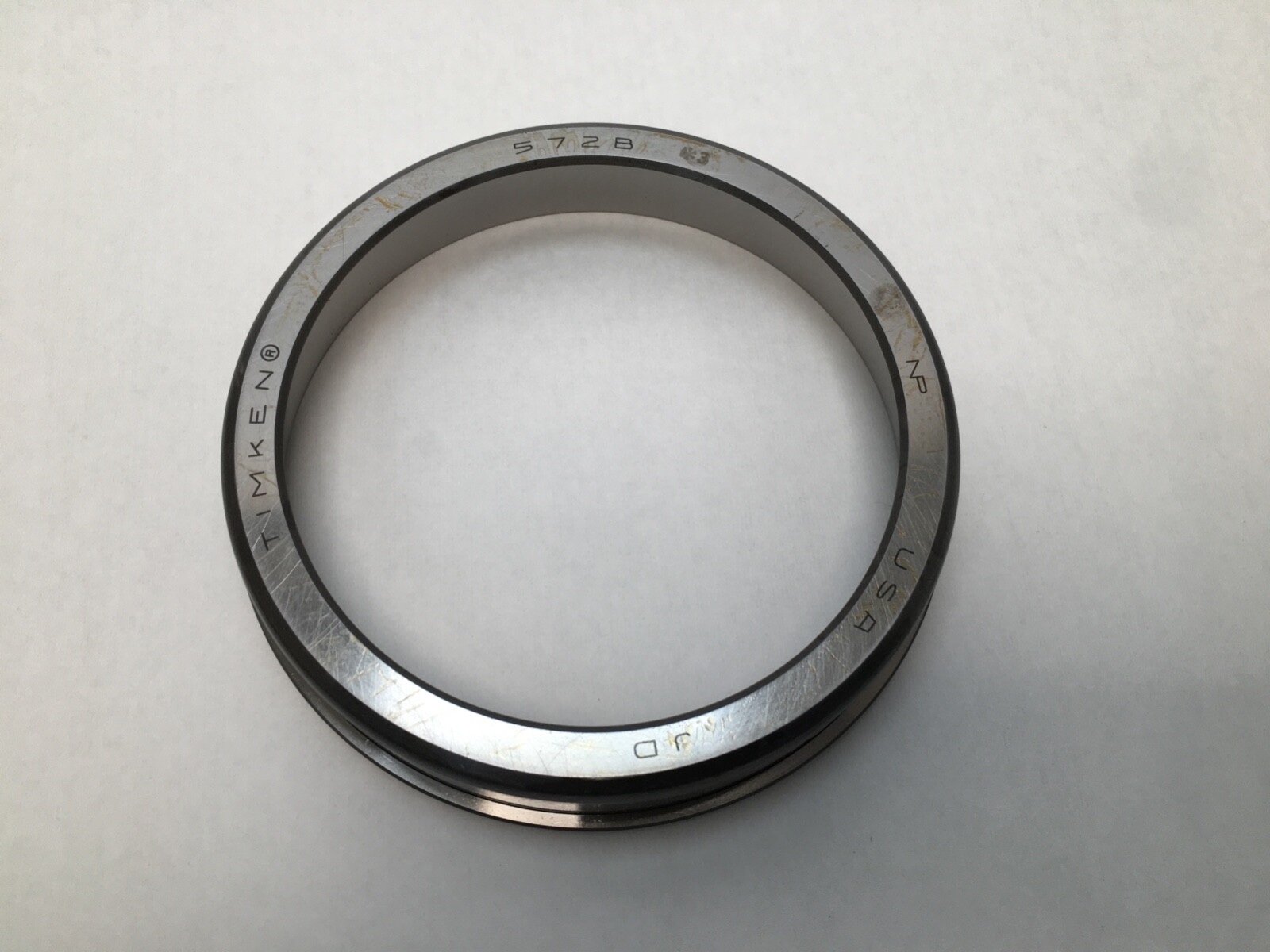

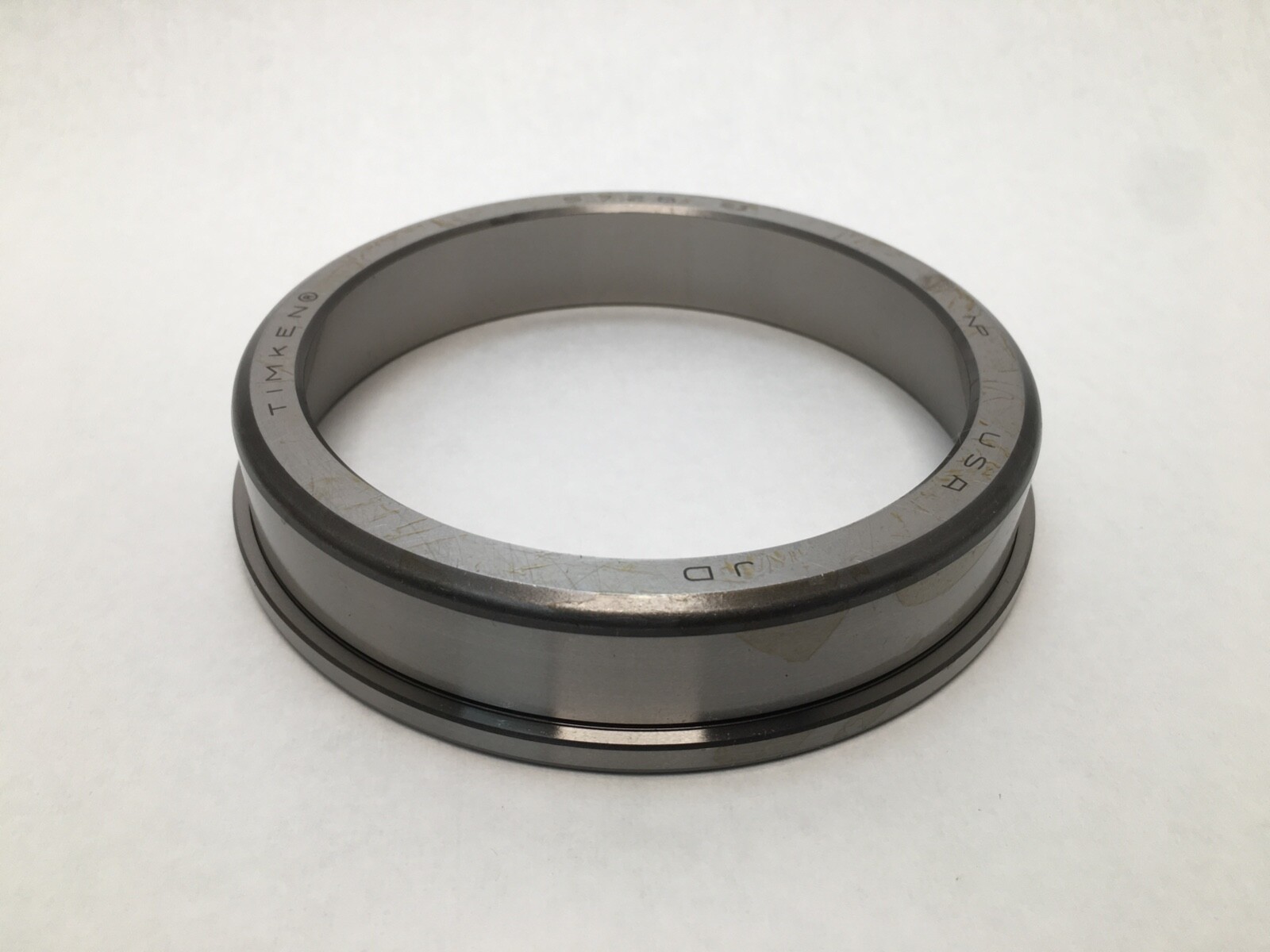

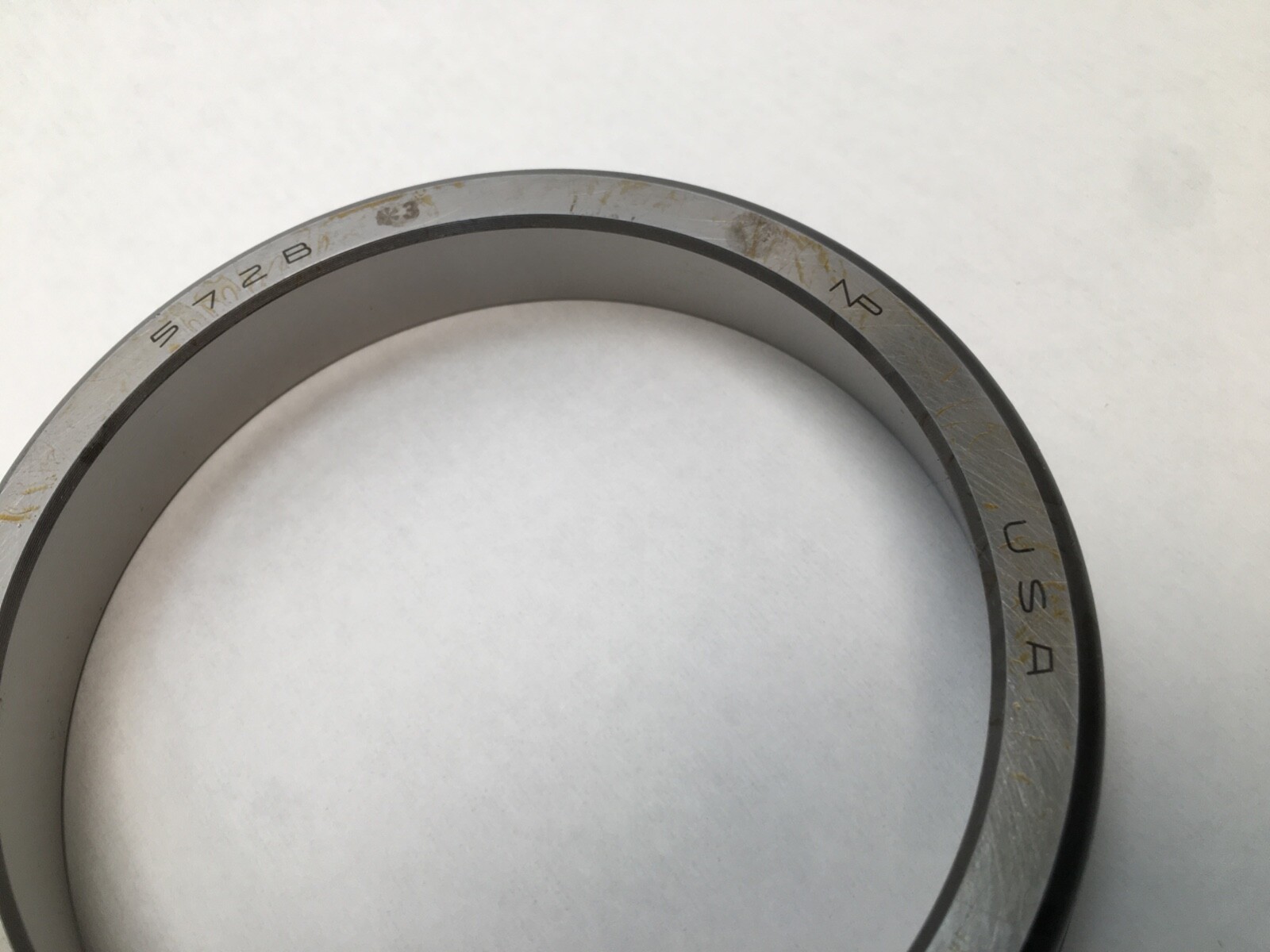

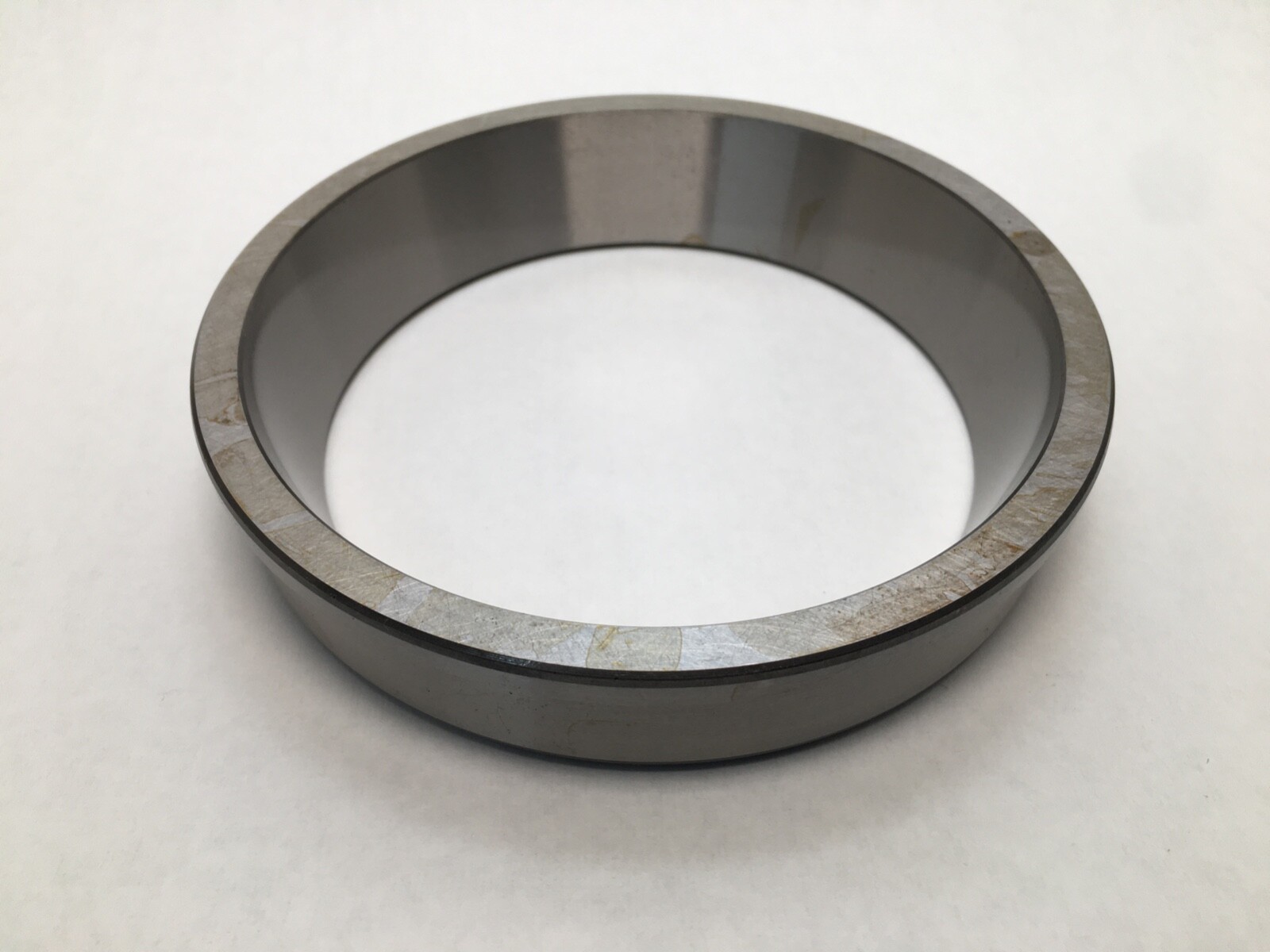

A Timken 572B tapered roller bearing cup, the outer race only, in the flanged execution. The bearing outside diameter is 5.5115 in (139.99 mm) and the cup width is 1.1250 in (28.58 mm). This is a cup on its own: the mating cone, with its inner ring and roller assembly, is not included.
572: Timken cup number, 5.5115 in OD, 1.1250 in width. B: flanged cup execution, with an integral flange on the outside diameter. -3: Timken precision Class 3, tighter than standard Class 4/K.
A tapered roller bearing is a two-piece assembly and the cup is half of it. The cup carries the outer raceway and is pressed into the housing bore; the cone carries the inner raceway, rollers and cage and is fitted to the shaft. The integral flange on the B execution lets the cup seat against the face of a housing instead of relying on a machined counterbore shoulder, which simplifies the housing and fixes axial position positively. Class 3 precision holds tighter raceway and bore tolerances than standard commercial grade, giving better running accuracy and more consistent preload once the set is adjusted.
Outside diameter: 5.5115 in (139.99 mm). Cup width: 1.1250 in (28.58 mm). Component: cup (outer race) only. Execution: flanged. Precision class: Timken Class 3. Rolling elements: tapered rollers, supplied with the mating cone. Design units: Inch.
One cup. The mating cone is not included, and no seals, spacers or shims are supplied.
Supplied as 1 Pc.
The 572 cup mates with Timken cones 575, 575-S, 576, 577, 578, 580, 580X, 581 and 582. Common complete assemblies built on it are SET401 (580 cone with 572 cup) and SET402 (582 cone with 572 cup).
Interchange applies at cup level: another manufacturer’s 572 flanged cup in Class 3 fits the same housing and pairs with the same cones. The plain 572 cup without the B flange is a related part rather than an interchange, because it needs a housing shoulder for axial location. Ratings quoted for a 580/572 or 582/572 assembly apply to the complete set, not to this cup on its own.
