Tapered roller bearing cup, 4.7500 in OD x 1.0313 in wide, 1.4 kg. Timken 47423 single cup for single-row inch tapered roller bearings, 47400 series.
List Price
$37.44
3 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Timken |
|---|---|
| MPN | 47423 |
| GTIN | 053893303833 |
| Model | 47423 |
| Bearing Type | Tapered Roller Bearing Cup |
| OD | 4.7500 in (120.650 mm) |
| Series | 47400 |
|---|---|
| Material | Case-Hardened Steel |
| Mpn Variants | 47423, 47423 cup, 47-423 |
| Precision Class | Not specified |
| Additional Attributes | e 0.36; Y 1.67; Da 115.10 mm; Db 108.97 mm |
| Rolling Elements | Tapered Roller |
| Item Weight | 1.4 kg (3.2 lb) |
| Harmonization Code | 8482.20.00 |
| Cup Part Number | 47423 |
| Cup Width | 1.0313 in (26.195 mm) |
| Cup Backface To Clear Radius | 0.03 in (0.76 mm) |
| Cup Frontface Backing Diameter | 4.56 in (115.10 mm) |
| Cross Reference 1 | Koyo 47423 |
|---|---|
| Cross Reference 2 | NTN 4T-47423 |

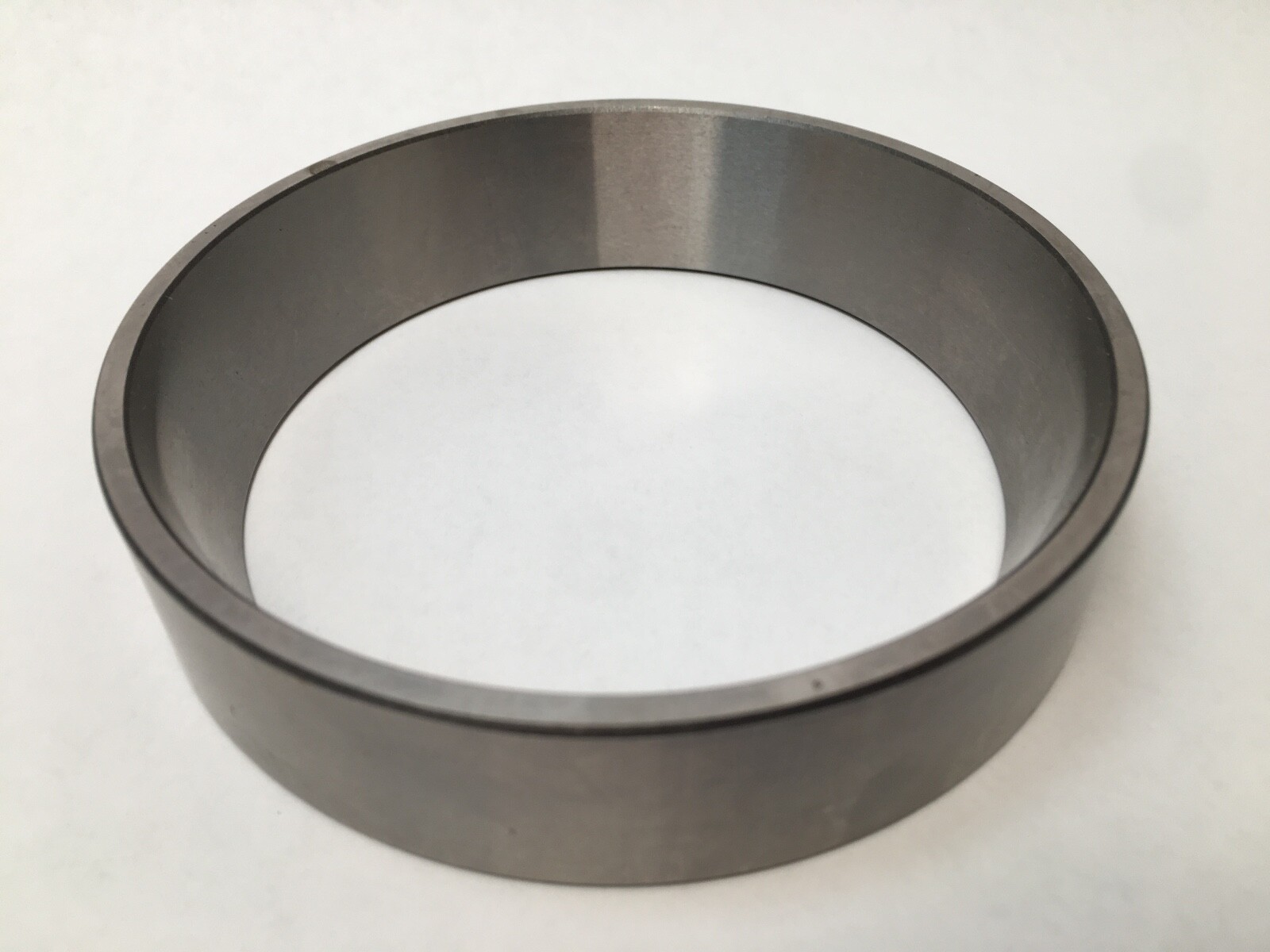

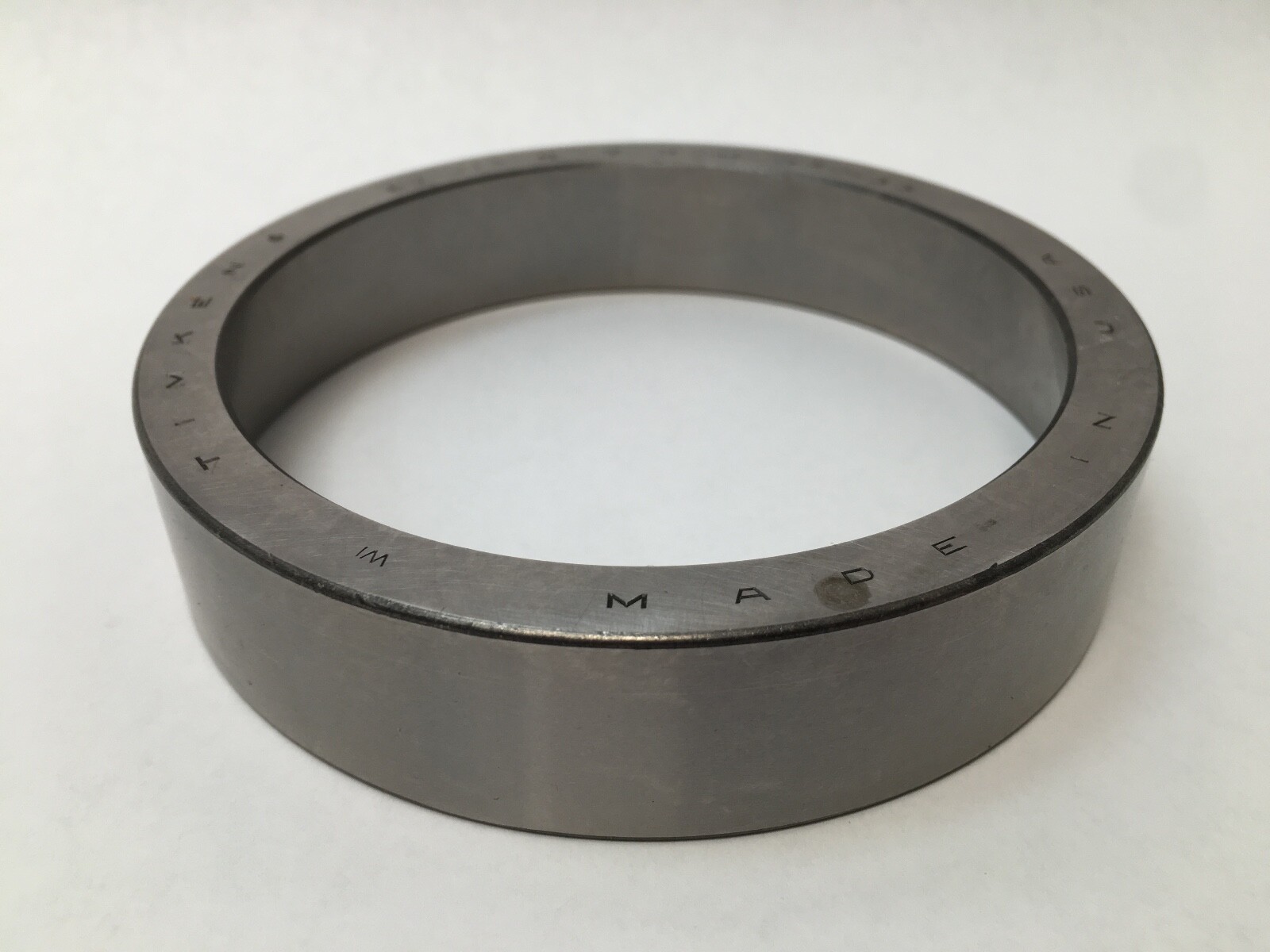

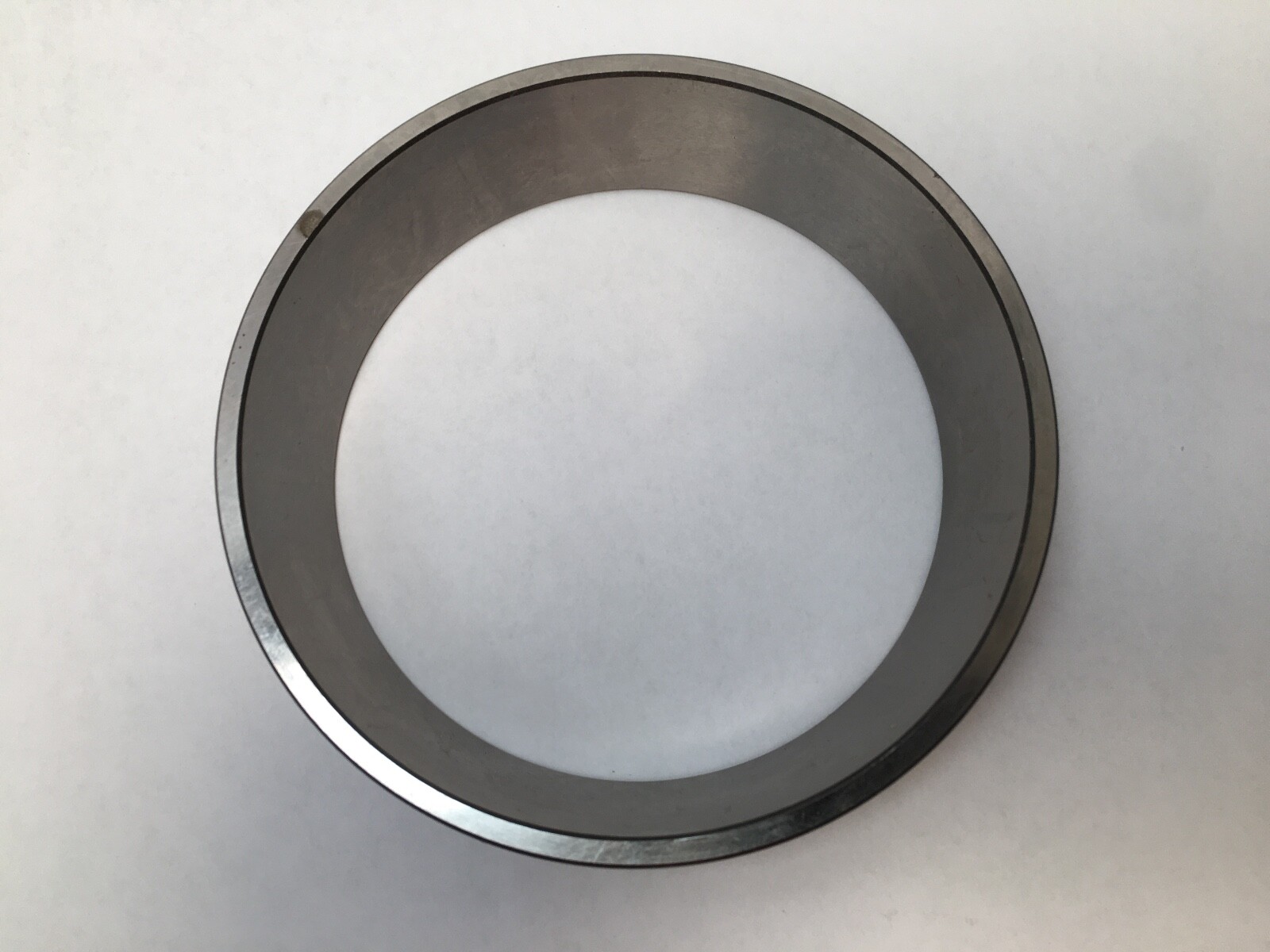

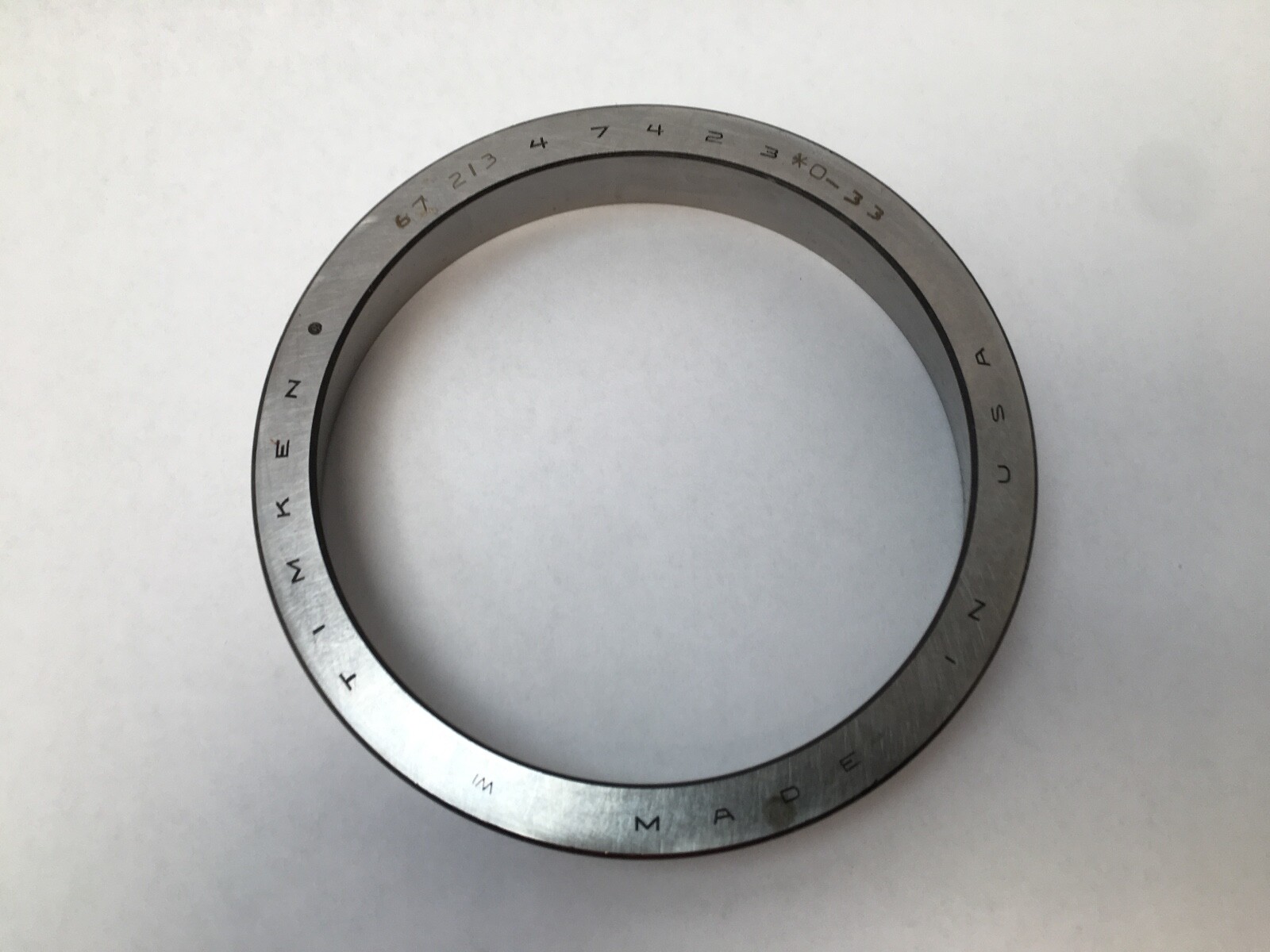

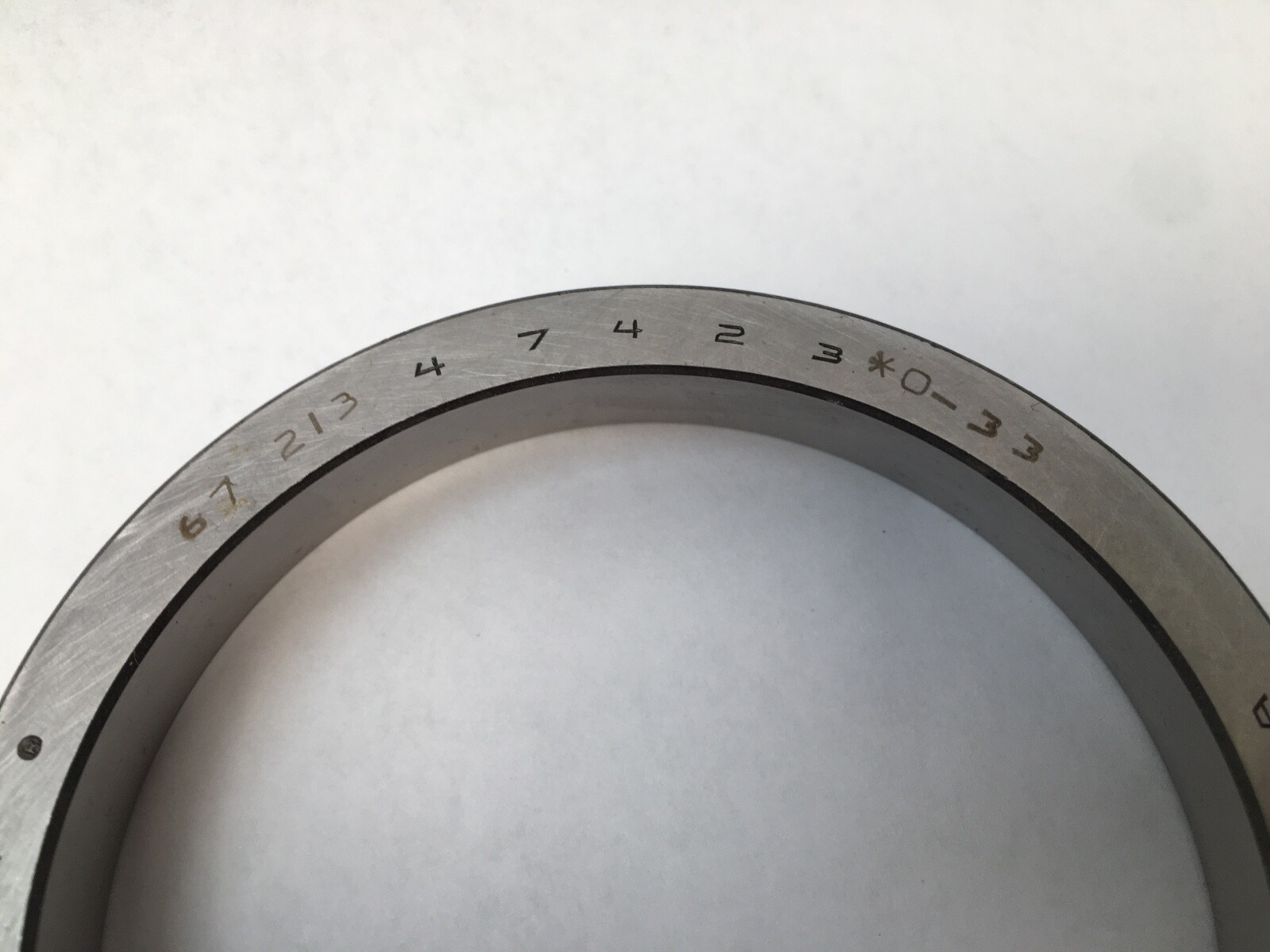

Timken 47423 is a single cup (outer ring) for a single-row tapered roller bearing, 47400 series, 4.7500 in (120.650 mm) outside diameter, 1.0313 in (26.195 mm) cup width. Supplied as the cup only.
47423 — Timken single cup, 4.7500 in OD, 47400 series.
Bearing Type: Tapered Roller Bearing Cup. Outside Diameter: 4.7500 in (120.650 mm). Cup Width: 1.0313 in (26.195 mm). Item Weight: 1.4 kg (3.2 lb). e Factor: 0.36. Y Factor: 1.67. Material: Case-Hardened Steel. Series: 47400. Rolling Elements: Tapered Roller. Harmonization Code: 8482.20.00. GTIN: 0053893303833.
Max Housing Fillet Radius: 0.03 in (0.76 mm). Housing Backing Shoulder Diameter: 4.56 in (115.10 mm) frontface, 4.29 in (108.97 mm) backface. Cup Backface To-Clear Radius: 0.03 in (0.76 mm).
47423 is an ABMA inch cup number also built as Koyo 47423 and NTN 4T-47423, matching the envelope. Designation variants: 47423, 47423 cup, 47-423.
Outside Diameter: 4.7500 in (120.650 mm). Cup Width: 1.0313 in (26.195 mm).
Item Weight: 1.4 kg (3.2 lb).
GTIN: 0053893303833.
