Tapered roller bearing cup, 3.6875 in OD x 1.0313 in wide, Class 3 precision, 1.0 kg. Timken 46368-3 single cup for single-row inch tapered roller bearings.
List Price
$42.76
3 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Timken |
|---|---|
| MPN | 46368-3 |
| Model | 46368 #3 |
| Bearing Type | Tapered Roller Bearing Cup |
| OD | 3.6875 in (93.663 mm) |
| Series | 46000 |
|---|---|
| Mpn Variants | 46368-3, 46368, 46368 *3, 46368 #3, 463683 |
| Precision Class | Class 3 |
| Additional Attributes | e 0.4; Y 1.49; Da 87.88 mm; Db 78.99 mm |
| Precision Rating | Class 3 |
| Rolling Elements | Tapered Roller |
| Item Weight | 1.0 kg (2.2 lb) |
| Harmonization Code | 8482.2 |
| Cup Part Number | 46368 |
| Bearing Class | Class 3 |
| Cup Width | 1.0313 in (26.195 mm) |
| Cup Backface To Clear Radius | 0.130 in (3.30 mm) |
| Cup Frontface Backing Diameter | 3.46 in (87.88 mm) |
| Cross Reference 1 | Koyo 46368 |
|---|---|
| Cross Reference 2 | NTN 4T-46368 |

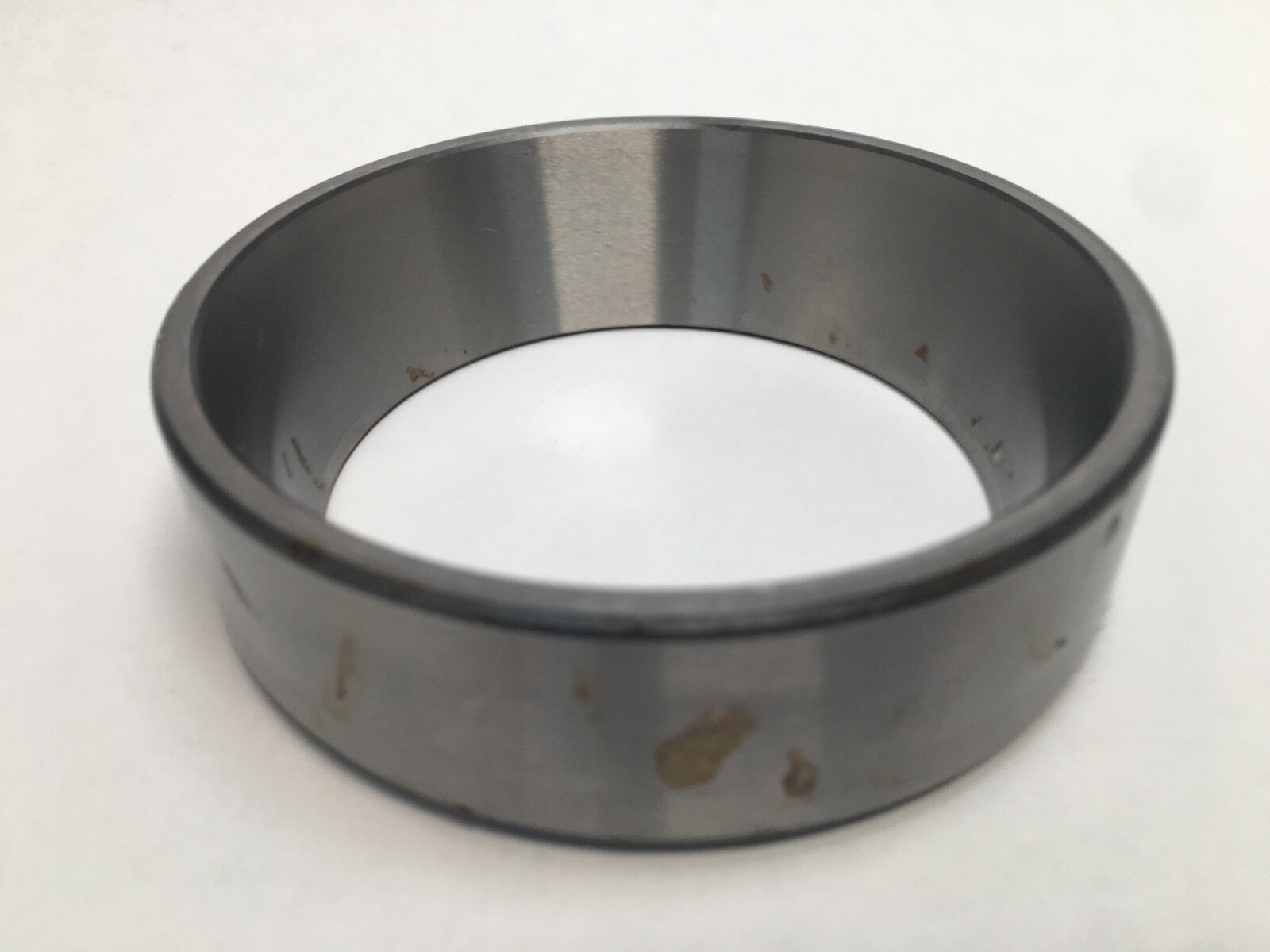

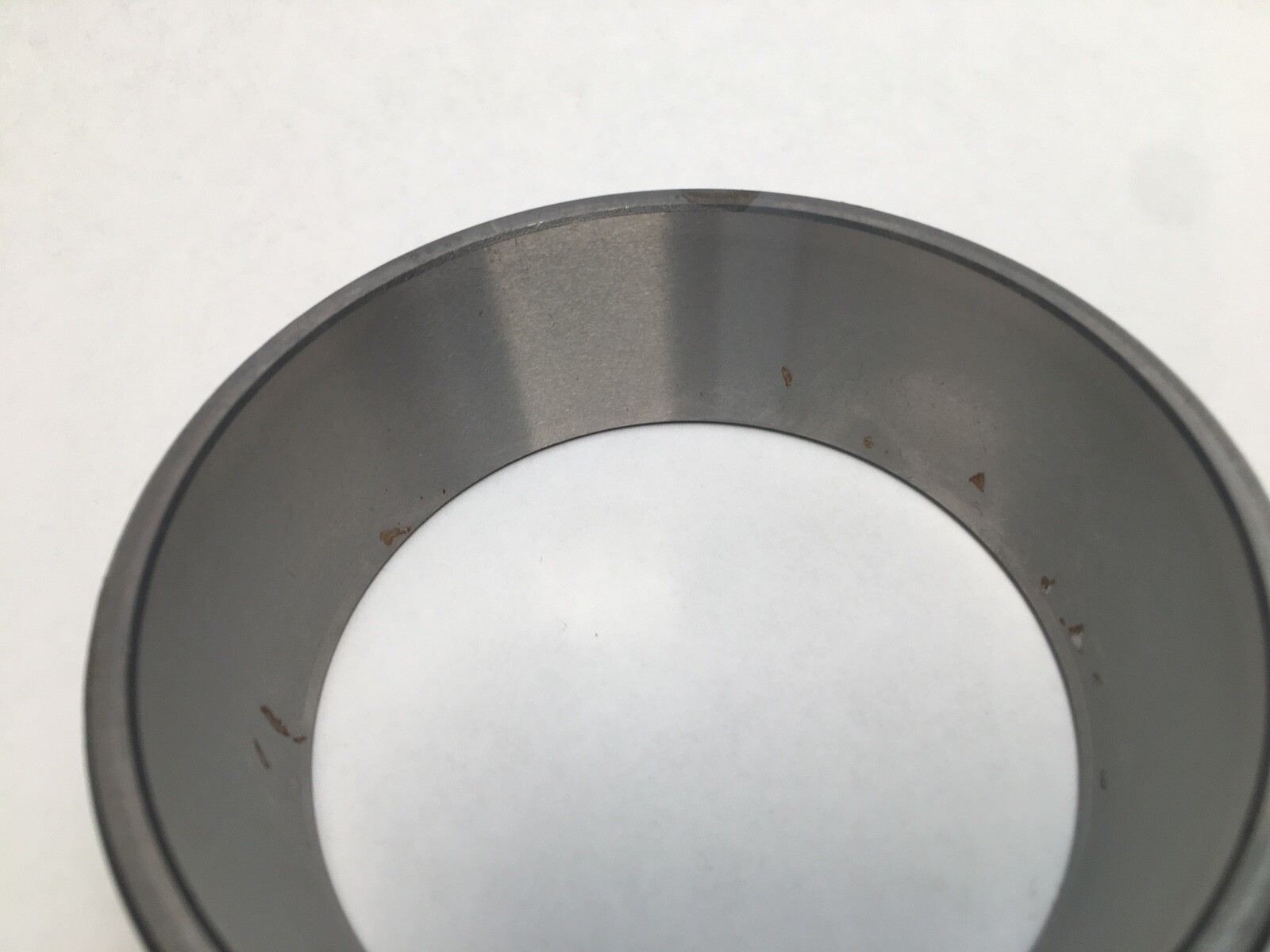

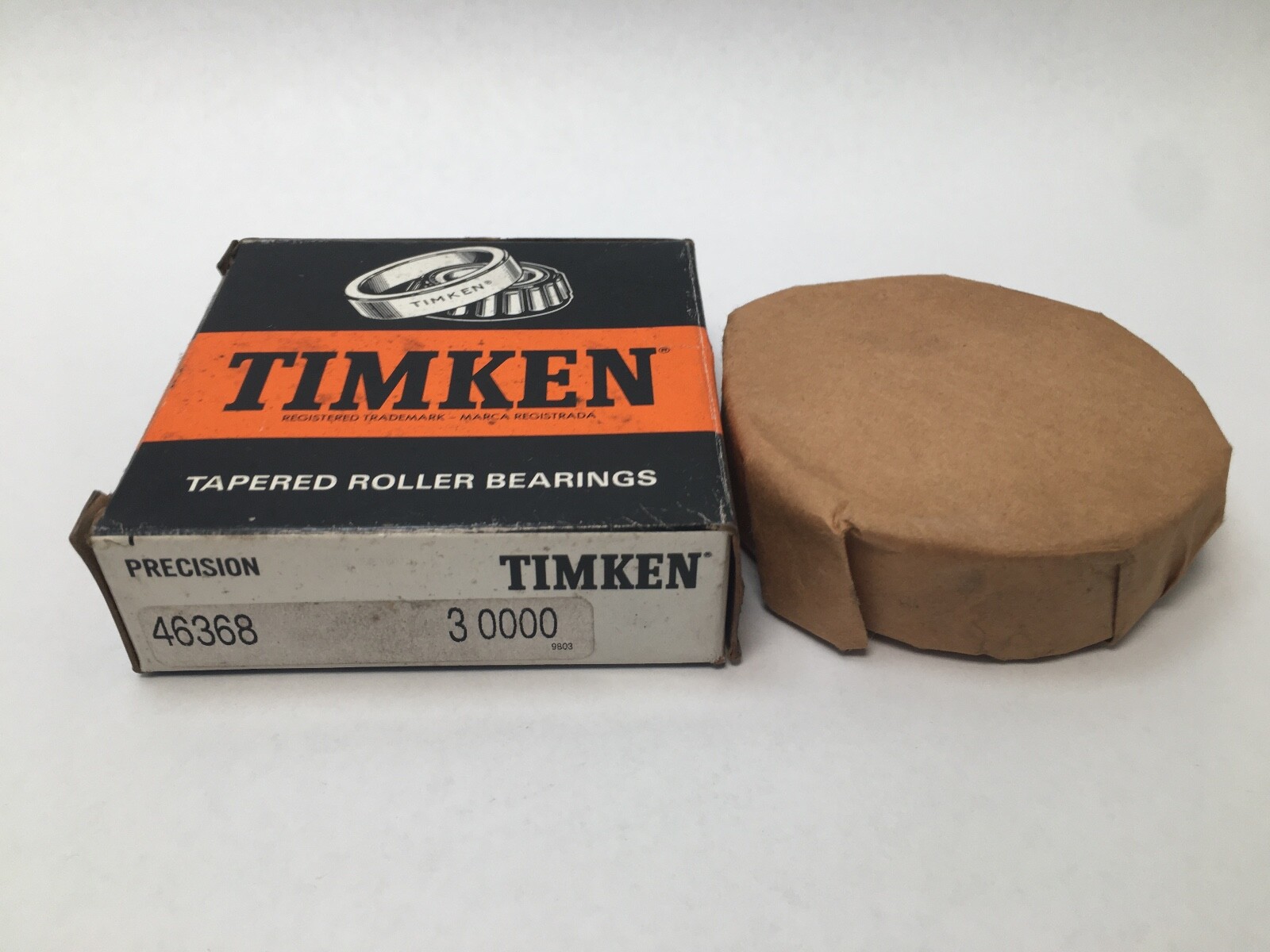

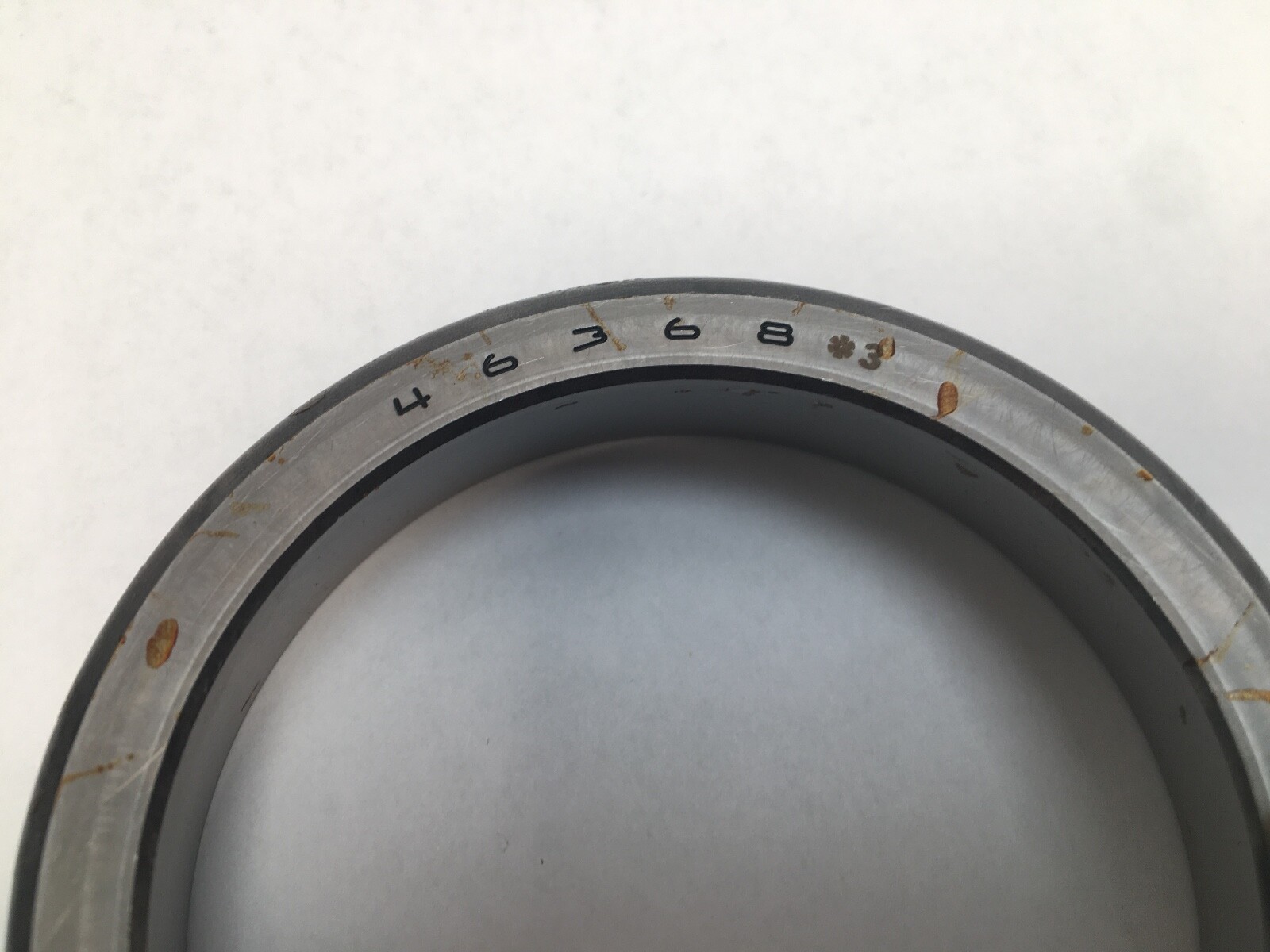

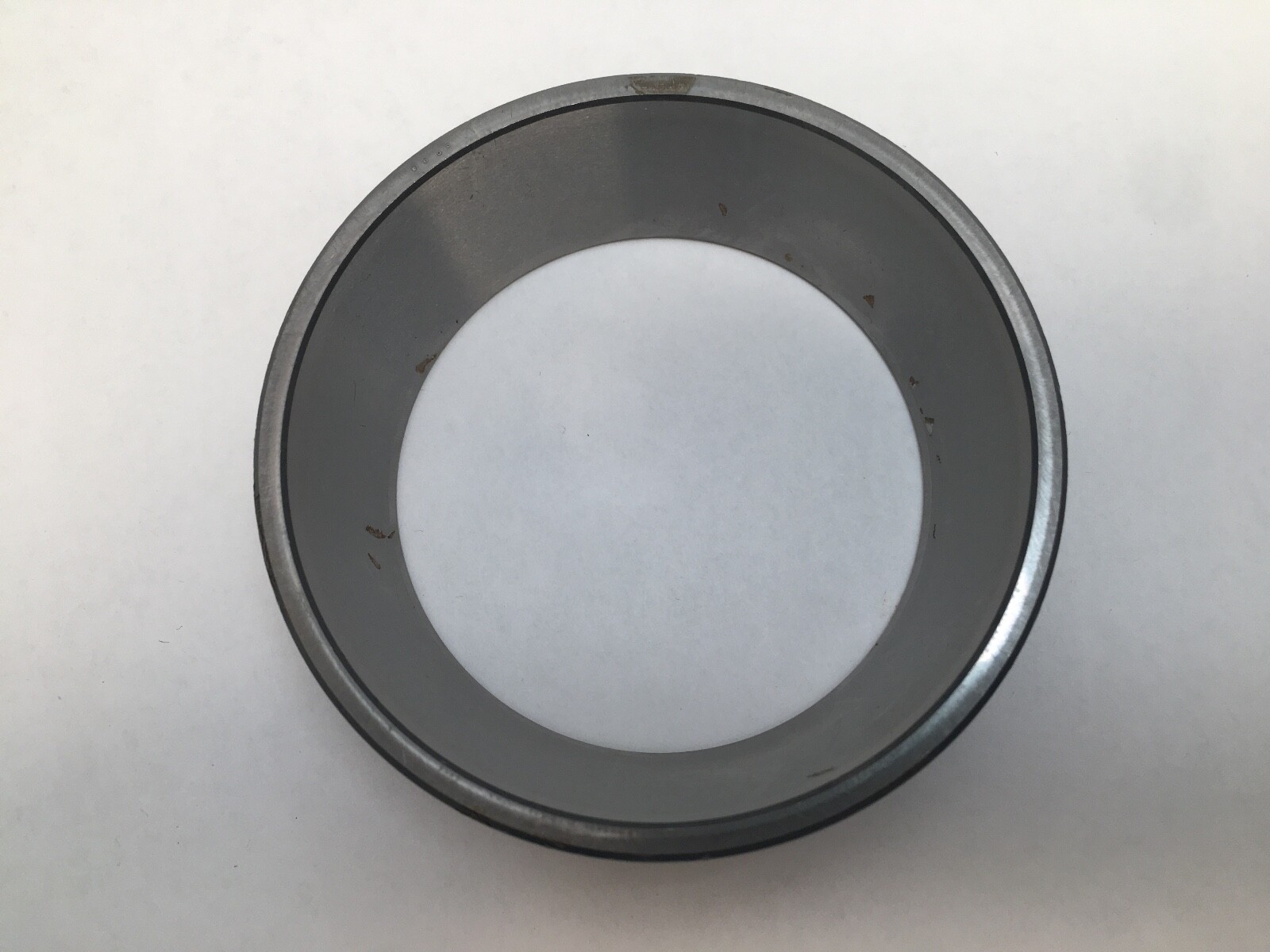

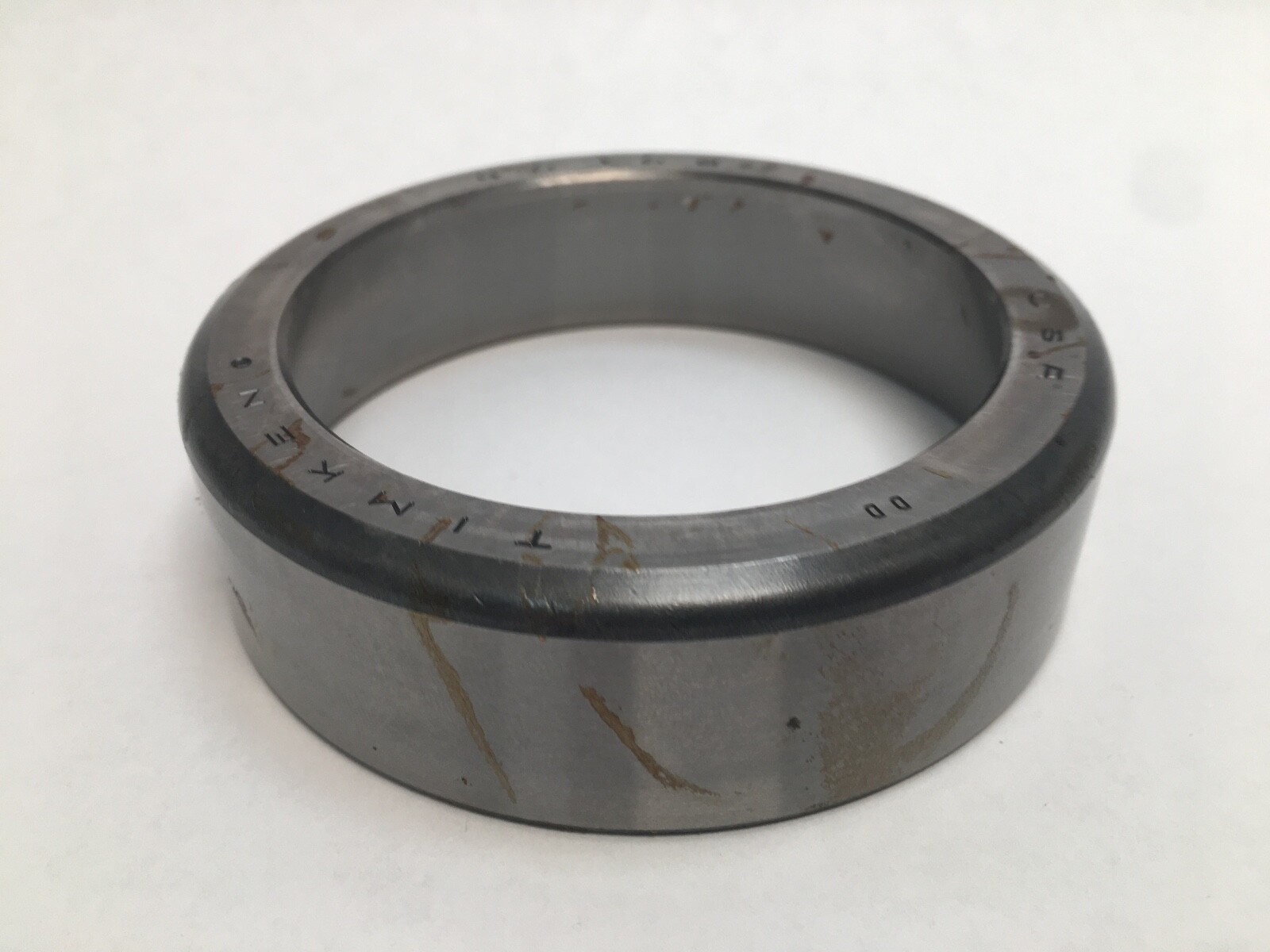

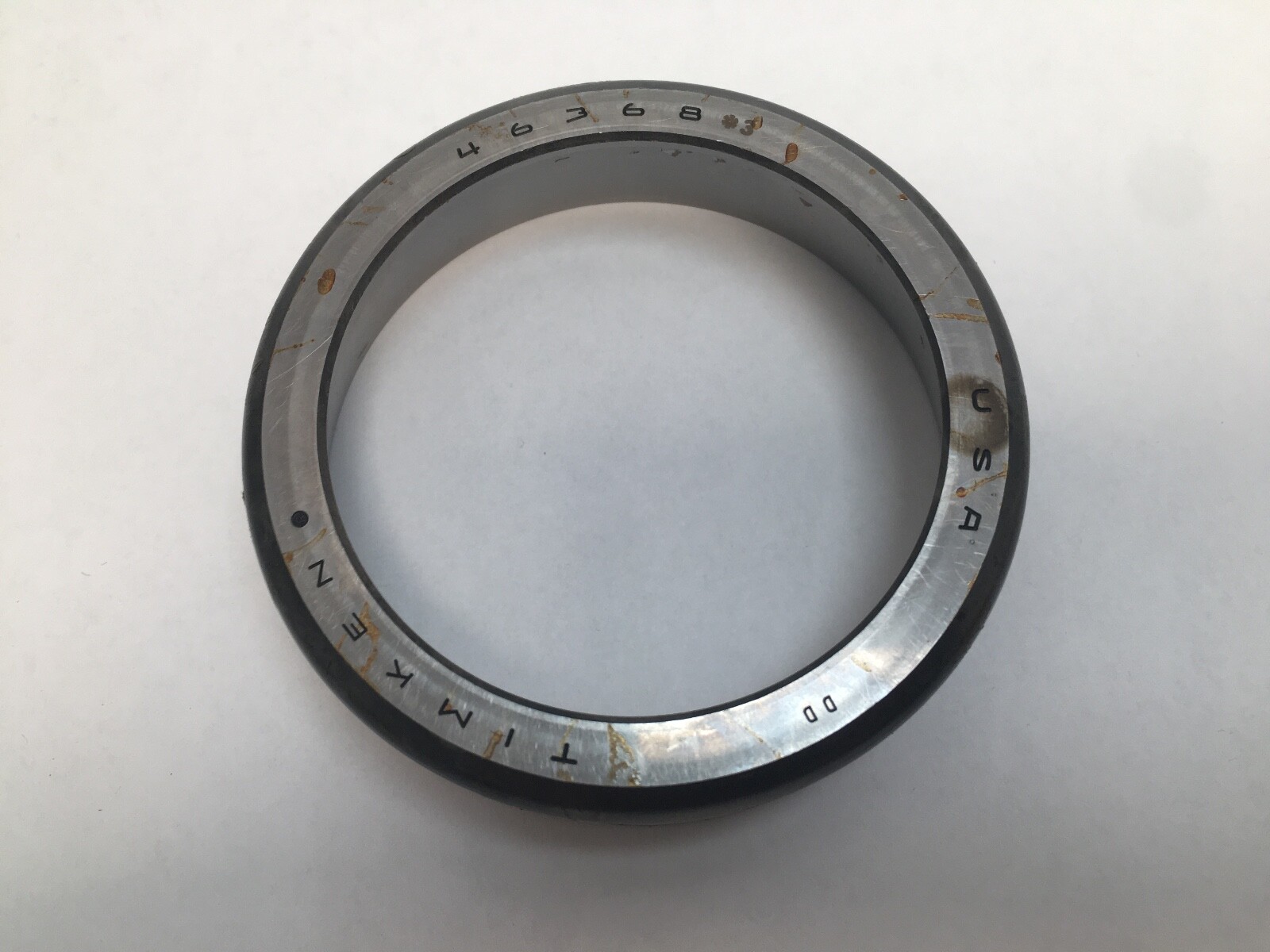

Timken 46368-3 is a Class 3 single cup (outer ring) for a single-row tapered roller bearing, 46000 series. Outside Diameter: 3.6875 in (93.663 mm). Cup Width: 1.0313 in (26.195 mm). Item Weight: 1.0 kg (2.2 lb).
46368 — Timken single cup, 3.6875 in OD, 46000 series.
-3 / *3 — Timken Class 3 precision: tighter tolerance and lower runout than standard Class 2.
Precision Class: Class 3. e Factor: 0.4. Y Factor: 1.49.
Max Housing Fillet Radius: 0.130 in (3.30 mm). Housing Backing Shoulder Diameter: 3.46 in (87.88 mm) frontface, 3.11 in (78.99 mm) backface.
Unit Quantity: 1 Pc. Cup only, single row.
46368 is an ABMA inch cup number also built as Koyo 46368 and NTN 4T-46368, matching the envelope. The Class 3 grade is specific to this Timken cup.
Timken Class 3 precision.
3.6875 in (93.663 mm).
