Tapered roller bearing single cup, 3.1250 in (79.375 mm) OD, 0.6875 in (17.463 mm) width, Class 3 precision. Mates Timken 43096 and 43112 cones.
List Price
$36.37
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Timken |
|---|---|
| MPN | 43312-3 |
| Model | 43312 #3 |
| Bearing Type | Tapered Roller Bearing Cup |
| OD | 3.1250 in (79.375 mm) |
| Width | 0.6875 in (17.463 mm) |
| Series | 43000 |
|---|---|
| Material | Case Carburized Steel |
| Base Number | 43312 |
| Overall Width | 0.6875 in (17.463 mm) |
| Mpn Variants | 43312-3, 43312*3, 43312#3, 43312 #3, 43312 |
| Compatible With Replaces | Timken 43096 cone, Timken 43112 cone |
| Precision Class | Class 3 |
| Item Weight | 0.5 kg (1.2 lb) |
| Number Of Rows | 1 |
| Duty Type | Standard |
| Design Units | Inch |
| Cross Reference 1 | Timken 43312 (standard precision) |
|---|---|
| Cross Reference 2 | NTN 4T-43312 (standard precision) |

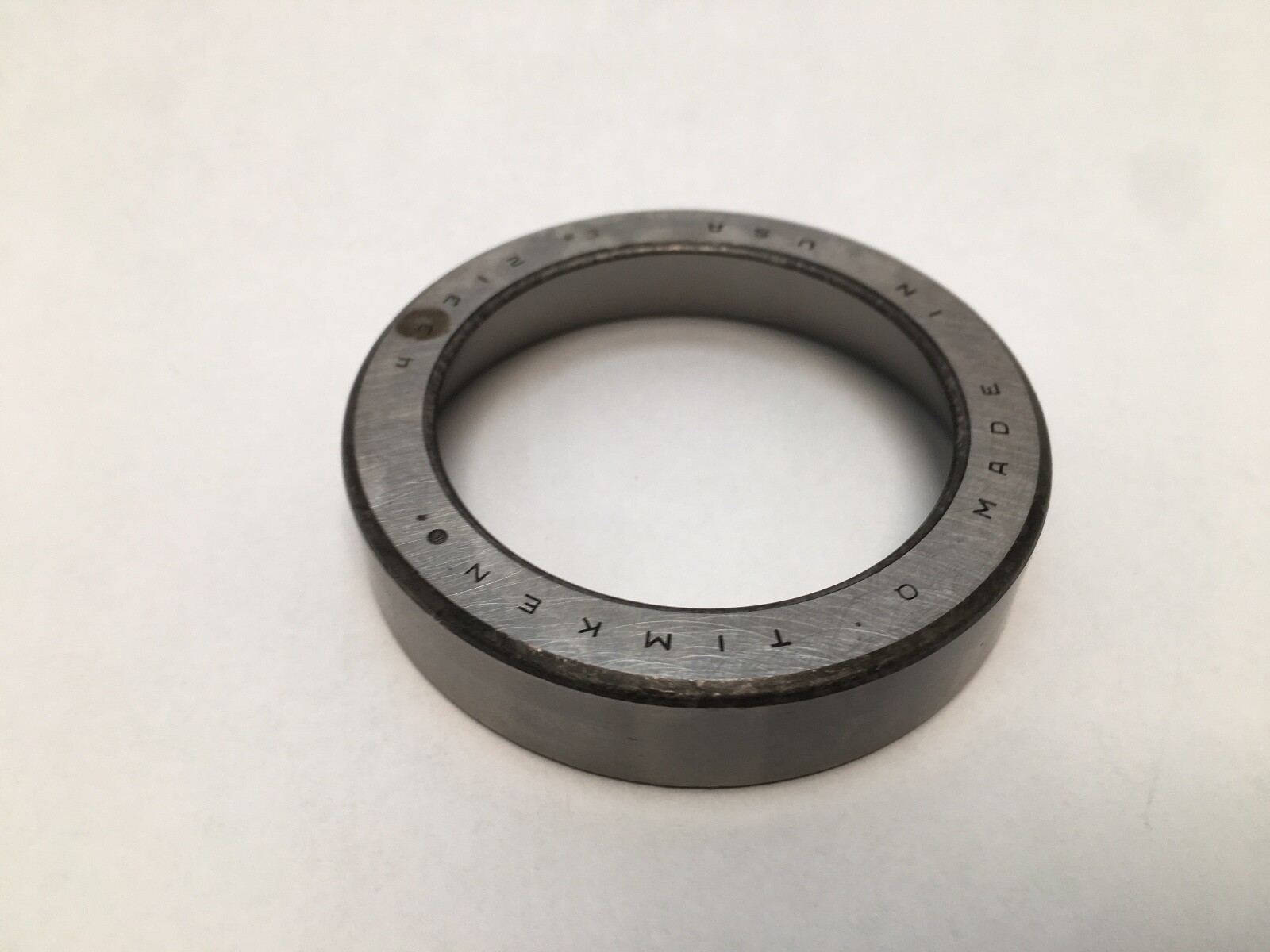

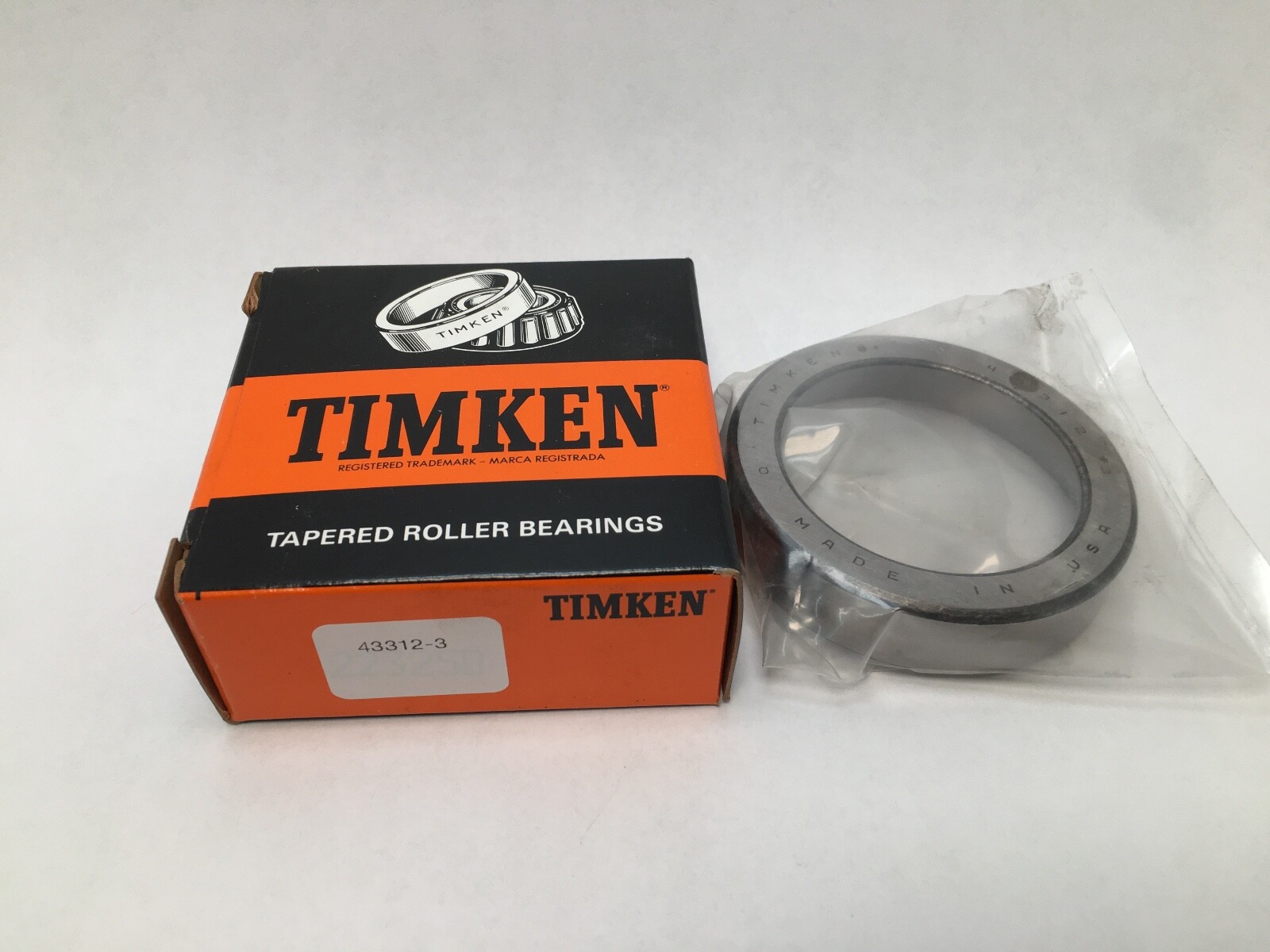

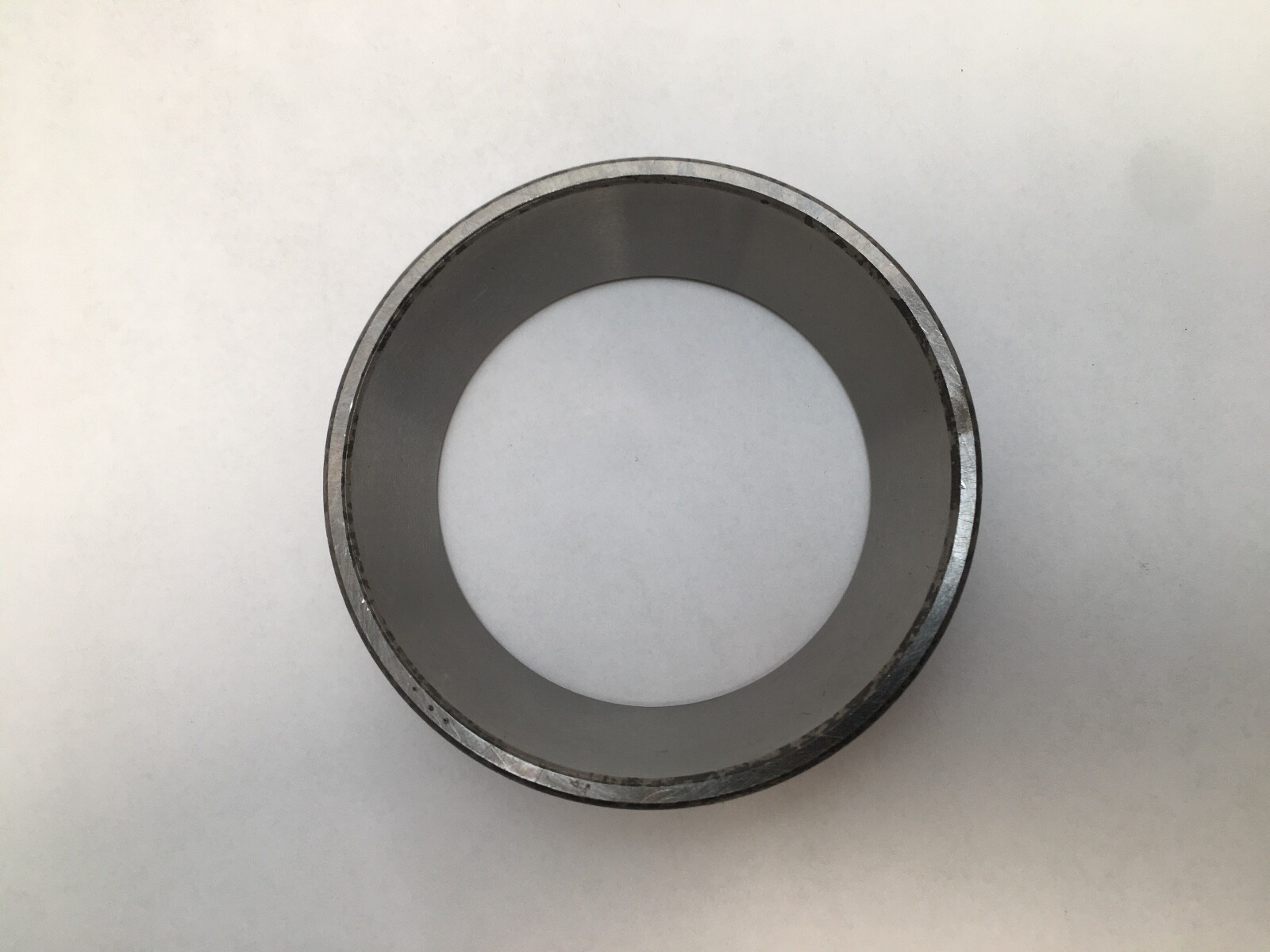

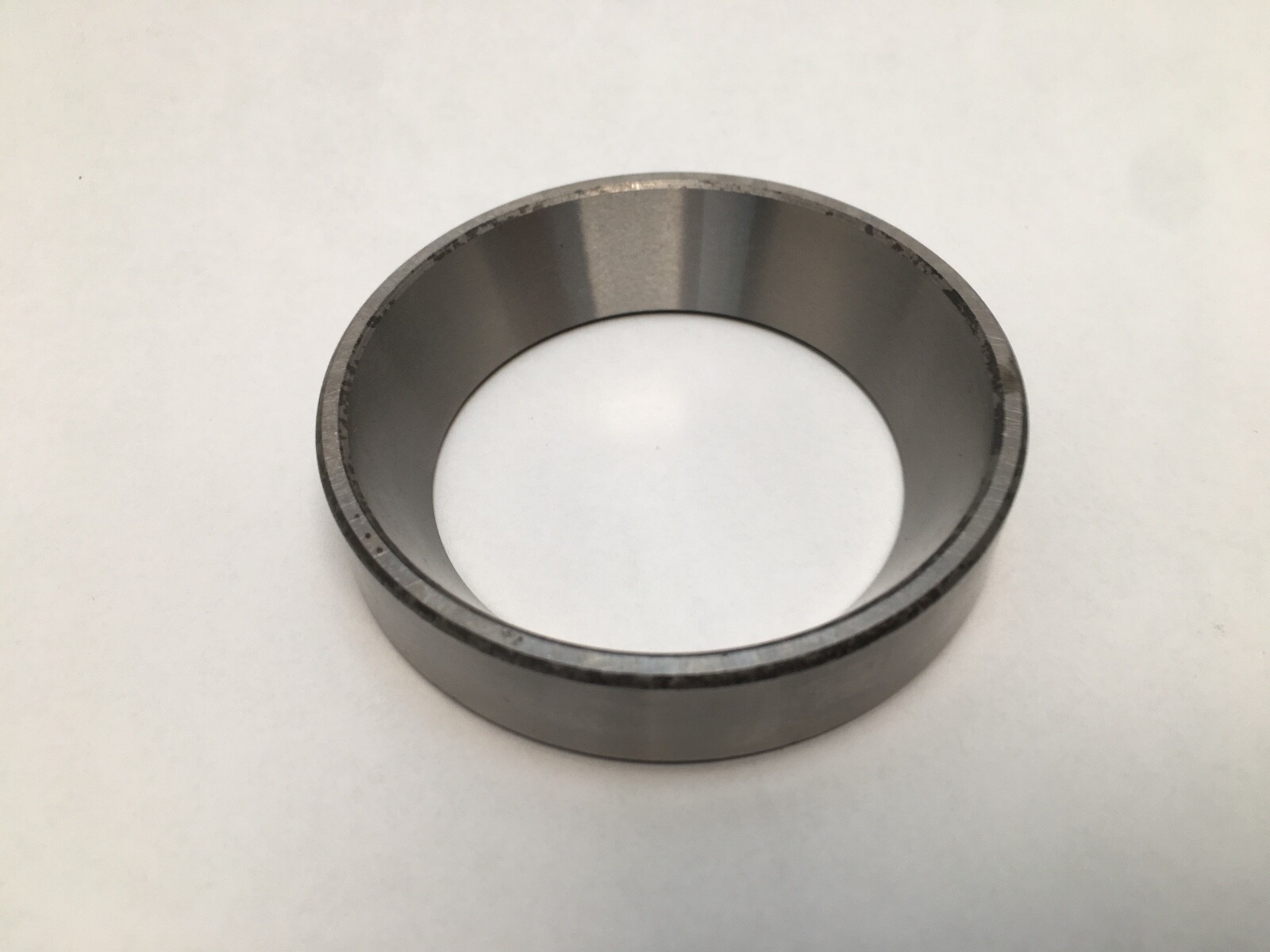

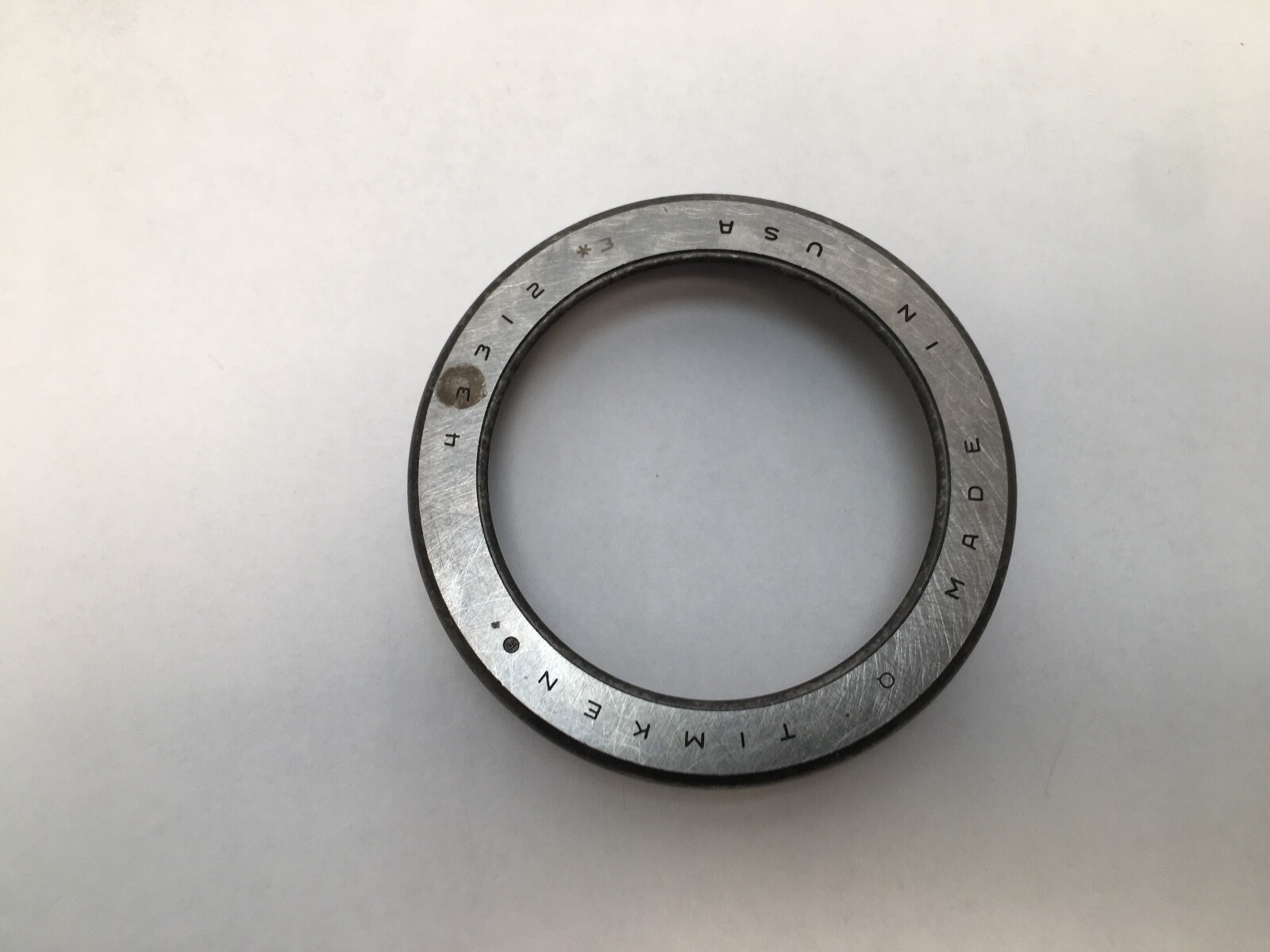

Timken 43312-3 tapered roller bearing cup: the outer ring of a single-row TS tapered roller bearing. Cup only. Unit Quantity: 1 Pc. Part Number: 43312-3. Base Number: 43312. Series: 43000. Outside Diameter: 3.1250 in (79.375 mm). Overall Width: 0.6875 in (17.463 mm). Precision Class: Class 3.
43312 — Timken cup number in the 43000 series, 3-1/8 in OD.

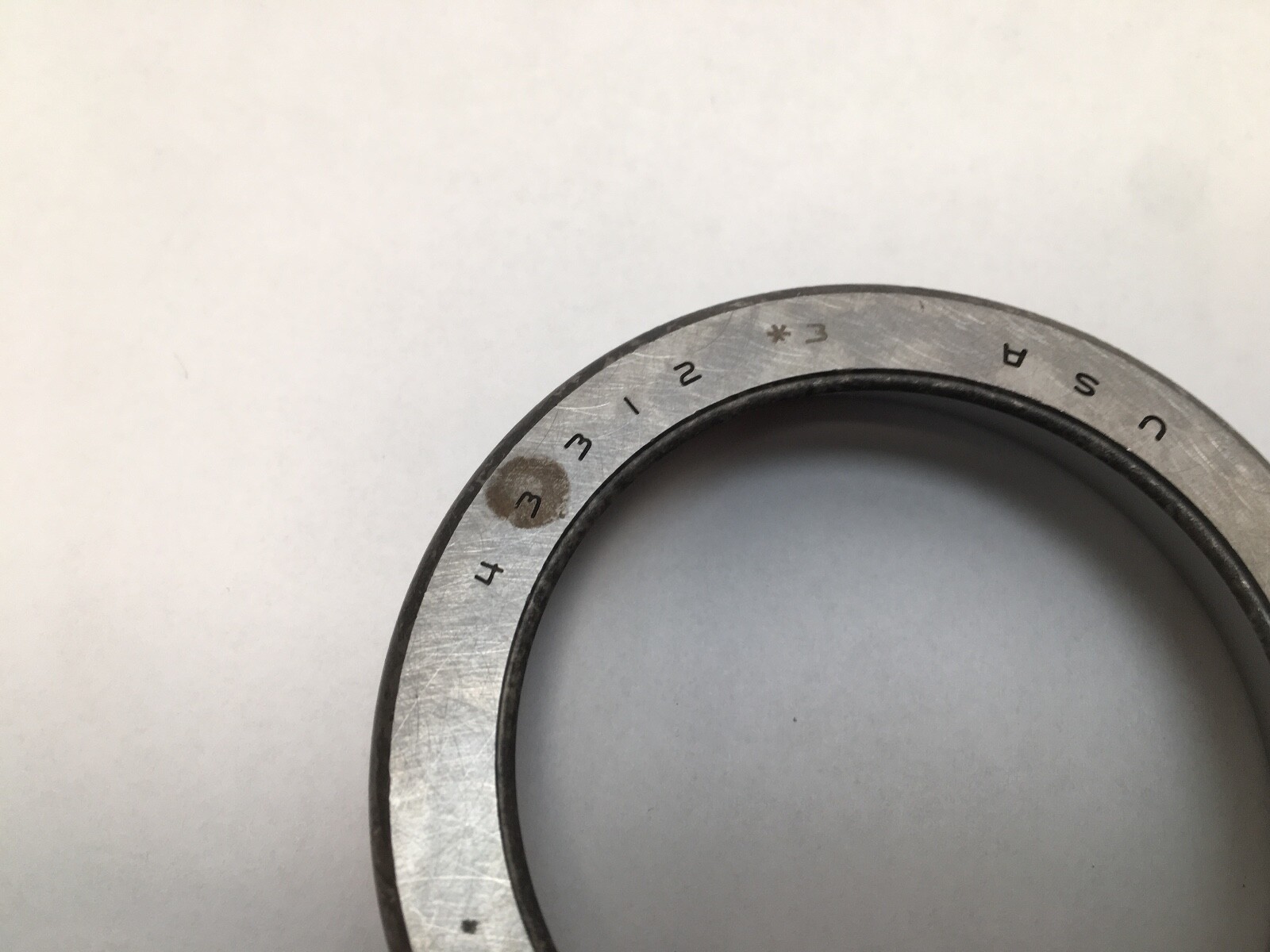

-3 — Timken precision Class 3, marked on cartons as -3, *3 or #3.
Outside Diameter: 3.1250 in (79.375 mm). Overall Width: 0.6875 in (17.463 mm). Precision Class: Class 3. Item Weight: 0.5 kg (1.2 lb). Number Of Rows: 1. Design Units: Inch. e Factor: 0.67. Y Factor: 0.9. Geometry Factor (Cg): 0.0774.
Max Housing Fillet Radius: 1.52 mm (0.06 in). Housing Backing Shoulder Diameter, Frontface (Da): 74.68 mm (2.94 in). Housing Backing Shoulder Diameter, Backface (Db): 67.06 mm (2.64 in).
Matching cones: Timken 43096 and Timken 43112. Cross-references: Timken 43312 (standard precision); NTN 4T-43312 (standard precision). MPN variants: 43312-3, 43312*3, 43312#3, 43312 #3, 43312.
Outside diameter 3.1250 in (79.375 mm) and width 0.6875 in (17.463 mm).
Timken 43096 and Timken 43112 cones.
It marks Timken Class 3 precision; the carton may show it as -3, *3 or #3.
