Availability:
1 in stock

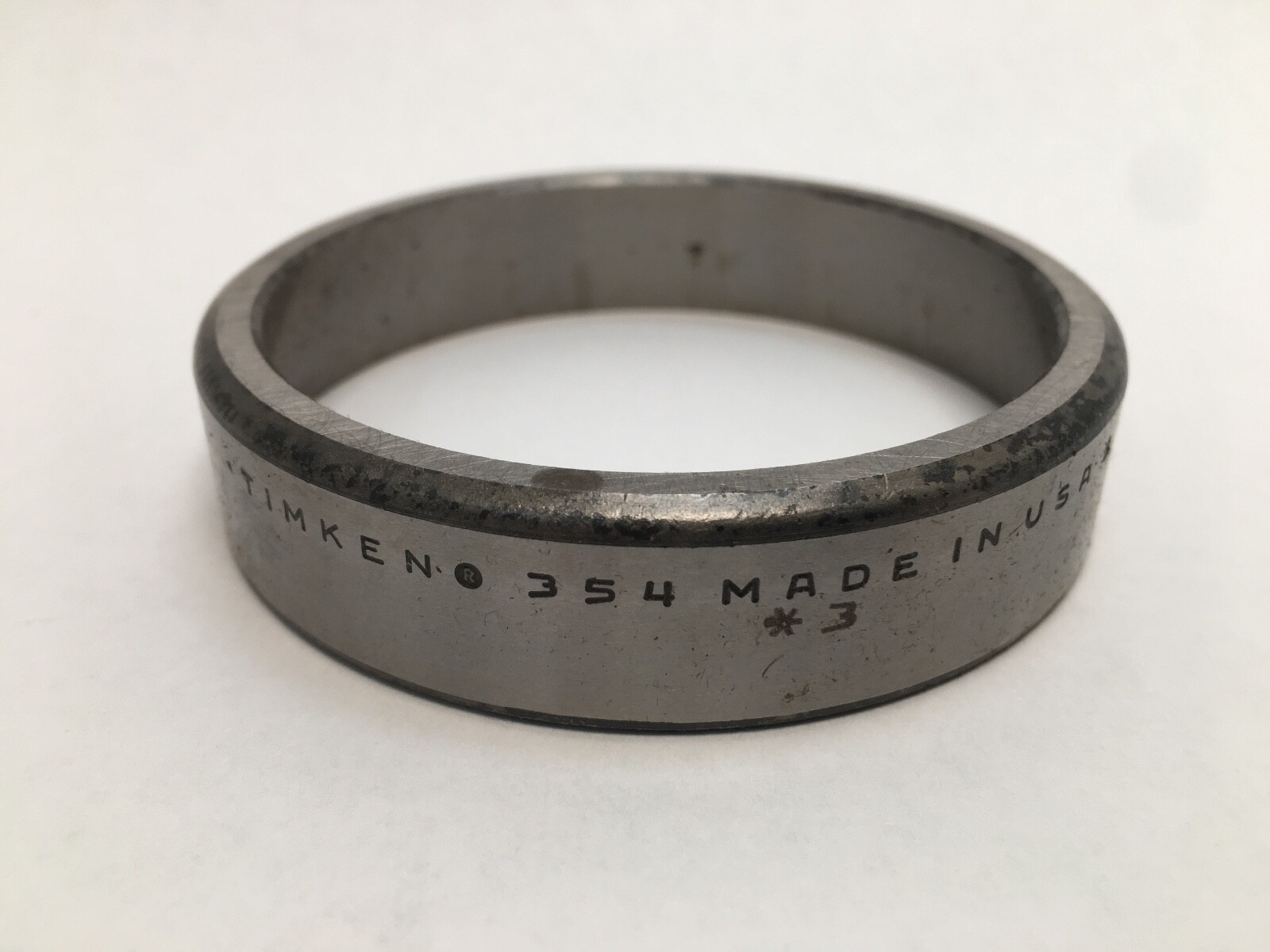

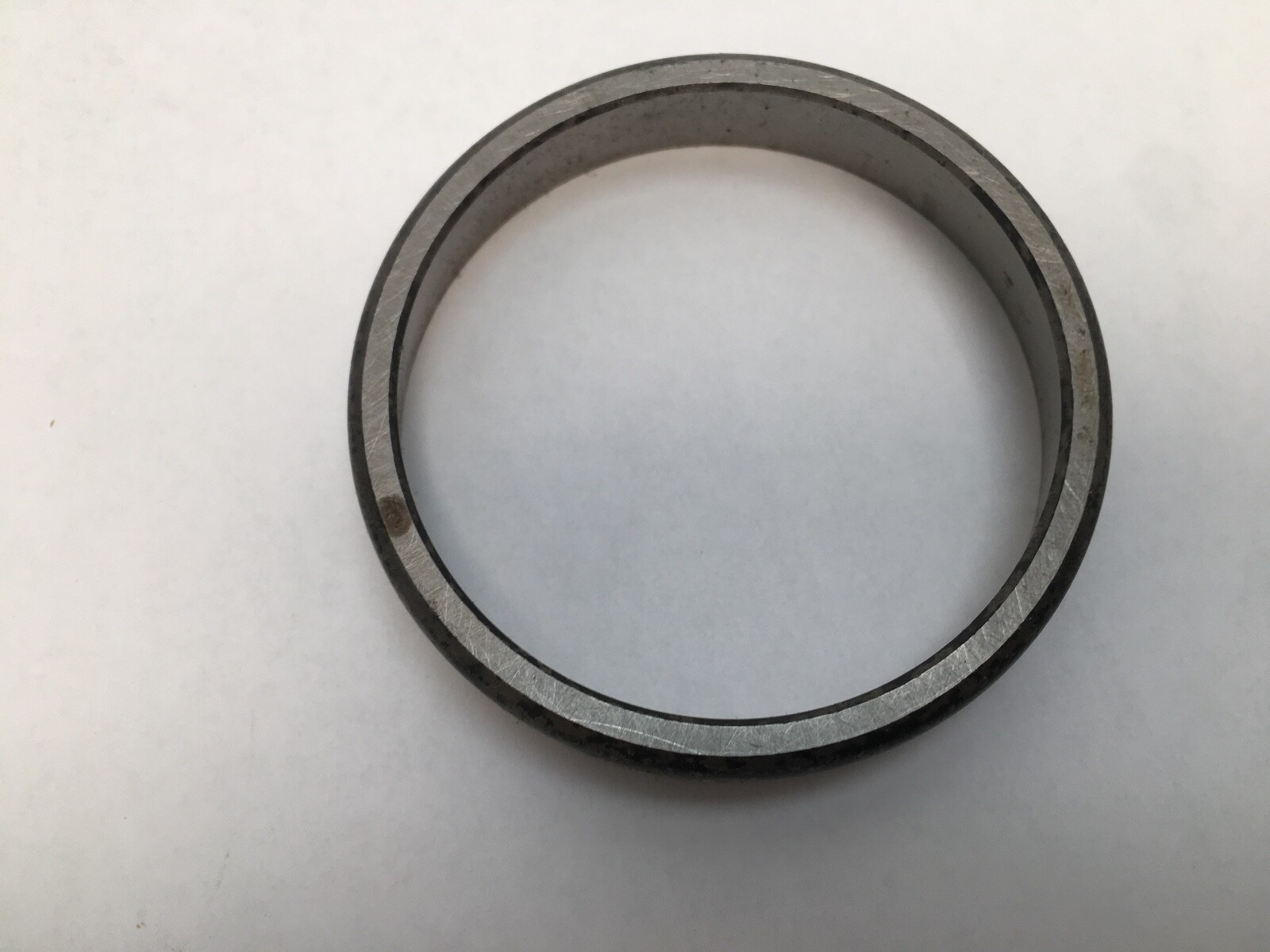

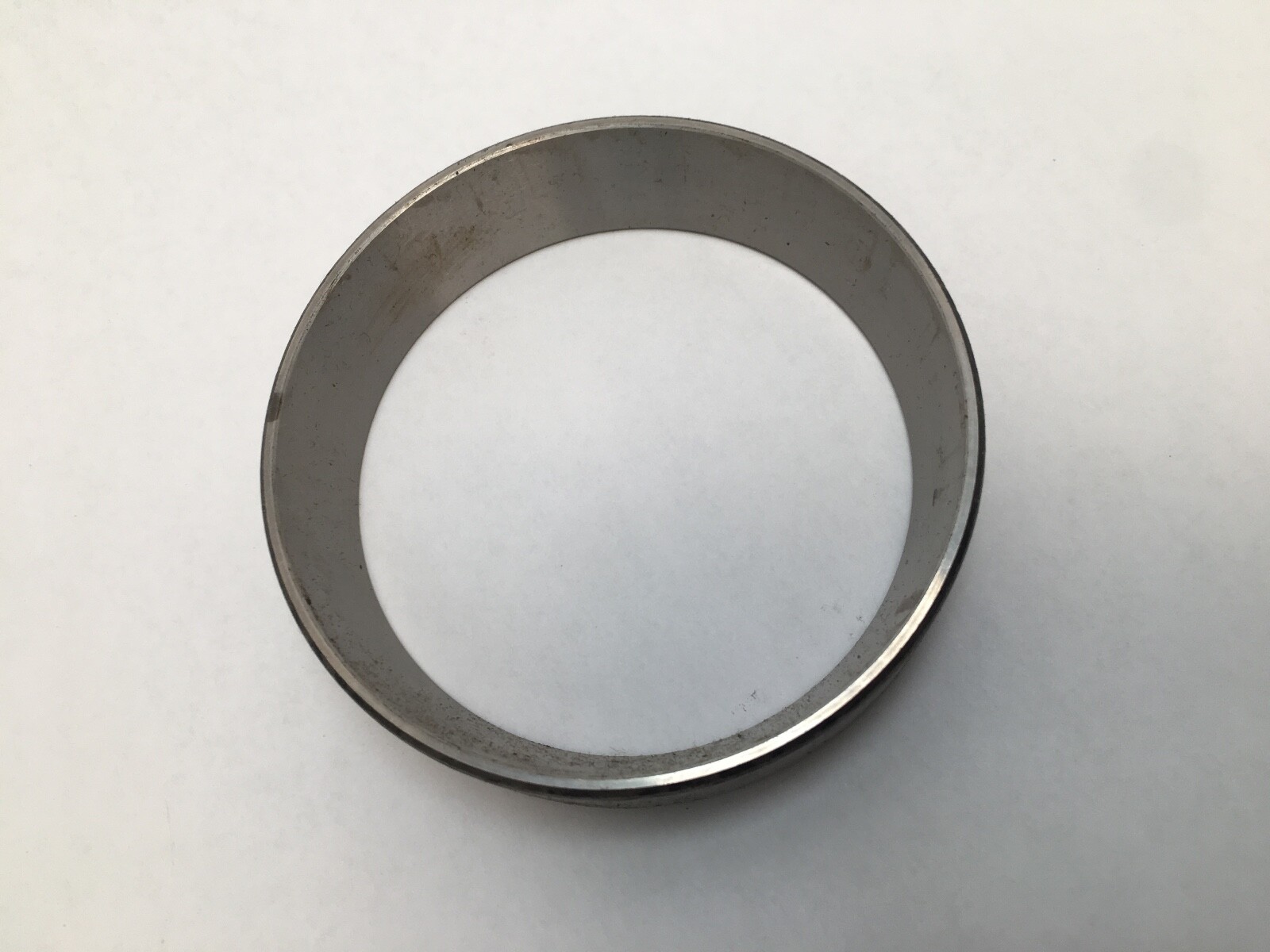

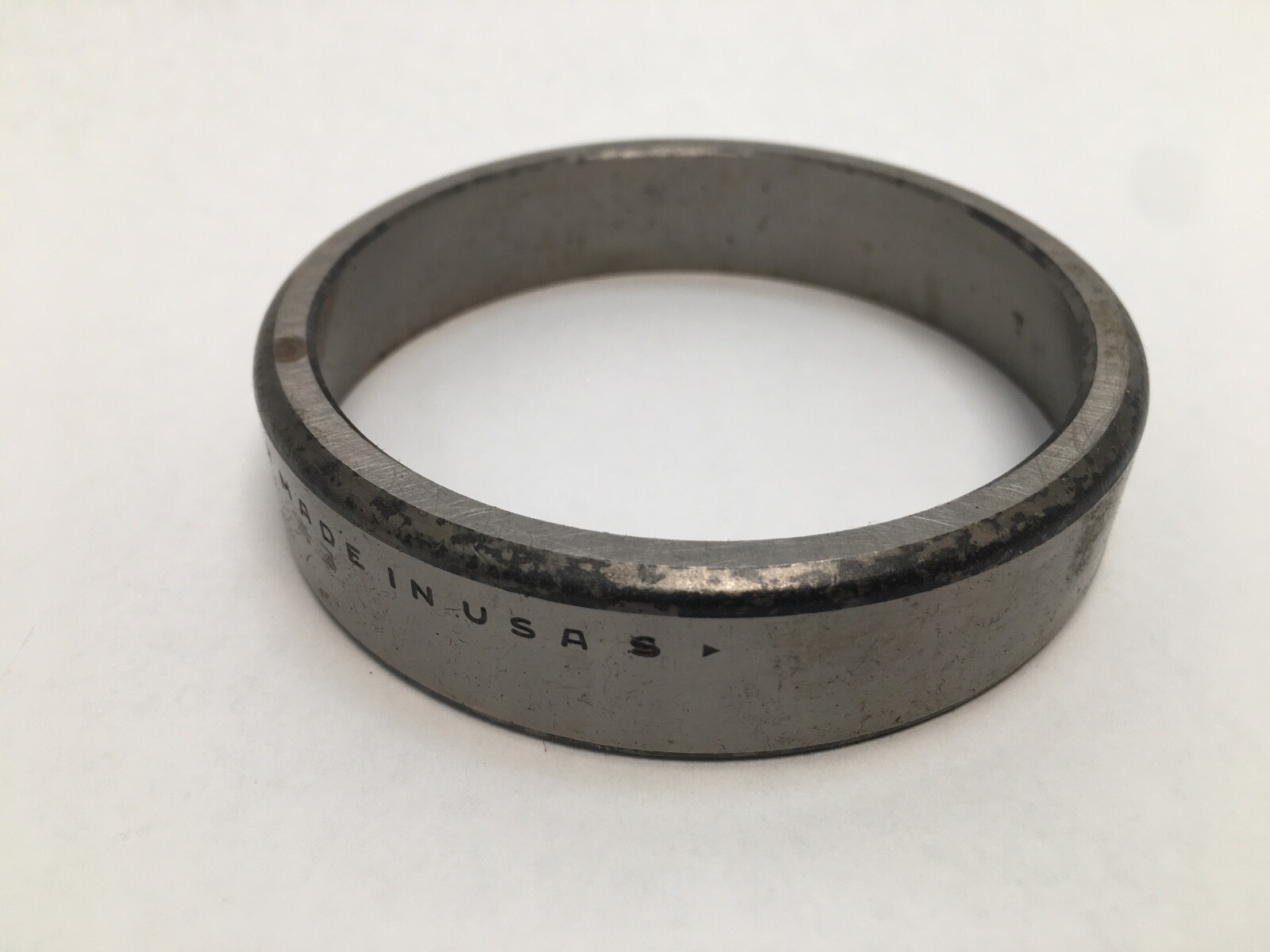

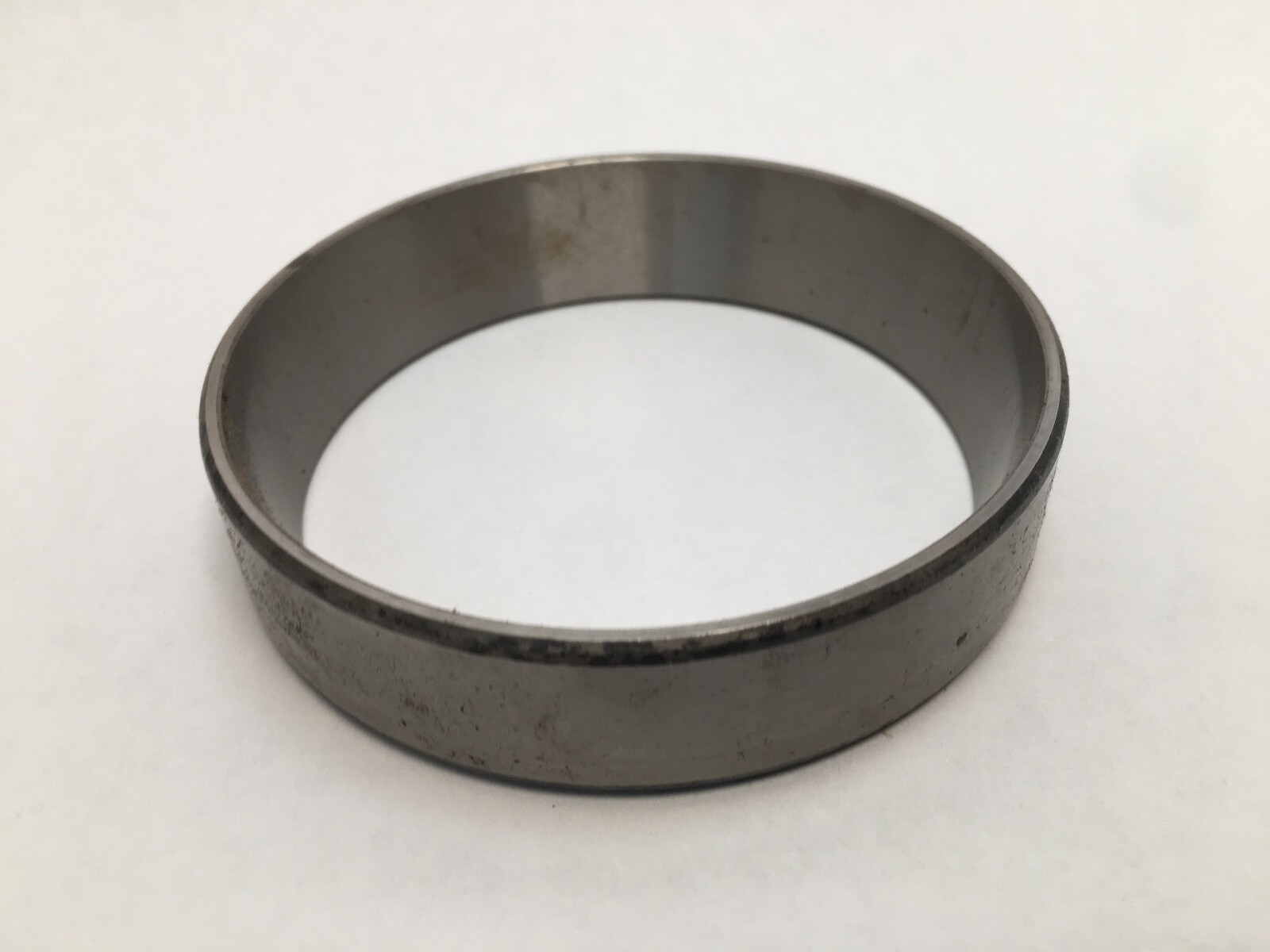

Inch tapered roller bearing cup, 3.3465 in (85 mm) outside diameter, 0.748 in width, Class 3 precision. Runs against a 356 or 357 cone.
List Price
$15.40
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Timken |
|---|---|
| MPN | 354-3 |
| Model | 354 #3 |
| Bearing Type | Tapered Roller Bearing Cup |
| ID | 1.750 in |
| OD | 3.3465 in (85.001 mm) |
| Width | 3/4 in |
| Lubricant | Oil/Grease |
|---|---|
| Series | 354 |
| Material | Chrome Steel |
| Base Number | 354 |
| Overall Width | 0.748 in (18.999 mm) |
| Mpn Variants | 354-3; 354 *3; 354 #3; 3543; 354 |
| Compatible With Replaces | Mating cones: Timken 356, Timken 357 |
| Precision Class | Class 3 |
| Additional Attributes | e Factor 0.31; Y Factor 1.96; Cg 0.0732; Max housing fillet radius 2.03 mm; Da 81.03 mm; Db 76.96 mm |
| Rolling Elements | Tapered Roller |
| Item Weight | 0.5 kg (1.1 lb) |
| Number Of Rows | 1 |
| Duty Type | Heavy |
| Harmonization Code | 8482.20.00 |
| Part Number | 354-3 |
| Cone Part Number | 354 |
| Cone Width | 0.8540 in |
| Cone Backface To Clear Radius | 0.09 in |
| Cone Frontface Backing Diameter | 1.97 in |
| Cage Cone Frontface Clearance | 0.09 in |
| Cage Cone Backface Clearance | 0 in |
| Effective Center Location | -0.19 in |
| Cross Reference 1 | Koyo 354 |
|---|---|
| Cross Reference 2 | NTN 4T-354 |
| Cross Reference 3 | NSK 354 |
| Cross Reference 4 | SKF 354 |
| Cross Reference 5 | BCA / Bower 354 |
Timken 354-3 inch tapered roller bearing cup. Bearing Type: Tapered roller bearing cup — the outer race of a single-row tapered roller bearing. Series: 354. Base Number: 354. Outside Diameter: 3.3465 in (85.001 mm). Overall Width: 0.748 in (18.999 mm). Rolling Elements: Tapered Roller. Number Of Rows: 1. Item Weight: 0.5 kg (1.1 lb).
354 — Timken base cup number, 3.3465 in outside diameter. The outside diameter is exactly 85 mm, so this cup drops into a metric housing bore as well as an inch one.

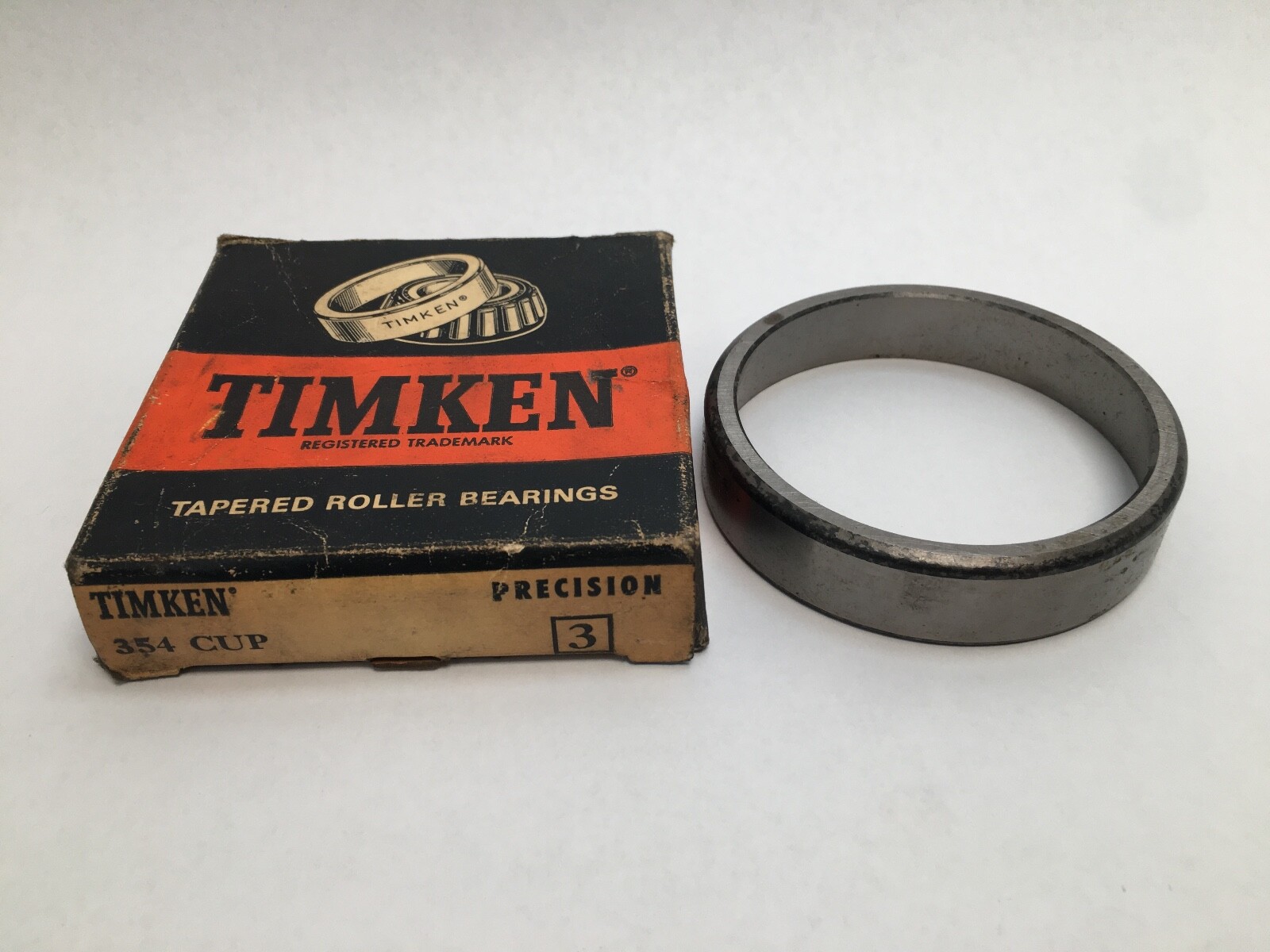

*3 — Timken Precision Class 3. Tighter running and mounting tolerance than standard class, giving lower running vibration and closer location in the housing bore. The same class is written 354-3, 354 *3 and 354 #3.
e Factor: 0.31. Y Factor: 1.96. Geometry Factor (Cg): 0.0732. An e of 0.31 with a Y near 2 is a shallow-angle cup: capacity is weighted to the radial direction, and the calculation switches to its thrust-loaded form only once axial load passes about a third of the radial load.
Maximum fillet radius on the mating housing: 2.03 mm (0.08 in). Housing Backing Shoulder Diameter, frontface (Da): 81.03 mm (3.19 in). Housing Backing Shoulder Diameter, backface (Db): 76.96 mm (3.03 in).
Unit Quantity: 1 Pc. Cup only. Matching cones are the Timken 356 and 357.
354 is an industry-standard inch tapered roller bearing cup number. Koyo, NTN, NSK, SKF and BCA/Bower all build a 354 to the same boundary dimensions, and all interchange with this cup. Precision Class 3 is a Timken tolerance grade; a standard-class 354 from any maker fits the same envelope but holds a wider tolerance band.
