Tapered roller bearing cup, 4-1/4 in OD, 0.7500 in width, Class 3 precision. e factor 0.46, Y factor 1.31, mates with the 29580 and 29582 cones.
List Price
$55.66
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Timken |
|---|---|
| MPN | 29522-3 |
| Model | 29522 #3 |
| Bearing Type | Tapered Roller Bearing Cup |
| OD | 4.2500 in (107.95 mm) |
| Series | 295 |
|---|---|
| Harmonization Code | 8482.20.00 |
| Cup Part Number | 29522 |
| Design Units | Imperial |
| Bearing Material | Carburized Steel |
| Cup Width | 0.7500" |
| Cup Backface To Clear Radius | 0.03" |
| Base Number | 29522 |
| Overall Width | 0.7500 in (19.050 mm) |
| Mpn Variants | 29522, 29522-3, 29522 *3, 29522#3 |
| Compatible With Replaces | SKF 29522, NSK 29522, Koyo 29522, Fersa 29522 |
| Precision Class | Class 3 |
| E Factor | 0.46 |
| Precision Rating | Class 3 |
| Rolling Elements | Tapered Roller |
| Item Weight | 0.9 kg (1.9 lb) |
| Number Of Rows | 1 |
| Cone Part Number | 29580, 29582 |
| Cross Reference 1 | SKF 29522 - standard class |
|---|---|
| Cross Reference 2 | NSK 29522 - standard class |
| Cross Reference 3 | Koyo 29522 - standard class |
| Cross Reference 4 | Fersa 29522 - standard class |
| Cross Reference 5 | BCA/Bower 29522 - standard class |
| Cross Reference 6 | PEER 29522 - standard class |

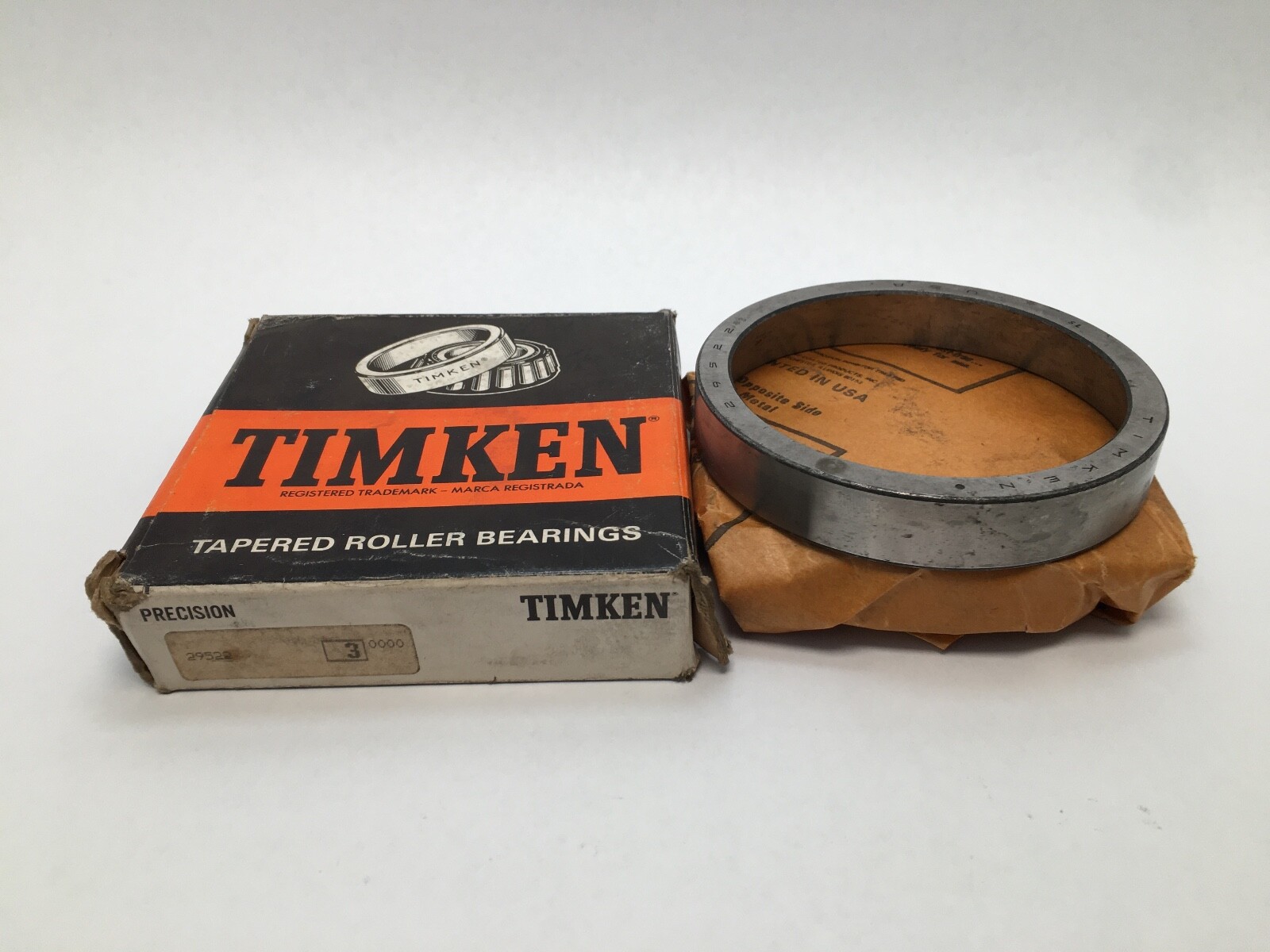

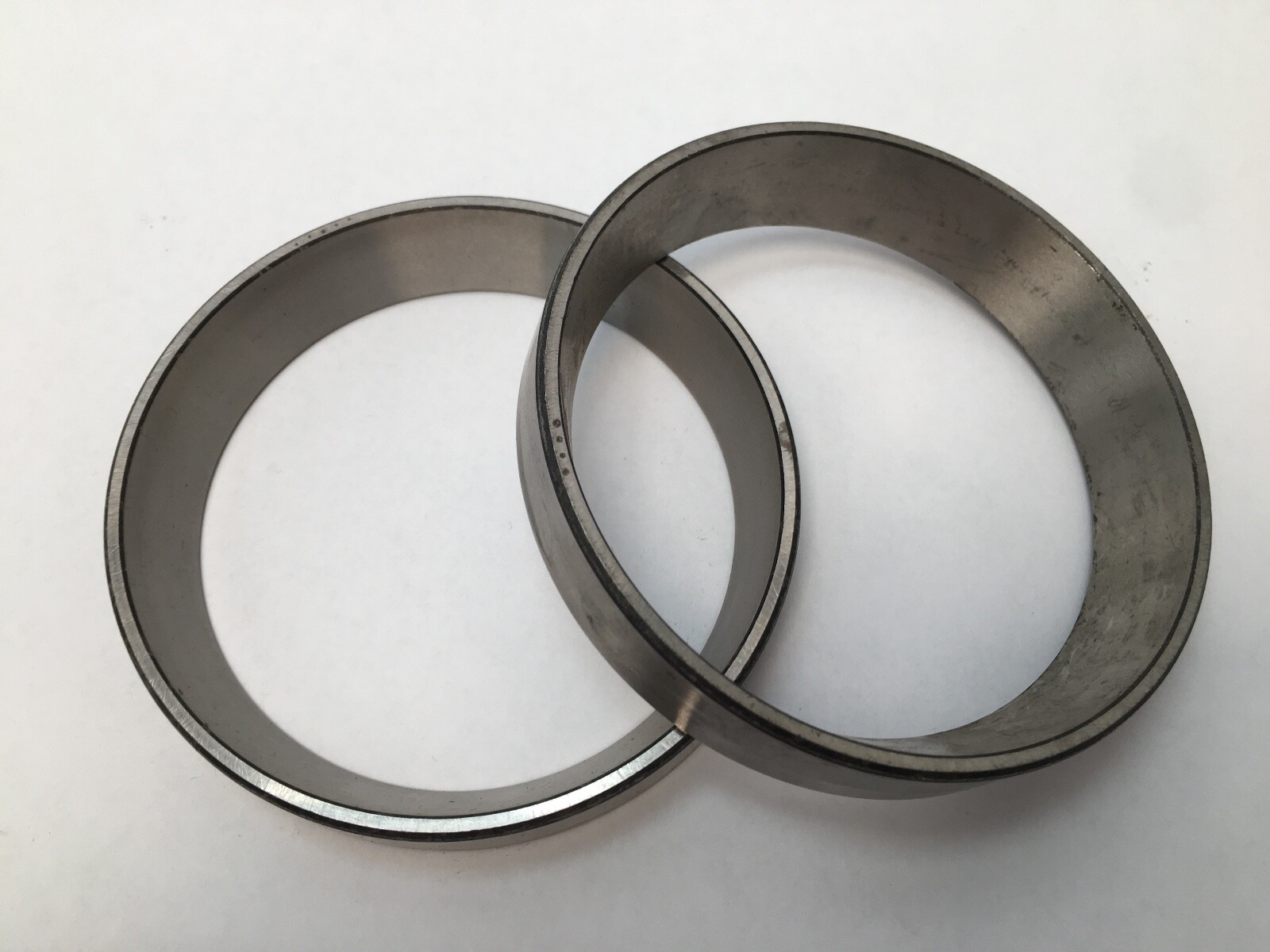

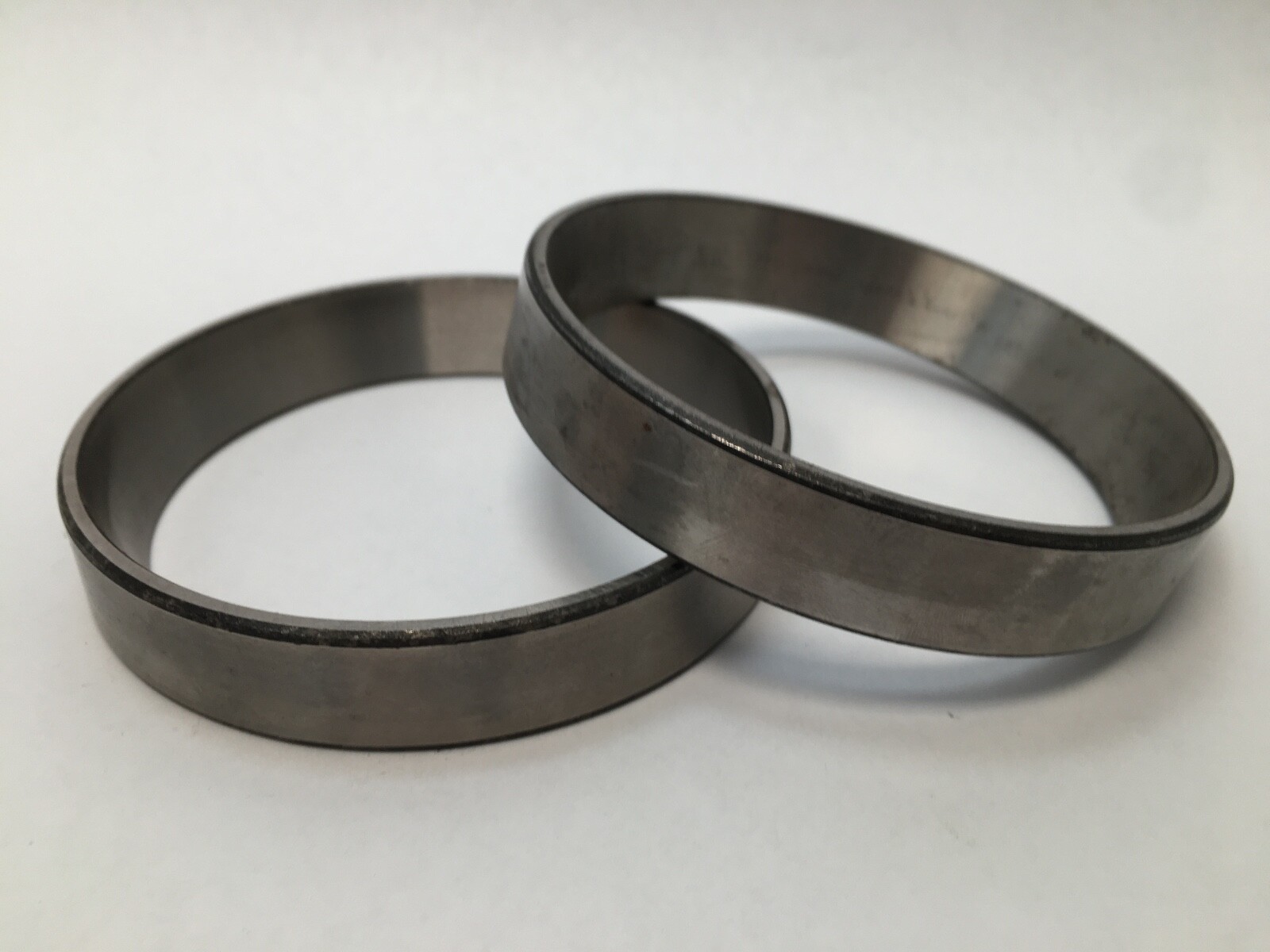

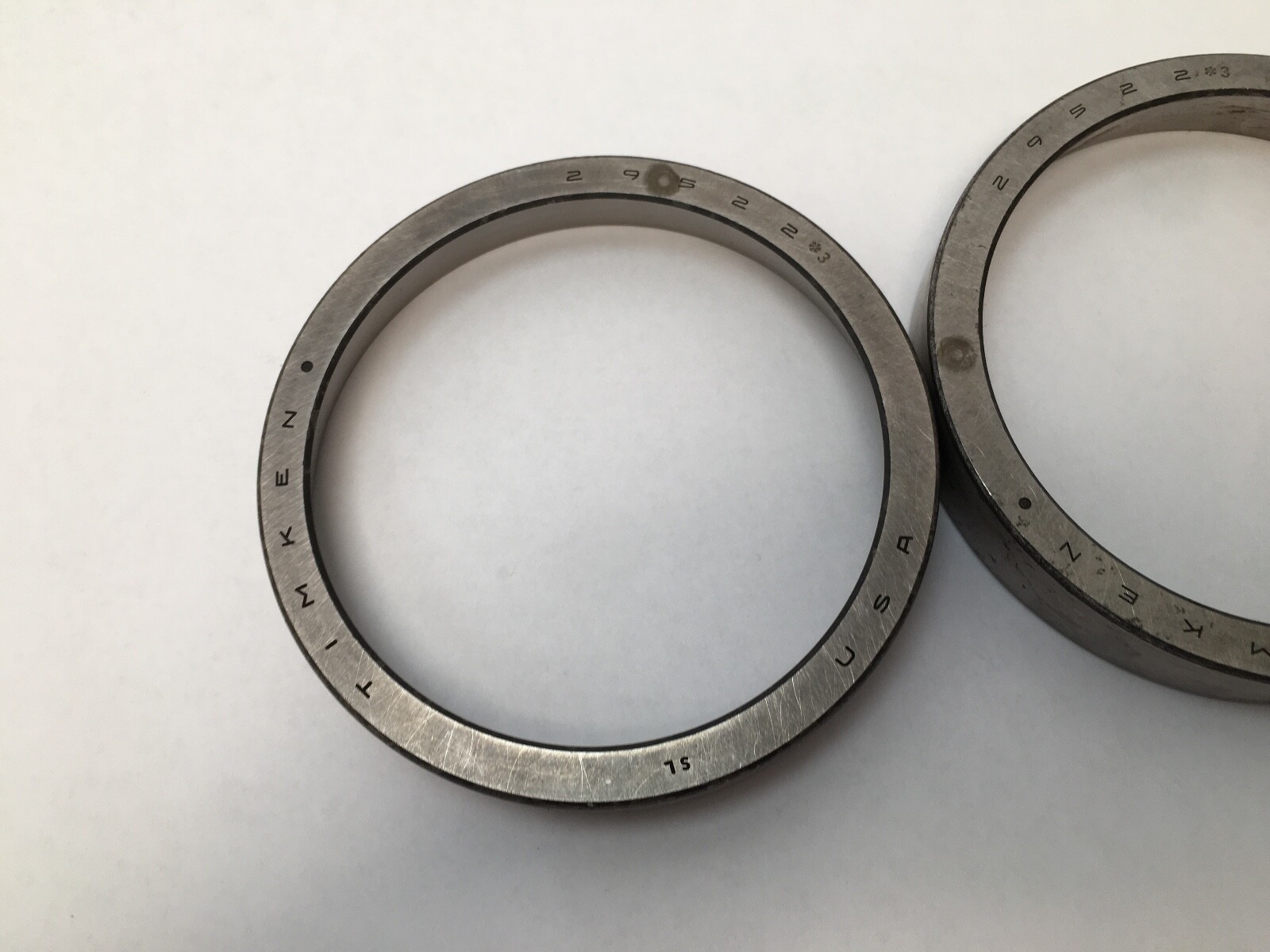

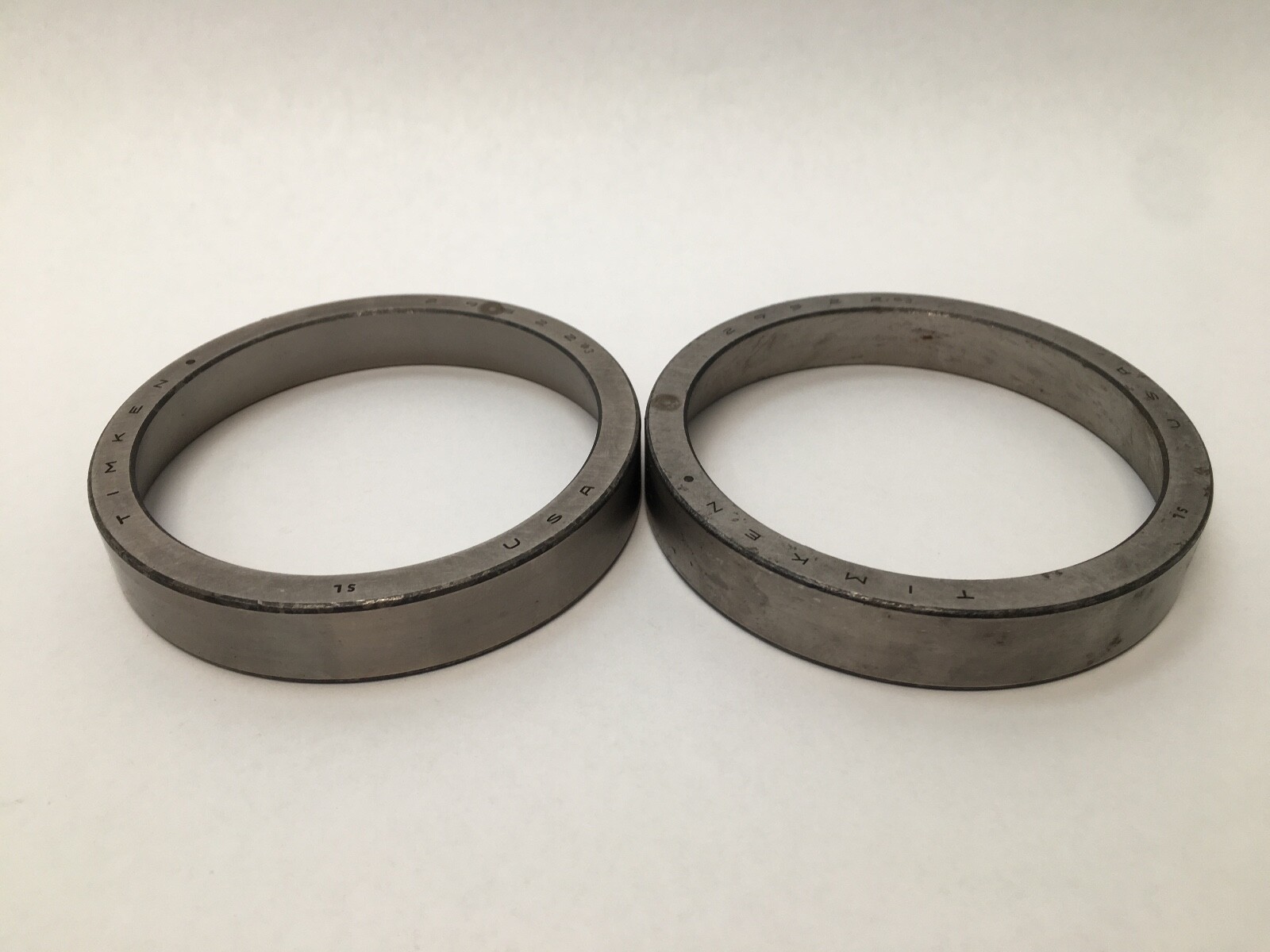

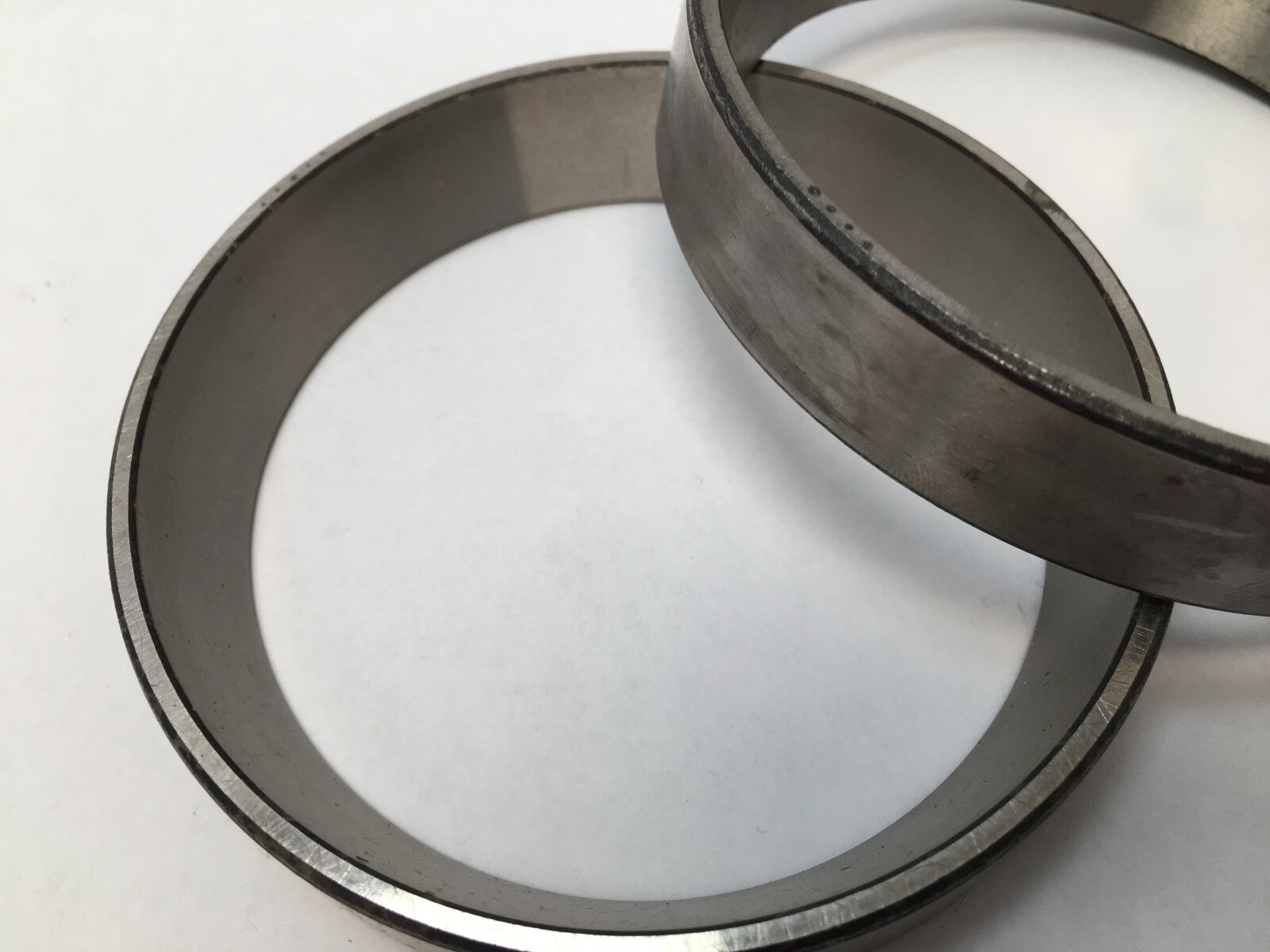

Timken 29522-3 single tapered roller bearing cup, the outer ring of a TS-design tapered roller bearing. Cups only. Unit Quantity: 2 Pcs. Outside Diameter (D): 4.2500 in (107.95 mm). Overall Width (C): 0.7500 in (19.050 mm). Series: 295. Bearing Material: Carburized Steel. Design Units: Imperial.

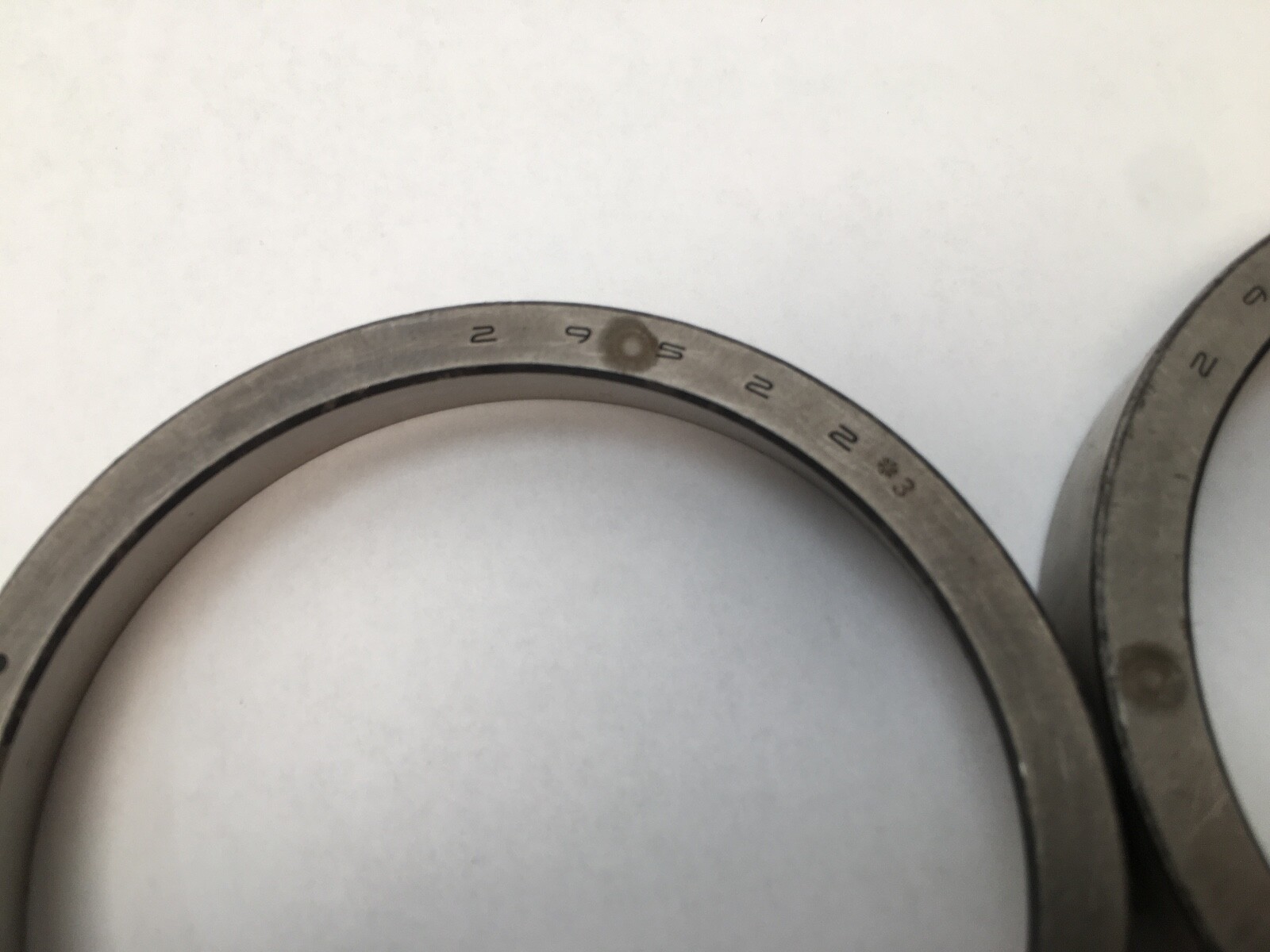

29522 — the cup number, which fixes the outside diameter, the cup width and the raceway angle.
-3 — Precision Class 3, a tighter tolerance than standard.
Precision Class: Class 3. Rolling Elements: Tapered Roller. Number Of Rows: 1 per cup. e Factor: 0.46. Y Factor: 1.31. Geometry Factor (Cg): 0.111. Item Weight: 0.9 kg (1.9 lb) per piece.
Outside Diameter: 4.2500 in (107.95 mm). Overall Width: 0.7500 in (19.050 mm). Max Housing Fillet Radius: 0.03 in (0.76 mm). Housing Backing Shoulder Diameter, Frontface (Da): 4.09 in (103.89 mm). Housing Backing Shoulder Diameter, Backface (Db): 3.86 in (98.04 mm).
Matching cones: Timken 29580 and Timken 29582. The 29522 cup number is carried by SKF, NSK, Koyo, Fersa, BCA/Bower and PEER in their standard class.
4.2500 in (107.95 mm).
Timken 29580 and Timken 29582.
Precision Class 3.
