Tapered roller bearing cup, 6.7500 in (171.450 mm) OD, 1.5000 in (38.100 mm) cup width, case carburized steel. NTN inch-series 77675 cup, Bower marking.
List Price
$48.16
4 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | NTN |
|---|---|
| MPN | 77675PW2 |
| Model | 77675 PW2 #BW |
| Bearing Type | Tapered Roller Bearing Cup |
| OD | 6.7500 in (171.450 mm) |
| Width | 1.5000 in (38.100 mm) |
| Mpn Variants | 77675PW2, 77675-PW2, 77675 PW2, 77675 PW2 #BW, Bower 77675 |
|---|---|
| Material | Case carburized steel |
| Rolling Elements | Tapered Roller |
| Bearing Material | Case carburized steel |
| Industry Terms | tapered roller bearing cup; bearing outer ring; inch series cup race; taper roller race; Bower cup |
| Common Misspellings | NTN 77675-PW-2; NTN 77675 PW 2; Bowar 77675; NTN 76675PW2 |
| Application Types | Tapered roller bearing assemblies in axles and gearboxes; wheel hubs; industrial and heavy equipment drivelines |
| Cross Reference 1 | Timken 77675 |
|---|

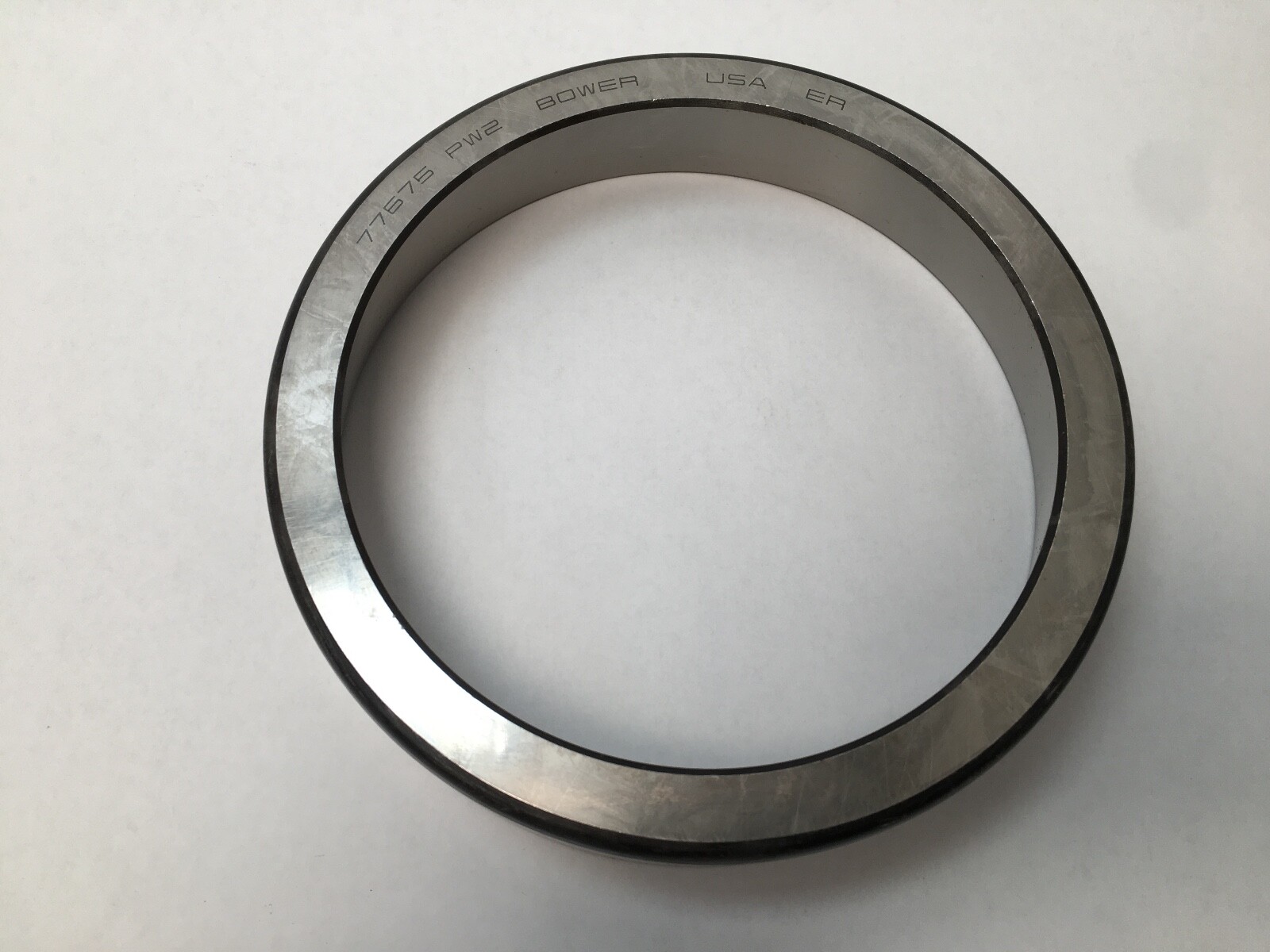

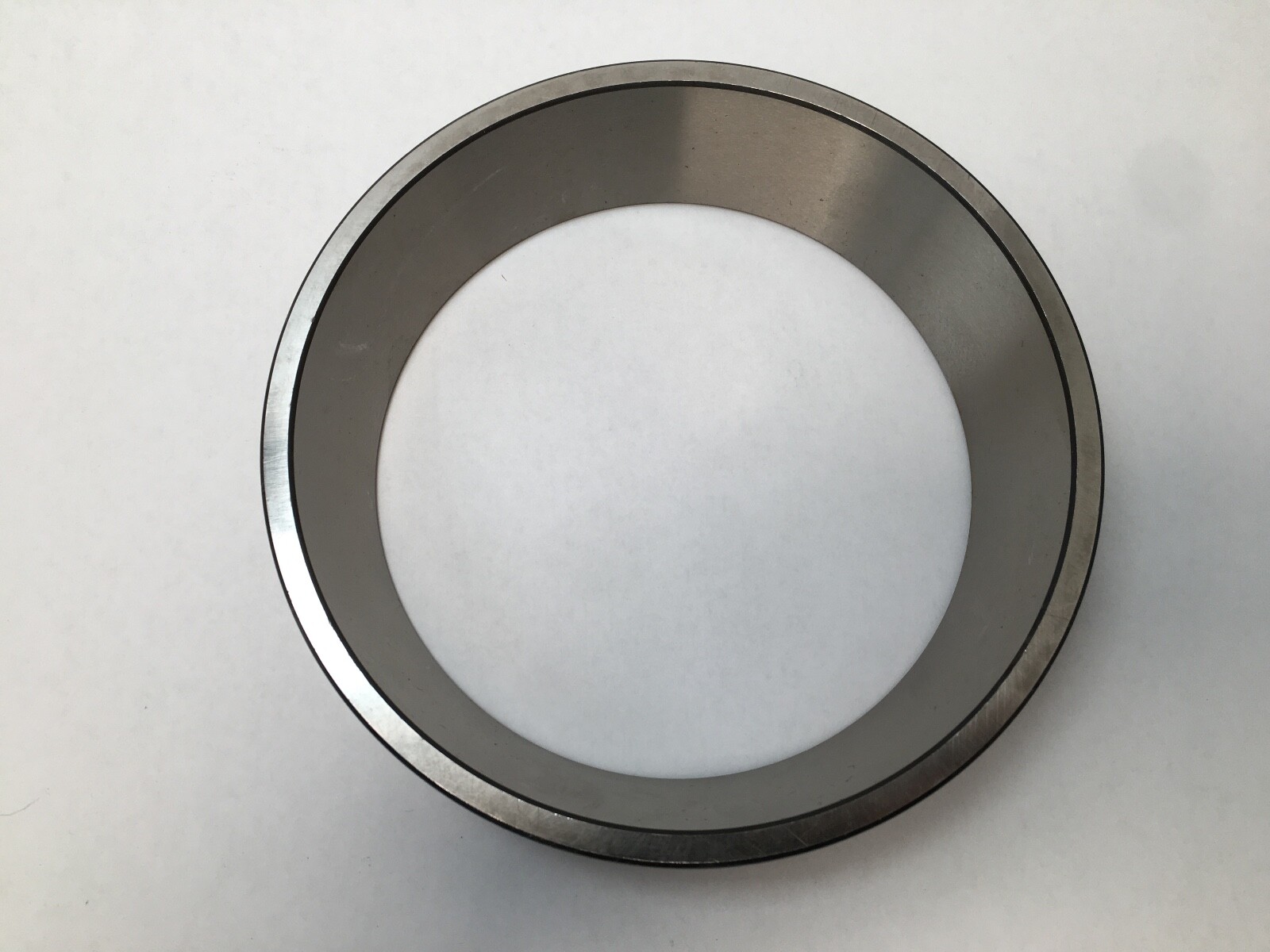

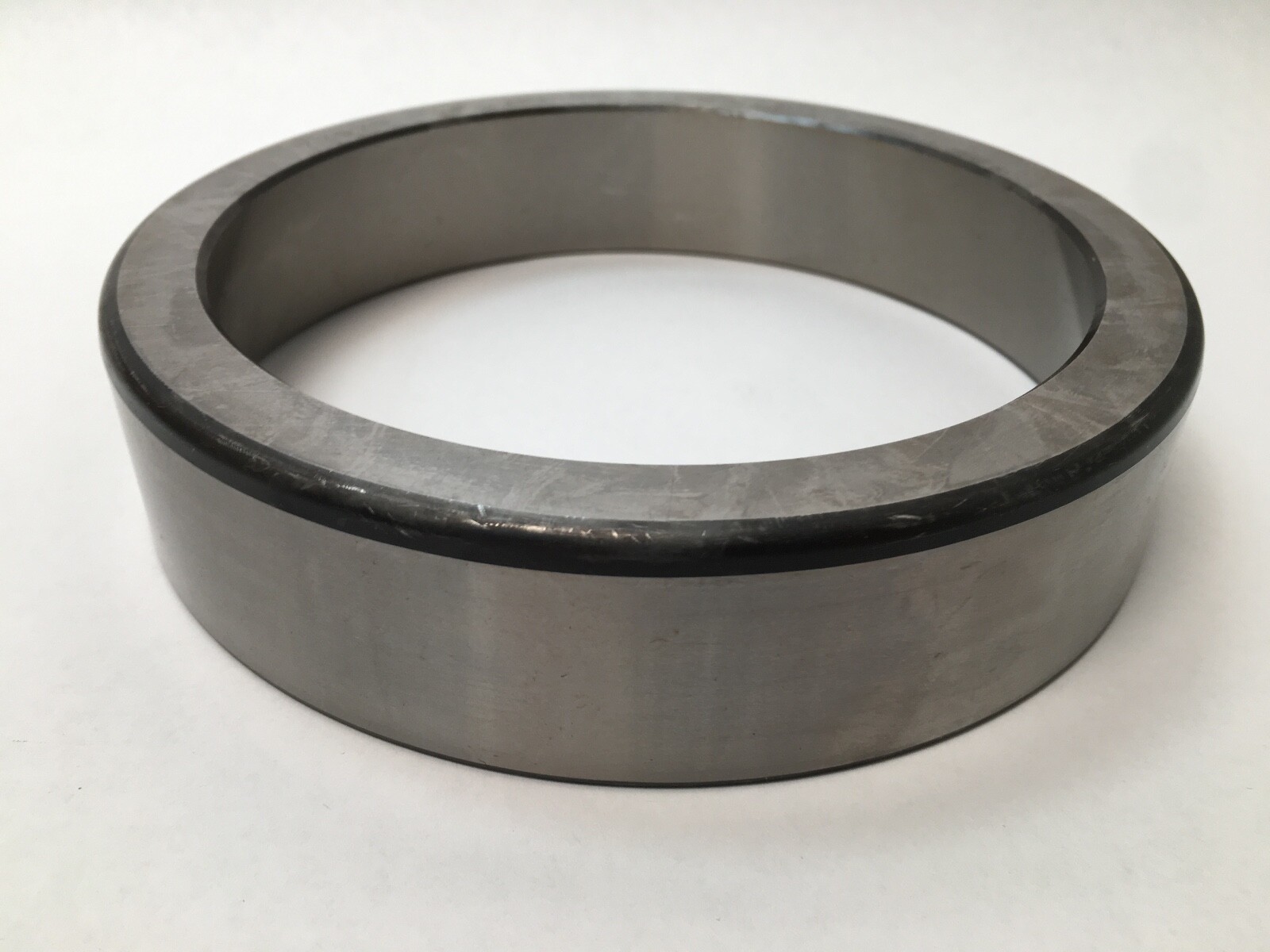

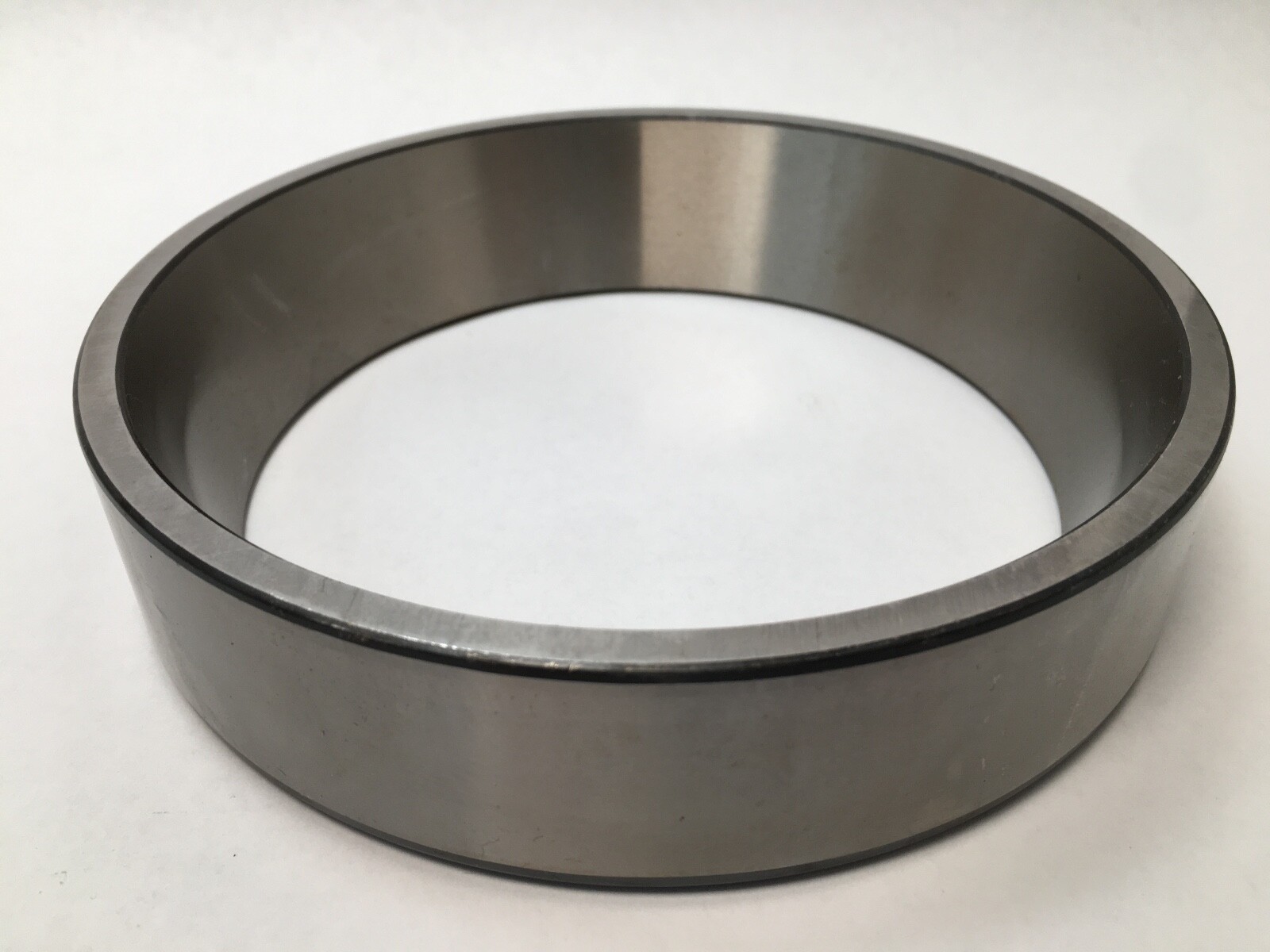

NTN 77675PW2 inch-series tapered roller bearing cup (outer ring) from the NTN 77675 cup family, carrying a Bower marking. Cup only. Unit Quantity: 1 Pc.
77675 — NTN inch-series tapered roller cup number, 6.7500 in outside diameter.

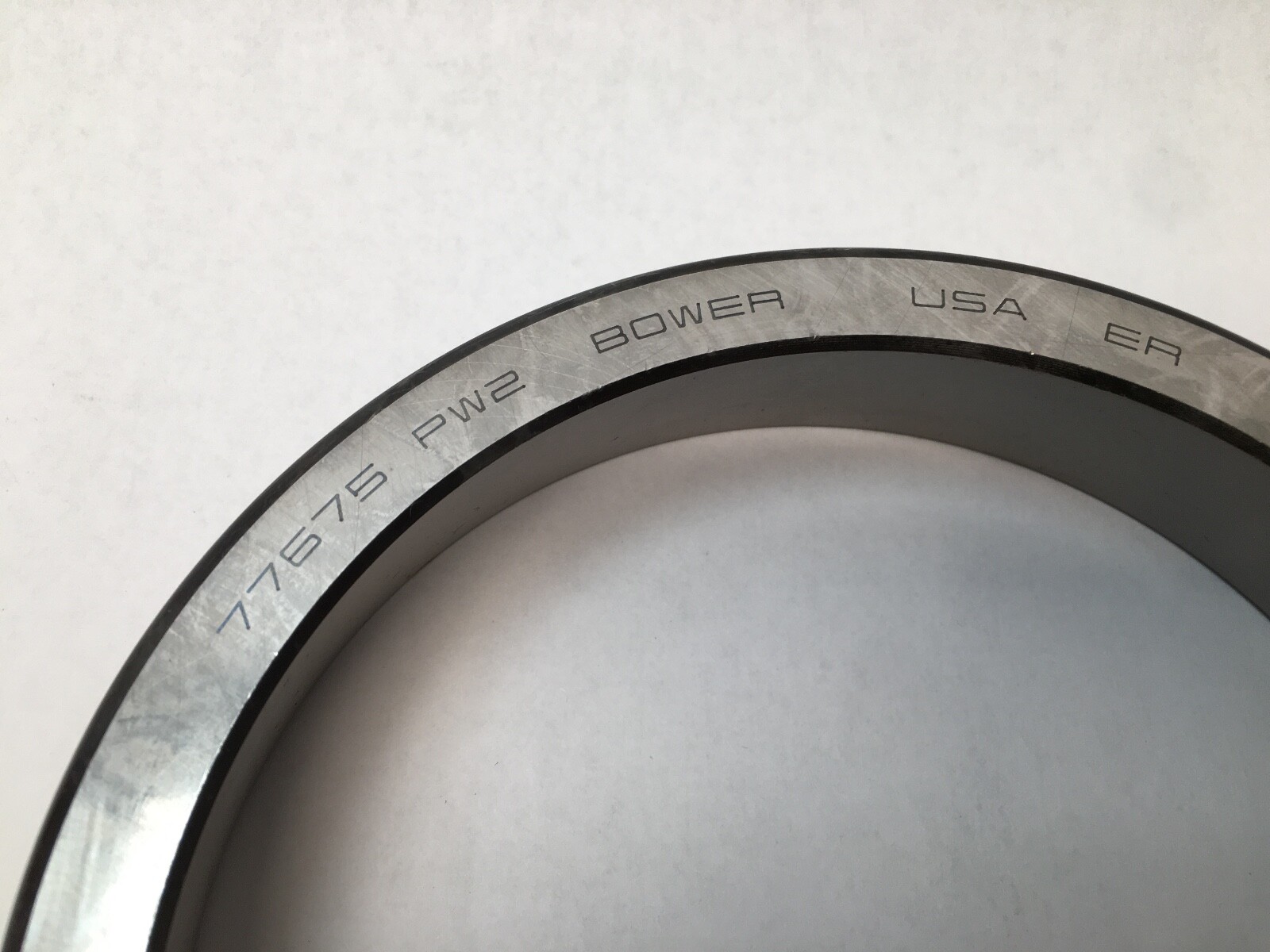

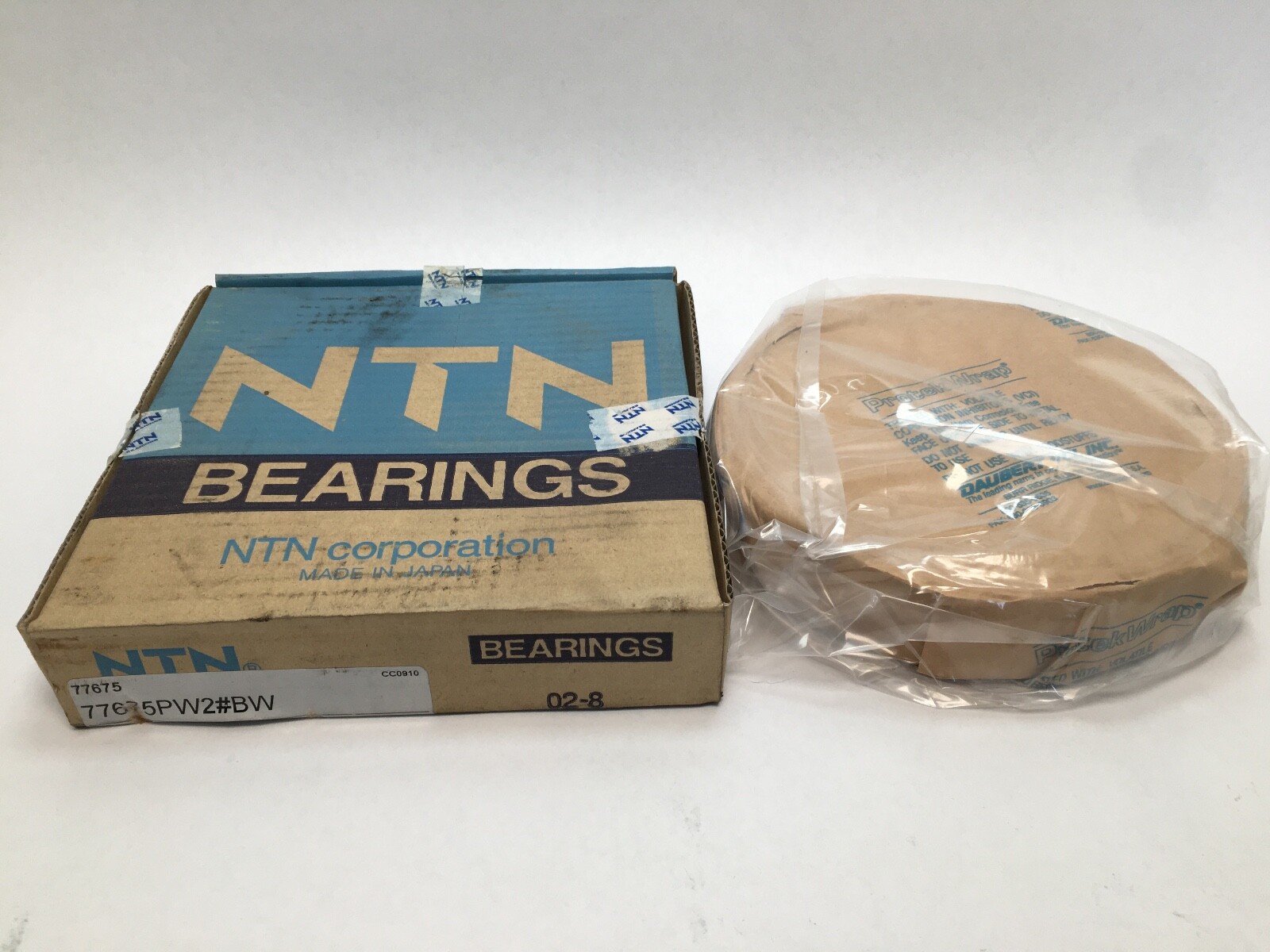

Bower — NTN’s inch tapered roller bearing brand; the carton and ring carry the Bower name.
Outside Diameter: 6.7500 in (171.450 mm). Cup Width: 1.5000 in (38.100 mm). Material: Case carburized steel. Rolling Elements: Tapered Roller. Unit Quantity: 1 Pc.
Outside Diameter: 6.7500 in (171.450 mm). Cup Width: 1.5000 in (38.100 mm). Cup Back Face Fillet Radius r: 0.1300 in (3.300 mm). Assembled Bearing Width W: 1.8750 in (47.625 mm).
Timken 77675 cup. Part number variants: 77675PW2, 77675-PW2, 77675 PW2, 77675 PW2 #BW, Bower 77675.
Outside Diameter: 6.7500 in (171.450 mm).
Cup Width: 1.5000 in (38.100 mm).
Case carburized steel.
