Availability:
15 in stock
Tapered roller bearing cone, 3.7500 in bore, 1.4219 in width, K factor 1.23, Timken Class 3 precision, stamped steel cage, case-carburized steel.
List Price
$76.48
15 in stock
15 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
Also Available From:
| MFR / Brand | Timken |
|---|---|
| MPN | 52375-3 |
| Model | 52375 #3 |
| Bearing Type | Tapered Roller Bearing Cone (single cone, component only) |
| ID | 3.7500 in |
| Condition | New – Open box |
|---|---|
| Series | 52000 |
| Base Number | 52375 |
| Industry Terms | Taper bearing cone; inner ring and roller assembly; single cone; TS tapered single cone; Class 3 tapered roller cone |
| Common Misspellings | 52375 3; 5237-53; 52735-3; 5237S-3; Timkin 52375 |
| Application Types | Gearboxes; axles and wheel ends; pinion shafts; heavy construction and mining drivelines; industrial reducers |
| Condition Note | Made In USA, Class 3 Precision, New Old Stock |
| Bore Shaft Size | 3.7500 in (95.250 mm) |
| Mpn Variants | 52375-3; 52375 #3; 52375#3; 52375 *3; 52375 3; 52375 |
| Compatible With Replaces | Matching cup: Timken 52618. Second cup variant: Timken 52618P |
| Precision Class | Class 3 (Timken precision) |
| Dynamic Load Rating C1 | 50200 lbf / 223000 N (cone only, ISO 1M revs) |
| Additional Attributes | K factor 1.23; G1 factor 175.4; G2 factor 41.7; geometry factor Cg 0.152; dynamic axial rating Ca90 10600 lbf / 47100 N (cone only) |
| Material | Case-carburized steel |
| Cage Type | Stamped steel |
| Dynamic Load Rating | 50200 lbf / 223000 N (cone only, ISO C1); 13000 lbf C90 |
| Static Load Rating | 77000 lbf / 343000 N (cone only, C0) |
| Rolling Elements | Tapered roller |
| Type | Tapered Roller Bearing Cone |
| Item Weight | 16.73 lb (7.587 kg) |
| Number Of Rows | 1 |
| Harmonization Code | 8482.20.00 |
| Design Units | Imperial |
| Bearing Class | Class 3 (Timken precision) |
| Bearing Material | Case-carburized steel |
| Part Number | 52375-3 |
| Cone Part Number | 52375-3 |
| Cone Width | 1.4219 in (36.116 mm) inner ring width B |
| Cone Backface To Clear Radius | 0.14 in (3.600 mm) max shaft fillet radius |
| Cone Frontface Backing Diameter | 4.13 in (105 mm) da frontface; 4.41 in (112 mm) db backface |
| Cage Cone Frontface Clearance | 0.12 in (3 mm) |
| Cage Cone Backface Clearance | 0.16 in (4.1 mm) |
| Effective Center Location | -0.02 in (-0.5 mm), inside cone backface |
| Cross Reference 1 | 52618 (matching cup, sold separately) |
|---|---|
| Cross Reference 2 | 52618P (matching cup variant, sold separately) |
| Cross Reference 3 | 52375/52618 (complete assembly designation) |
| Cross Reference 4 | 52375 (related, standard precision class) |

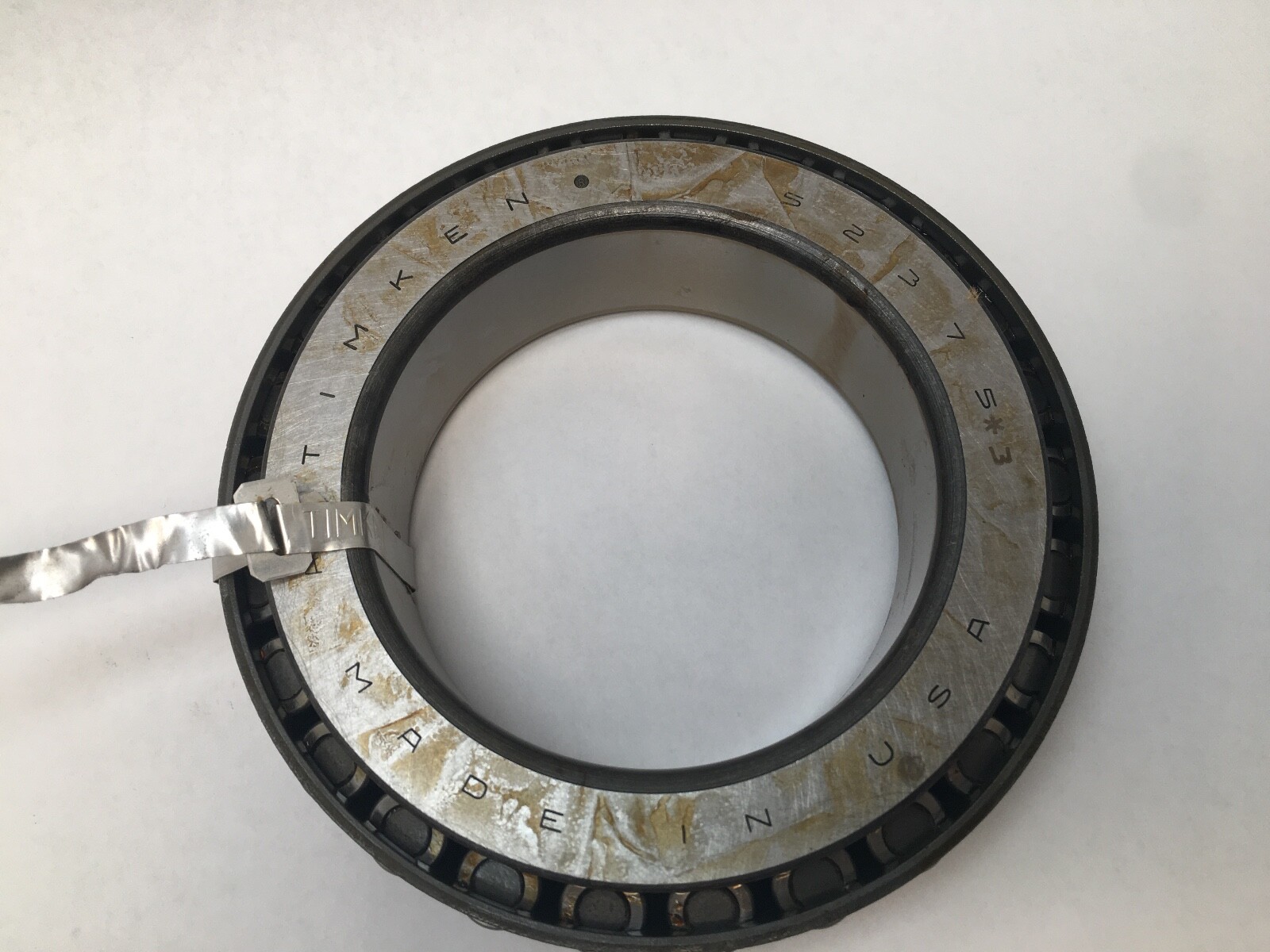

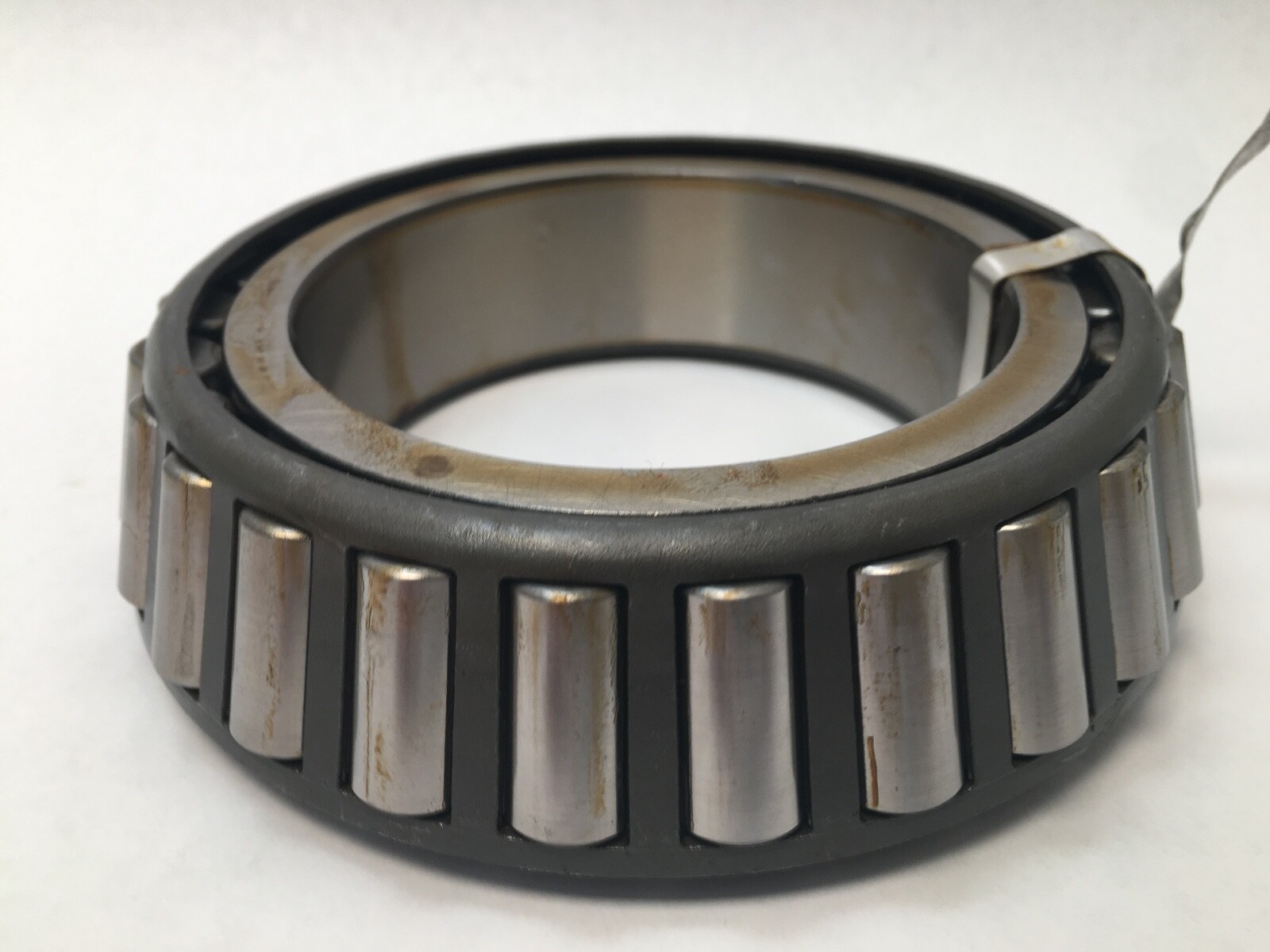

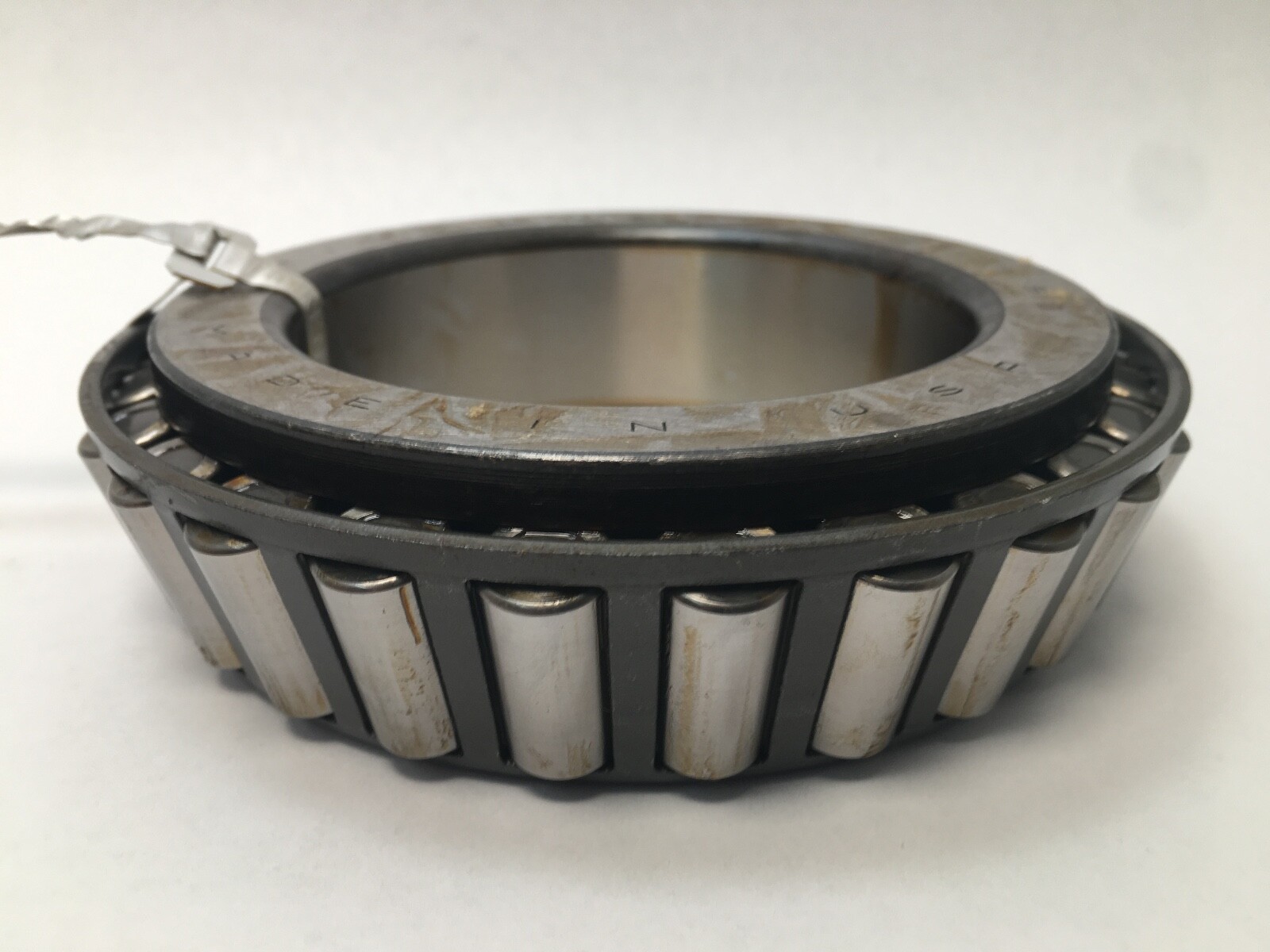

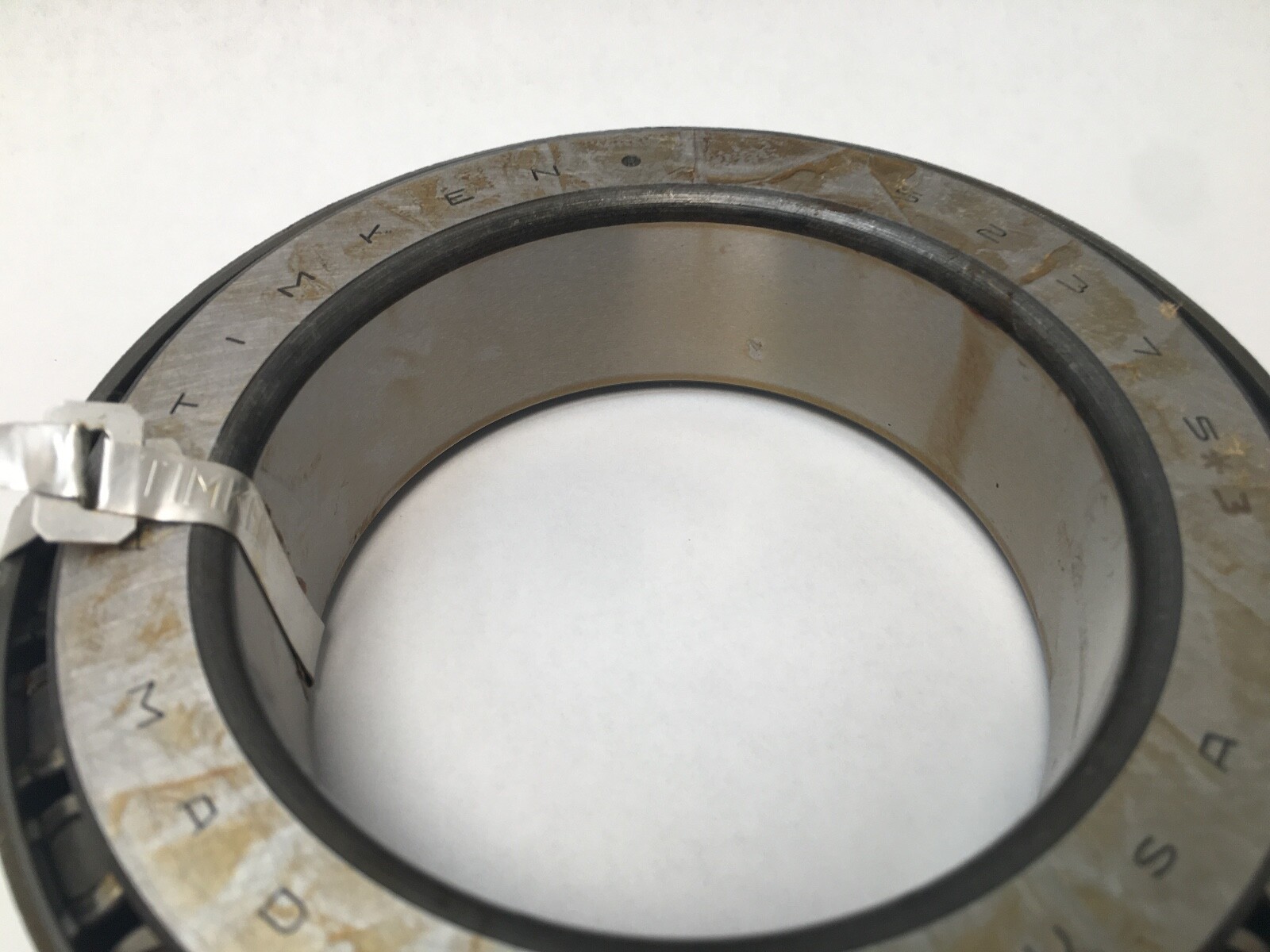

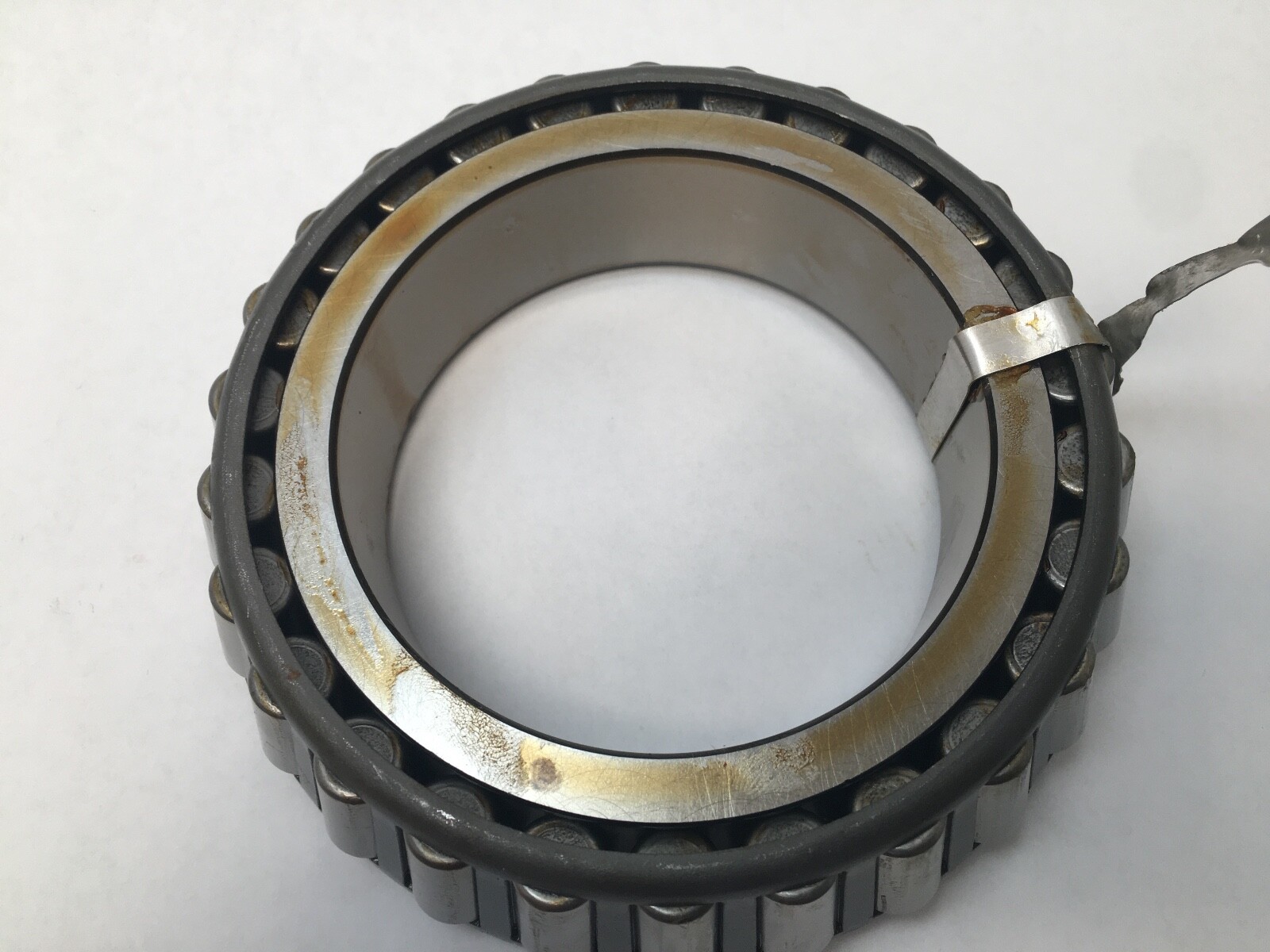

Timken 52375-3 tapered roller bearing cone: the inner ring with its roller and cage assembly. Bore 3.7500 in (95.250 mm), inner ring width 1.4219 in (36.116 mm), stamped steel cage, case-carburized steel. The matching cup is the Timken 52618.

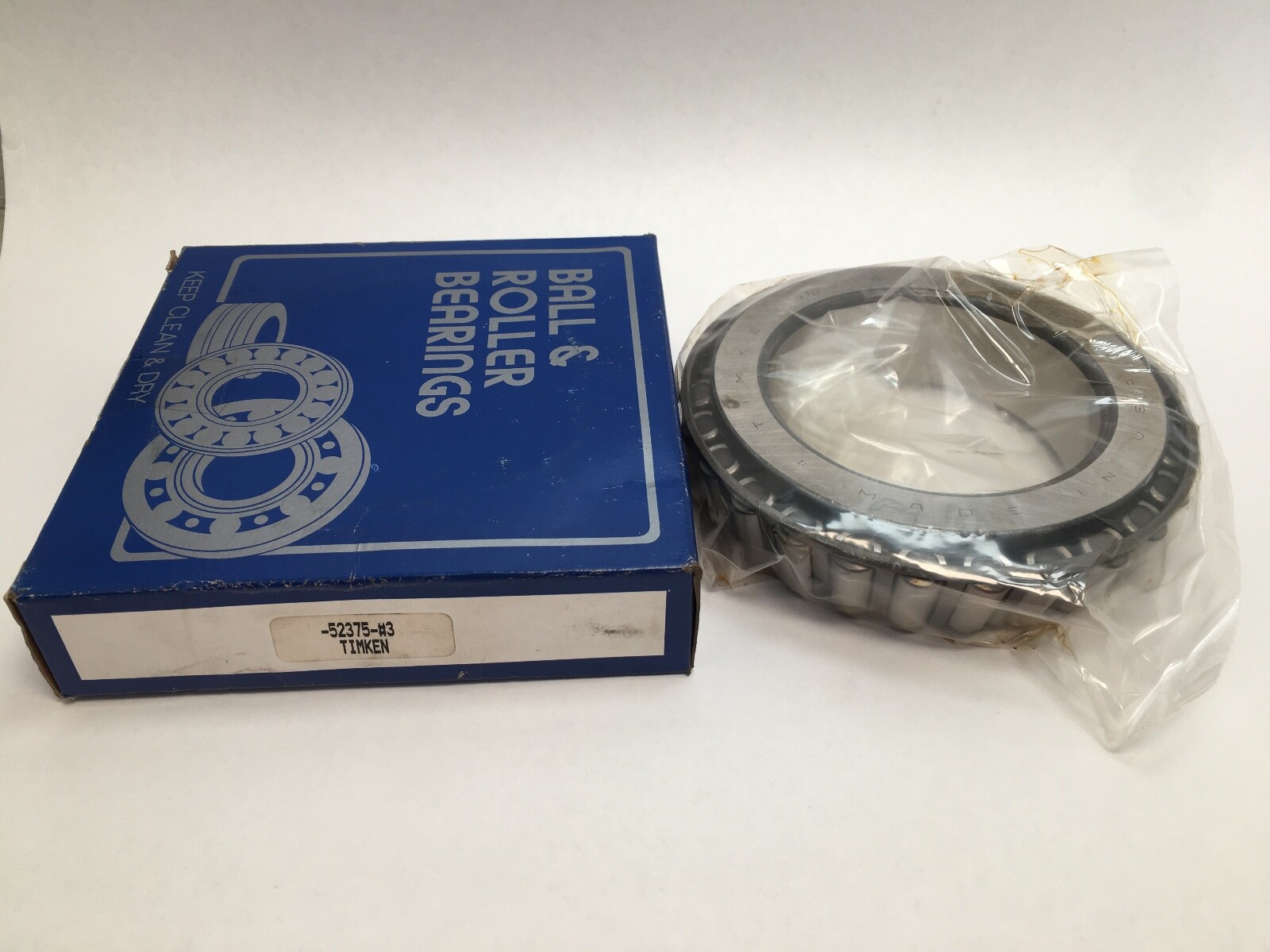

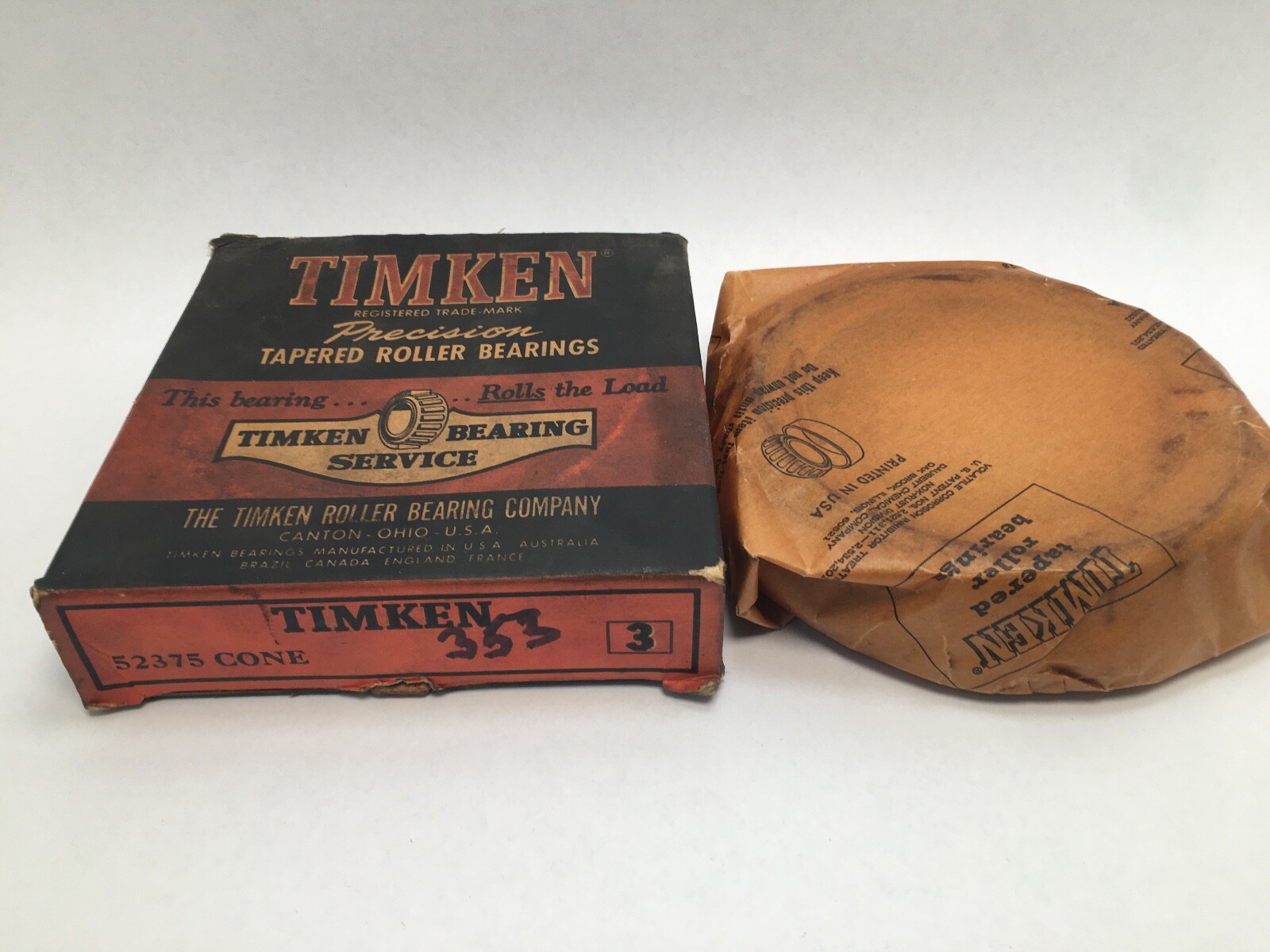

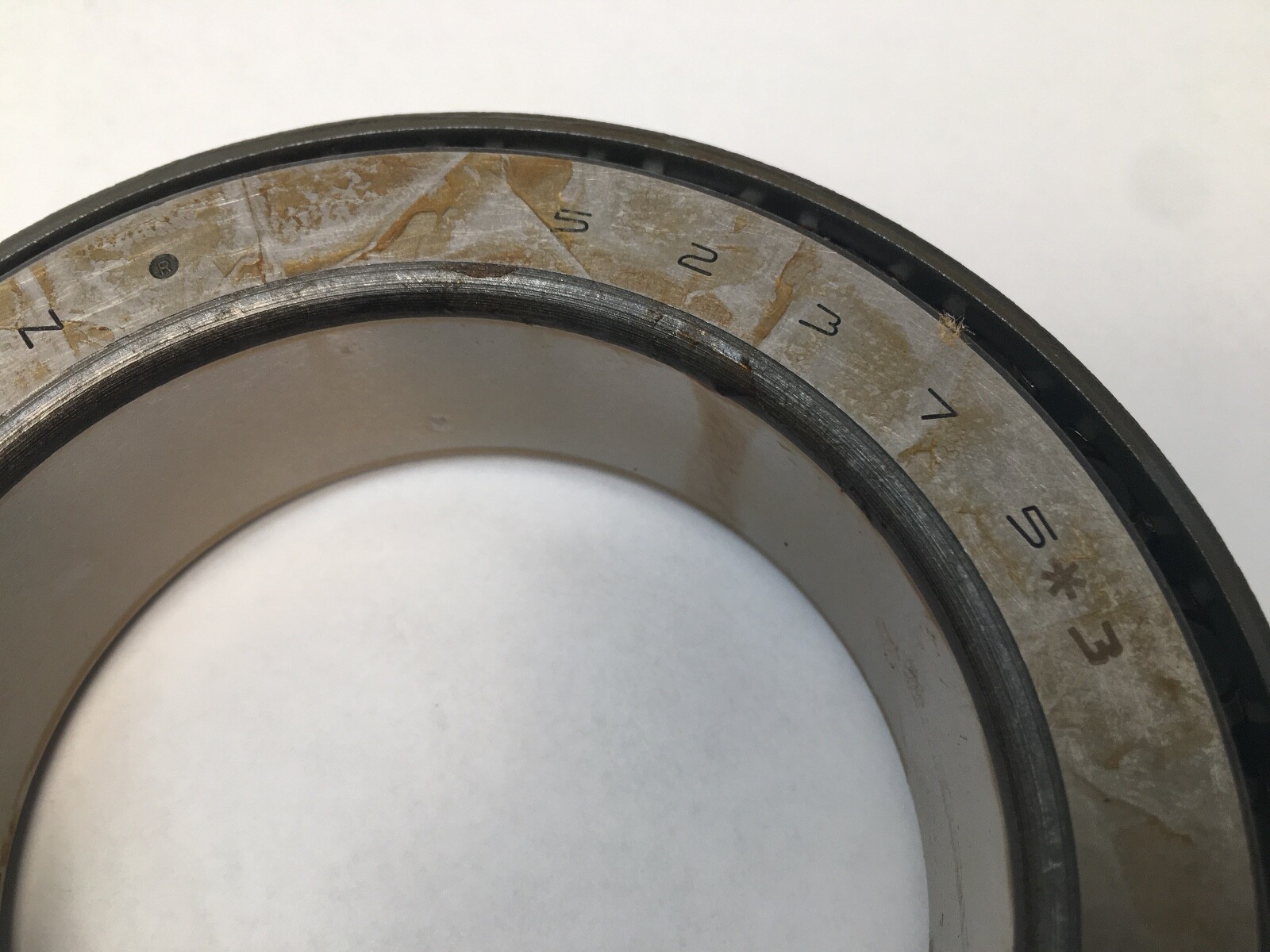

52375 is the cone number in the Timken 52000 imperial series. The suffix marked on the carton as 52375 #3 is Timken precision Class 3, which holds tighter bore and running accuracy tolerances than standard Class 4 product.
The figures below are cone values. K factor is 1.23, the ratio of radial to thrust capability, and at that value this is a comparatively steep taper with strong thrust capability: dynamic axial rating is 10,600 lbf against a dynamic radial rating of 13,000 lbf on the Timken ninety-million-revolution basis. Dynamic radial rating on the ISO one-million-revolution basis is 50,200 lbf and static radial rating is 77,000 lbf. Effective centre location is –0.02 in, just inside the cone backface.
Cone only, one piece. The matching cup is the Timken 52618, with the 52618P as a second cup variant. Cone weight 16.73 lb.
Shaft backing shoulder diameter is 4.13 in at the frontface and 4.41 in at the backface. Maximum shaft fillet radius that the cone corners clear is 0.14 in. Cage location relative to the backface is 0.16 in and relative to the frontface 0.12 in.
Tapered roller bearings mount in opposing pairs, and the setting is established at assembly by adjusting the axial position of one row against the other. The lubrication life adjustment geometry factor Cg is 0.152, with G1 of 175.4 and G2 of 41.7.
The 52375 cone runs against the 52618 cup, and against the 52618P where that cup variant is specified. The complete assembly designation is 52375/52618.
