Availability:
3 in stock
Class 3 precision inch taper cone, 0.7188 in width, 60,800 N dynamic and 88,800 N static rating, K factor 1.64. Mates Timken cup L305610 or L305611.
List Price
$37.49
3 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Timken |
|---|---|
| MPN | L305649-3 |
| Model | L 305649 #3 |
| Bearing Type | Tapered Roller Bearing Cone |
| ID | 2.0000 in |
| Series | L305600 |
|---|---|
| Base Number | L305649 |
| Overall Width | 0.7188 in |
| Mpn Variants | L305649-3, L-305649 *3, L305649#3, L 305649 #3, L3056493 |
| Compatible With Replaces | Mating cups: Timken L305610, L305611 |
| Precision Class | Class 3 |
| Dynamic Load Rating | 60,800 N |
| Static Load Rating | 88,800 N |
| Rolling Elements | Tapered Roller |
| Item Weight | 1.02 kg (2.24 lb) |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Design Units | Imperial |
| Cone Part Number | L305649 |
| Cone Width | 0.7188 in |
| Cone Backface To Clear Radius | 0.060 in |
| Cone Frontface Backing Diameter | 2.20 in |
| Cage Cone Frontface Clearance | 0.10 in |
| Cage Cone Backface Clearance | 0 in |
| Effective Center Location | -0.1 in |
| Cross Reference 1 | SKF L305649 |
|---|---|
| Cross Reference 2 | FAG K-L305649 |
| Cross Reference 3 | NSK L305649 |
| Cross Reference 4 | NTN 4T-L305649 |
| Cross Reference 5 | Koyo L305649 |
| Cross Reference 6 | Fersa L305649 |
| Cross Reference 7 | BCA/Bower L305649 |

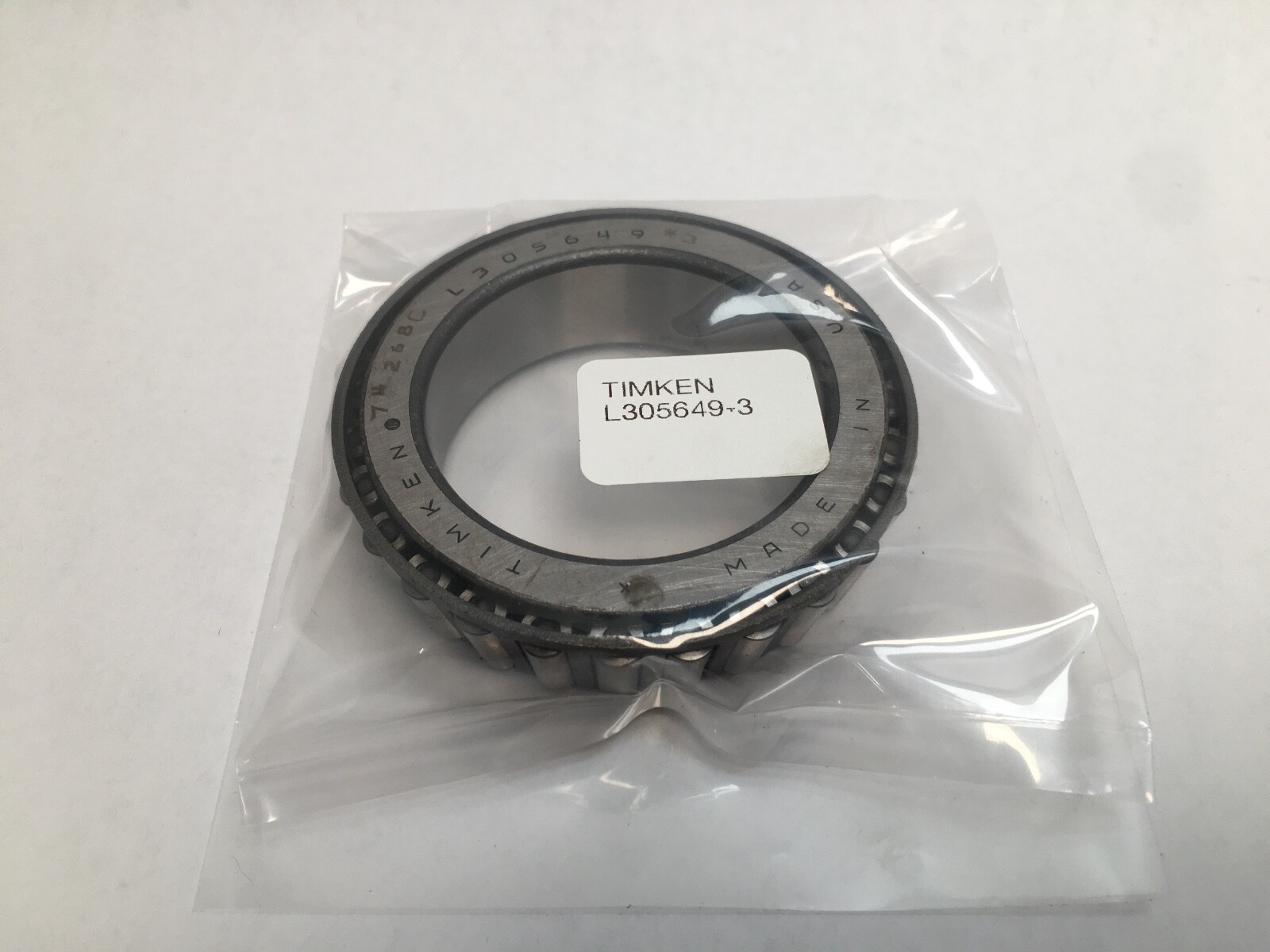

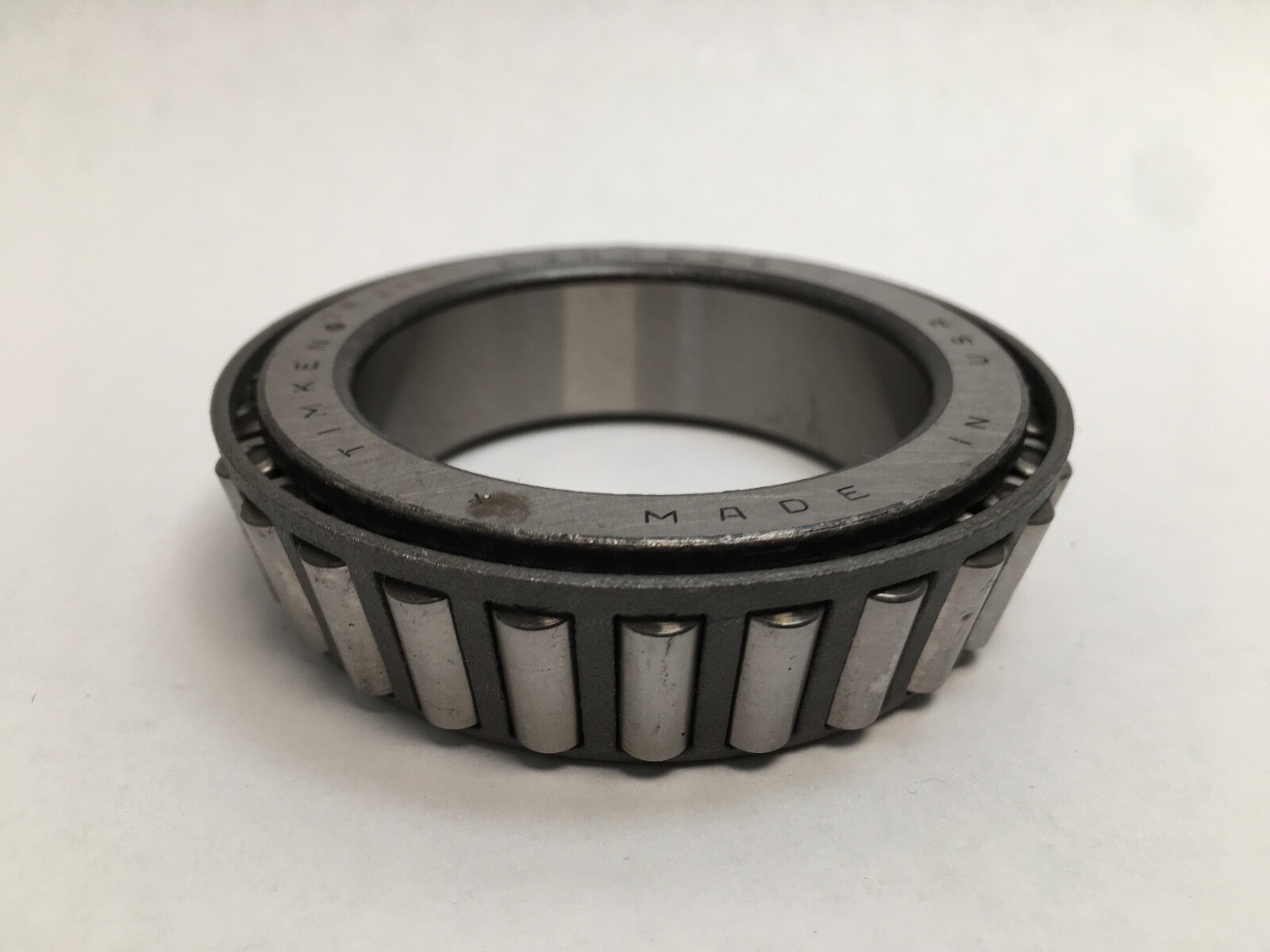

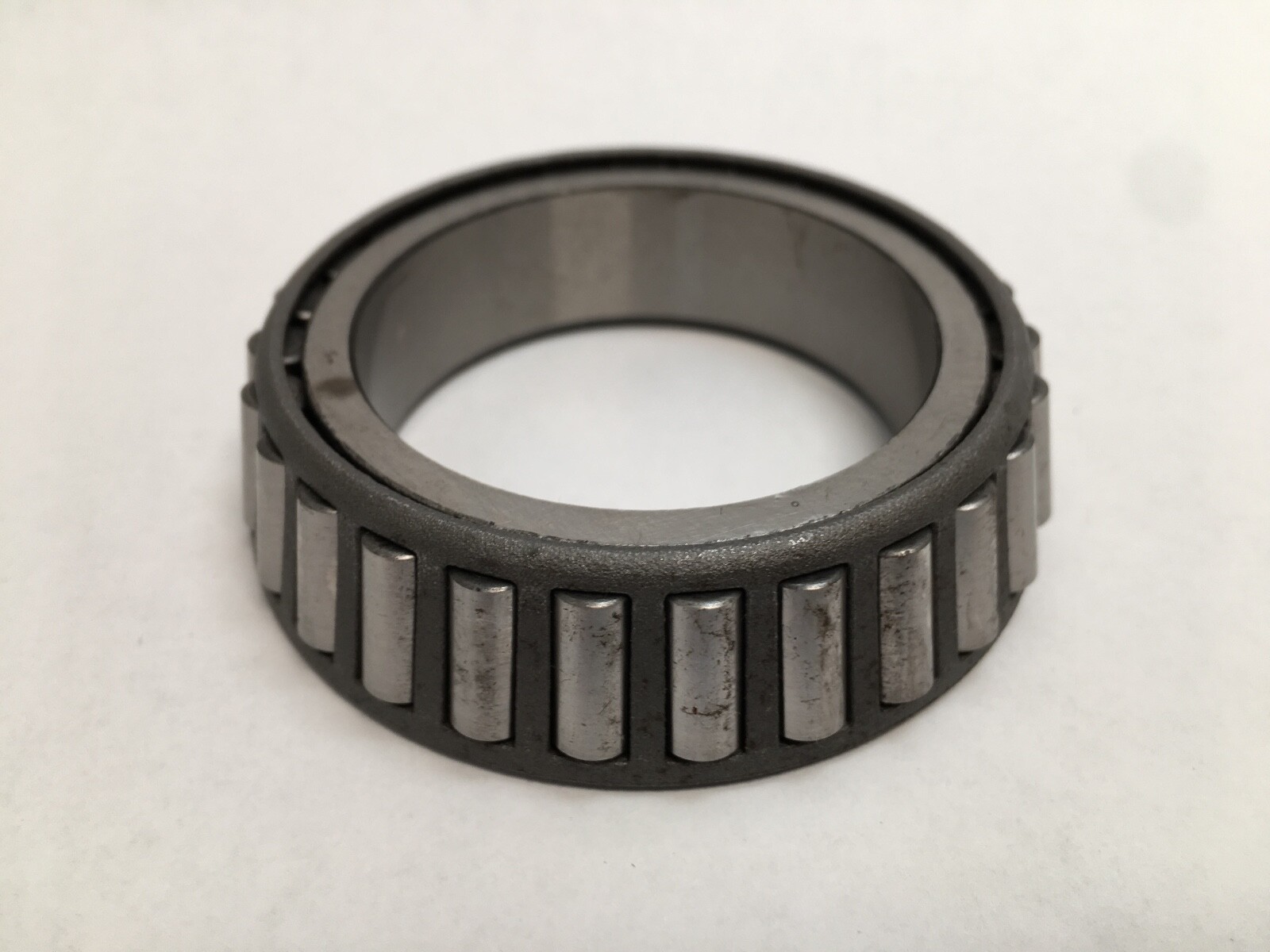

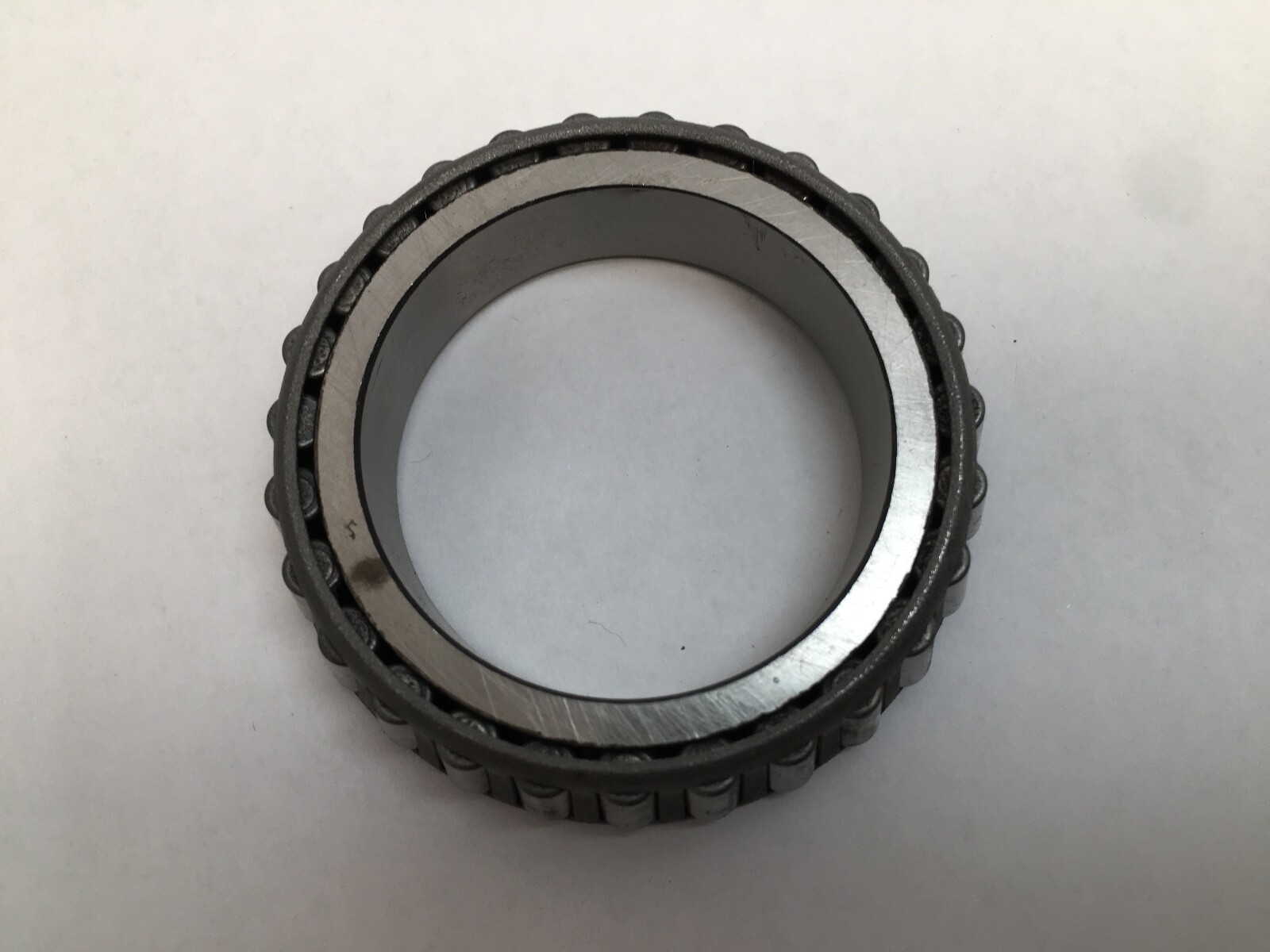

Timken L305649, an inch-series single tapered roller bearing cone — inner ring, tapered rollers and cage as one assembly. Bore Diameter: 2.0000 in (50.8 mm). Overall Width: 0.7188 in (18.258 mm). Item Weight: 1.02 kg (2.24 lb). Dynamic Load Rating: 60,800 N. Static Load Rating: 88,800 N. Rolling Elements: Tapered Roller. Number Of Rows: 1. Bore Type: Straight. Precision Class: Class 3. Unit Quantity: 1 Pc.
L — Timken’s inch prefix for a low-section tapered roller series, giving a shallow cross-section for a given bore.
305649 — the cone number in the L305600 series. Base Number: L305649. Series: L305600.

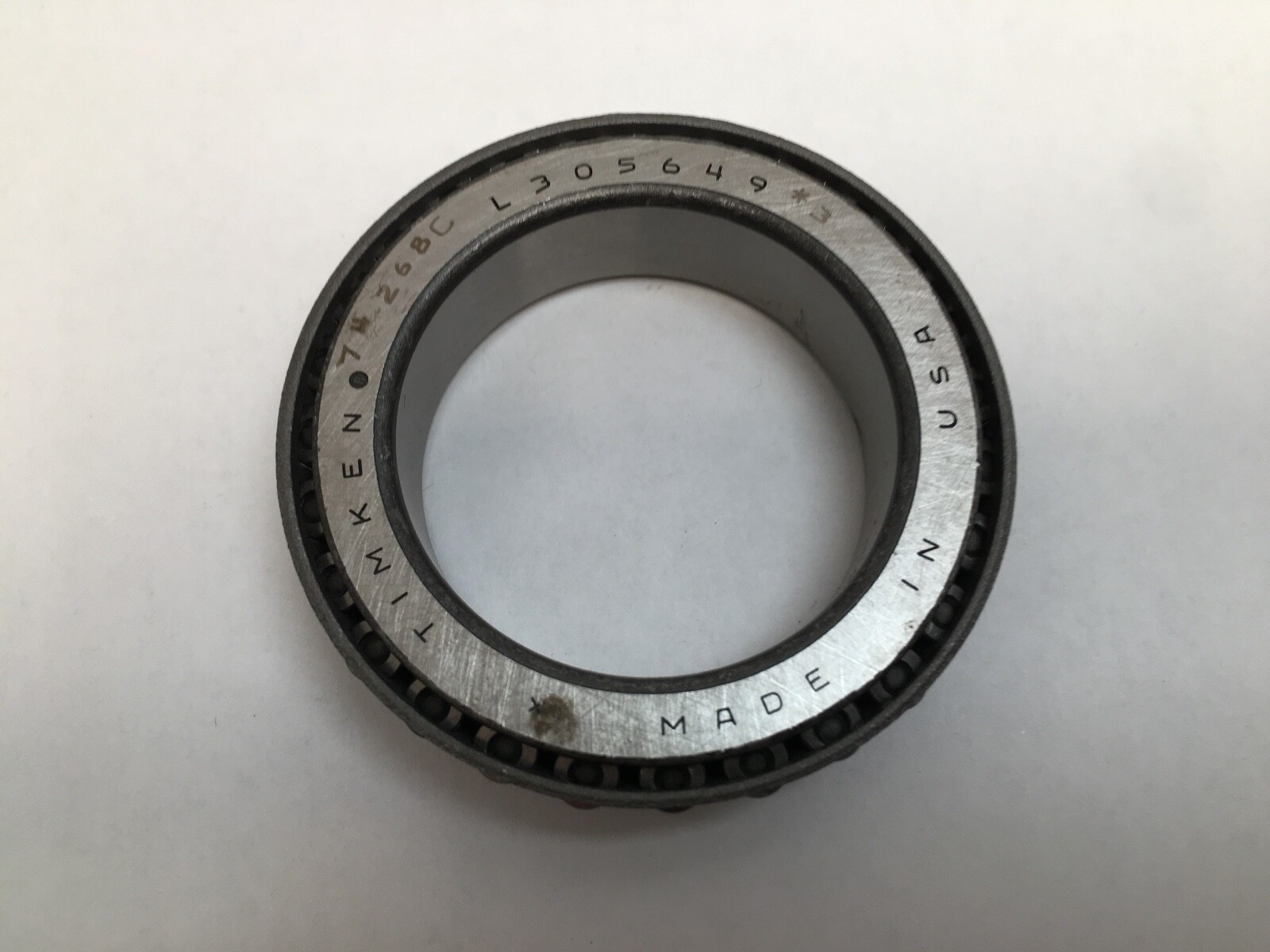

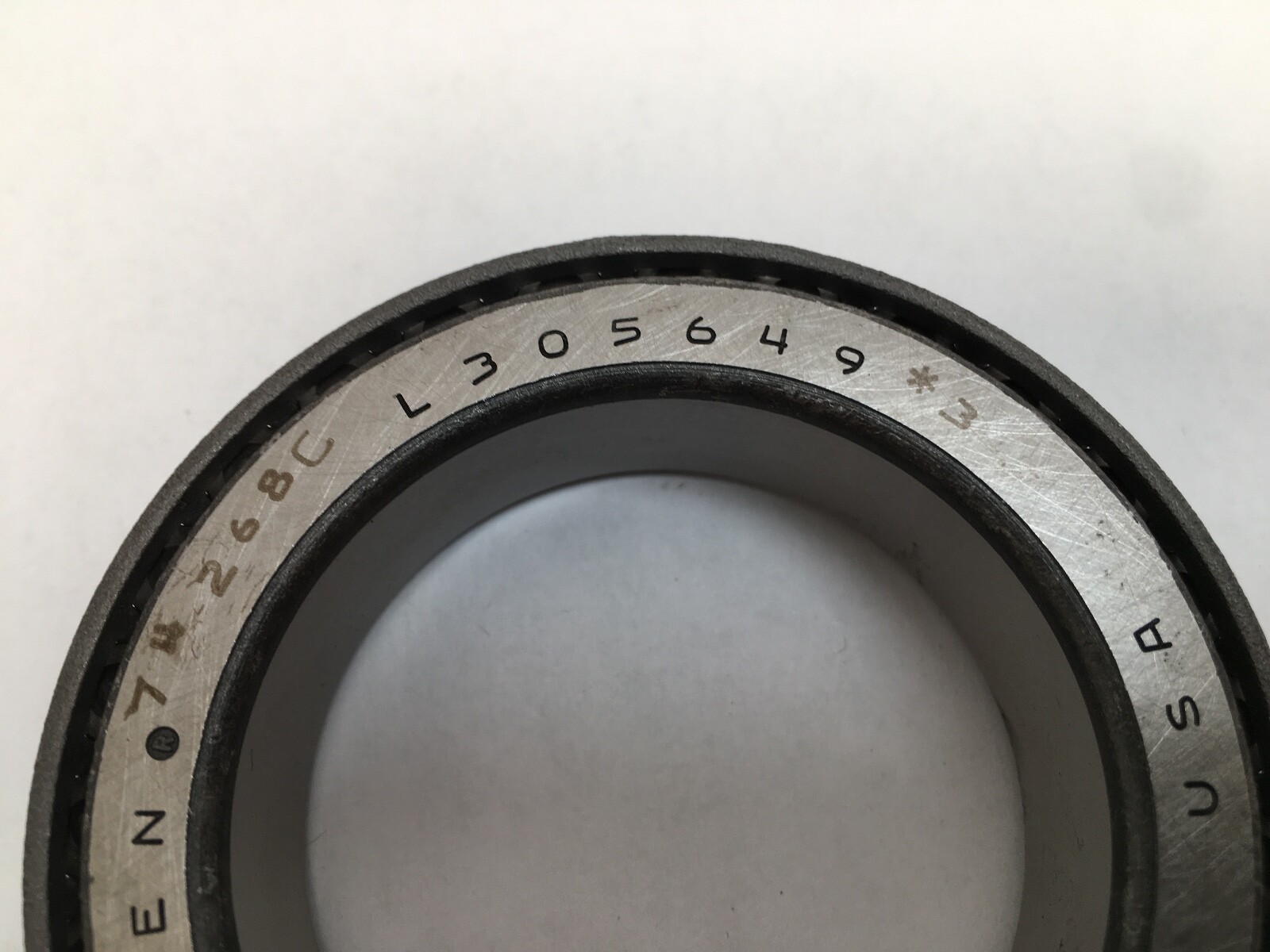

*3 — Precision Class: Class 3. A tighter running tolerance than standard, giving lower running vibration and closer shaft location. The same marking appears as L305649-3, L-305649 *3 and L305649#3.
K Factor: 1.64. The K factor fixes the ratio of radial to thrust capacity; at 1.64 this raceway angle leans toward radial capacity while still taking significant thrust. Dynamic Axial Rating (Ca90): 9,590 N. Dynamic Radial Rating at 90 million revolutions (C90): 15,800 N. G1 Factor: 38.8. G2 Factor: 29.8. Geometry Factor (Cg): 0.0841, the constant Timken uses in its lubrication life adjustment factor.
Effective Center Location: –0.1 in (–2.5 mm), measured inside the cone back face. Maximum Shaft Fillet Radius: 0.060 in (1.5 mm) — the largest shaft corner radius the cone back face clears. Shaft Backing Shoulder Diameter, Frontface (da): 2.20 in (56 mm). Shaft Backing Shoulder Diameter, Backface (db): 2.28 in (58 mm). Cage Location relative to back face (Aa): 0 in. Cage Location relative to front face (Ab): 0.10 in.
Unit Quantity: 1 Pc. Cone only — inner ring, roller set and cage. The matching cups are the Timken L305610 and L305611.
L305649 is the industry designation for this cone and is carried by SKF, FAG as K-L305649, NSK, NTN as 4T-L305649, Koyo, Fersa and BCA/Bower.
