Availability:
1 in stock
Inch tapered roller bearing cone, 7.25 in bore, 1.8438 in width, 416,000 N dynamic and 835,000 N static rating. Mates with a 67820 cup.
List Price
$317.57
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Timken |
|---|---|
| MPN | 67883 |
| GTIN | 053893373041 |
| Model | 67883 |
| Bearing Type | Tapered Roller Bearing Cone, Open |
| ID | 7.2500 in (184.150 mm) |
| Material | Case Carburized Steel |
|---|---|
| Series | 678 |
| Base Number | 67883 |
| Overall Width | 1.8438 in (46.833 mm) |
| Mpn Variants | 67883; 67883-40024; 67-883; 67883 40024 |
| Compatible With Replaces | Mating cups: Timken 67820, Timken 67830 |
| Precision Class | Not specified |
| Additional Attributes | K Factor 1.22; C90 108,000 N; Ca90 88,200 N; Effective Load Centre 10.2 mm; Max shaft fillet radius 3.600 mm; da 198 mm; db 204 mm; Aa 4.6 mm; Ab 2.8 mm; G1 727.9; G2 146.6; Cg 0.131 |
| Dynamic Load Rating | 416,000 N |
| Static Load Rating | 835,000 N |
| Rolling Elements | Tapered Roller |
| Item Weight | 17.768 kg (39.17 lb) |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Harmonization Code | 8482.20.00 |
| Part Number | 67883 |
| Cross Reference 1 | Koyo 67883 |
|---|---|
| Cross Reference 2 | NTN 4T-67883 |

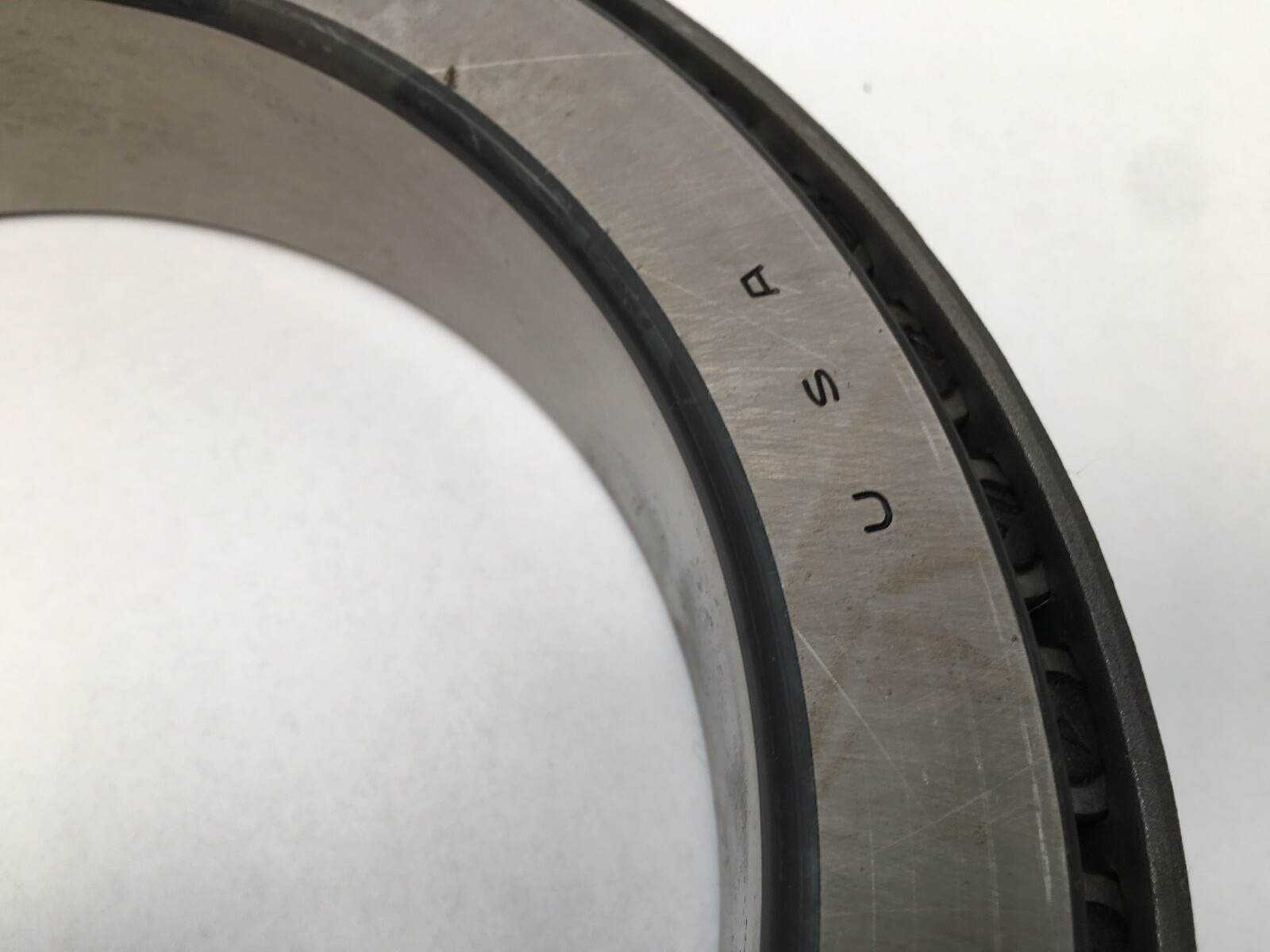

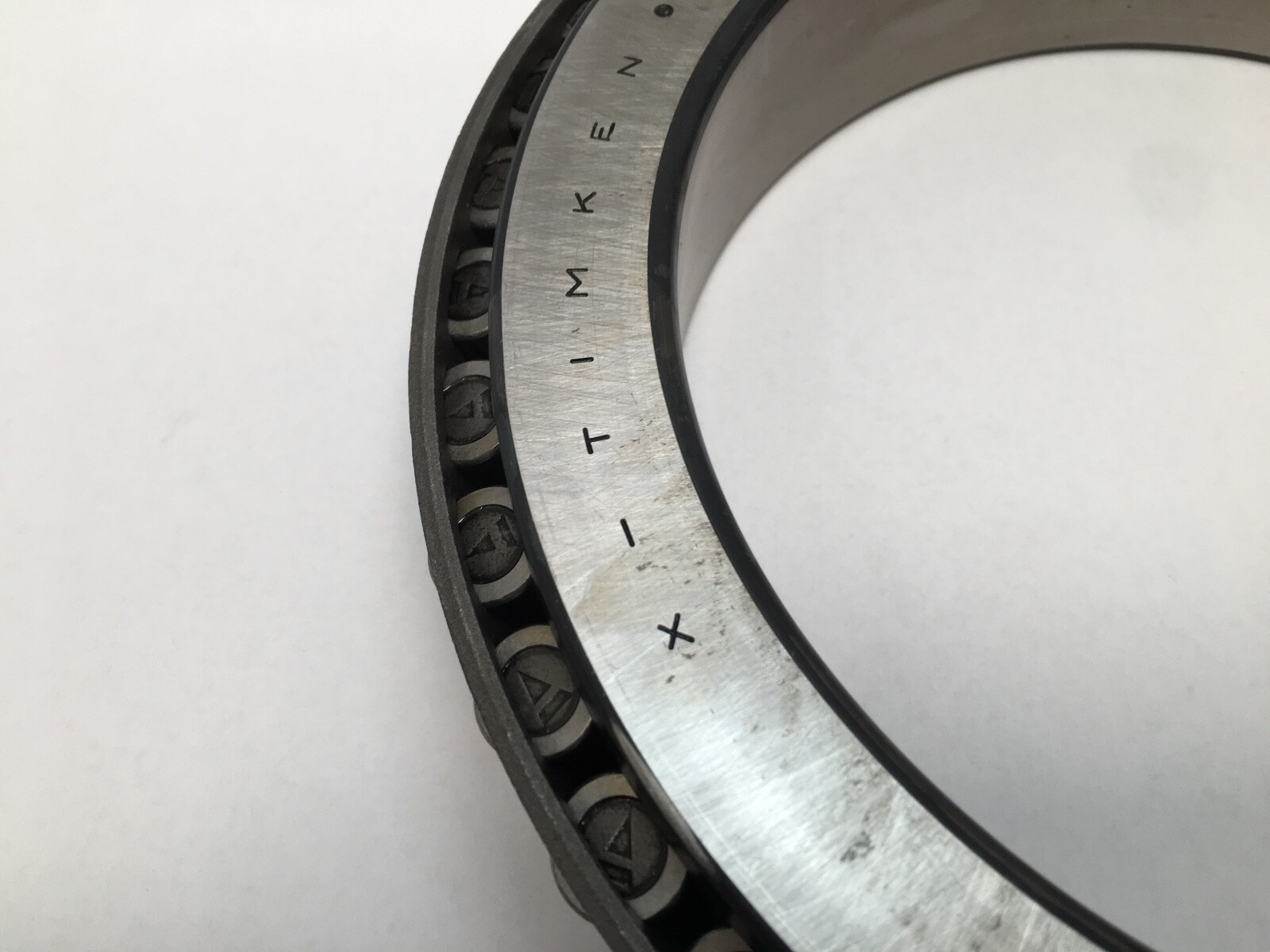

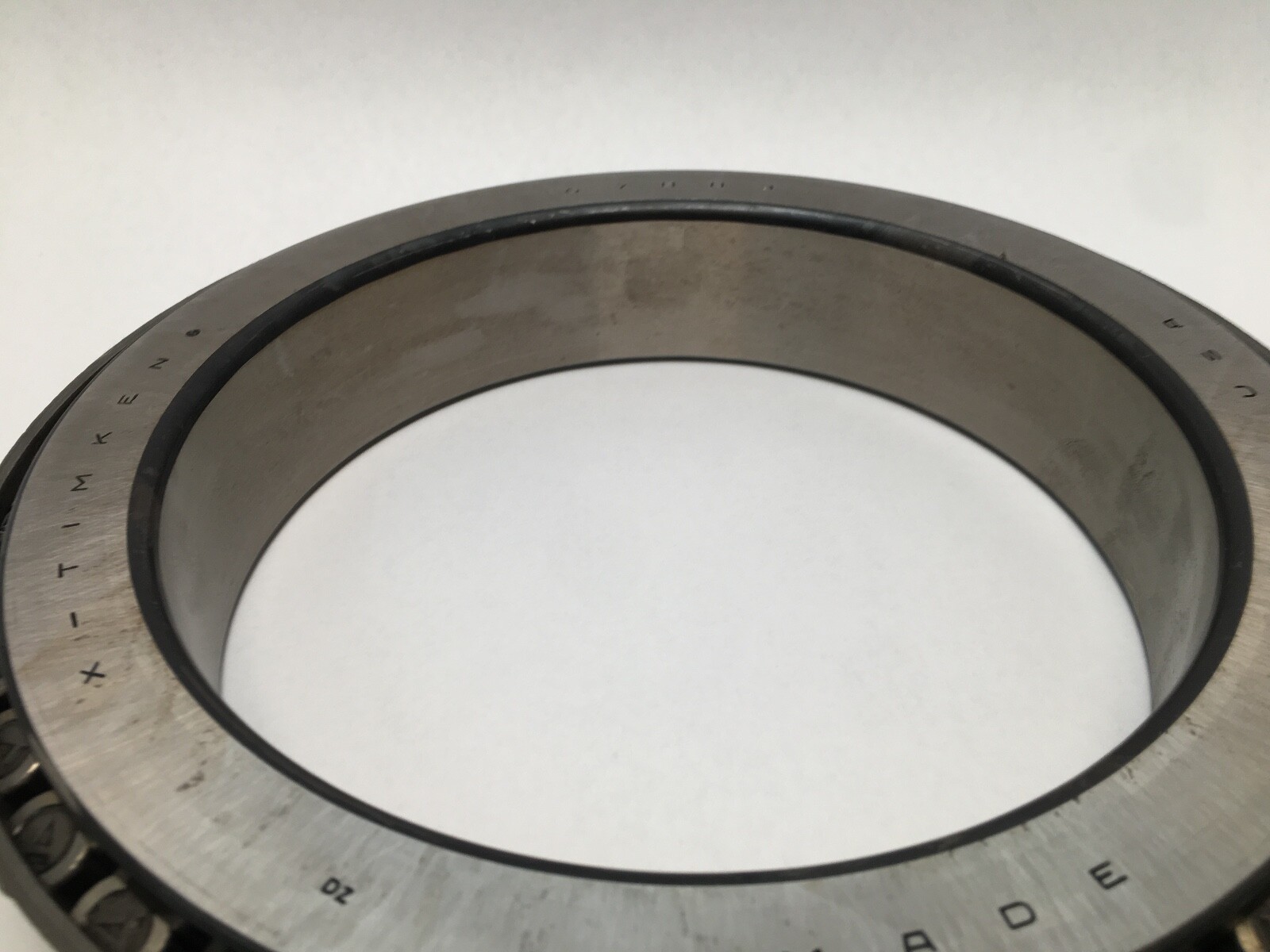

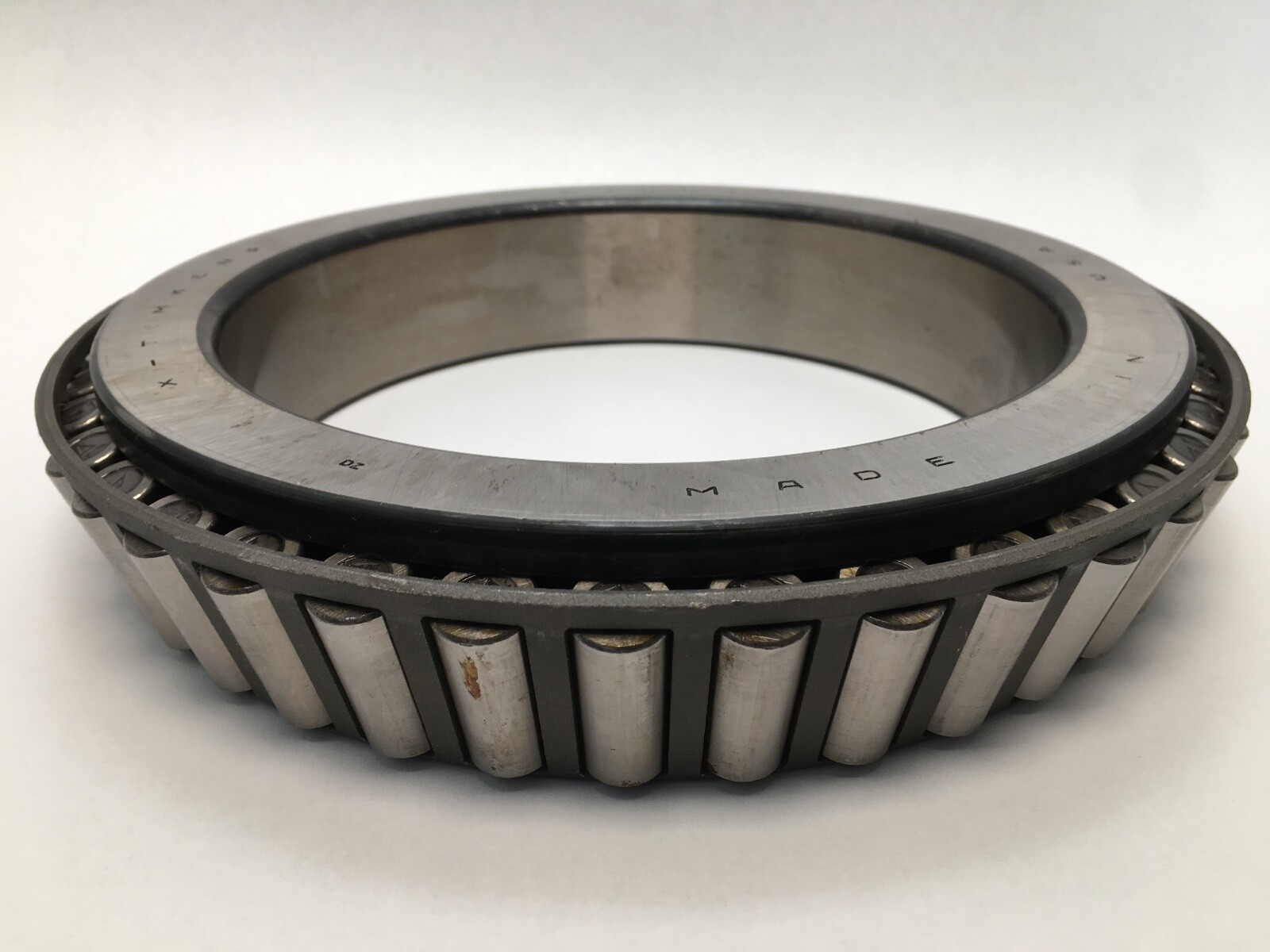

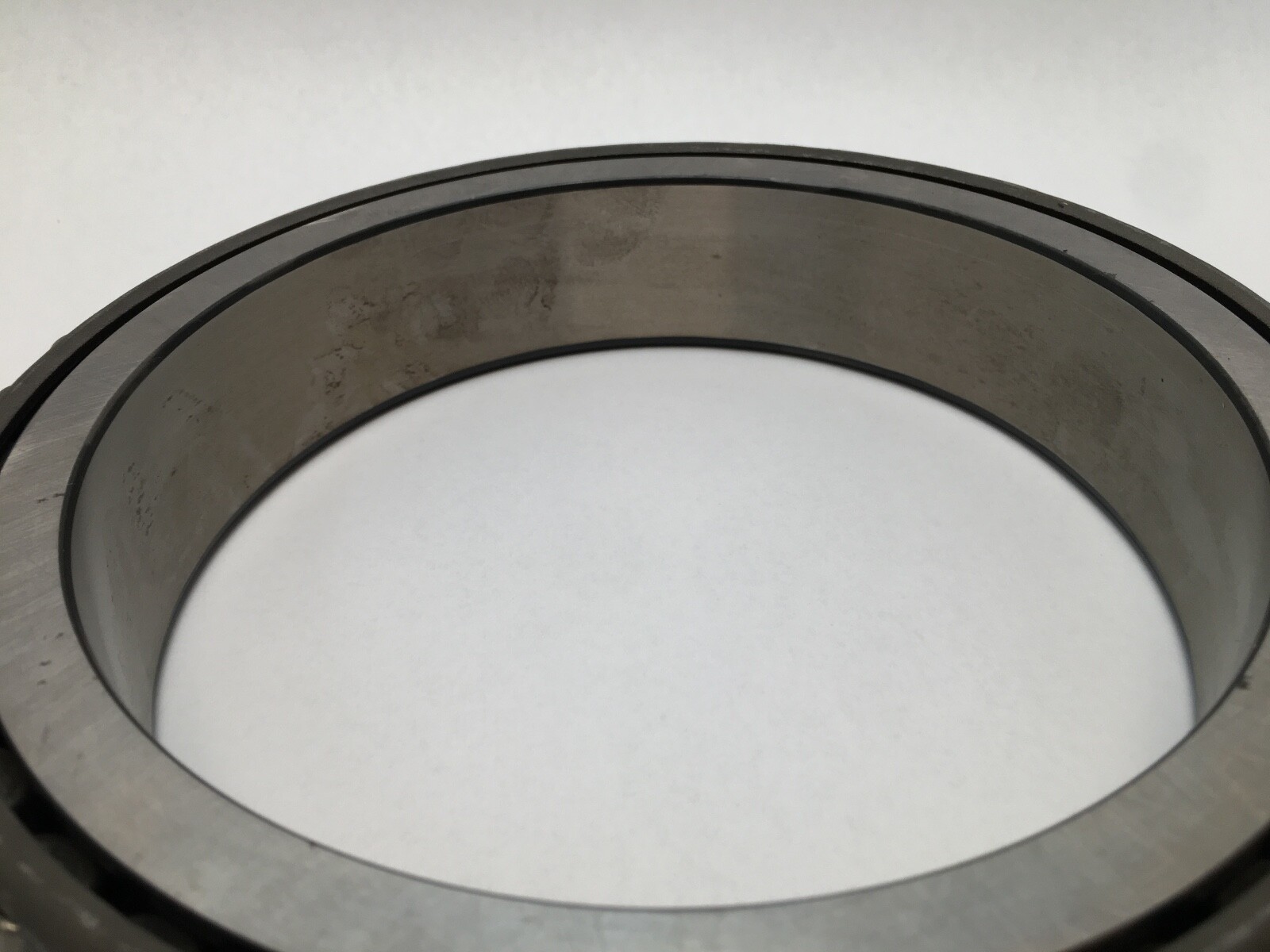

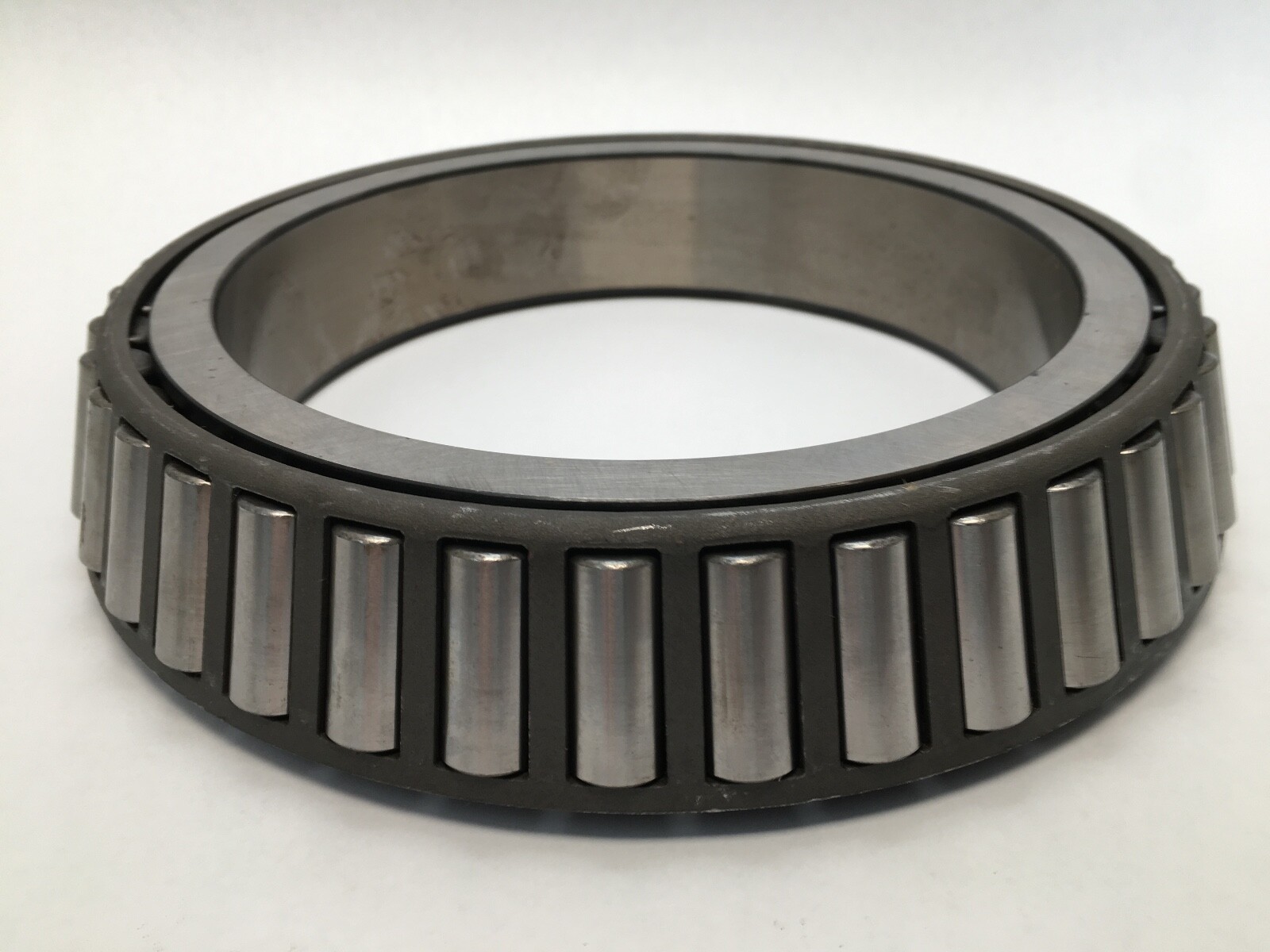

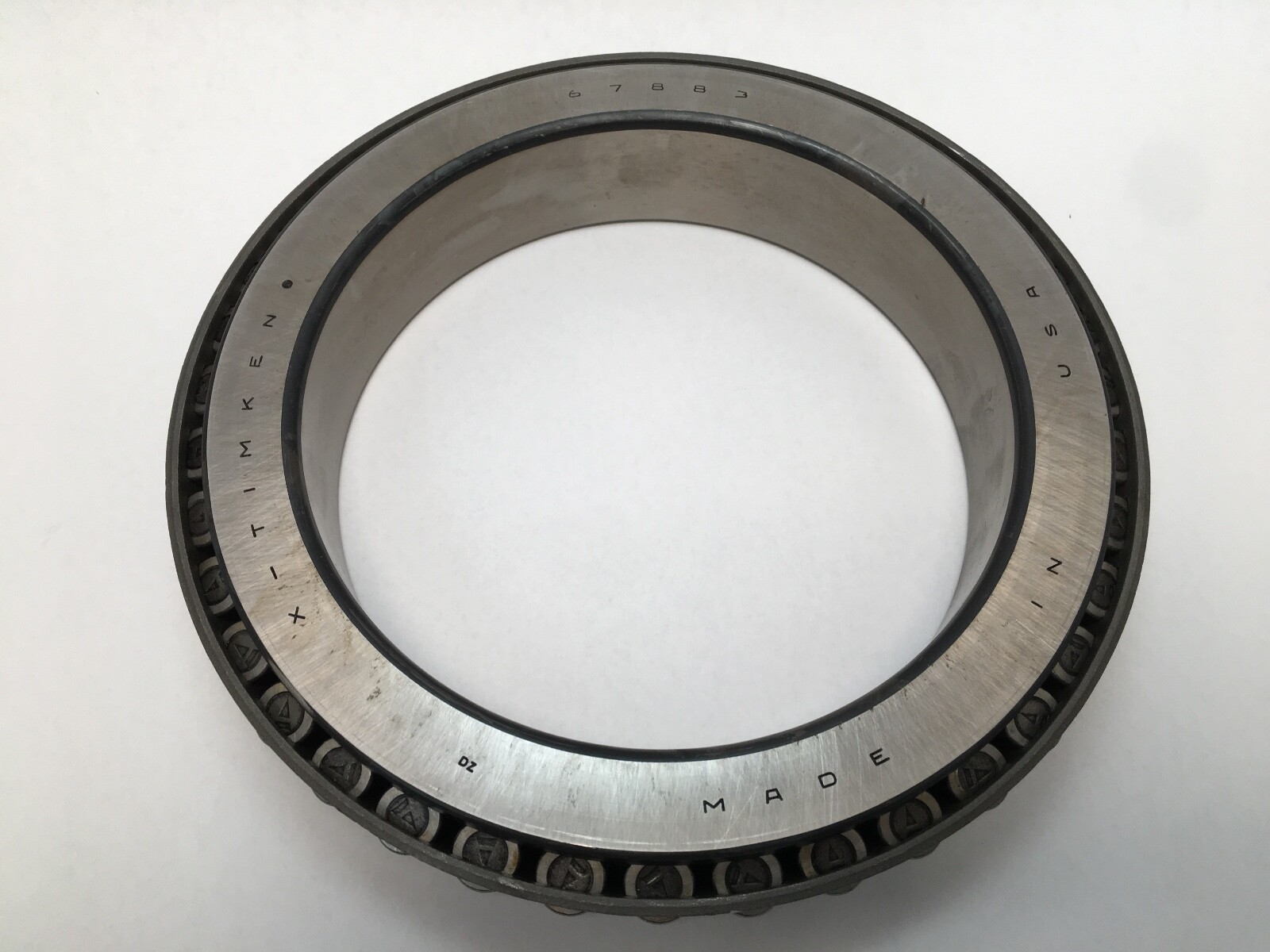

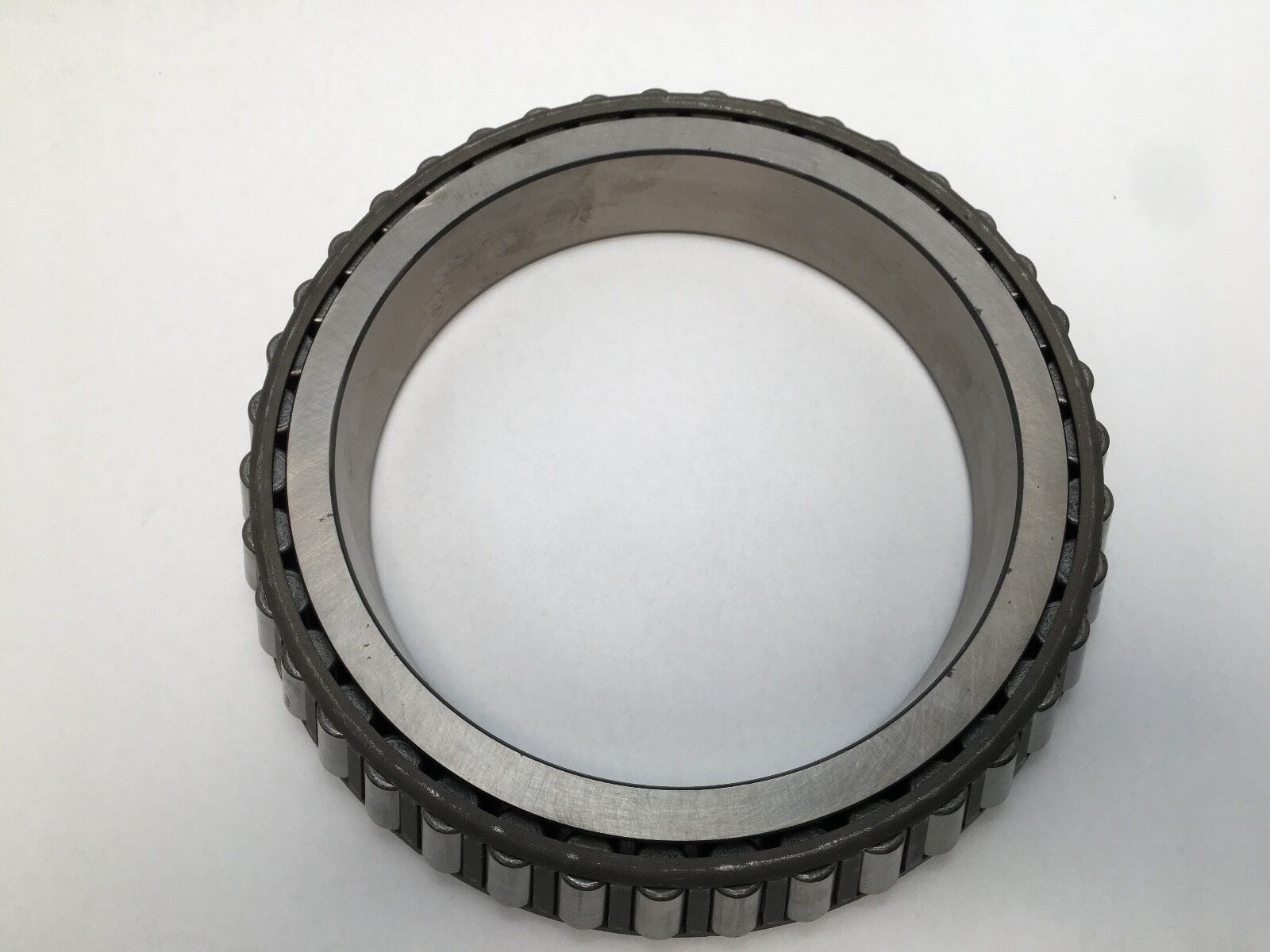

Timken 67883 inch tapered roller bearing cone. Bearing Type: Tapered roller bearing cone — the inner ring carrying the tapered rollers and cage as one assembly. Series: 678. Base Number: 67883. Bore Diameter: 7.2500 in (184.150 mm). Overall Width: 1.8438 in (46.833 mm). Bore Type: Straight. Rolling Elements: Tapered Roller. Number Of Rows: 1. Item Weight: 17.768 kg (39.17 lb). GTIN: 053893373041.

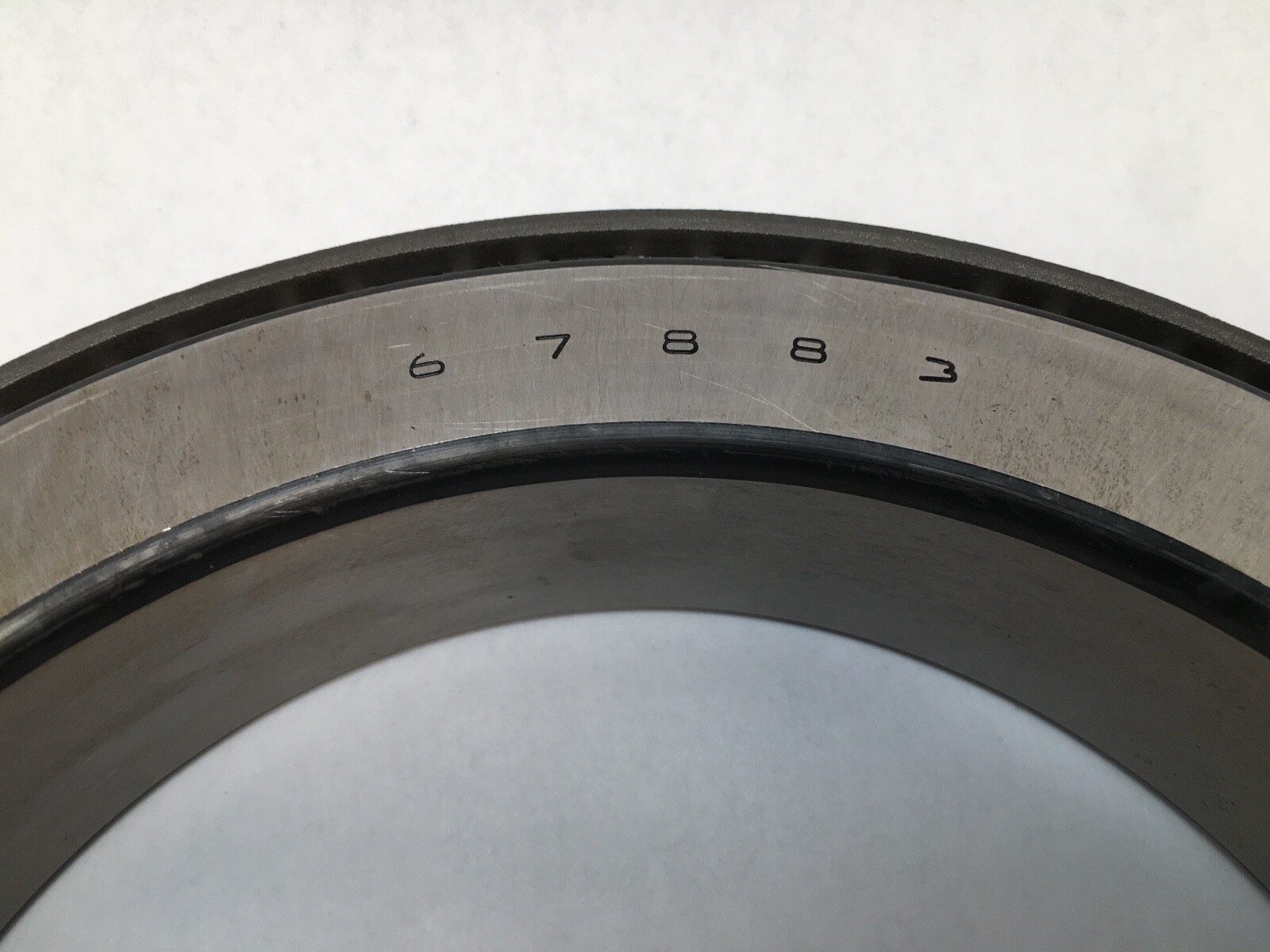

67883 — Timken base cone number in the 678 inch series, 7.2500 in bore. No precision suffix is present, so the tolerance class is Not specified.

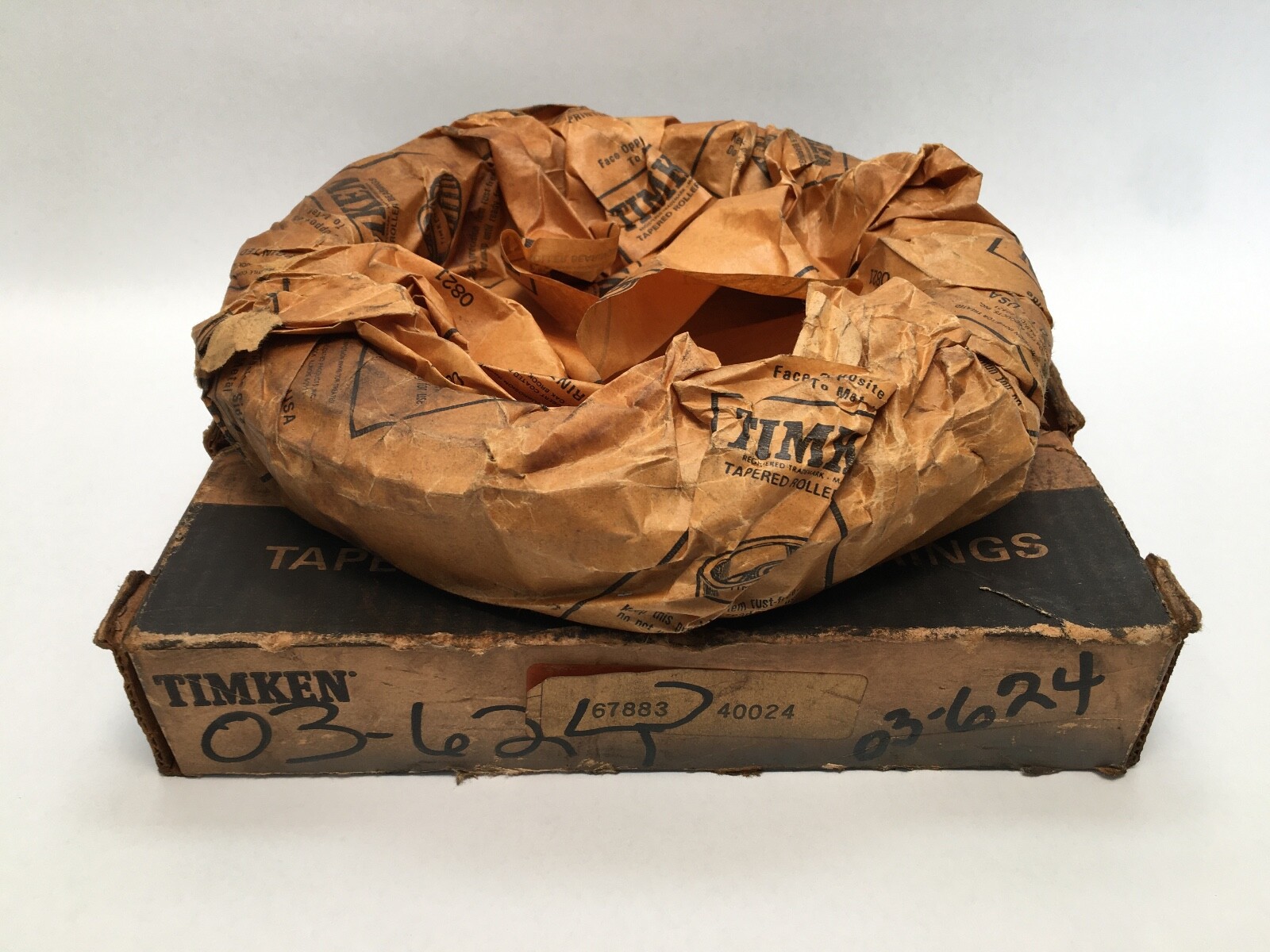

40024 — the Timken order-code fragment printed on this carton. It is a search term a buyer will use; the bearing itself is a 67883 cone.
Dynamic Load Rating: 416,000 N (C1, one million revolutions). Static Load Rating: 835,000 N. Dynamic radial rating at 90 million revolutions (C90): 108,000 N. Dynamic axial rating at 90 million revolutions (Ca90): 88,200 N. K Factor: 1.22. The static rating is twice the dynamic figure, which is the normal shape for a large-bore, short-width cone: it will hold a very heavy standing load, and its running life is set by the dynamic number.
Effective Load Centre: 10.2 mm. Maximum fillet radius on the mating shaft: 3.600 mm (0.140 in). Shaft Backing Shoulder Diameter, frontface (da): 198 mm (7.80 in). Shaft Backing Shoulder Diameter, backface (db): 204 mm (8.03 in). Cage location relative to backface (Aa): 4.6 mm. Cage location relative to frontface (Ab): 2.8 mm. G1 Factor: 727.9. G2 Factor: 146.6. Geometry Factor (Cg): 0.131.
Unit Quantity: 1 Pc. Cone only. Matching cups are the Timken 67820 and 67830.
Koyo 67883 and NTN 4T-67883 carry the same inch cone number from other makers. Cone only; pair it with a 67820 or 67830 cup.
