SKF330633C/330633Complete Single-Row Tapered Roller Bearing, Cone and Cup Included, 65mm x 145mm x 36.1mm, Open, Separable Design

Product Description

What this part is

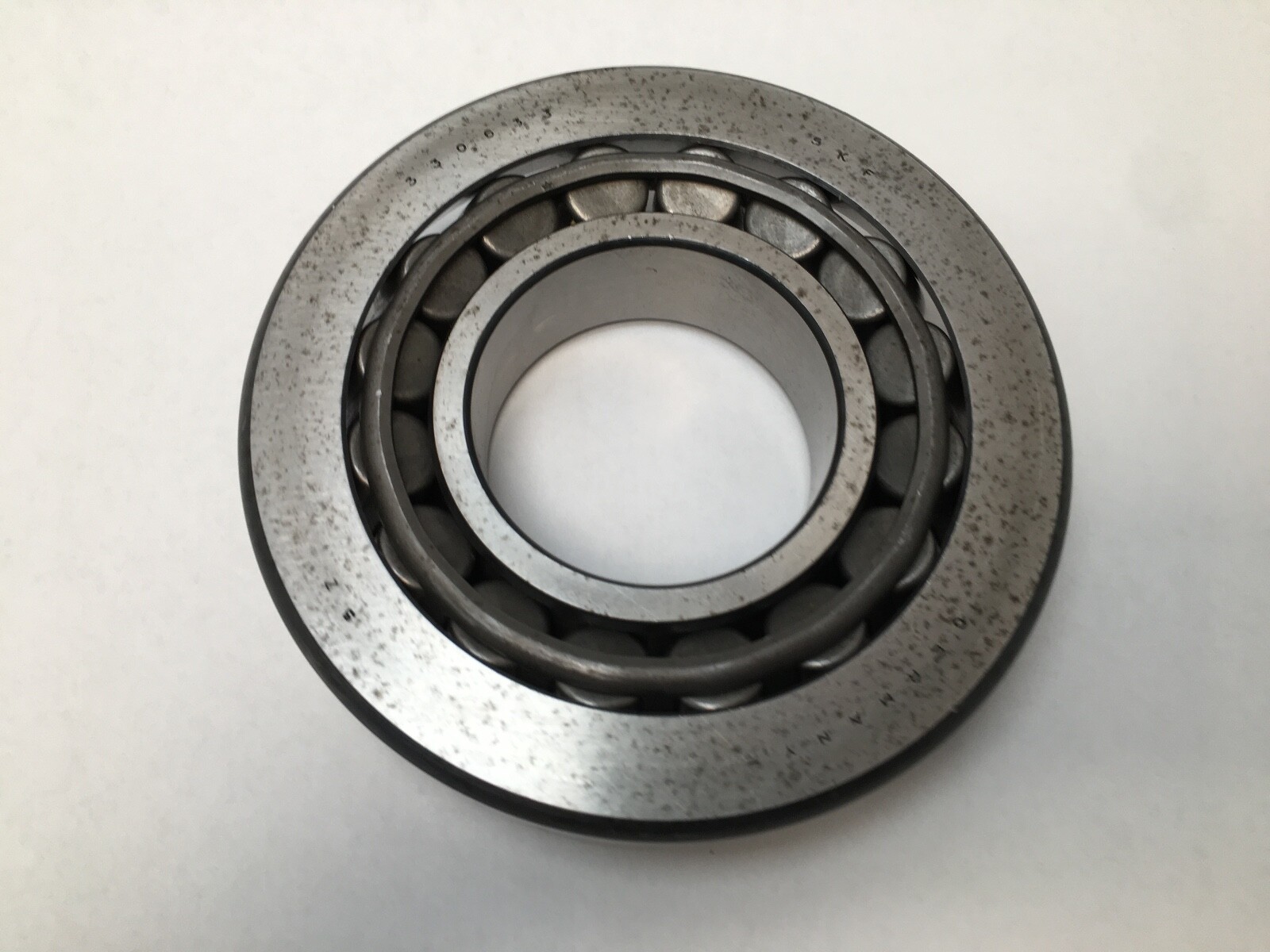

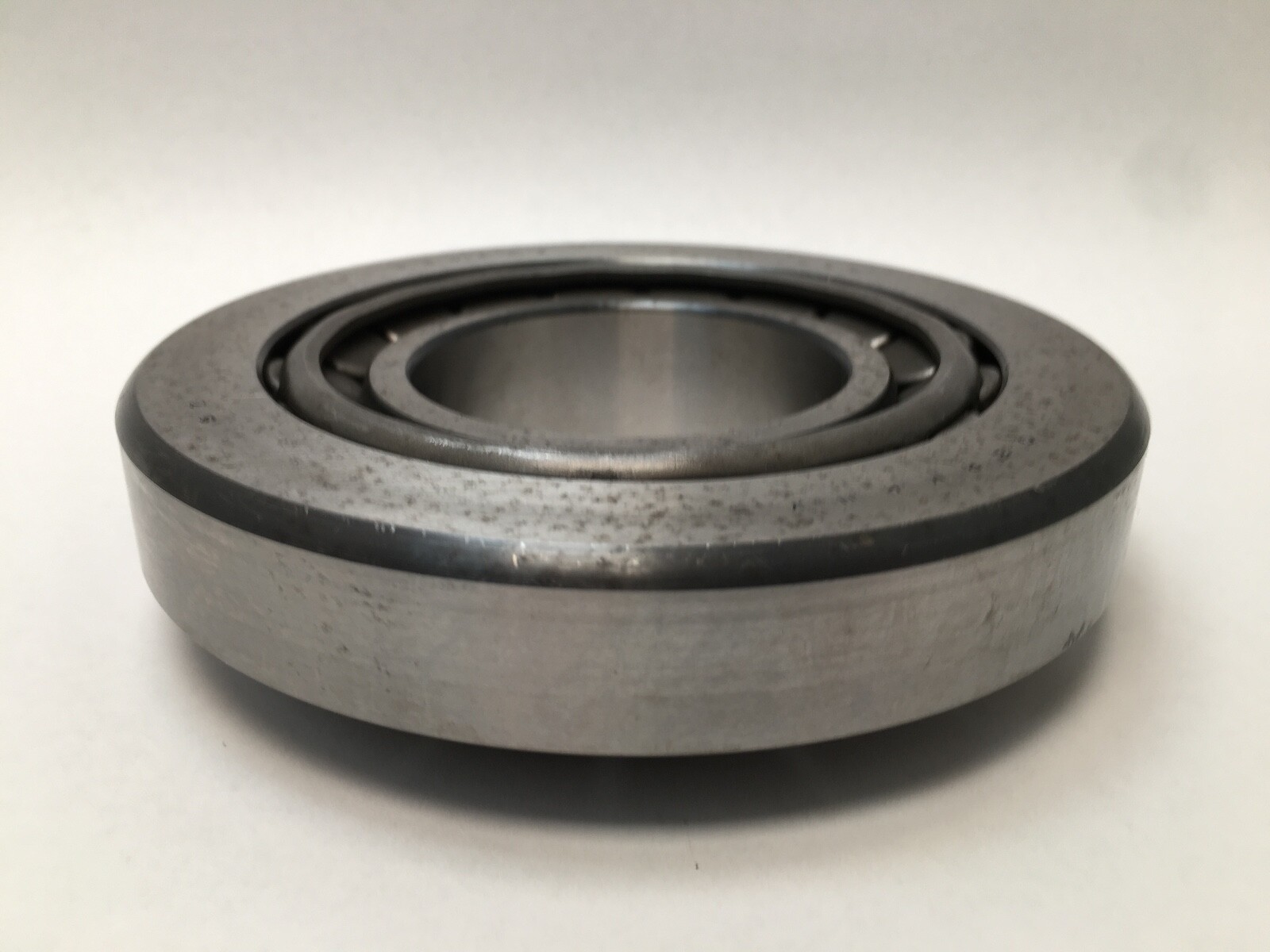

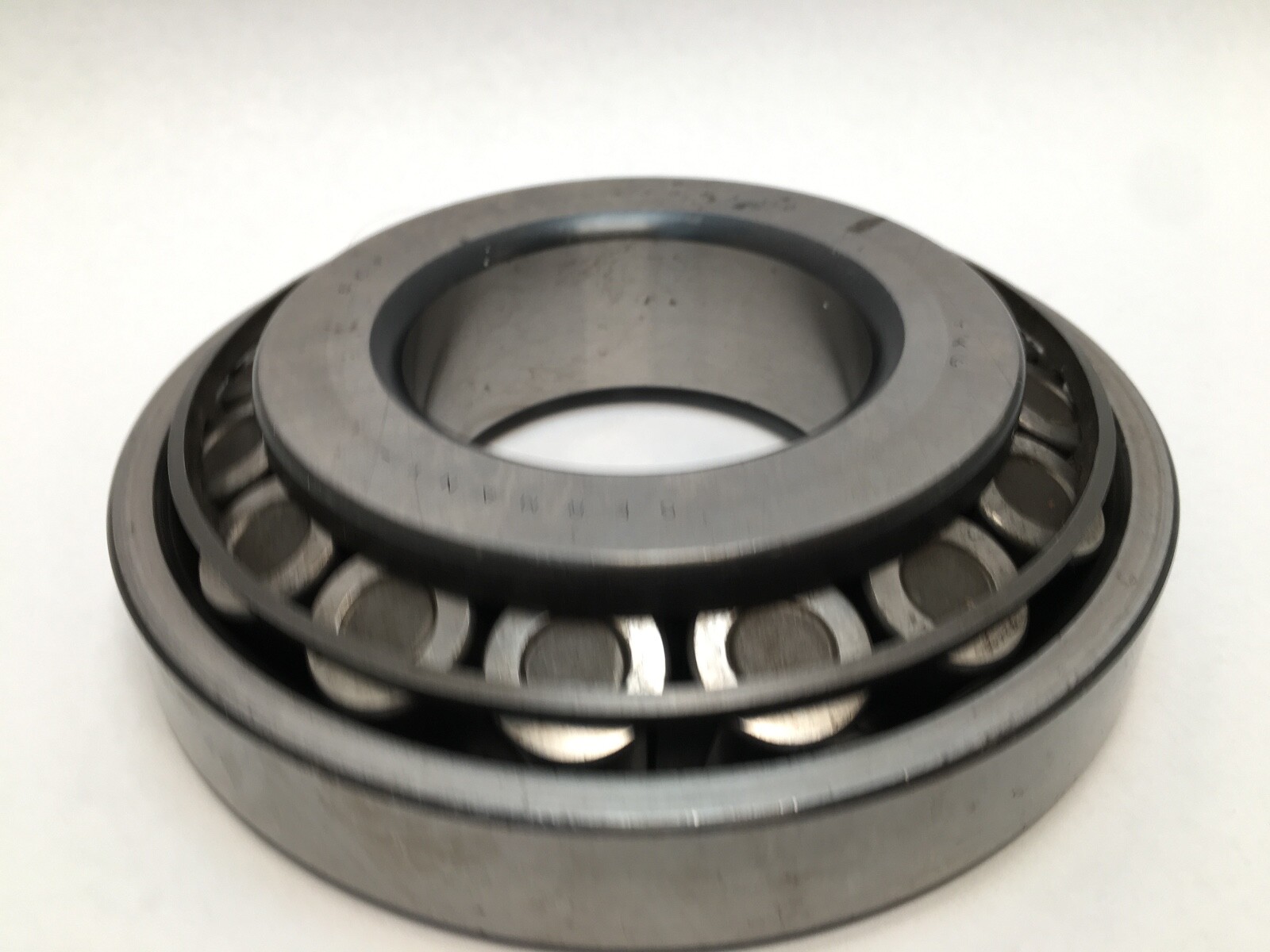

A single-row tapered roller bearing on a 65 mm bore and 145 mm outside diameter, 36.1 mm overall assembled width, weighing roughly 2.35 kg. Tapered rollers run between conical inner and outer raceways, which is what lets the bearing take a heavy radial load and a substantial one-directional thrust load at the same time.

What is included

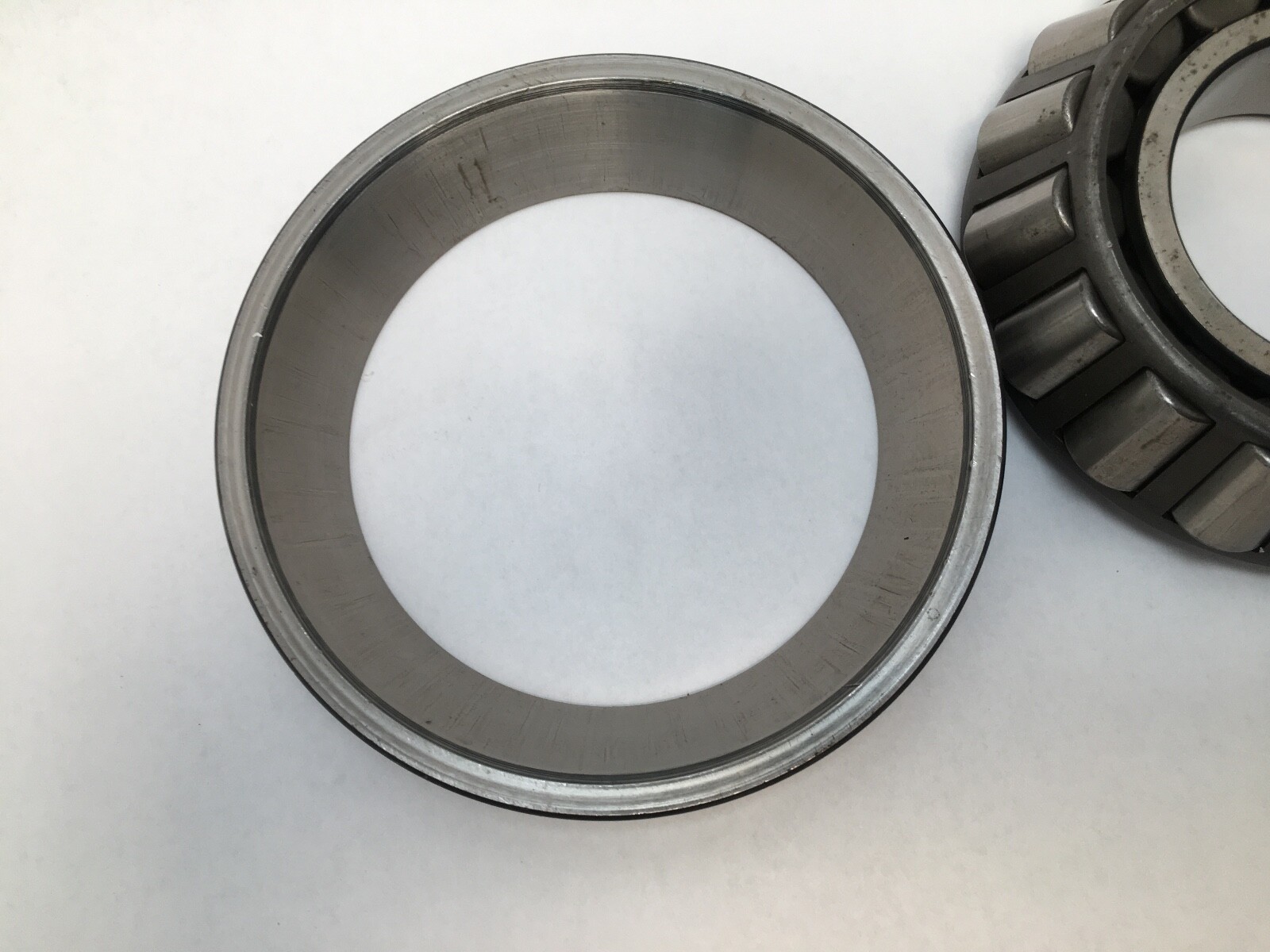

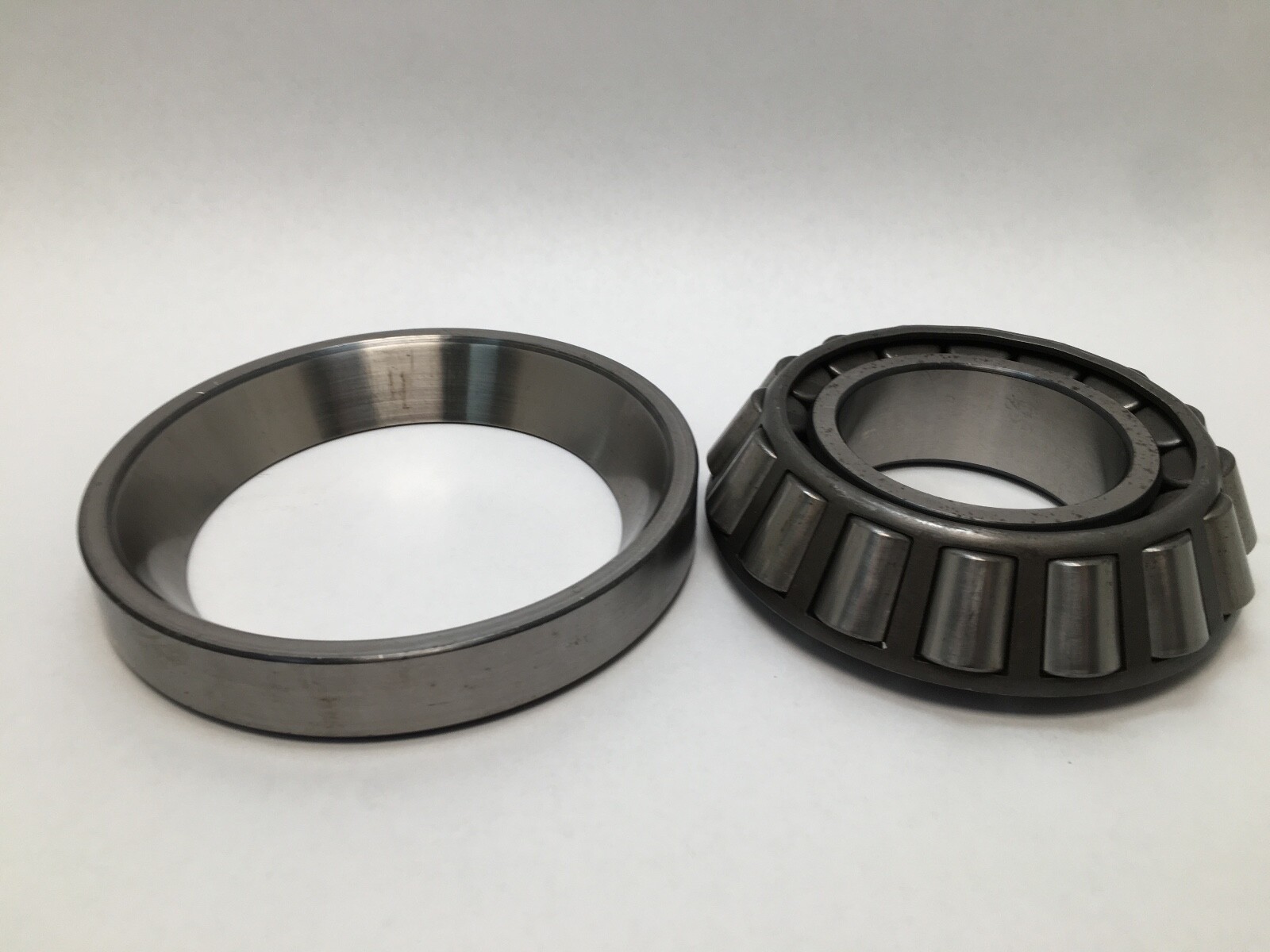

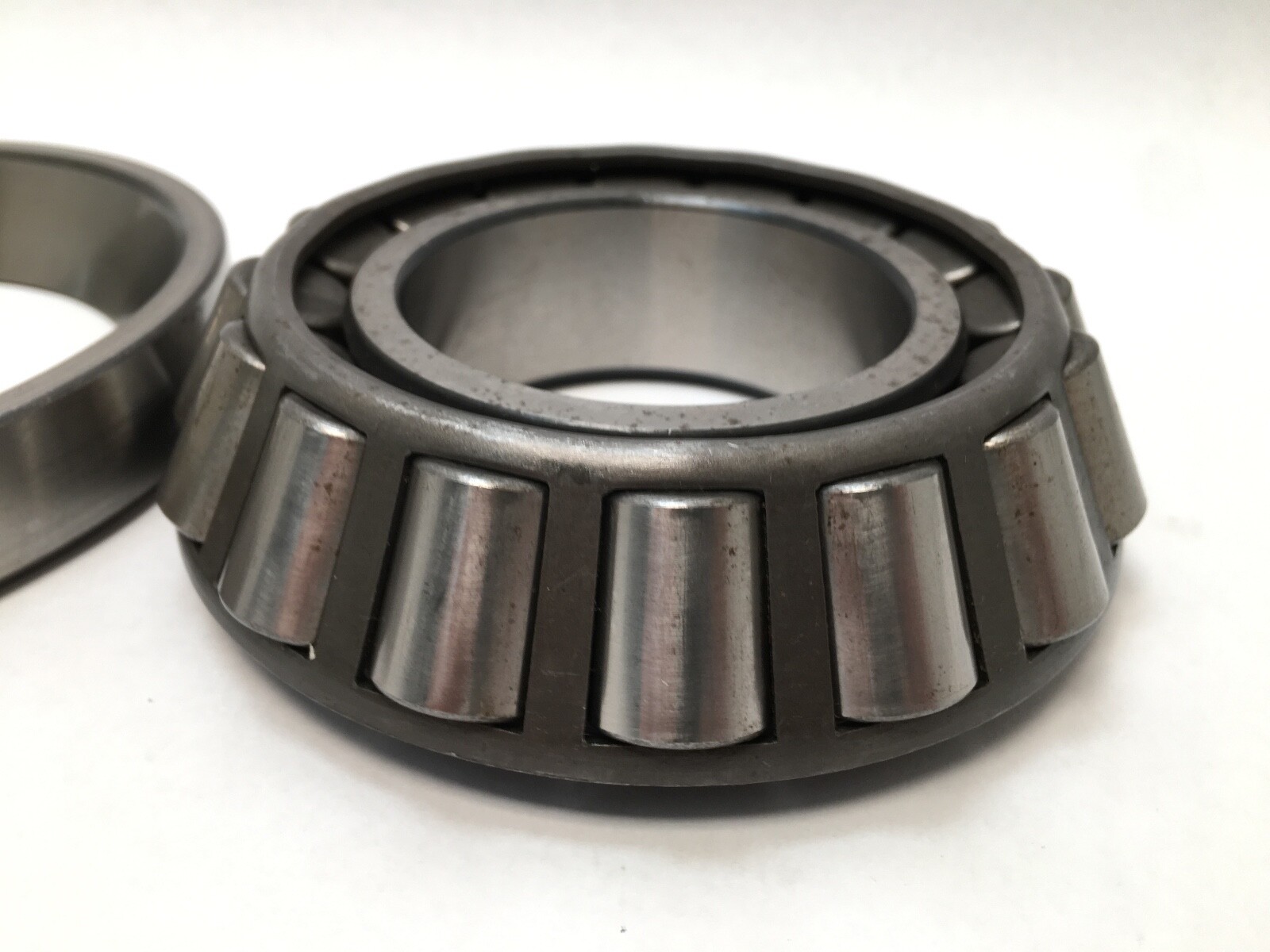

Both halves. The paired designation 330633 C / 330633 is the giveaway — it names the cup and the cone together, which is how a complete matched tapered assembly is written. You get the cone (inner ring with the roller and cage assembly) and the cup (outer ring) as a set.

That matters commercially as well as technically. A large share of tapered roller bearings on the secondary market are sold as bare cones, and a buyer who orders one discovers on the bench that there is no outer race in the box. Nothing further is needed here: press the cup into the housing, press the cone onto the shaft, and set the endplay. As a shelf check before dispatch, confirm both rings are physically present in the carton.

Decoding the designation

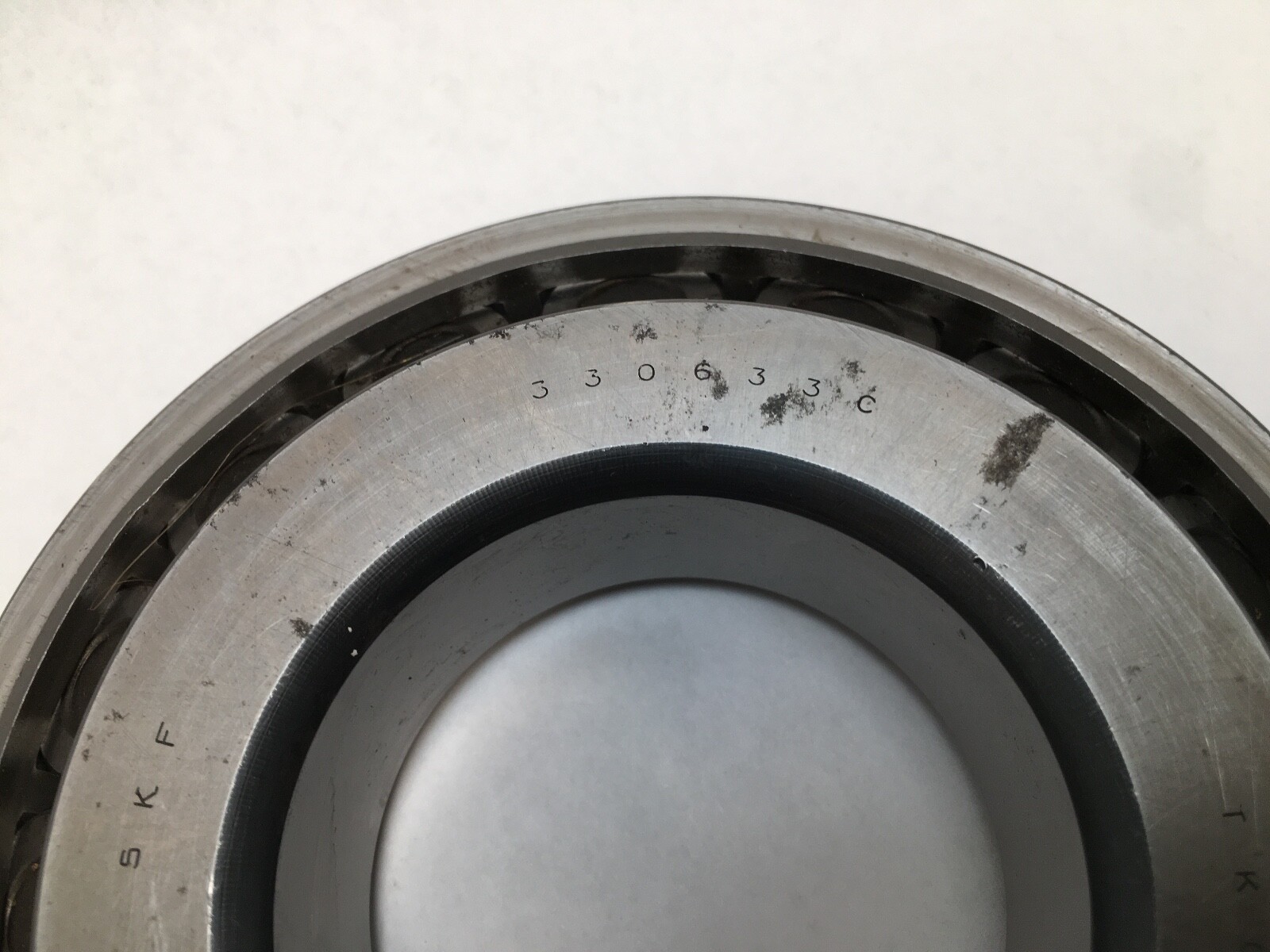

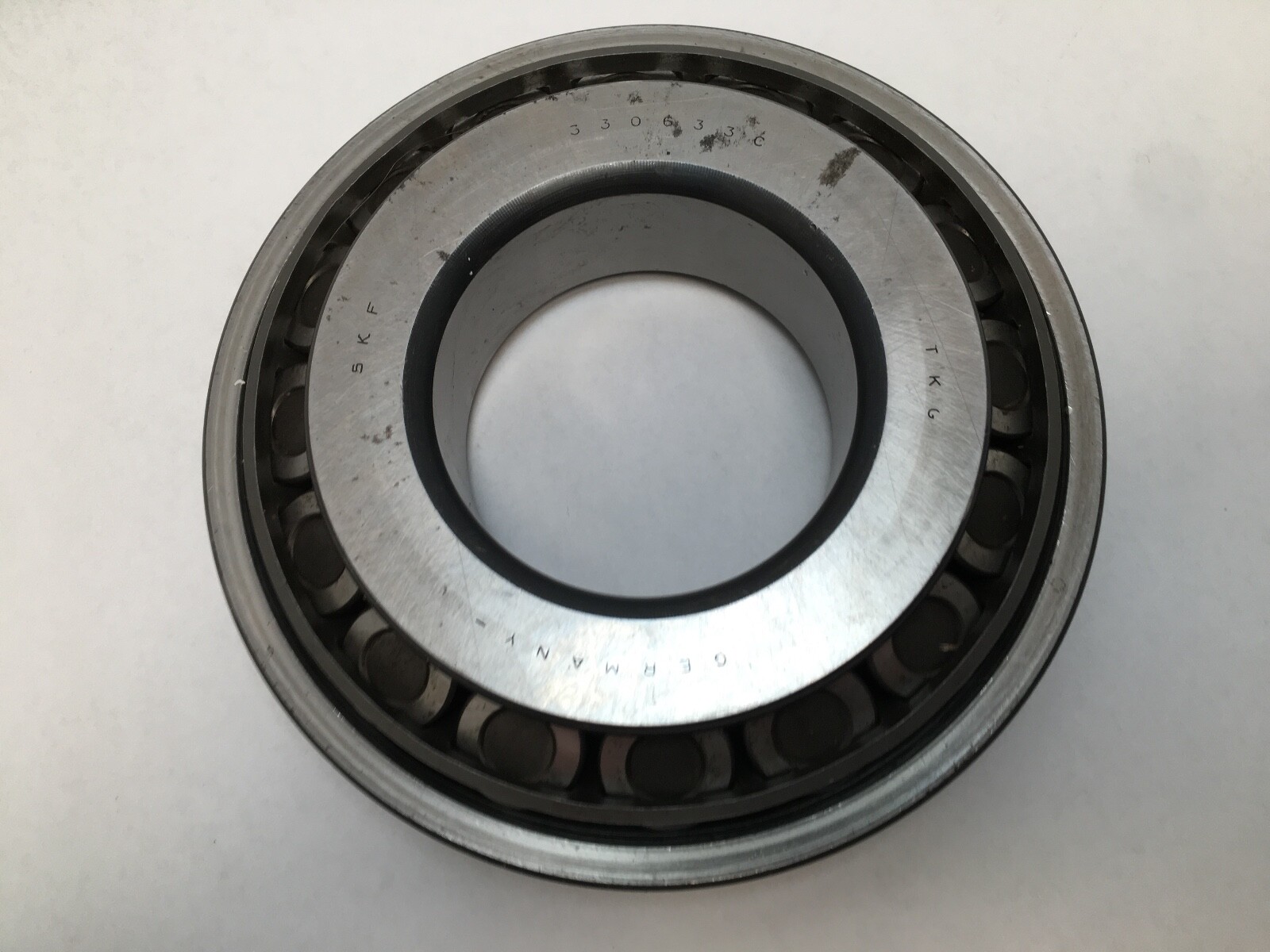

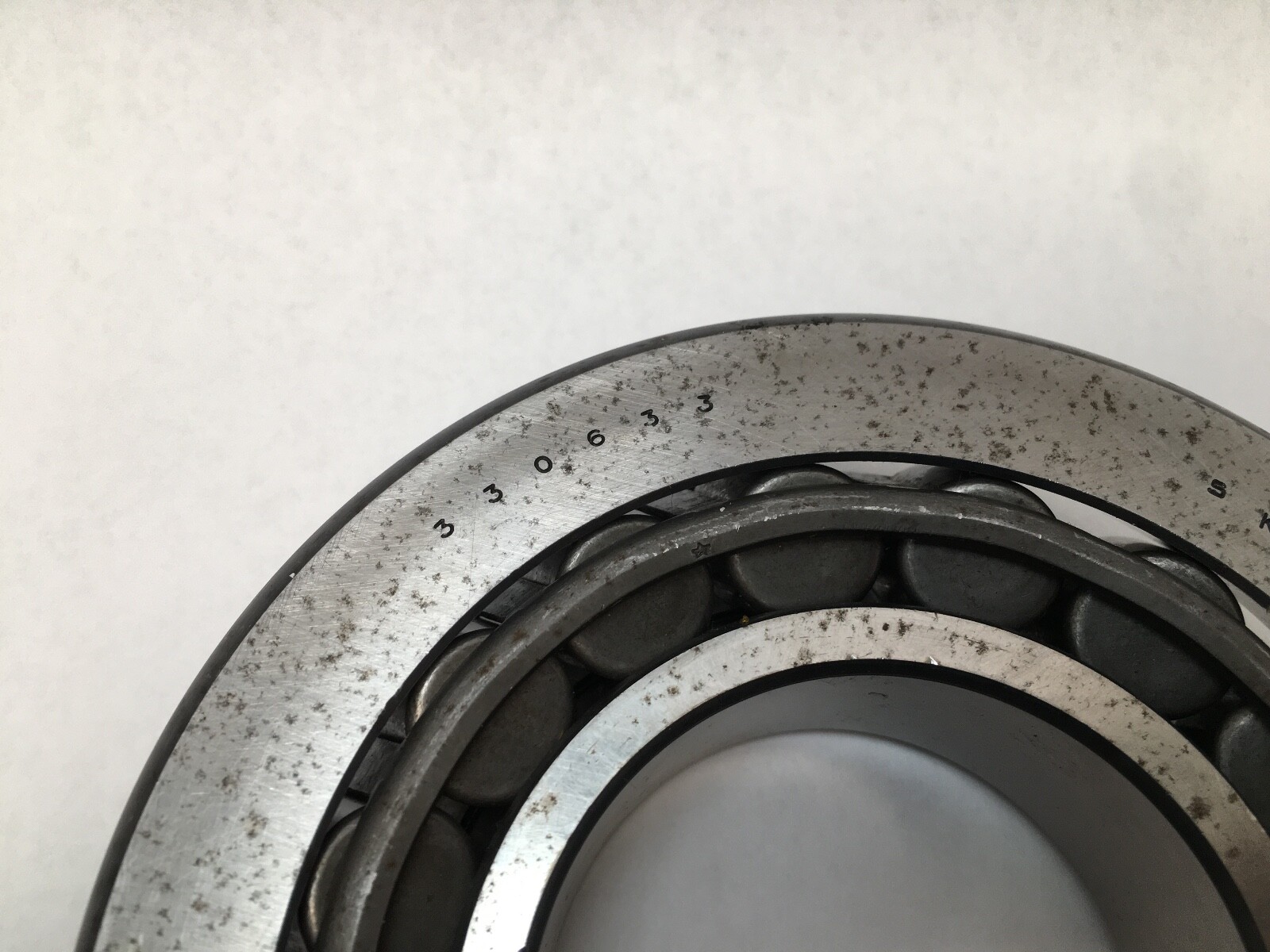

330633 – SKF part number for this tapered bearing; also seen as 330633 C and 330633-C.
C – SKF design or execution variant suffix on this number. The precise meaning SKF assigns to this suffix in this series is not published in the sources checked, so it is not decoded further here rather than guessed at.

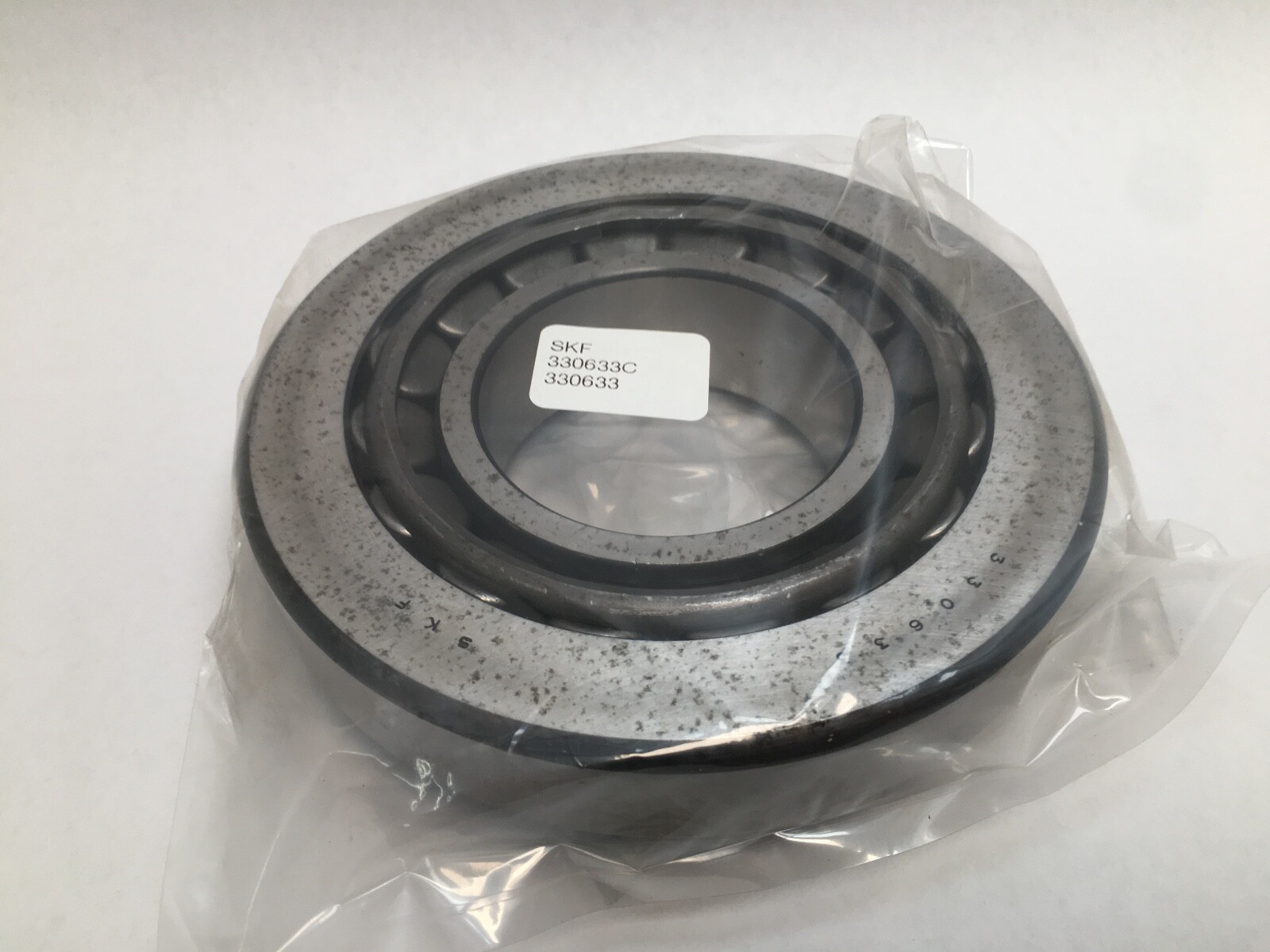

330633 C/330633 – the cup and cone written as a pair, i.e. the complete assembly.

The related SKF designation BT1-0230/Q is referenced by distributors as covering the same 330633 C type. Treat that as a provisional distributor cross-reference, not an SKF-published equivalence.

What these specs mean in practice

A tapered roller bearing takes thrust in one direction only, which is why it is almost never used alone. Two are mounted facing each other, back-to-back (O arrangement) or face-to-face (X arrangement), so the pair locates the shaft axially in both directions. O arrangement gives a wider effective bearing spread and better resistance to tilting moments; X arrangement is more tolerant of shaft expansion and easier to set. Tandem pairs are used where thrust in one direction is very high.

Because the bearing is separable, it also has no internal clearance as supplied. Endplay or preload is created during mounting. Preload raises stiffness and running accuracy but generates heat and shortens life if overdone; endplay runs cooler but allows shaft movement. Getting this setting right is the single largest determinant of how long a tapered bearing lasts, and it is entirely in the fitter’s hands.

Published dimensions

Bore d: 65 mm
Outside diameter D: 145 mm
Overall assembled width: 36.1 mm
Weight: approximately 2.35 kg
Rows: 1
Closure: open
Configuration: cone and cup, separable, both included

Dynamic and static load ratings, limiting speed and cage details are not published against this designation in the sources checked, so no figures are given. A borrowed rating from a similar-envelope bearing would be a guess dressed up as data, and on a bearing selection that guess costs real money. If ratings are needed for a calculation, request them from SKF against the exact designation.

Fitting notes

Press the cone onto the shaft by its bore face and the cup into the housing by its back face — never drive force through the rollers. Ensure the housing bore and shaft seat are clean, square and to the specified fit. Set endplay or preload across the opposed pair on assembly and record the figure. Because the two rings are separable they can be handled independently during a rebuild, which is convenient, but keep them together: a cone and cup that have run together have matched wear patterns.

Interchange guidance

Search alongside 330633, 330633C, 330633-C, 330633 C/330633 and BT1-0230/Q. Neighbouring numbers such as 330632 are different bearings on different boundary dimensions — do not substitute on the strength of a near-identical part number. Confirm 65 x 145 x 36.1 mm against the application before ordering.
