Single-row metric tapered roller bearing, 75 x 115 x 25 mm, cup width 19 mm. High-capacity HR design, pressed steel cage, open. 134 kN dynamic rating.
List Price
$57.59
11 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | NSK |
|---|---|
| MPN | HR32015XJ |
| Model | HR 32015 X J / 32015X / 32015J |
| Bearing Type | Tapered Roller Bearing |
| ID | 75 mm |
| OD | 115 mm |
| Material | Steel |
|---|---|
| Base Number | 32015X |
| Industry Terms | tapered roller bearing; taper roller bearing; cone and cup set; metric taper bearing; single row taper; TRB; wheel and pinion bearing |
| Common Misspellings | HR32015X J; HR-32015XJ; HR32015JX; NSK HR32O15XJ; 32015 XJ |
| Application Types | Gearboxes and speed reducers; pinion and wheel shafts; machine tool spindles on opposed pairs; agricultural and construction drivelines; pumps and industrial fans |
| Total Width | 25 mm |
| Bore Shaft Size | 75 mm |
| Mpn Variants | HR32015XJ; HR-32015-X-J; HR32015X; HR 32015 XJ; 32015XJ; 32015X; HR32015XJ-APN |
| Additional Attributes | Effective load centre a: 25.1 mm. Chamfer r min (cone): 1.5 mm. Chamfer r min (cup): 1.5 mm. Shaft abutment da min: 86 mm. Shaft abutment db max: 82 mm. Housing abutment Da min: 103 mm, Da max: 106 mm, Db min: 110 mm. Maximum shaft or housing fillet radius ra max: 1.5 mm. Axial load factors Y0 0.72, Y1 1.3. Mechanical limiting speed (jet lubrication): 5,600 rpm. |
| Cage Type | Pressed cage |
| Dynamic Load Rating | 134,000 N (134 kN), per bearing |
| Static Load Rating | 171,000 N (171 kN), per bearing |
| Rolling Elements | Tapered rollers |
| Item Weight | 0.925 kg (2.04 lb) |
| Cage Material | Pressed steel |
| Limiting Speed | 3,000 rpm grease; 4,000 rpm oil bath |
| Number Of Rows | 1 |
| Lubricant | Grease or oil |
| Part Number | HR32015XJ |
| Hohn Deere Mpn | 0120048170 |
| Closure Type | Open |

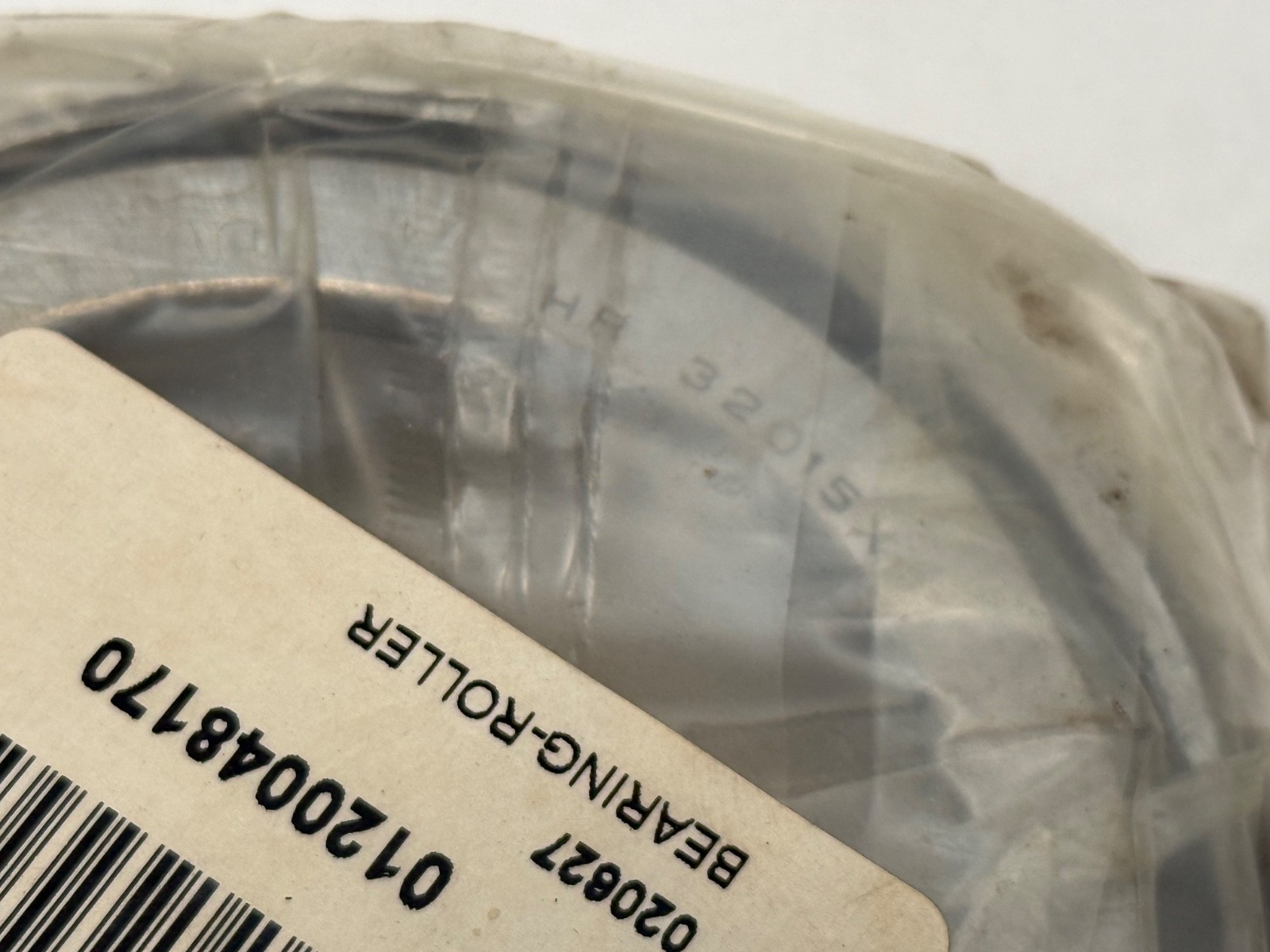

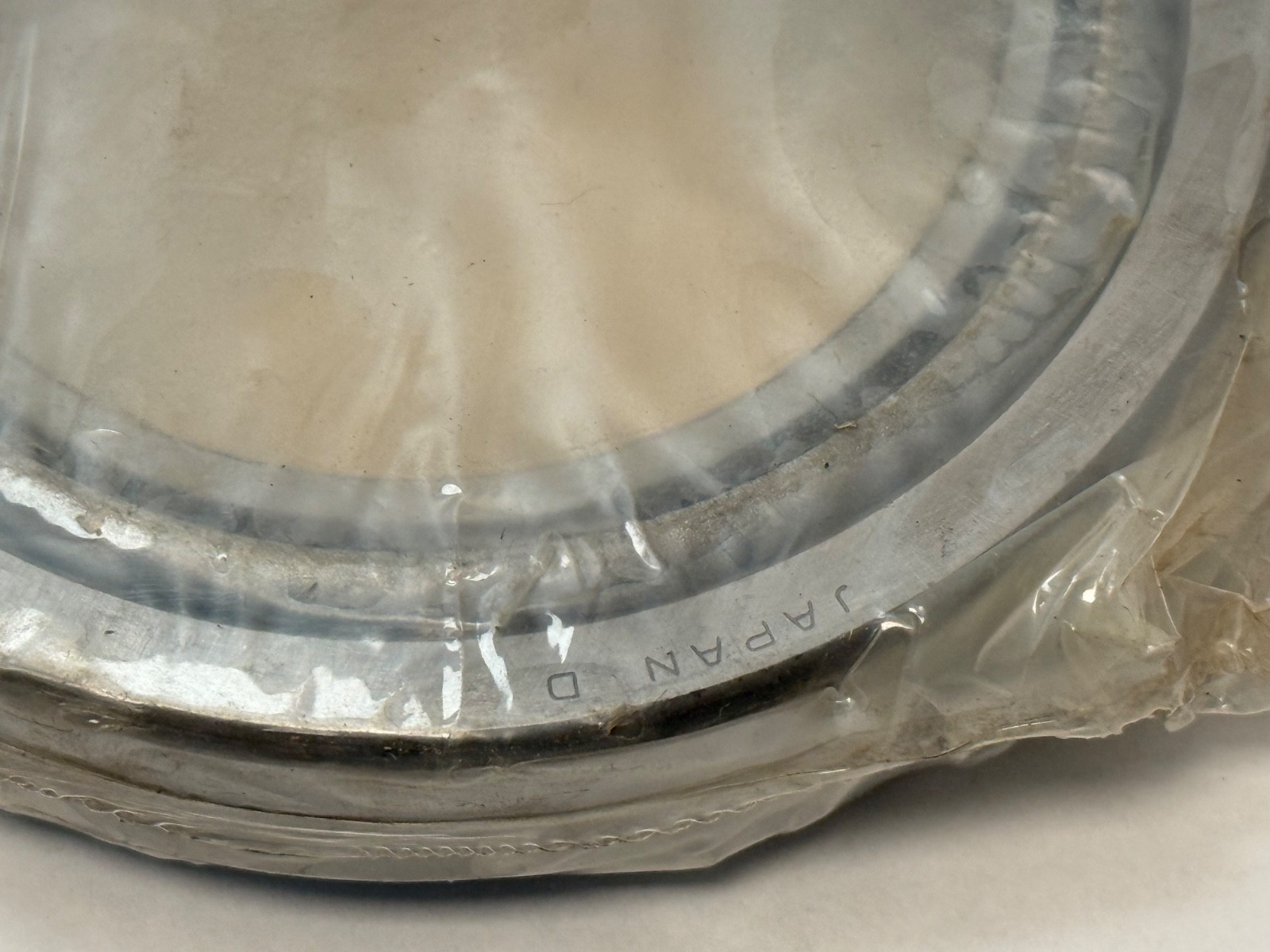

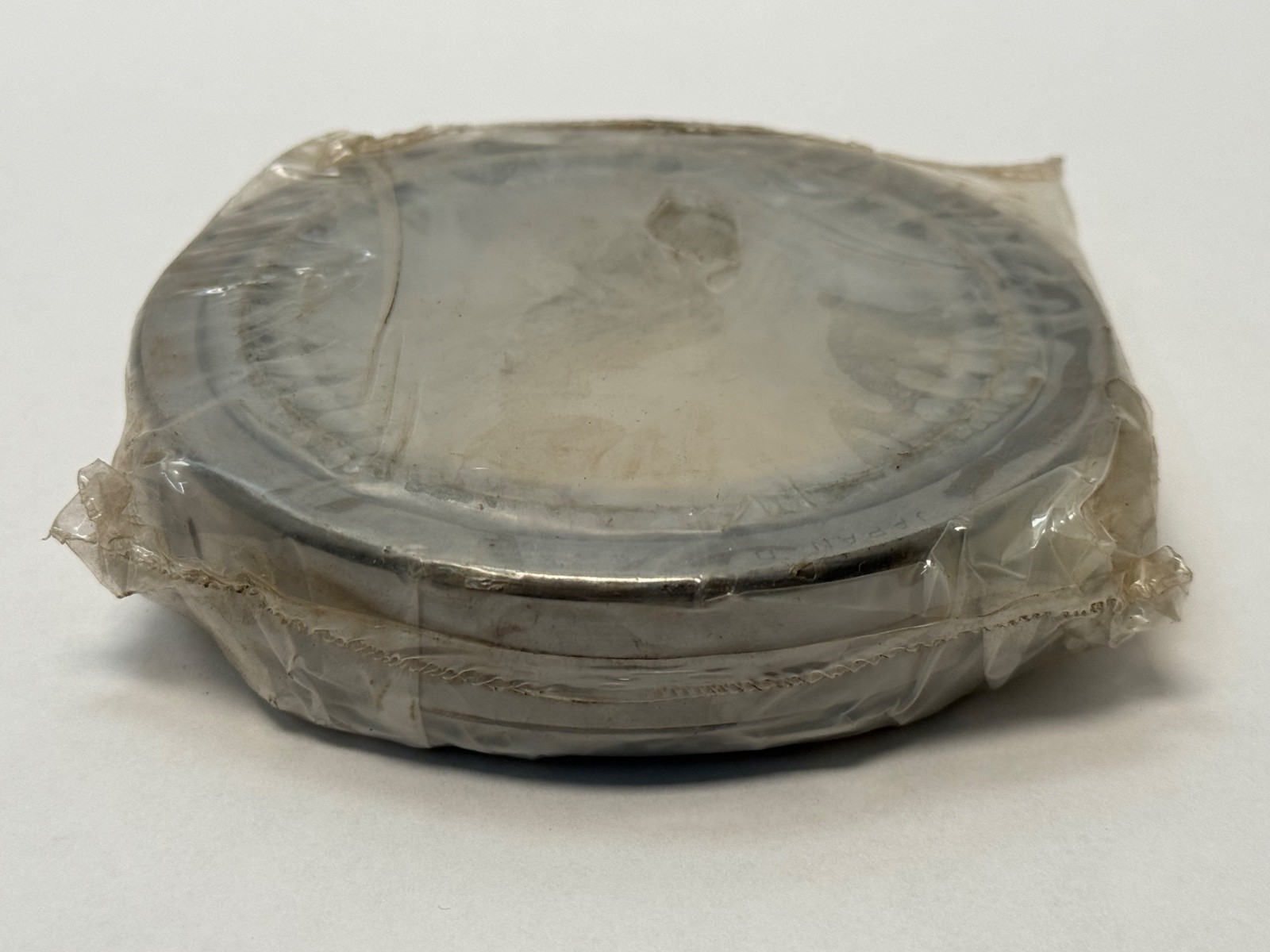

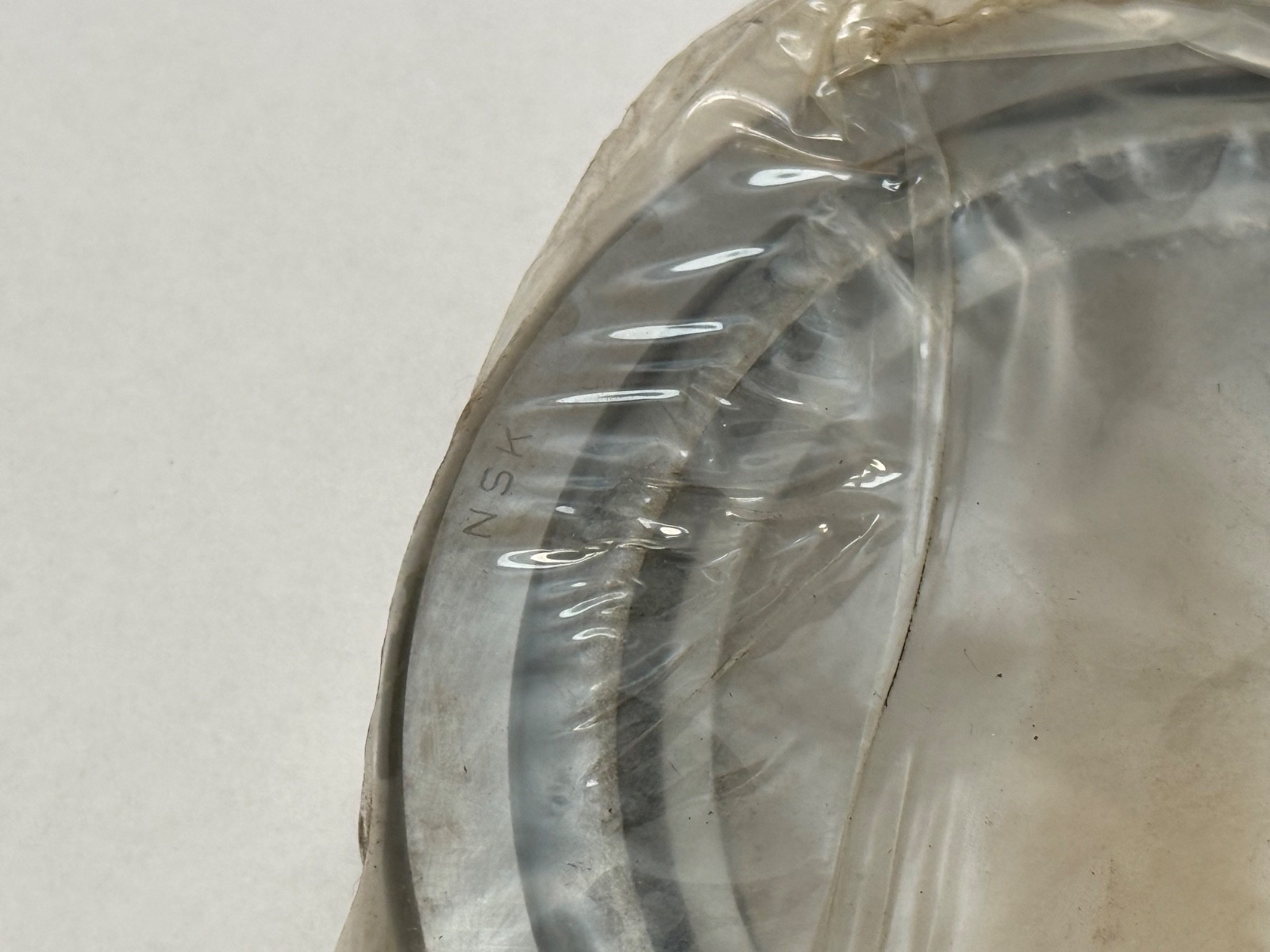

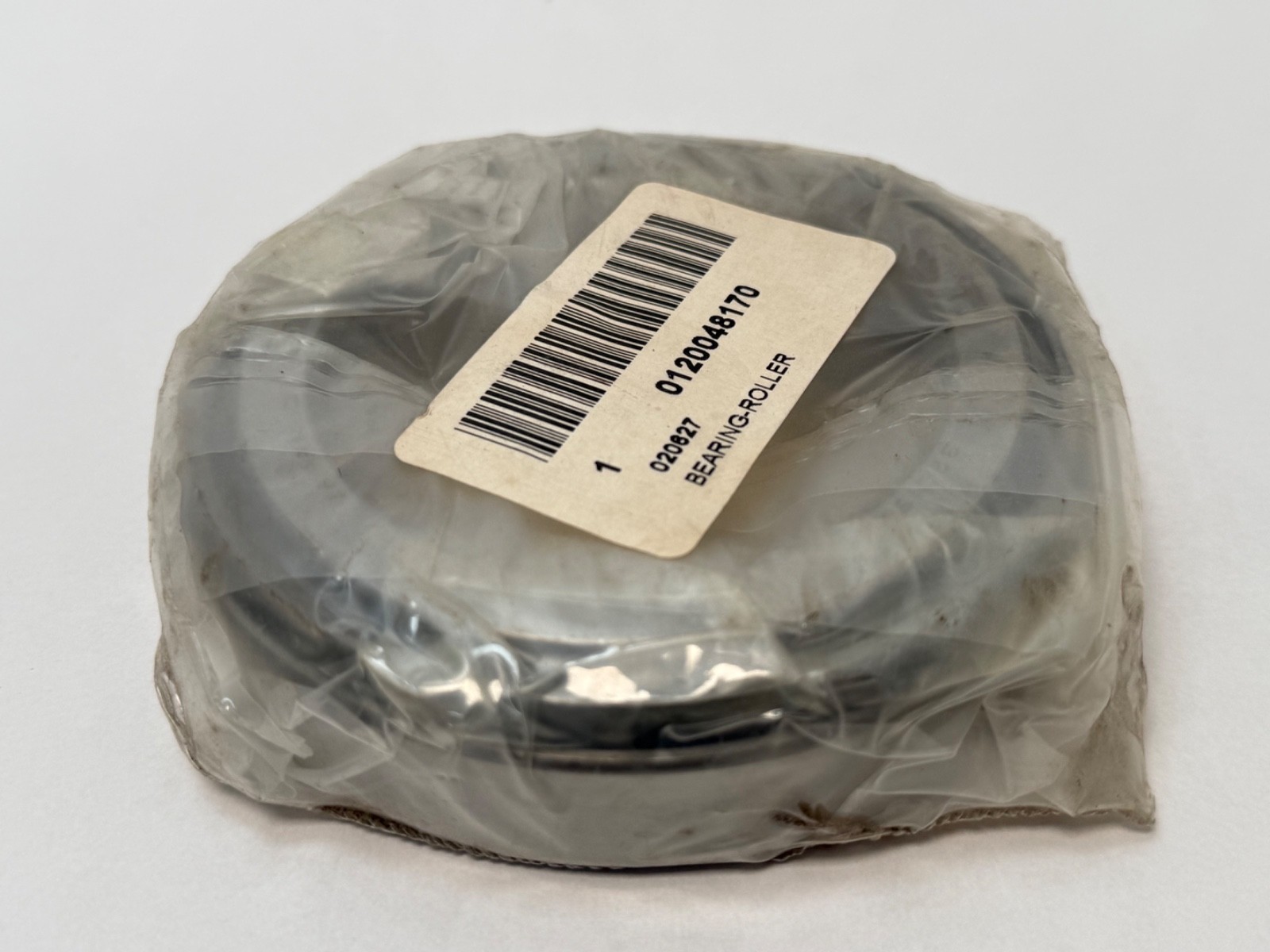

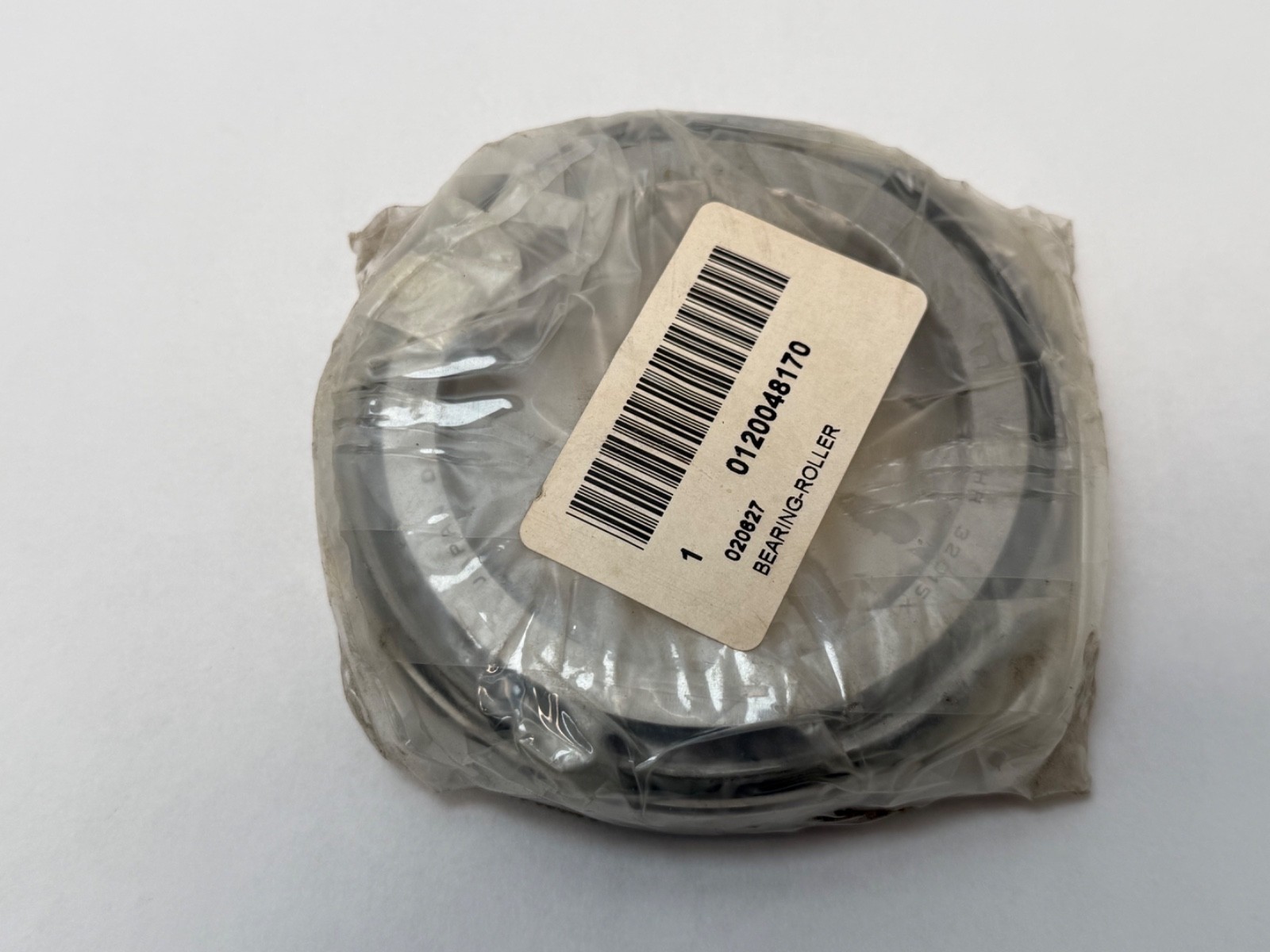

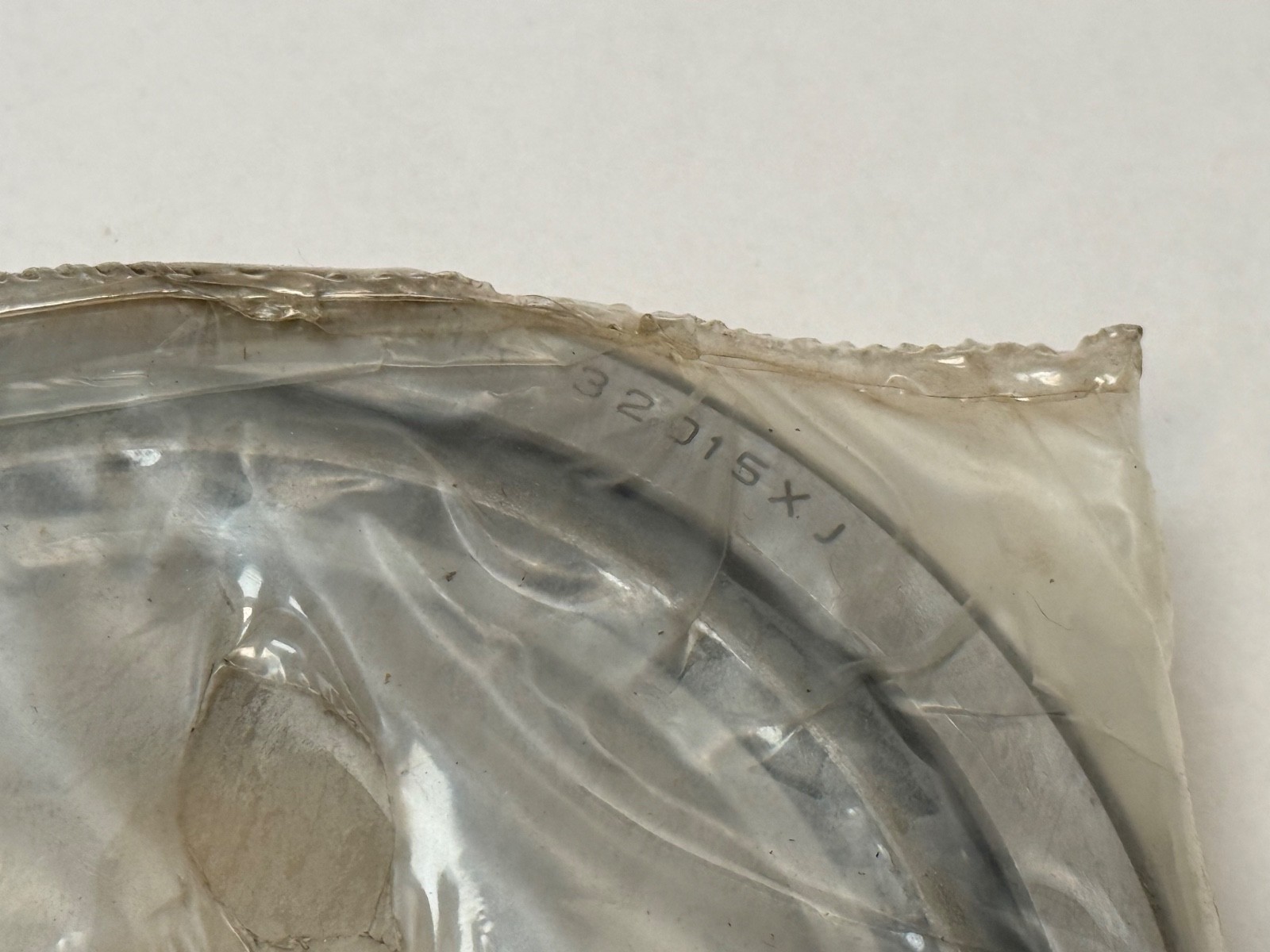

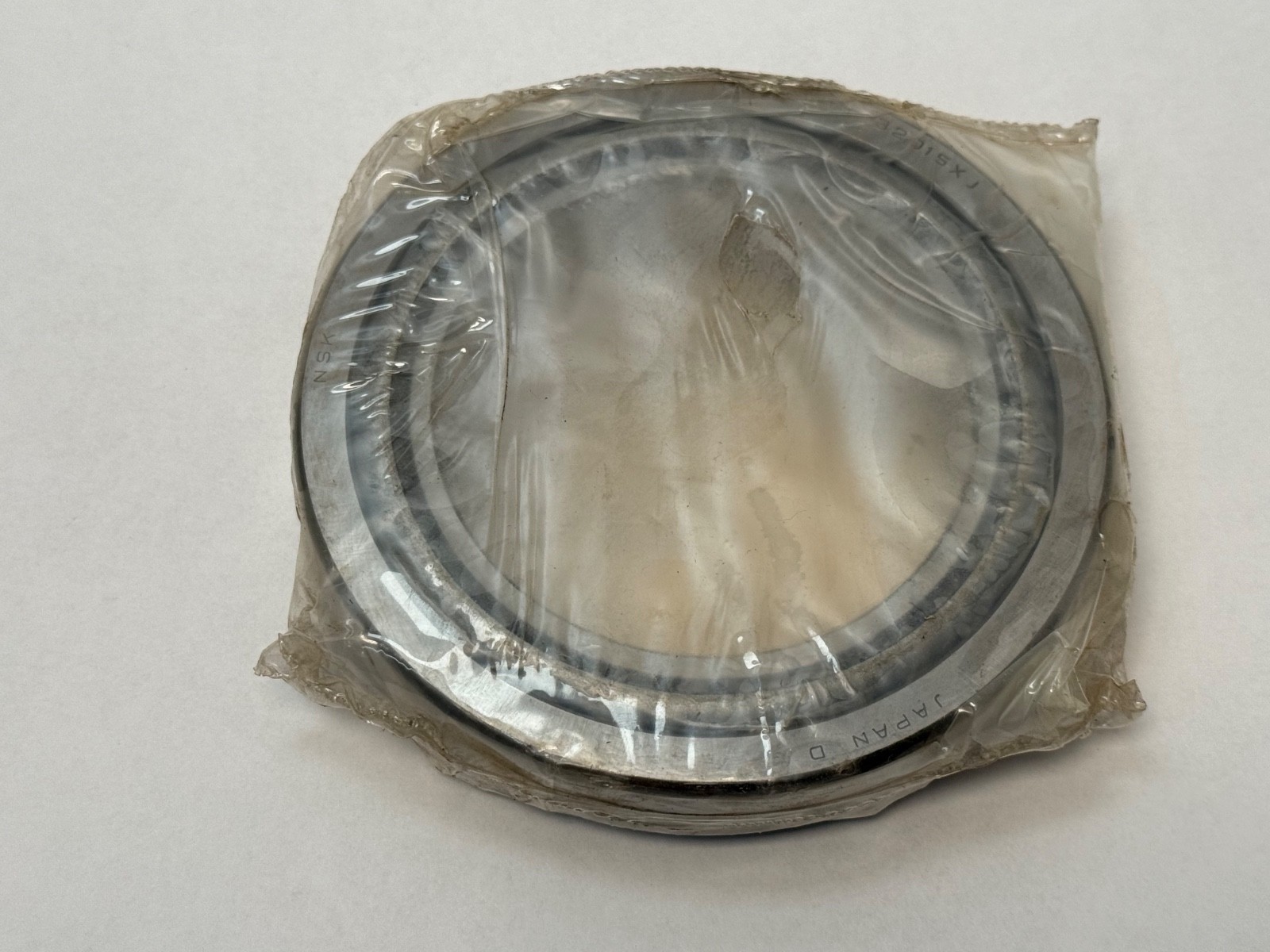

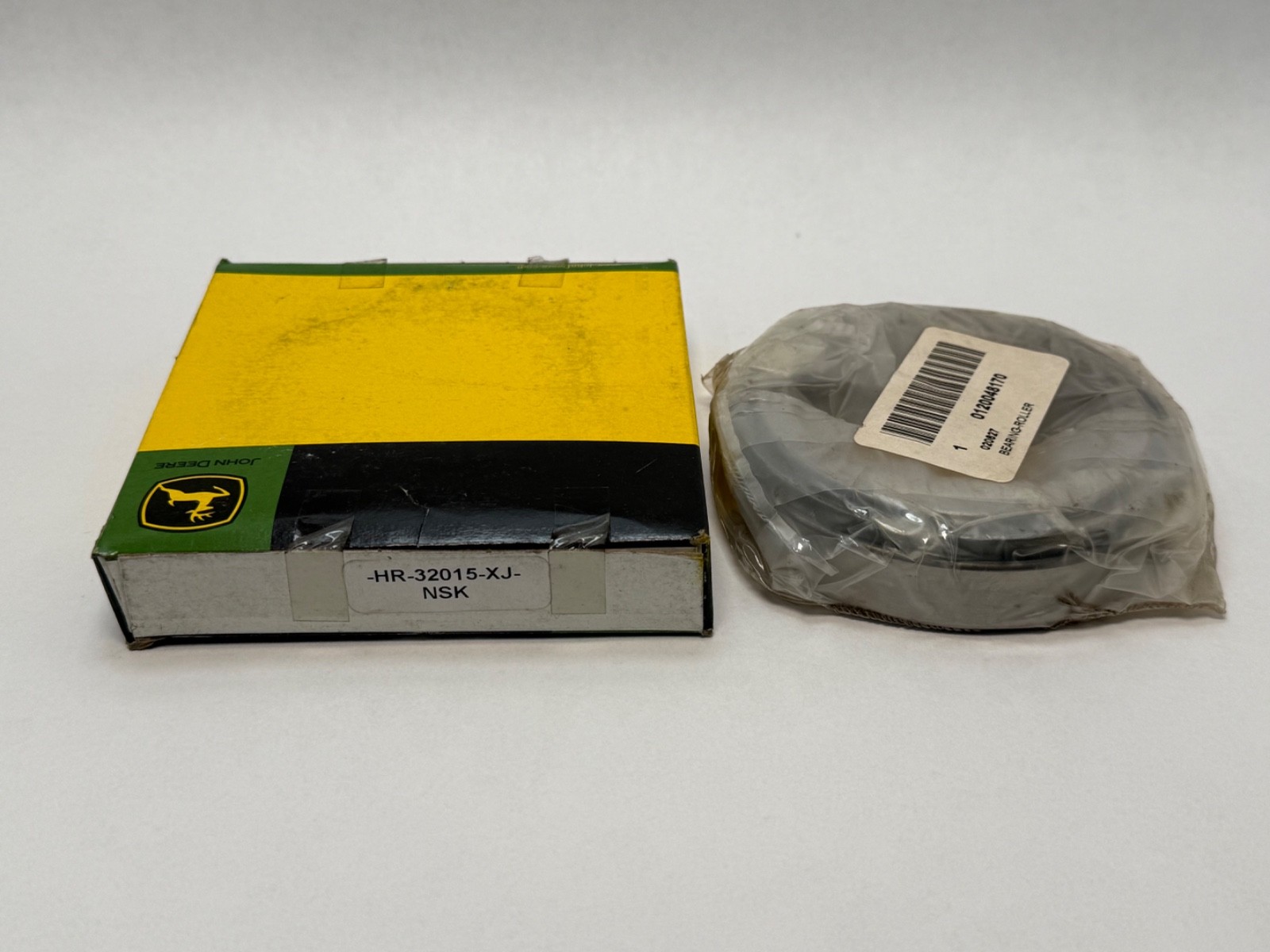

NSK HR32015XJ is a single-row metric tapered roller bearing supplied as a complete cone and cup. Bore Diameter: 75 mm. Outside Diameter: 115 mm. Total Width (T): 25 mm. Inner Ring Width (B): 25 mm. Outer Ring Width (C): 19 mm. Open, unsealed. Unit Quantity: 1 Pc.
HR — NSK high-capacity tapered roller design.
320 — ISO dimension series, 320 series.
15 — bore code, giving a 75 mm bore.
X — ISO 355 dimension and contact-angle standard.
J — pressed steel cage.
Dynamic Load Rating (Cr): 134,000 N (134 kN) per bearing. Static Load Rating (C0r): 171,000 N (171 kN) per bearing. Limiting Speed, grease: 3,000 rpm. Limiting Speed, oil bath: 4,000 rpm. Mechanical (jet lubrication) limiting speed: 5,600 rpm. Mass: 0.925 kg (2.04 lb). Effective Load Centre (a): 25.1 mm. Axial Load Factors: Y0 0.72, Y1 1.3. Rolling Elements: tapered rollers. Number Of Rows: 1. Cage Material: pressed steel. Closure Type: open.
Bore Diameter: 75 mm. Outside Diameter: 115 mm. Total Width (T): 25 mm. Chamfer Dimension r min, cone: 1.5 mm. Chamfer Dimension r min, cup: 1.5 mm. Shaft Abutment Diameter da min: 86 mm. Shaft Abutment Diameter db max: 82 mm. Housing Abutment Diameter Da min: 103 mm. Da max: 106 mm. Db min: 110 mm. Maximum Shaft Or Housing Fillet Radius ra max: 1.5 mm.
Bore Diameter: 75 mm. Outside Diameter: 115 mm. Total Width: 25 mm. Cup width: 19 mm.
Dynamic load rating Cr is 134,000 N and static load rating C0r is 171,000 N, per bearing, per the NSK catalogue.
J is the pressed steel cage.
