Metric tapered roller bearing, 110 x 200 x 56 mm, separable cone and cup, steep 322 series. 410,000 N dynamic, 590,000 N static load rating.
List Price
$232.19
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | 32222-A |
| Model | 32222 A |
| Bearing Type | Tapered Roller Bearing |
| ID | 110 mm |
| OD | 200 mm |
| Base Number | 32222 |
|---|---|
| Total Width | 56 mm |
| Overall Width | 56 mm |
| Mpn Variants | 32222-A; 32222A; 32222 A; T3FC110 |
| Additional Attributes | Inner ring width 53 mm; outer ring width 46 mm; distance between the apexes of the pressure cones 46 mm; guidance rib diameter of inner ring 153.5 mm; calculation factor e 0.42; dynamic axial load factor Y 1.43; static axial load factor Y0 0.79; fatigue load limit 67,000 N; shaft shoulder diameter 122 to 126 mm; housing shoulder diameter 170 and 190 mm minimum, 188 mm maximum; maximum fillet radius of housing 2.5 mm; maximum recess radius 3 mm; minimum chamfer 3 mm inner ring back face, 2.5 mm outer ring back face; minimum axial space 6 mm and 10 mm; ISO 10317 / ISO 355 comparative designation T3FC110 |
| Min Temp | -30 °C |
| Dynamic Load Rating | 410,000 N |
| Static Load Rating | 590,000 N |
| Series | 322 |
| Rolling Elements | Tapered Roller |
| Max Temp | 120 °C |
| Item Weight | 7.22 kg (15.92 lb) |
| Limiting Speed | 3,450 rpm |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Design Units | Metric |
| Bearing Material | Chrome steel |
| Industry Terms | tapered roller bearing; taper roller bearing; metric tapered roller bearing; cone and cup set; separable tapered bearing; DIN 720 bearing |
| Common Misspellings | FAG 32222 A; FAG32222A; Fag 32222-A; 32222-A FAG; FAG 32222A taper |
| Application Types | Gearboxes; wheel hubs; heavy machinery shafts; mining and construction equipment; industrial reducers |
| Closure Type | Open |
| Cross Reference 1 | SKF 32222 J2 |
|---|---|
| Cross Reference 2 | Timken 32222 |
| Cross Reference 3 | NSK HR32222J - HR high-capacity design |
| Cross Reference 4 | NTN 4T-32222 |
| Cross Reference 5 | Koyo 32222JR |
| Cross Reference 6 | Nachi 32222 |
| Cross Reference 7 | SNR 32222A |

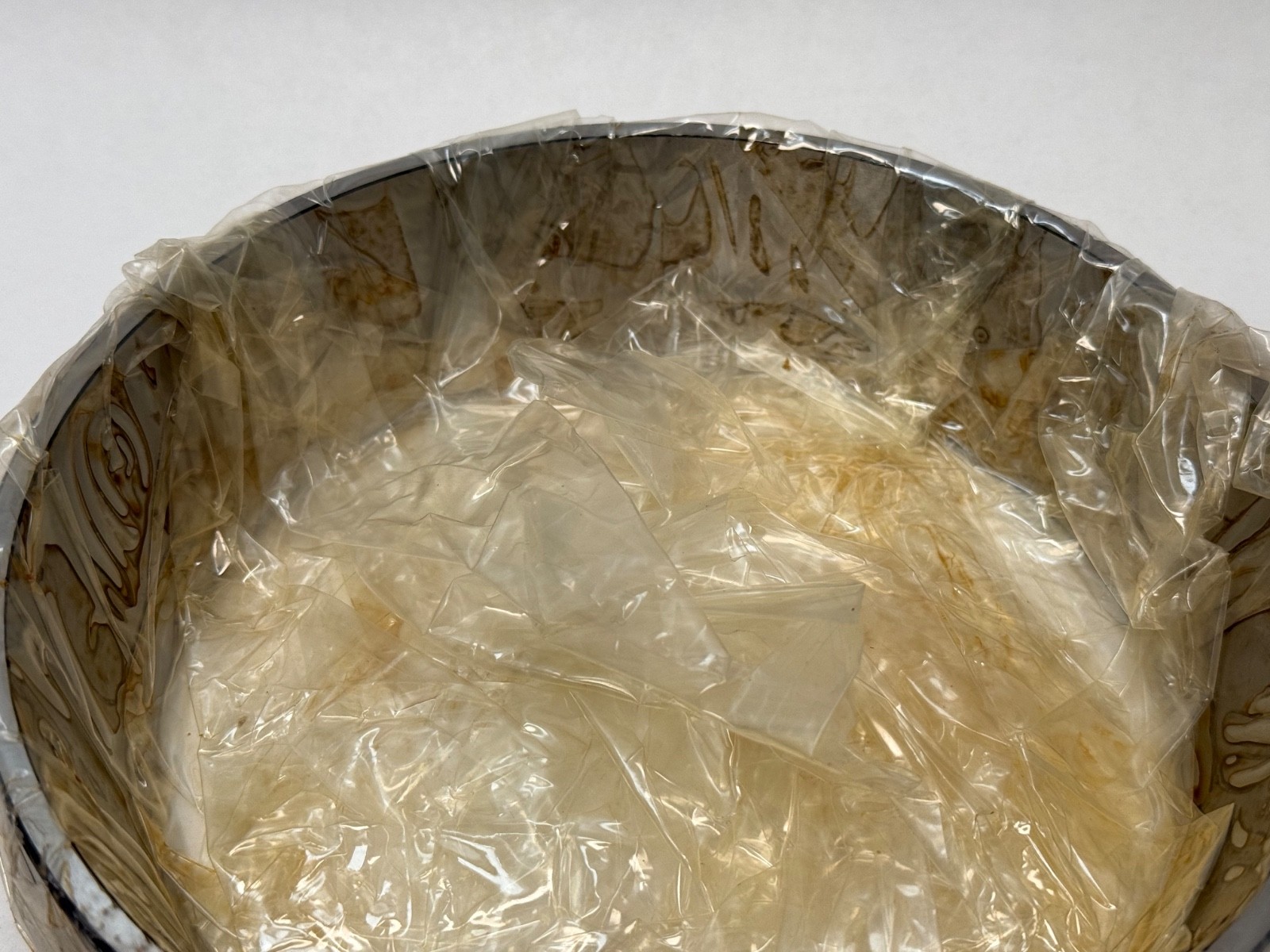

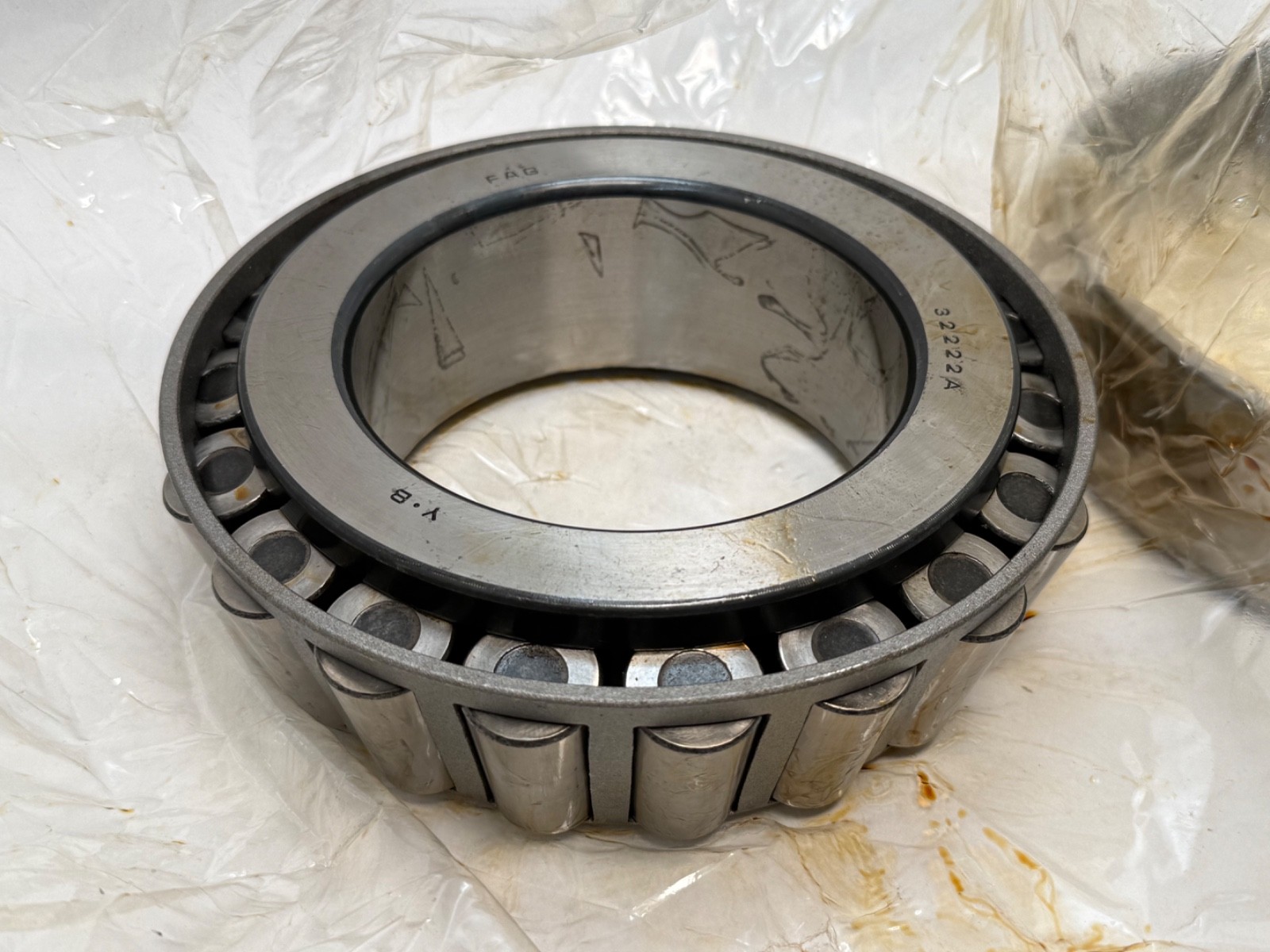

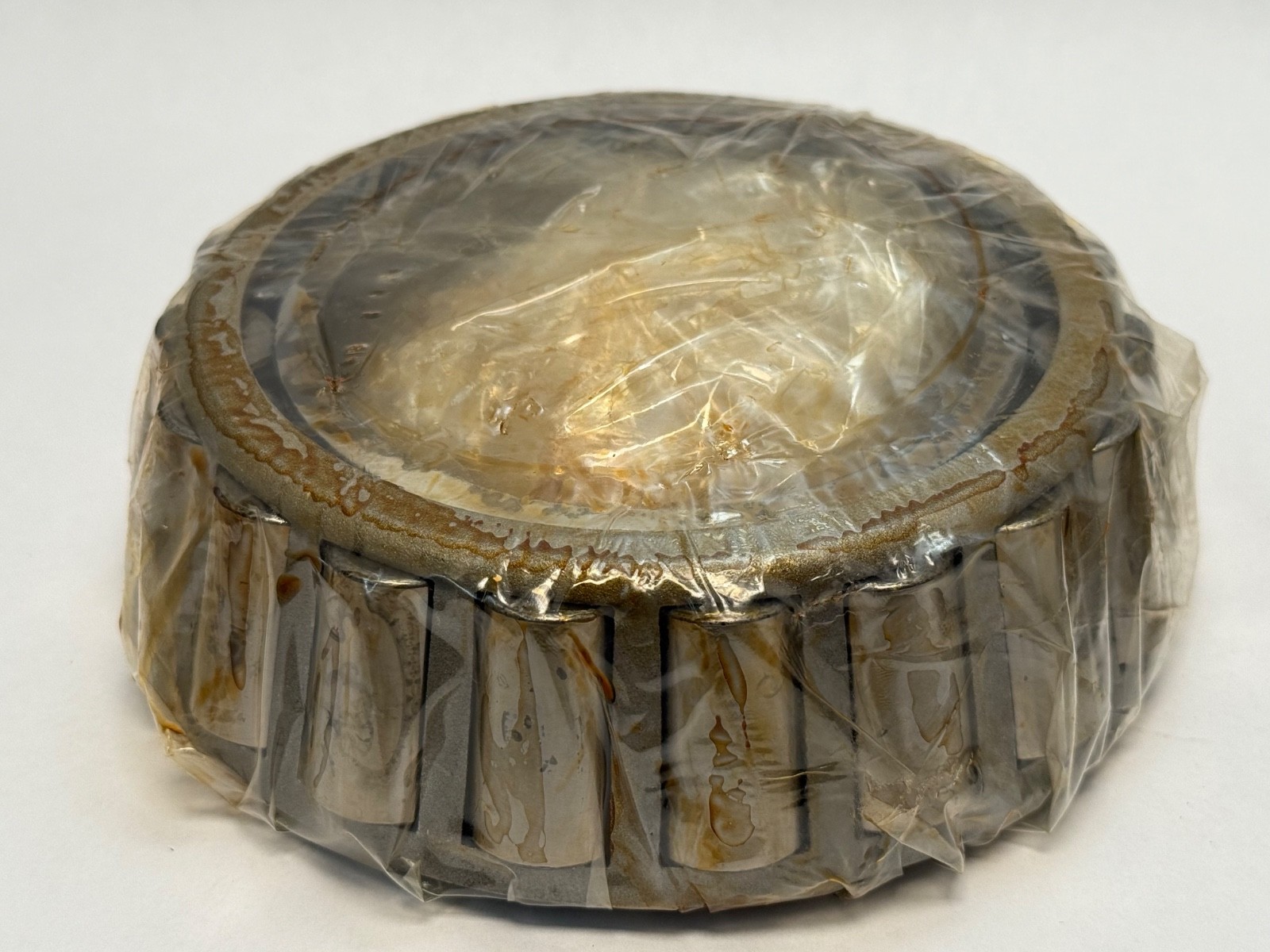

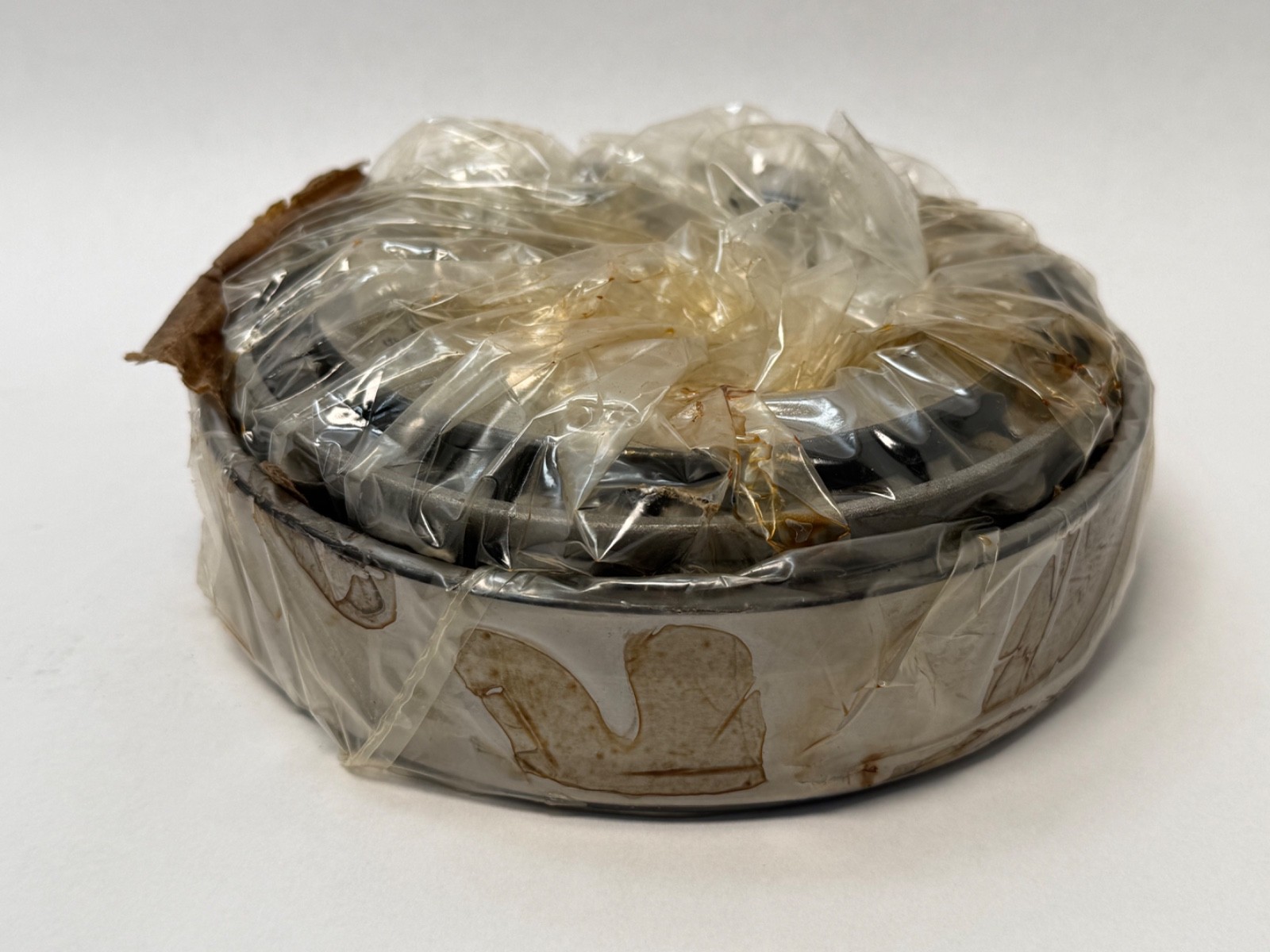

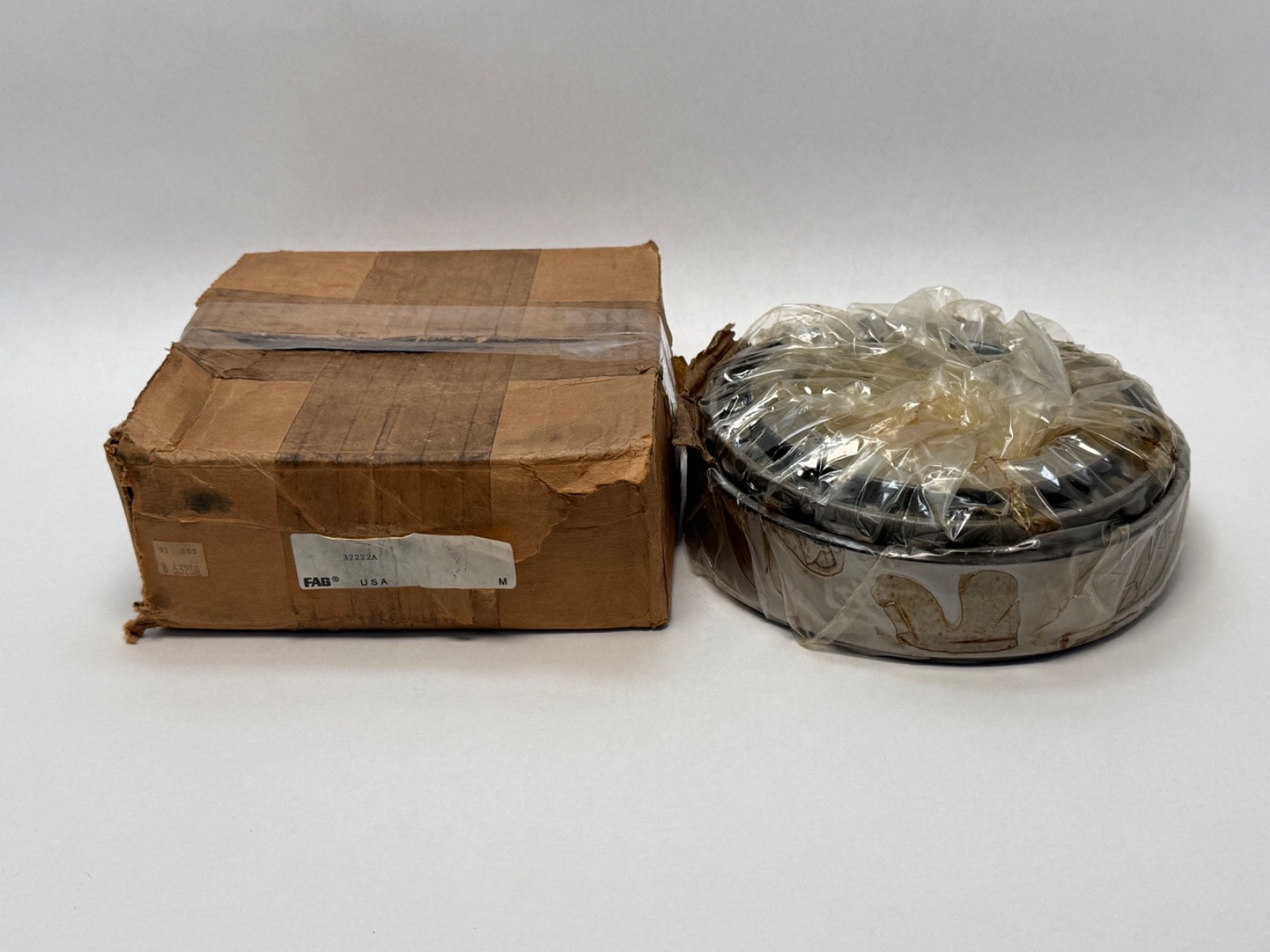

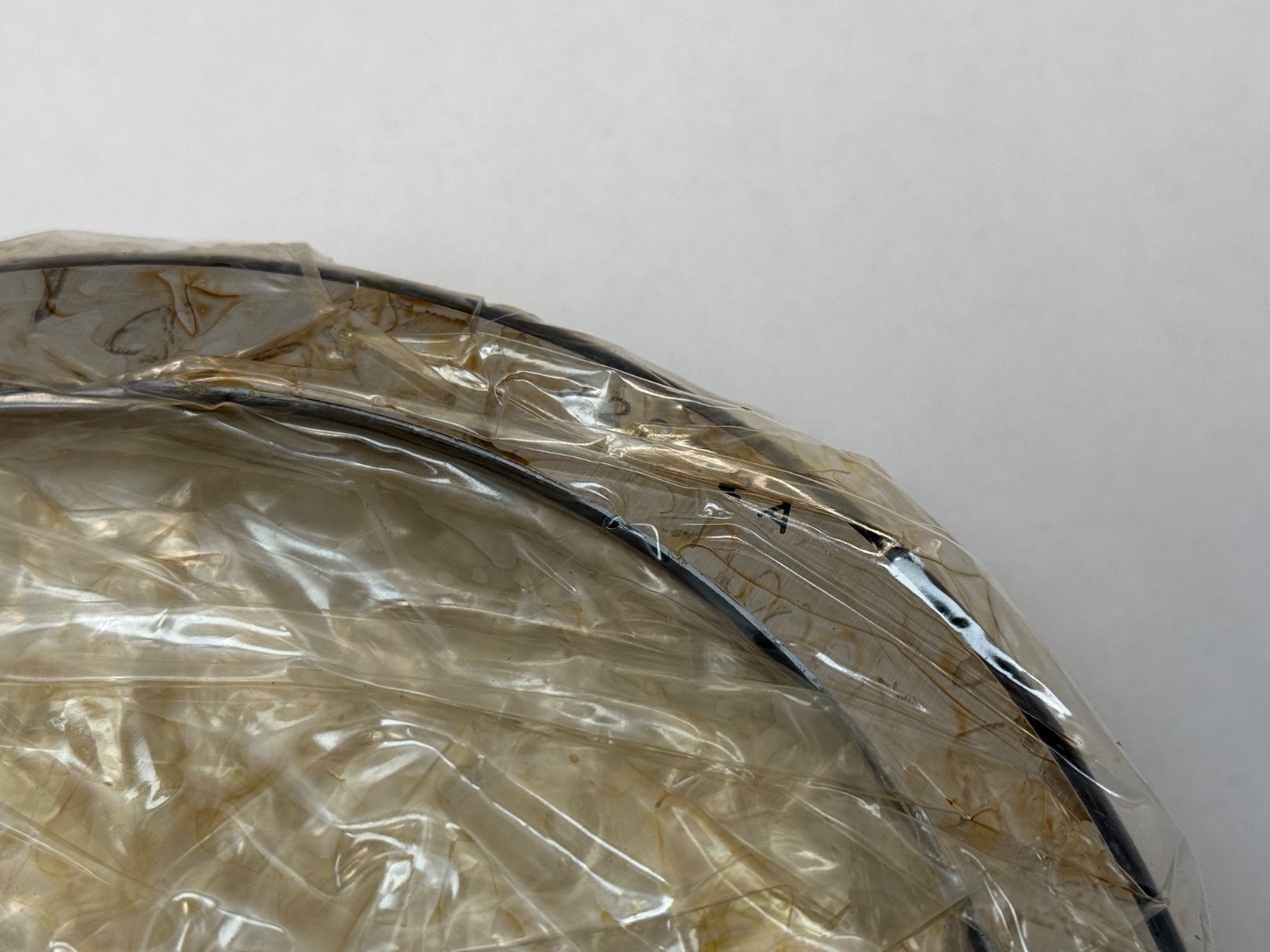

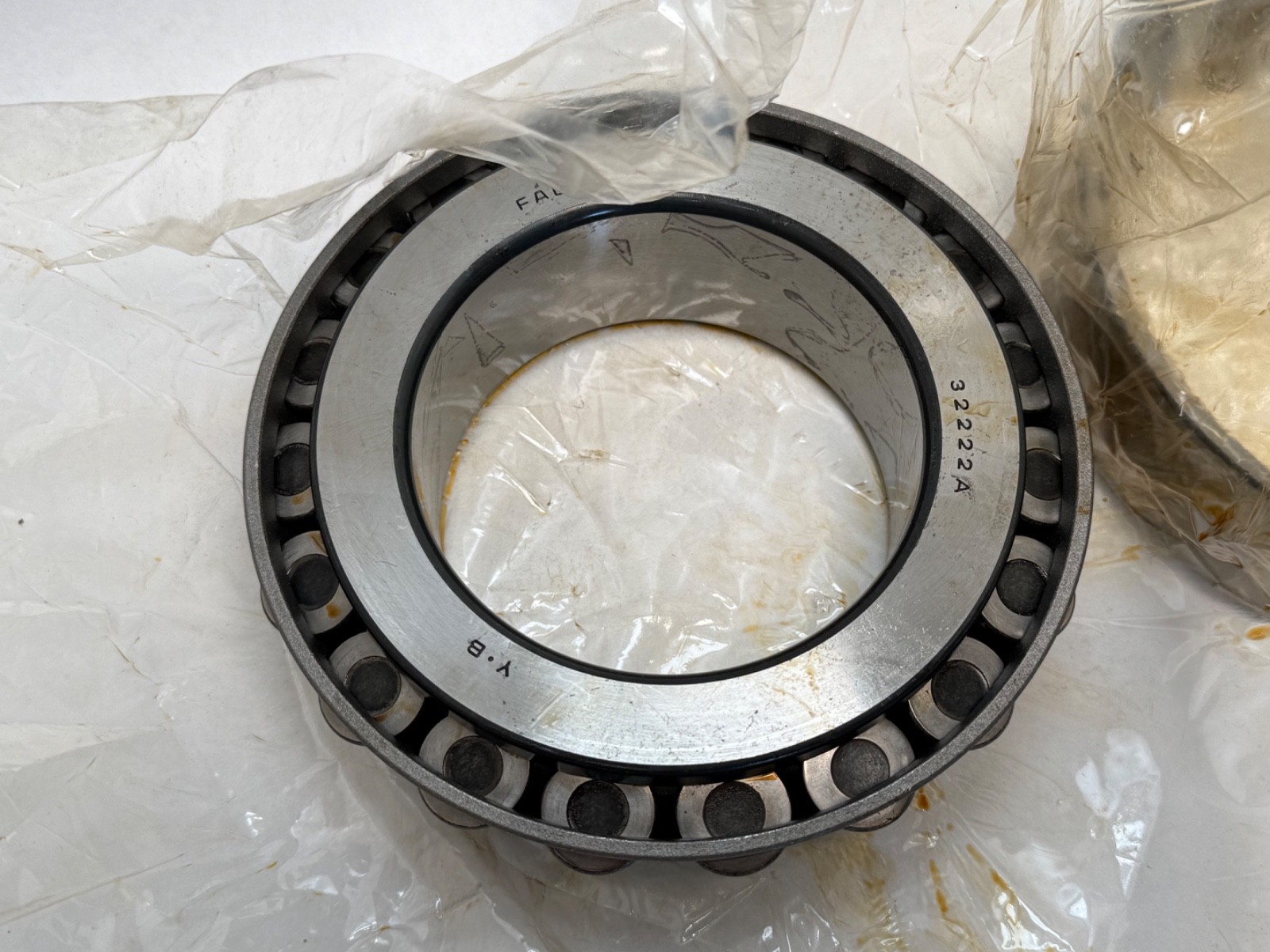

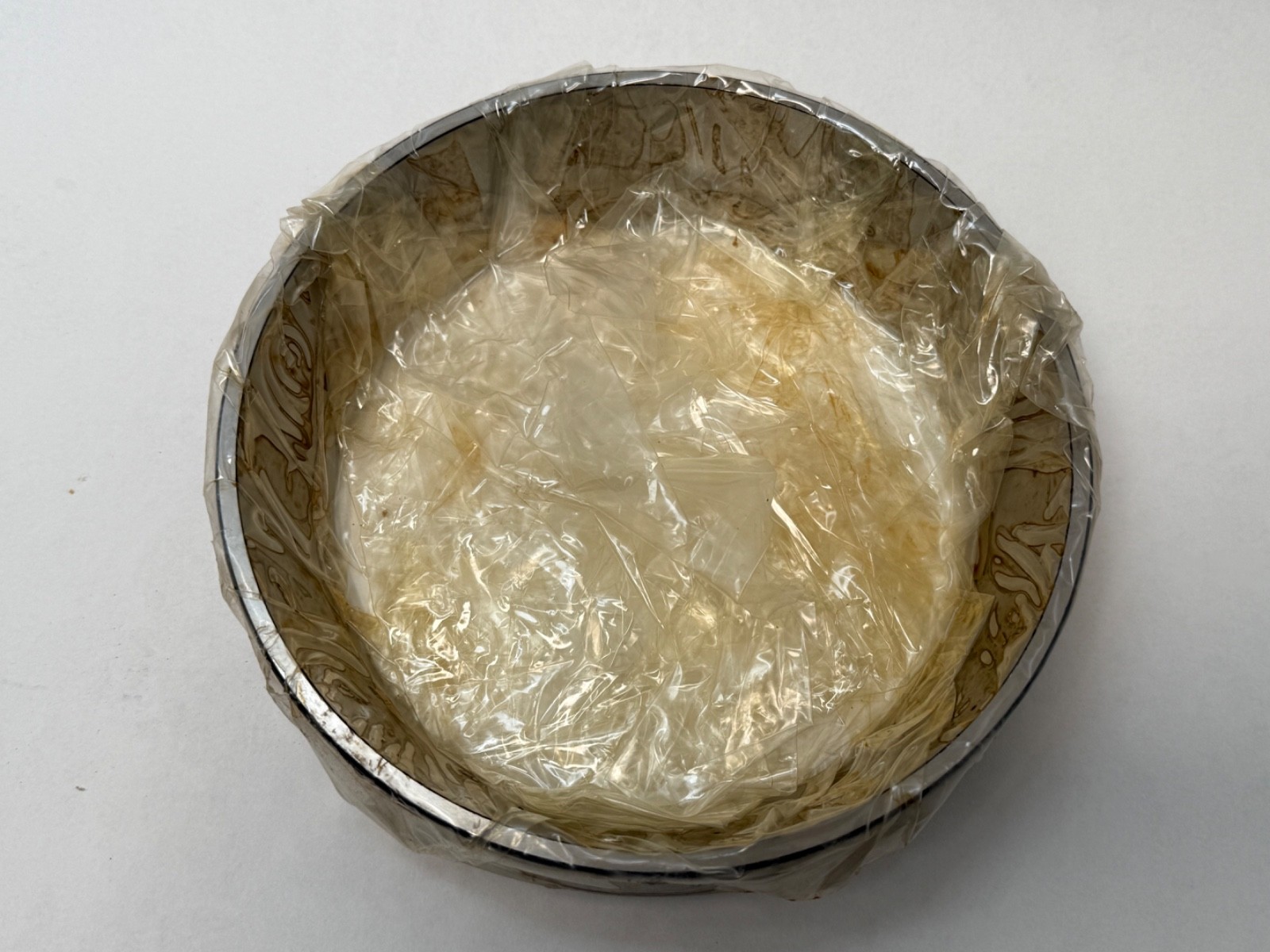

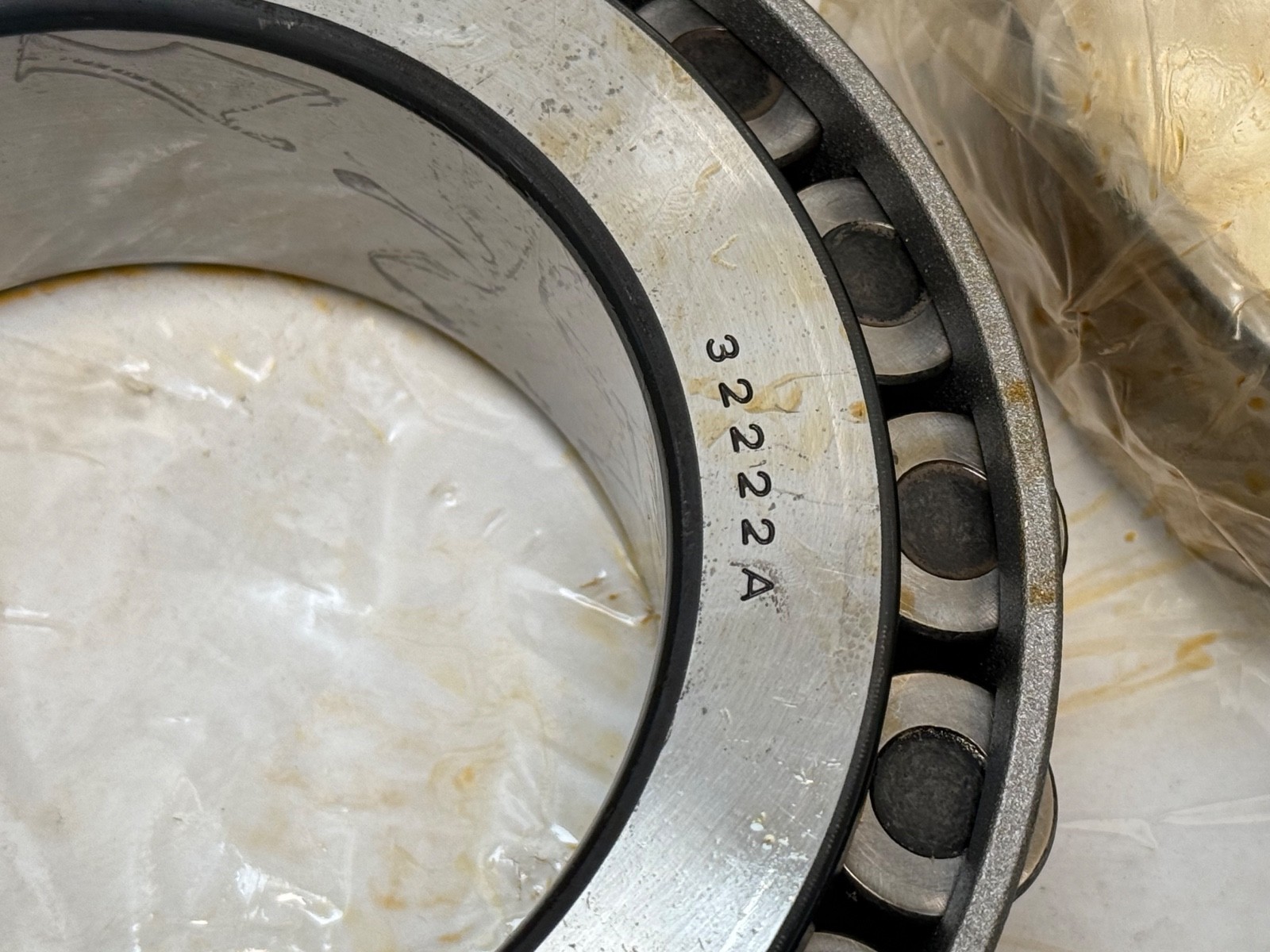

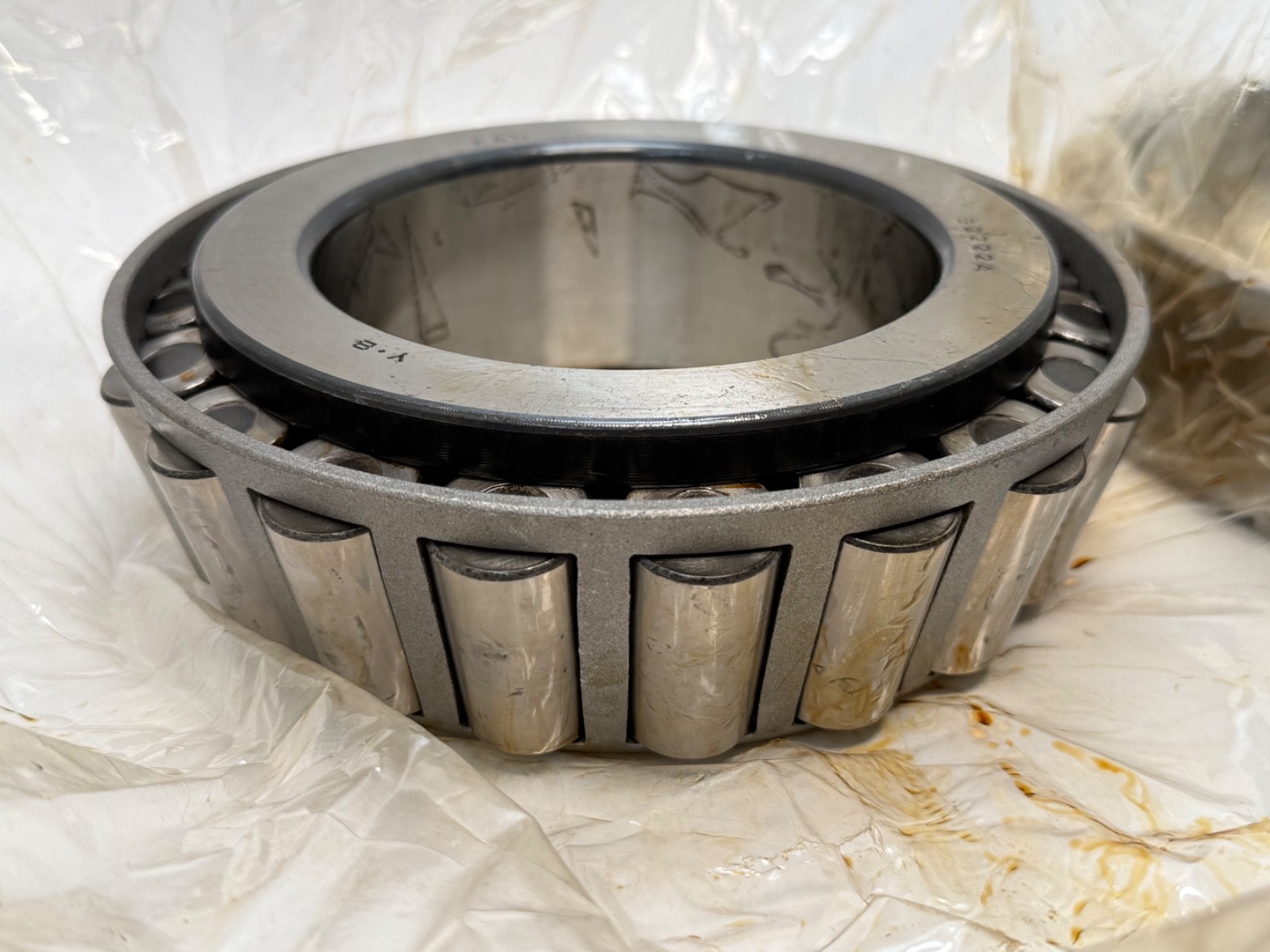

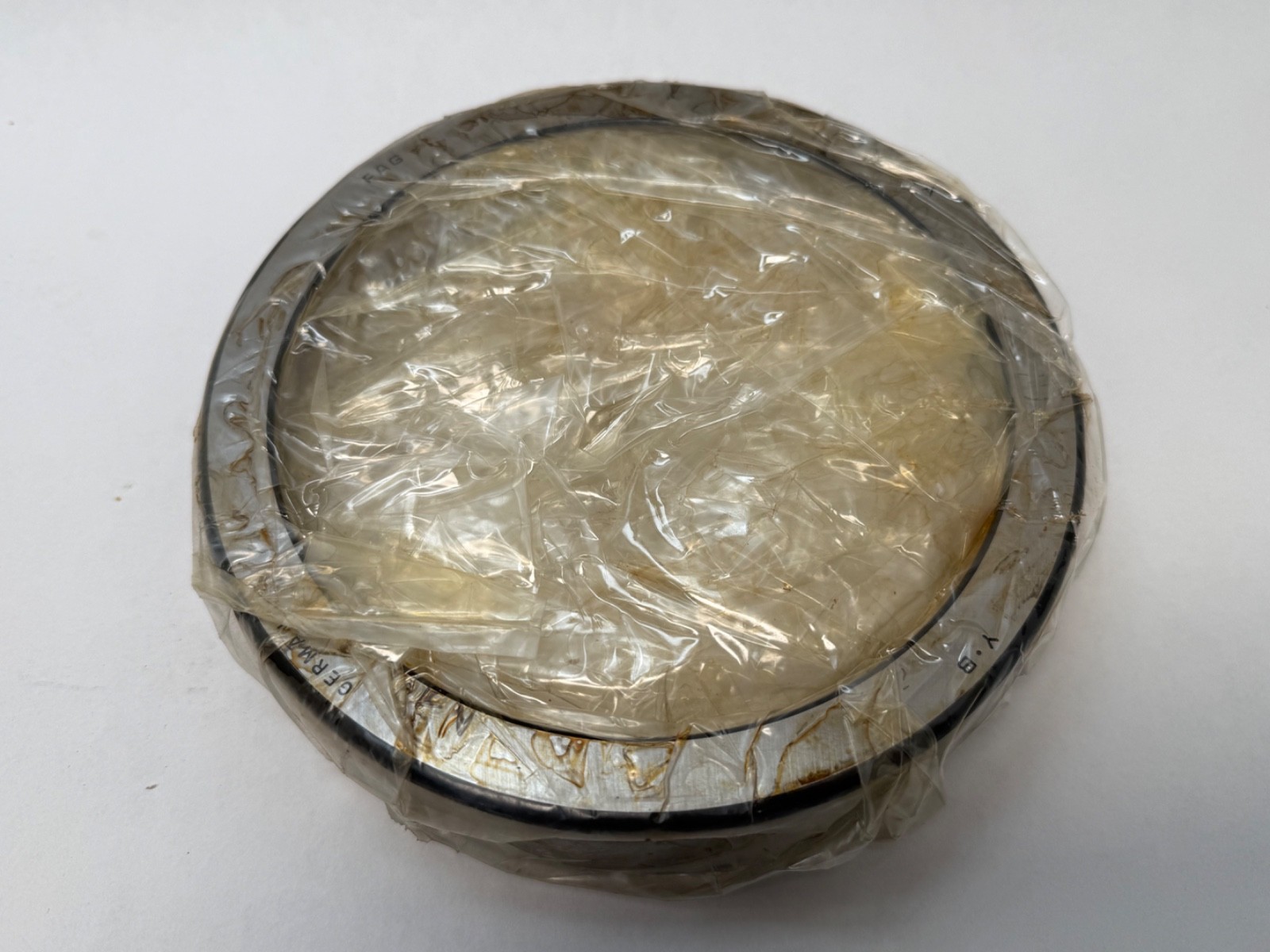

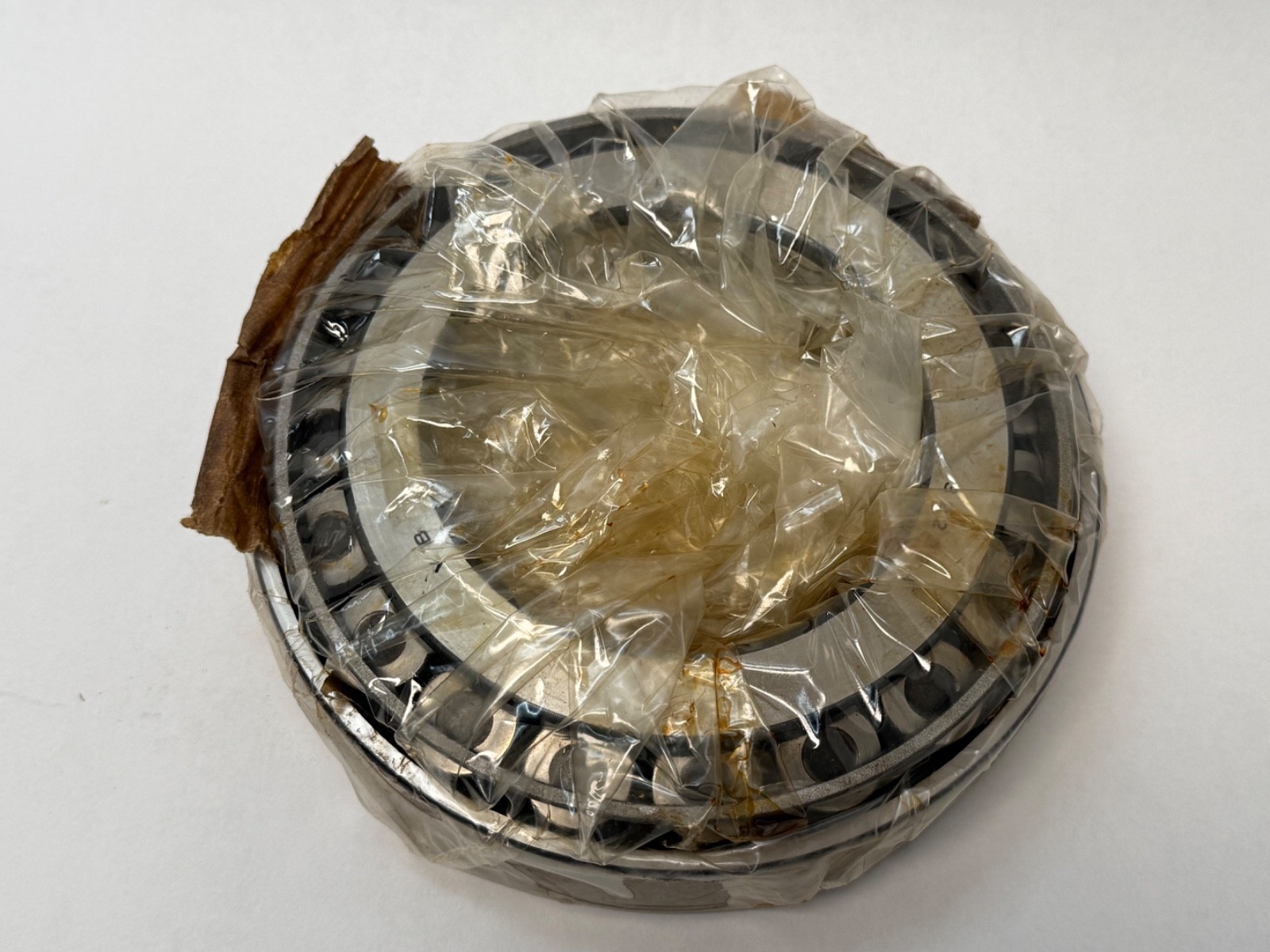

FAG 32222-A metric tapered roller bearing, complete cone and cup, to DIN 720. Cone with rollers and cage plus the matching cup; the cone and cup separate. Unit Quantity: 1 Pc. Series: 322. Base Number: 32222.
322 — ISO dimension series 322, the steep-angle wide section of the metric tapered roller range.
22 — bore code; 110 mm bore.
A — the current Schaeffler design generation for this size.
T3FC110 — the comparative designation for this bearing under ISO 10317 and ISO 355.
Dynamic Load Rating: 410,000 N. Static Load Rating: 590,000 N. Fatigue load limit: 67,000 N. Limiting Speed: 3,450 rpm. Reference Speed: 2,410 rpm. Calculation factors: e = 0.42, Y = 1.43, Y0 = 0.79. Rolling Elements: Tapered Roller. Number Of Rows: 1. Bore Type: Straight. Closure Type: Open. Item Weight: 7.22 kg (15.92 lb). Bearing Material: Chrome steel. Operating temperature range: −30 °C to 120 °C.
Bore Diameter: 110 mm. Outside Diameter: 200 mm. Total Width: 56 mm. Inner ring width: 53 mm. Outer ring width: 46 mm. Shaft shoulder diameter: 122 mm minimum to 126 mm maximum. Housing shoulder diameter: 170 mm and 190 mm minimum, 188 mm maximum. Guidance rib diameter of the inner ring: 153.5 mm. Distance between the apexes of the pressure cones: 46 mm. Maximum fillet radius of the housing: 2.5 mm. Maximum recess radius: 3 mm. Minimum chamfer dimension: 3 mm on the inner ring back face, 2.5 mm on the outer ring back face. Minimum axial space: 6 mm and 10 mm.
32222 is a DIN 720 / ISO standard number on the 110 x 200 x 56 mm envelope. Cross-References: SKF 32222 J2, Timken 32222, NSK HR32222J (HR high-capacity design), NTN 4T-32222, Koyo 32222JR, Nachi 32222, SNR 32222A. Designation variants: 32222-A, 32222A, 32222 A, T3FC110.
Bore Diameter: 110 mm. Outside Diameter: 200 mm. Total Width: 56 mm.
Dynamic Load Rating: 410,000 N. Static Load Rating: 590,000 N.
Limiting Speed: 3,450 rpm. Reference Speed: 2,410 rpm.
