Two-row 2TS matched tapered roller bearing assembly, 1.7812 in bore, 3.0625 in outside diameter. One set of six pieces with factory-set internal spacing.
List Price
$53.52
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | NTN |
|---|---|
| MPN | LM603049-90033 |
| Model | LM603049 90033 |
| Bearing Type | Tapered Roller Bearing Assembly |
| ID | 1.7812 in |
| OD | 3.0625 in |
| Material | Steel |
|---|---|
| Base Number | LM603049 / LM603011 |
| Industry Terms | two-row tapered roller bearing, 2TS assembly, double cup and cone assembly, matched taper set, pre-set bearing assembly, TDO, TDI, direct mount, indirect mount |
| Common Misspellings | LM603049 90033, LM60349, LM603011EK, LM603049 XF, LM 603049/603011, LM603049-9003 |
| Application Types | Wheel ends and hubs, pinion supports, gearbox output shafts, machine tool spindles, overhung and cantilevered shaft supports, conveyor and agricultural drives |
| Bore Shaft Size | 1.7812 in / 45.242 mm |
| Mpn Variants | LM603049-90033, LM603049 90033, LM60304990033, LM603049/LM603011, LM603049/11, LM603049, LM603011, LM603049XF, LM603011EX |
| Compatible With Replaces | LM603049 cone, LM603011 cup, LM603049XF, LM603011EX, LM603049-90033 assembly, LM603049/LM603011 single-row set. Single-row members cross to Timken, SKF and Koyo equivalents; the -90033 assembly number is a specific build and does not cross generically. |
| Number Of Rows | 2 |
| Cup Width | 0.5937 in |
| Part Number | LM603049-90033 |
| Cone Width | 0.7812 in |
| Rolling Elements | Tapered Roller |

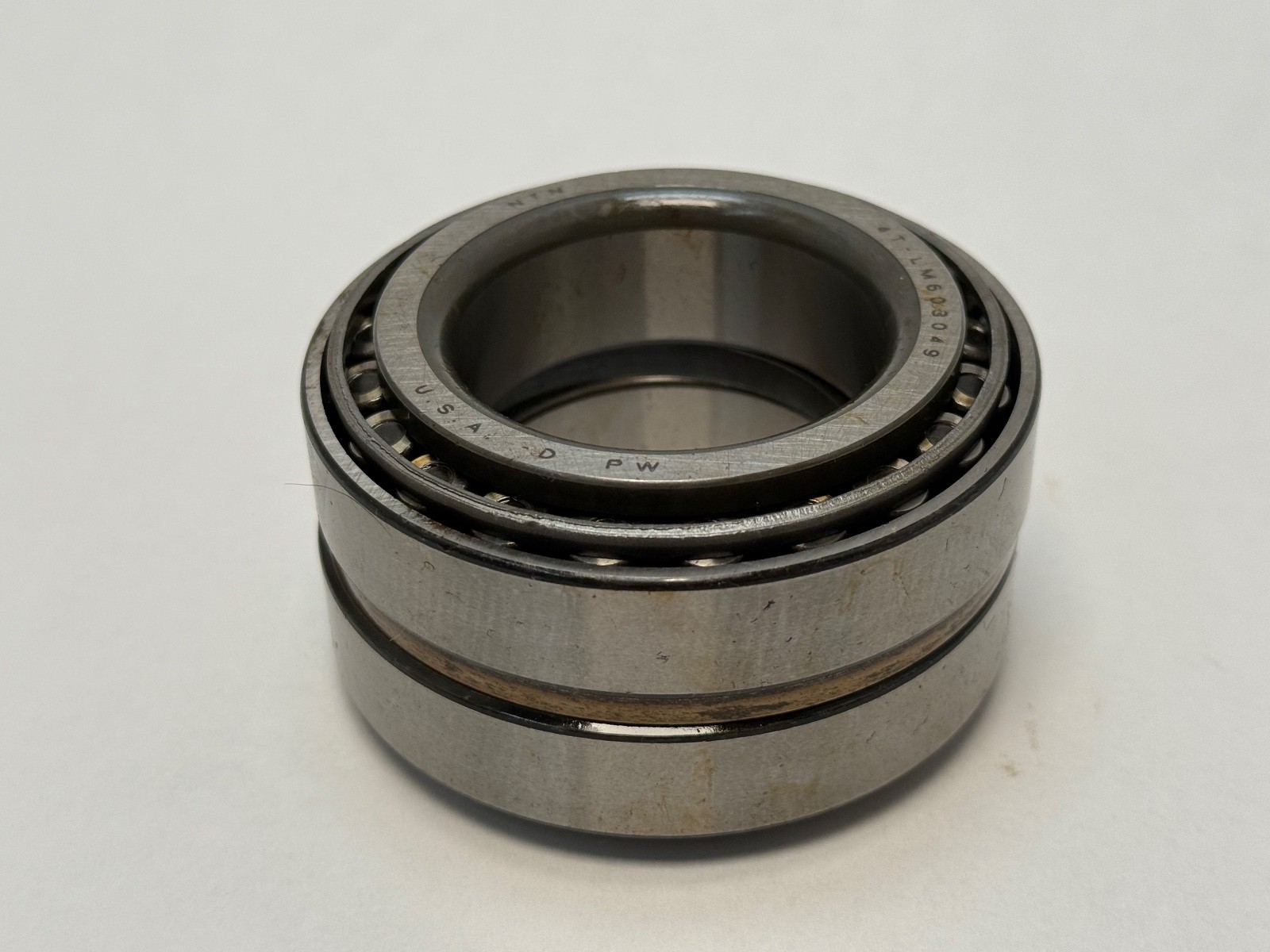

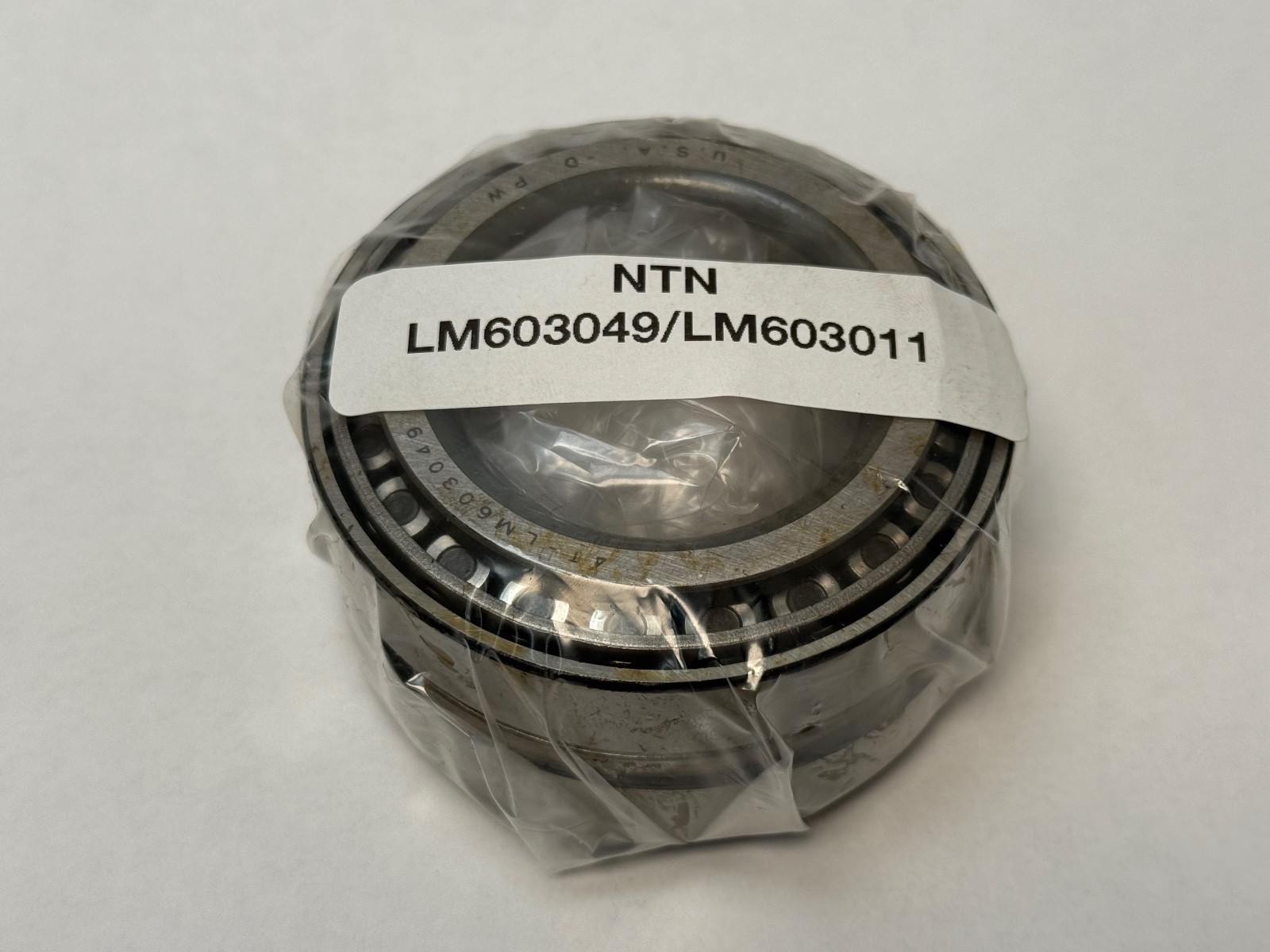

A complete two-row (2TS) matched tapered roller bearing assembly built from LM603049 cone and LM603011 cup members, supplied under the assembly number LM603049-90033. One pre-configured assembly of six individual bearing pieces, factory-selected so that its members work together to produce a specific internal setting. Unit Quantity: 1 assembly.

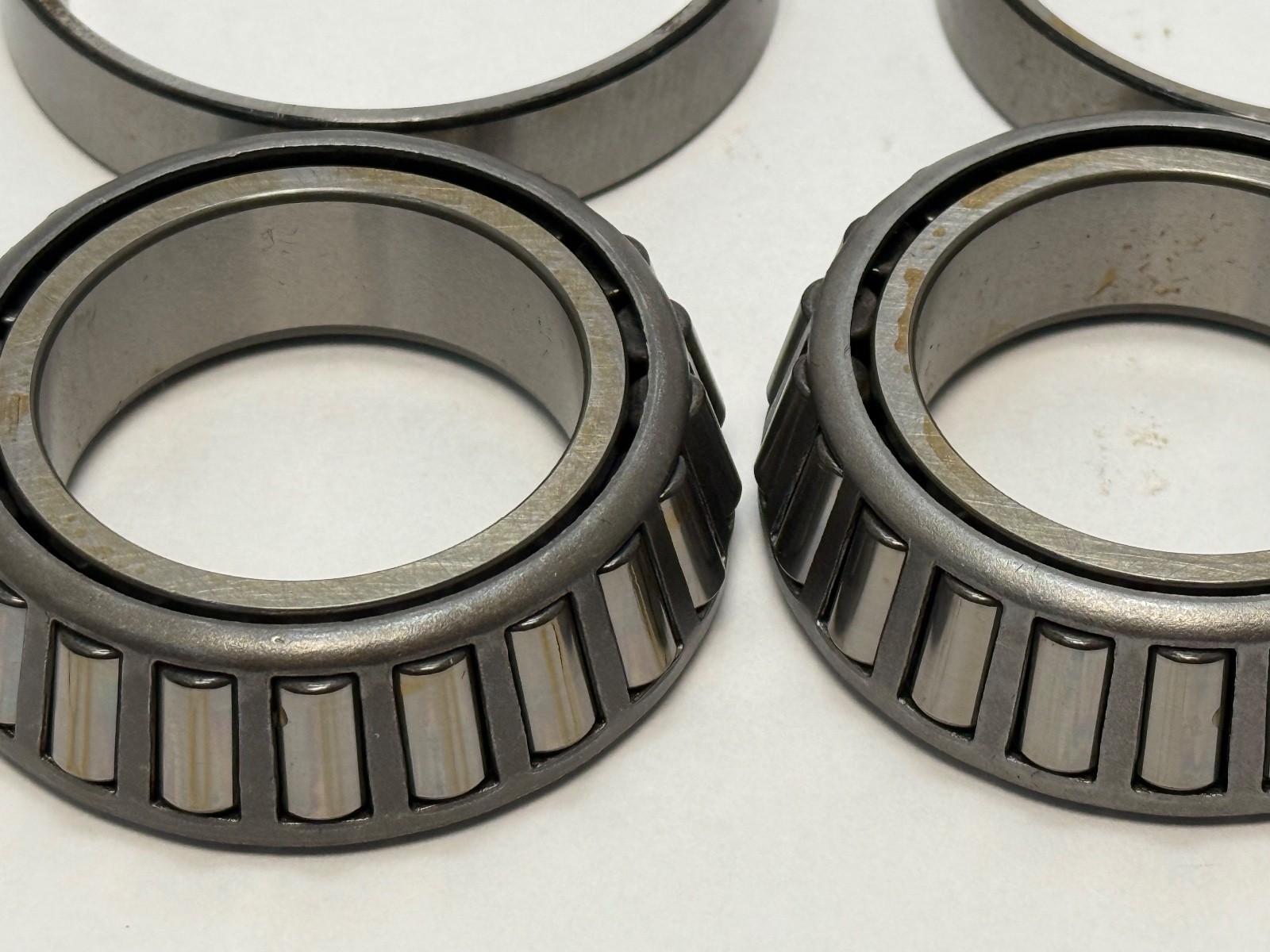

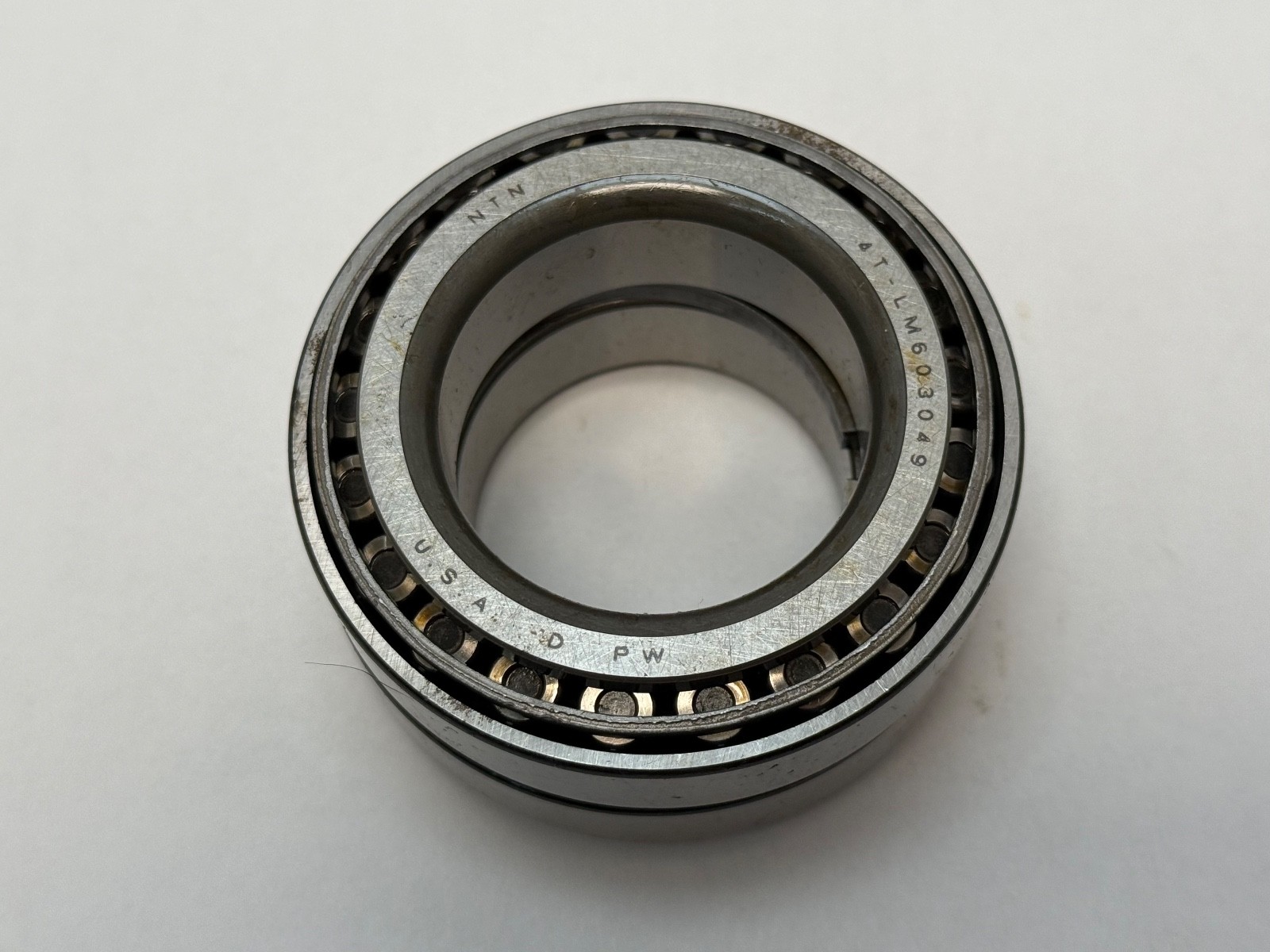

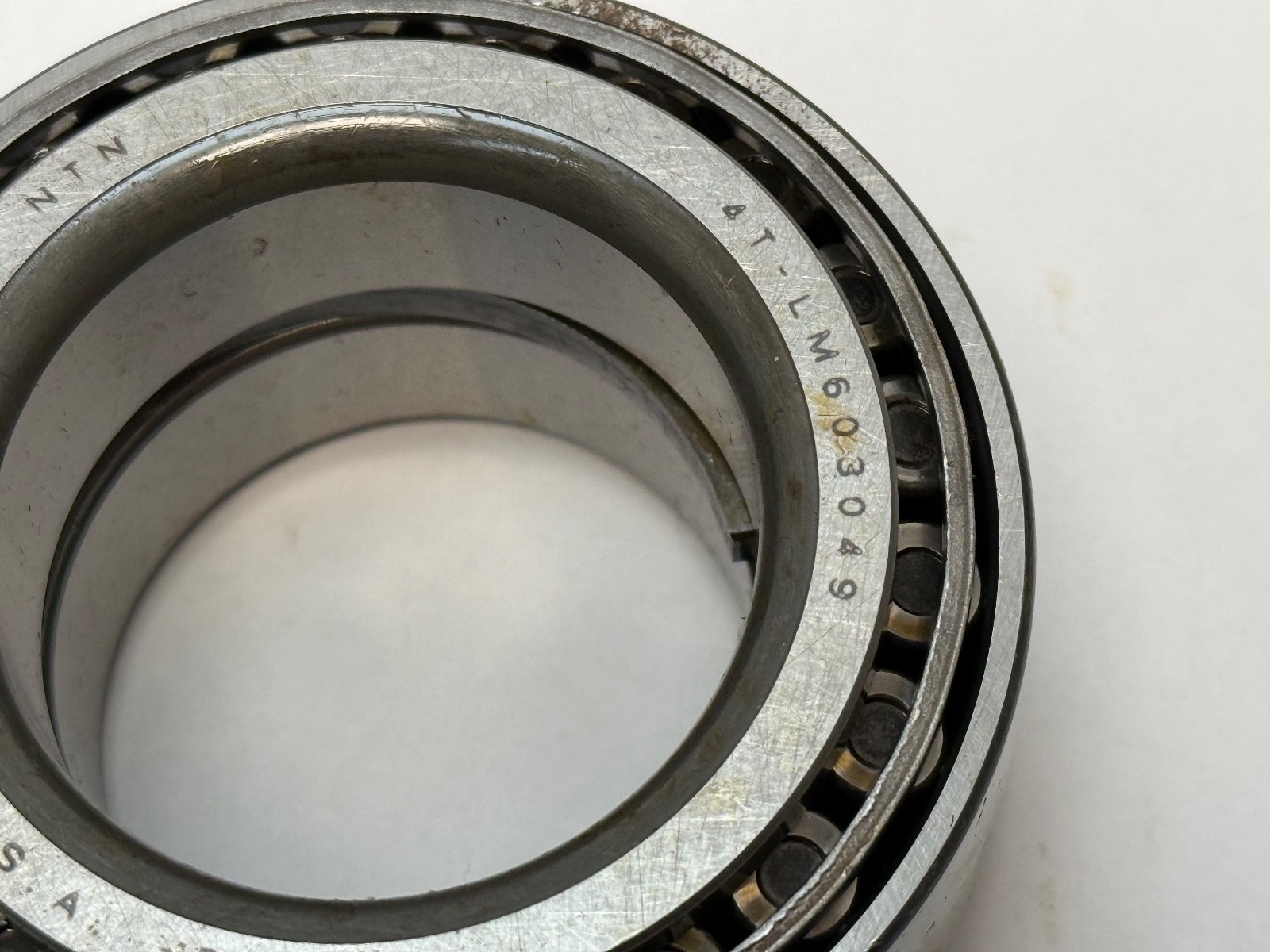

LM603049 — the cone, the inner ring plus roller and cage assembly.

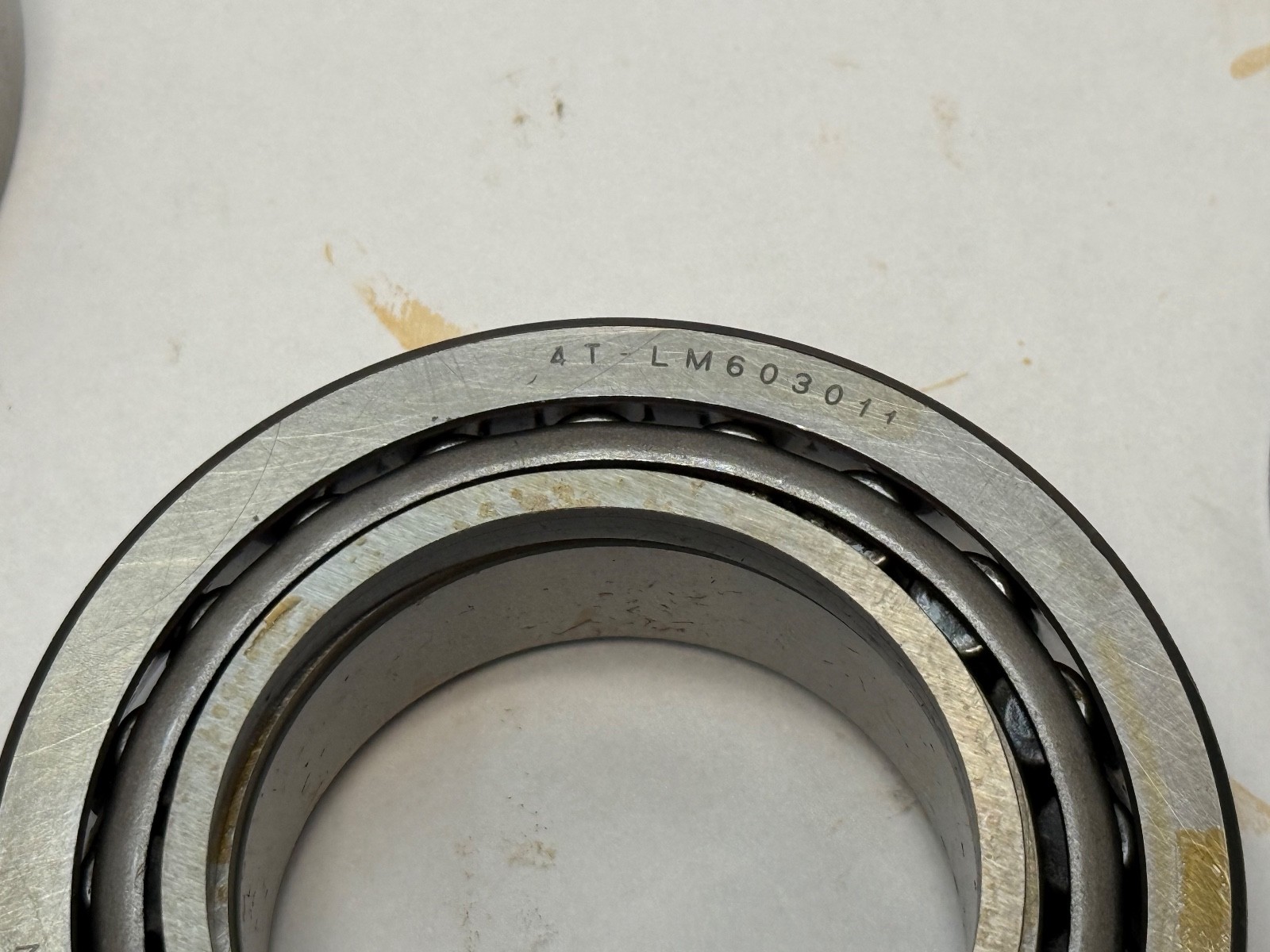

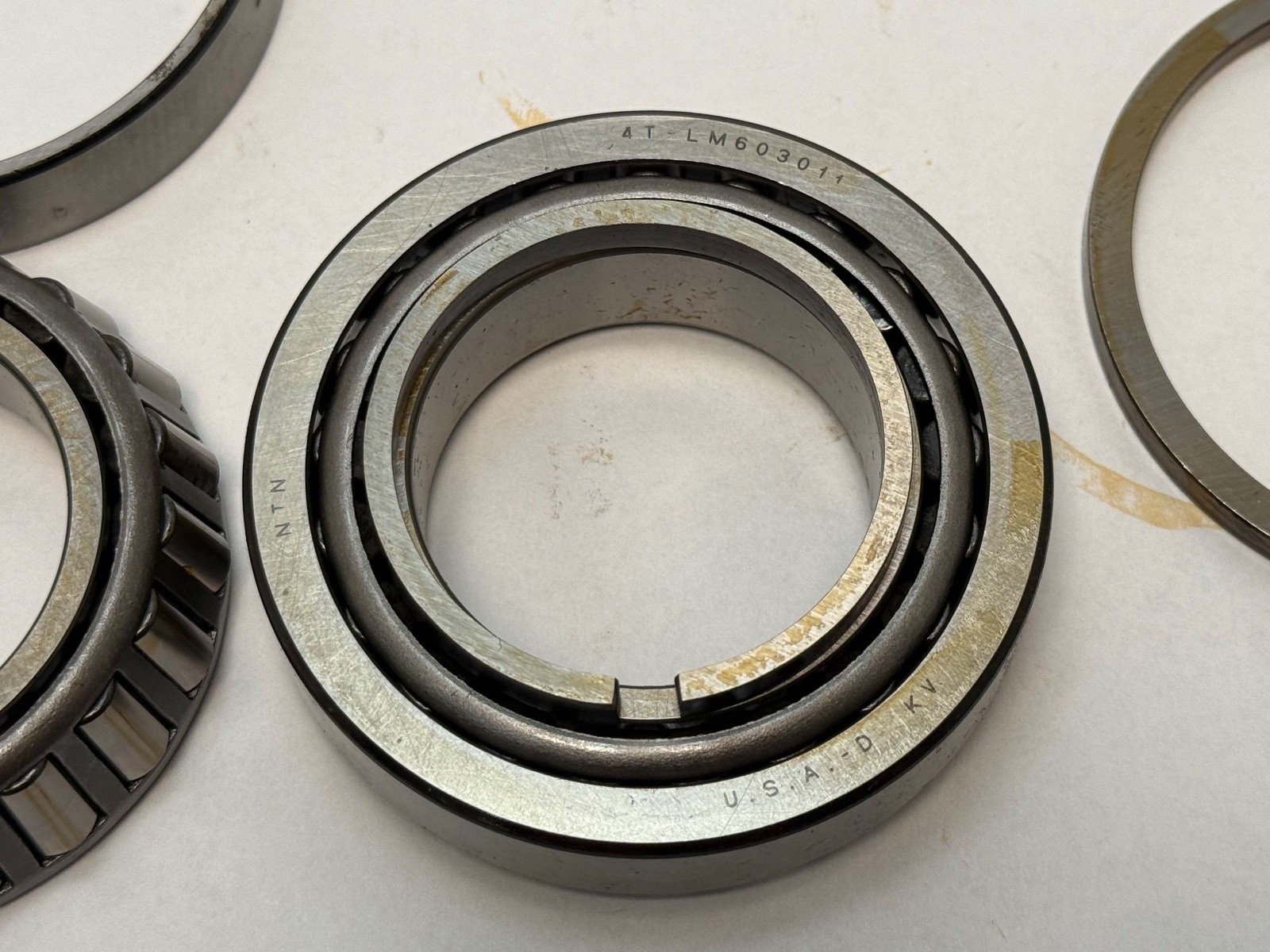

LM603011 — the cup, the outer race. LM603049/LM603011 together is the standard single-row set designation.
-90033 — assembly number identifying a specific pre-configured matched assembly rather than a loose component.
XF — special-feature cone, a member that differs from the base LM603049.
EX — special-feature cup, a member that differs from the base LM603011.

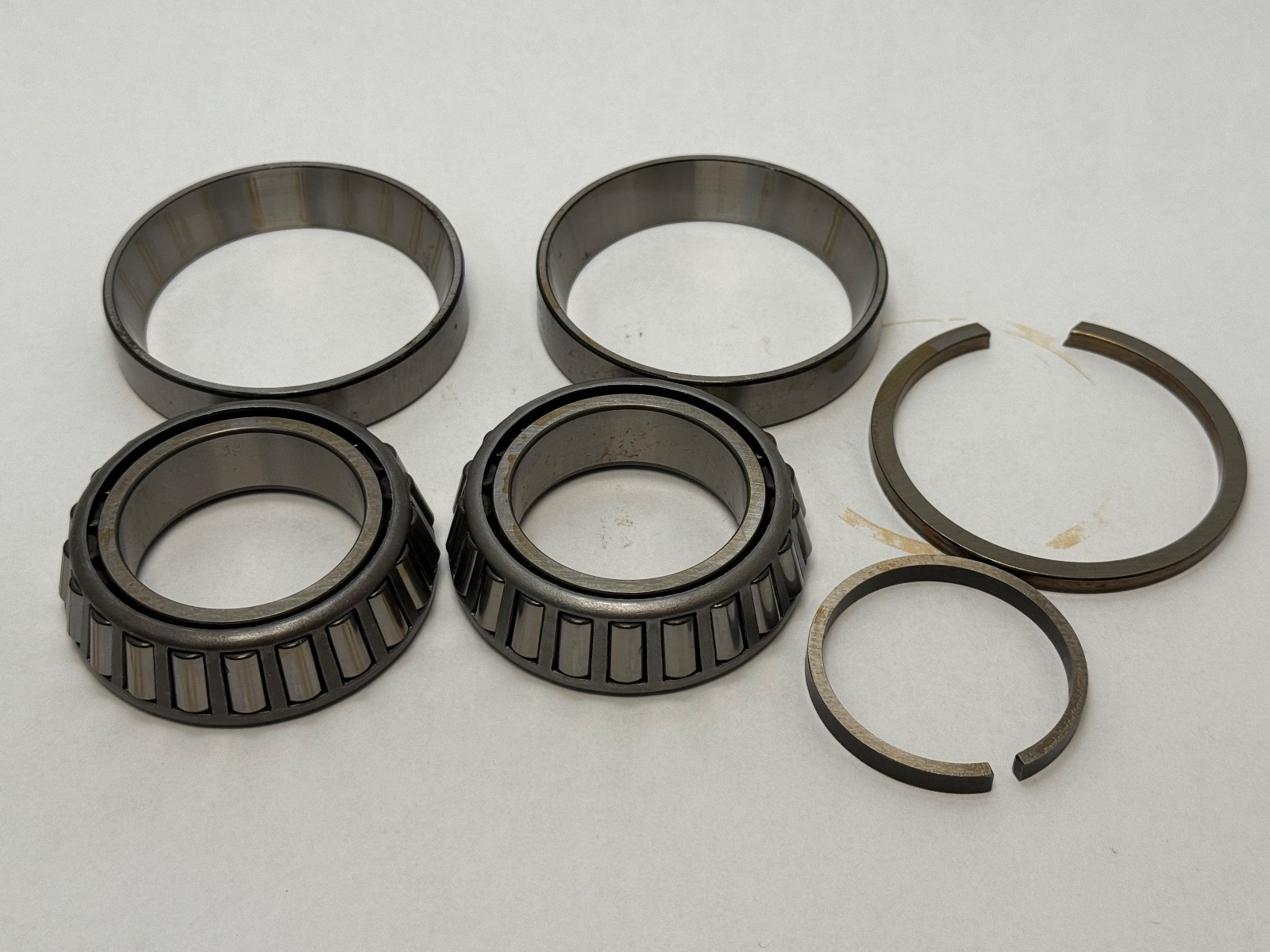

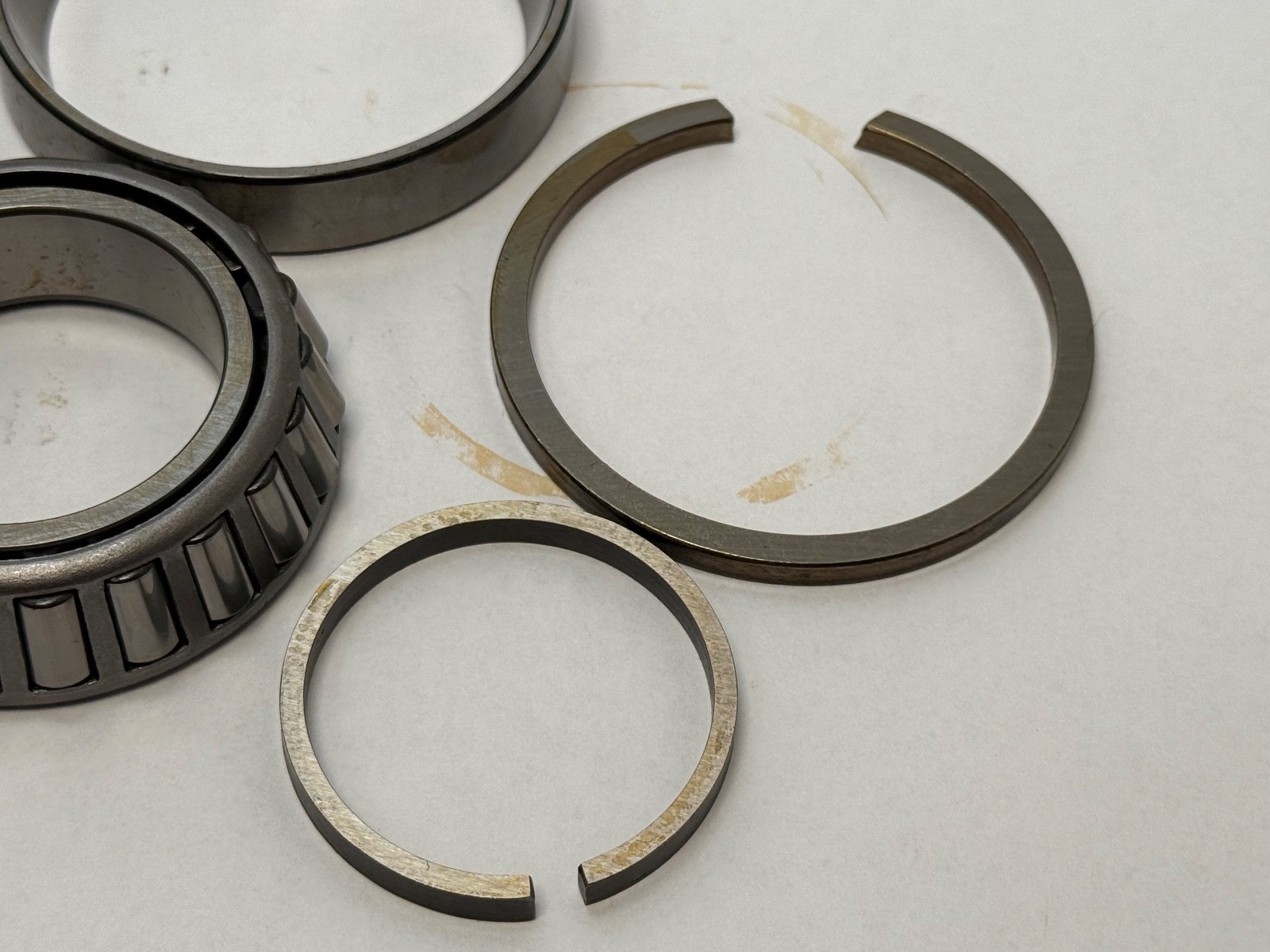

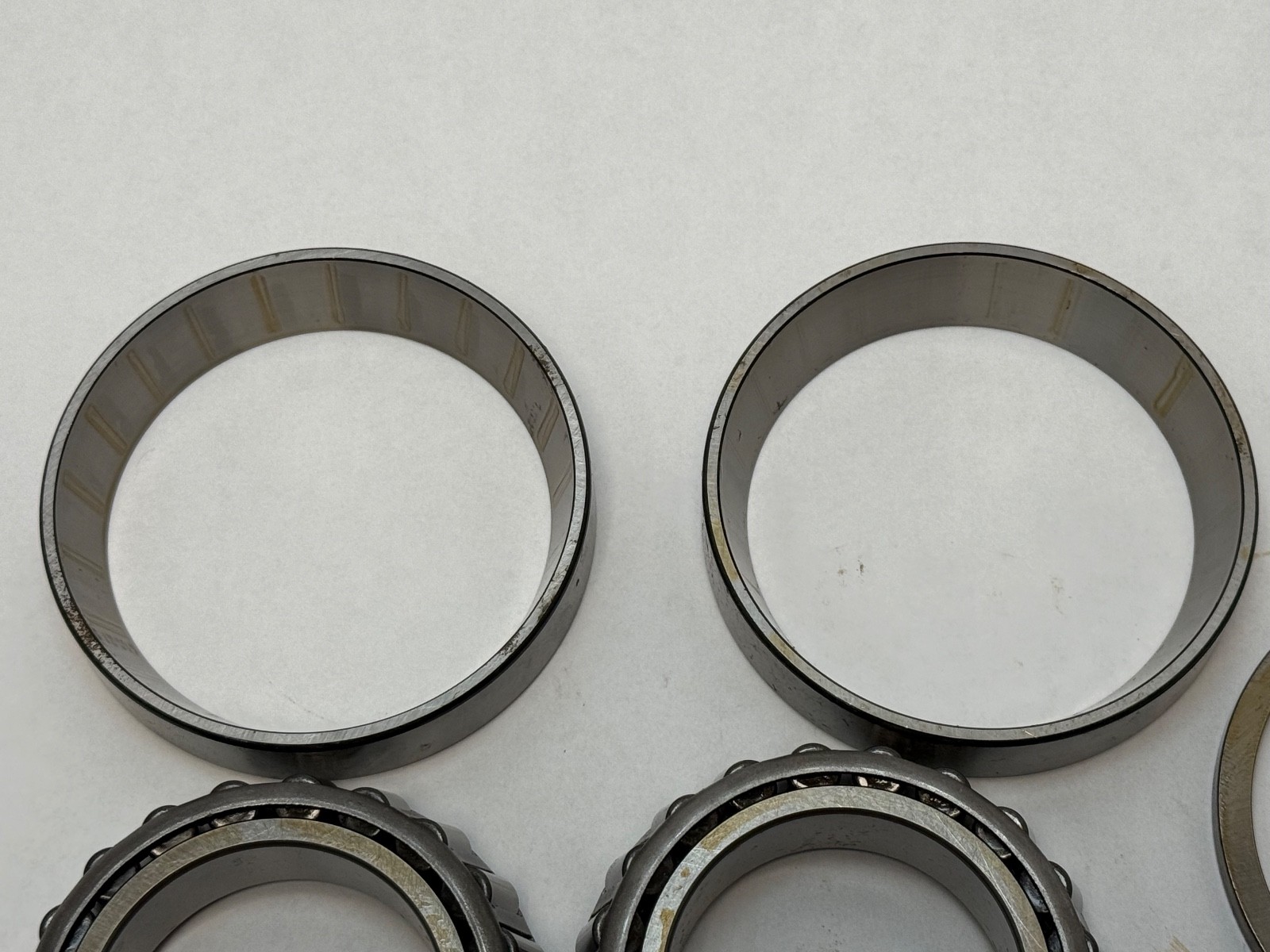

Bearing Type: Tapered roller bearing, two-row (2TS) matched assembly, cup and cone. Rolling Elements: Tapered rollers. Number Of Rows: 2. Material: Steel. Contents of the assembly: 2 x LM603049 standard cones, 2 x LM603011 standard cups, 1 x LM603049XF special-feature cone, 1 x LM603011EX special-feature cup, six pieces in total.
Single-row member dimensions: Bore d: 1.7812 in (45.242 mm). Cup outside diameter D: 3.0625 in (77.788 mm). Single-row assembly width T: 0.7812 in (19.842 mm). Cup width C: 0.5937 in. Cone width B: 0.7812 in.
A plain LM603049 cone or a plain LM603049/LM603011 single-row set is a different item. The assembly number LM603049-90033 is a specific build. MPN Variants: LM603049-90033, LM603049 90033, LM60304990033, LM603049/LM603011, LM603049/11, LM603049, LM603011, LM603049XF, LM603011EX.
Six: two LM603049 cones, two LM603011 cups, one LM603049XF cone and one LM603011EX cup.
1.7812 in (45.242 mm), with a 3.0625 in (77.788 mm) cup outside diameter.
An assembly number for a specific pre-configured matched assembly, not a loose component.
