SKF7006CXP4ADGASuper-Precision Angular Contact Ball Bearing Pair – 30 mm ID, 55 mm OD, 13 mm Width, 15° Contact Angle, Light Preload, Open, P4A

Product Description

What this part is

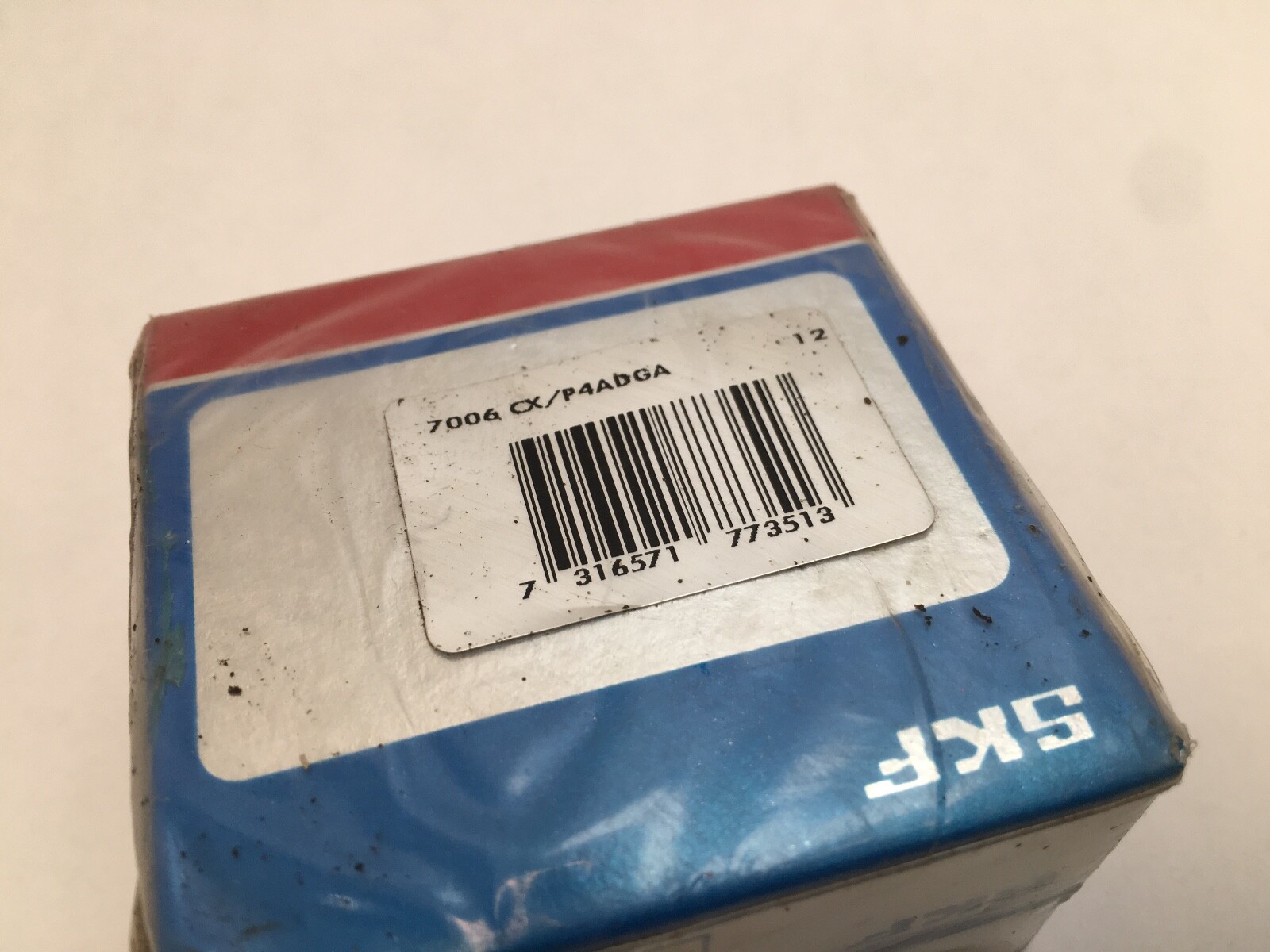

SKF 7006 CX/P4A DGA super-precision angular contact ball bearings, supplied as a matched pair. Bore 30 mm, outside diameter 55 mm, width 13 mm each. Single row, open on both faces, universally matchable, P4A precision class.

Decoding the designation

7006 is the ISO 70 series size code. The leading C denotes SKF’s 15° contact angle super-precision execution; the AC prefix on the same envelope would denote 25°. DGA is a preload class on a universally matchable bearing — the DGA / DGB / DGC ladder runs light, medium, heavy, so DGA is light preload. P4A is SKF’s super-precision tolerance class, equivalent to ABEC 7.

What these specs mean in practice

A 15° contact angle favours speed and radial stiffness; a 25° execution in the same envelope trades speed for thrust capacity. Light preload is the high-speed end of the ladder: it gives the lowest heat generation and the highest permissible speed of the three classes, at lower axial stiffness than DGB or DGC.

Quantity and configuration

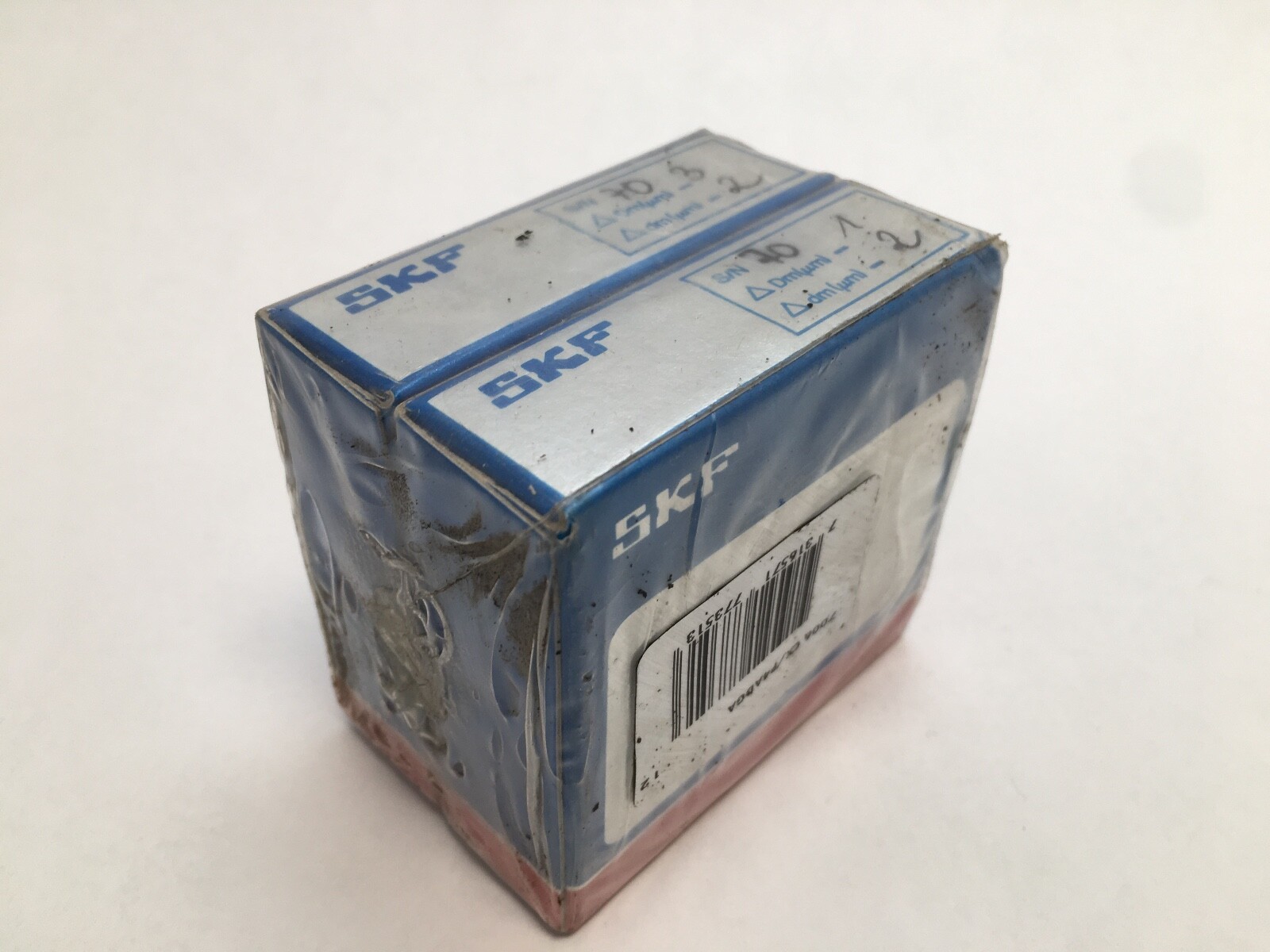

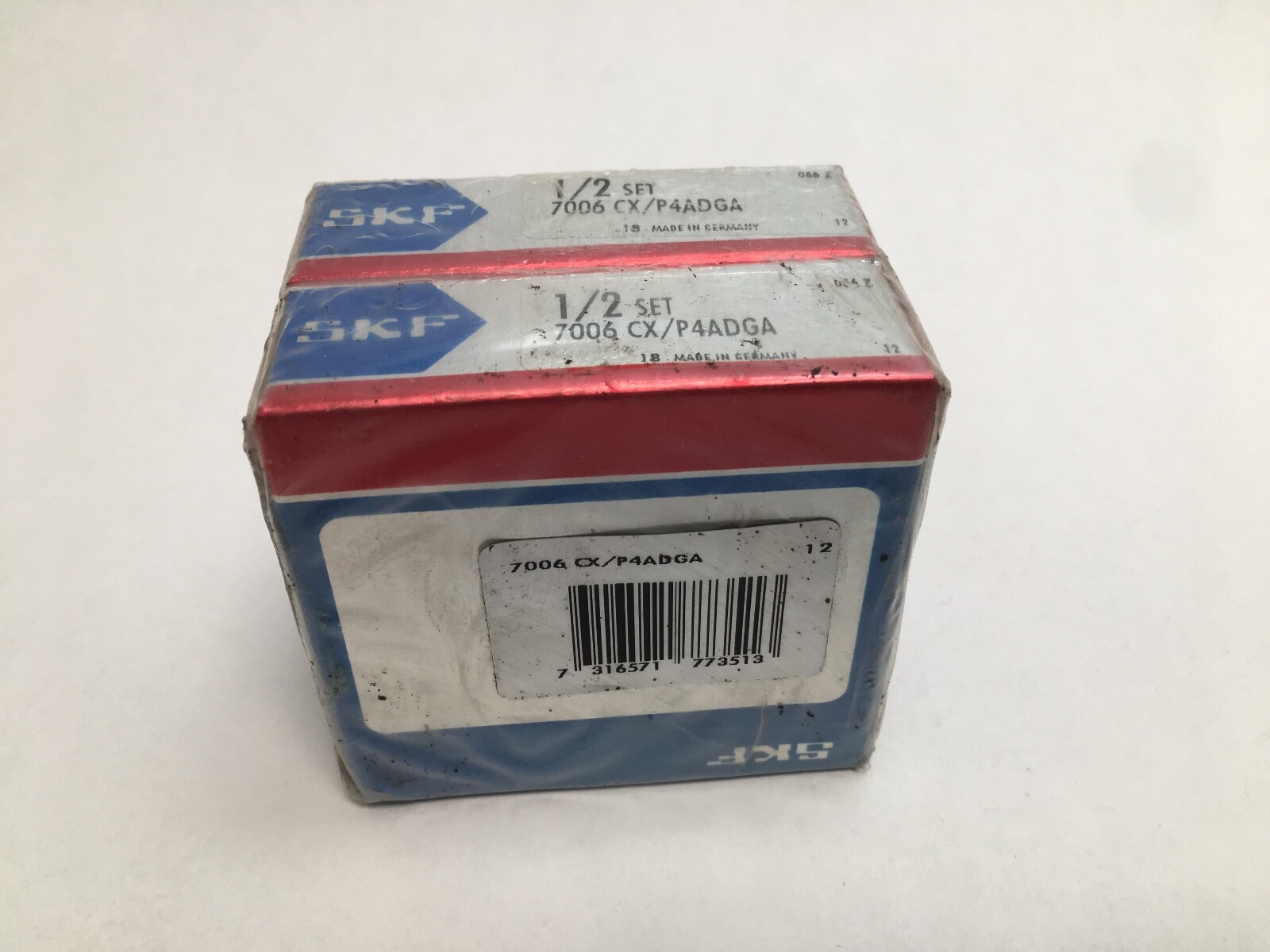

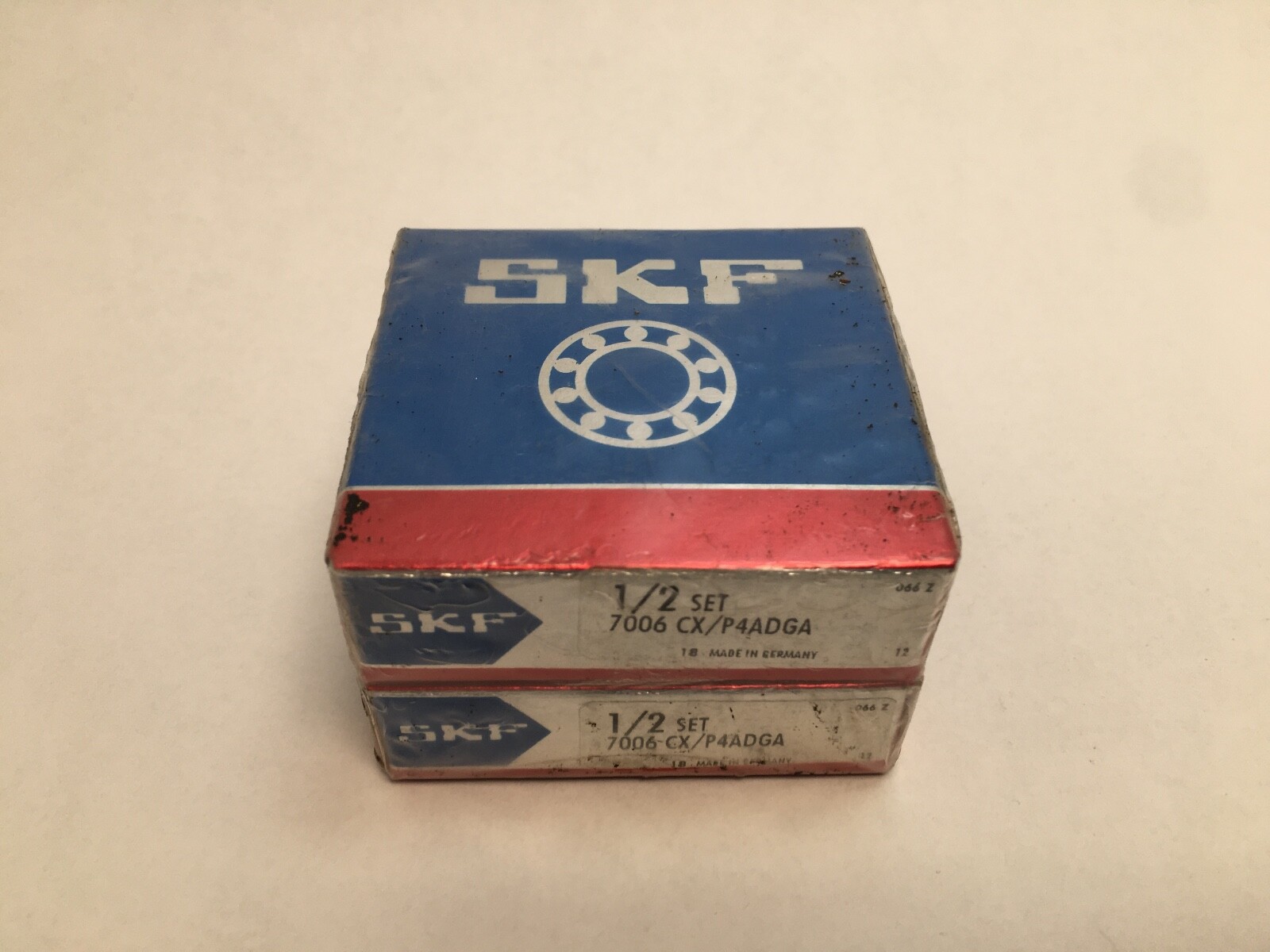

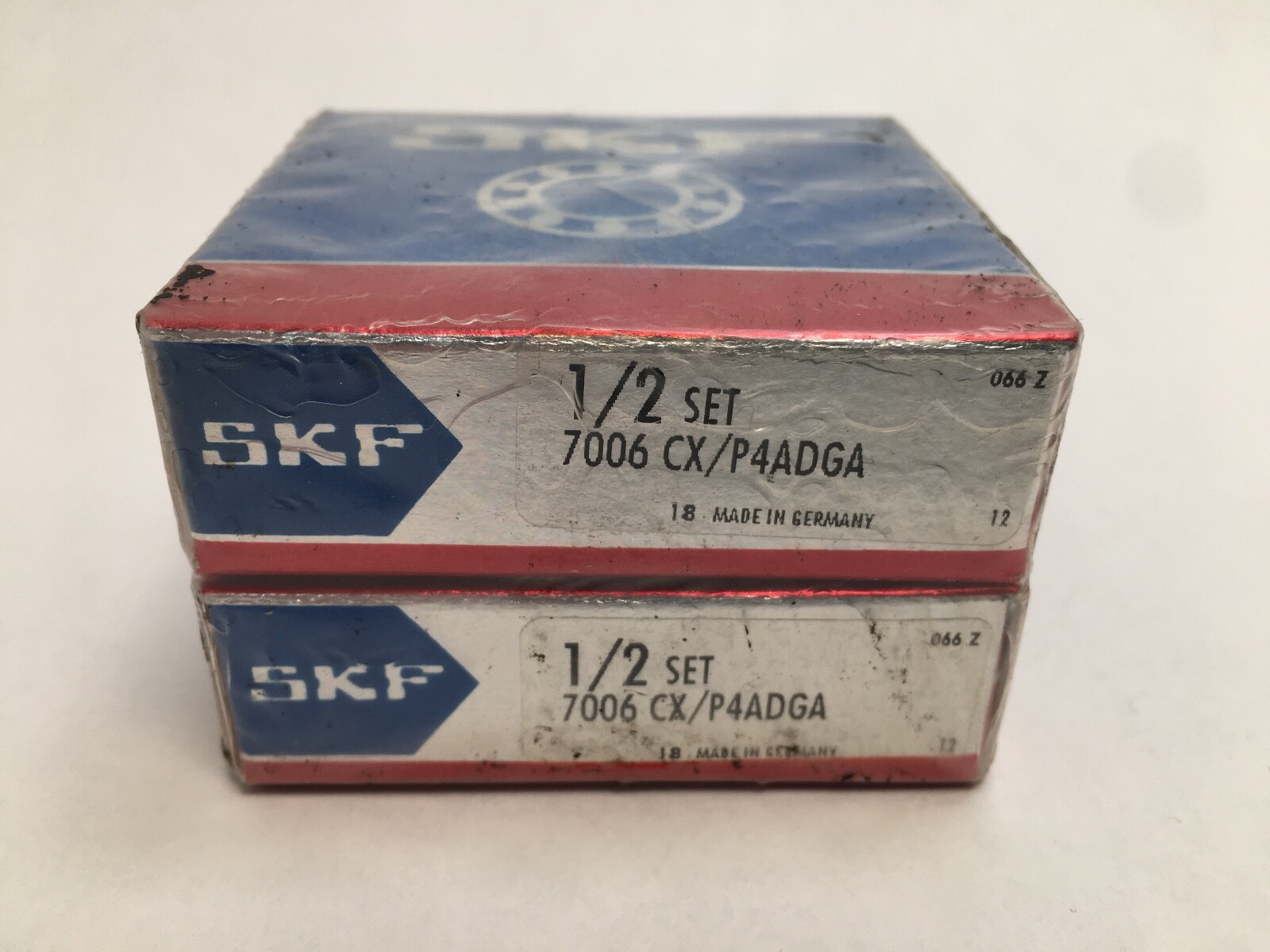

2 Pcs, supplied as a set. Universally matchable, so the pair produces the published light preload when set adjacent in any arrangement, and further bearings of the same designation can be added to the stack.

Fitting notes

Preloaded bearings are supplied without radial internal clearance, so a clearance class does not apply. Lubrication is by oil in the speed range these bearings are rated for.

Interchange guidance

Same-envelope 15° super-precision light-preload executions from other makers are listed in the cross-reference attributes. A 25° or medium/heavy-preload execution in the same 30 x 55 x 13 mm envelope is a related size, not an interchange.
