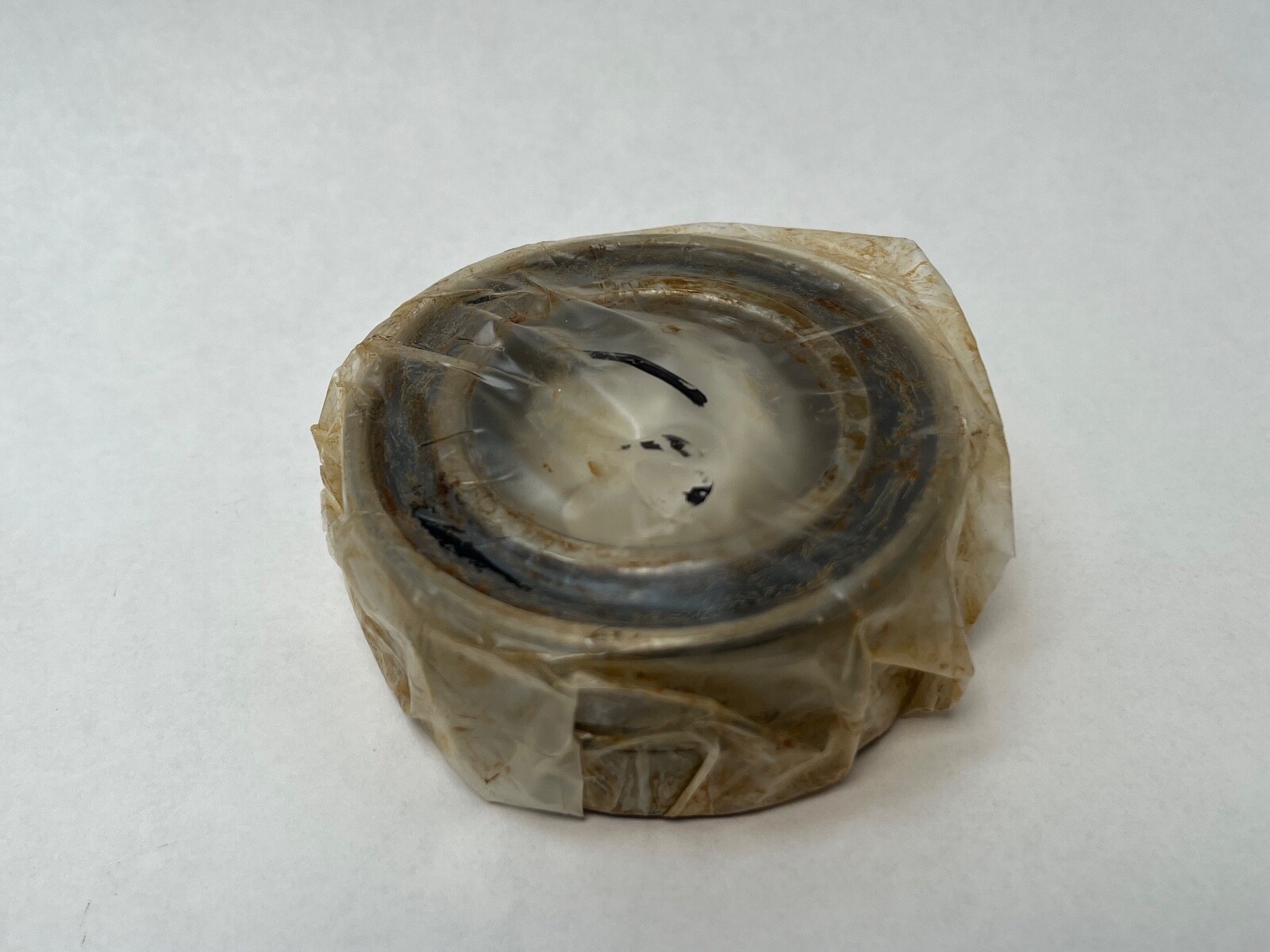

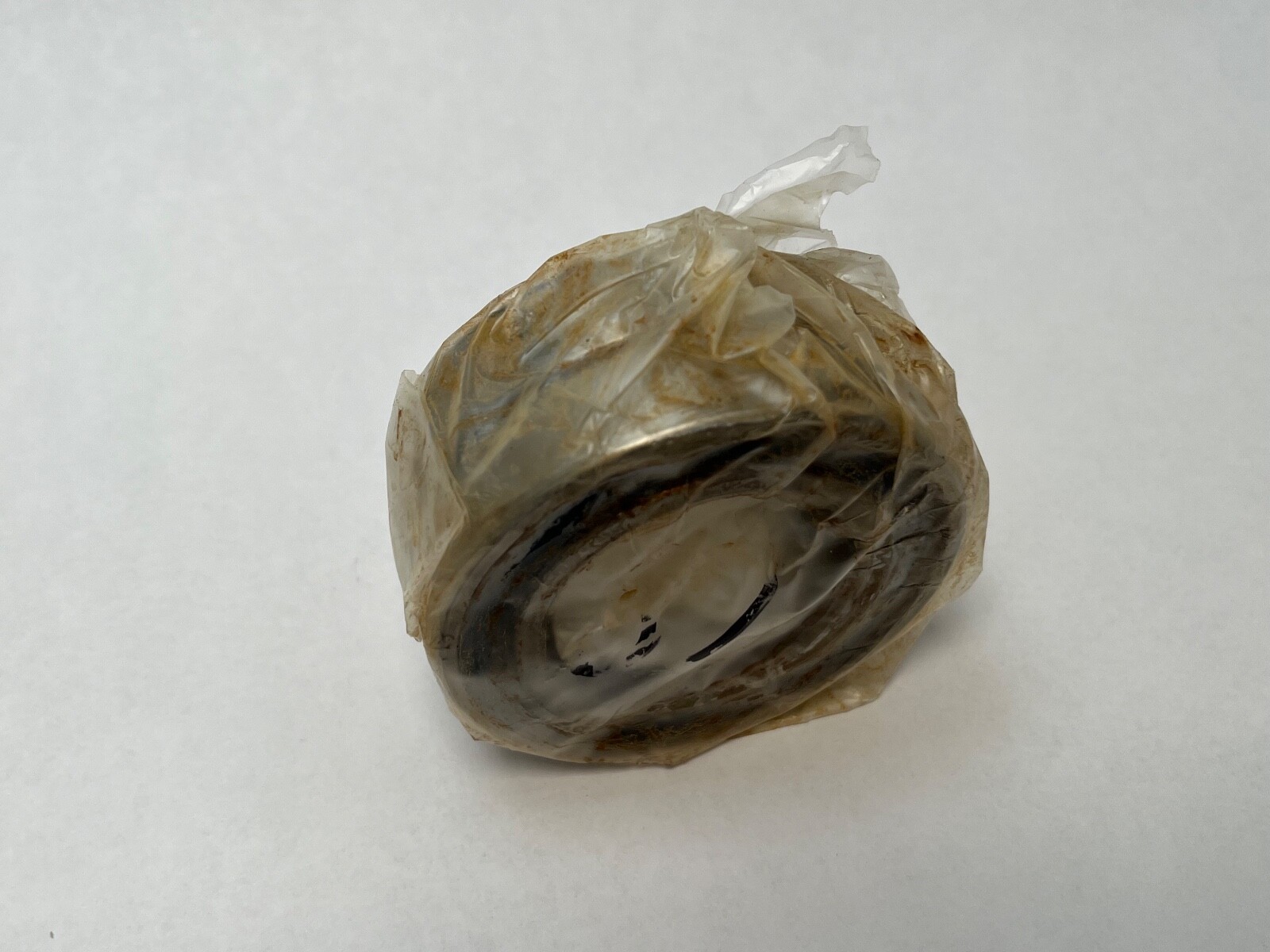

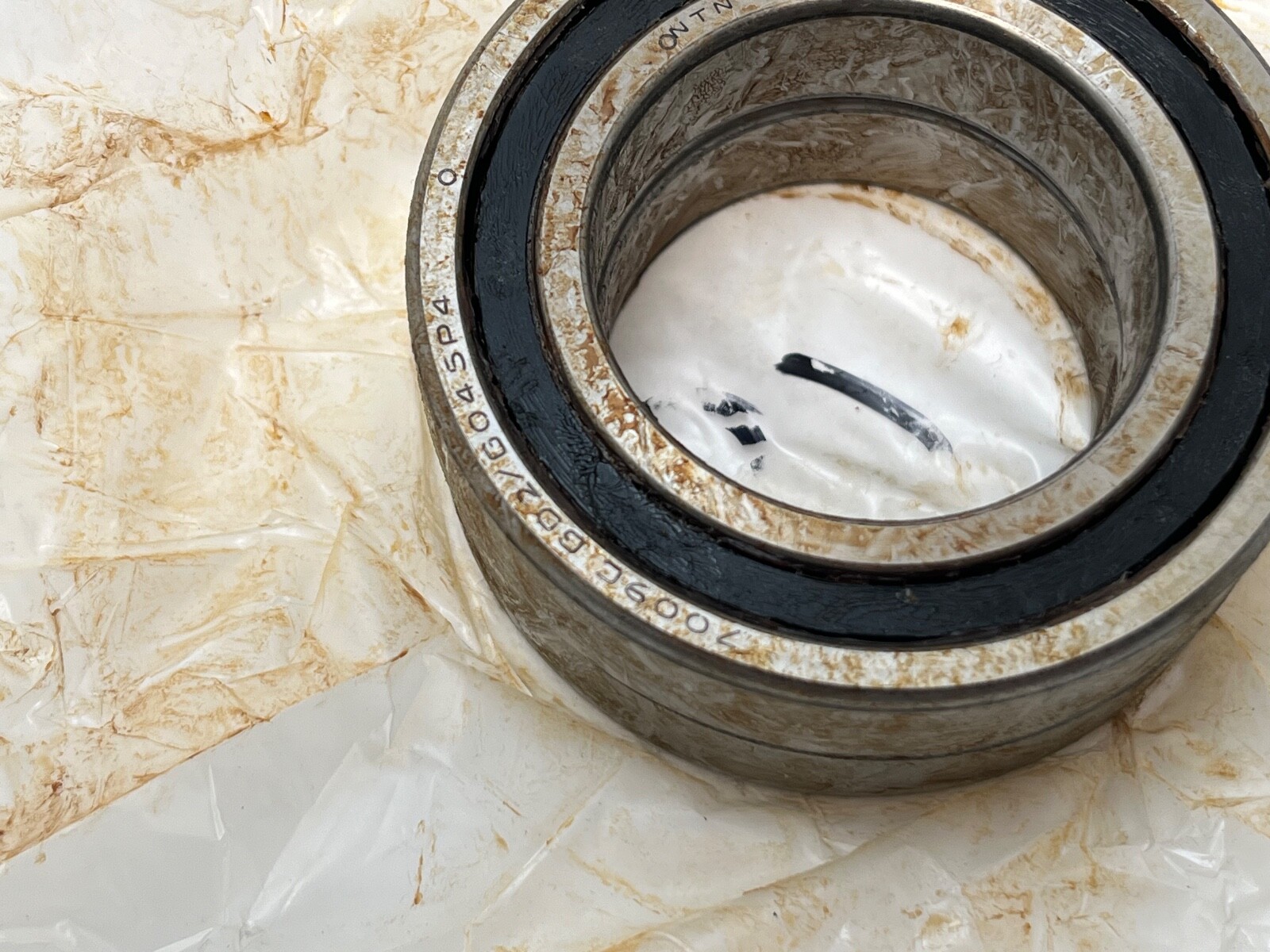

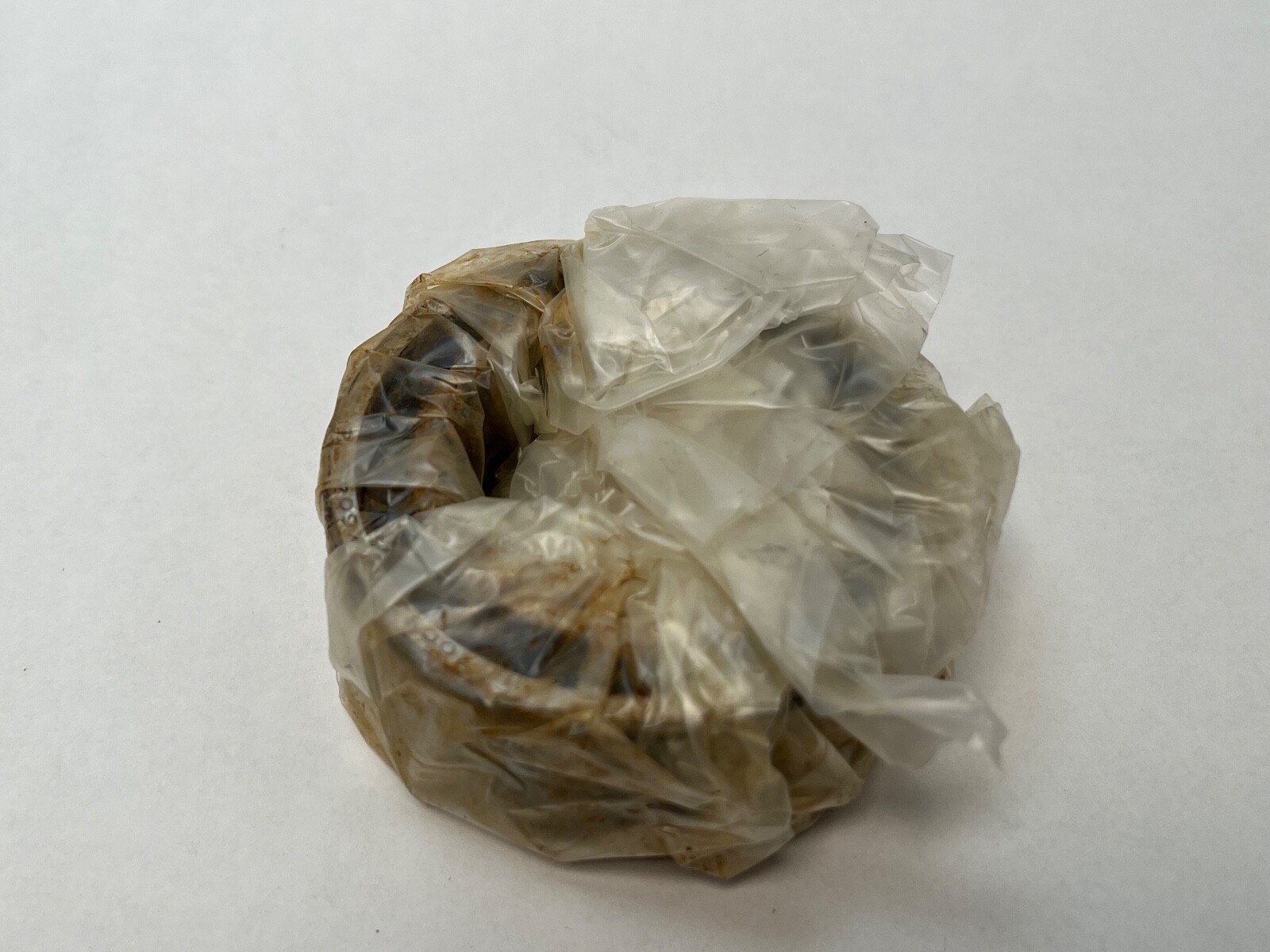

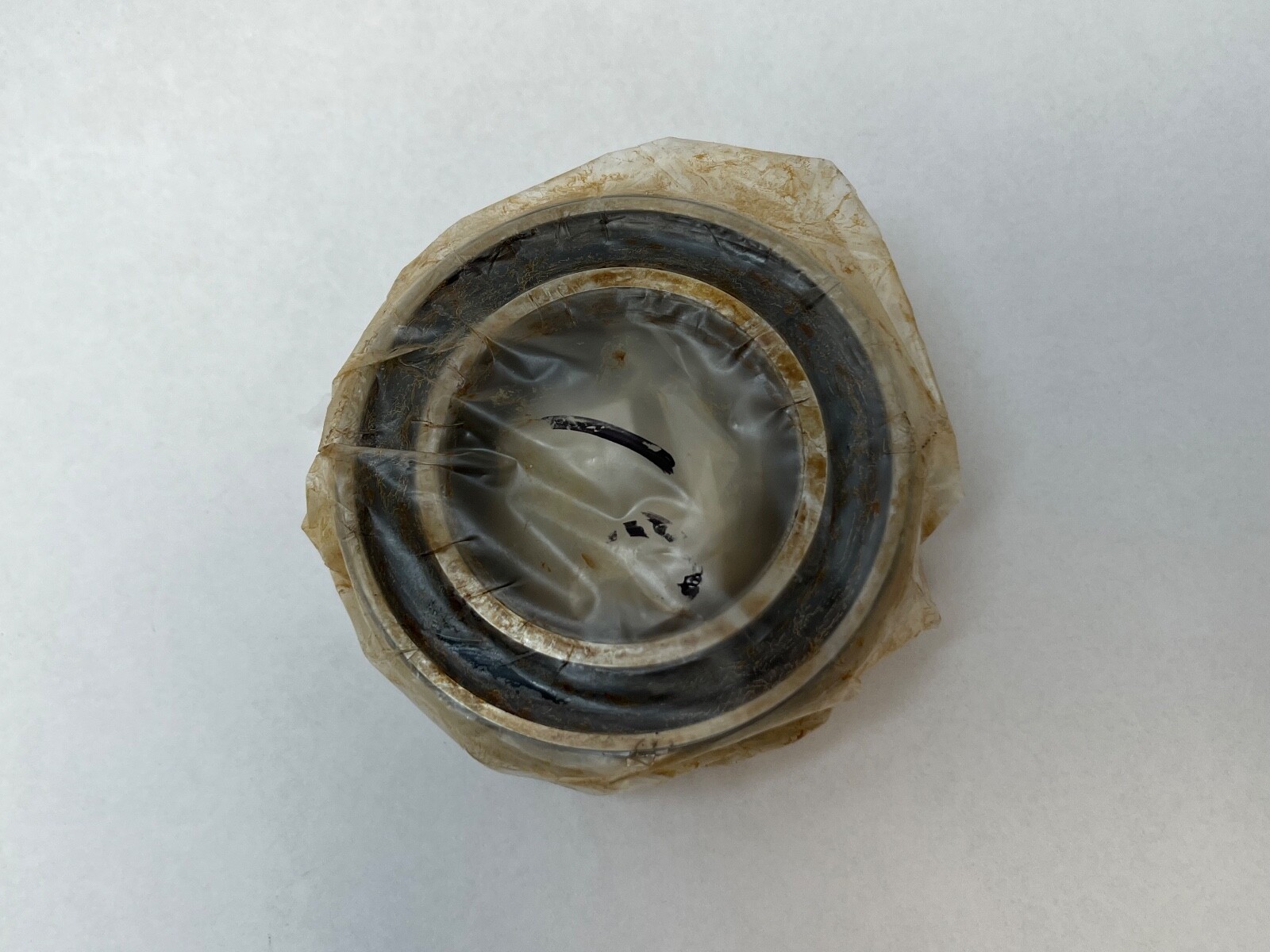

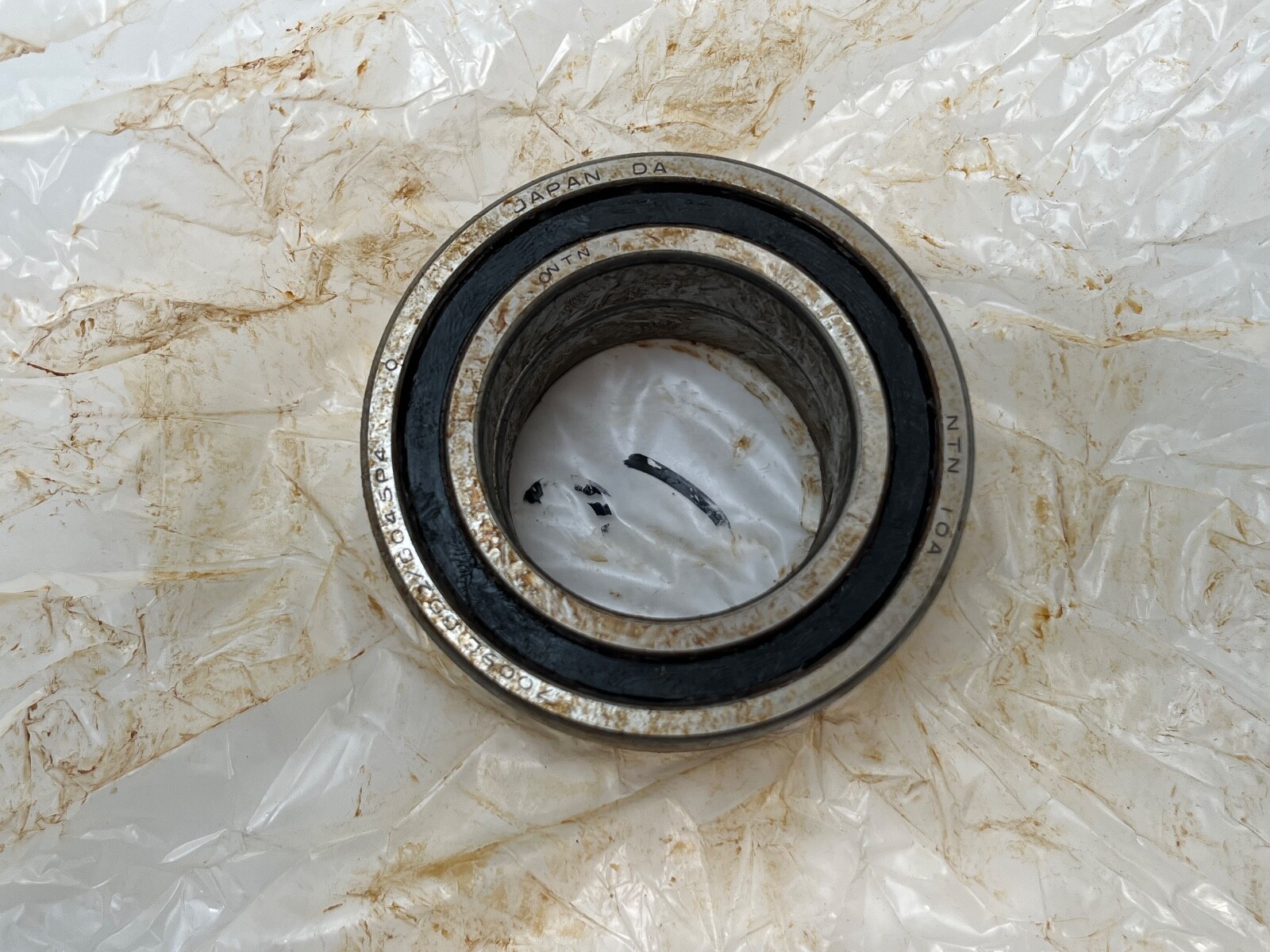

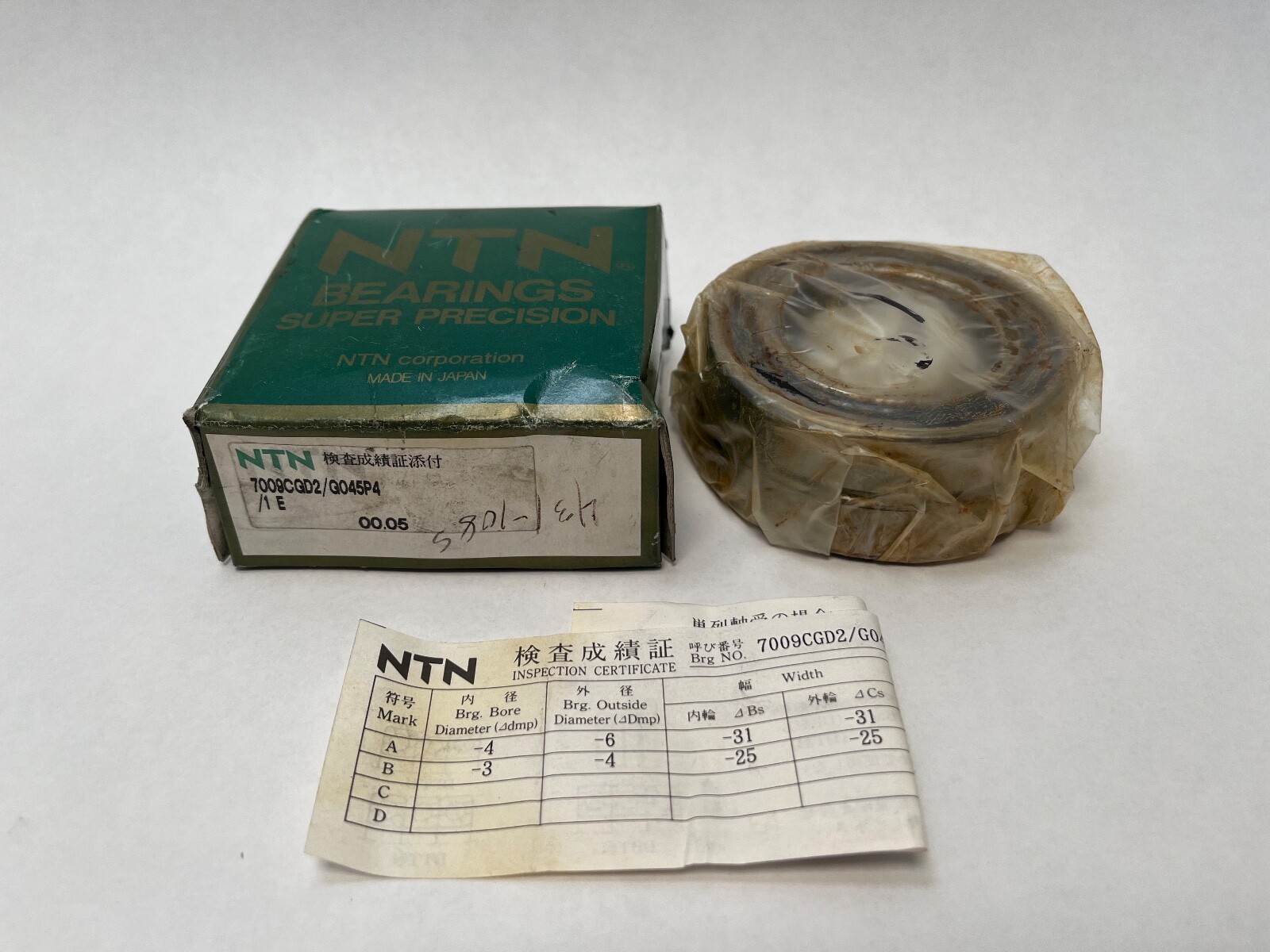

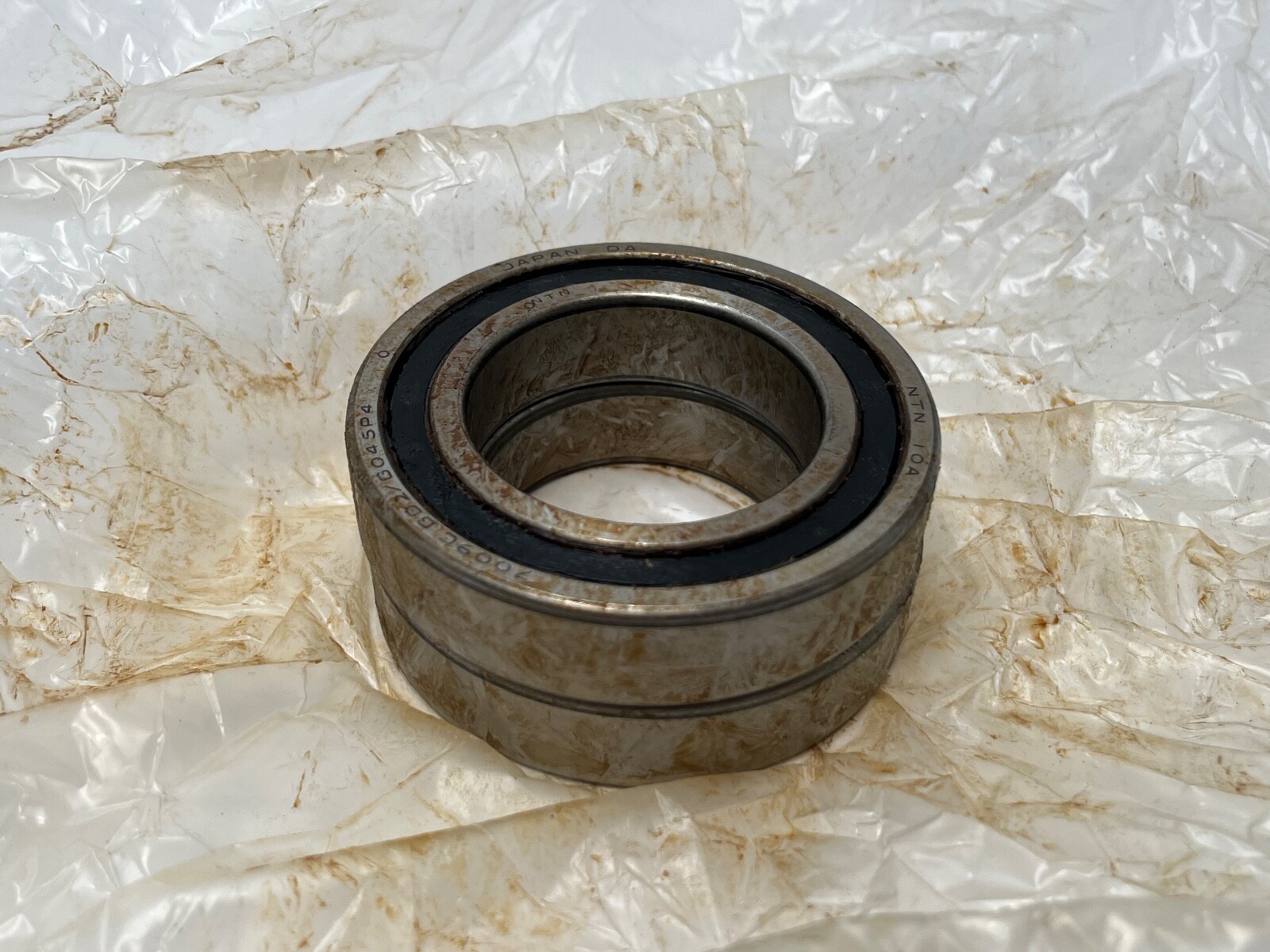

NTN7009CGD2/GNP4Super Precision Angular Contact Ball Bearing – 45 mm ID, 75 mm OD, 16 mm Width, 15° Contact Angle, ABEC 7 / P4, Normal Preload, Open

Condition: New

Availability:

1 in stock

Super-precision angular contact ball bearing, 45 x 75 x 16 mm, 15° contact angle, ABEC 7 / P4, normal preload. Universally matchable duplex pair, 2 pieces.

List Price

$232.99

1 in stock

Prefer eBay? Buy this item on our store (opens in a new tab)

Small green outline icon of a shipping box with a clock, indicating delivery time
Availability

1 in stock

On the Shelf & Ready to Ship

Green shield badge reading "Same-Day Shipping" with box and delivery truck icons
Free US Shipping

Ships same day by 6pm ET

Green shield icon with box and arrow graphic labeled "Free Returns"
Free Returns

No Risk, No Hassle

Specifications

Key Specifications

MFR / BrandNTN
MPN7009CGD2/GNP4
Model7009 C GD2 GN P4
Bearing TypeSuper Precision Angular Contact Ball Bearing
ID45 mm
OD75 mm

Technical Specifications

MaterialHigh carbon chrome steel
Series70 (7009)
TypeAngular Contact Ball Bearing
PreloadNormal
Base Number7009C
Industry TermsSpindle bearing, machine tool bearing, precision angular contact, universally matchable set, flush ground duplex
Common MisspellingsNTN 7009CGD2GNP4, 7009 CGD2 GNP4, NTN 7009 C GD2, 7009CDG2GNP4
Application TypesMachine tool spindles, grinding spindles, high-speed rotating equipment
Overall Width16 mm per bearing, 32 mm mounted pair
Bore Shaft Size45 mm (1.7720 in)
Mpn Variants7009CGD2/GNP4, 7009CGD2GNP4, 7009 C GD2 GN P4, 7009CGD2GP4, 7009-C-GD2-GN-P4
Precision ClassABEC 7 / P4
Dynamic Load Rating39,650 N (duplex pair)
Static Load Rating38,600 N (duplex pair)
Precision RatingABEC 7 / P4
Item Weight0.46 kg (1.01 lb) pair
Cage MaterialGlass-fibre reinforced nylon
Number Of Rows1 per bearing
Bore TypeRound / straight
Limiting Speed15,600 rpm grease; 24,960 rpm oil
Contact Angle15°
Bearing MaterialHigh Carbon Chrome Steel
Part Number7009CGD2/GNP4
Total Width32 mm (pair)
Rolling ElementsBall
Closure TypeOpen

Cross-References

Cross Reference 1SKF 7009 CD/P4A - match DG preload suffix
Cross Reference 2FAG B7009-C-T-P4S - match DU preload suffix
Cross Reference 3NSK 7009CTRDUMP4 - DUM is medium preload
Cross Reference 4NTN 7009AD - 30° vs 15°
Cross Reference 5NTN 7009B - 40° vs 15°
Seller Part Number: B-AG2B5#XRQDBK

Product Description

What this part is:

NTN 7009CGD2/GNP4 super-precision single-row angular contact ball bearing, supplied as a universally matchable duplex pair (2 pieces). Bore 45 mm, outside diameter 75 mm, width 16 mm per bearing and 32 mm across the mounted pair. Open on both faces, 15° contact angle, glass-fibre reinforced nylon cage, high carbon chrome steel rings and steel balls.

Decoding the designation:

7009 — ISO 70 dimension series, 09 bore code = 45 mm bore.

C — 15° contact angle.

GD2 — universal flush ground, universally matchable pair.

GN — normal preload on NTN’s GL, GN, GM, GH preload ladder.

P4 — ISO tolerance class 4, equivalent to ABEC 7.

Specifications:

Bore Diameter: 45 mm. Outside Diameter: 75 mm. Width: 16 mm per bearing; 32 mm for the pair. Contact Angle: 15°. Precision Class: ABEC 7 / P4. Preload: Normal. Basic Dynamic Radial Load Rating: 39,650 N for the duplex pair. Basic Static Radial Load Rating: 38,600 N for the duplex pair. Limiting Speed: 15,600 rpm grease; 24,960 rpm oil. Cage: glass-fibre reinforced nylon. Closure Type: Open. Rolling Elements: Ball. Material: High Carbon Chrome Steel. Operating Temperature Range: -40 to 120 °C. Item Weight: 0.46 kg (1.01 lb) for the pair. Unit Quantity: 2 Pcs.

Dimensions and mounting:

Minimum shaft backing shoulder diameter da: 50.5 mm. Maximum housing backing shoulder diameter Da: 69.5 mm; Db: 70.5 mm. Maximum chamfer for shaft and housing fillets: 1.0 mm outer corner, 0.6 mm inner corner. The set carries a factory preload, so radial internal clearance does not apply.

Compatibility and replacement:

15° contact angle crosses: SKF 7009 CD/P4A, FAG B7009-C-T-P4S, NSK 7009CTRDUMP4, each with its own preload suffix. NTN 7009AD is the 30° contact angle version and NTN 7009B the 40° version of the same size.

Frequently asked questions:

What size is the NTN 7009CGD2/GNP4?

45 mm bore, 75 mm outside diameter and 16 mm width per bearing; the duplex pair spans 32 mm.

What do GD2, GN and P4 mean?

GD2 is universal flush ground, so the pair is universally matchable. GN is normal preload and P4 is ISO tolerance class 4, equivalent to ABEC 7.

What are the load ratings and speed limits?

Basic dynamic radial load rating is 39,650 N and basic static radial load rating 38,600 N for the duplex pair. Limiting speed is 15,600 rpm on grease and 24,960 rpm on oil.
