Availability:
1 in stock

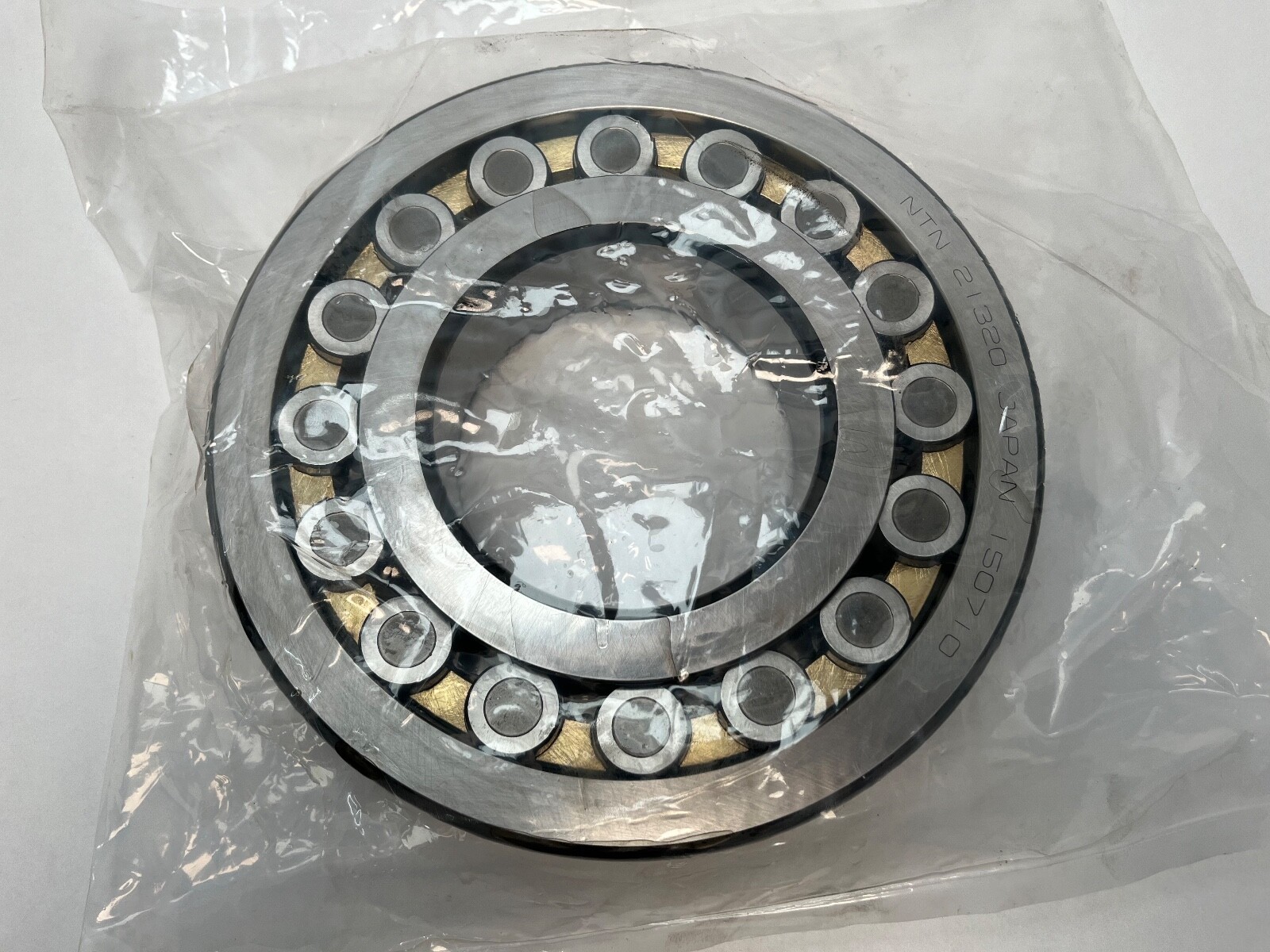

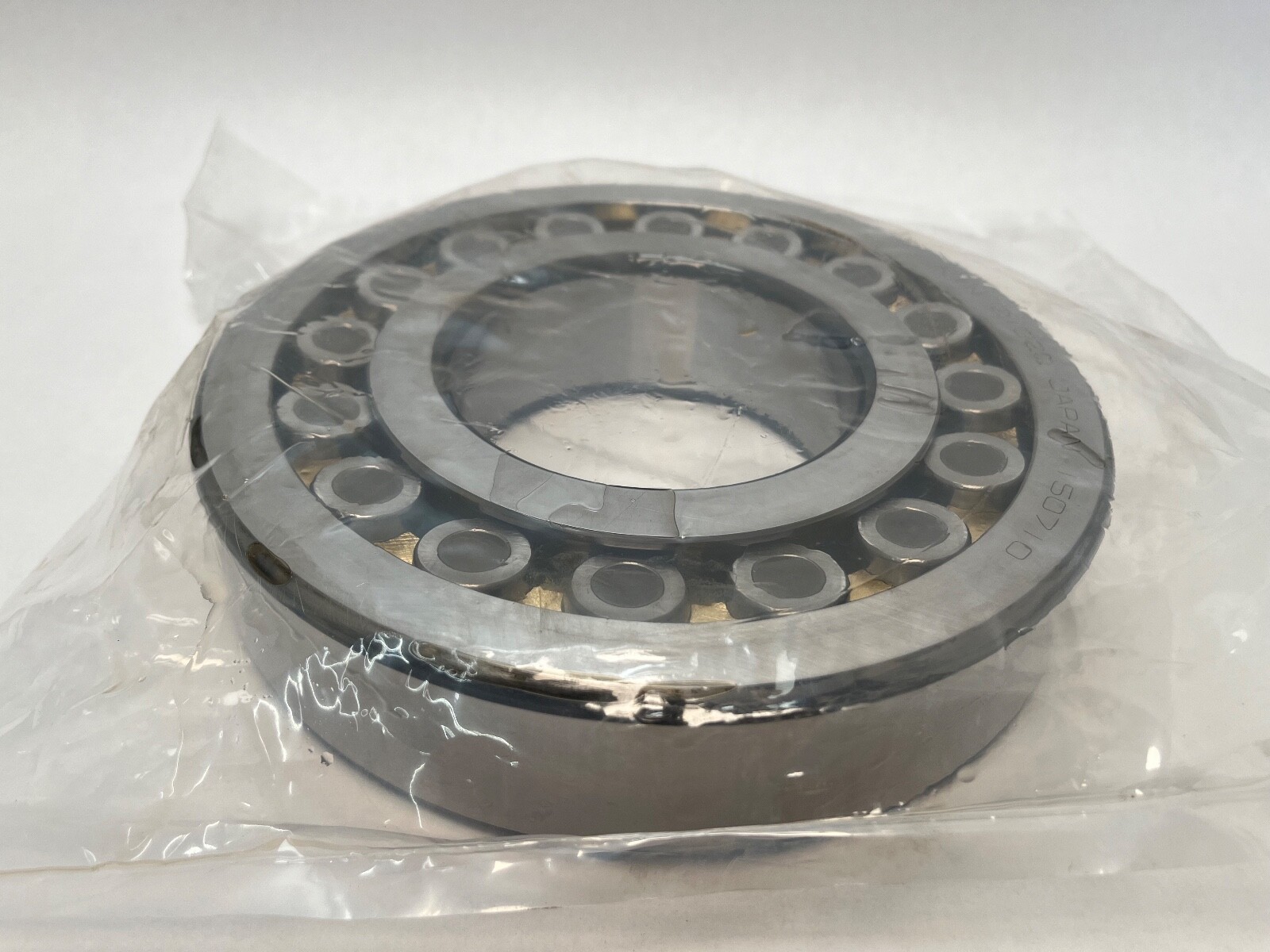

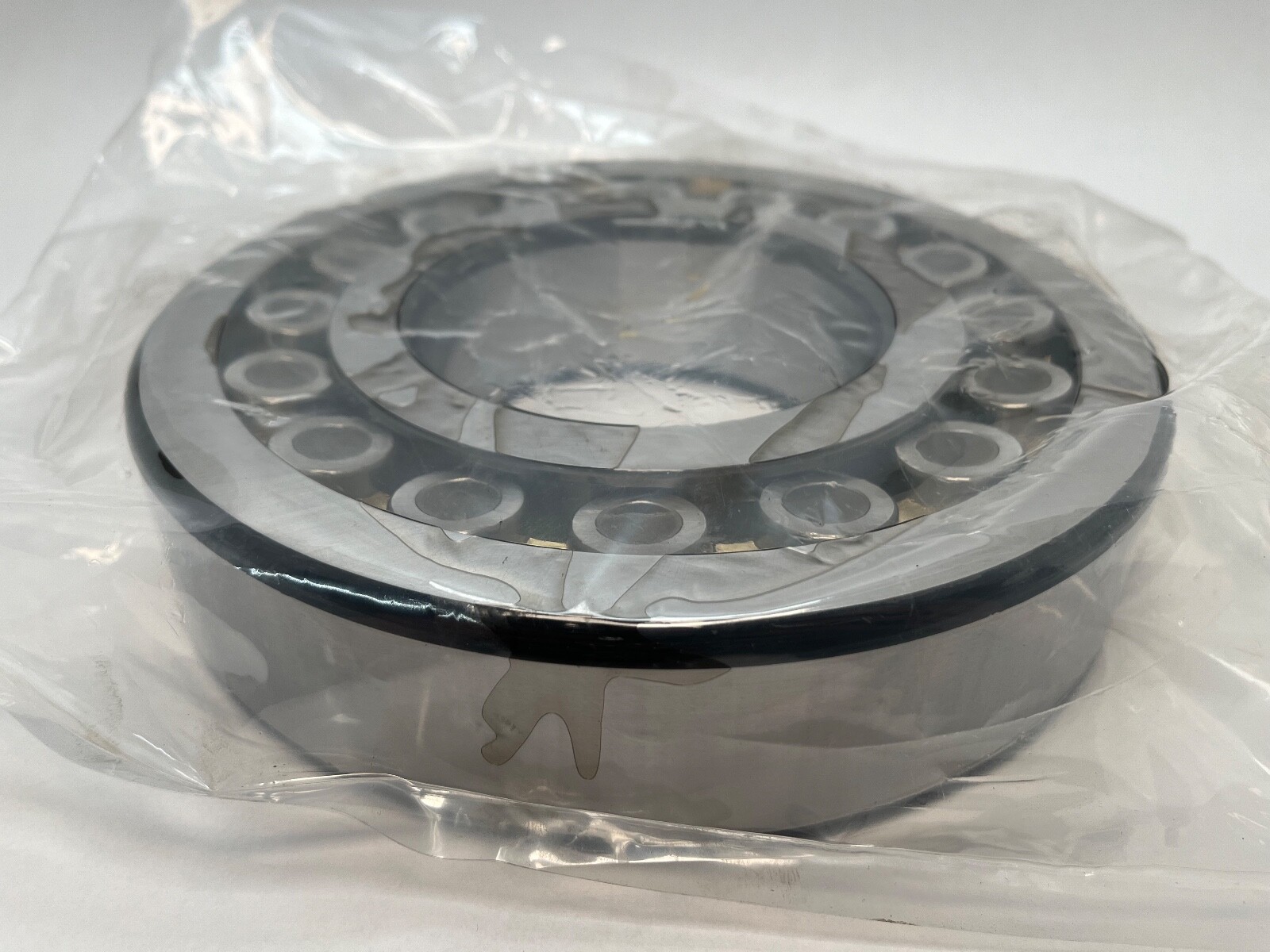

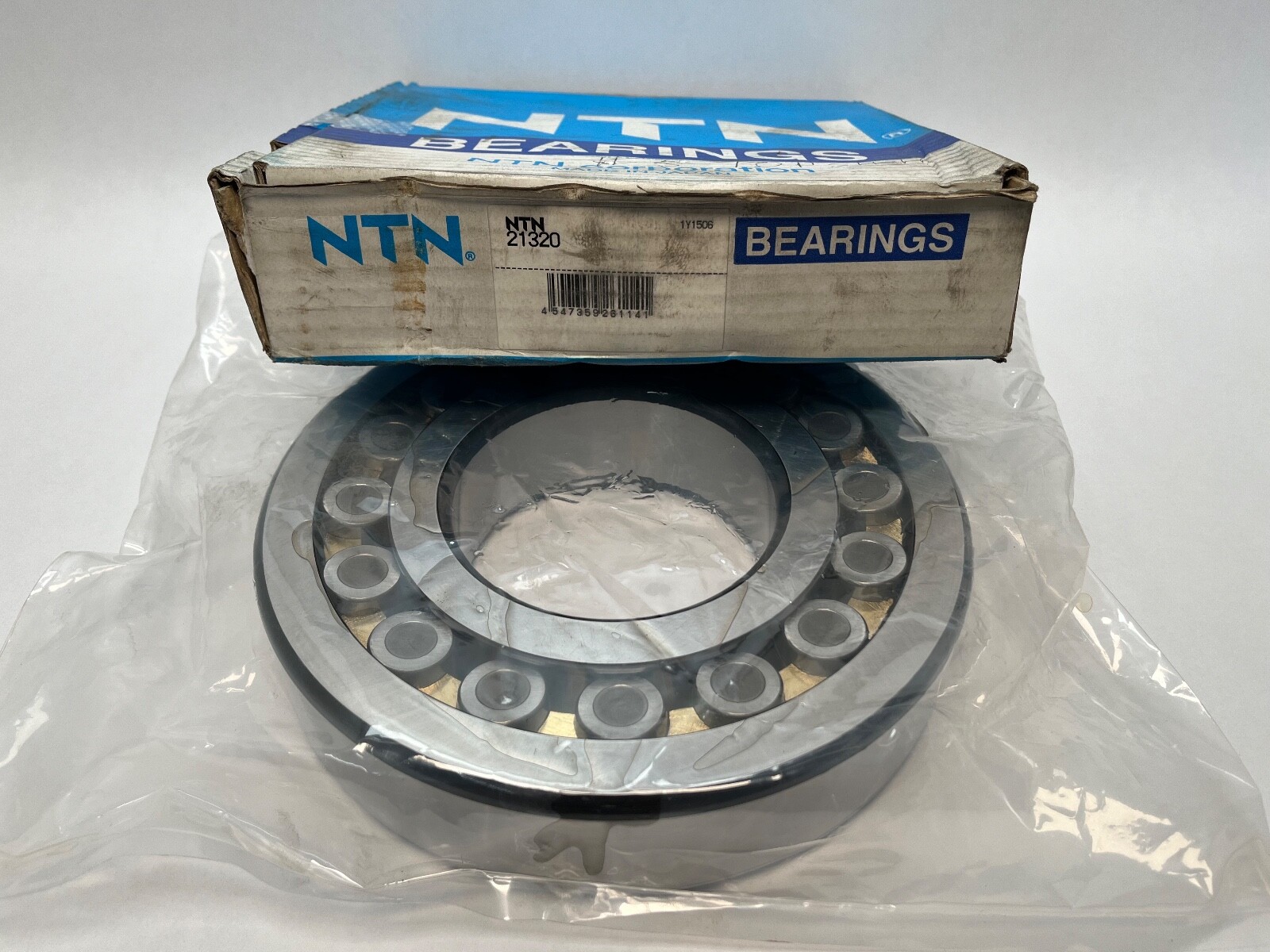

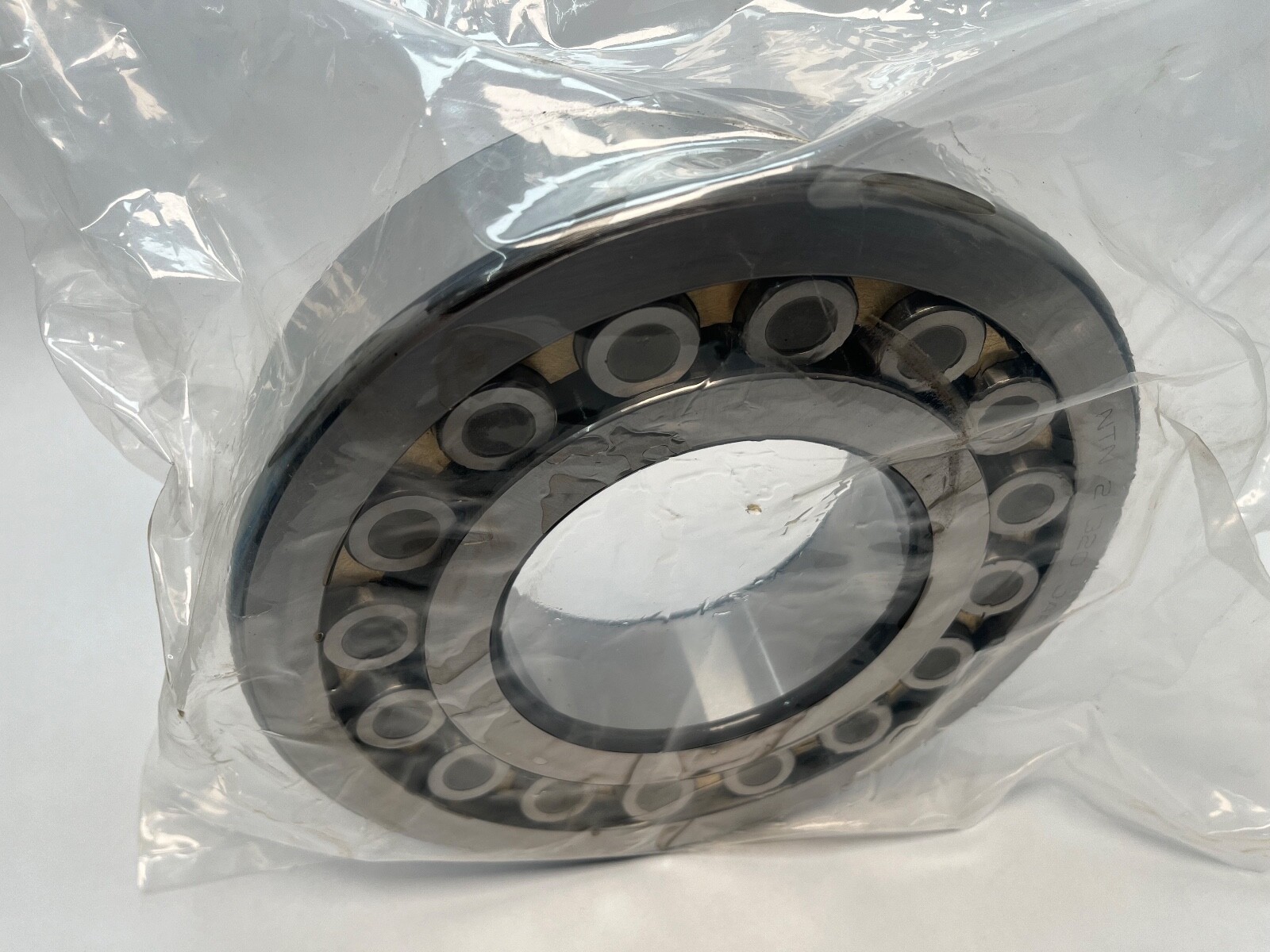

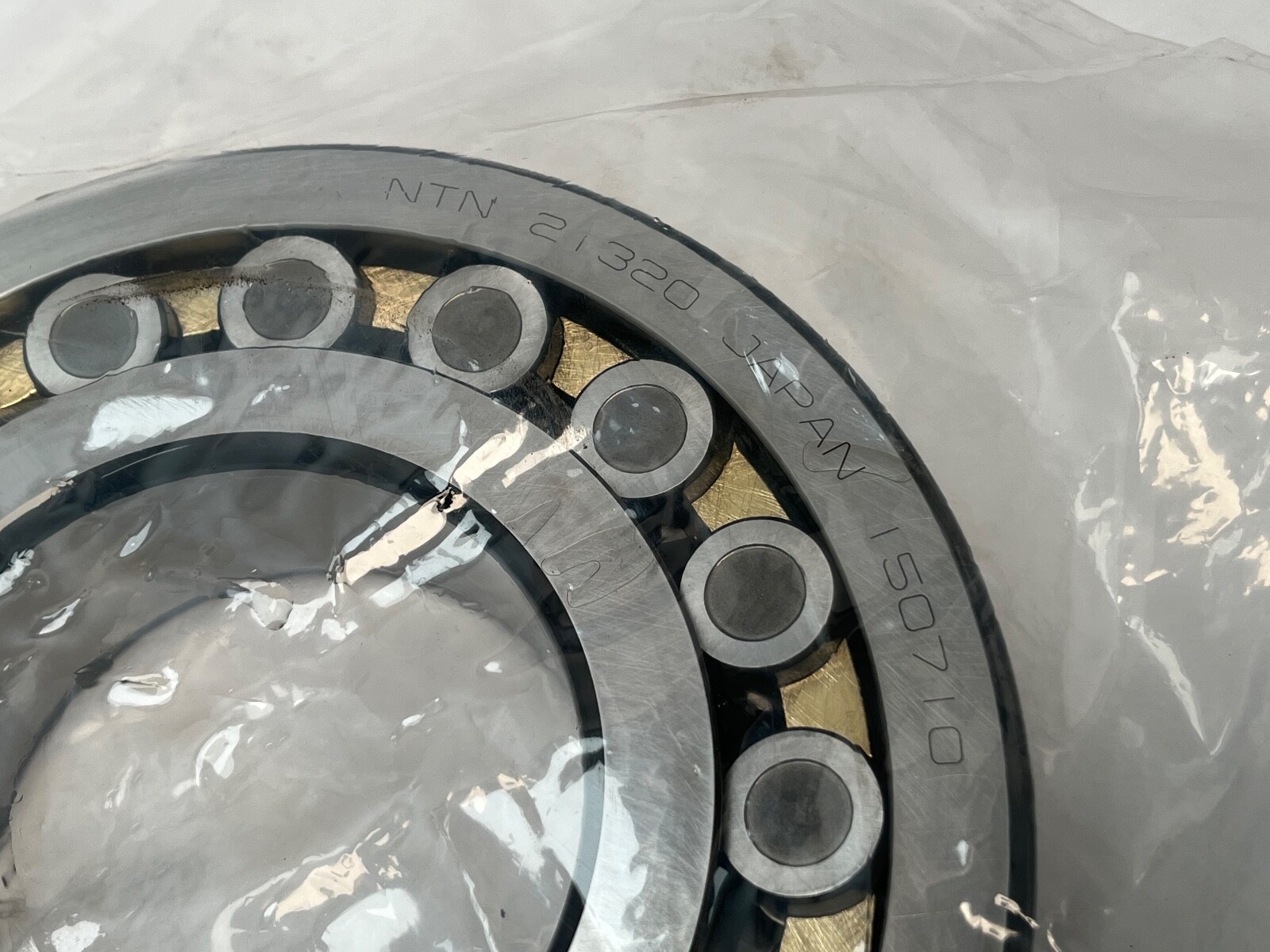

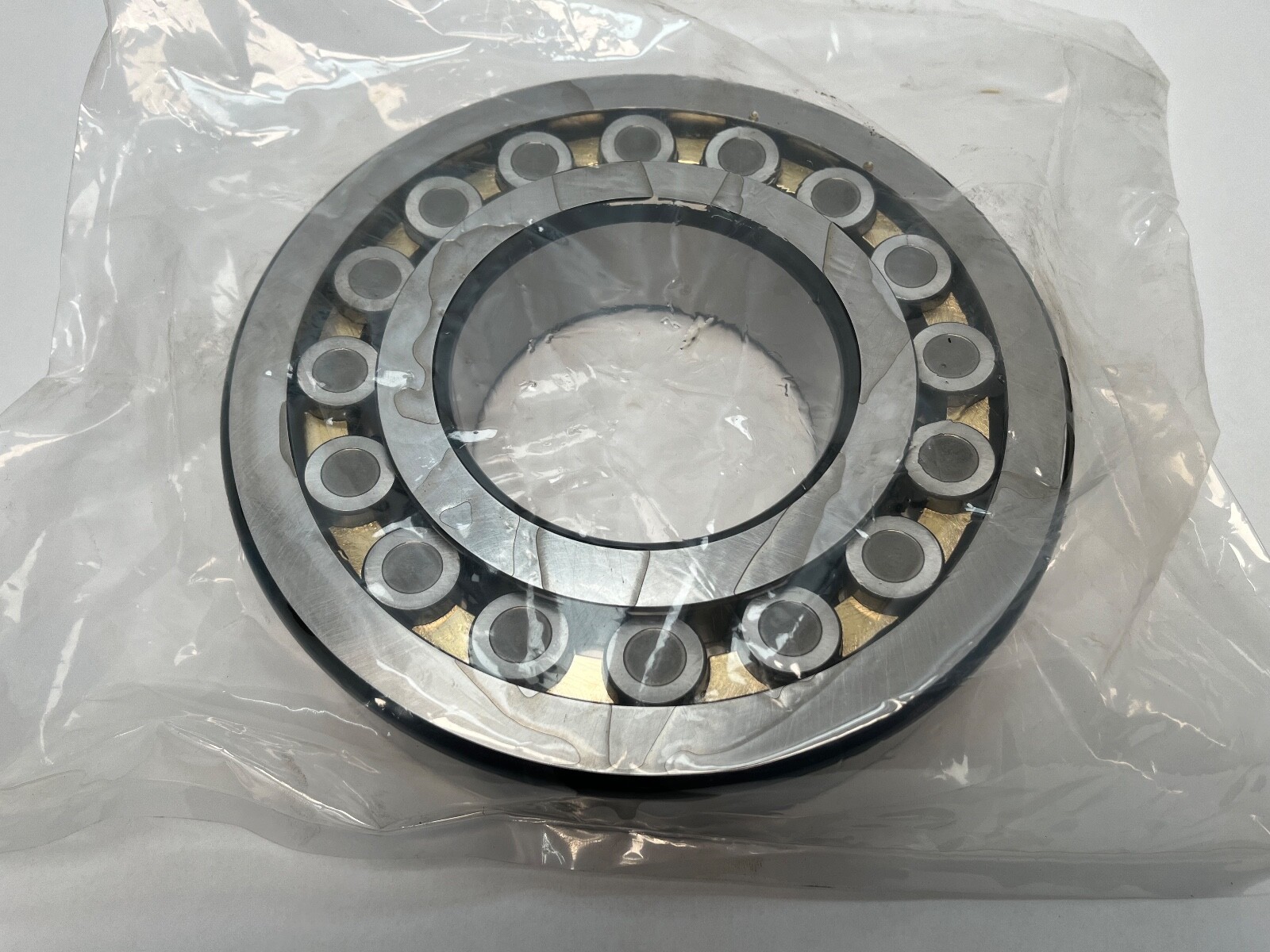

Spherical roller bearing, 100 x 215 x 47 mm, straight bore, 370,000 N dynamic rating, CN clearance. NTN 21320, 213 series, machined cage, plain rings.
List Price
$237.12
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | NTN |
|---|---|
| MPN | 21320 |
| Model | 21320 M |
| Bearing Type | Spherical Roller Bearing |
| ID | 100 mm |
| OD | 215 mm |
| Width | 47 mm |
| Series | 213 |
|---|---|
| Lubricant | Grease or oil |
| Mpn Variants | 21320, 21320-M, 21320M |
| Precision Class | RBEC 1 / P0 |
| Min Temp | -40 °C |
| Cage Type | Machined |
| Dynamic Load Rating | 370,000 N |
| Static Load Rating | 465,000 N |
| Rolling Elements | Spherical Roller |
| Max Temp | 120 °C |
| Item Weight | 8.74 kg (19.27 lb) |
| Limiting Speed | 2,000 rpm grease; 2,600 rpm oil |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Internal Clearance | CN |
| Cross Reference 1 | SKF 21320 E |
|---|---|
| Cross Reference 2 | FAG 21320-E1-XL |
| Cross Reference 3 | Timken 21320EJW33 |
NTN 21320 single-row spherical roller bearing, 213 series, straight bore. Bore Diameter: 100 mm. Outside Diameter: 215 mm. Width: 47 mm. Internal Clearance: CN.
213 — NTN spherical roller series 213: single-row, medium-heavy section.
20 — bore code, 100 mm.
No clearance suffix — normal (CN) radial internal clearance.
Dynamic Load Rating: 370,000 N. Static Load Rating: 465,000 N. Limiting Speed: 2,000 rpm grease; 2,600 rpm oil. Item Weight: 8.74 kg (19.27 lb). Cage Type: Machined. Precision Class: RBEC 1 / P0. Operating Temperature: -40 °C to 120 °C. The single row of barrel-shaped rollers carries heavy radial load while the spherical outer raceway lets the bearing self-align under shaft deflection. Calculation factors: e 0.22; Y1 3.01; Y2 4.48; Y0 2.94.
Shaft abutment da min: 114 mm. Housing abutment Da max: 201 mm. Fillet r: 2.5 mm; ras max: 2.5 mm.
Same envelope, 213-series spherical roller: SKF 21320 E, FAG 21320-E1-XL, Timken 21320EJW33.
