Availability:
2 in stock

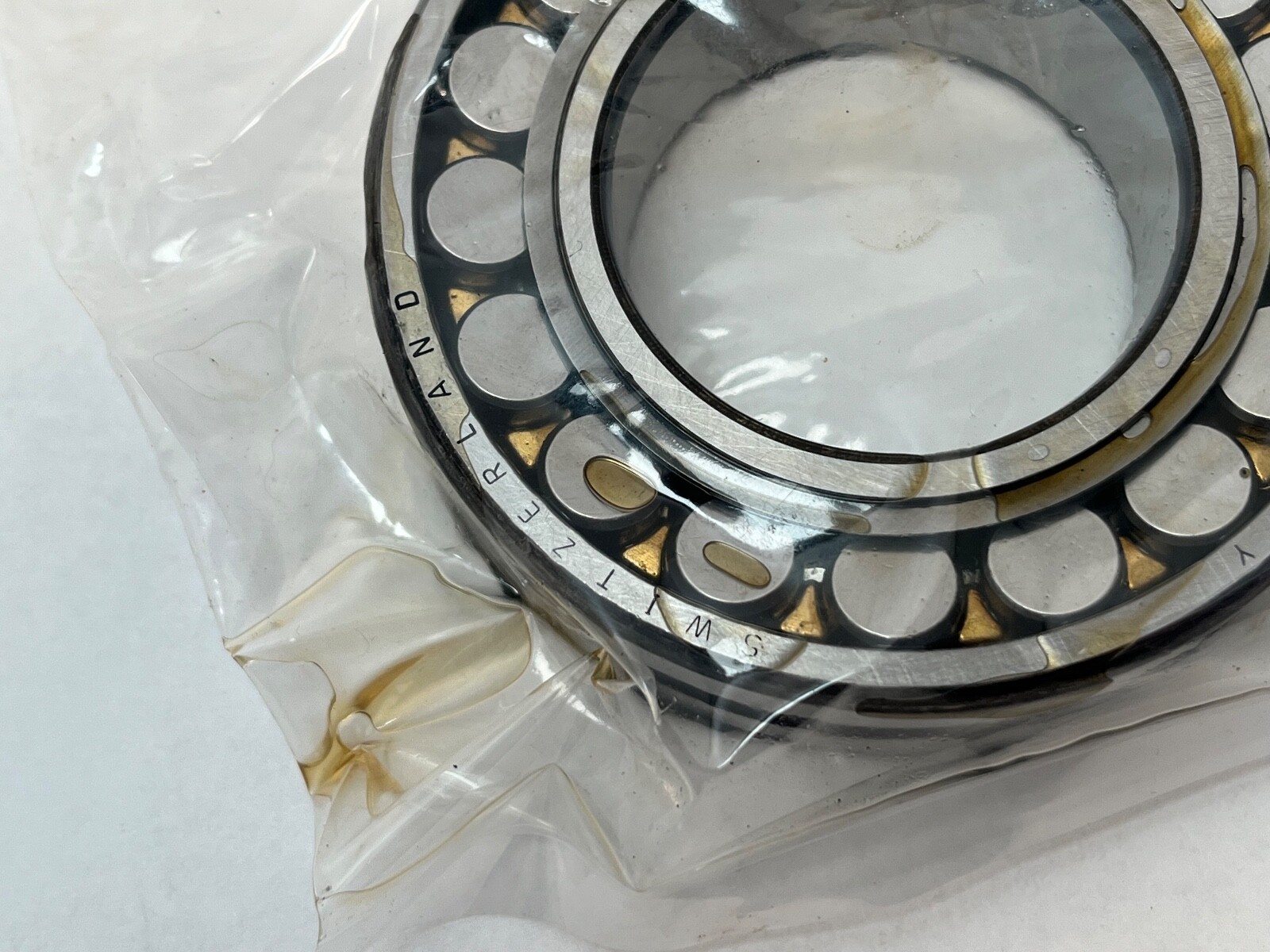

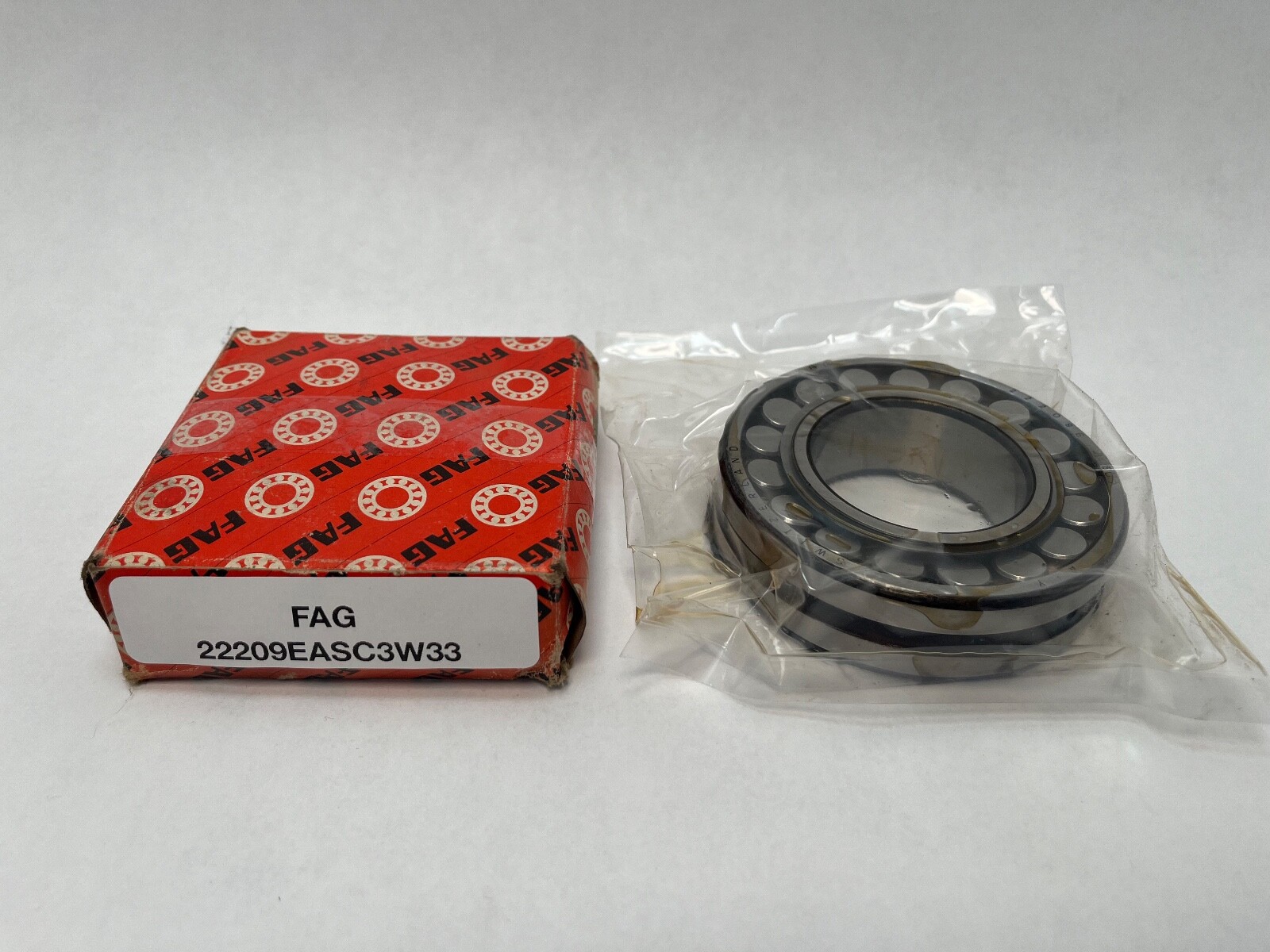

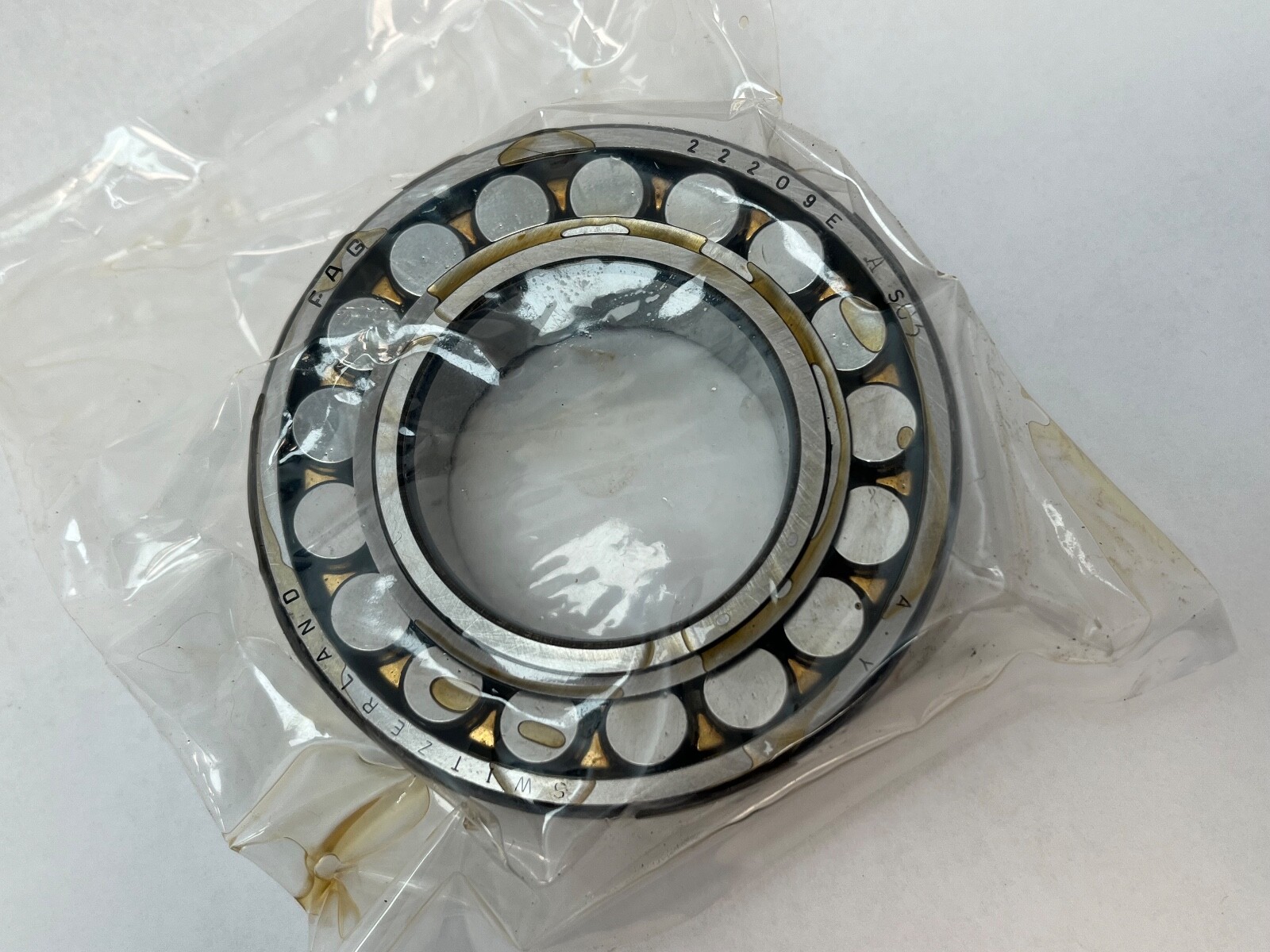

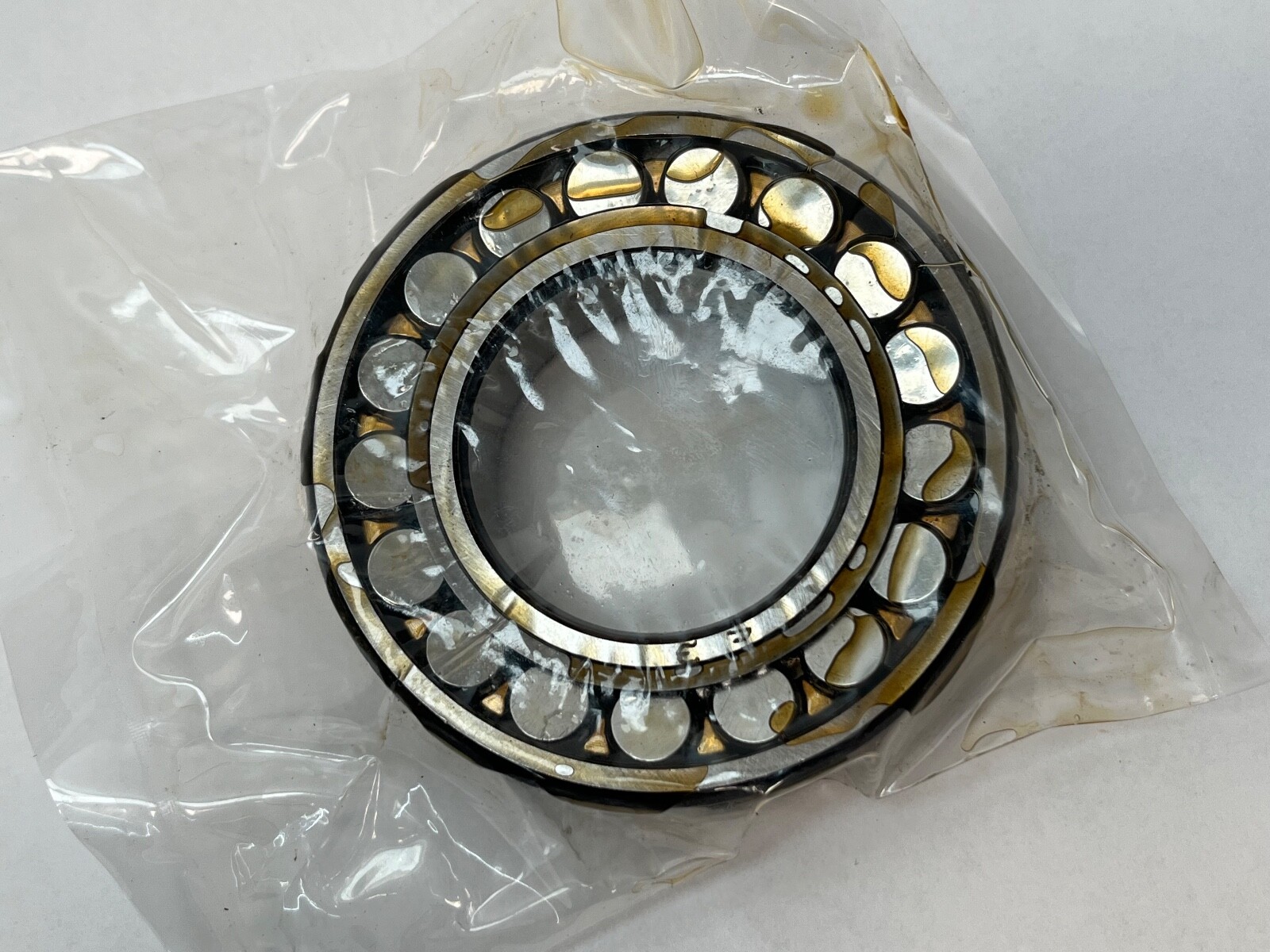

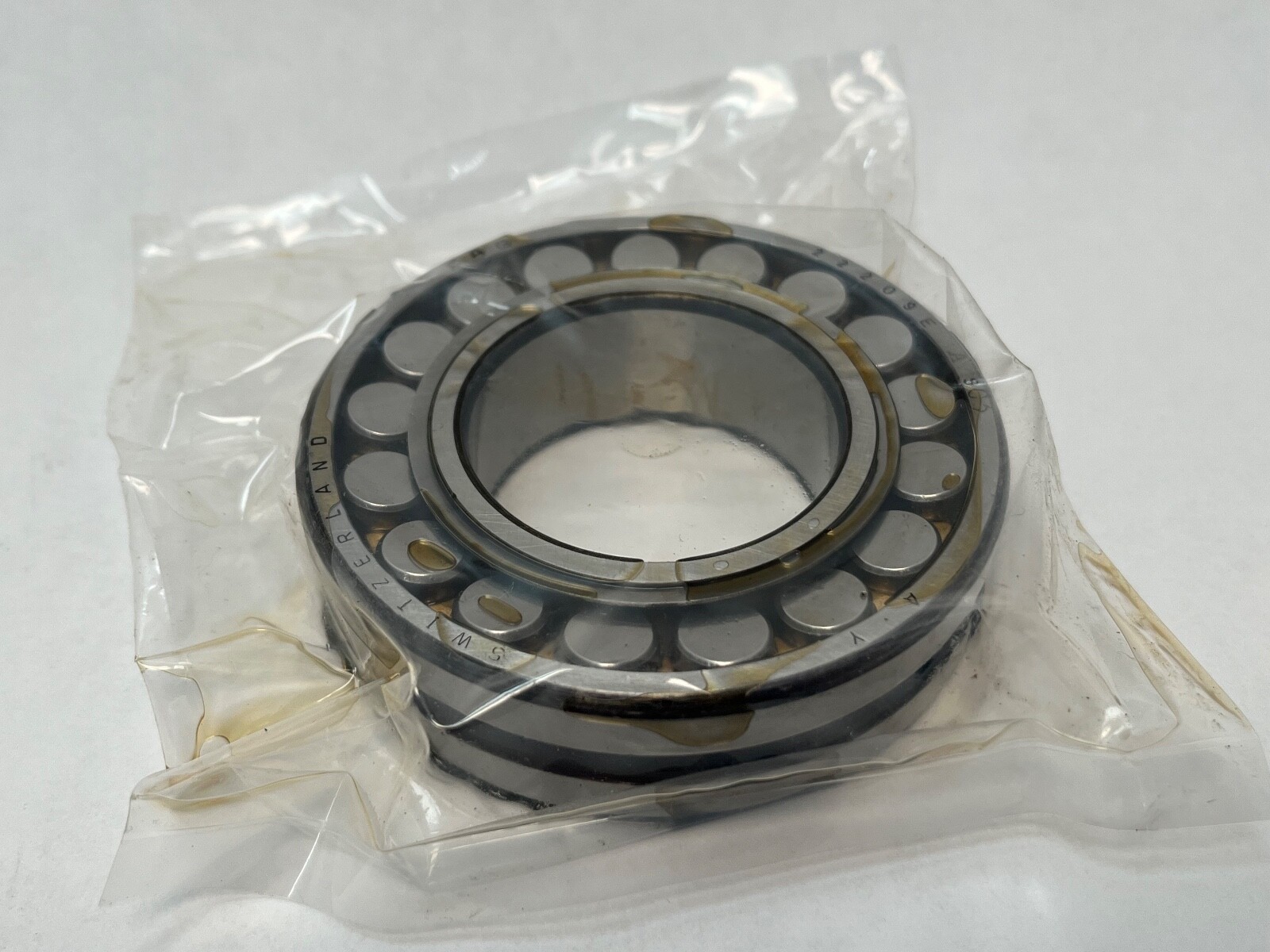

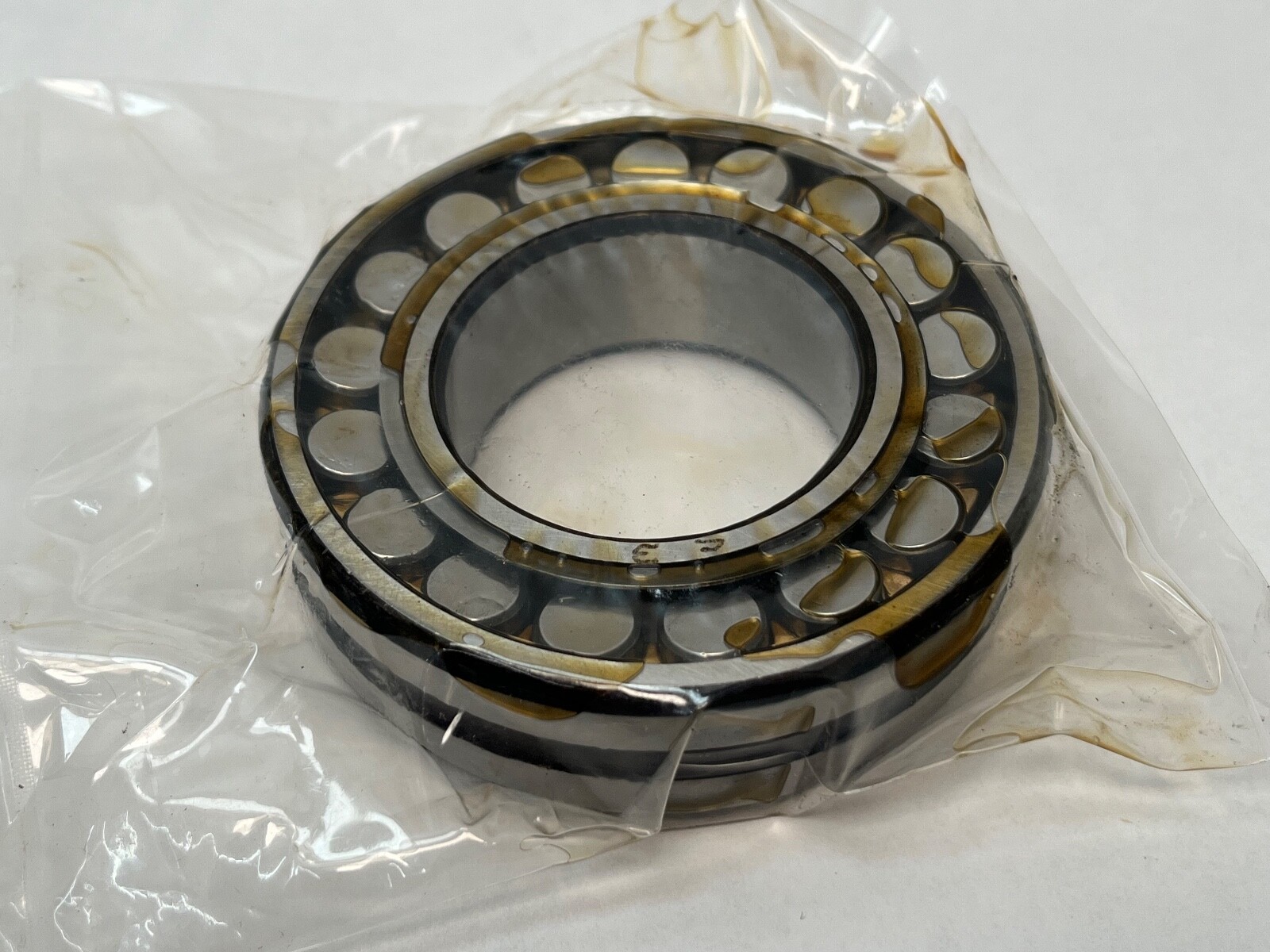

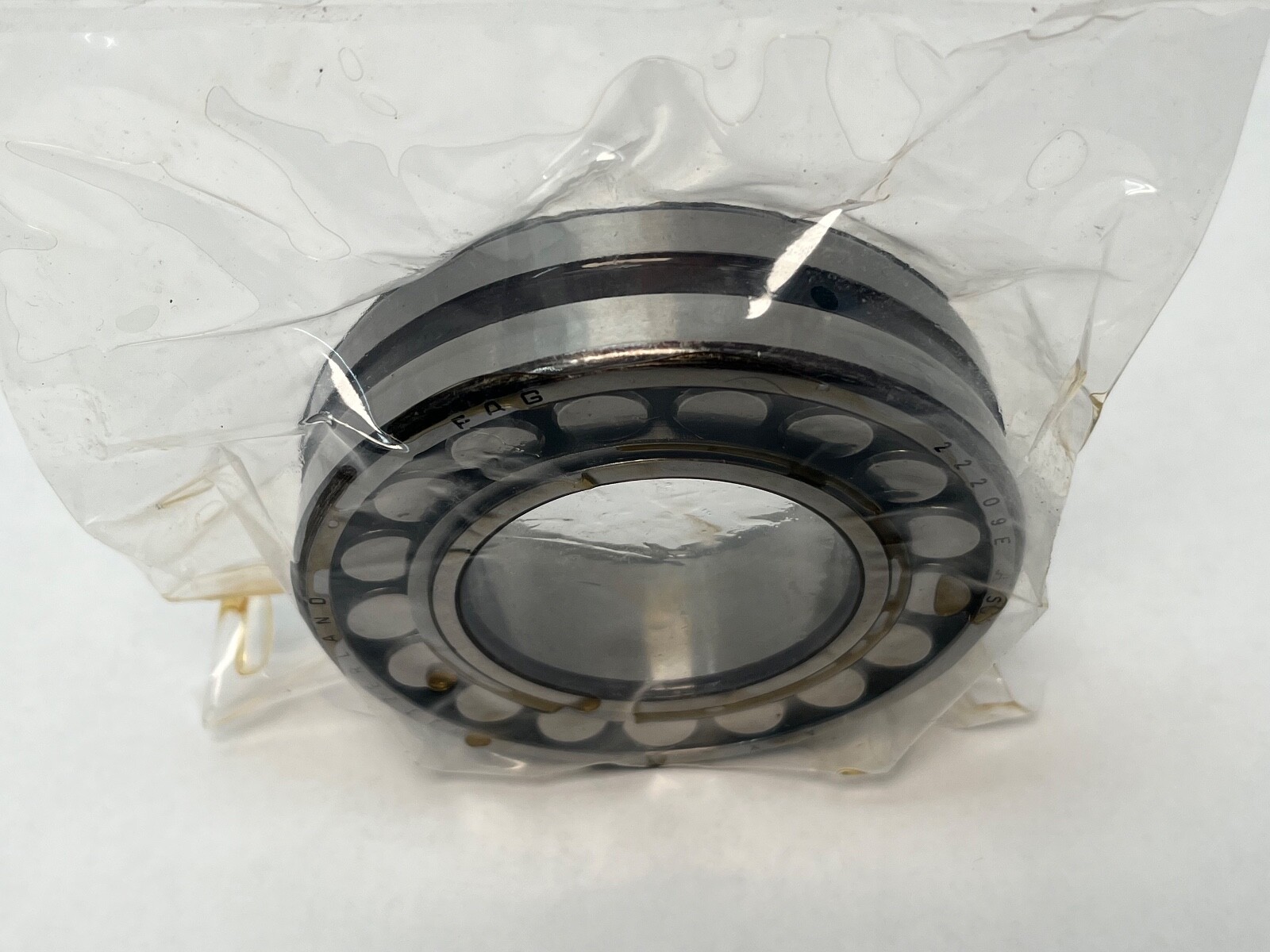

FAG 22209EASMC3W33 spherical roller bearing, 45 x 85 x 23 mm, machined brass cage, W33-type lube groove, C3 clearance. Current equivalent 22209-E1-XL-C3.
List Price
$43.95
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | 22209EASMC3W33 |
| Model | 22209-EAS-M-C3 |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 45 mm |
| OD | 85 mm |
| Width | 23 mm |
| Series | 222 |
|---|---|
| Lubricant | Grease or oil |
| Closure Type | Open |
| Cage Type | Machined |
| Dynamic Load Rating | 104,000 N |
| Static Load Rating | 99,000 N |
| Rolling Elements | Spherical Roller |
| Item Weight | 0.562 kg (1.24 lb) |
| Cage Material | Machined brass |
| Number Of Rows | 2 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Relubrication Feature | Lubrication groove and holes in outer ring (AS / W33) |
| Harmonization Code | 8482.30.00.80 |
| Internal Clearance | C3 |
| Limiting Speed | 10,100 rpm |
| Base Number | 22209 |
| Industry Terms | spherical roller bearing, self-aligning roller bearing, brass cage, W33, C3, 222 series |
| Common Misspellings | 22209 E A S M C3 W33, 22209EASM-C3, 2209EASMC3 |
| Application Types | Vibrating screens, gearboxes, fans, pumps, conveyors |
| Overall Width | 23 mm |
| Mpn Variants | 22209-EAS-M-C3, 22209EASMC3W33, 22209EASM.C3, 22209EASMC3, 22209-EAS-M-C3-W33, 22209E |
| Compatible With Replaces | Successor: FAG 22209-E1-XL-C3 |
| Additional Attributes | Successor 22209-E1-XL-C3 data (load ratings, speeds, weight and mounting rows): Reference Speed 5,600 rpm; min shaft shoulder 52 mm; max housing shoulder 78 mm; max fillet radius 1 mm; lubrication hole 3.2 mm; groove width 4.8 mm |
| Cross Reference 1 | SKF 22209 E/C3 |
|---|---|
| Cross Reference 2 | Timken 22209EJW33C3 |
| Cross Reference 3 | NSK 22209EAE4C3 |
| Cross Reference 4 | NTN 22209EAD1C3 |
| Cross Reference 5 | Koyo 22209RHRW33C3 |
FAG 22209EASMC3W33 (22209-EAS-M-C3) double-row spherical roller bearing with a cylindrical bore, a machined brass cage, a lubrication groove with holes in the outer ring, and C3 radial internal clearance. Bore Diameter: 45 mm. Outside Diameter: 85 mm. Overall Width: 23 mm. Series: 222. Unit Quantity: 1 Pc.

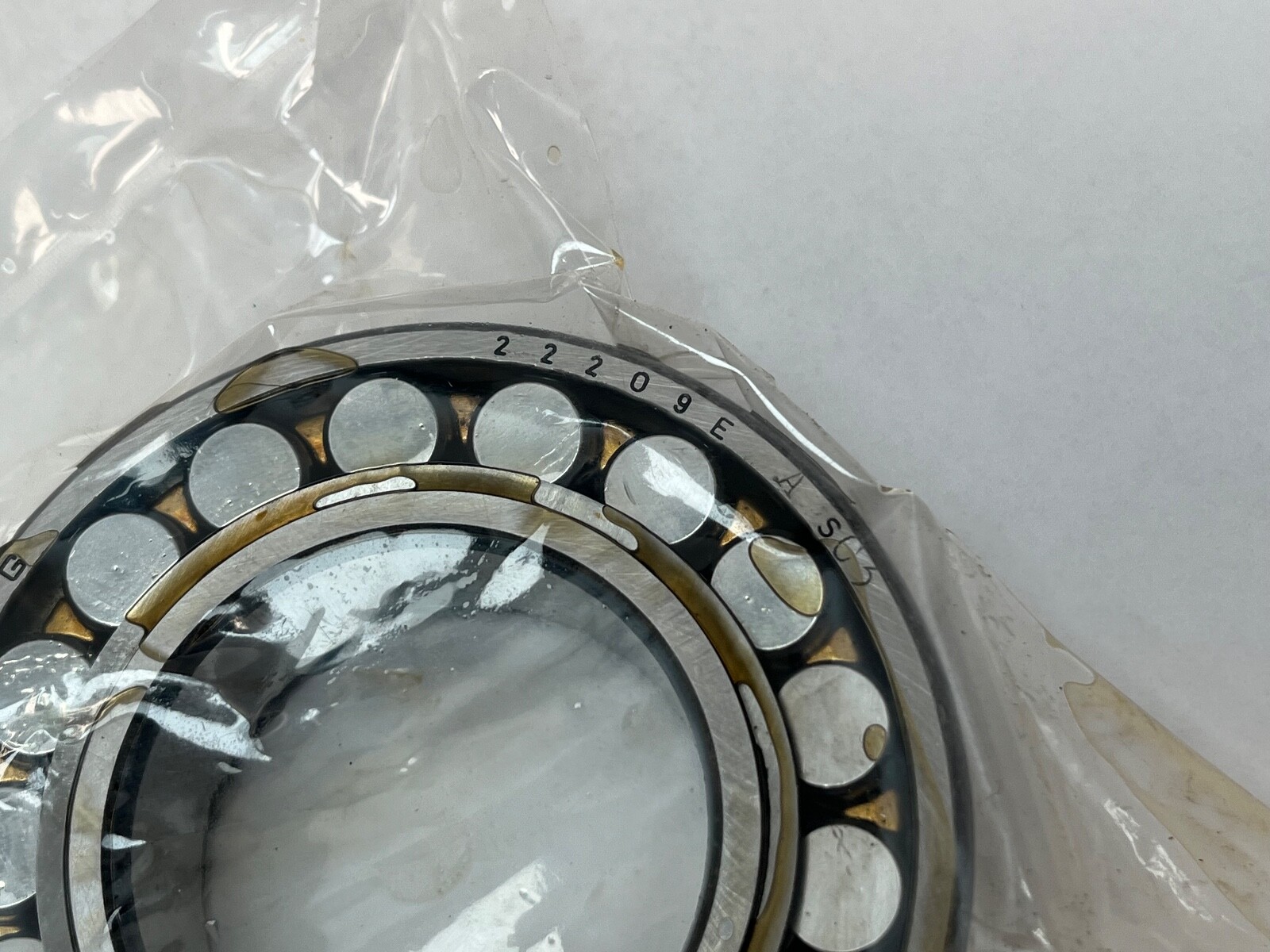

22209 — spherical roller bearing, dimension series 222, bore code 09 = 45 mm.
E — FAG reinforced internal design with increased load rating.
AS — lubrication groove and lubrication holes in the outer ring, the FAG equivalent of W33.
M — machined brass cage.
C3 — radial internal clearance greater than normal.
Successor 22209-E1-XL-C3 data: Dynamic Load Rating: 104,000 N. Static Load Rating: 99,000 N. Limiting Speed: 10,100 rpm. Reference Speed: 5,600 rpm. Item Weight: 0.562 kg (1.24 lb). Lubricant: grease or oil, fed through the outer-ring groove. Cage Material: Machined brass. Internal Clearance: C3. Number Of Rows: 2.
Successor 22209-E1-XL-C3 data: Minimum shaft shoulder diameter: 52 mm. Maximum housing shoulder diameter: 78 mm. Maximum fillet radius: 1 mm. Minimum chamfer: 1.1 mm. Lubrication hole diameter: 3.2 mm. Lubricating groove width: 4.8 mm.
Current Schaeffler successor: FAG 22209-E1-XL-C3. Related designations: SKF 22209 E/C3, Timken 22209EJW33C3, NSK 22209EAE4C3, NTN 22209EAD1C3, Koyo 22209RHRW33C3. All share the 45 x 85 x 23 mm envelope and C3 clearance; cage material varies by maker.
Bore Diameter: 45 mm. Outside Diameter: 85 mm. Overall Width: 23 mm.
A lubrication groove with holes in the outer ring, the FAG equivalent of W33.
The current Schaeffler successor is FAG 22209-E1-XL-C3.
