Availability:
4 in stock

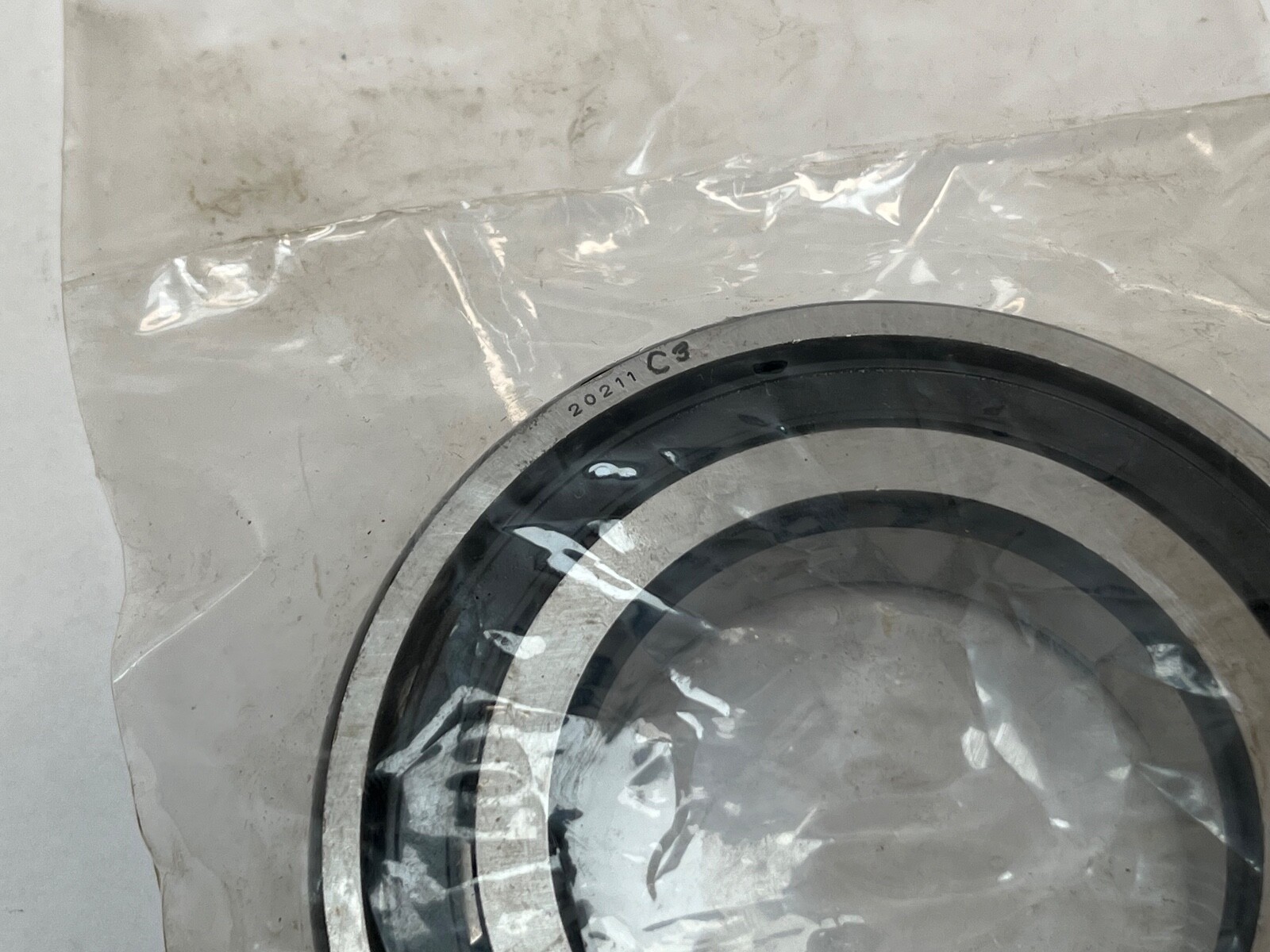

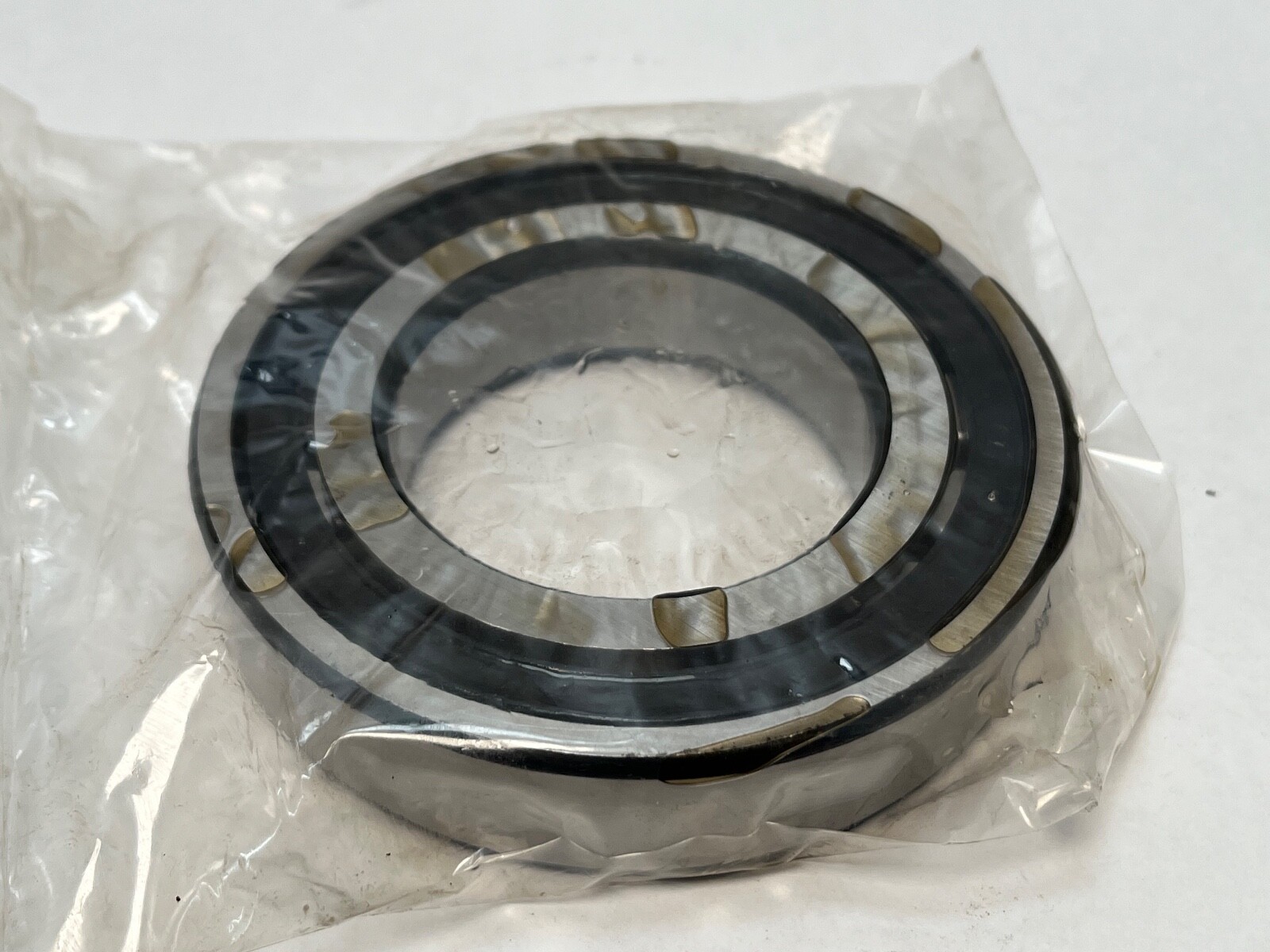

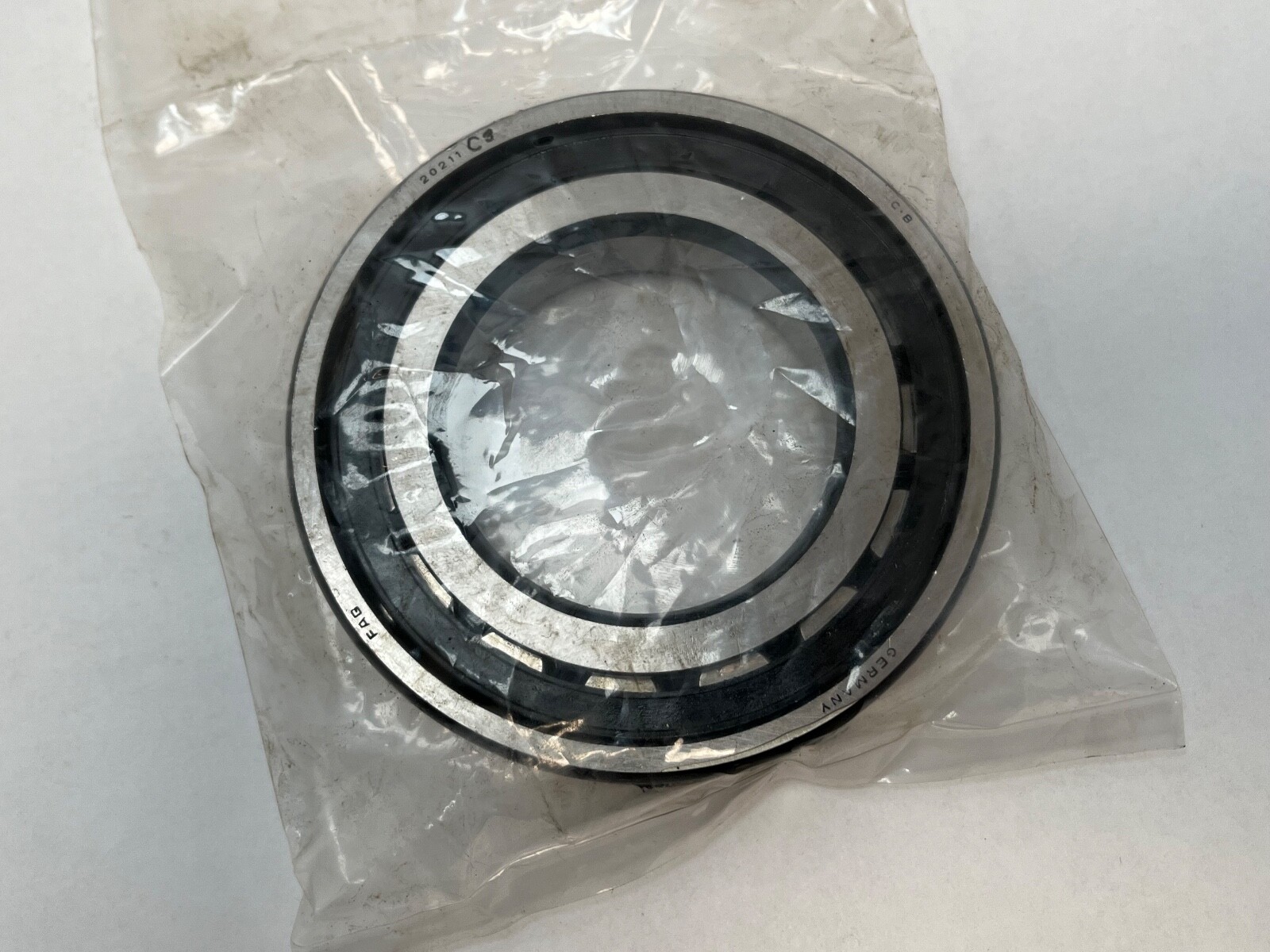

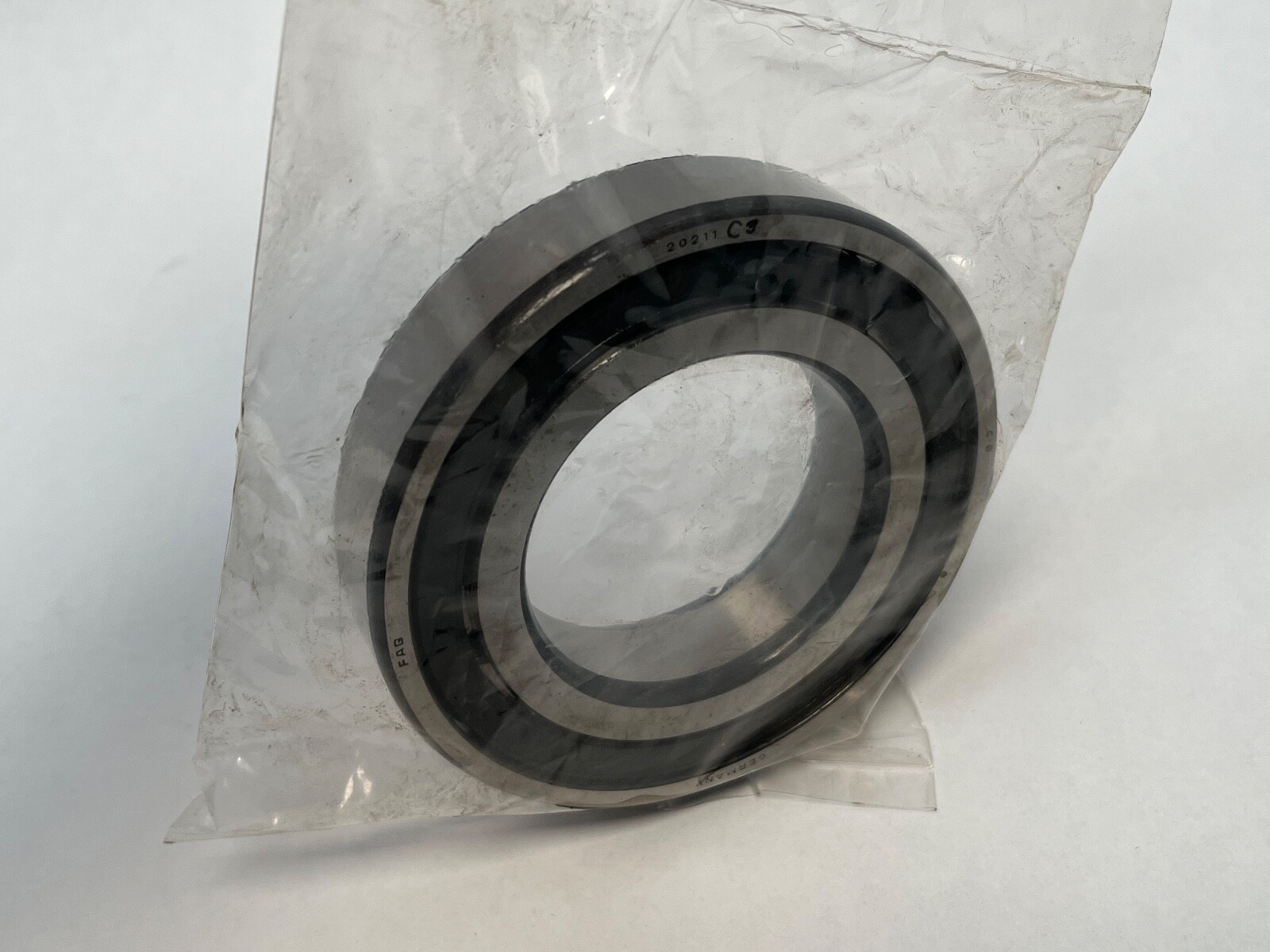

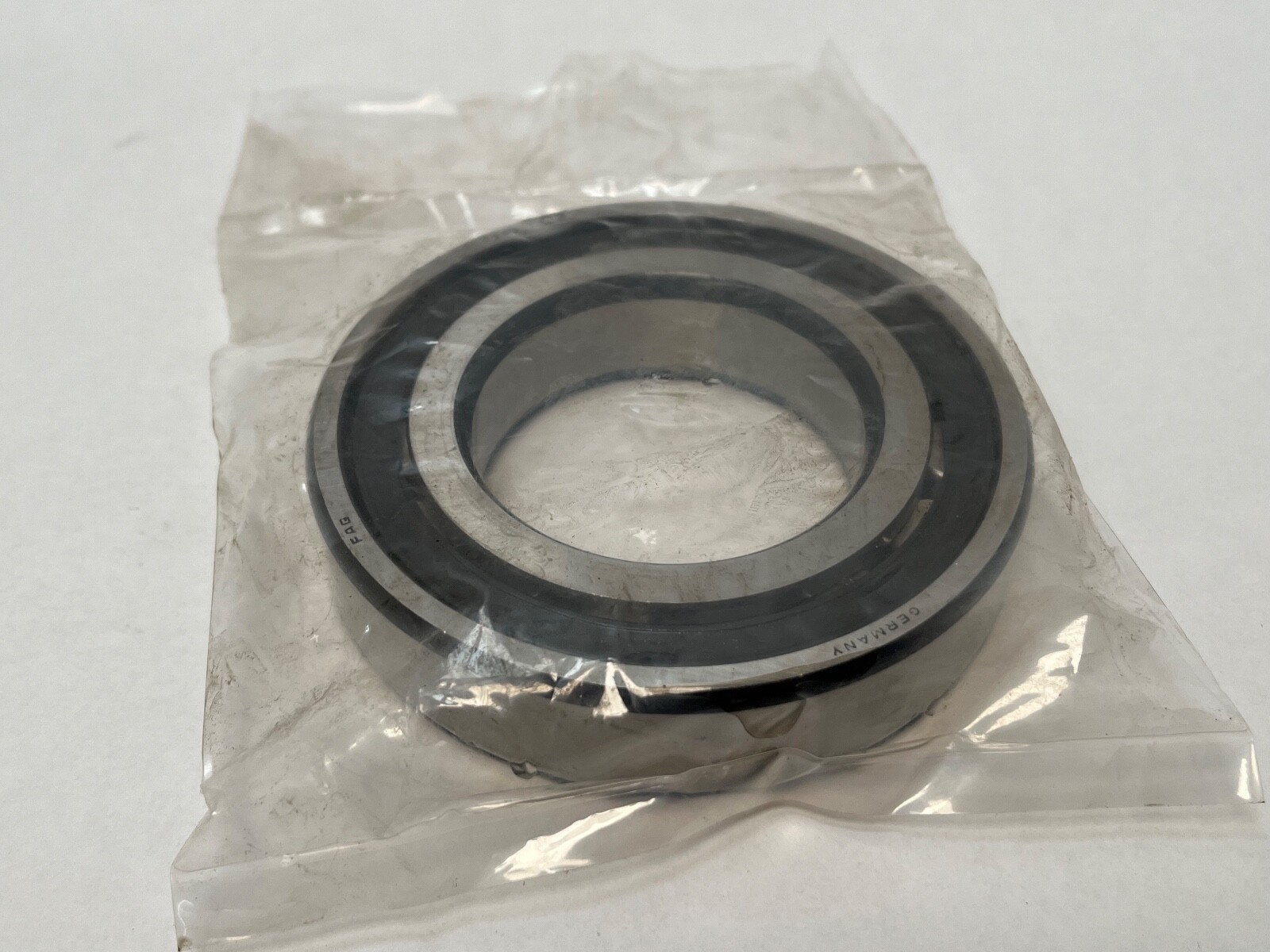

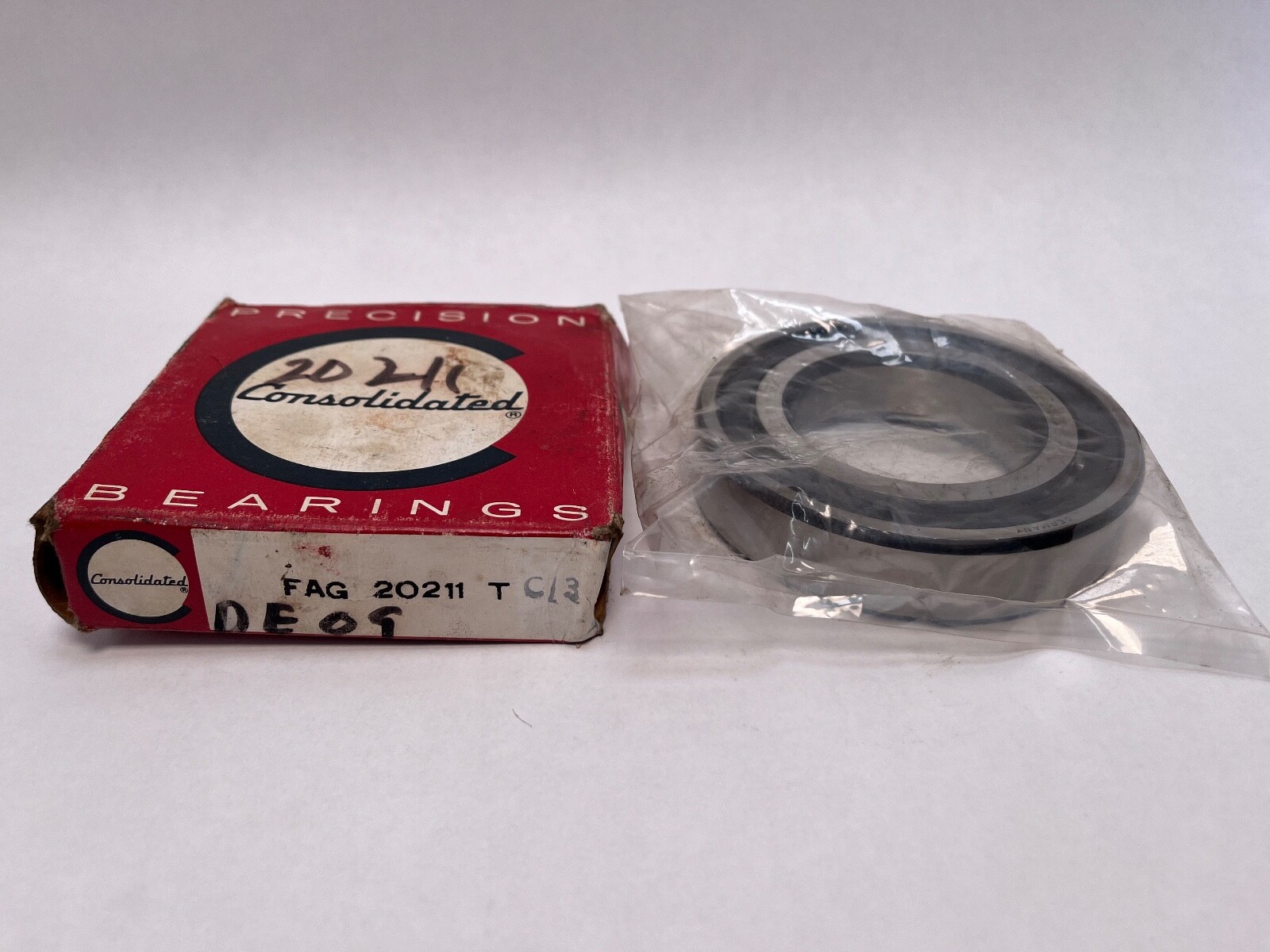

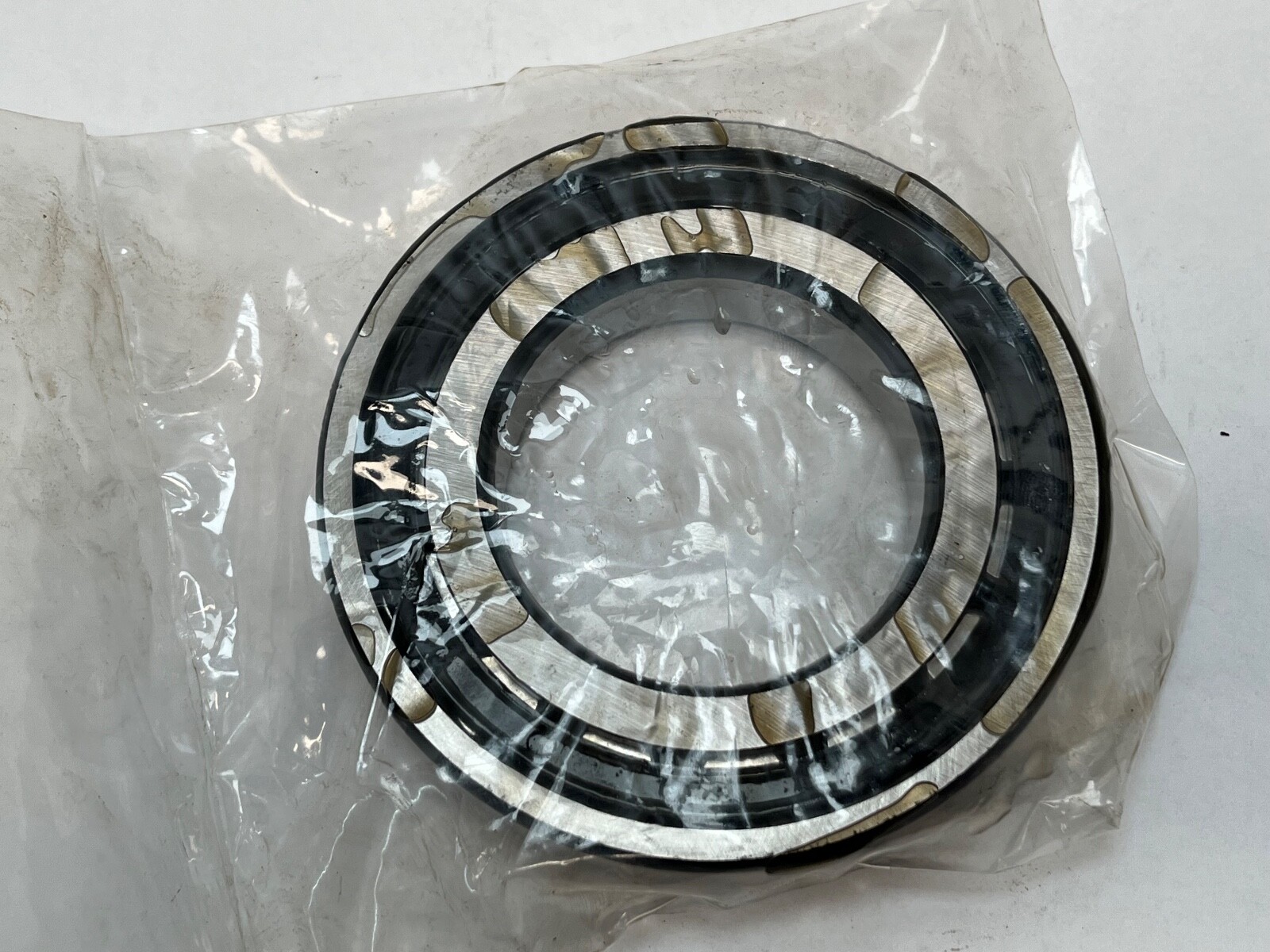

Single-row barrel roller bearing, 55 x 100 x 21 mm, self-aligning, glass-fibre polyamide cage, C3 internal clearance, straight bore.
List Price
$122.21
4 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | 20211TC3 |
| Model | 20211 T C3 |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 55 mm |
| OD | 100 mm |
| Width | 21 mm |
| Material | Chrome steel |
|---|---|
| Series | 202 |
| Base Number | 20211 |
| Mpn Variants | 20211TC3; 20211-T-C3; 20211 T C3; 20211-TVP-C3; 20211T.C3 |
| Precision Class | RBEC 1 / P0 |
| Min Temp | -30 °C |
| Dynamic Load Rating | 74,000 N |
| Static Load Rating | 85,000 N |
| Rolling Elements | Barrel Roller |
| Max Temp | 120 °C |
| Item Weight | 0.62 kg (1.38 lb) |
| Cage Material | Polyamide |
| Limiting Speed | 7,100 rpm |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Internal Clearance | C3 |
| Lubricant | Grease or oil |
| Harmonization Code | 8482.30.00 |
| Bearing Material | Chrome steel |
| Part Number | 20211TC3 |
| Cross Reference 1 | SKF 20211 TN9/C3 |
|---|---|
| Cross Reference 2 | Torrington 20211 – confirm C3 clearance |
FAG 20211TC3 is a single-row barrel roller bearing. Bore Diameter: 55 mm. Outside Diameter: 100 mm. Overall Width: 21 mm. Number Of Rows: 1. Rolling Elements: Barrel Roller. Bore Type: Straight. Closure Type: Open. Bearing Material: Chrome steel. Item Weight: 0.62 kg (1.38 lb).
202 — FAG’s single-row barrel roller series to DIN 635-1. Convex rollers run in a spherical outer raceway, so the bearing accommodates shaft misalignment while carrying radial load.
11 — Bore code. Multiply by five: 55 mm.
T — Glass-fibre reinforced polyamide cage. Schaeffler’s current designation for this part is 20211-TVP.
C3 — Internal Clearance: C3, greater than normal, which suits an interference fit on the shaft or a warm running position.
Dynamic Load Rating: 74,000 N. Static Load Rating: 85,000 N. Limiting Speed: 7,100 rpm. Fatigue load limit, radial: 9,000 N. Internal Clearance: C3. Cage Material: Polyamide. Lubricant: grease or oil. Operating temperature range: -30 °C to +120 °C.
On a barrel roller the static rating sits above the dynamic rating, which is normal for the type: the large convex roller contact spreads a standing load well while the single row limits continuous capacity.
A barrel roller carries radial load and accommodates misalignment. Series: 202. Base Number: 20211.
Minimum shaft shoulder diameter 64 mm. Maximum housing shoulder diameter 91 mm. Outer ring bore diameter 89.2 mm. Minimum chamfer dimension 1.5 mm; maximum housing recess radius 1.5 mm.
Bore Type: Straight, so the bearing mounts directly on a cylindrical shaft seat.
Unit Quantity: 1 Pc.
SKF 20211 TN9/C3 matches this bearing including C3 clearance. Torrington 20211 shares the size; confirm C3 clearance before ordering. Cross-references on single-row barrel rollers are deliberately few, because the type is built by a short list of makers and the 202 series does not map onto a spherical roller number. A 22211 spherical roller of similar bore is a related size only: it has two rows and different ratings.
Searchable forms of the number: 20211TC3, 20211-T-C3, 20211 T C3, 20211-TVP-C3, 20211T.C3.
