Right-angle worm gear reducer, 7:1 nominal ratio, 3.00 in centre distance, NEMA 180TC C-face motor input, left-hand solid output shaft. Cast iron housing, factory filled and sealed. Gearbox only — no motor.
List Price
$390.49
1 in stock
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
Also Available From:
| MFR / Brand | DODGE |
|---|---|
| Model | Tigear 2 |
| Condition | New – Open box |
|---|---|
| Type | Right Angle Speed Reducer |
| Frame | NEMA - 180TC |
| Industry Terms | worm gearbox, right angle reducer, speed reducer, worm gear reducer, C-face gearbox, conveyor drive reducer, Tigear |
| Application Types | Conveyors, augers and screw feeders, mixers, packaging machinery, right-angle drive trains |
| Condition Note | Made In USA, New Old Stock, See Pictures For Included Parts. |

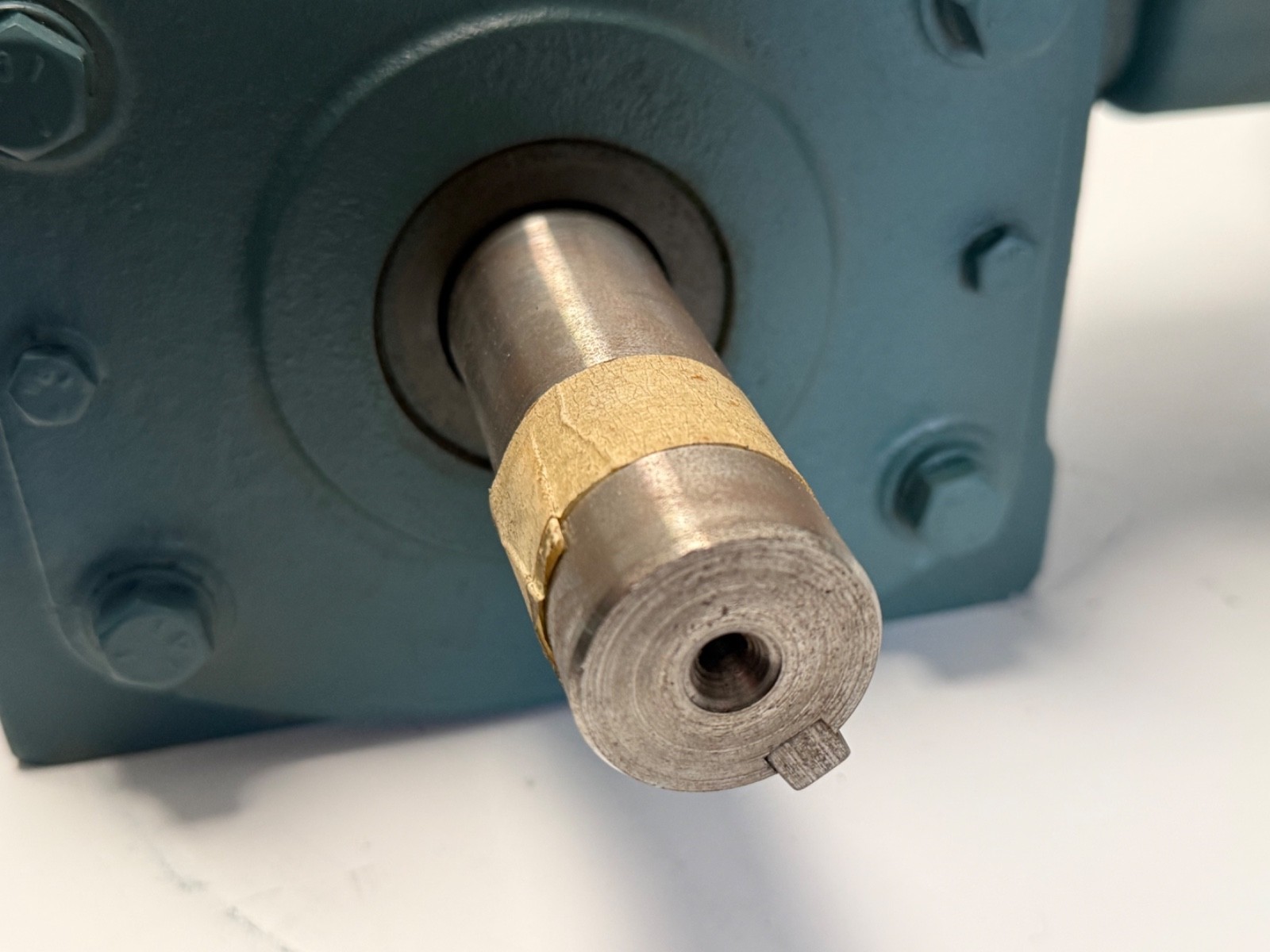

| Shaft Type | Solid output shaft, left hand |
| Mpn Variants | 30A07L18, 30A-07-L-18, 30 A 07 L 18, Tigear 2 30A07L18 |
| Additional Attributes | 7:1 nominal ratio; 3.00 in centre distance; low-ratio worm set, not to be assumed self-locking; factory filled and sealed; motor NOT included; Made in USA, New Old Stock |
| Center Distance | 3.00 in |
| Shaft Orientation | Right Angle |
| Nominal Ratio | 7:1 |
| Part Number | 30A07L18 |
| Mounting Type | NEMA 180TC C-face motor flange input, right angle |
| Cross Reference 1 | 30A07R18 (same reducer, right-hand output) |
|---|---|
| Cross Reference 2 | Baldor-Dodge Tigear-2 30 series (3.00 in centre distance family) |
| Cross Reference 3 | Regal Rexnord Dodge Tigear-2 |

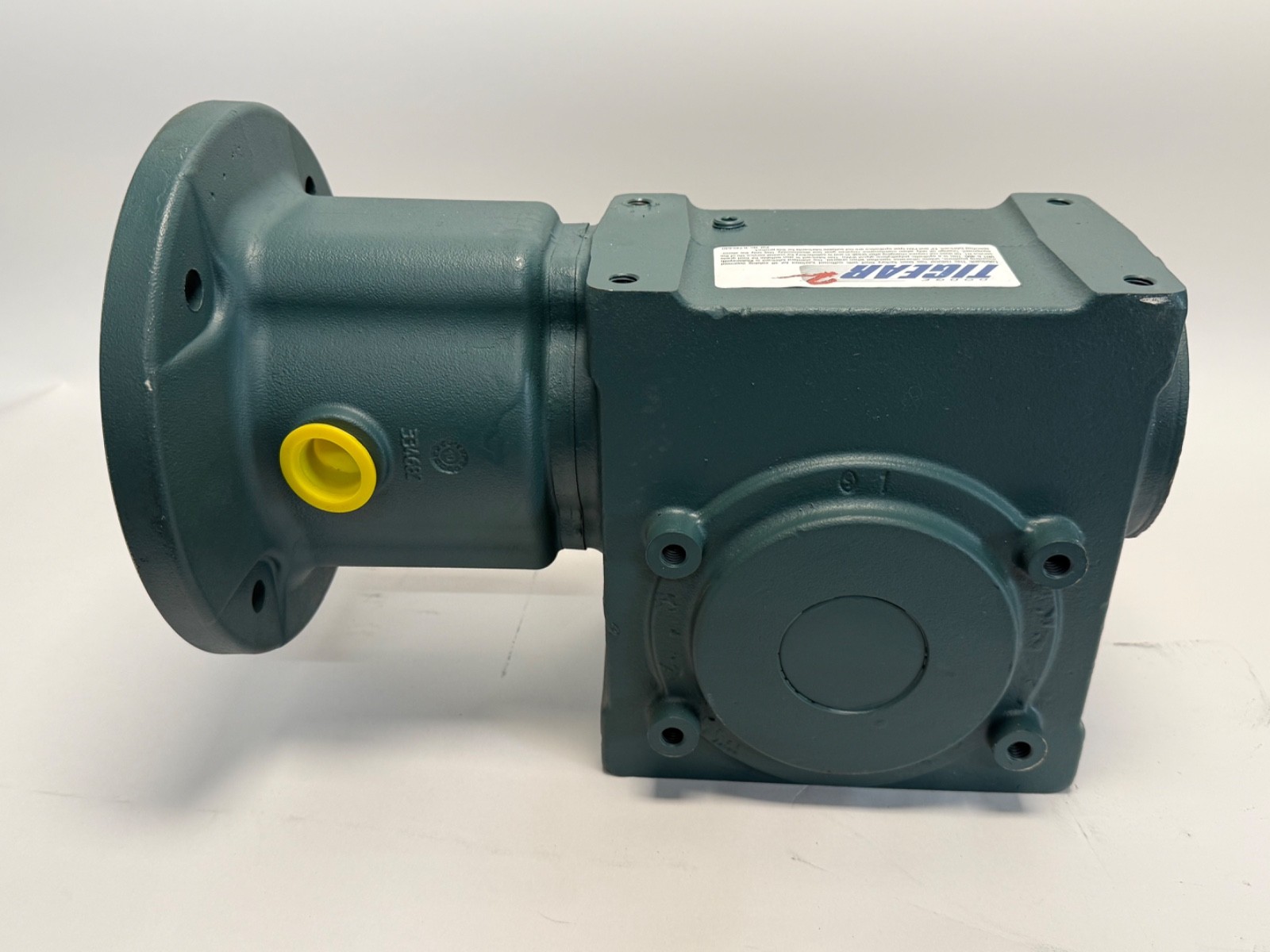

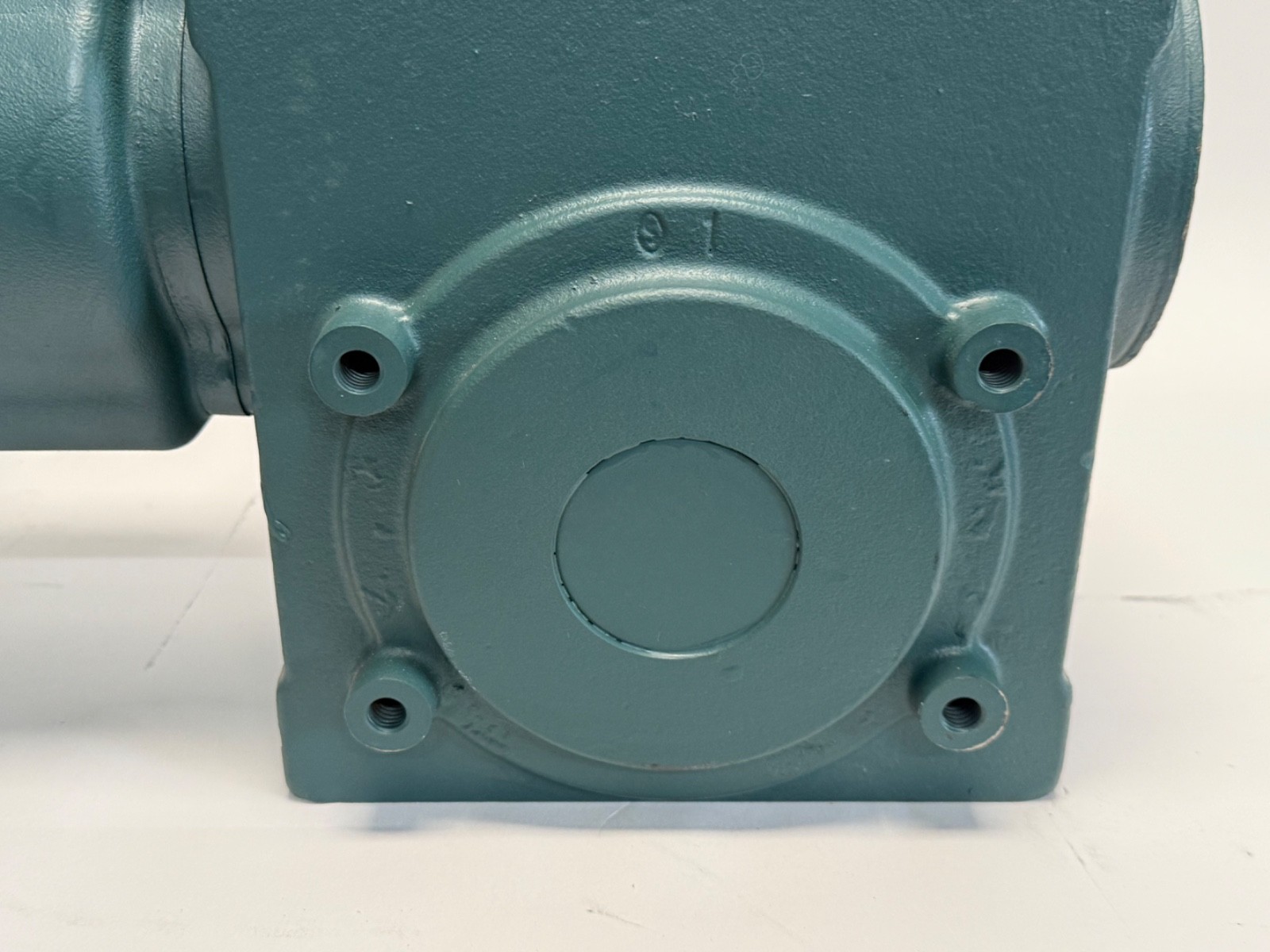

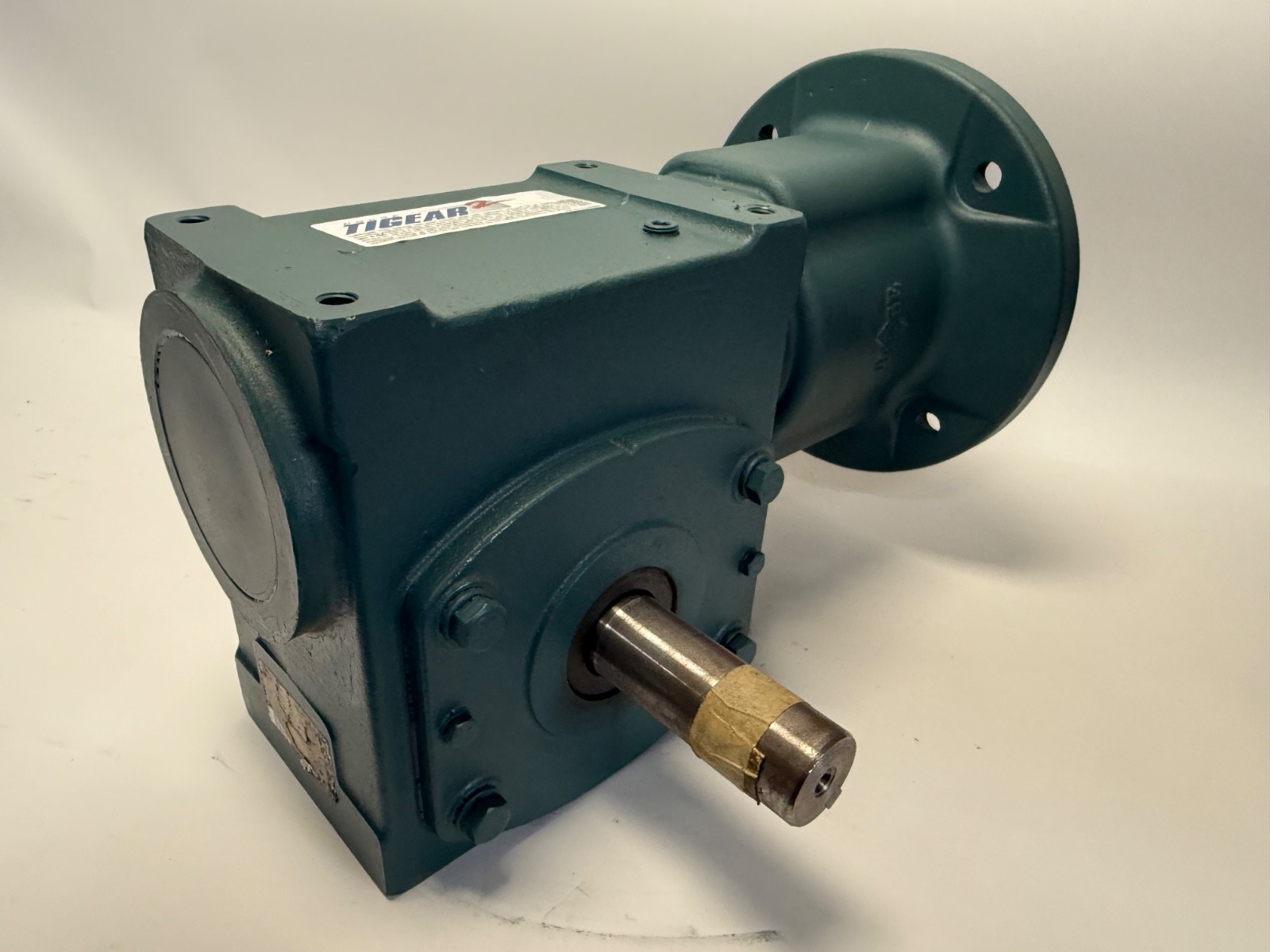

A Dodge Tigear-2 right-angle worm gear speed reducer in the 3.00 in centre-distance frame, 7:1 nominal ratio, with a NEMA 180TC C-face motor input and a left-hand solid output shaft. The worm set turns the drive through 90° while reducing speed and multiplying torque, the standard arrangement on conveyors, augers, mixers and packaging drives where the motor sits at right angles to the driven shaft.
Tigear-2 numbers read left to right as centre distance, input style, ratio, output shaft, motor frame. 30: 3.00 in centre distance, the gear case size and mounting footprint. A: C-face motor-mount input build. 07: 7:1 nominal reduction. L: solid output shaft on the left-hand side viewed from the input. 18: NEMA 180TC motor flange.
Centre distance, not ratio, sets the torque class. A 3.00 in Tigear-2 is materially stronger than the 2.6 in and 2.3 in frames at the same ratio, and the housings do not interchange.
7:1 is a low ratio for a worm box, efficient but generally not self-locking.

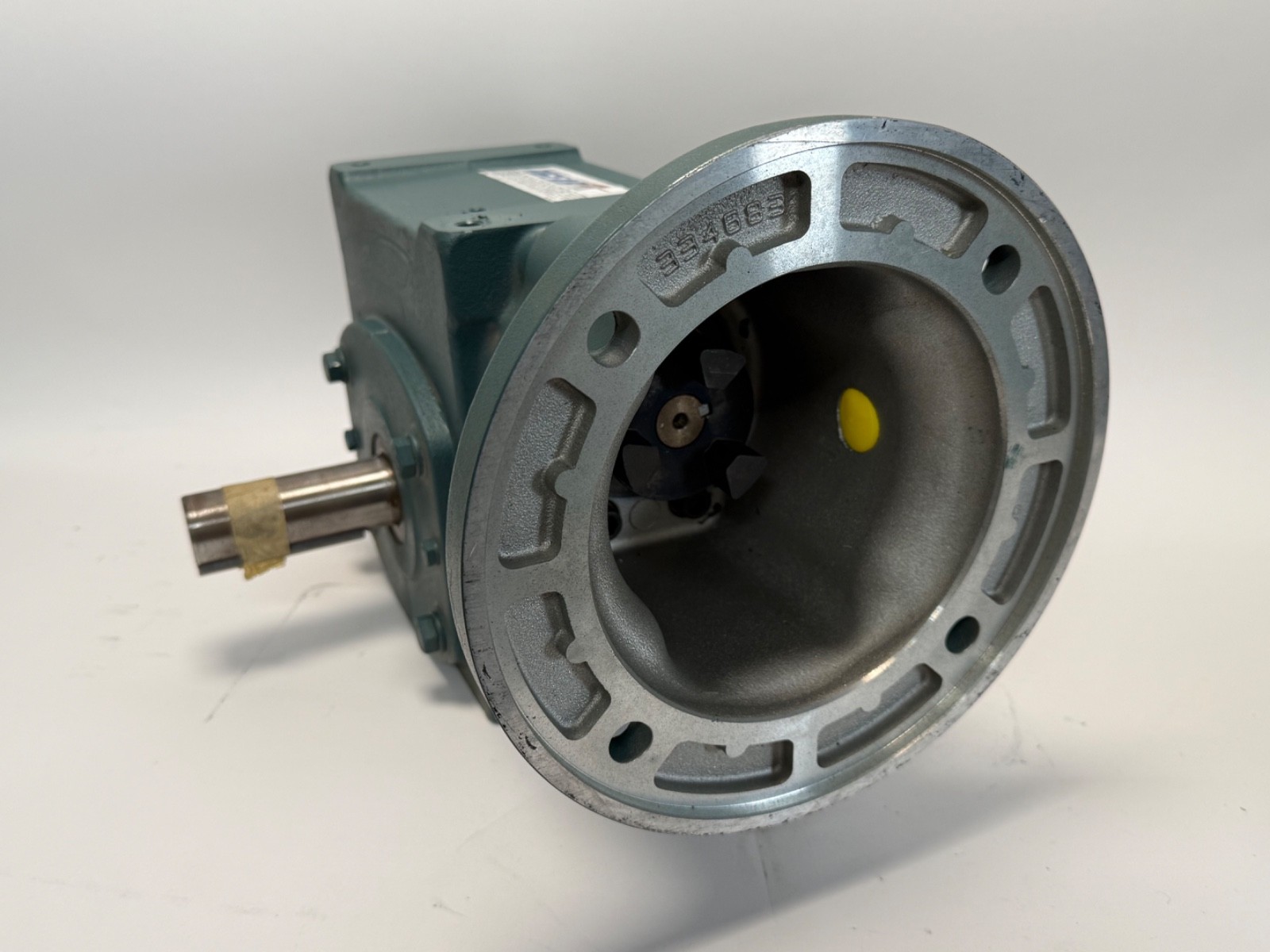

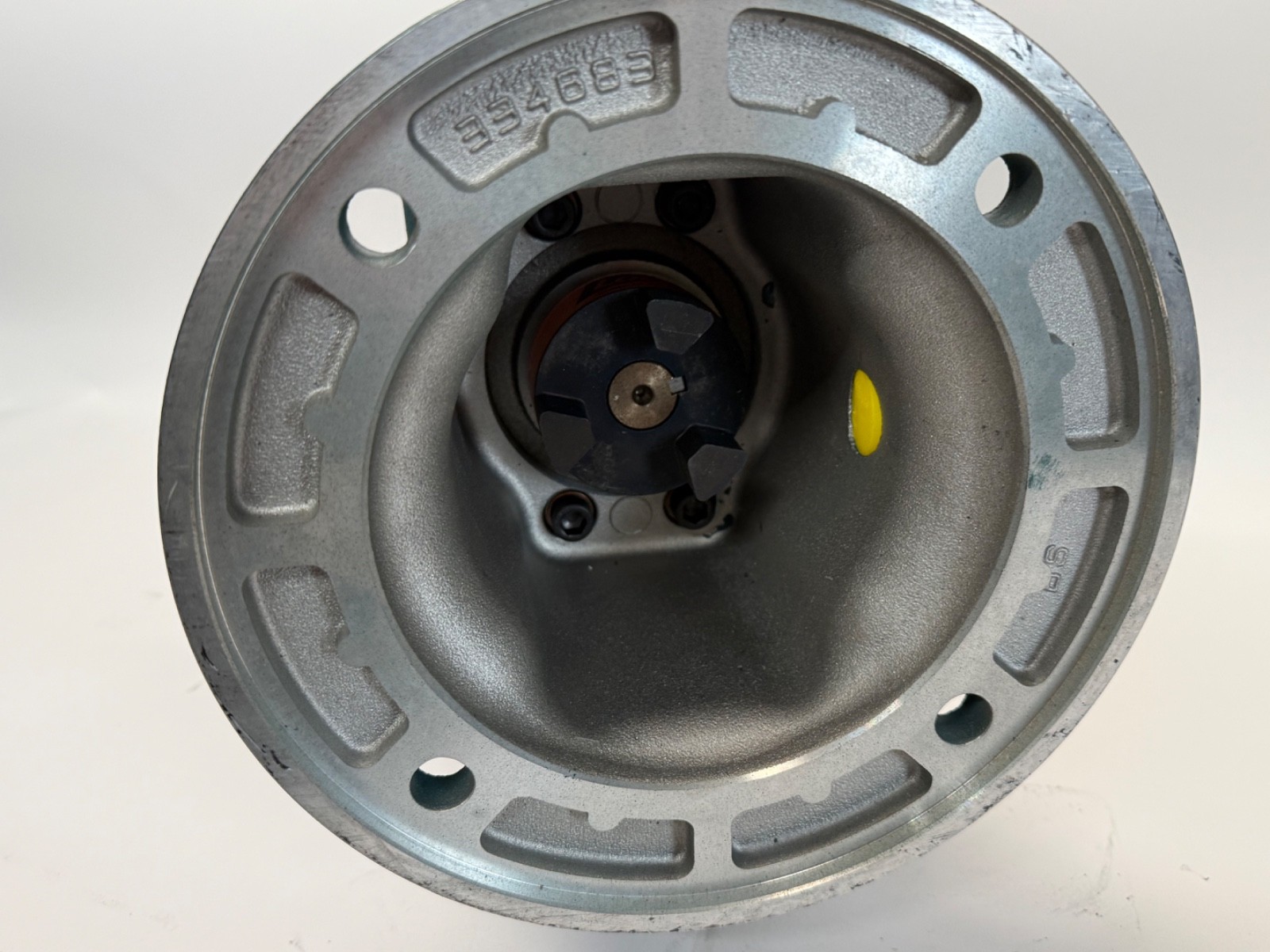

The 180TC C-face input only accepts a 180TC motor. This is not a solid-input-shaft build.

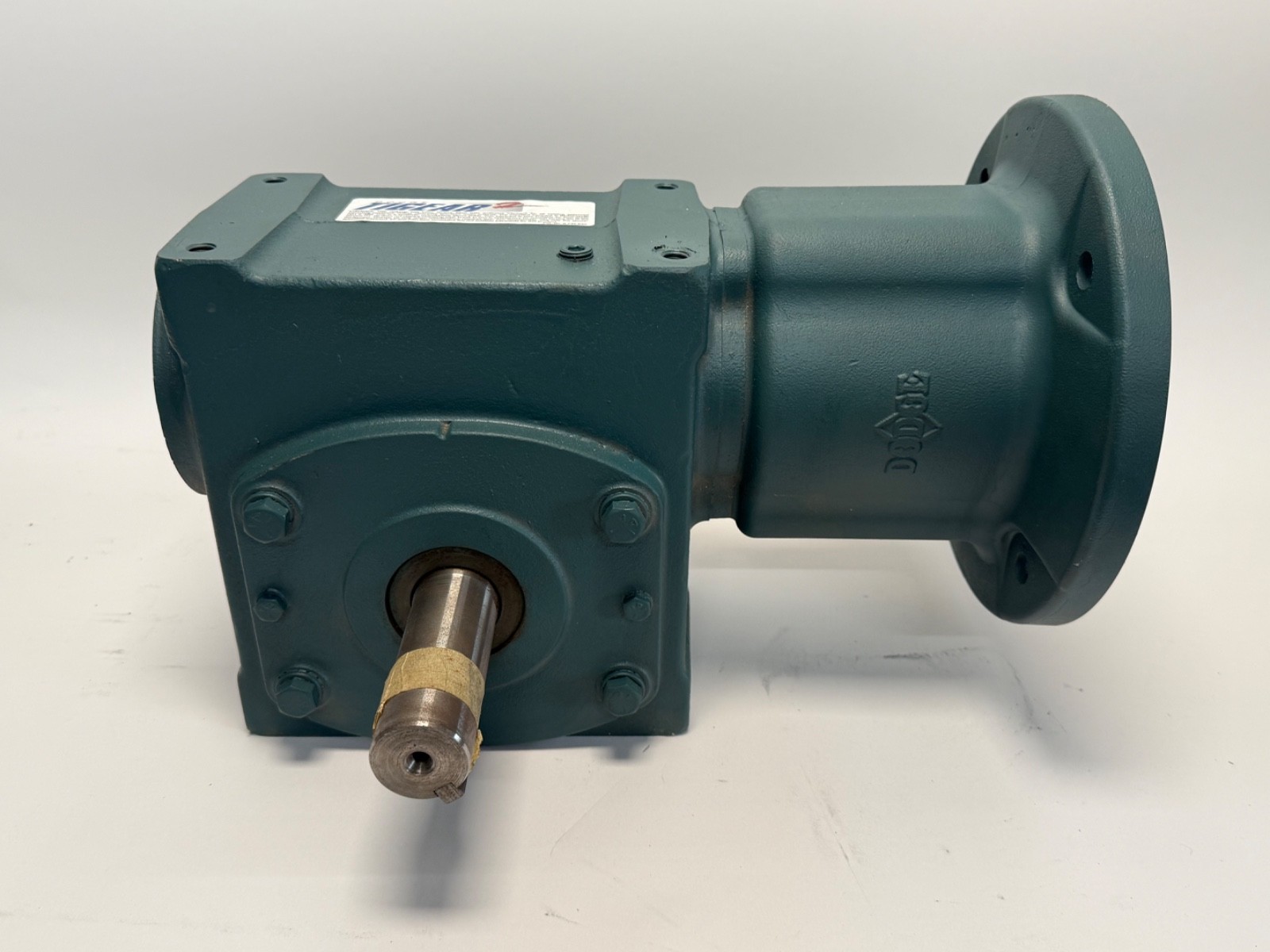

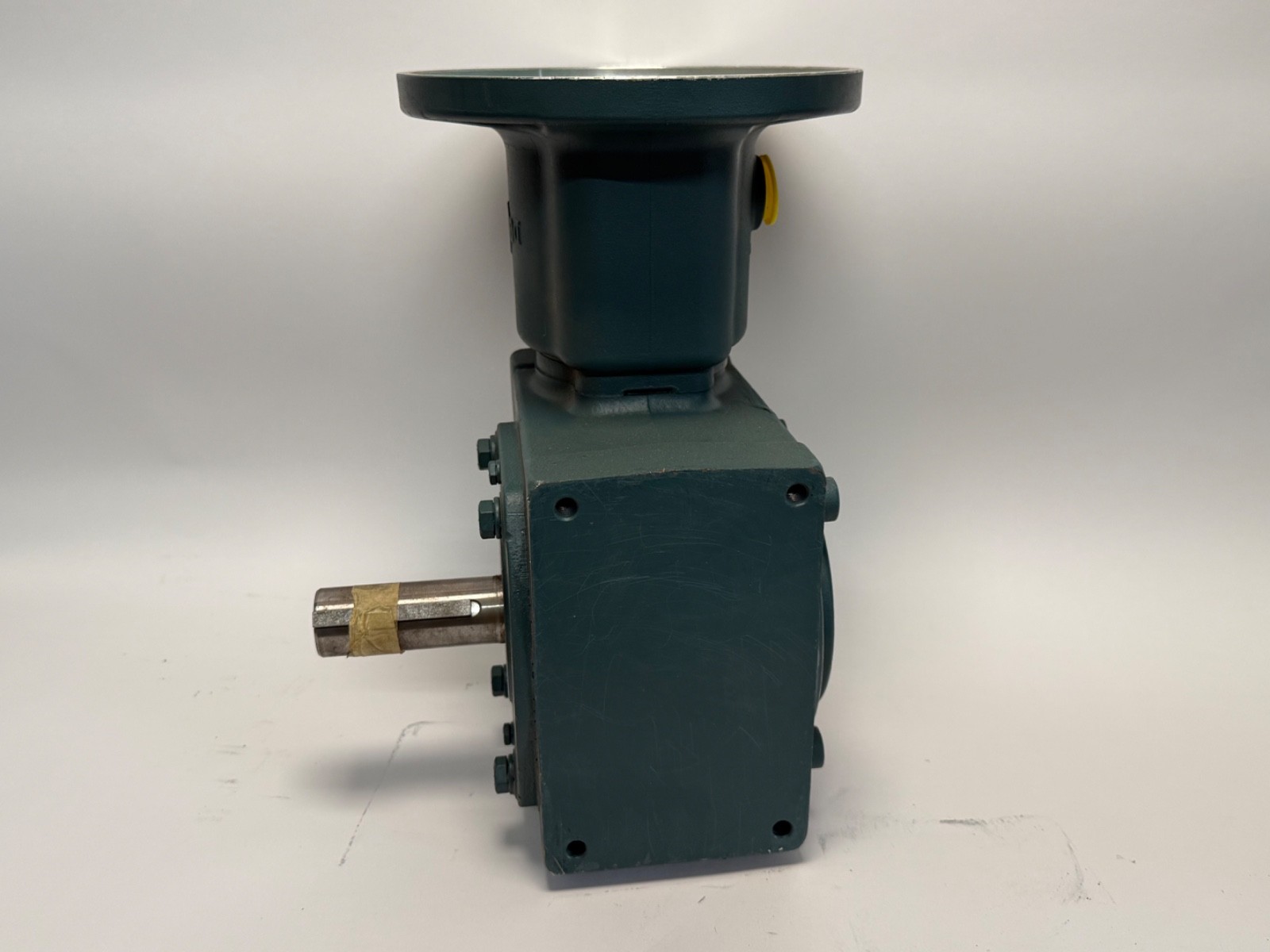

L is the output shaft hand. The R-coded unit is a mirror build.
Type: right-angle worm gear speed reducer, Dodge Tigear-2. Nominal ratio: 7:1. Centre distance: 3.00 in. Input: NEMA 180TC C-face motor flange. Output: solid shaft, left hand. Shaft orientation: right angle (90°). Housing: cast iron. Lubrication: factory filled and sealed. Origin: United States.

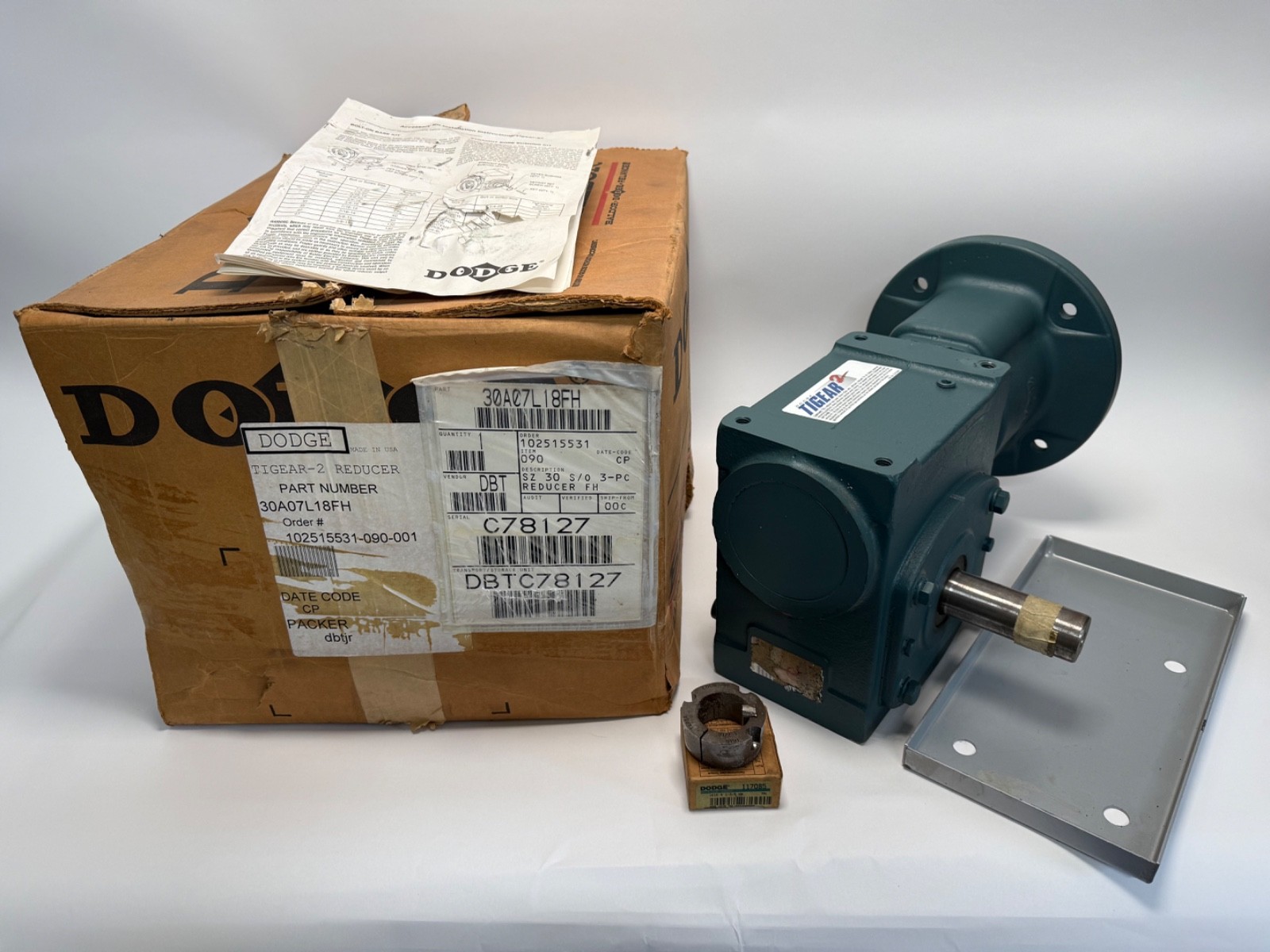

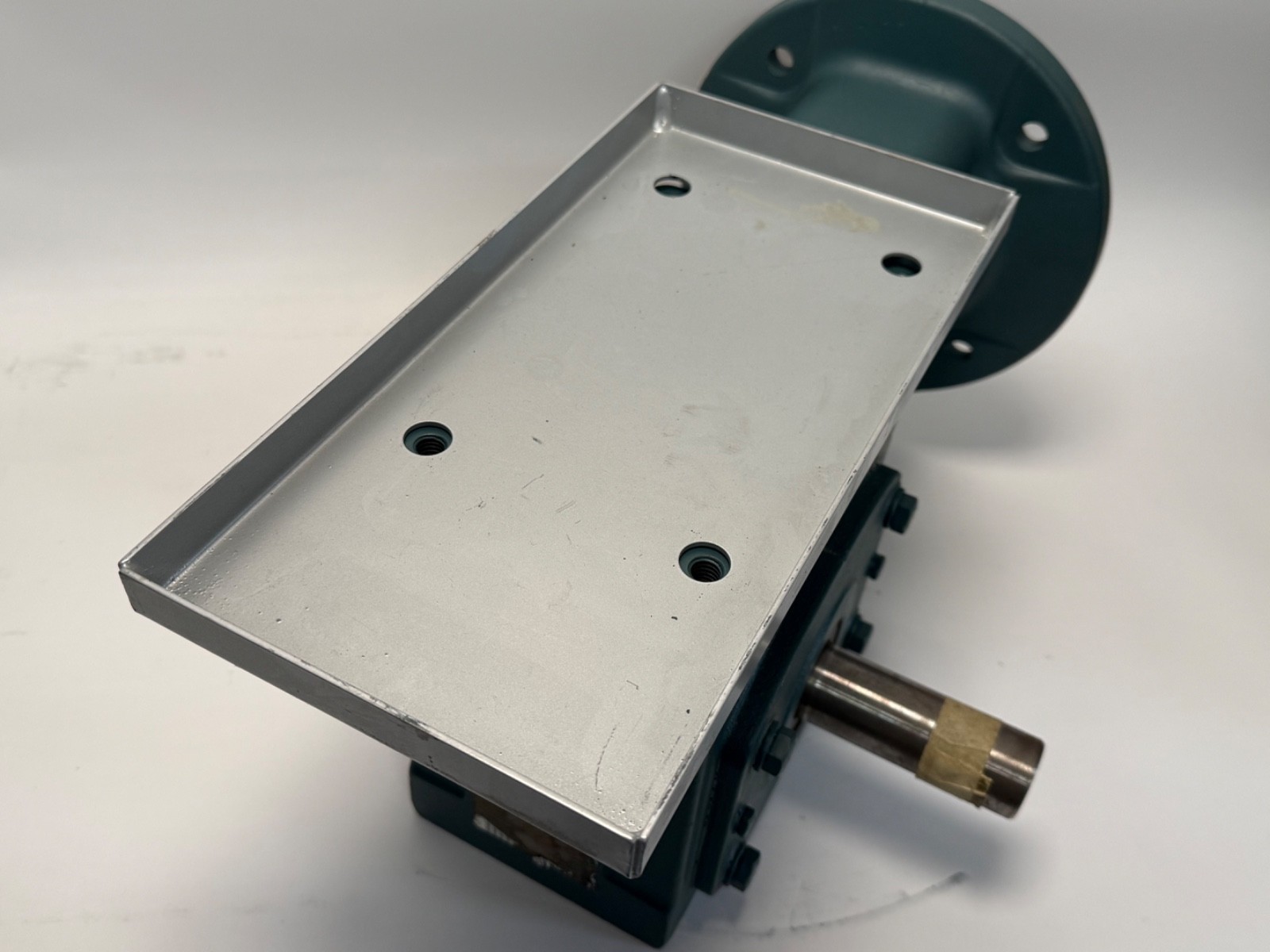

One reducer. No motor is included. New old stock. The photographs show which accessory parts ship with it.
The unit is factory filled and sealed for a specified mounting position, and the correct oil level differs between mounting positions. Shock loads and frequent starts wear worm gearing far faster than steady running.
30A07R18 is the opposite-hand output build of the same reducer. Other 30-series ratios share the housing and mounting but change output speed. 26 and 23 series units are smaller centre distances, related sizes rather than substitutes. Quill-input (Q-code) builds mount a motor differently and are not interchangeable with an A-code C-face unit.
