Availability:
1 in stock
Two-bolt cast iron pillow block bearing unit, 35 mm bore, 47.6 mm centre height, 166 mm long. RHP Self-Lube insert with set screw locking and grease nipple.
List Price
$44.91
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | RHP |
|---|---|
| MPN | NP35 |
| Model | NP 35 |
| ID | 35 mm |
| Material | Cast Iron |
|---|---|
| Series | NP |
| Type | Pillow Block |
| Lubricant | Grease |
| Industry Terms | pillow block, plummer block, Self-Lube, mounted bearing, 2-bolt pillow block, housed bearing unit |
| Bolt Center To Center | 136.5 mm |
| Number Of Bolt Holes | 2 |
| Number Of Bolt Holes For Fasteners | 2 |
| Bearing Insert Type | Ball |
| Centre Height Pillow Block | 47.6 mm |
| Centre Height | 47.6 mm |
| Mpn Variants | NP35, NP-35, NP 35, NP35 R |
| Rolling Elements | Ball |
| Bearing Type | Pillow Block Unit |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Internal Clearance | C3 |
| Duty Type | Medium Duty |
| Locking Device | Set Screw |

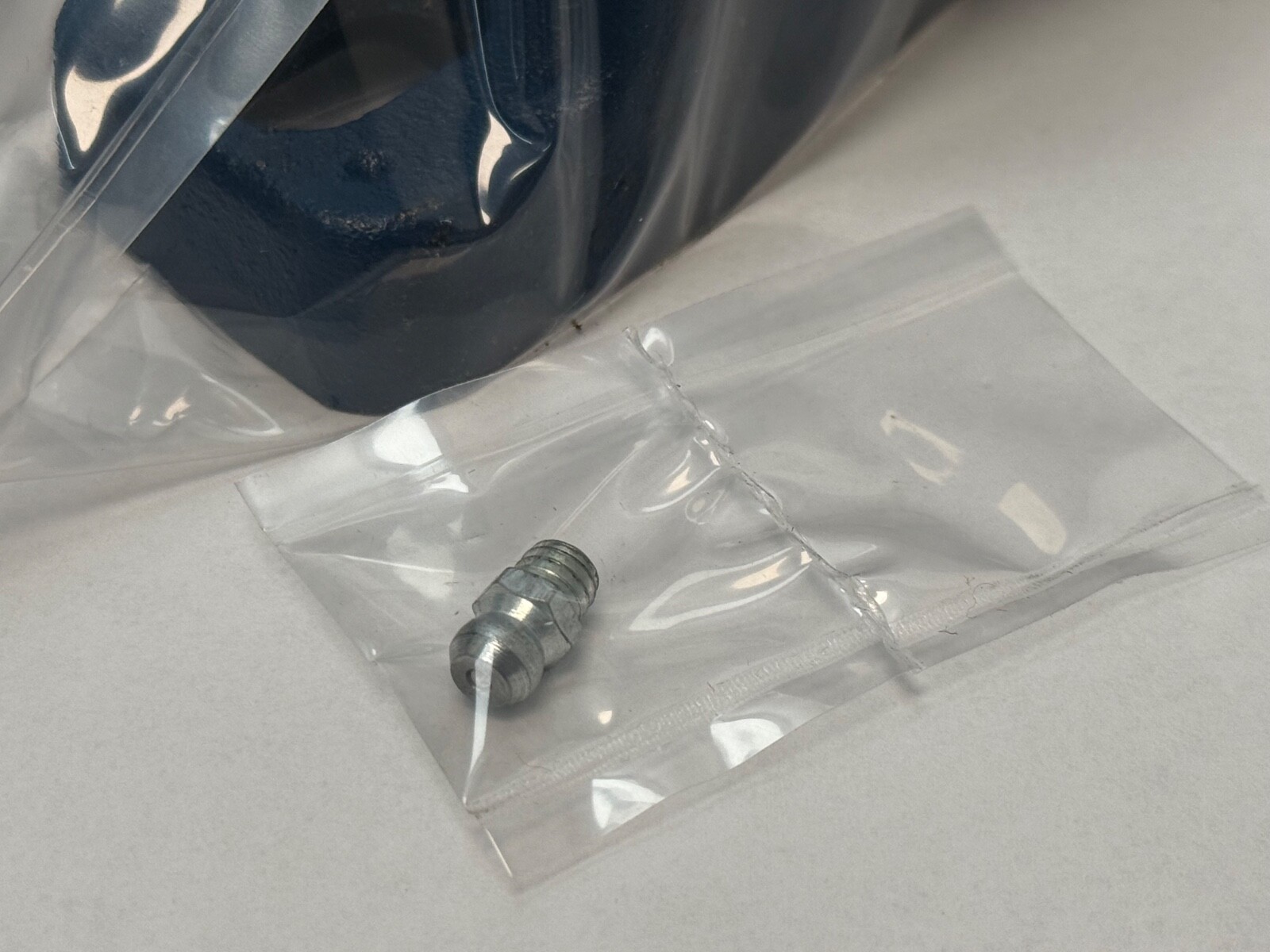

| Relubrication Feature | Grease nipple |
| Harmonization Code | 84832040 |
| Housing Material | Cast Iron |
| Expansion Type | Non-Expansion |

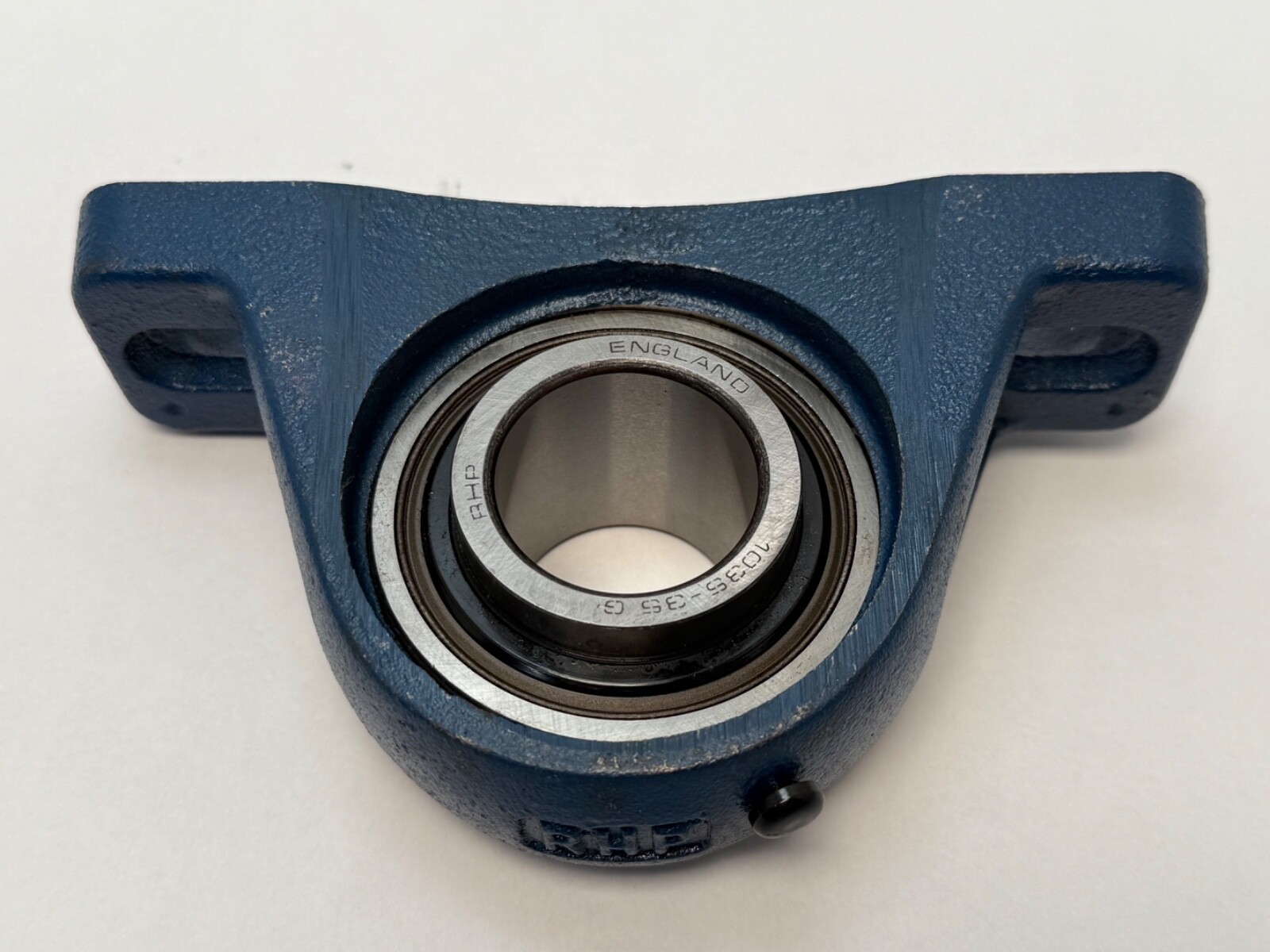

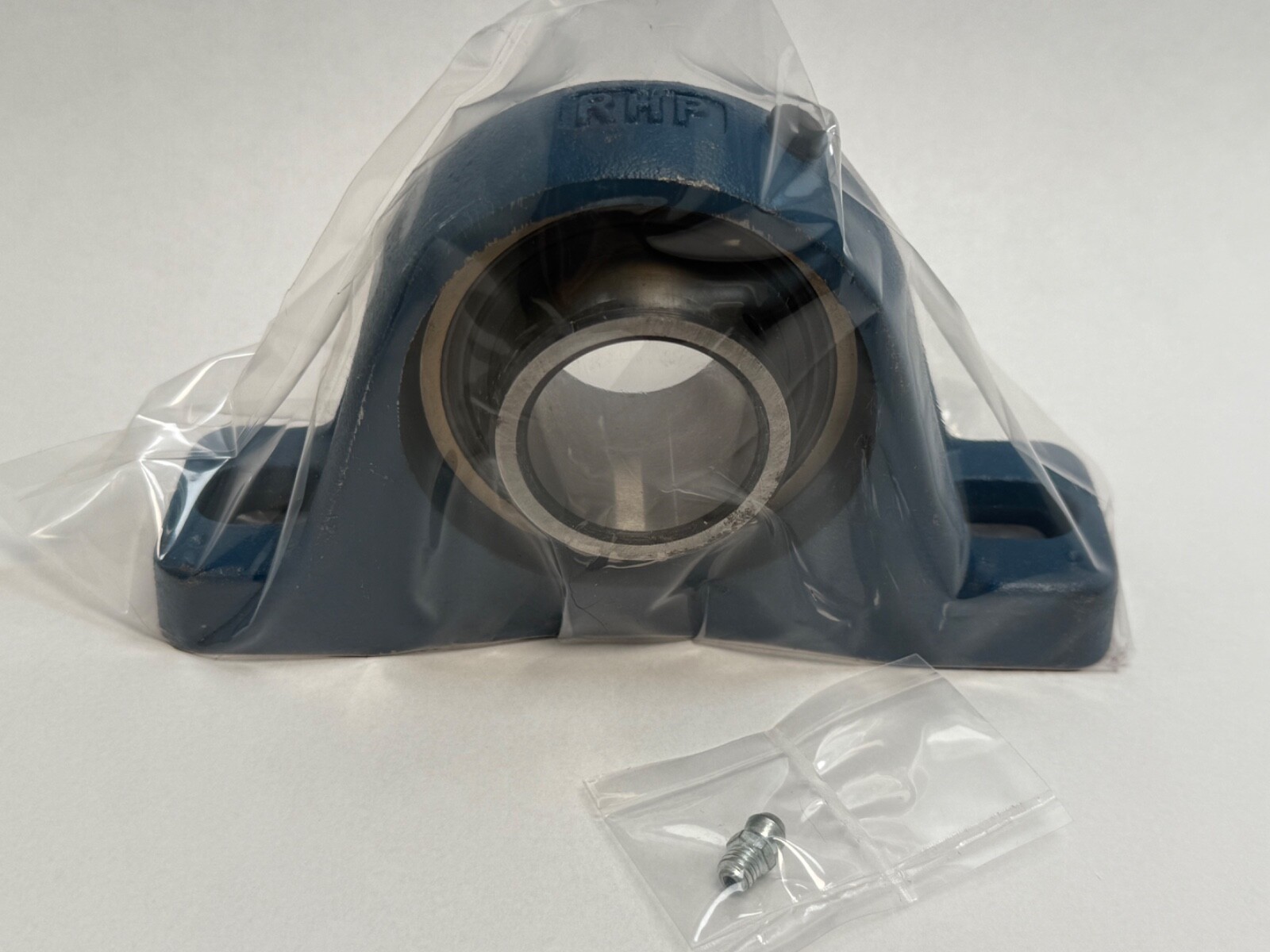

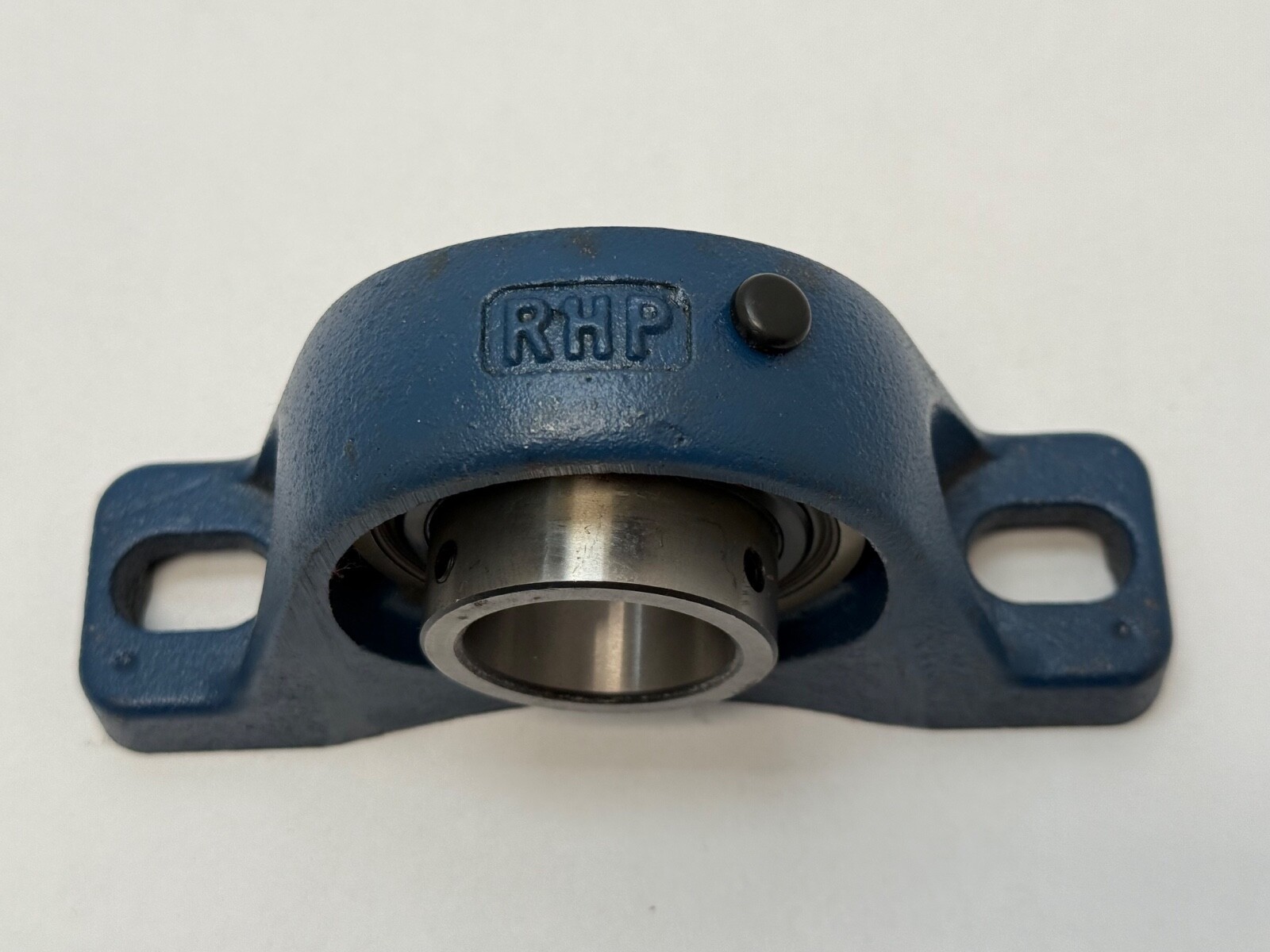

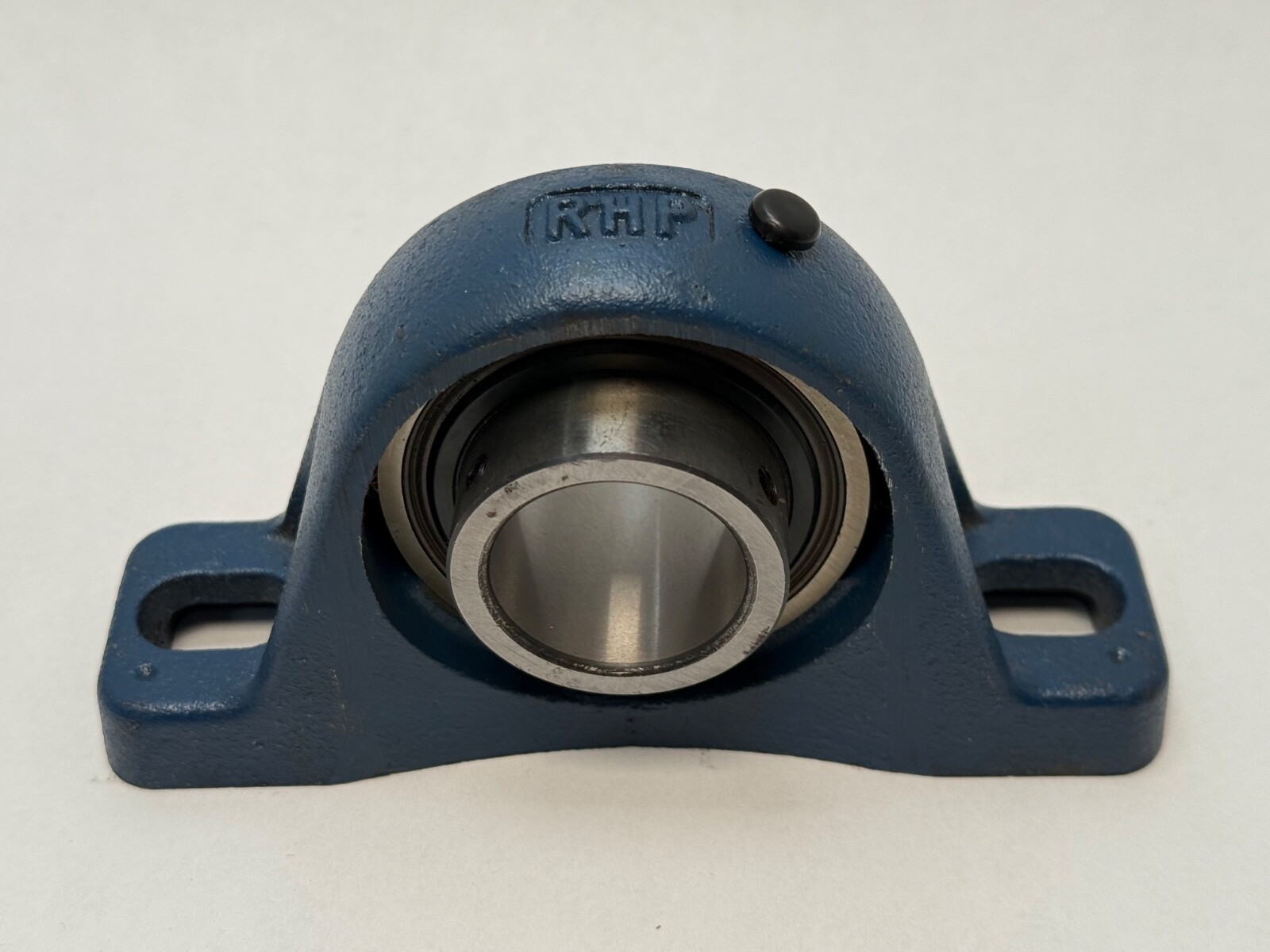

RHP NP35 is a Self-Lube two-bolt pillow block bearing unit: a cast iron housing carrying a sealed, pre-greased ball bearing insert with a spherical outside diameter, for a 35 mm shaft. Bore Diameter: 35 mm. Centre Height: 47.6 mm. Bolt Center To Center: 136.5 mm. Housing Material: Cast Iron.
NP — RHP Self-Lube cast iron pillow block, plain insert with grub screw (set screw) locking.
35 — 35 mm shaft size.

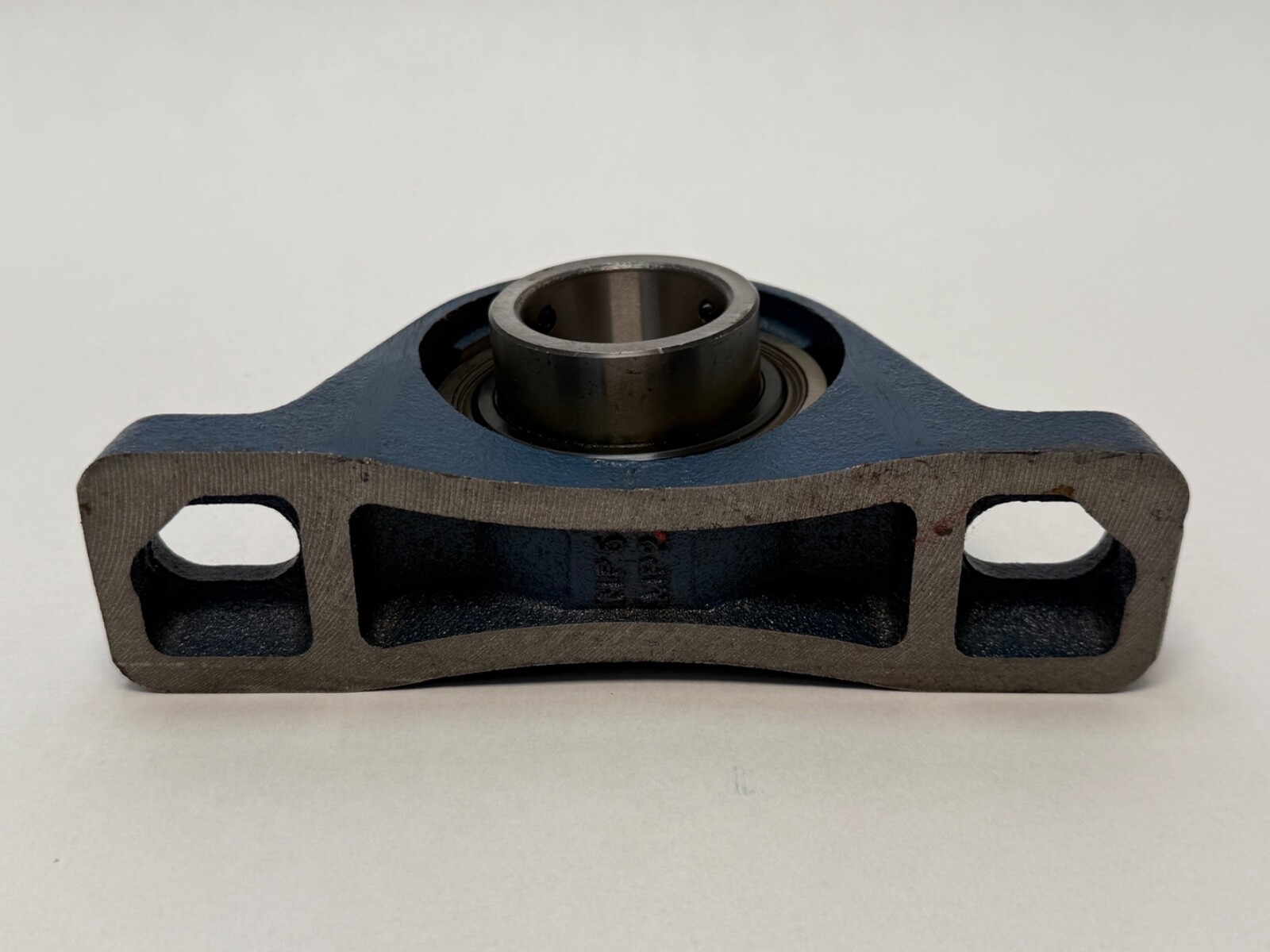

Centre Height: 47.6 mm. Housing Length: 166 mm. Housing Width: 44.5 mm. Housing Height: 93 mm. Bolt Center To Center: 136.5 mm, slotted bolt holes. Bolt Hole Size: 12 mm. Number Of Bolt Holes: 2. Locking Device: Set Screw.

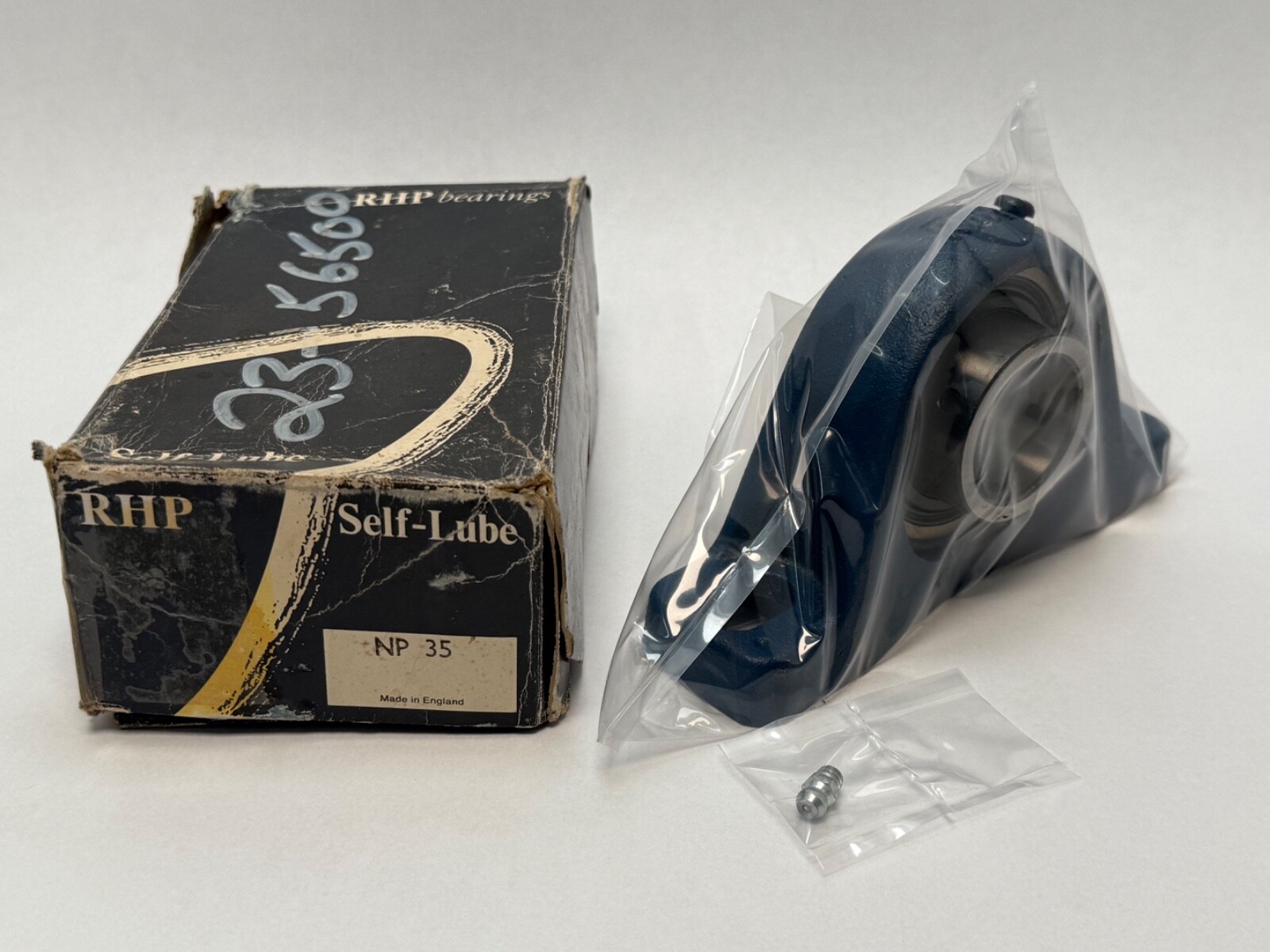

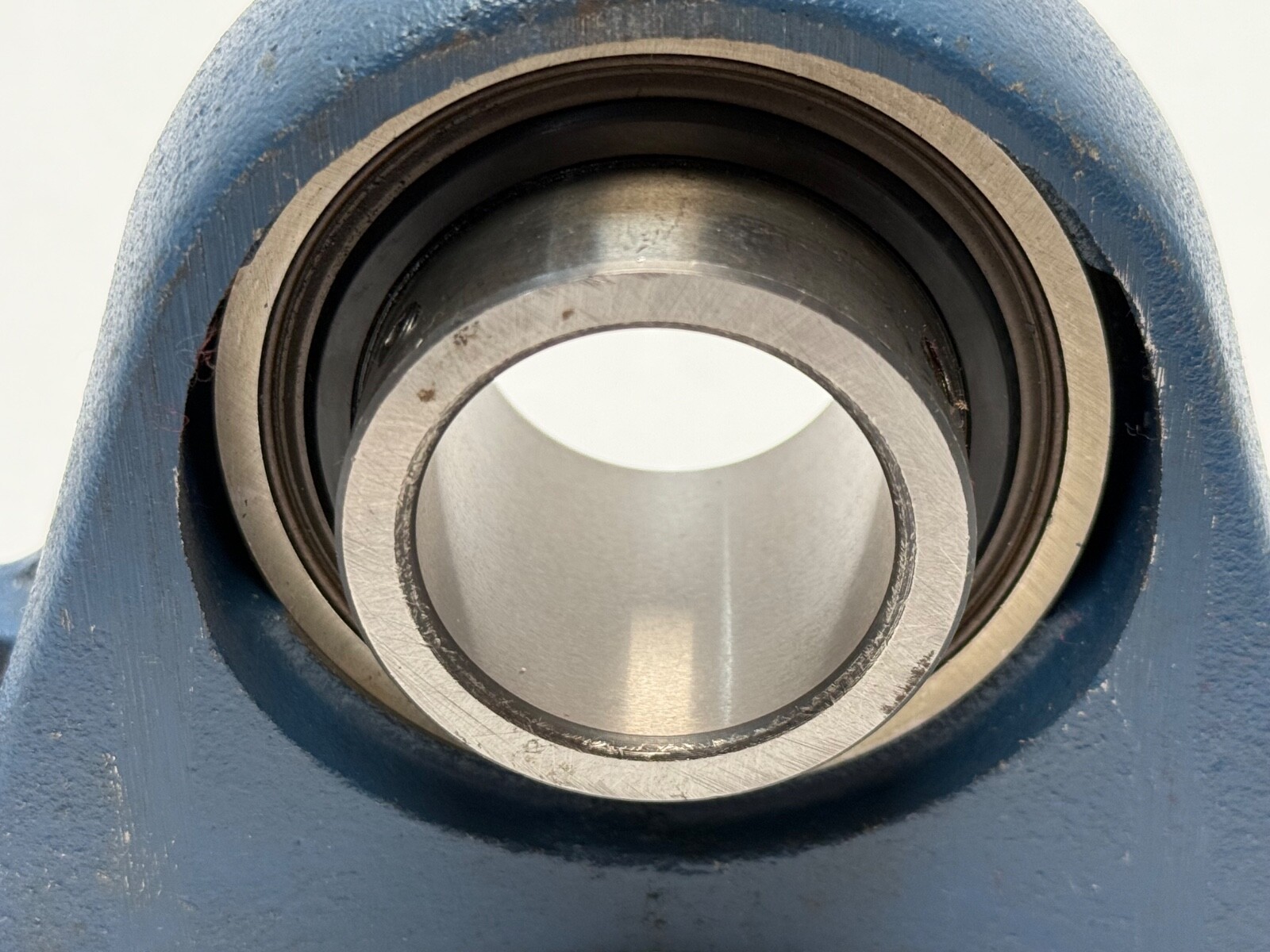

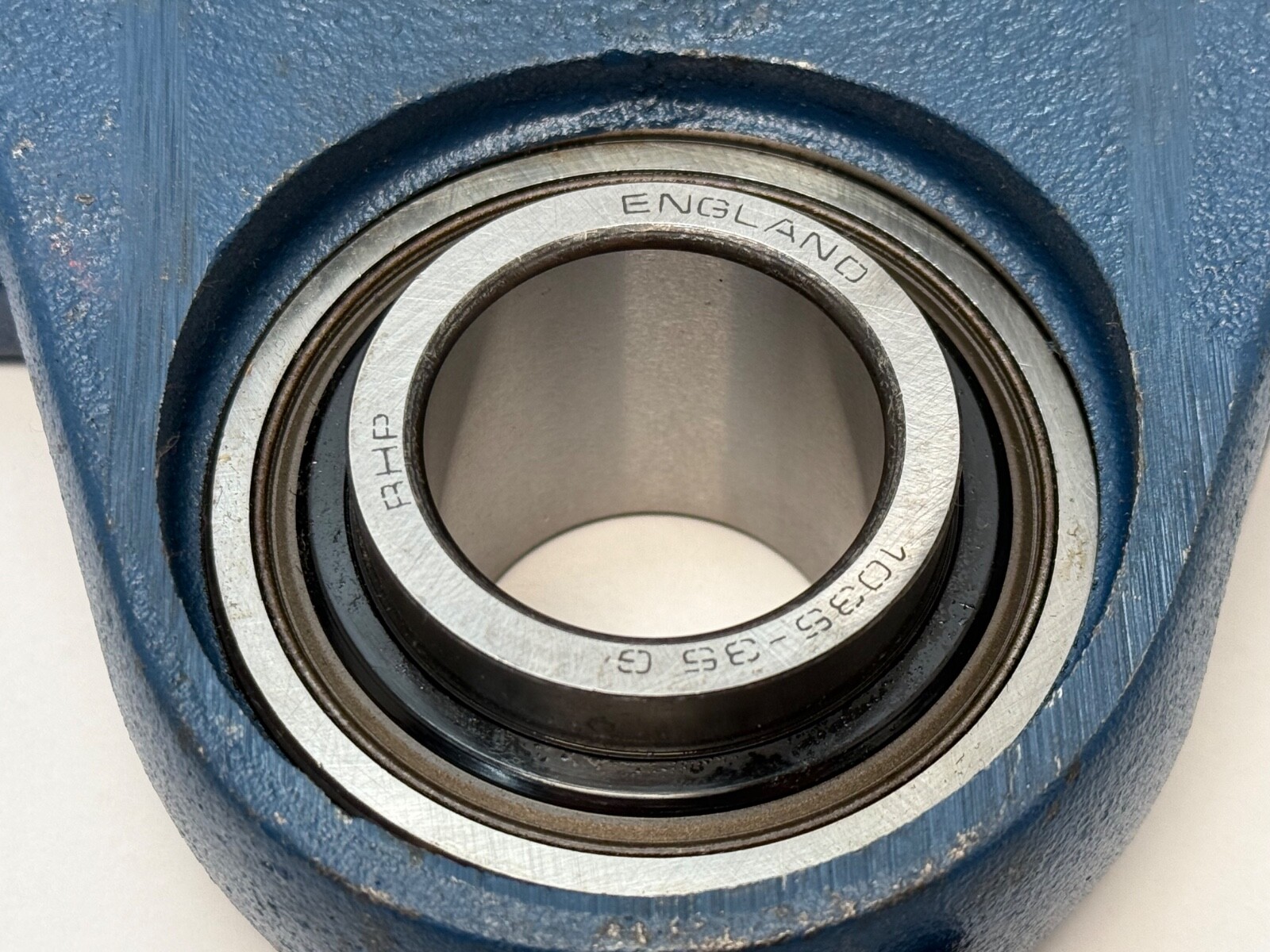

The spherical outside diameter of the insert seats in a matching spherical housing bore, so the unit takes up initial misalignment between the housing and the shaft, up to 0.030 radians. Seal Type: Nitrile/fabric seals. Internal Clearance: C3. Lubricant: Grease. Relubrication Feature: Grease nipple. Housing Material: Cast Iron to BS1452. Rolling Elements: Ball. Condition: made in England, new old stock, open box.
MPN variants: NP35, NP-35, NP 35, NP35 R. Related RHP Self-Lube units on the same 35 mm shaft: NP35EC (eccentric collar locking) and NP35DEC.
