Availability:
1 in stock

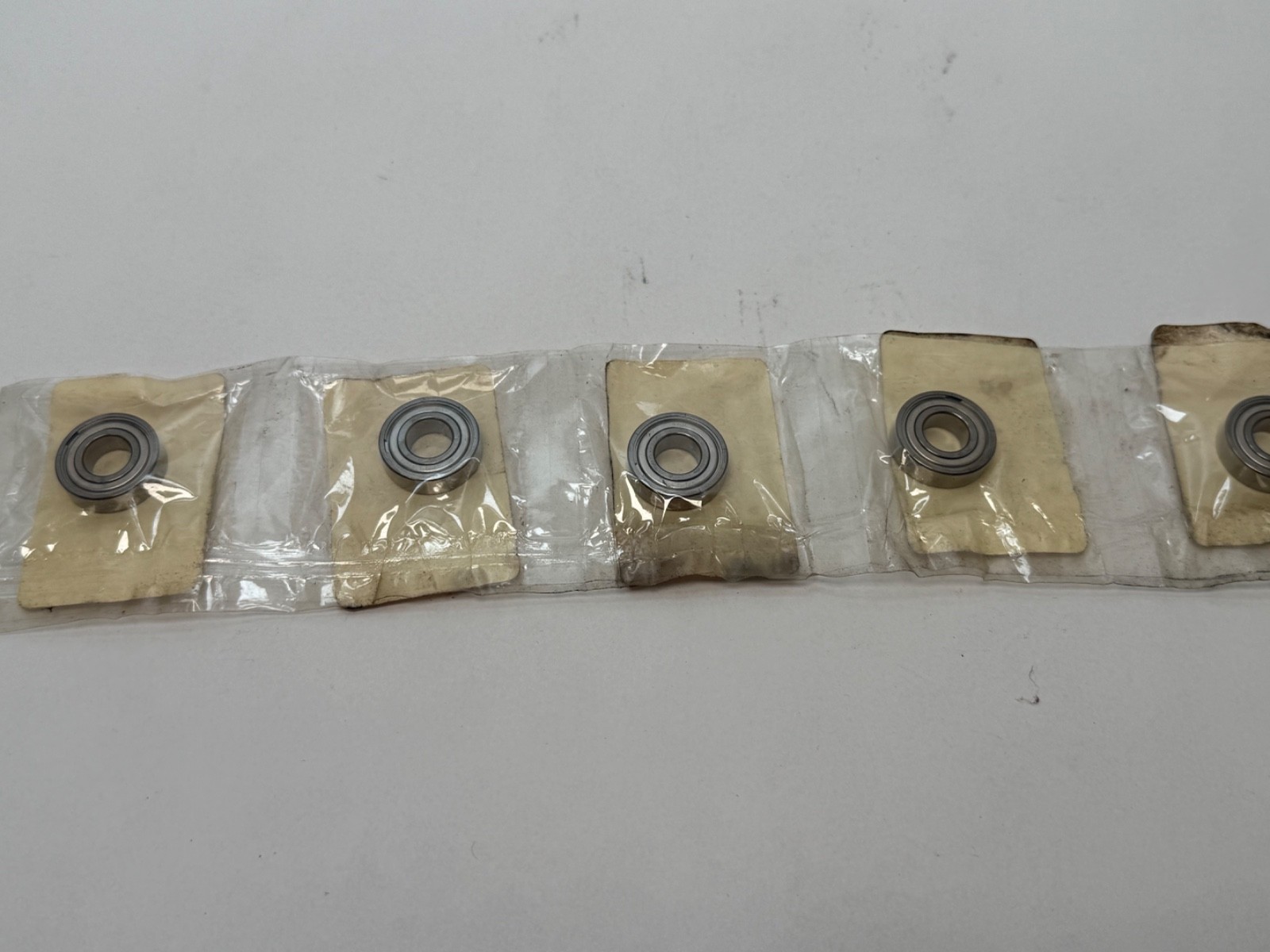

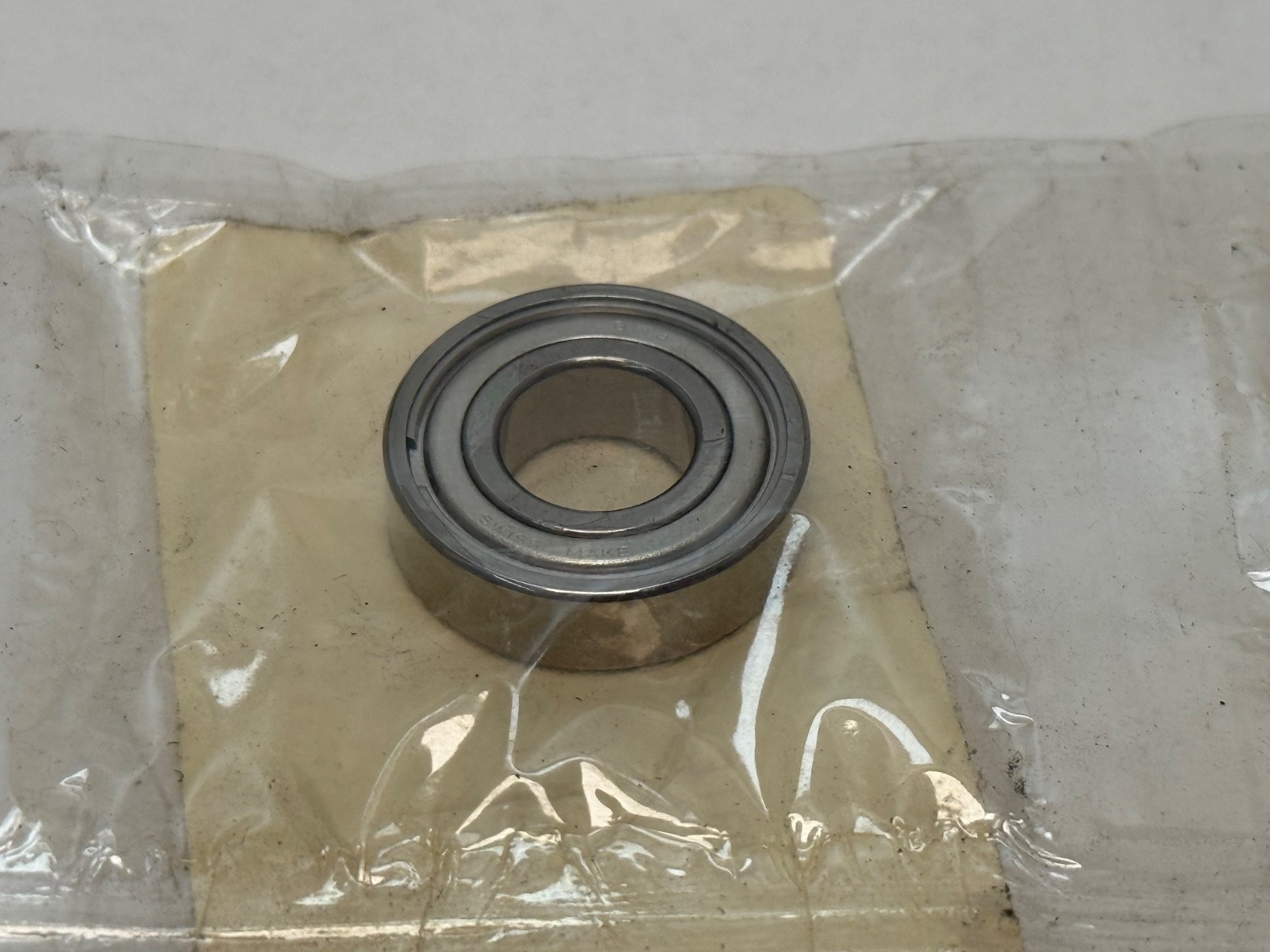

Lot of 100 RMB 61900ZZP4 deep groove ball bearings, 10 mm bore, 22 mm OD, 6 mm wide, metal shields, ISO P4 / ABEC 7 precision, oil lubricated (RV-1022-L23).
List Price
$152.96
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | RMB |
|---|---|
| MPN | 61900ZZP4 |
| Model | 61900ZZP4 |
| Bearing Type | Deep Groove Ball Bearing |
| ID | 10 mm |
| OD | 22 mm |
| Width | 6 mm |
| Precision Class | ABEC 7 / P4 |
|---|---|
| Additional Attributes | RMB reference: RV-1022-L23; Material: chrome steel AISI 52100; Lubricant: L23 oil |
| Bearing Material | Chrome steel (AISI 52100) |
| Base Number | 61900 |
| Industry Terms | precision miniature bearing; thin section ball bearing; instrument bearing; shielded ball bearing; ABEC 7 bearing; super precision deep groove bearing |
| Common Misspellings | 61900 ZZ P4; 61900-2ZP4; 6190ZZ; RV1022; RMB 61900ZZ; 61900zzp4 |
| Application Types | Encoders; instruments; small spindles; medical devices; optical and measuring equipment; servo motors |
| Overall Width | 6 mm |
| Mpn Variants | 61900ZZP4; 61900-ZZ-P4; 61900ZZ P4; RV-1022-L23; RV1022L23; RV-1022; 61900ZZ; 6900ZZ |
| Series | 619 |
| Rolling Elements | Ball |
| Lubricant | Oil (RMB L23, Winsorlube L 245X) |
| Cross Reference 1 | SKF 61900-2Z |
|---|---|
| Cross Reference 2 | FAG 61900-2Z |
| Cross Reference 3 | NSK 6900ZZ |
| Cross Reference 4 | NTN 6900ZZ |

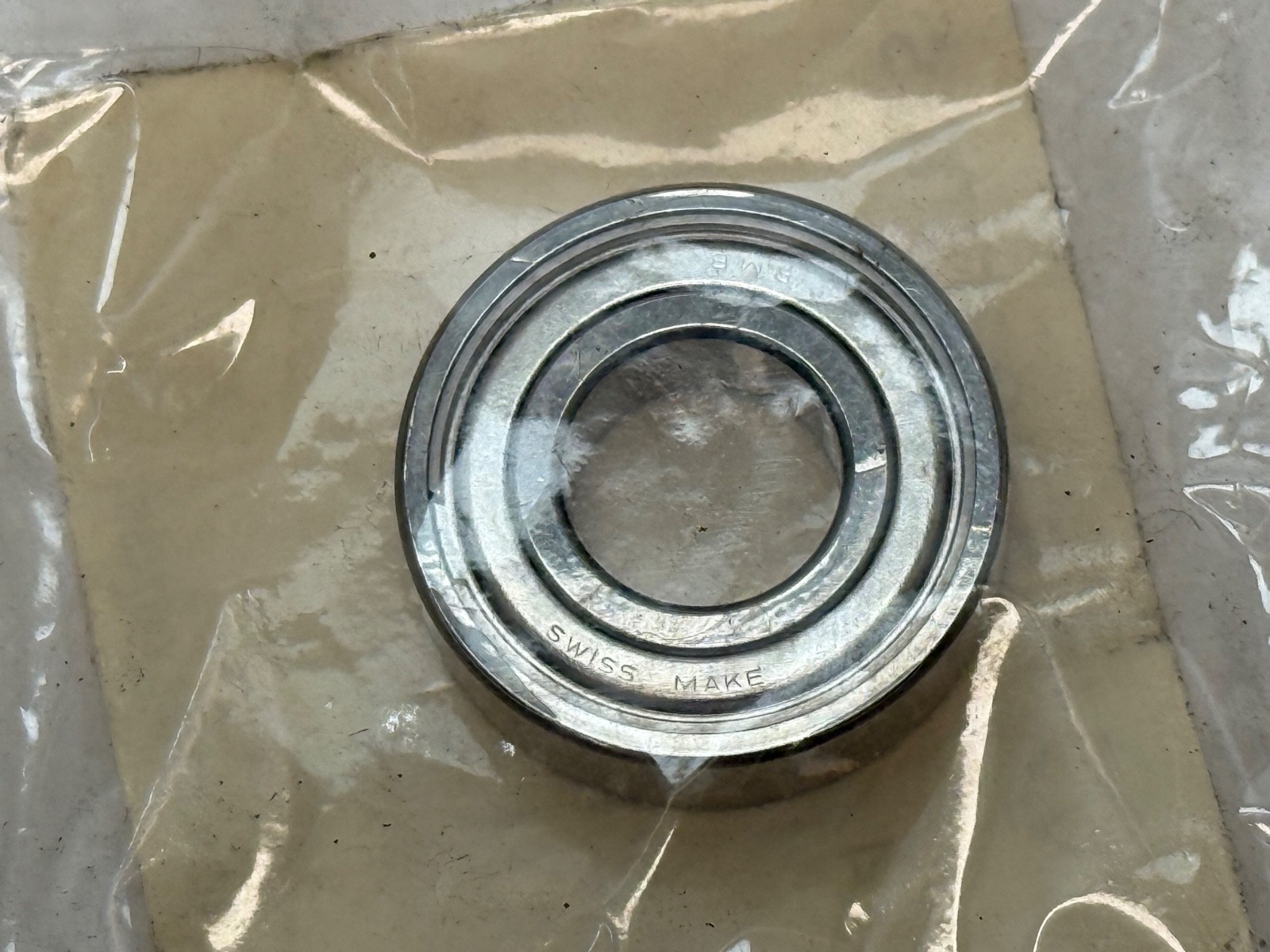

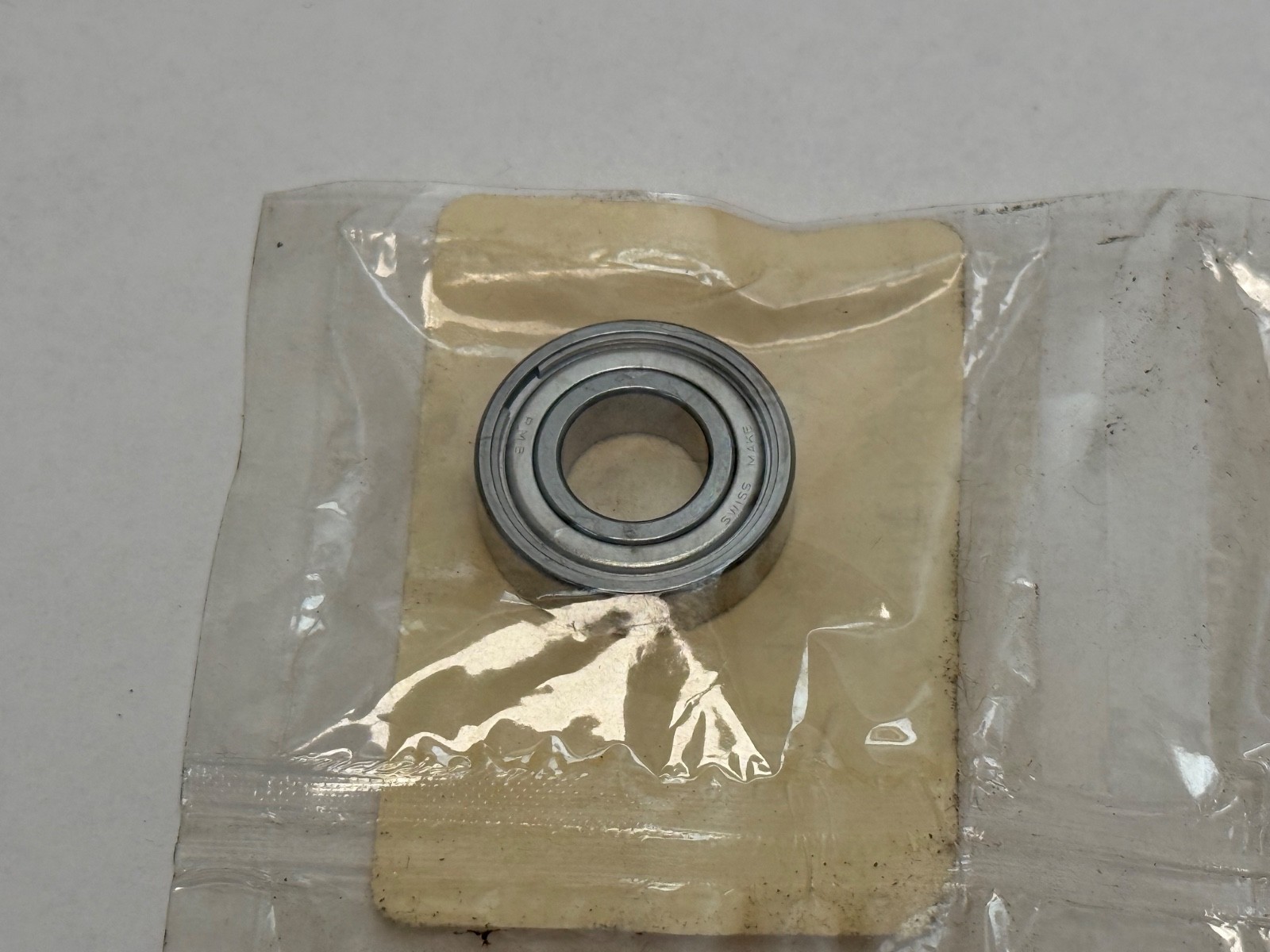

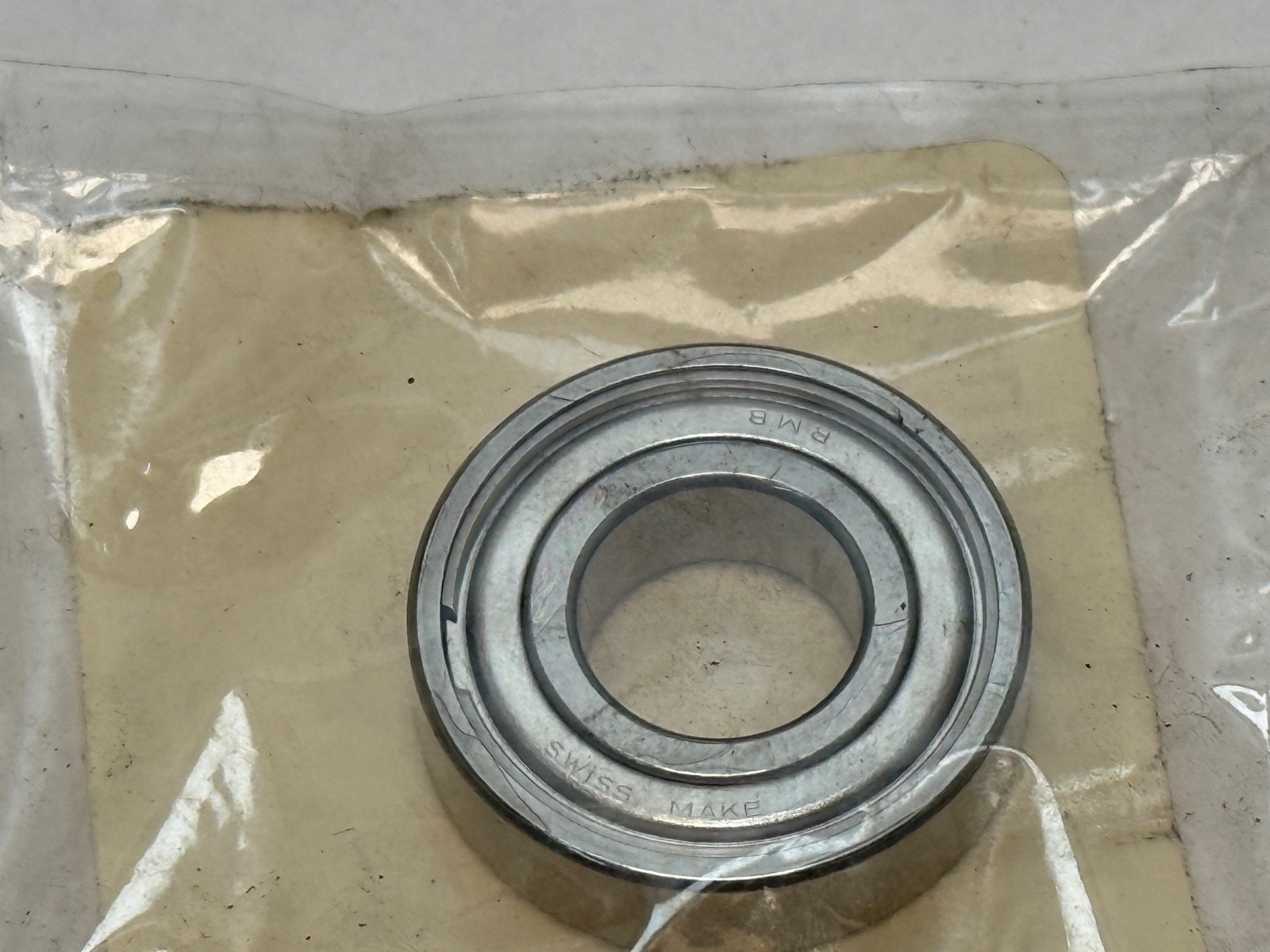

The RMB 61900ZZP4 is a deep groove ball bearing with metal shields both sides, 10 mm bore, 22 mm outside diameter, 6 mm width, made to ISO P4 precision. RMB carries it under its own reference RV-1022-L23. Bore Diameter: 10 mm. Outside Diameter: 22 mm. Overall Width: 6 mm. Closure Type: Shields both sides. Precision Class: ABEC 7 / P4. Rolling Elements: Ball. Bearing Material: Chrome steel (AISI 52100). Lubricant: Oil, RMB L23.
61900 — ISO thin-section deep groove size 10 x 22 x 6 mm, the same envelope as 6900.
ZZ — metal shields both sides.
P4 — ISO precision class P4, equivalent to ABEC 7.

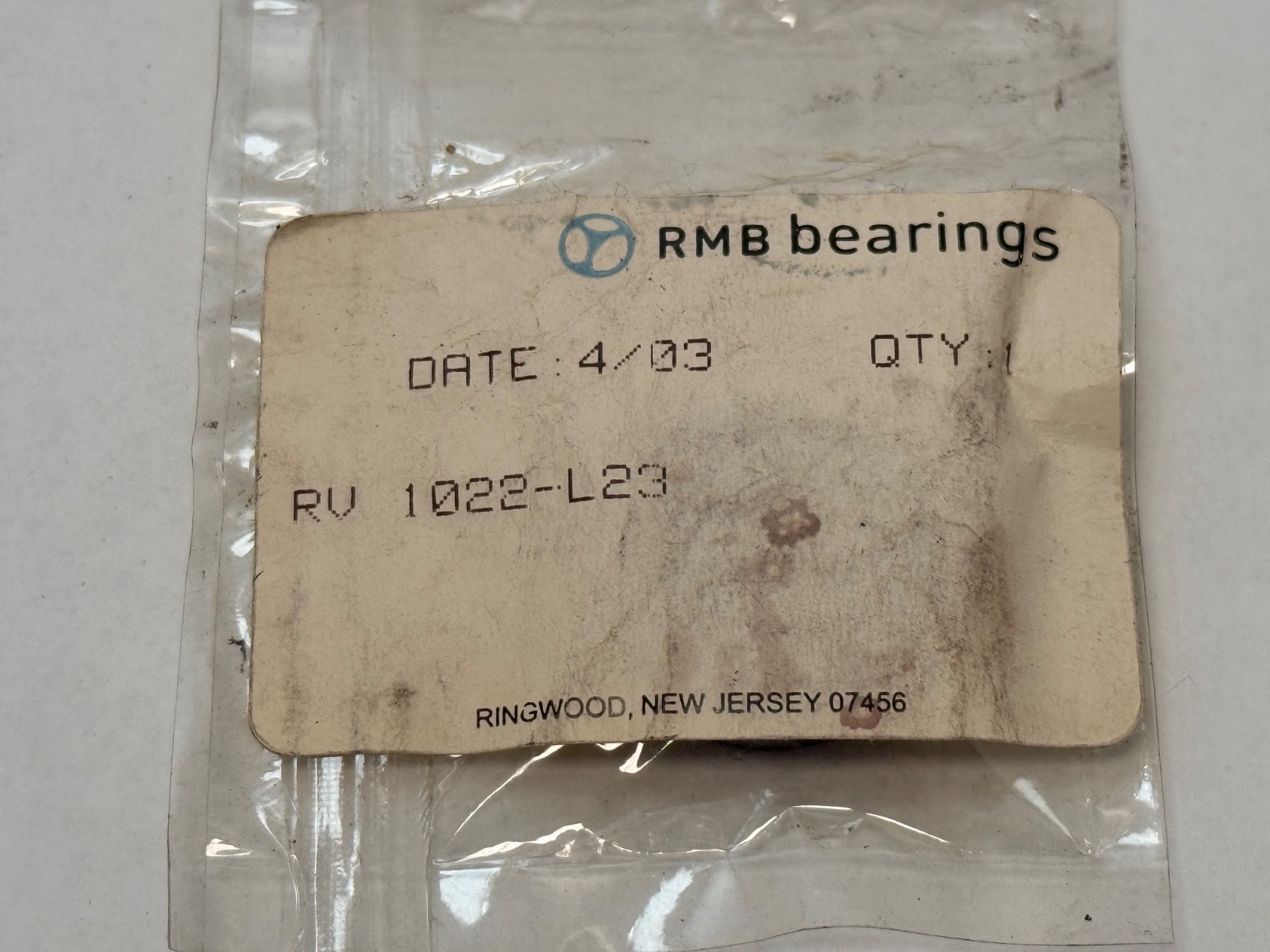

RV — RMB metric radial bearing with closures.
1022 — RMB size code, 10 mm bore and 22 mm outside diameter.
L23 — RMB lubricant code for Winsorlube L 245X instrument oil.
P4 tolerances give low runout for instruments, spindles and encoders. Oil lubrication in place of grease keeps starting and running torque low. No material suffix in the RMB reference denotes chrome steel AISI 52100.

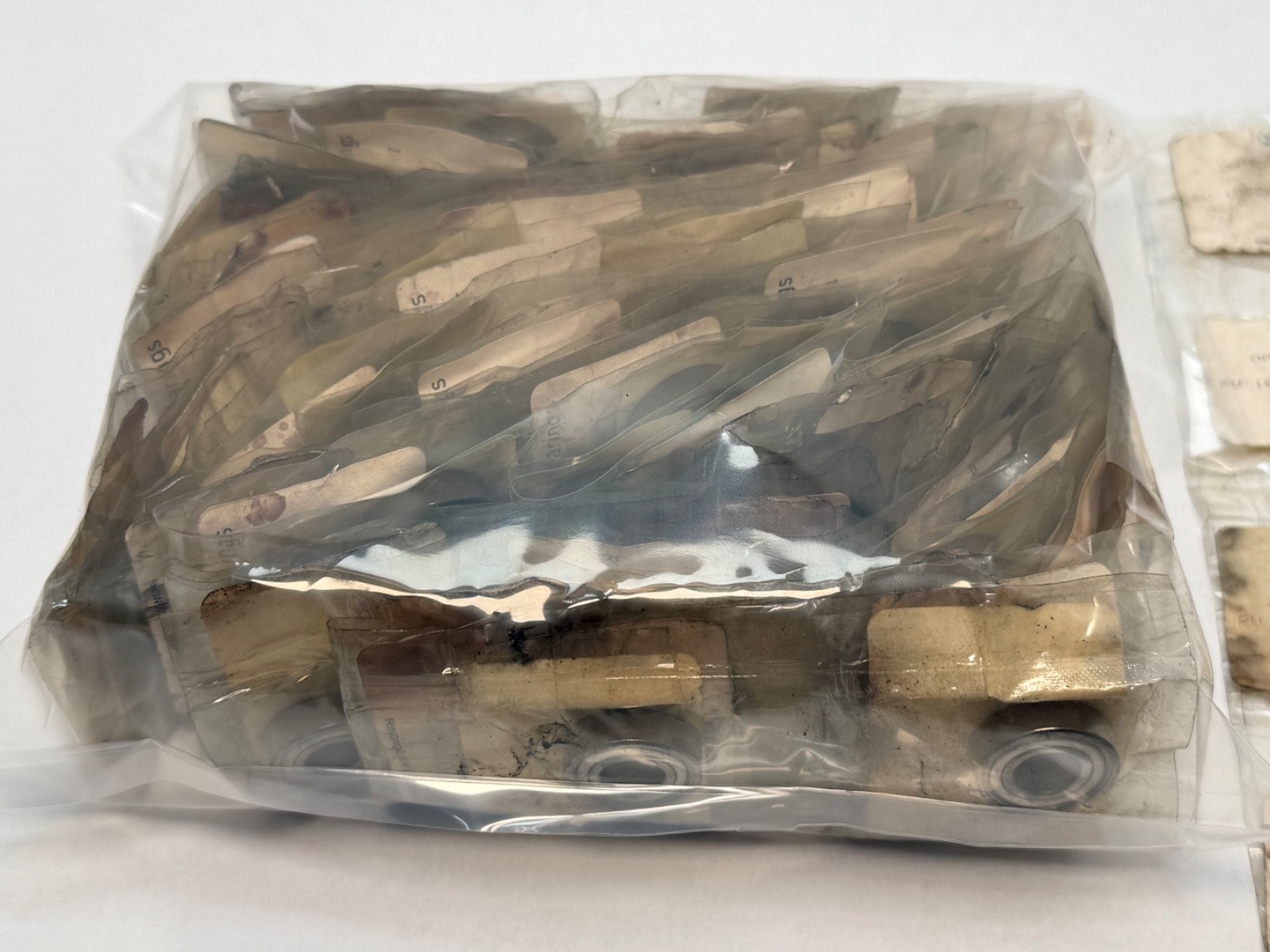

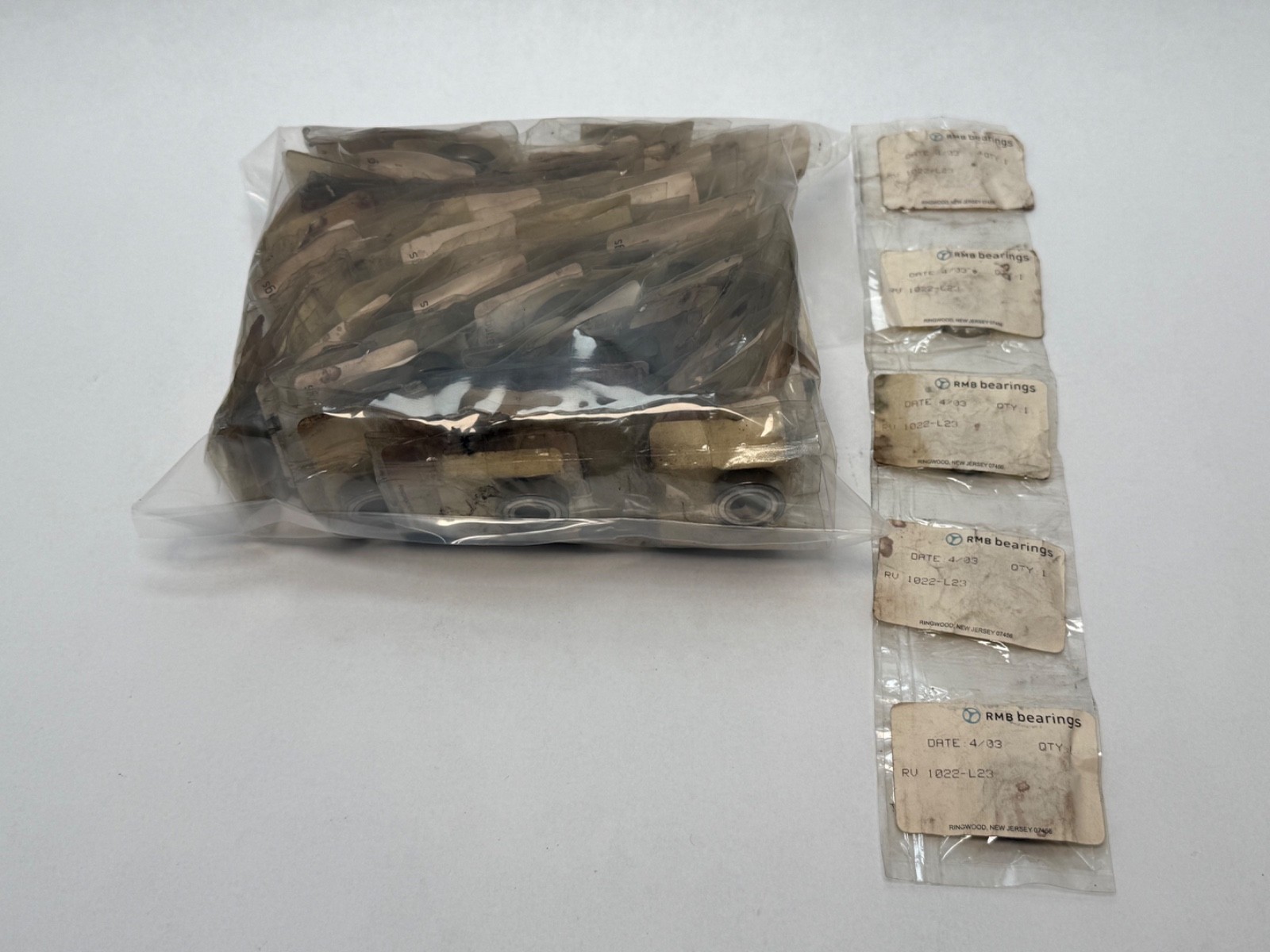

Unit Quantity: 100 Pcs. One purchase is a lot of 100 bearings.
Same envelope and closure: SKF 61900-2Z, FAG 61900-2Z, NSK 6900ZZ, NTN 6900ZZ, Koyo 6900ZZ. A P4 / ABEC 7 grade matches the precision of this part; standard-grade 6900ZZ parts are ABEC 1 / P0.
