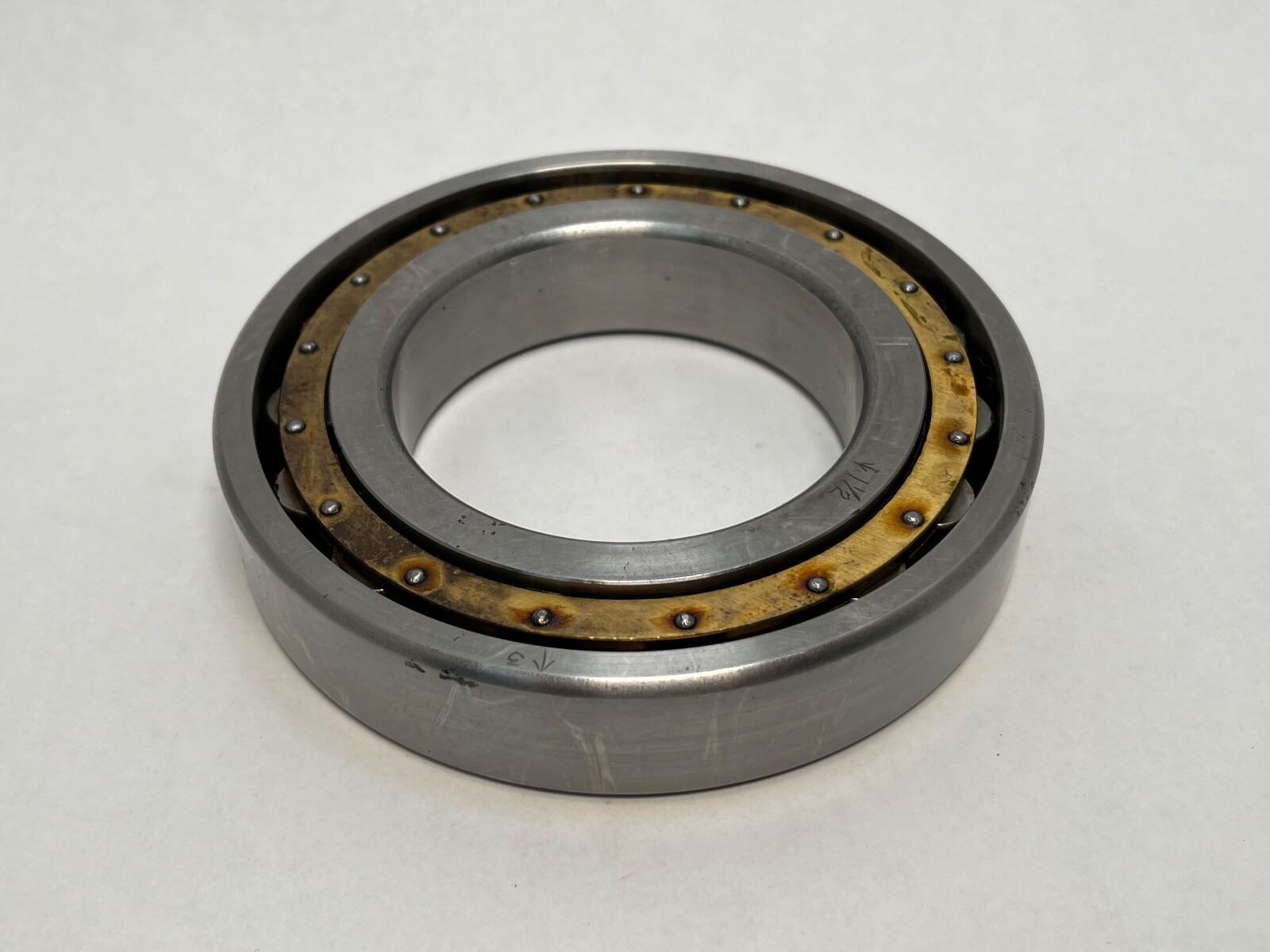

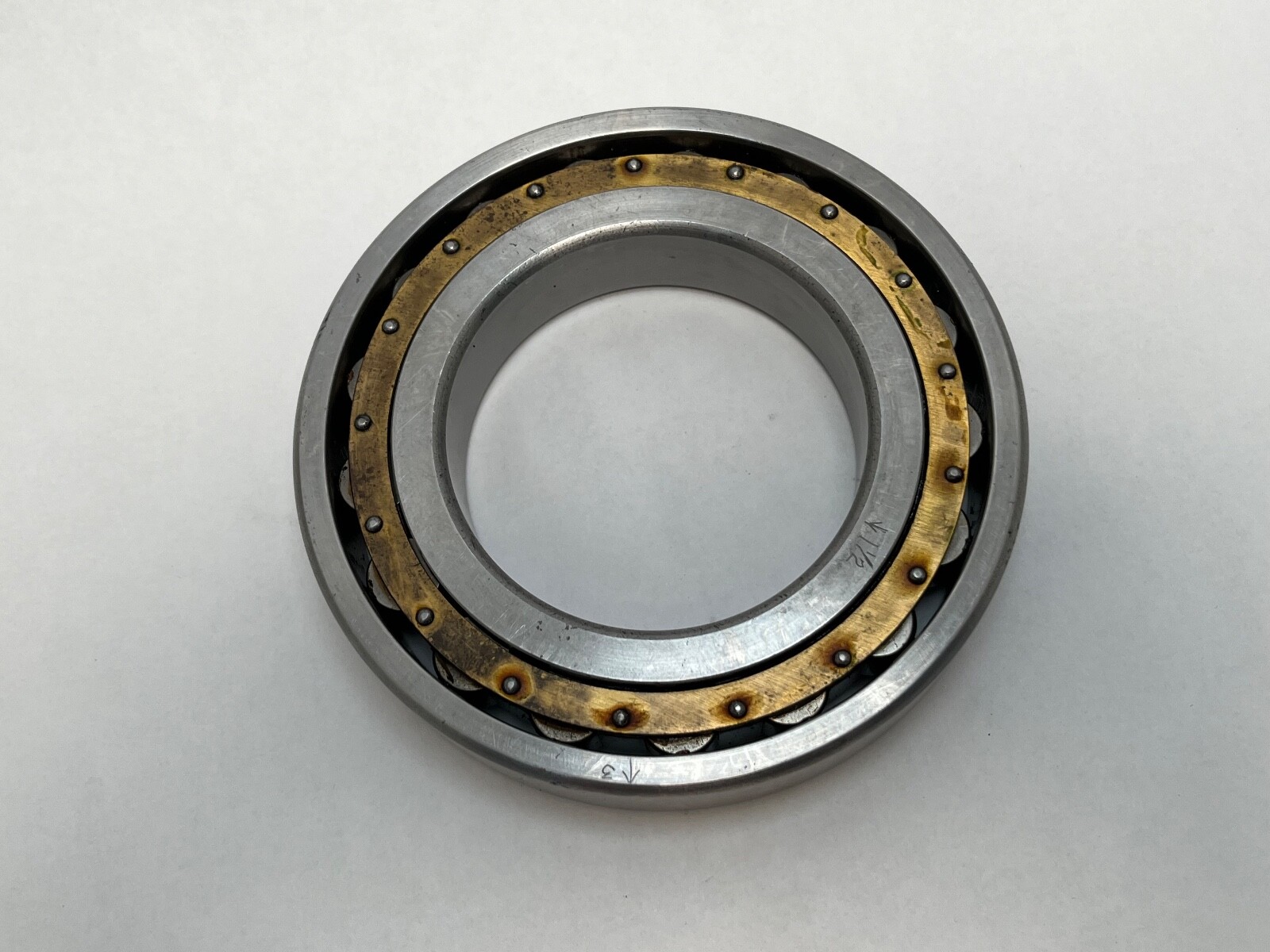

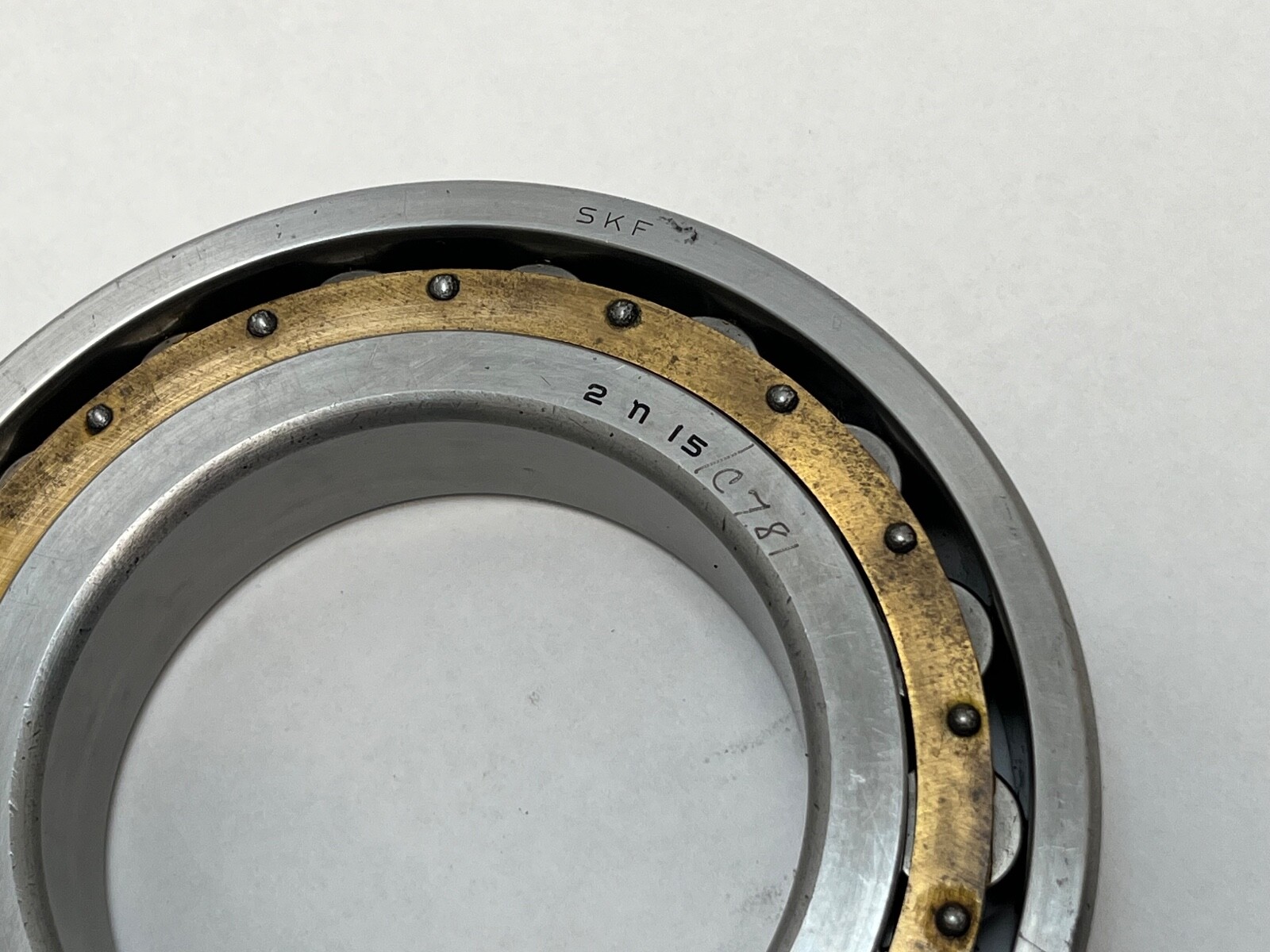

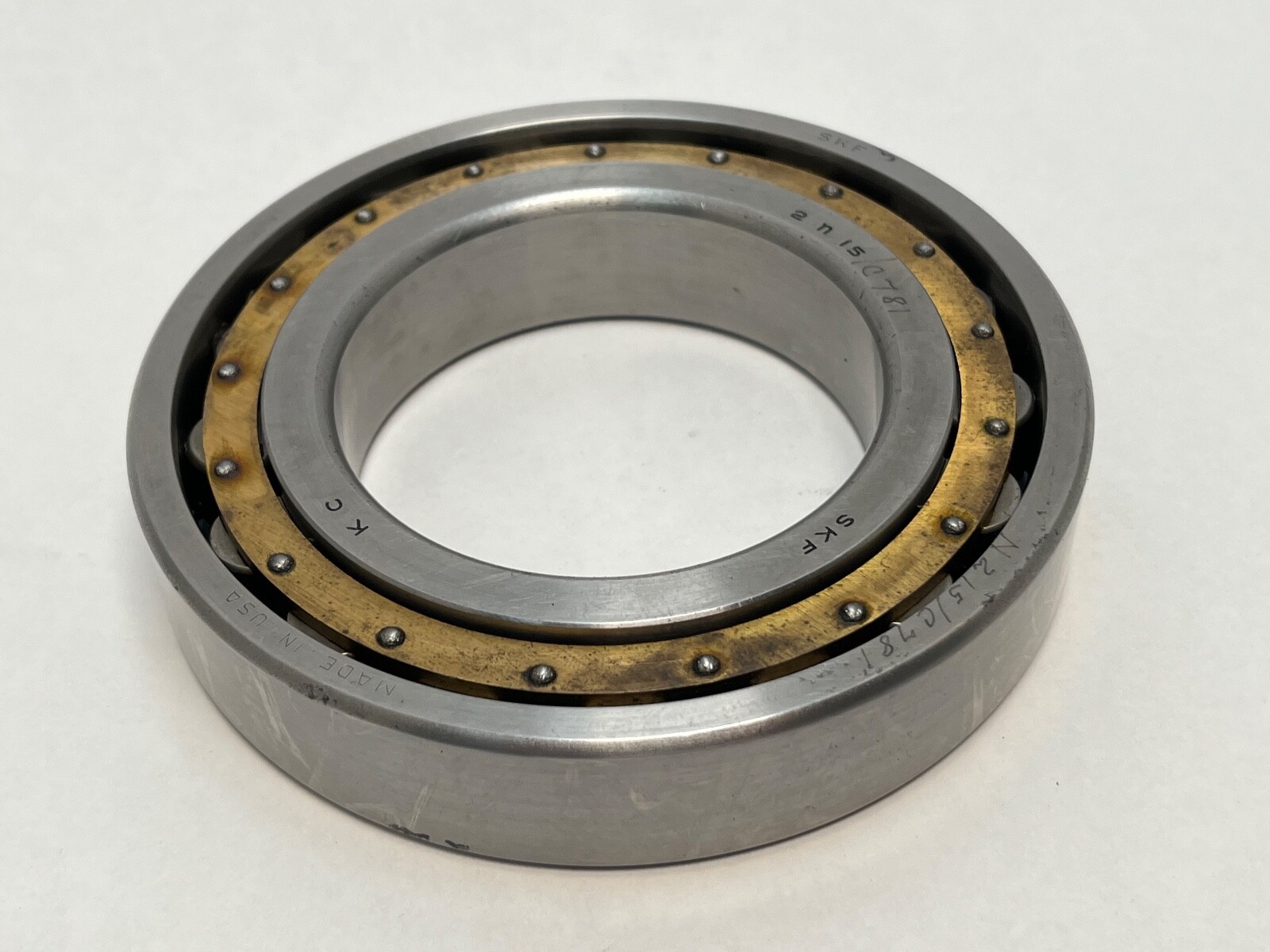

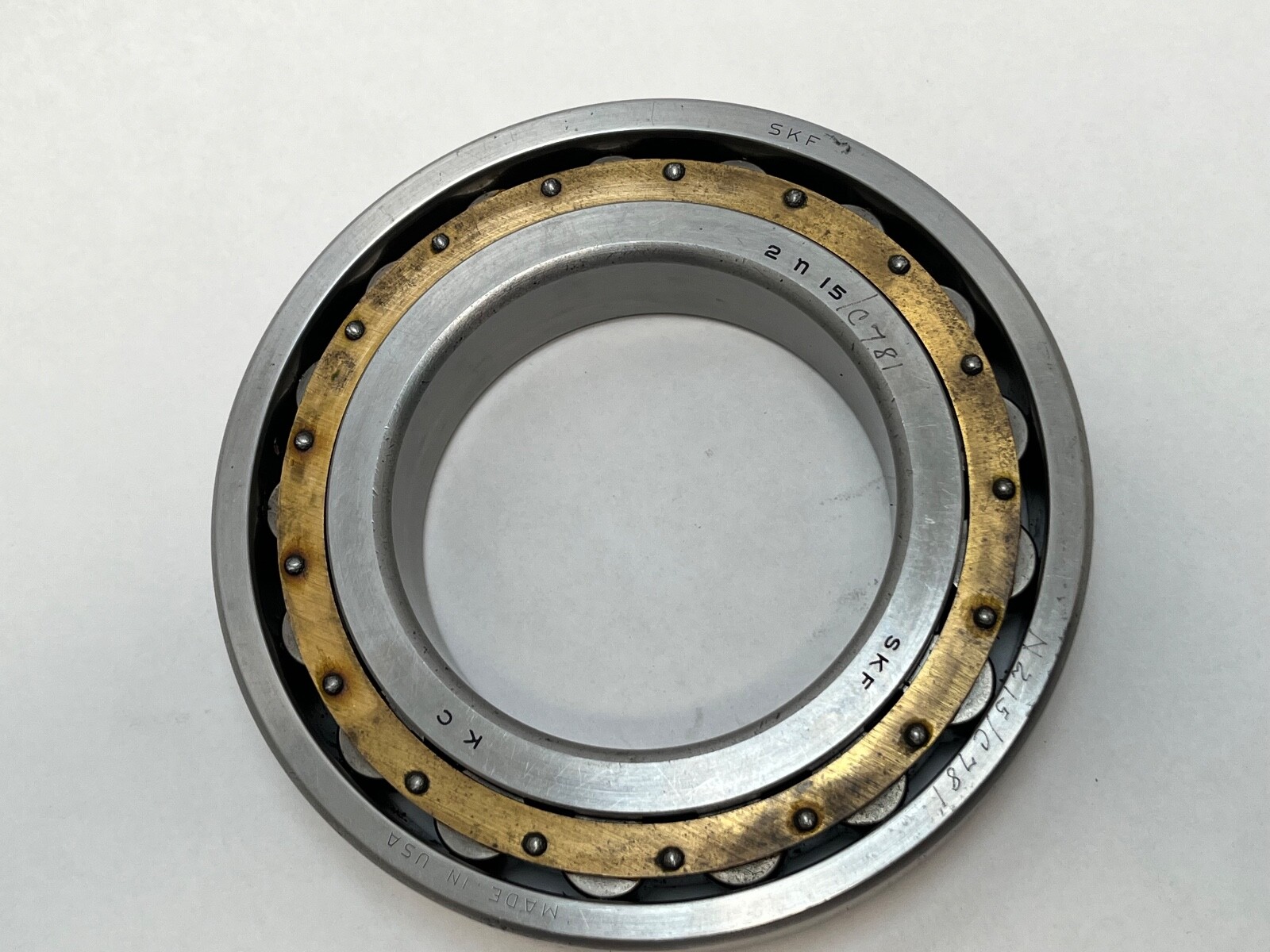

SKFN 215 M/P5Cylindrical Roller Bearing – 75 mm ID, 130 mm OD, 25 mm Width, N Design, Machined Brass Cage, ABEC 5 / P5

Product Description

What this part is:

The SKF N 215 M/P5 is a single-row cylindrical roller bearing of the N design from the 02 dimension series, with a machined brass cage and P5 precision. The inner ring carries two integral ribs and the outer ring is rib-free, so the bearing takes radial load and permits axial shaft displacement in both directions as a non-locating bearing.

Decoding the designation:

N — single-row cylindrical roller bearing, two ribs on the inner ring, rib-free outer ring.

215 — dimension series 02, bore code 15 = 75 mm.

M — machined brass cage, roller centred.

P5 — dimensional and running accuracy to ISO tolerance class 5.

Specifications:

Bearing Type: Cylindrical Roller Bearing. Rolling Elements: Cylindrical Roller. Number Of Rows: 1. Bore Type: Straight. Cage Material: Machined brass. Closure Type: Open. Snap Ring: No. Precision Class: ABEC 5 / P5. Series: N 2.

Dimensions and mounting:

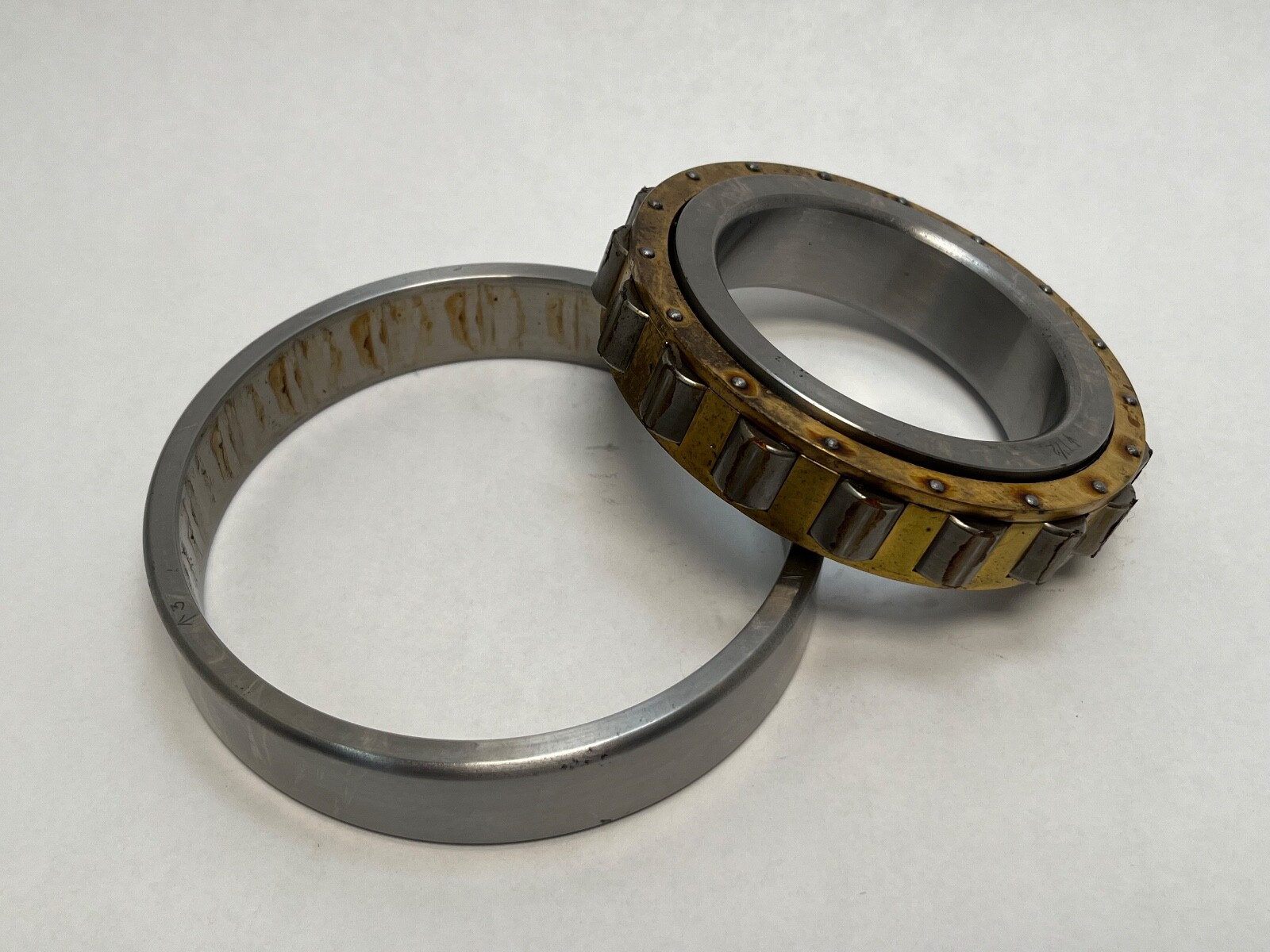

Bore Diameter: 75 mm. Outside Diameter: 130 mm. Overall Width: 25 mm. Separable design: the outer ring removes from the inner ring and roller assembly for independent mounting.

Compatibility and replacement:

Cross-references: FAG N215-M1-P5, NSK N215MP5 and NTN N215 P5, all N design, 75 x 130 x 25 mm. Base number N215.

Frequently asked questions:

What size is the SKF N 215 M/P5?

75 mm bore, 130 mm outside diameter and 25 mm width.

Does the N 215 M/P5 locate the shaft axially?

No. The N design has a rib-free outer ring and works as a non-locating bearing.

What cage and precision does the N 215 M/P5 have?

A machined brass cage (M) and P5 precision, equivalent to ABEC 5.
