FAGNU324EP5Single Row Cylindrical Roller Bearing, Straight Bore, 120 x 260 x 55 mm, Non-Locating NU Design, P5

Product Description

What this part is

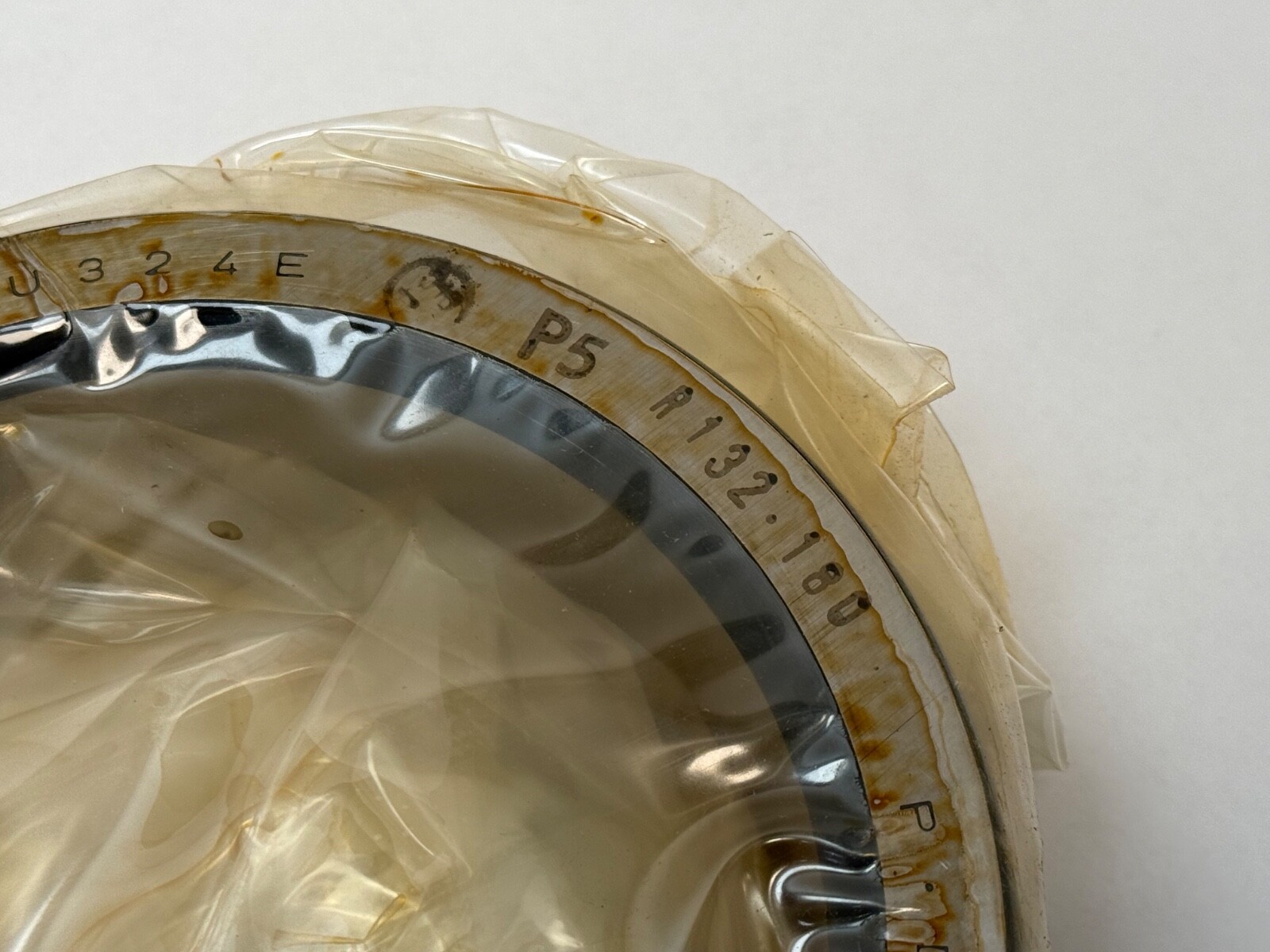

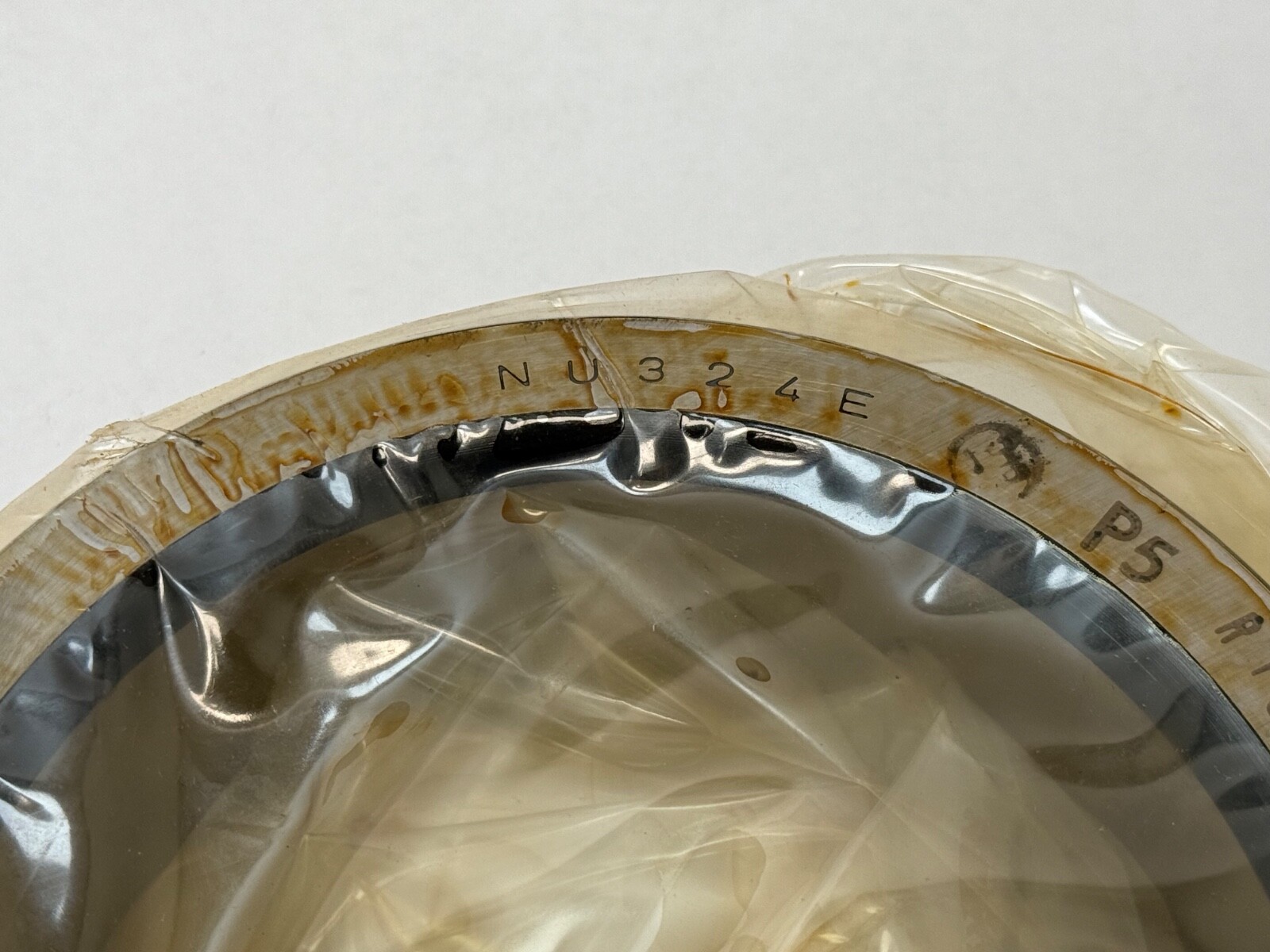

A FAG NU324E.P5 single-row cylindrical roller bearing, 120 mm bore, 260 mm outside diameter, 55 mm width. Straight bore, open, steel cage, reinforced E internal design, P5 running accuracy, CN internal clearance.

Decoding the designation

NU is the non-locating cylindrical roller design: the inner ring is a plain cylinder with no ribs and the guide ribs sit on the outer ring. The 3 marks the 23 dimension series and 24 gives the 120 mm bore. E is the reinforced FAG internal design, with a larger roller complement and a higher dynamic rating than the base design. P5 is ISO class 5 running accuracy for radial and axial runout. No clearance suffix follows, so internal clearance is CN.

What these specs mean in practice

An NU bearing carries radial load only and allows the shaft to move axially relative to the housing, which makes it the floating position in a two-bearing arrangement where thermal growth has to go somewhere. Line contact between roller and raceway gives a far higher radial rating than a ball bearing of the same envelope. P5 accuracy tightens runout for gearbox and spindle-quality shaft positioning.

Quantity and configuration

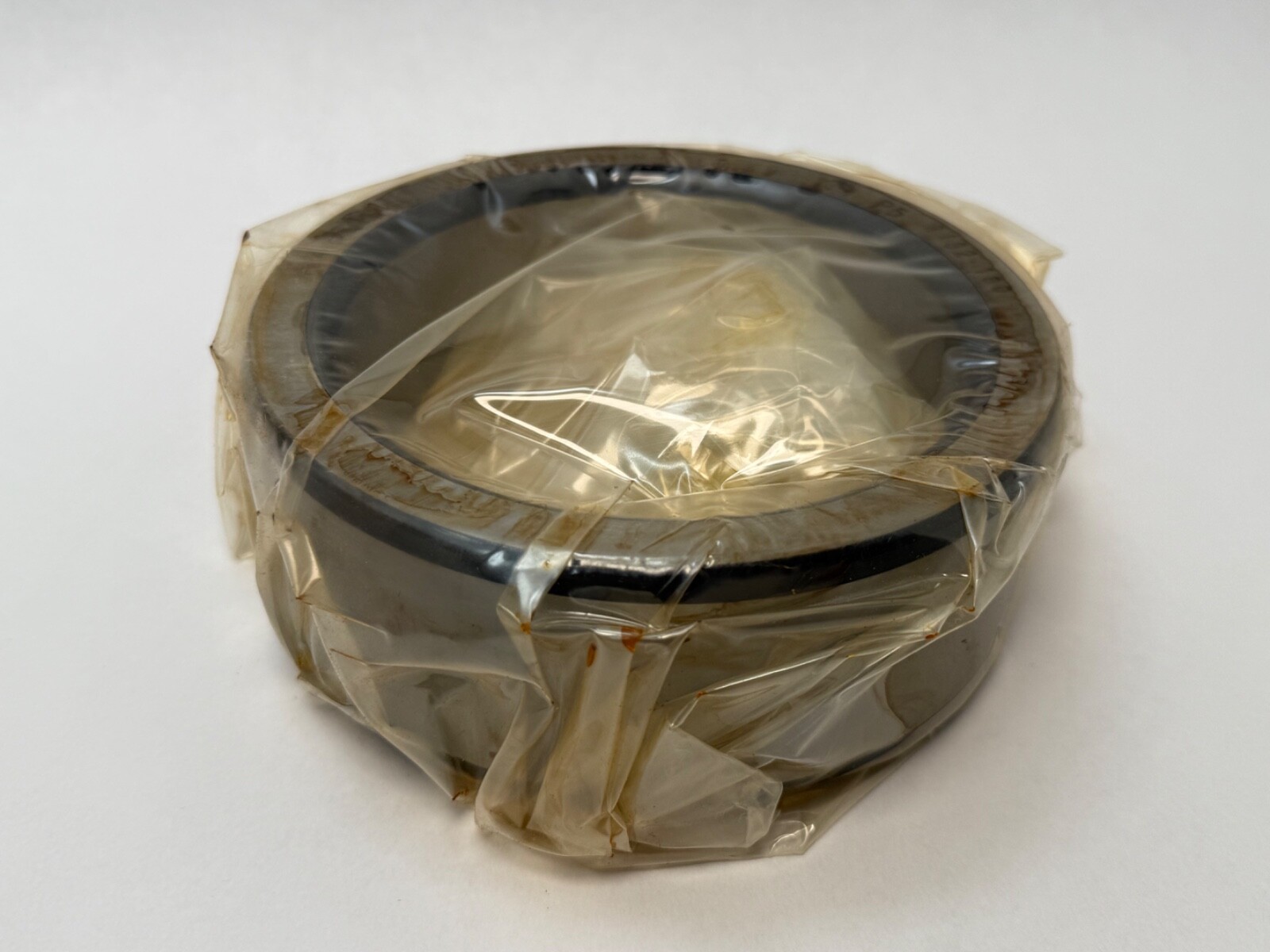

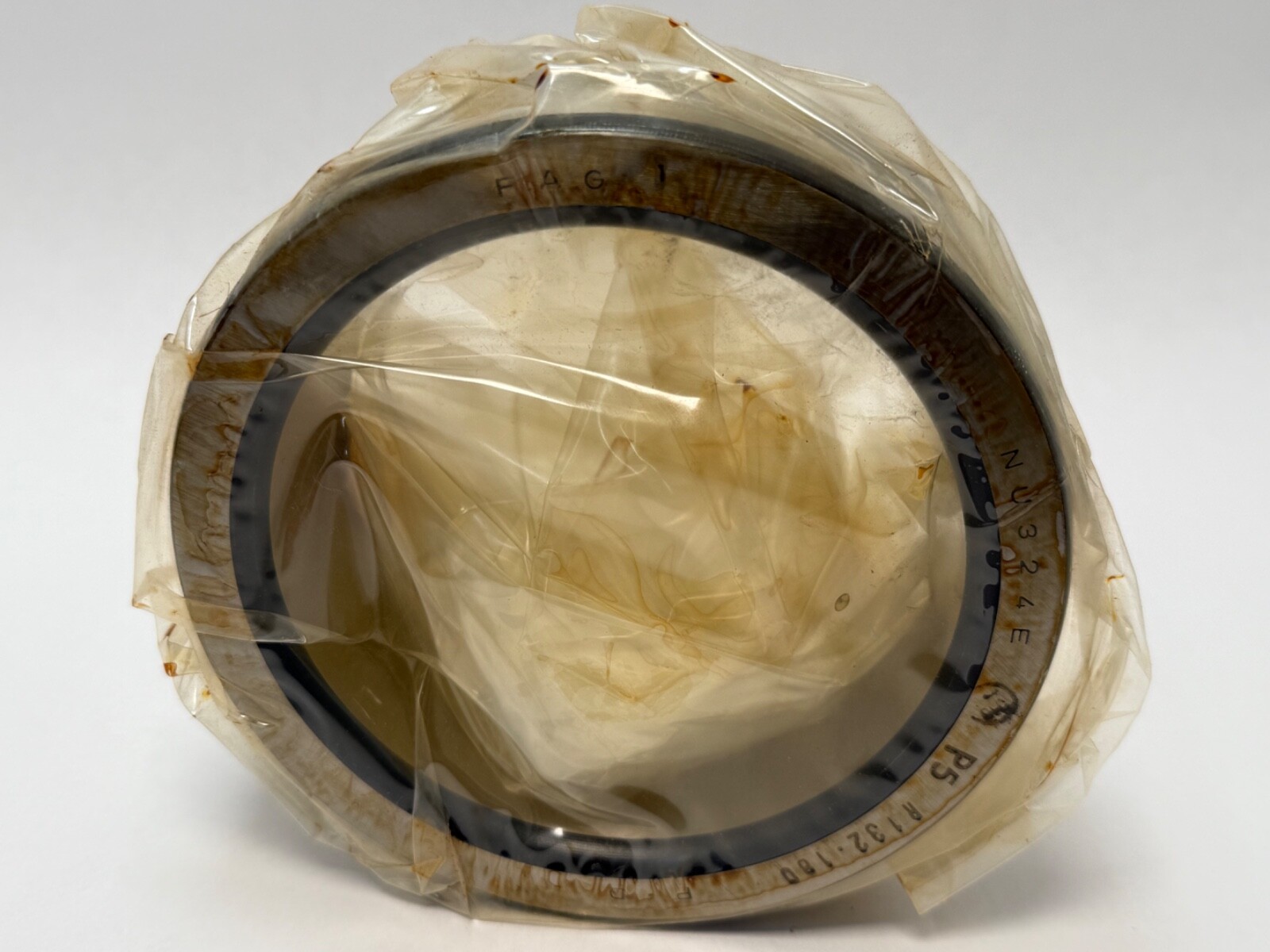

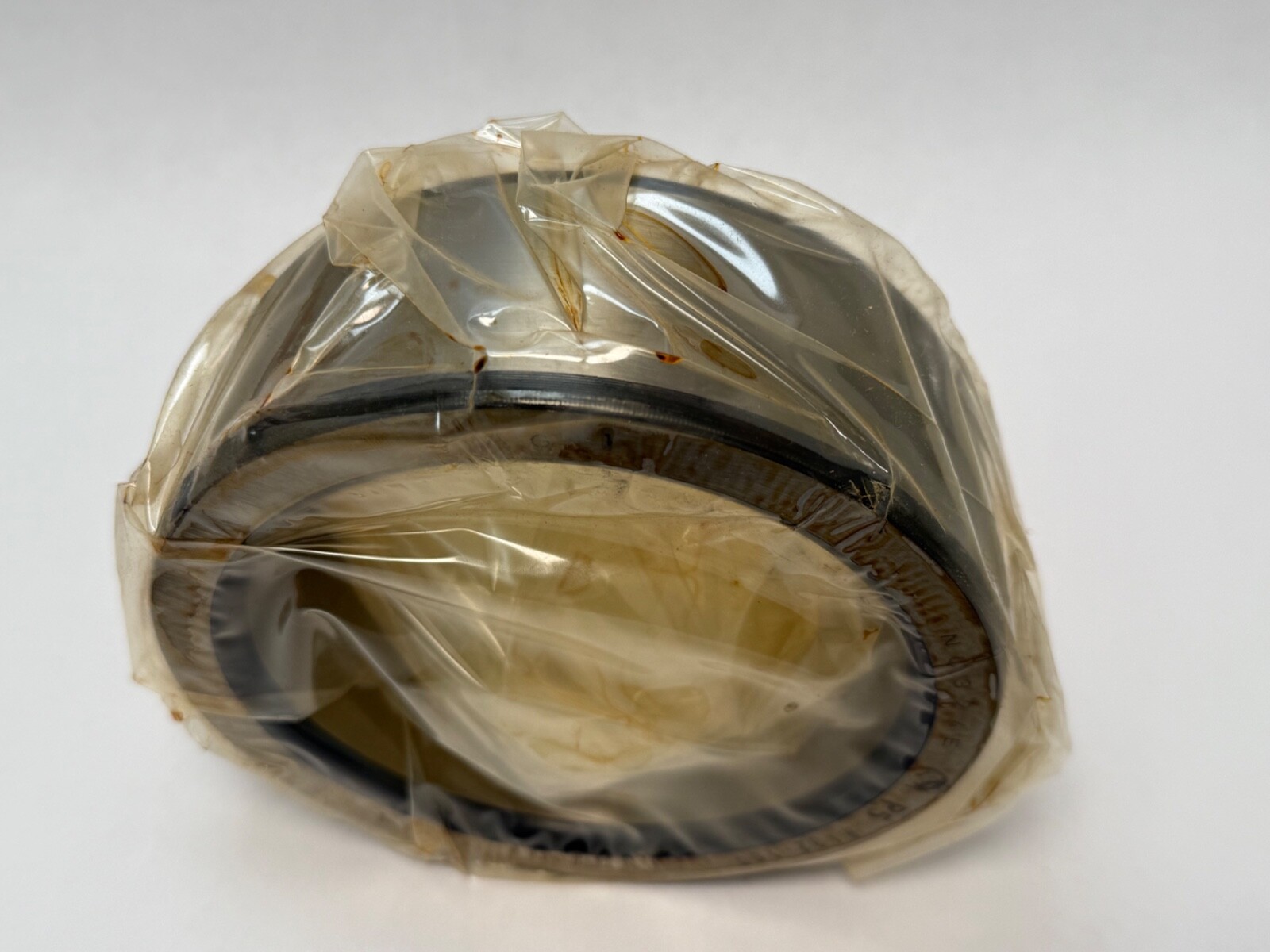

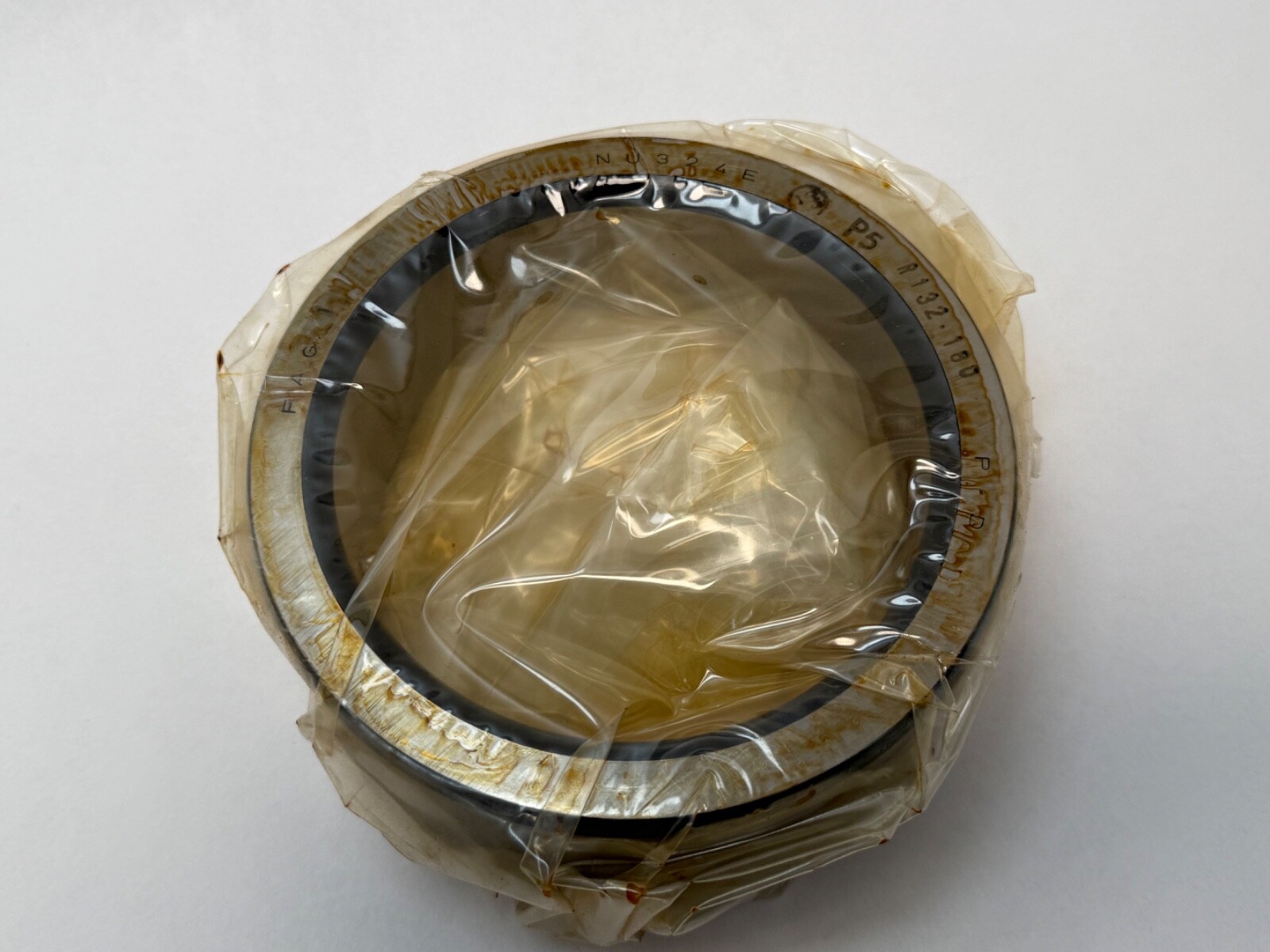

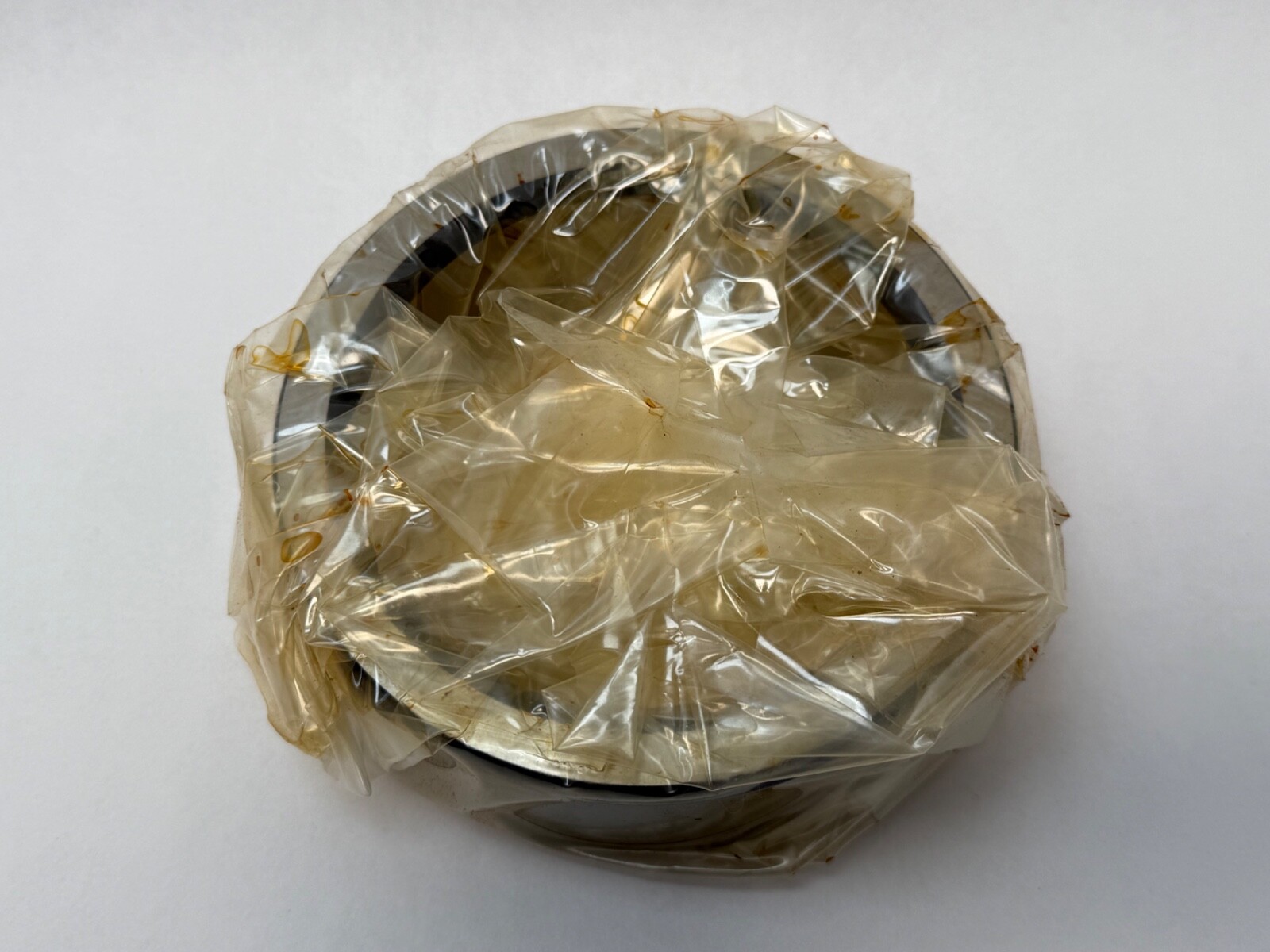

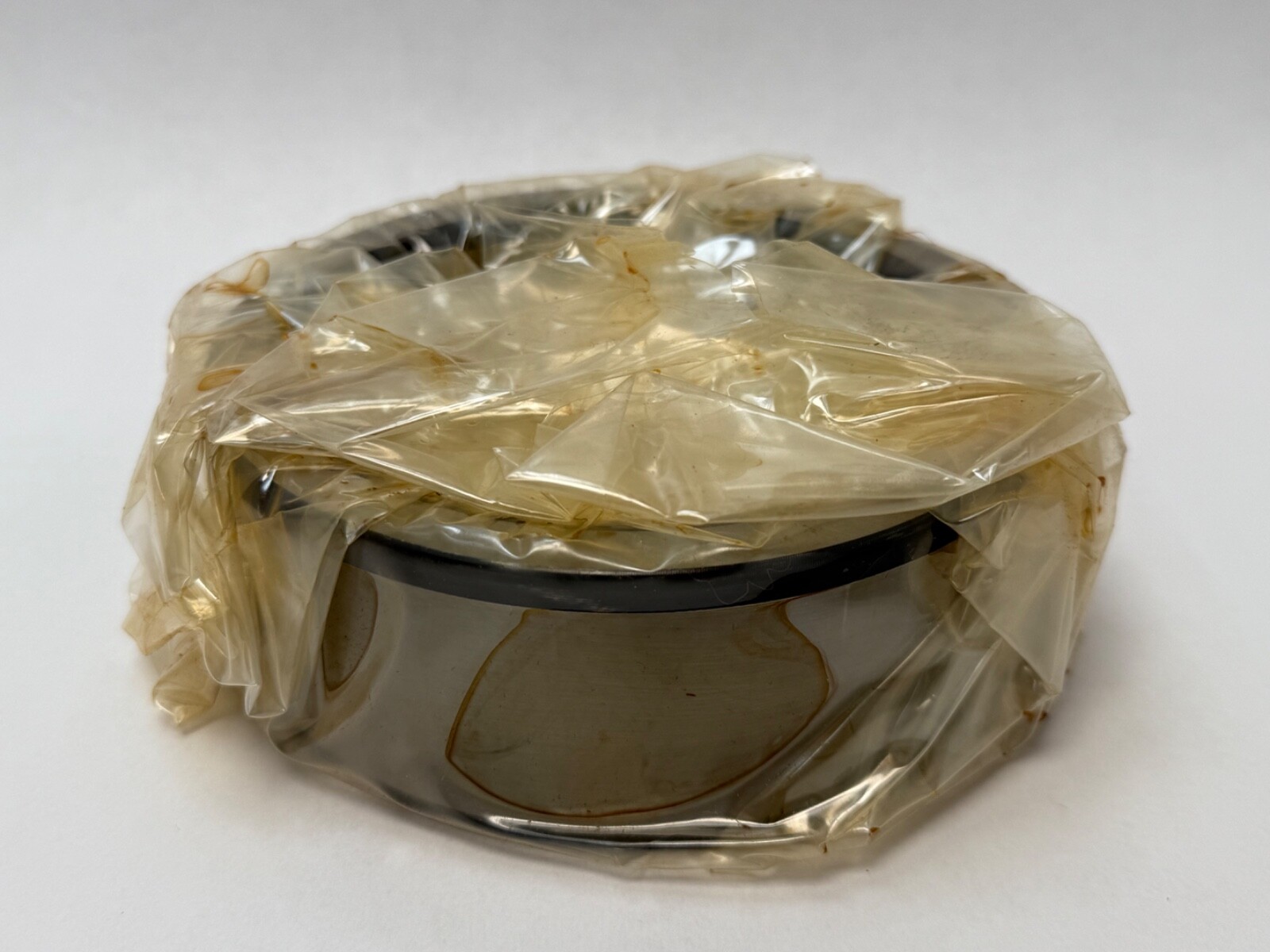

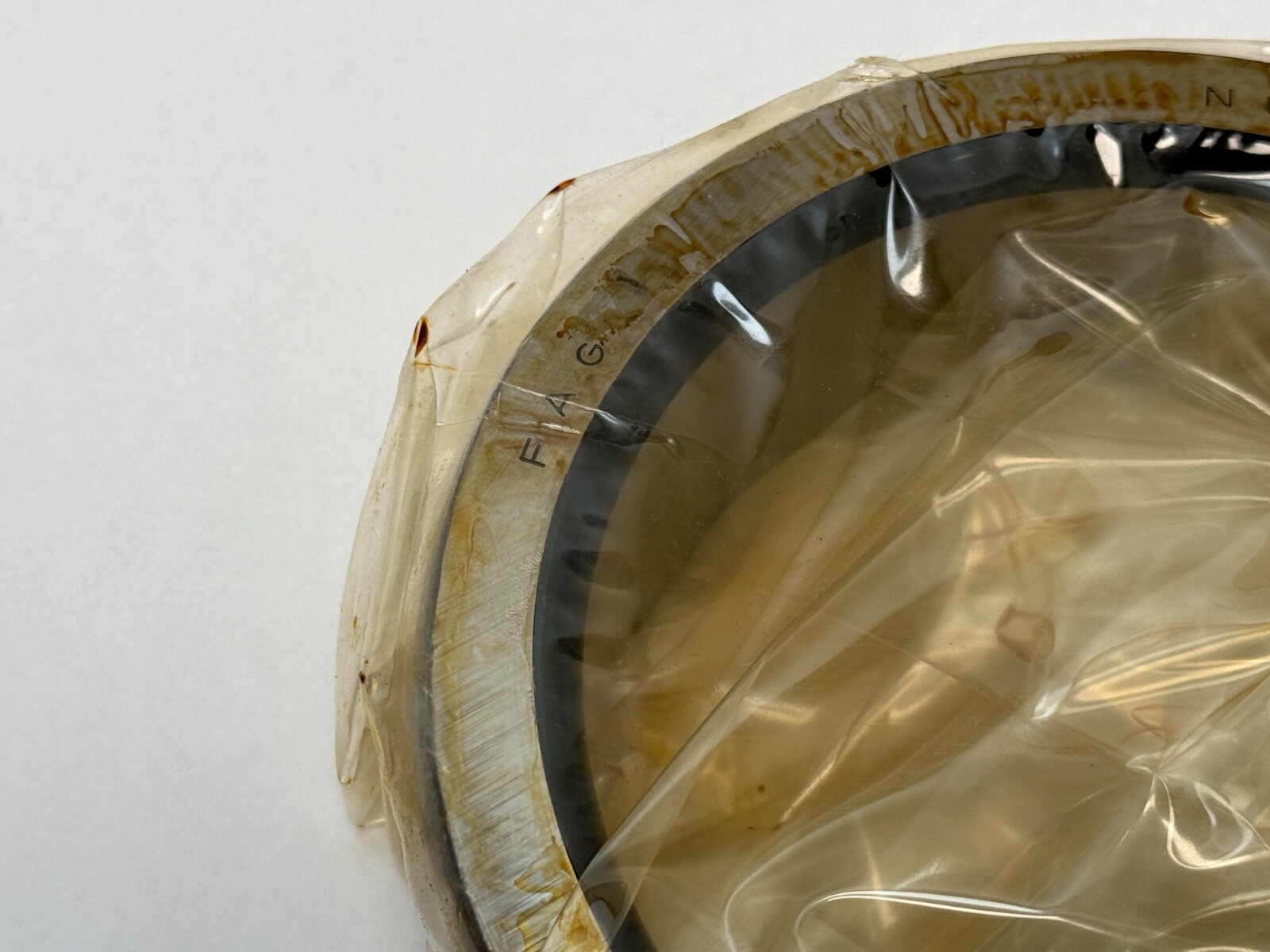

1 Pc. Complete bearing: ribbed outer ring, roller and cage assembly, and plain inner ring. Open both faces, without snap ring.

Fitting notes

The plain inner ring and the outer ring separate, so the inner ring can be heated and fitted to the shaft independently of the outer ring in the housing. Axial location of the shaft is provided by the second bearing in the arrangement.

Interchange guidance

SKF NU 324 ECM/P5 and NTN NU324E are same-spec equivalents at the same envelope and clearance. NJ324E and NUP324E are related sizes on the same envelope: NJ adds one inner-ring rib for axial location in one direction, NUP locates in both.
