Availability:
1 in stock
Single-row cylindrical roller bearing, 120 x 260 x 55 mm, straight bore, non-locating NU design, open, steel cage, P5 precision, CN clearance.
List Price
$79.02
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | NU324E.P5 |
| Model | NU 324 E P5 |
| Bearing Type | Cylindrical Roller Bearing, Open |
| ID | 120 mm |
| OD | 260 mm |
| Width | 55 mm |
| Material | Bearing Steel |
|---|---|
| Base Number | NU324E |
| Industry Terms | cylindrical roller bearing; NU bearing; floating position bearing; non-locating roller bearing; precision roller bearing |
| Common Misspellings | NU324 EP5; NU 324EP5; FAG NU324-E-P5; NU324ES; NU324E P5 |
| Application Types | Gearboxes; electric motors; pumps; rolling mill and heavy machinery shafts requiring a floating bearing position |
| Bore Shaft Size | 120 mm |
| Mpn Variants | NU324EP5; NU-324-E-P5; NU 324 E P5; NU324E.P5; NU324E; NU324 |
| Rolling Elements | Cylindrical Rollers |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Part Number | NU324E.P5 |
| Cross Reference 1 | SKF NU 324 ECM/P5 |
|---|---|
| Cross Reference 2 | NTN NU324E - standard tolerance, not P5 |

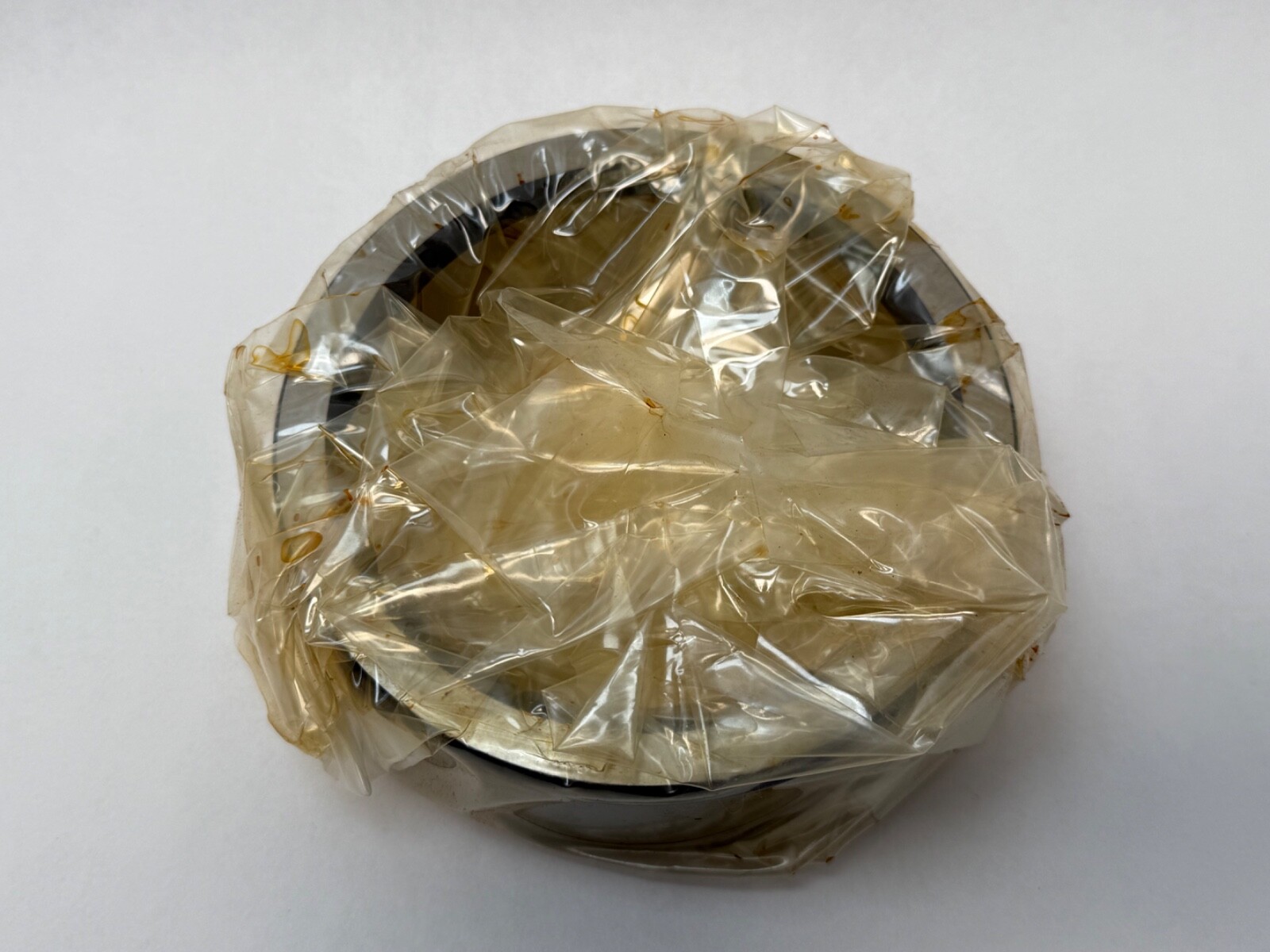

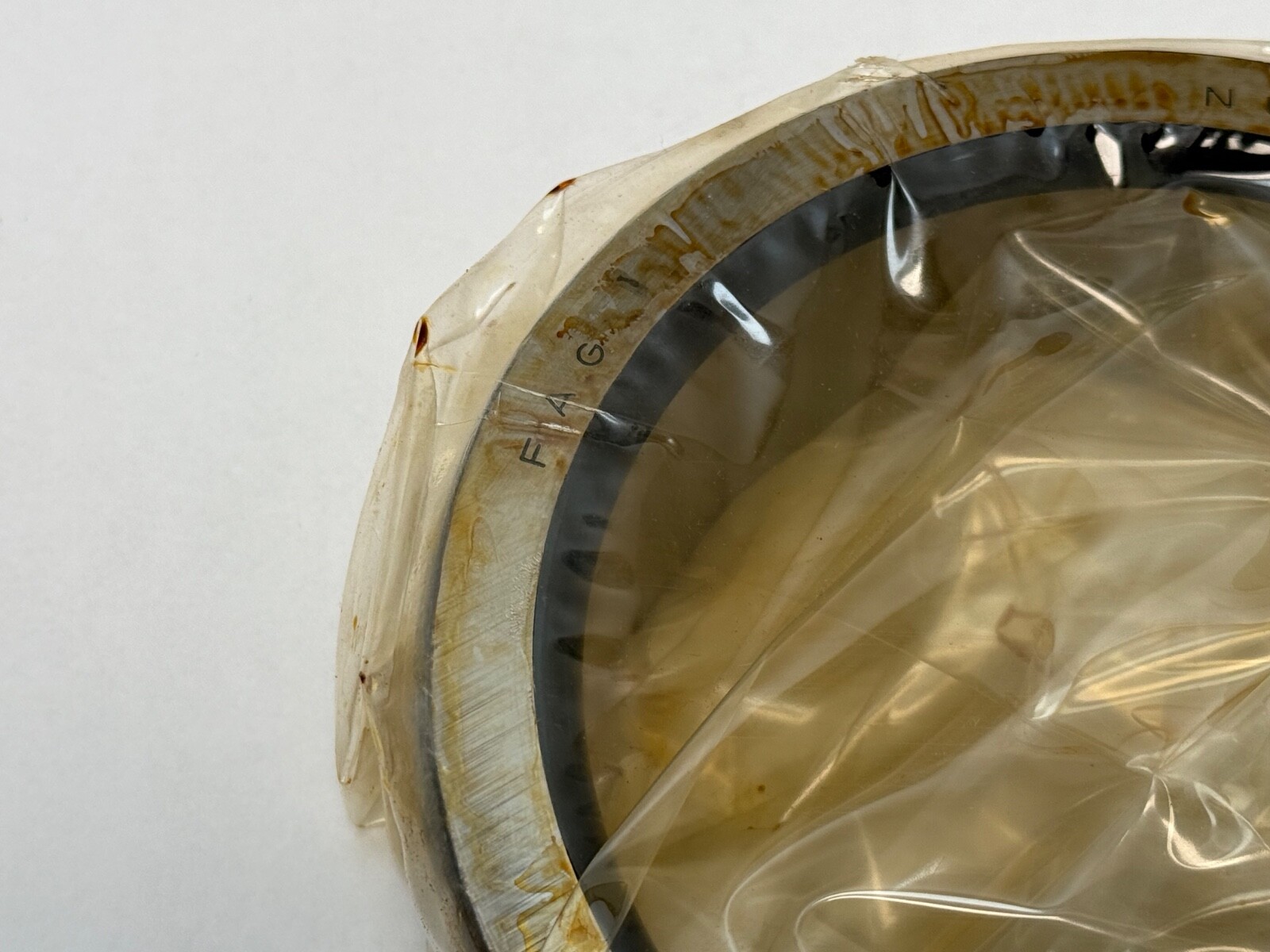

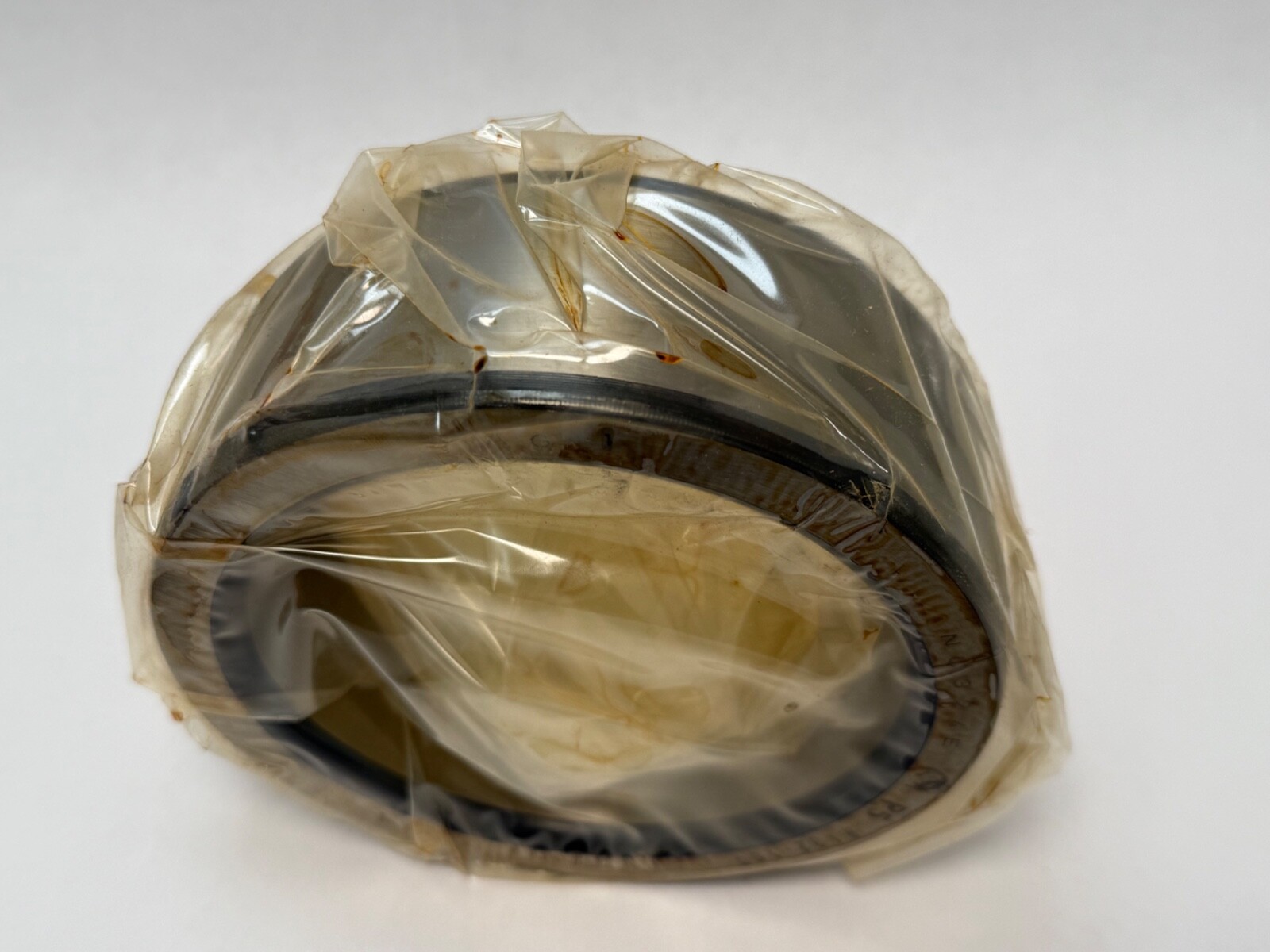

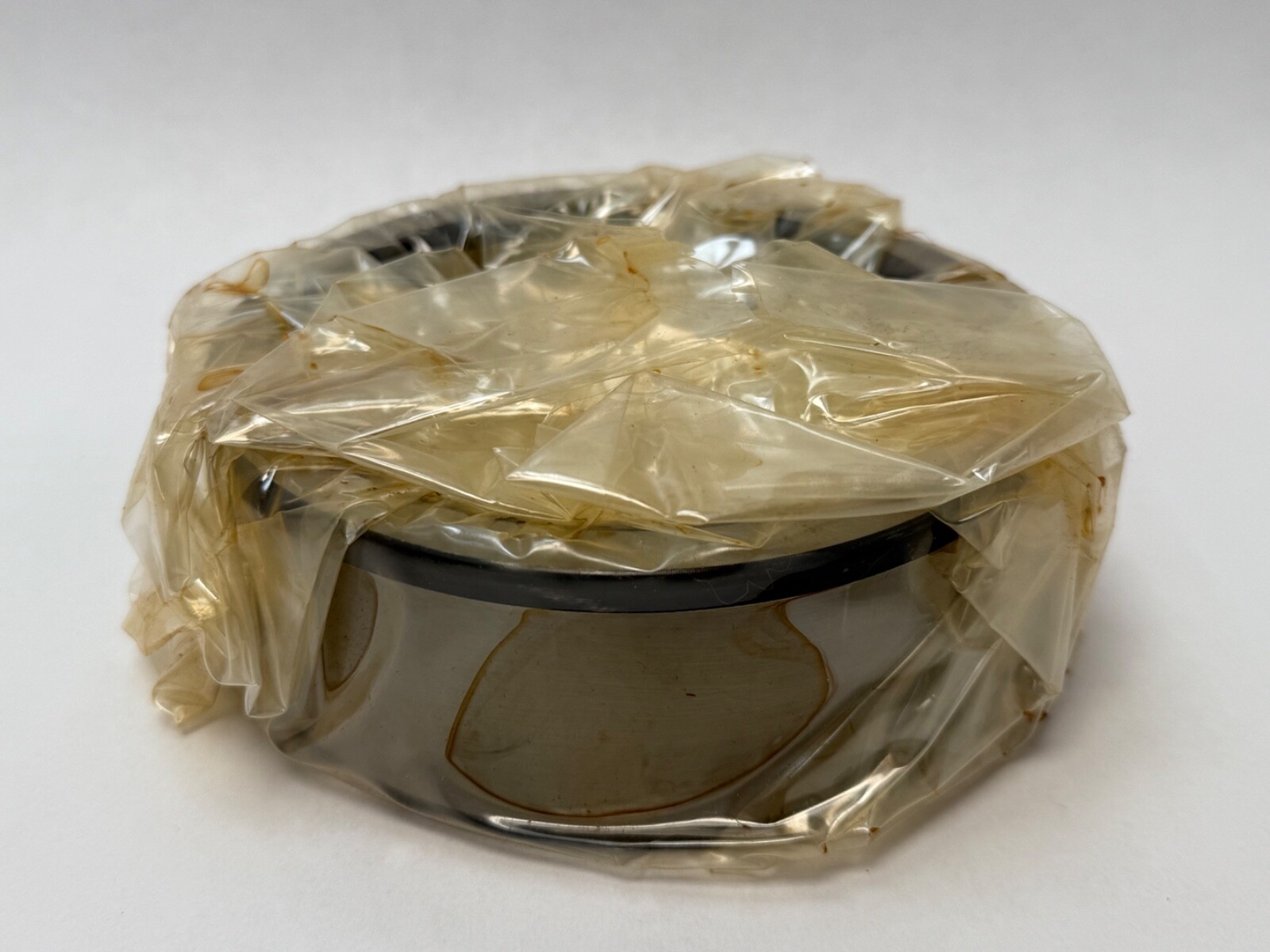

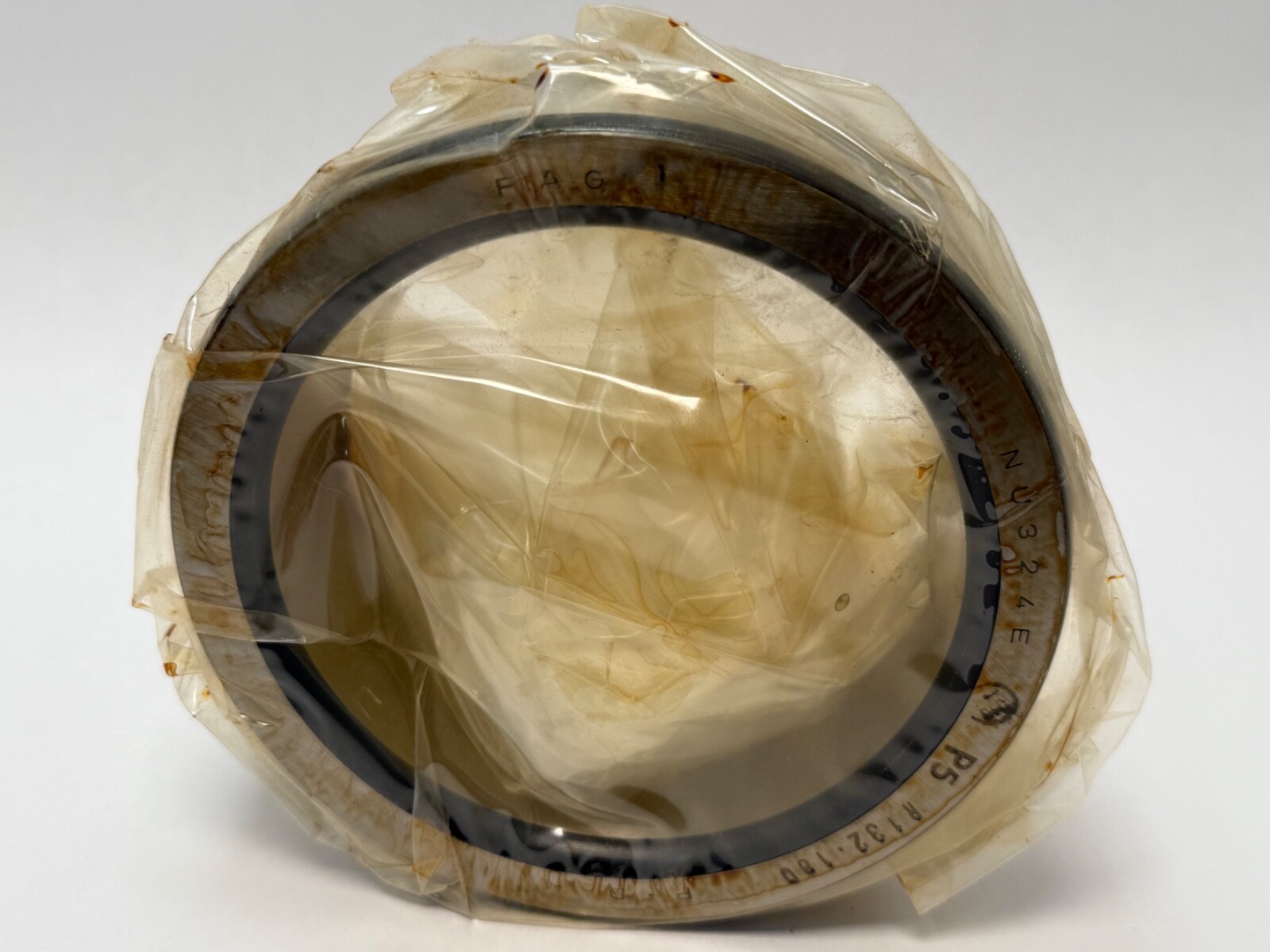

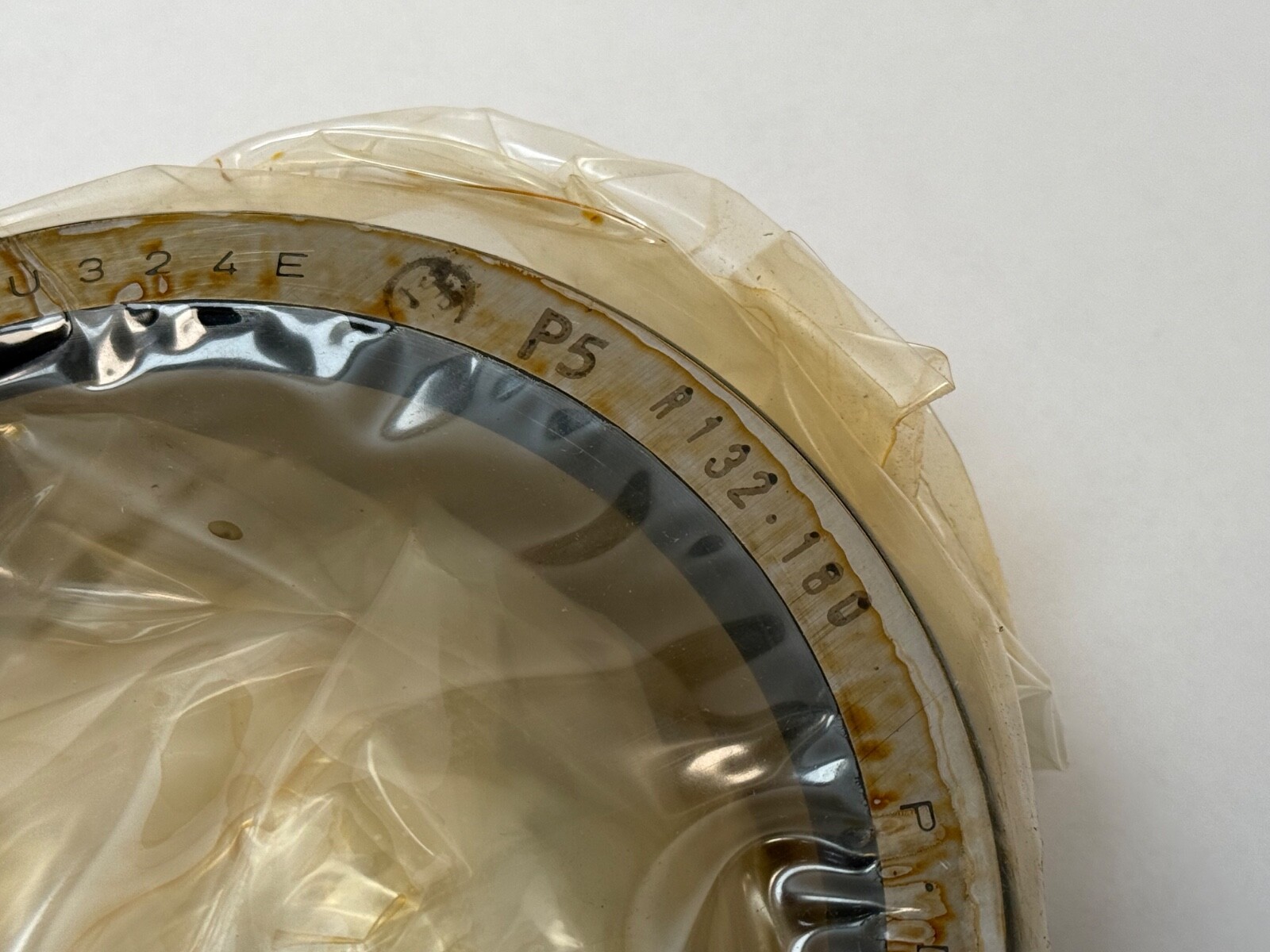

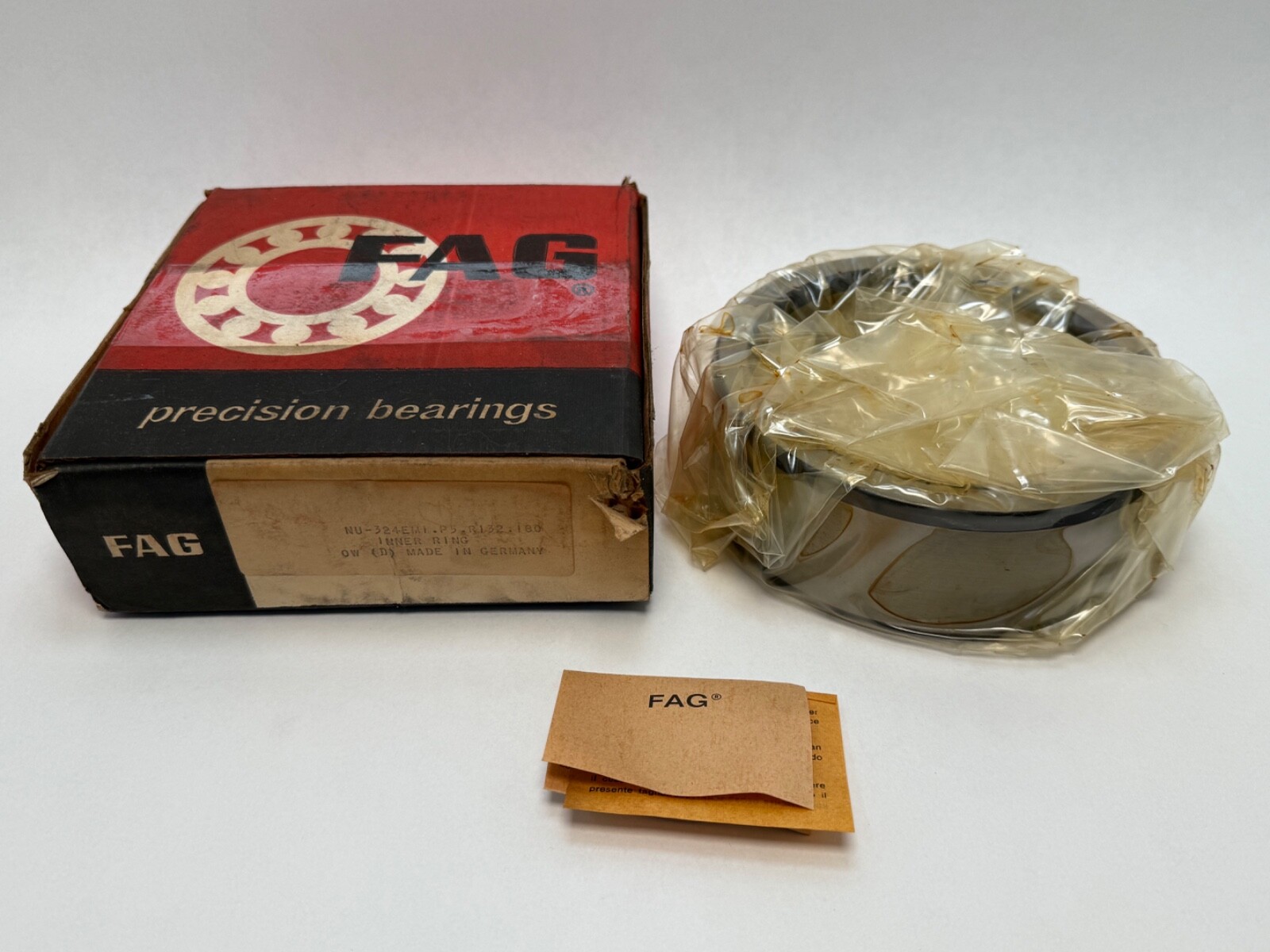

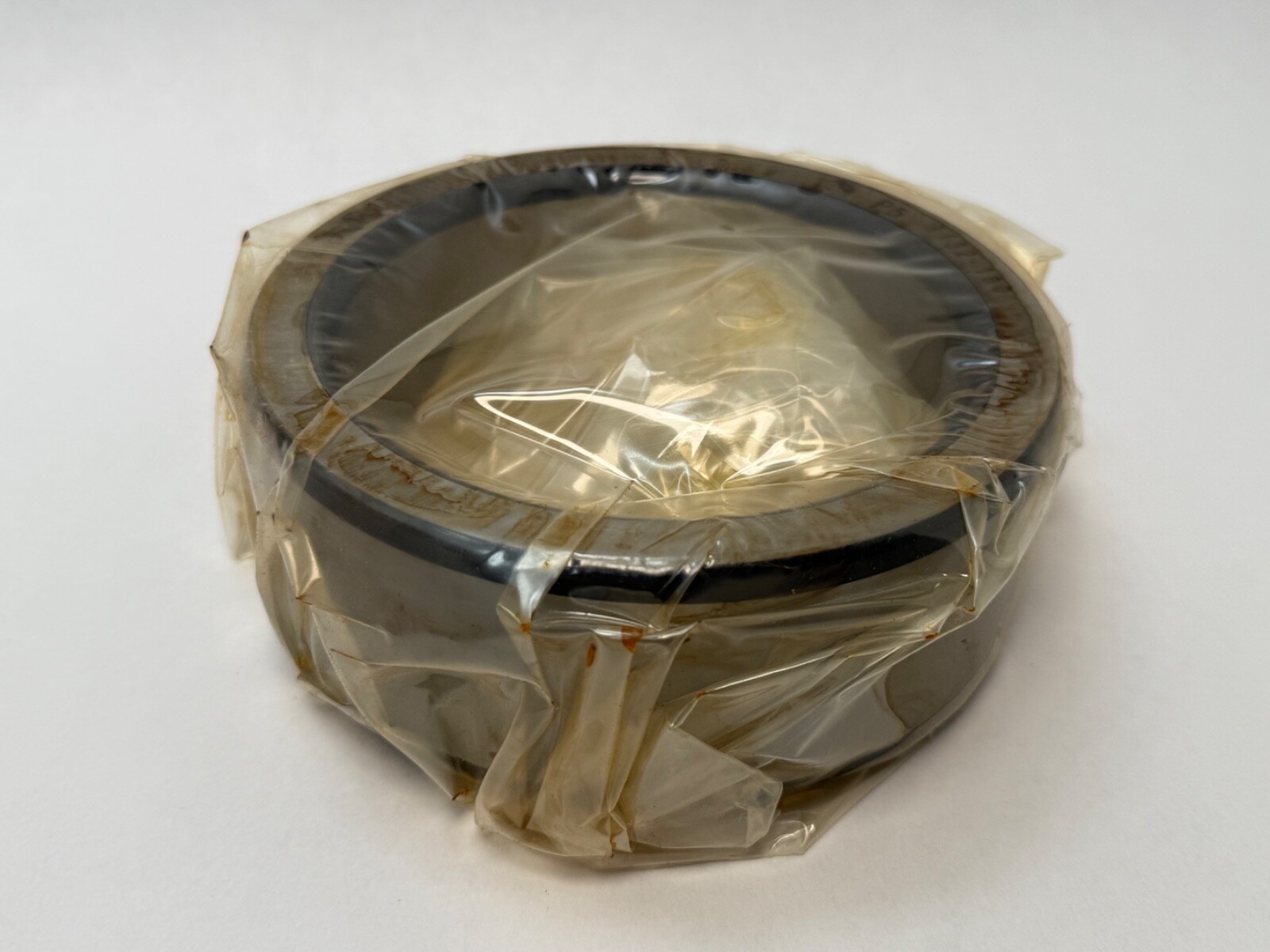

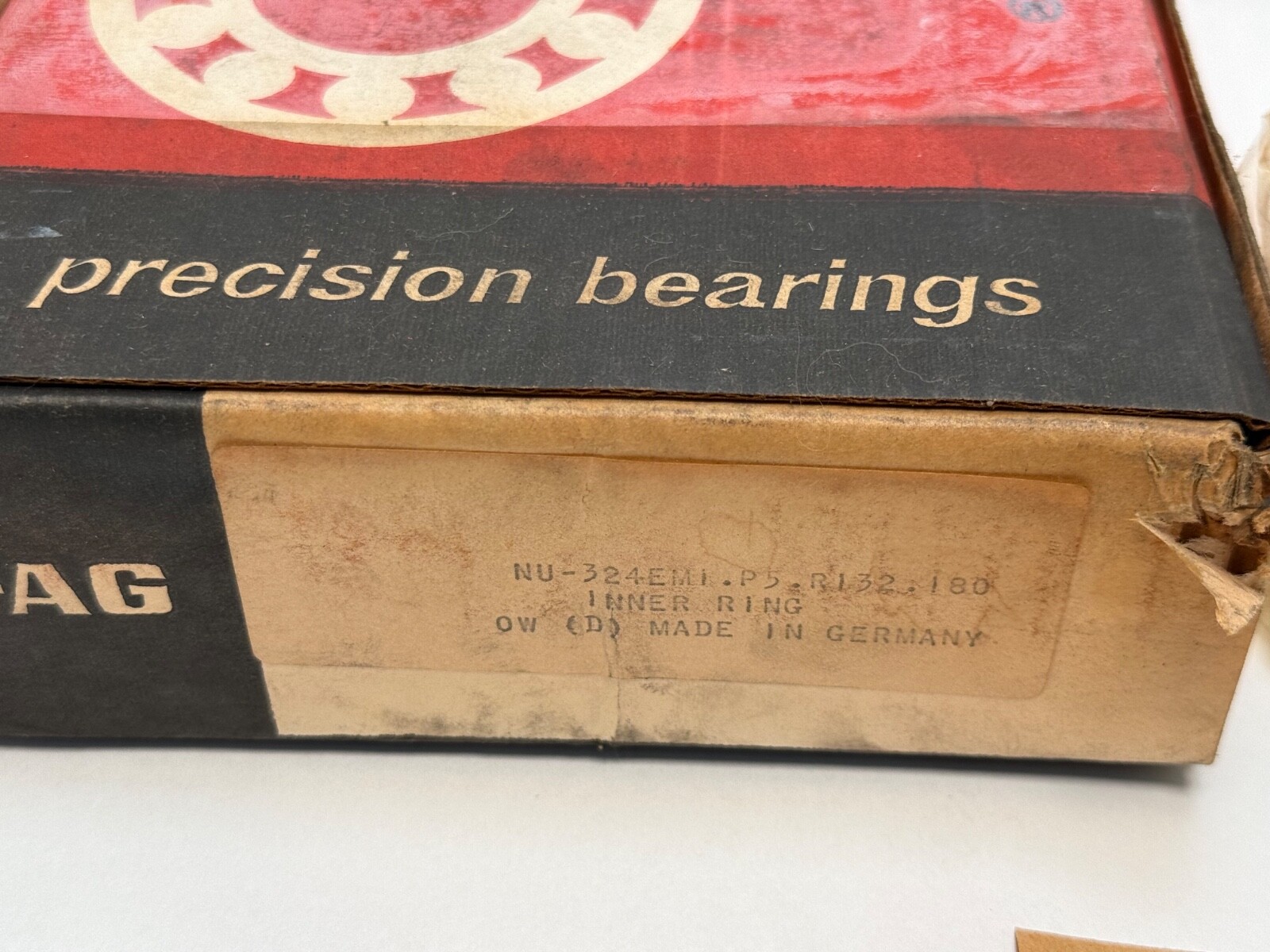

A FAG NU324E.P5 single-row cylindrical roller bearing, 120 mm bore, 260 mm outside diameter, 55 mm width. Bore Diameter: 120 mm. Outside Diameter: 260 mm. Overall Width: 55 mm. Bore Type: Straight. Closure Type: Open. Cage: steel. Internal Design: reinforced E. Running Accuracy: P5. Internal Clearance: CN. Rolling Elements: cylindrical rollers. Number Of Rows: 1. Unit Quantity: 1 Pc. Country of Origin: Germany.

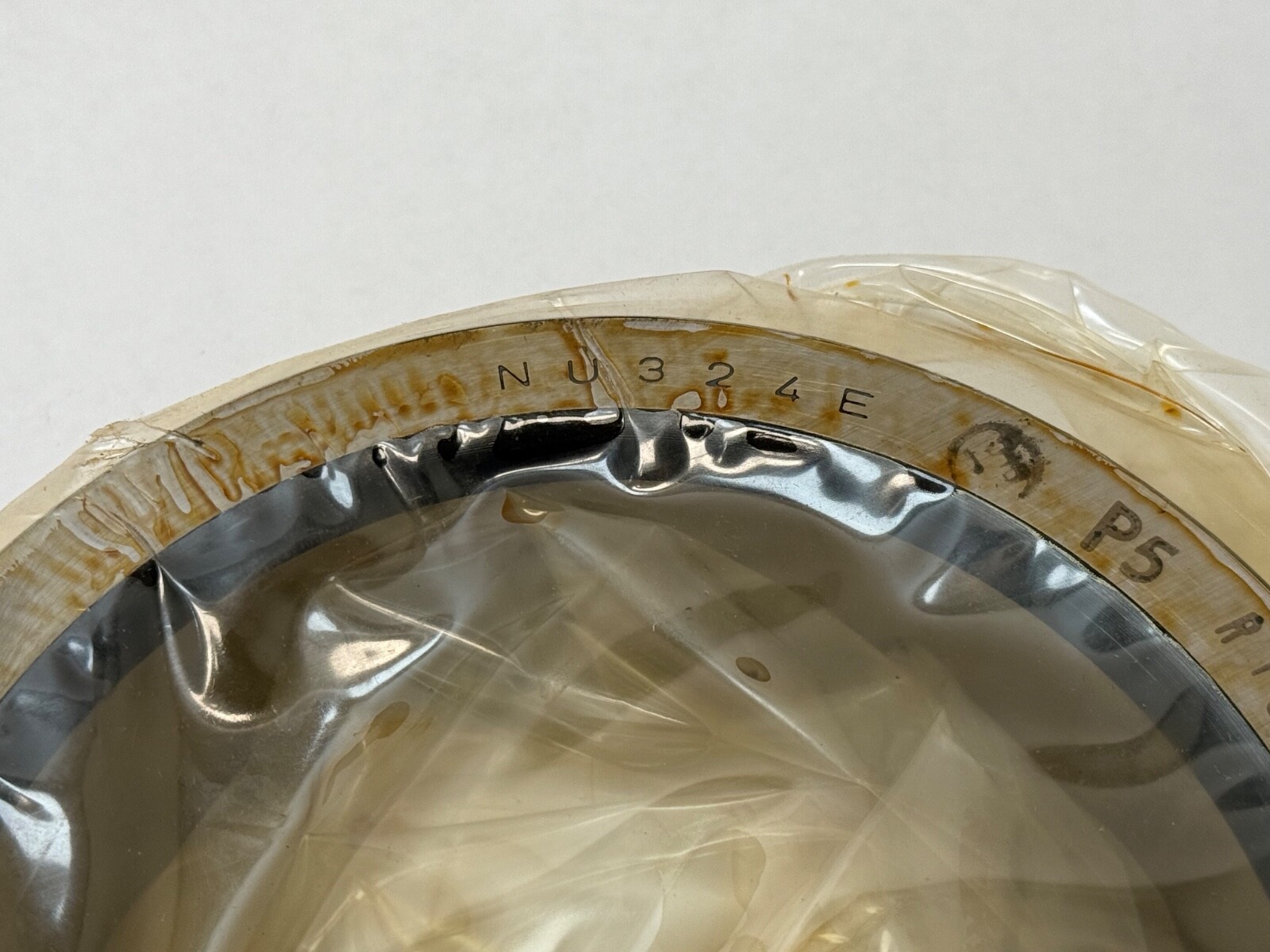

NU — non-locating cylindrical roller design: the inner ring is a plain cylinder with no ribs and the guide ribs sit on the outer ring.
3 — 23 dimension series.
24 — bore code giving the 120 mm bore.
E — the reinforced FAG internal design, with a larger roller complement and a higher dynamic rating than the base design.
P5 — ISO class 5 running accuracy for radial and axial runout.
No clearance suffix — internal clearance is CN.
Series: FAG NU3, 23 dimension series. Material: bearing steel. Snap Ring: without. Design: non-locating NU, carries radial load and allows axial shaft movement relative to the housing. Running Accuracy: P5, radial and axial runout.

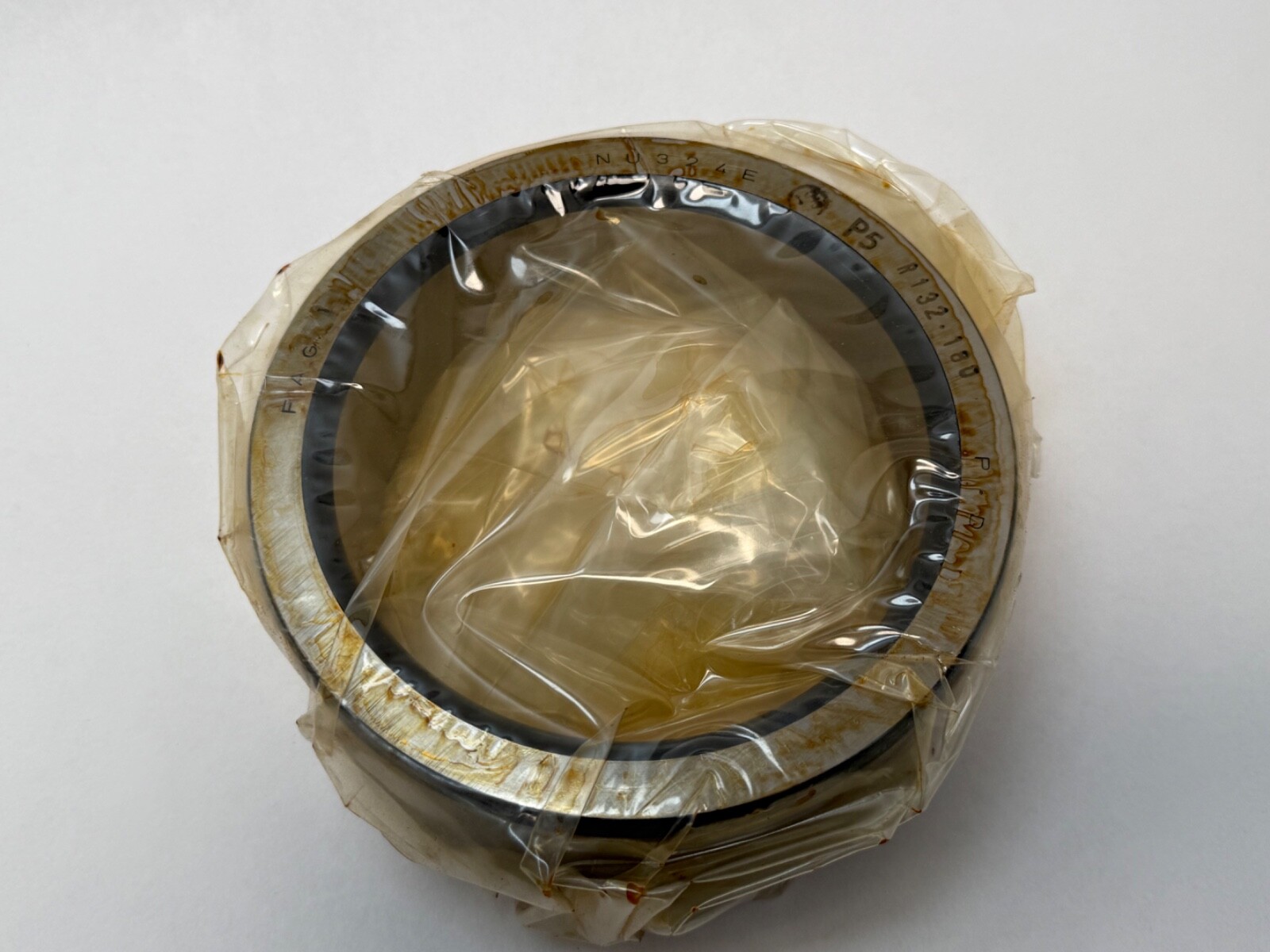

Bore Diameter: 120 mm. Outside Diameter: 260 mm. Overall Width: 55 mm. Complete bearing: ribbed outer ring, roller and cage assembly, and plain inner ring. The inner ring and the outer ring separate.
Cross-references: SKF NU 324 ECM/P5 and NTN NU324E (standard tolerance, not P5). NJ324E and NUP324E are related sizes on the same envelope: NJ adds one inner-ring rib for axial location in one direction, NUP locates in both. Searchable variants: NU324EP5, NU-324-E-P5, NU 324 E P5, NU324E.P5, NU324E, NU324.
120 mm bore, 260 mm outside diameter, 55 mm width.
ISO class 5 running accuracy for radial and axial runout.
Yes. It includes the ribbed outer ring with roller and cage assembly, and the plain inner ring.
