Availability:
1 in stock
Double-row cylindrical roller bearing, 65 mm bore x 100 mm OD x 26 mm wide, 1:12 tapered bore, machined brass cage. Consolidated (FAG NN3013-AS-K-M-SP).
List Price
$152.20
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | NN3013KM |
| Model | NN 3013 AS K M SP |
| Bearing Type | Cylindrical Roller Bearing, Open |
| ID | 65 mm |
| OD | 100 mm |
| Width | 26 mm |
| Material | Bearing Steel |
|---|---|
| Series | NN3000 |
| Overall Width | 26 mm |
| Mpn Variants | NN3013KM, NN-3013-K-M, NN 3013 AS K M SP, NN3013-AS-K-M-SP, NN3013K, RKW NN3013KM, Consolidated NN3013KM |
| Precision Class | SP (Schaeffler restricted tolerances) |
| Rolling Elements | Cylindrical Roller |
| Cage Material | Machined brass |
| Number Of Rows | 2 |
| Bore Type | Tapered 1:12 |
| Snap Ring Included | No |
| Lubricant | Grease or oil |
| Relubrication Feature | Lubrication groove and holes in outer ring (AS) |
| Harmonization Code | 8482.50.00 |
| Closure Type | Open |
| Cross Reference 1 | NSK NN3013MBKR |
|---|---|
| Cross Reference 2 | SKF NN 3013 KTN/SP (polyamide cage) |
| Cross Reference 3 | FAG NN3013-D-K-TVP-SP-XL (polyamide cage) |

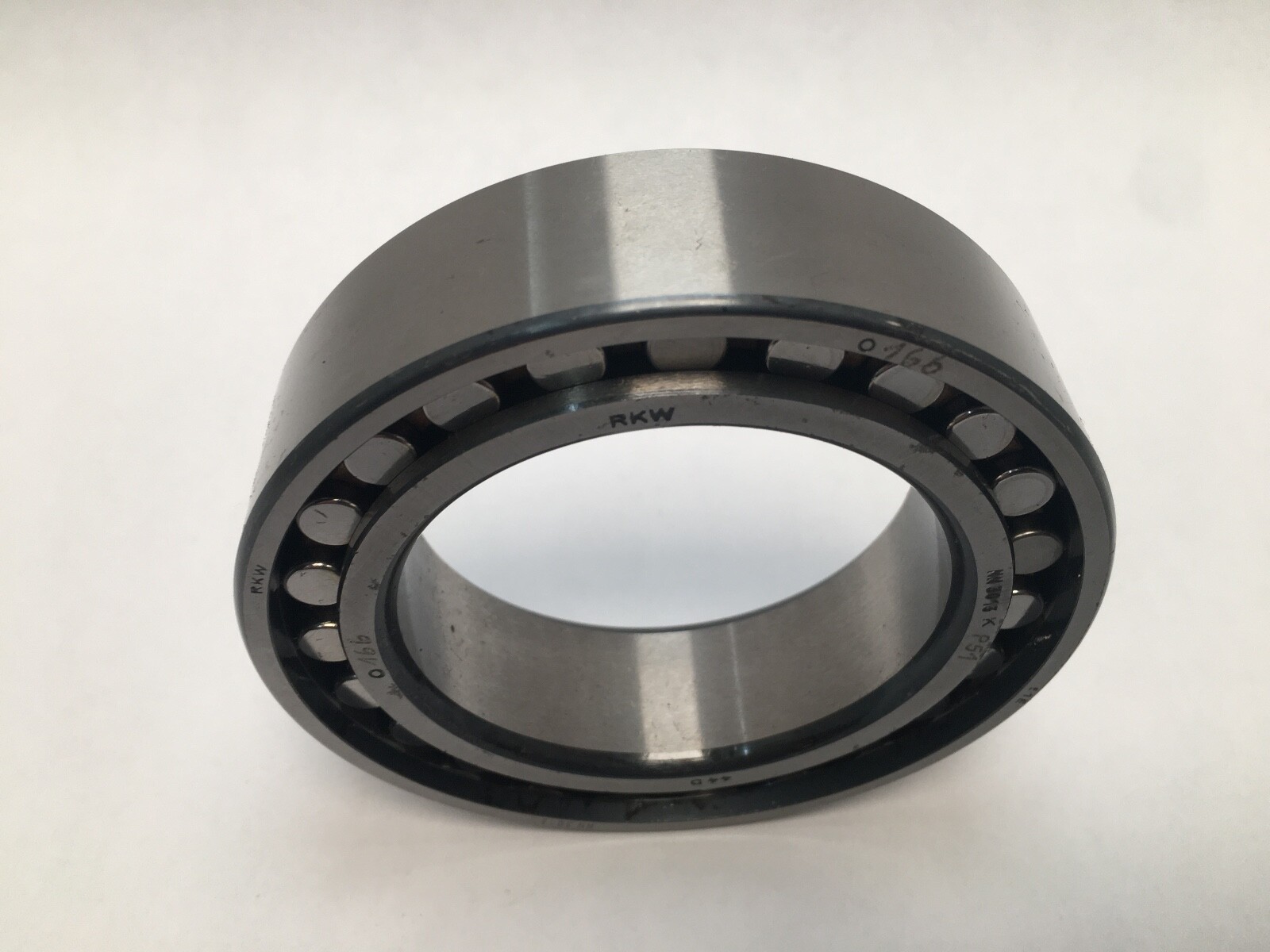

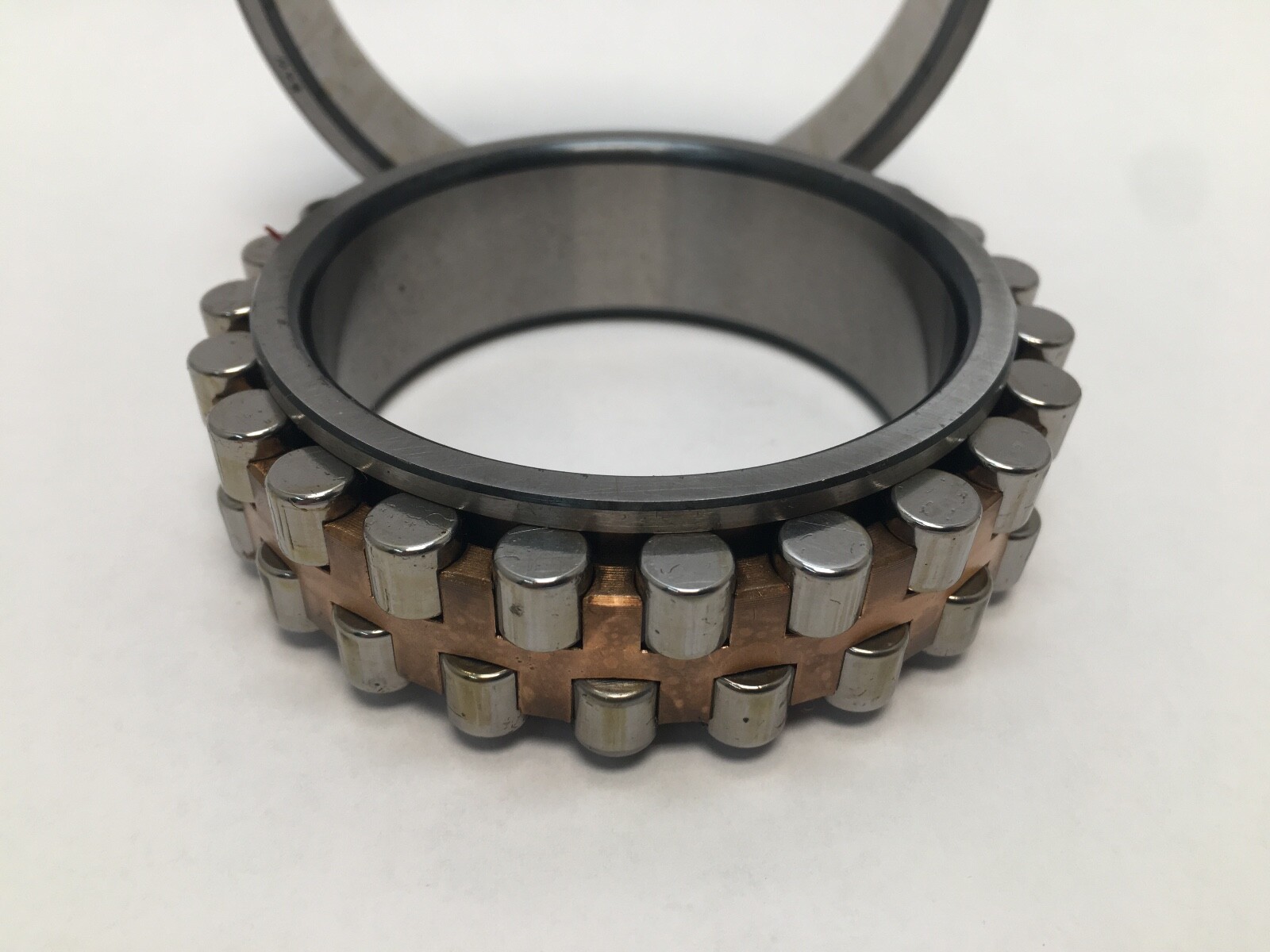

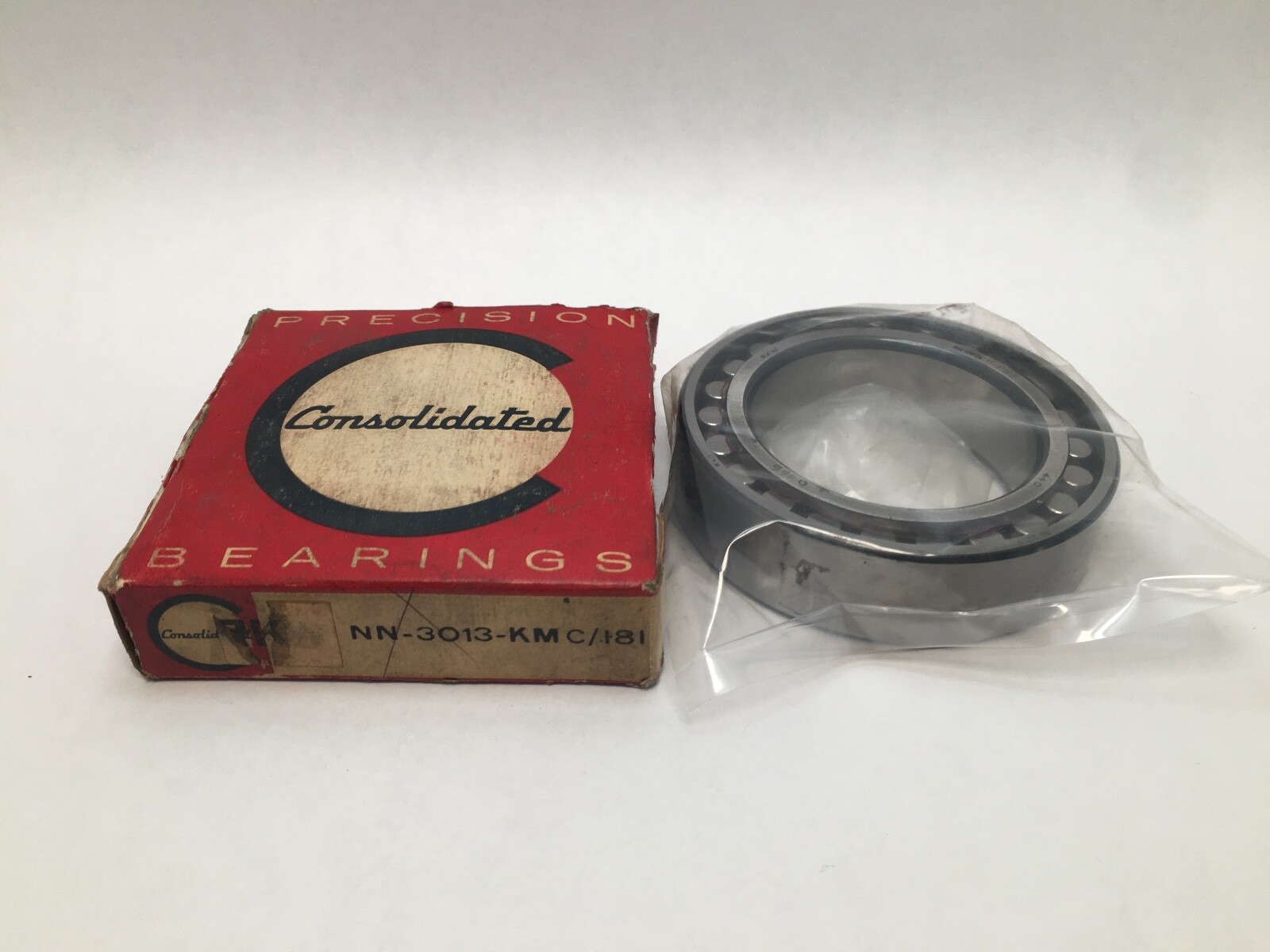

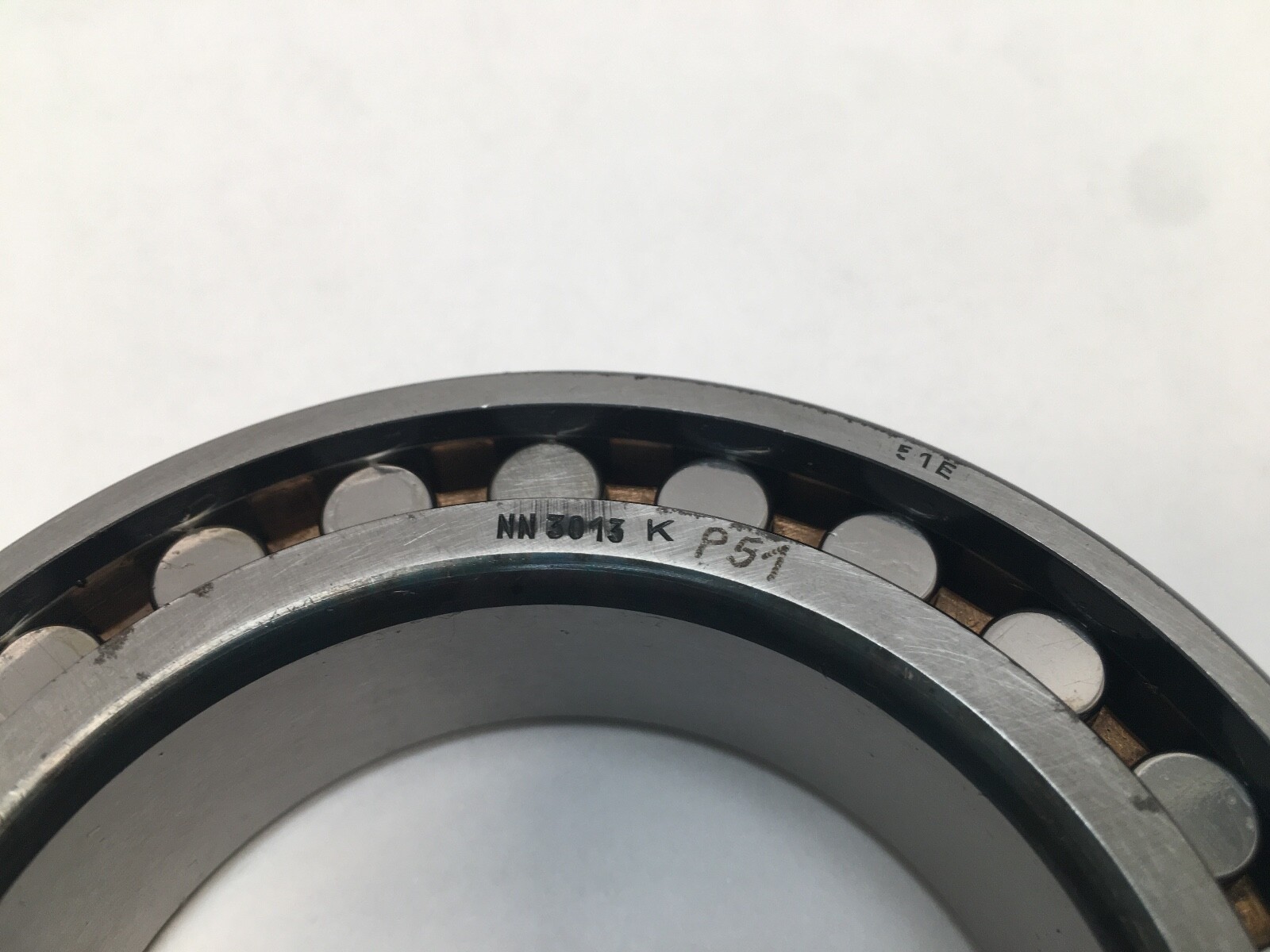

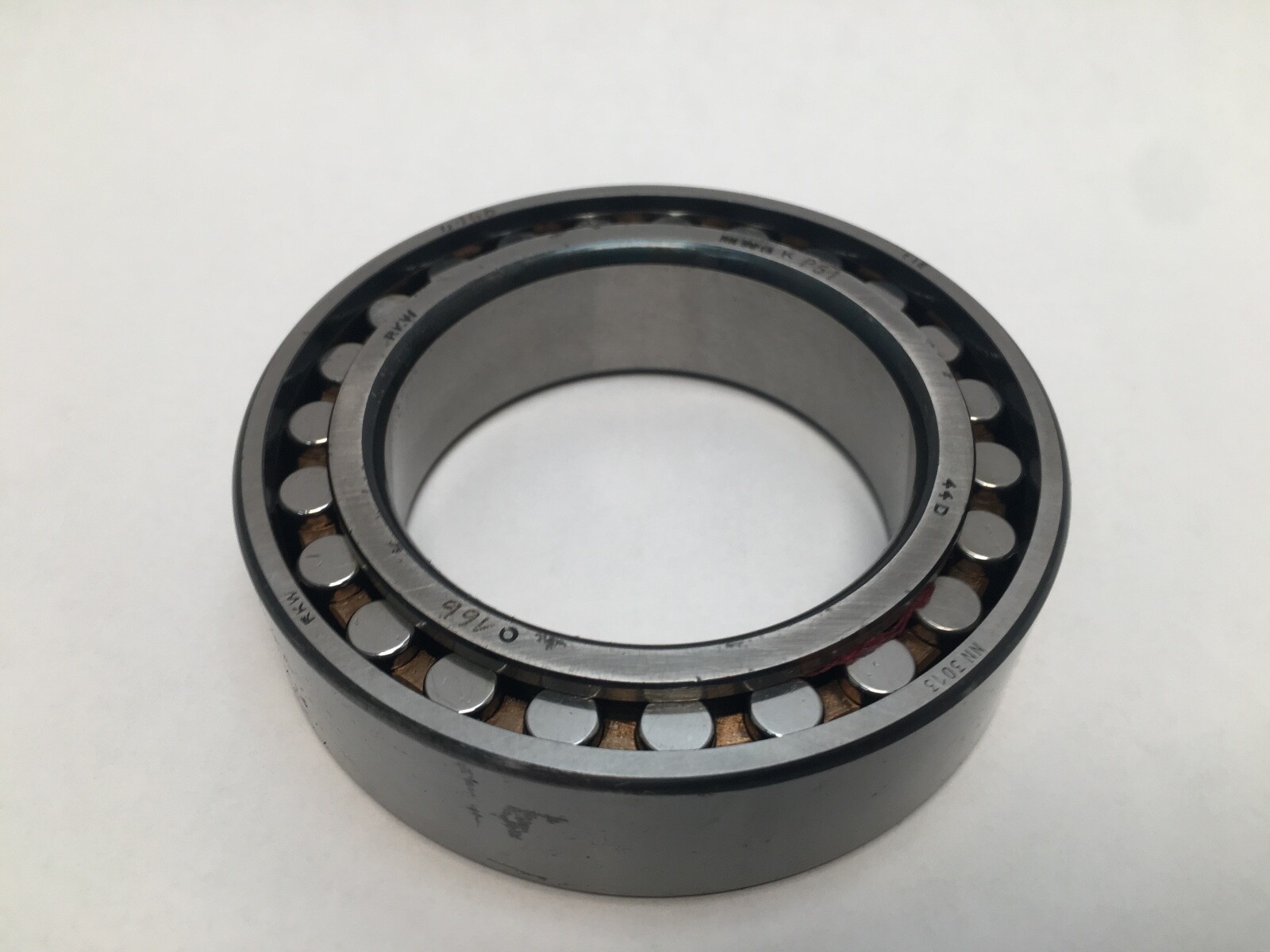

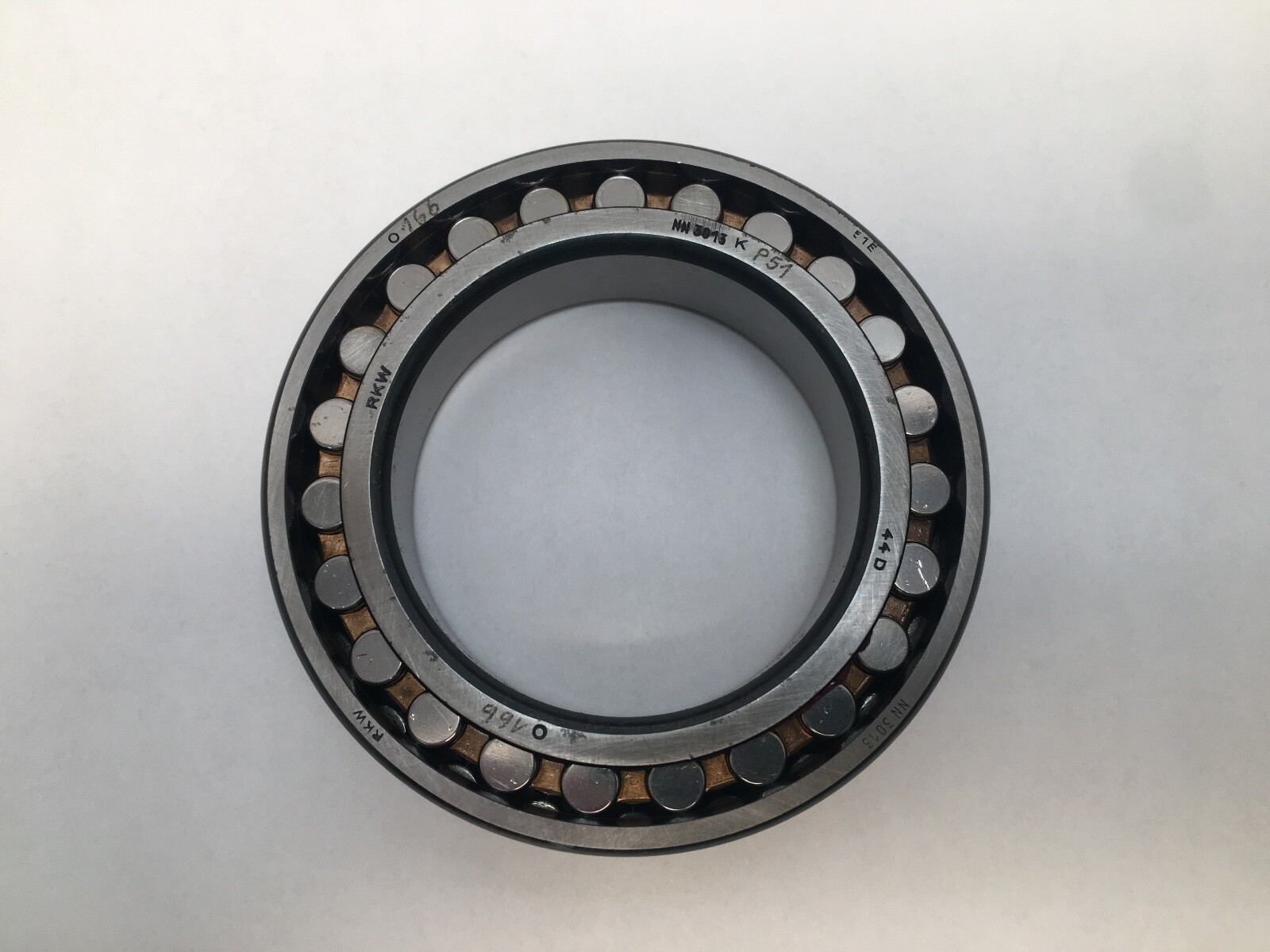

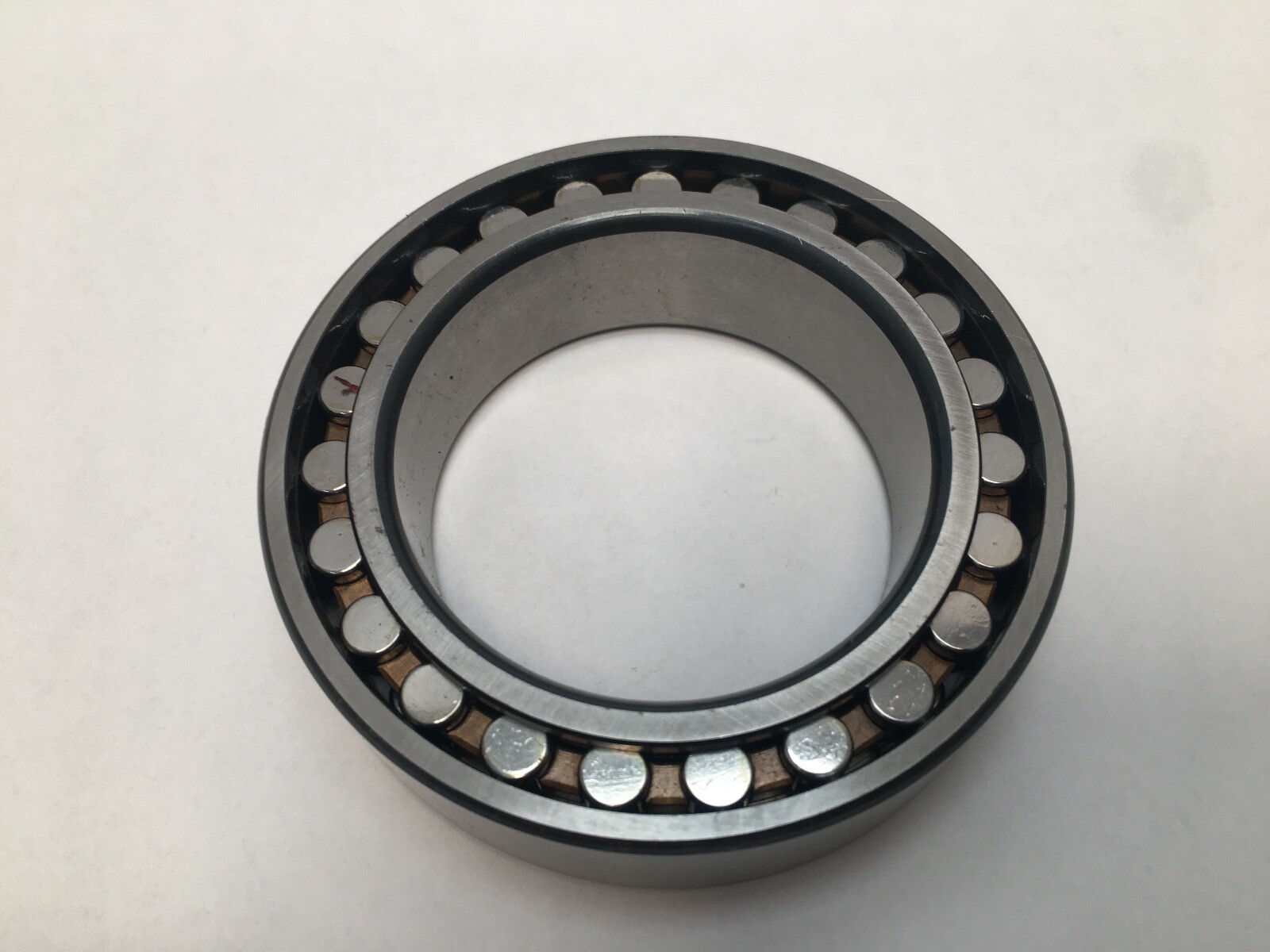

Consolidated NN3013KM (FAG designation NN3013-AS-K-M-SP), a double-row cylindrical roller bearing for machine tool spindles. Complete bearing: inner ring with roller and cage assembly, plus outer ring. Unit Quantity: 1 Pc. Carton also marked RKW.

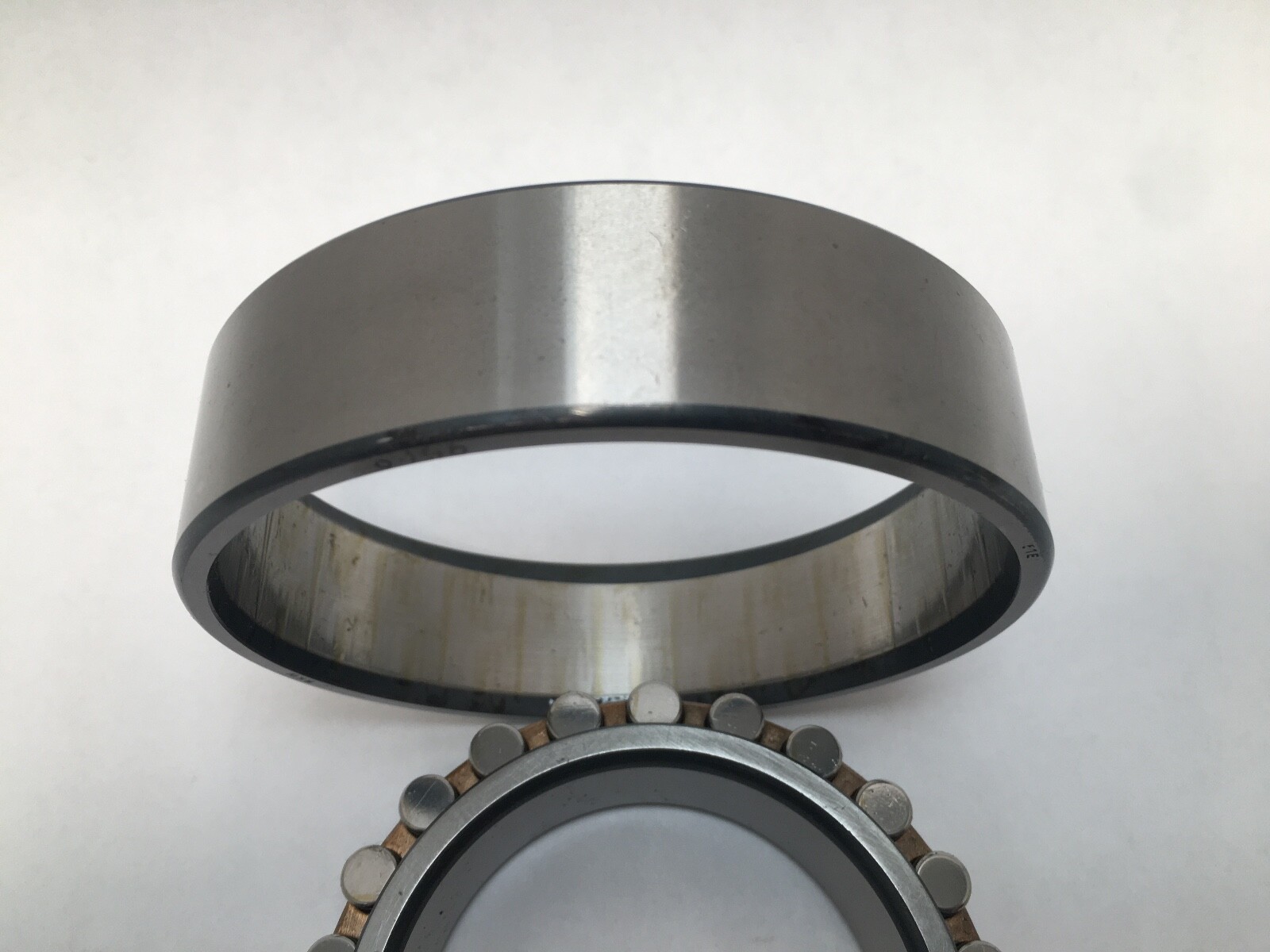

NN — double-row cylindrical roller bearing, two ribs on the inner ring, rib-less separable outer ring.
30 — dimension series 30.
13 — bore code, 13 x 5 = 65 mm.
AS — lubrication groove and holes in the outer ring.
K — tapered bore, taper 1:12.
M — machined brass cage.
SP — Schaeffler restricted tolerance class for super-precision cylindrical roller bearings.
Bore Diameter: 65 mm. Outside Diameter: 100 mm. Width: 26 mm. Bore Type: Tapered 1:12. Cage Material: Machined brass. Precision Class: SP (Schaeffler restricted tolerances). Number Of Rows: 2. Rolling Elements: Cylindrical Roller. Closure Type: Open. Lubricant: grease or oil. Relubrication Feature: lubrication groove and holes in outer ring (AS). Series: NN3000.
Minimum Chamfer Dimension: 1.1 mm. Maximum Recess Radius: 1 mm. The separable outer ring makes it a non-locating bearing.
Same 65 x 100 x 26 mm envelope with 1:12 tapered bore: NSK NN3013MBKR (brass cage), SKF NN 3013 KTN/SP (polyamide cage), FAG NN3013-D-K-TVP-SP-XL (current FAG, polyamide cage).
Bore 65 mm, outside diameter 100 mm, width 26 mm.
The K suffix denotes a tapered bore, taper 1:12.
It has a machined brass cage (M) and a lubrication groove with holes in the outer ring (AS), lubricated with grease or oil.
