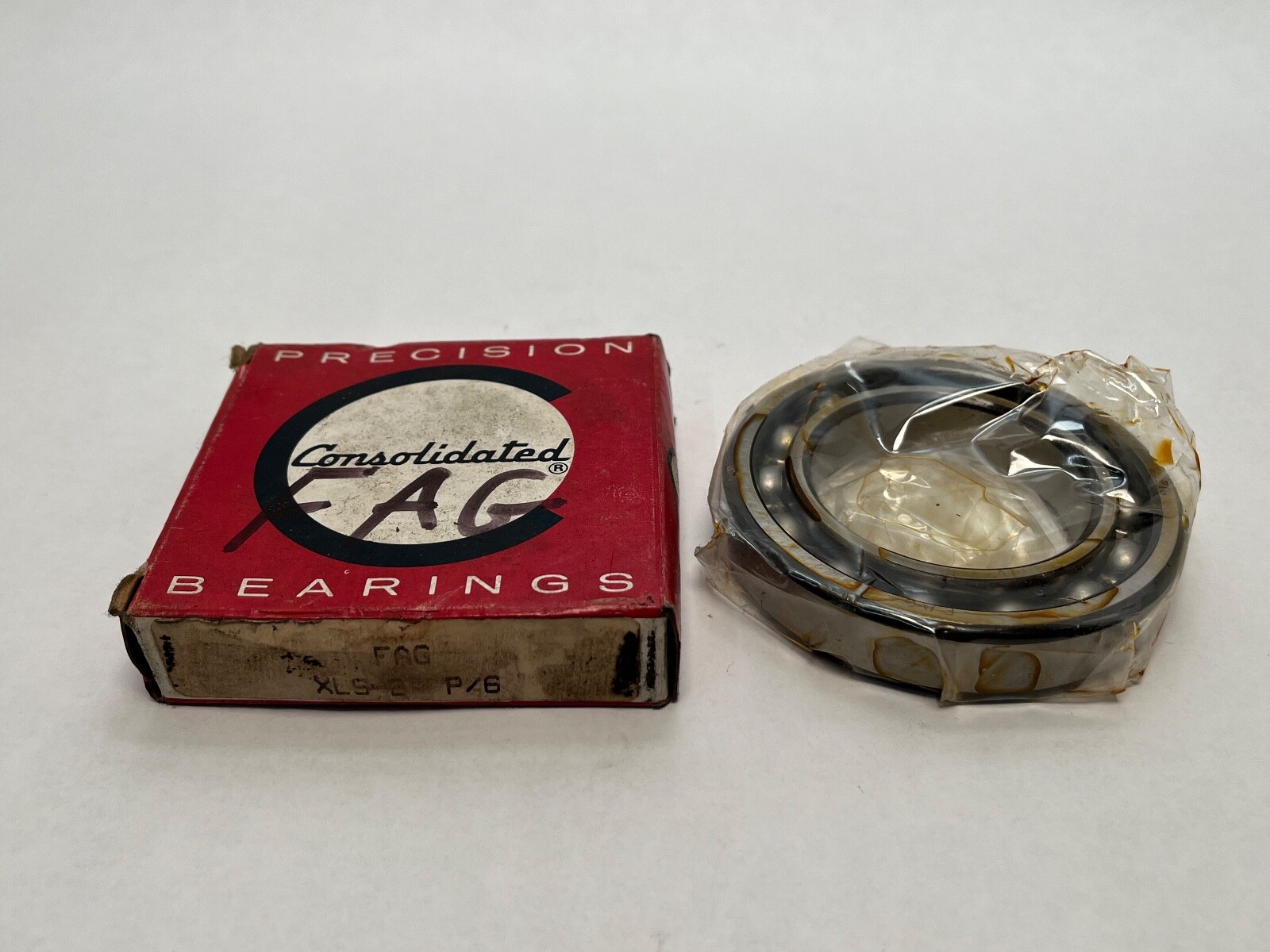

FAGXLS2P6Single Row Angular Contact Ball Bearing – Straight Bore, 2.000 in ID, 3.3125 in OD, 0.625 in Width, Open, 15° Contact Angle, P6 (ABEC 3)

Product Description

What this part is

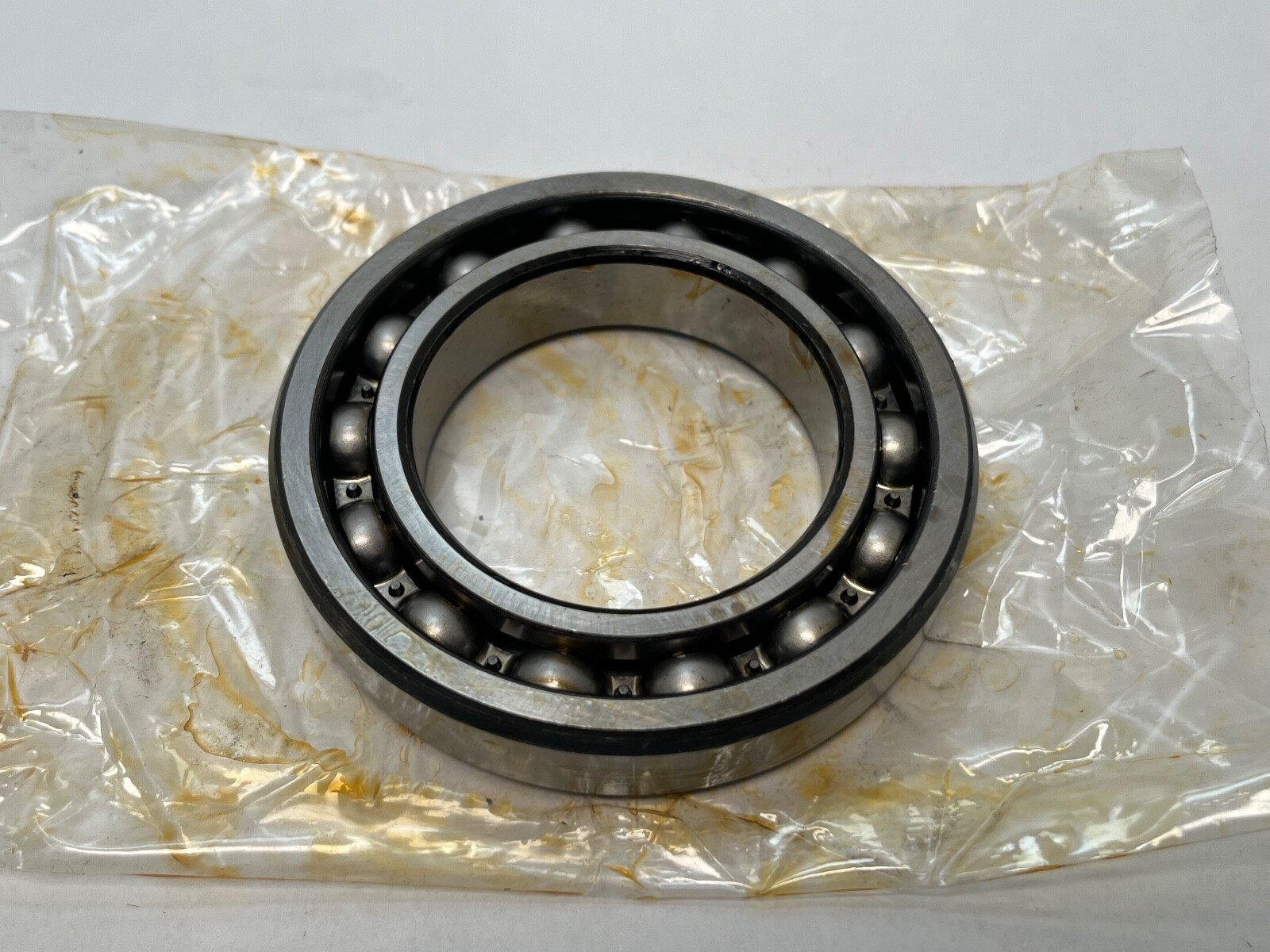

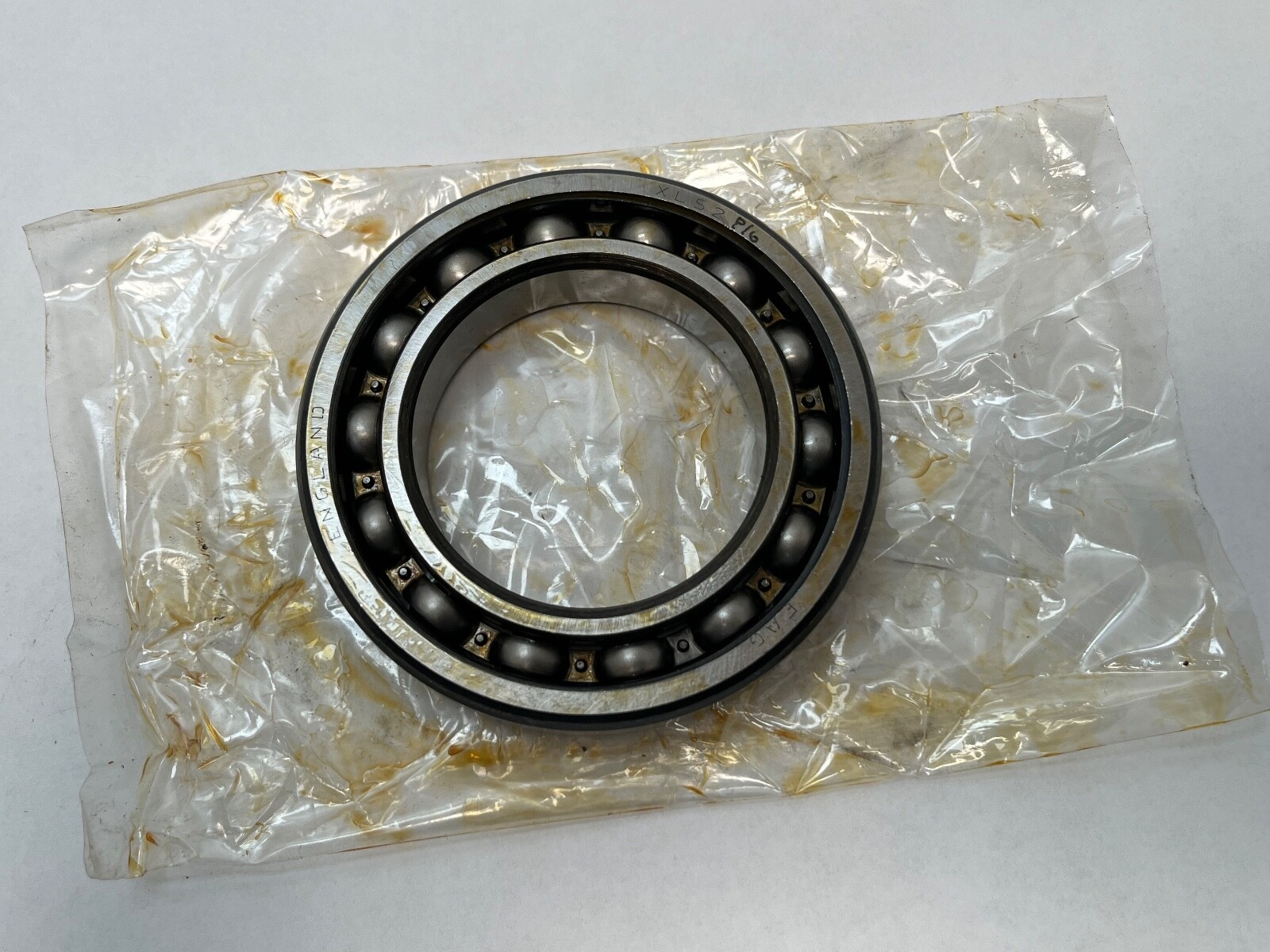

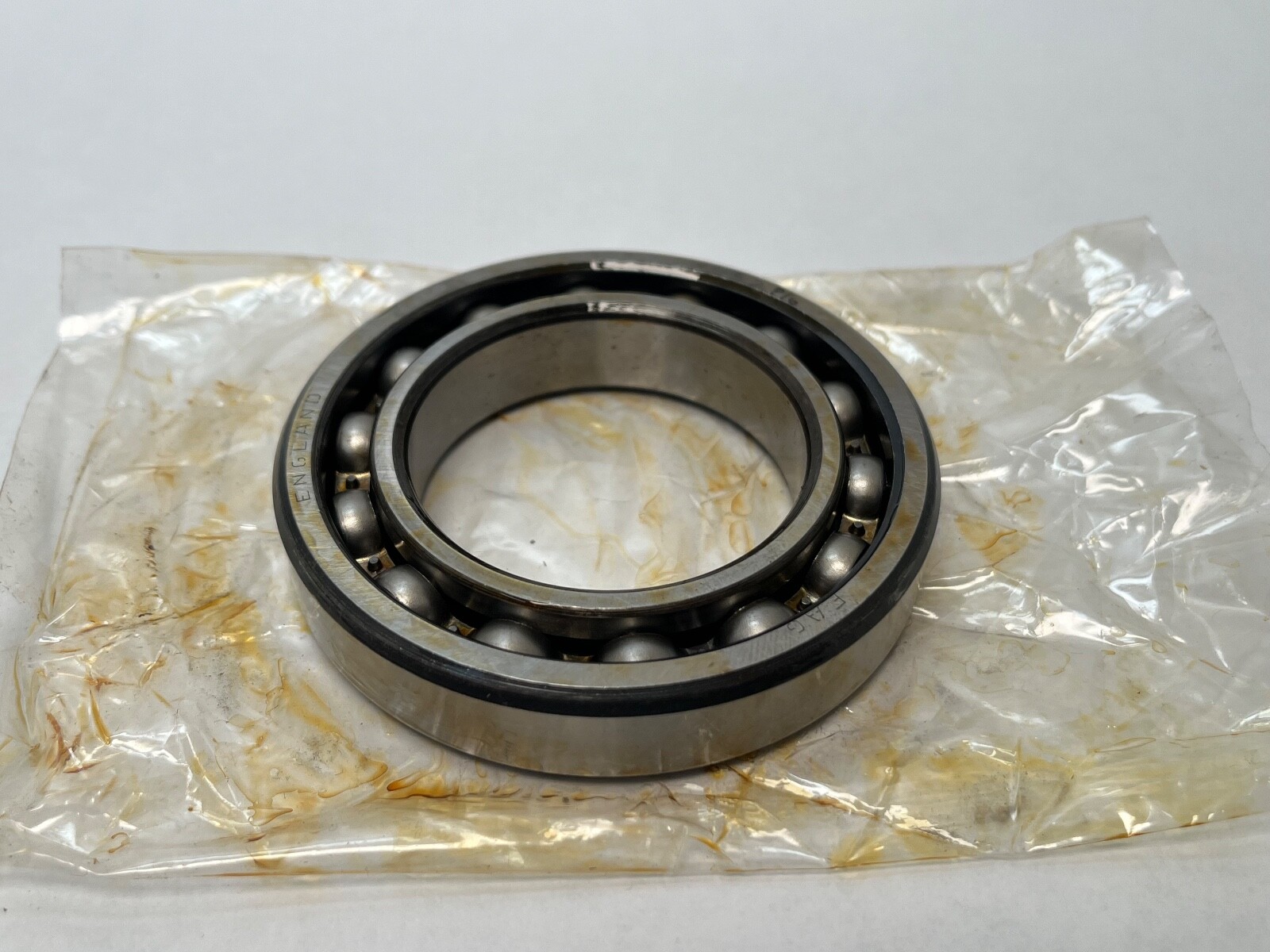

XLS-2-P6 single-row angular contact ball bearing, XLS extra-light inch series. Bore: 2.000 in. Outside Diameter: 3.3125 in (3-5/16 in). Overall Width: 0.625 in (5/8 in). Contact Angle: 15°. Design Units: Inch. Bearing Type: Single-row angular contact ball bearing. Number Of Rows: 1. Rolling Elements: Balls. Bore Type: Straight. Closure Type: Open. Material: Bearing steel.

Decoding the designation

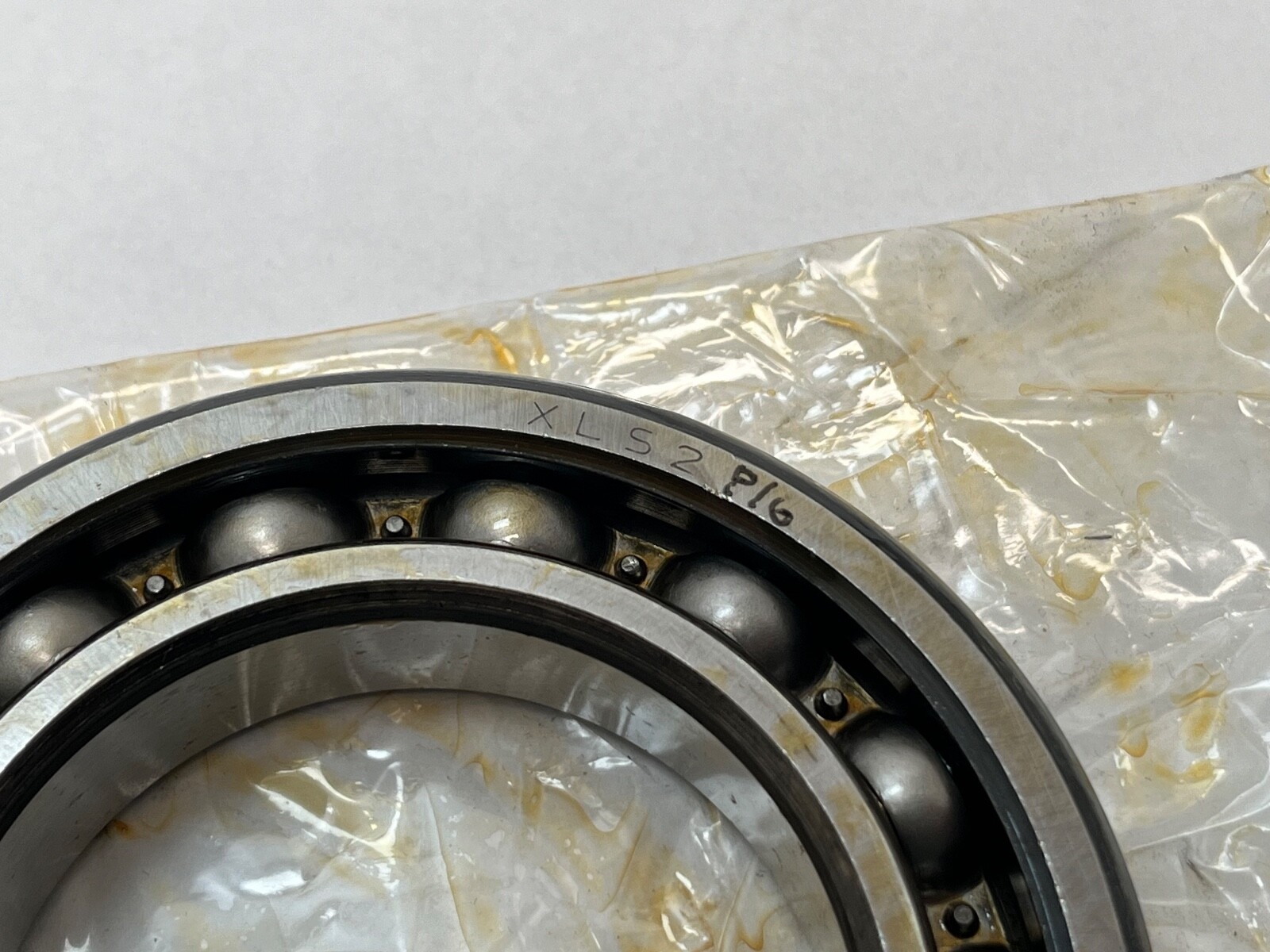

Precision Class: P6, equivalent to ABEC 3 — a tighter tolerance than standard, giving closer shaft location and lower running vibration. Internal Clearance: CN, normal. Cage Material: Pressed steel. Cage Type: Pressed. Searchable variants of the number: XLS2P6, XLS-2-P6, XLS 2 P6, XLS2, XLS-2.

What these specs mean in practice

Dynamic Load Rating: 35.5 kN. Static Load Rating: 23.2 kN. Limiting Speed: 6,000 rpm. Max Temperature: 120 °C. Min Temperature: -30 °C. Item Weight: 0.70 lbs. A 15° contact angle favours speed and radial rigidity, and carries thrust in one direction. The XLS extra-light section puts a large bore inside a slim ring, so the bearing suits housings where radial space is limited.

Quantity and configuration

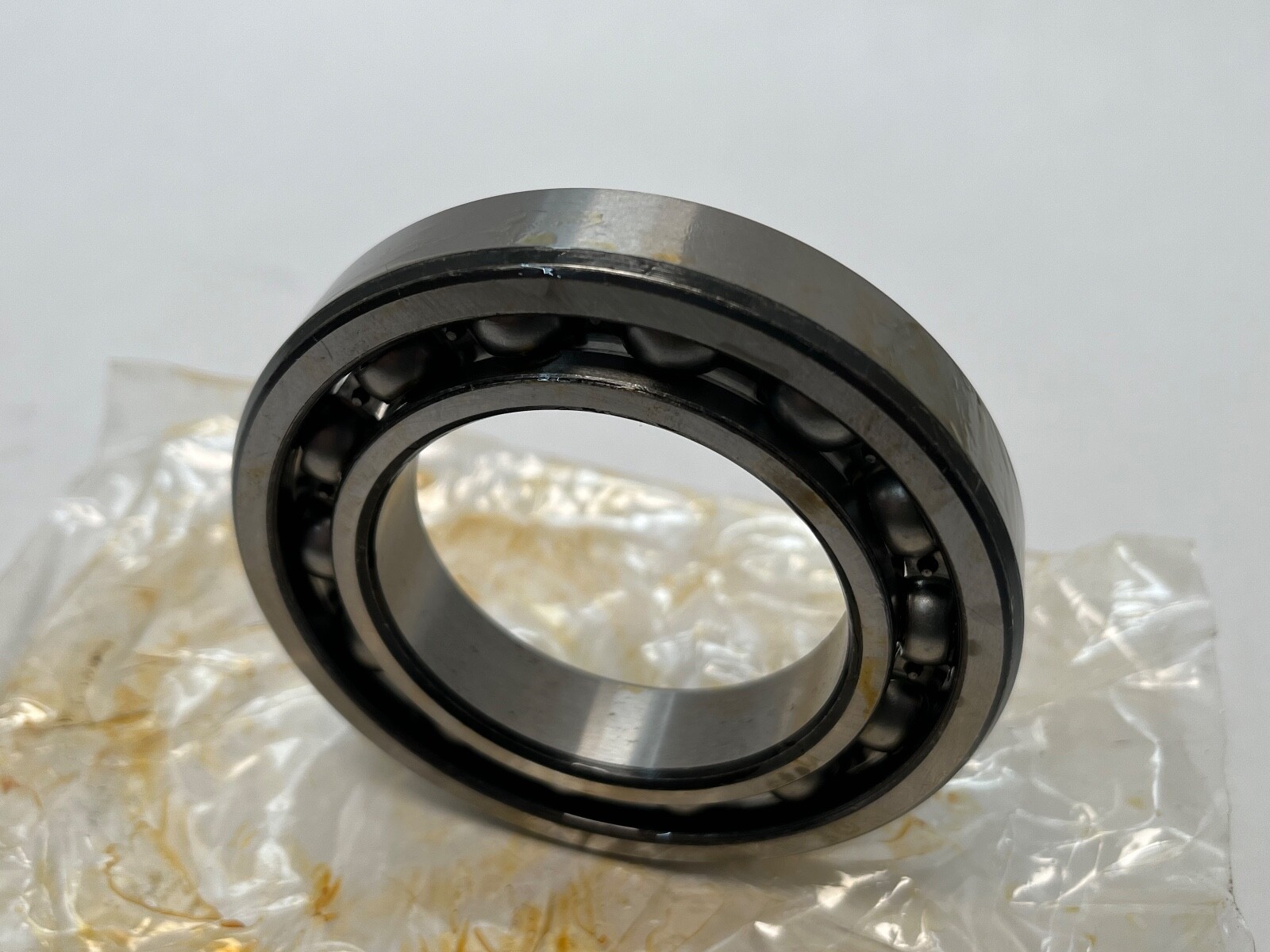

Unit Quantity: 1 Pc. One complete bearing with solid inner and outer rings. The outer ring is plain, with no snap-ring groove.

Fitting notes

The bearing takes thrust in one direction only, so a second bearing opposes it where axial load reverses. Mount the bearing with its wide inner-ring shoulder facing the thrust load.

Interchange guidance

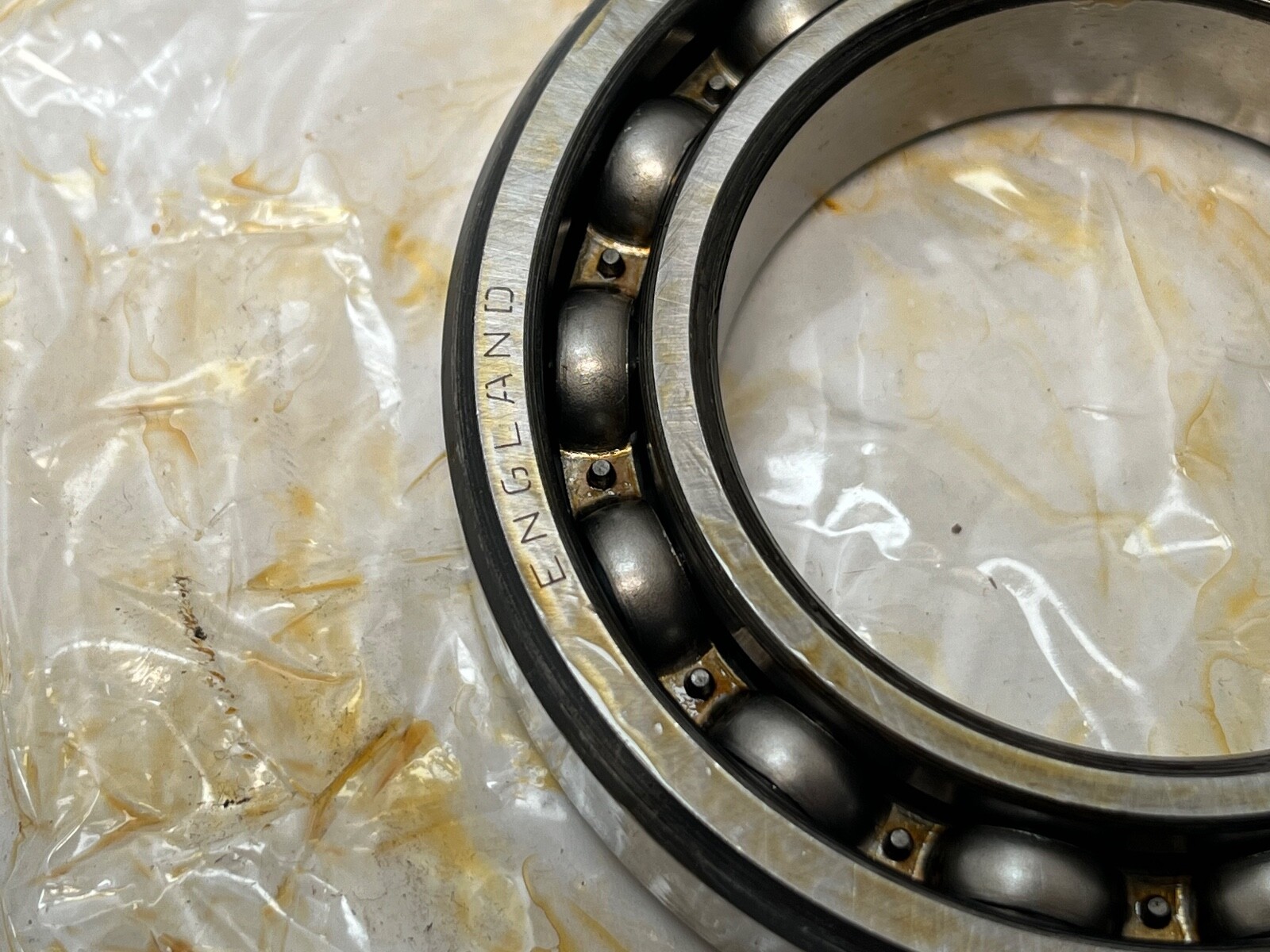

Cross-References: SKF XLS 2 and MRC XLS2 — the same XLS inch series on the same 2 x 3.3125 x 0.625 in envelope. The RHP interchange for the series is the XLJ range.
