Central Surplus Bearing Finder
A faster way to search our bearing inventory Today we’re launching the Central Surplus Bearing
Availability:
1 in stock

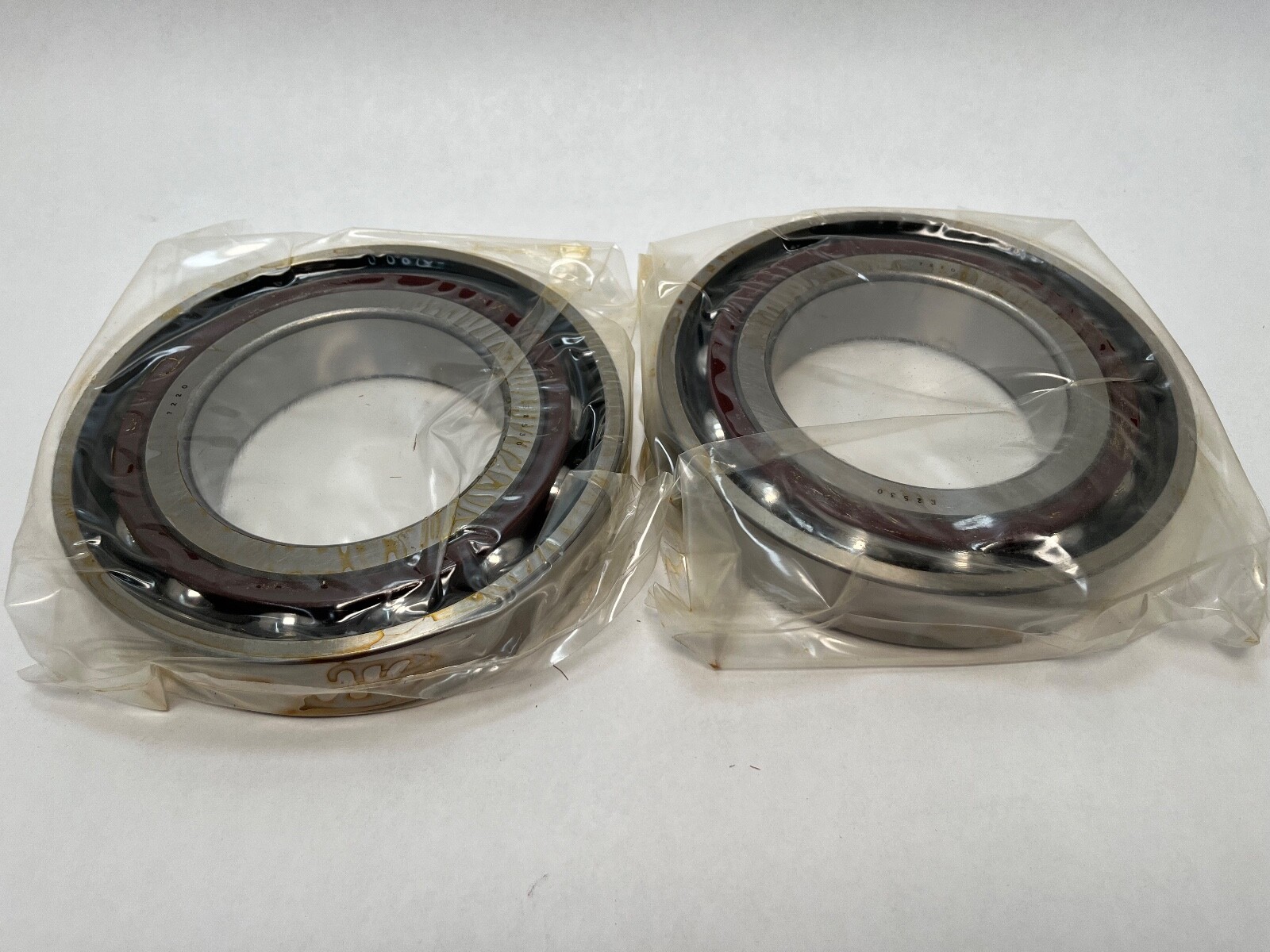

Super-precision angular contact ball bearing, 100 x 180 x 34 mm, 15° contact angle, light preload, ABEC 7 / P4, phenolic cage, open. Universal matching.
List Price
$451.15
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SNR |
|---|---|
| MPN | 7220CDUJ74 |
| Model | 7220 C T SUL P4 / 2MM220WI CR SUL / 7220 C DU J74 |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 100 mm |
| OD | 180 mm |
| Width | 34 mm |
| Material | Bearing Steel |
|---|---|
| Series | 7200 |
| Lubricant | Grease or oil |
| Base Number | 7220 |
| Bore Shaft Size | 100 mm |
| Mpn Variants | 7220-C-T-SUL-P4, 2MM220WI CR SUL, 7220-C-DU-J74, 7220 C DU J74 |
| Closure Type | Open |
| Rolling Elements | Ball |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50 |
| Part Number | 7220CDUJ74 |
| Cross Reference 1 | SKF 7220 CDGA/P4A |
|---|---|
| Cross Reference 2 | FAG B7220-C-T-P4S-UL |
| Cross Reference 3 | Timken 2MM220WI CR SUL |

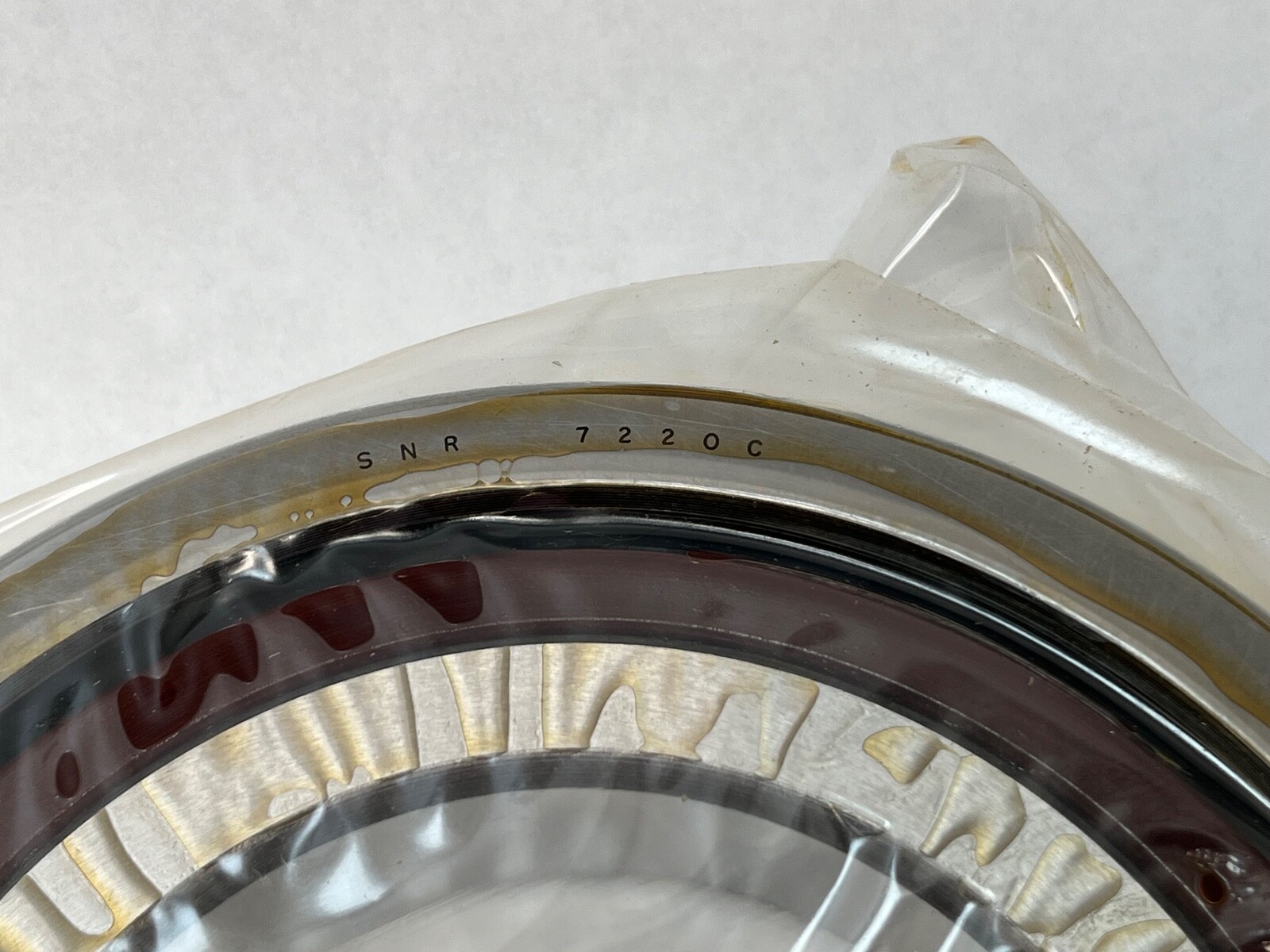

SNR 7220CDUJ74 super-precision angular contact ball bearing. Bore: 100 mm. Outside Diameter: 180 mm. Overall Width: 34 mm. Series: 7200. Number Of Rows: 1. Rolling Elements: Ball. Bearing Material: Bearing steel. Closure Type: Open. Bore Type: Straight.
Contact Angle: 15°. Preload: Light. Precision Class: ABEC 7 / P4. Cage Material: Phenolic. Cage Type: Outer-ring land-riding. Mounting Arrangement: Universal. Base Number: 7220. Part Number: 7220CDUJ74.
Dynamic Load Rating: 145.0 kN. Static Load Rating: 134.0 kN. Limiting Speed: 8500 rpm. A 15° contact angle favours speed and radial rigidity over thrust capacity. Light preload holds the rings in defined contact for running accuracy and shaft location while keeping heat generation low at speed. Internal Clearance: N/A — the bearing is set by preload.
The phenolic cage is guided on the outer-ring land, which keeps it stable at high speed and gives it low mass and good dry-running tolerance. Lubricant: grease or oil. Max Temp: 120°C. Min Temp: -30°C. Item Weight: 7.70 lbs.
Mounting Arrangement: Universal. Universally ground faces let the bearing run singly or be set against another universally ground 7220C in back-to-back, face-to-face or tandem.
Cross-Reference 1: SKF 7220 CDGA/P4A. Cross-Reference 2: FAG B7220-C-T-P4S-UL. Both are 15° super-precision single bearings on the same 100 x 180 x 34 mm envelope at light preload. MPN Variants: 7220-C-T-SUL-P4, 2MM220WI CR SUL, 7220-C-DU-J74, 7220 C DU J74. Harmonization Code: 8482.10.50.
