Availability:
1 in stock

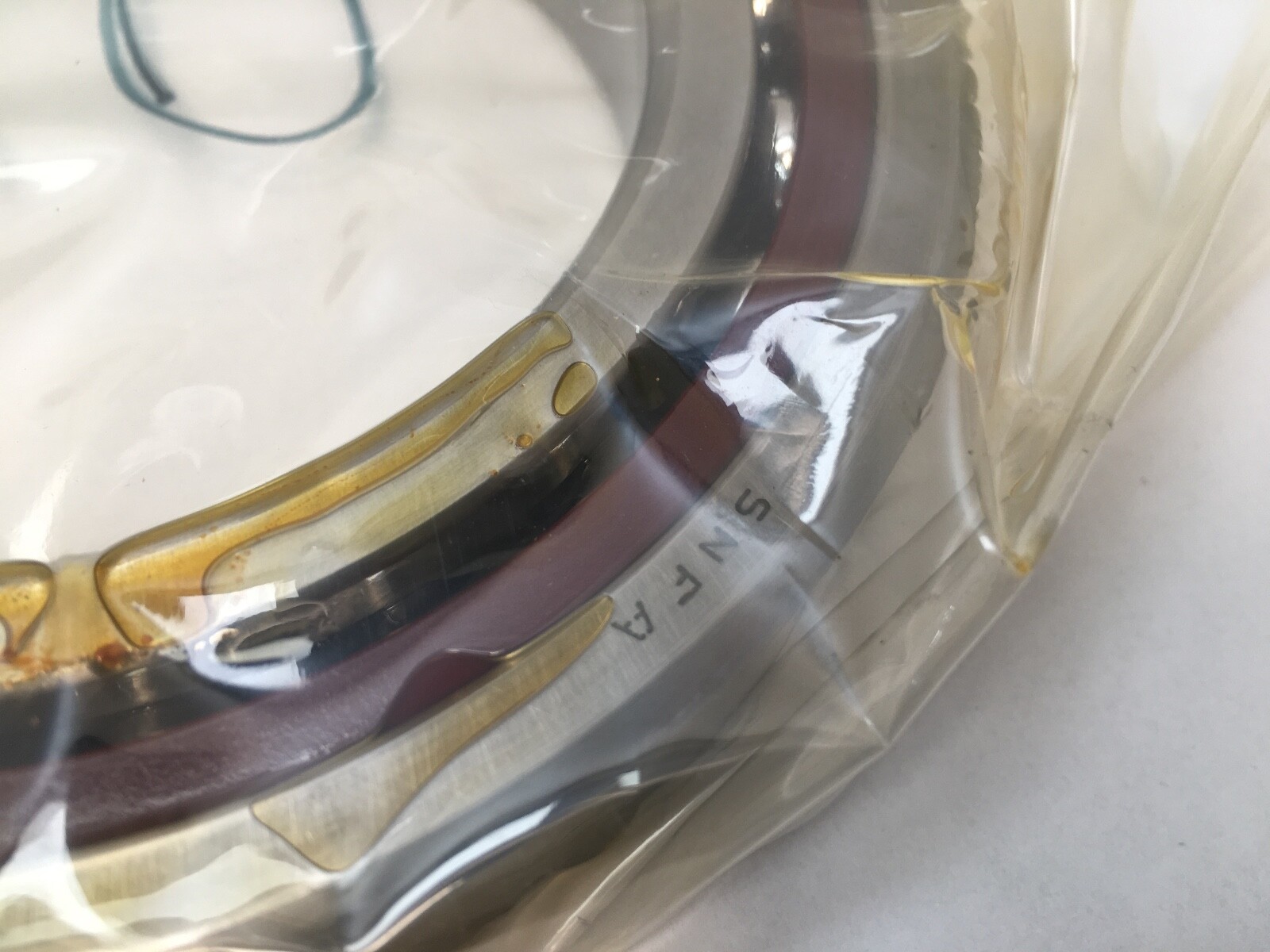

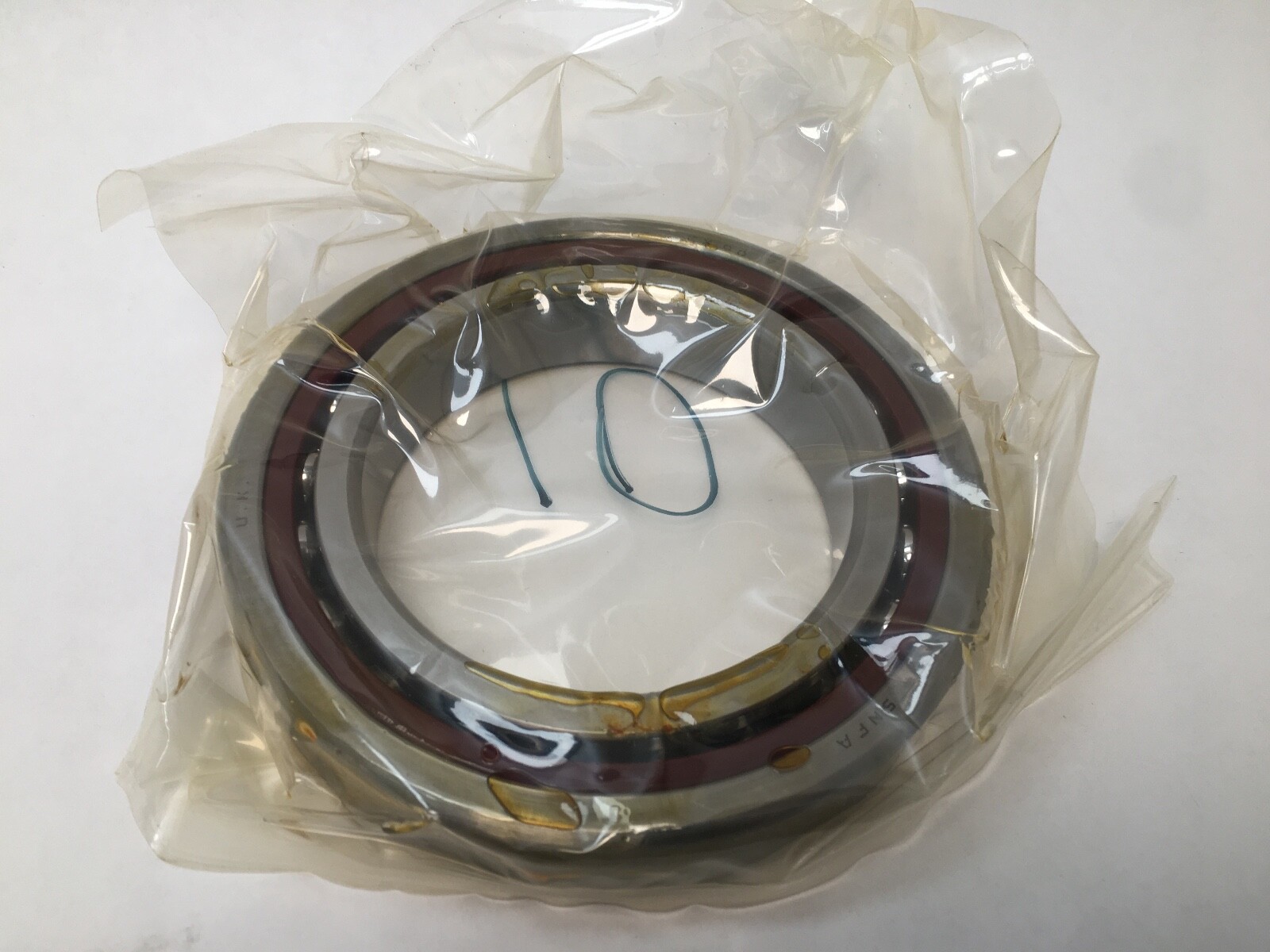

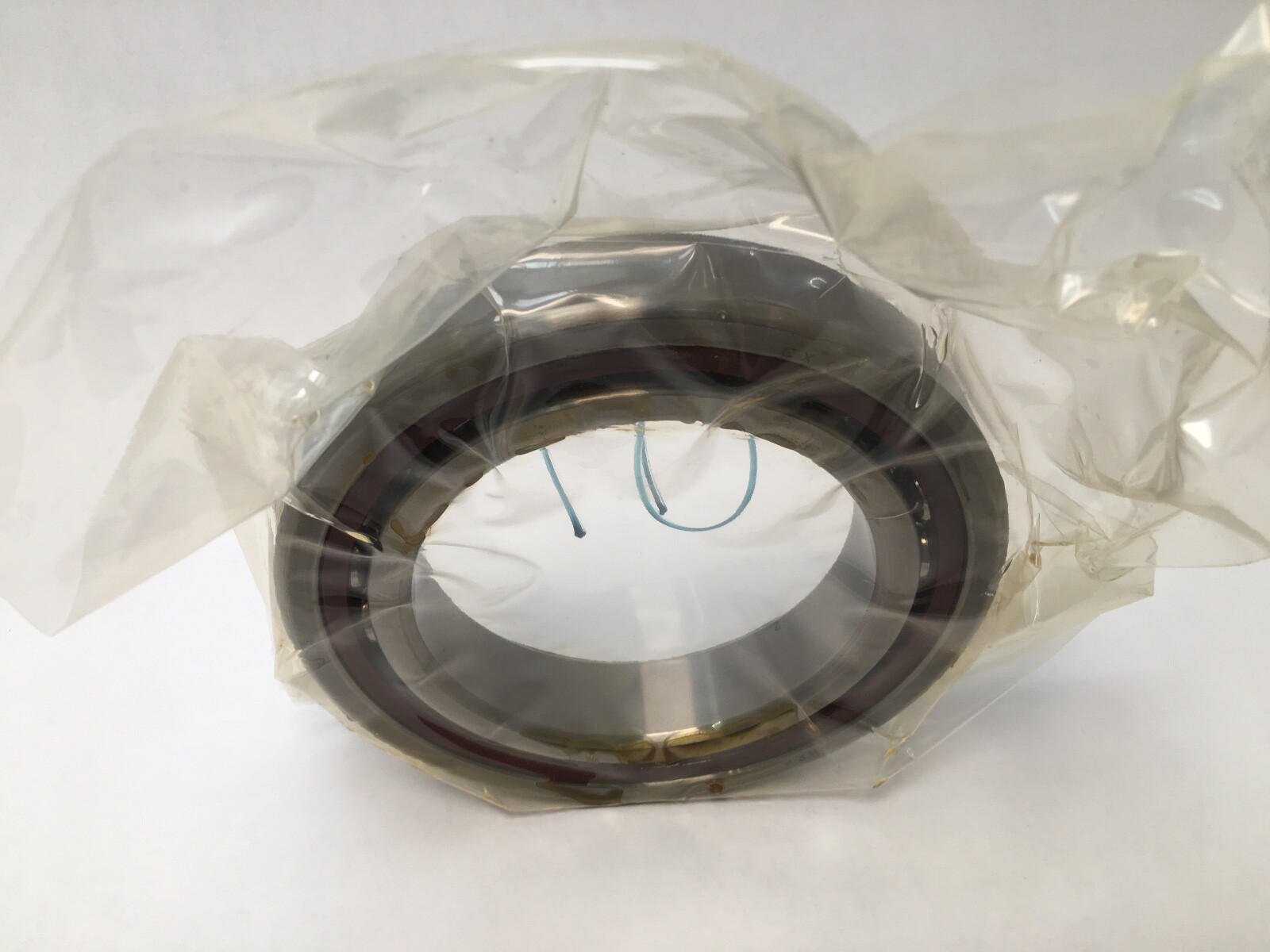

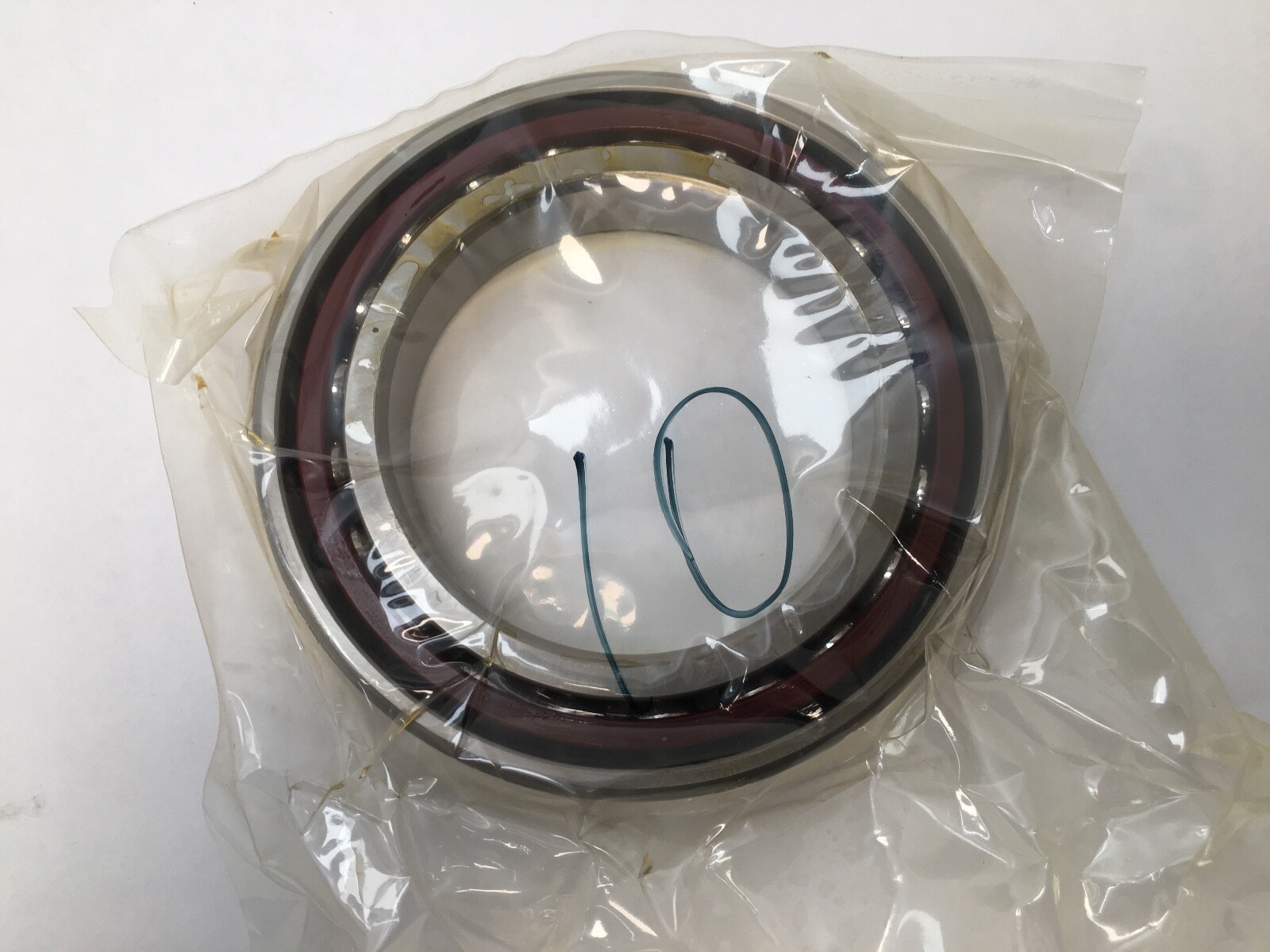

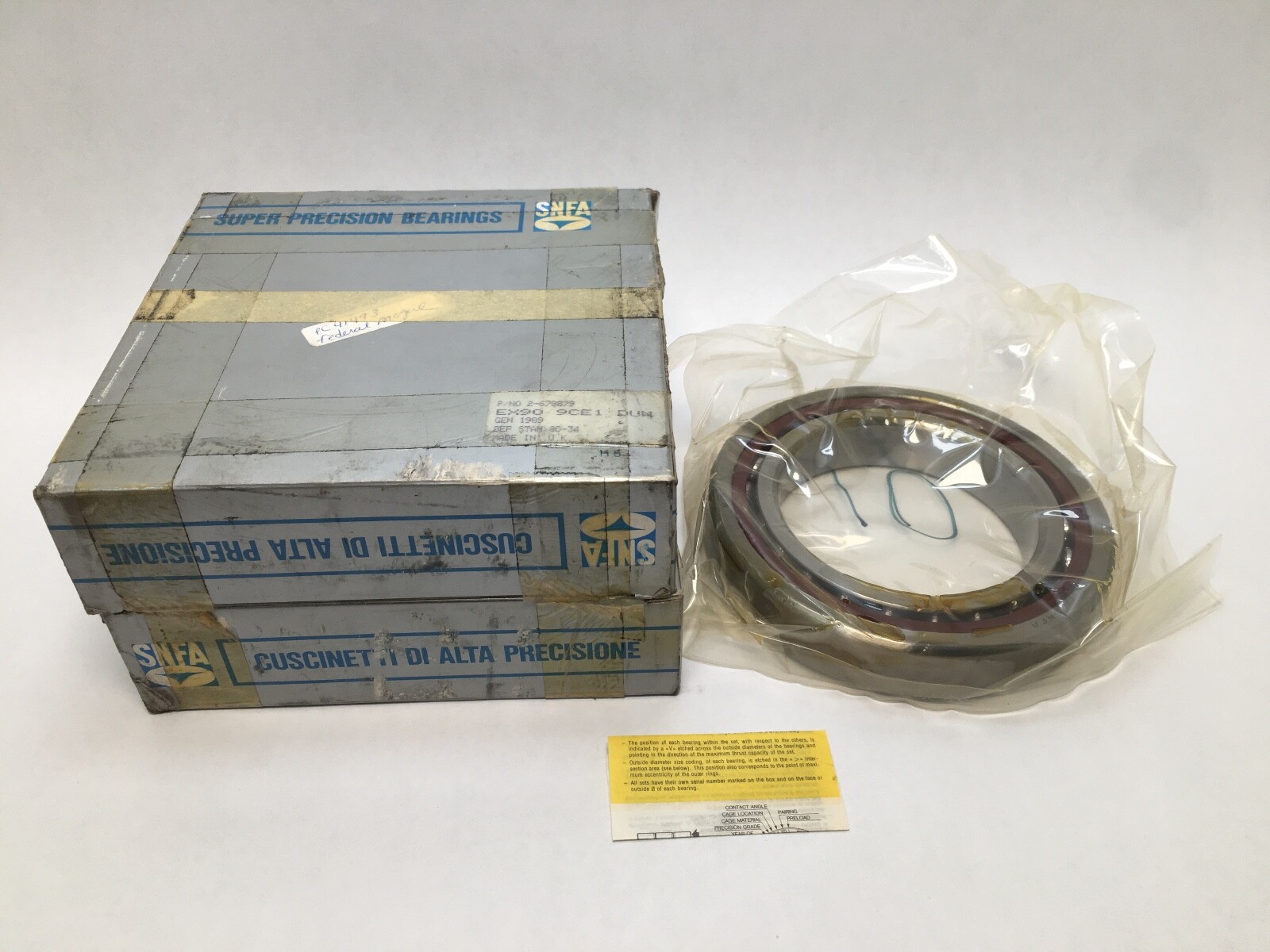

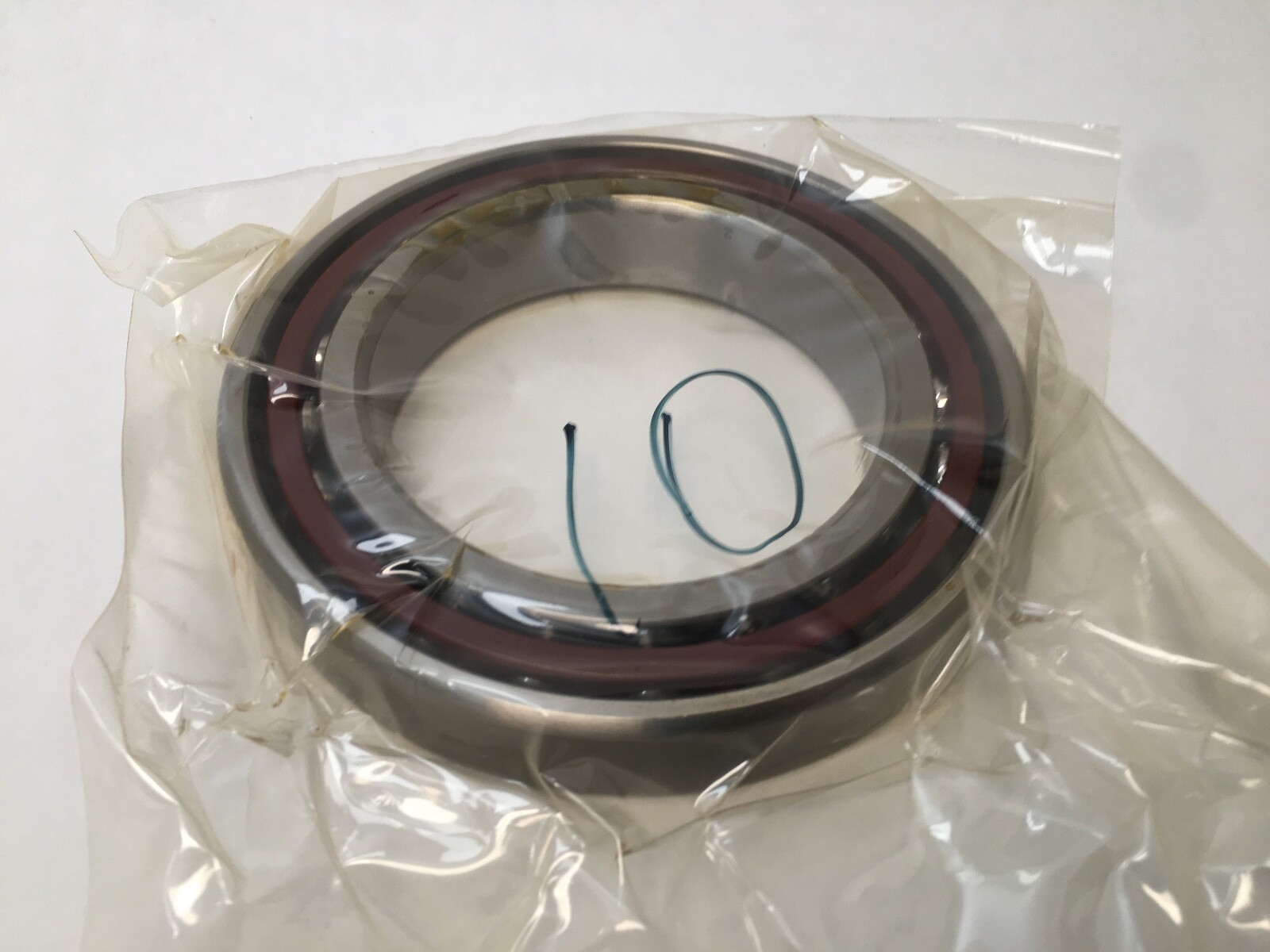

SNFA EX90-9CE1DUM super-precision angular contact ball bearing pair, 90 x 140 x 24 mm, 15° contact angle, ABEC 9 / P2, medium preload. Two bearings.
List Price
$572.90
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SNFA |
|---|---|
| MPN | EX90-9CE1DUM |

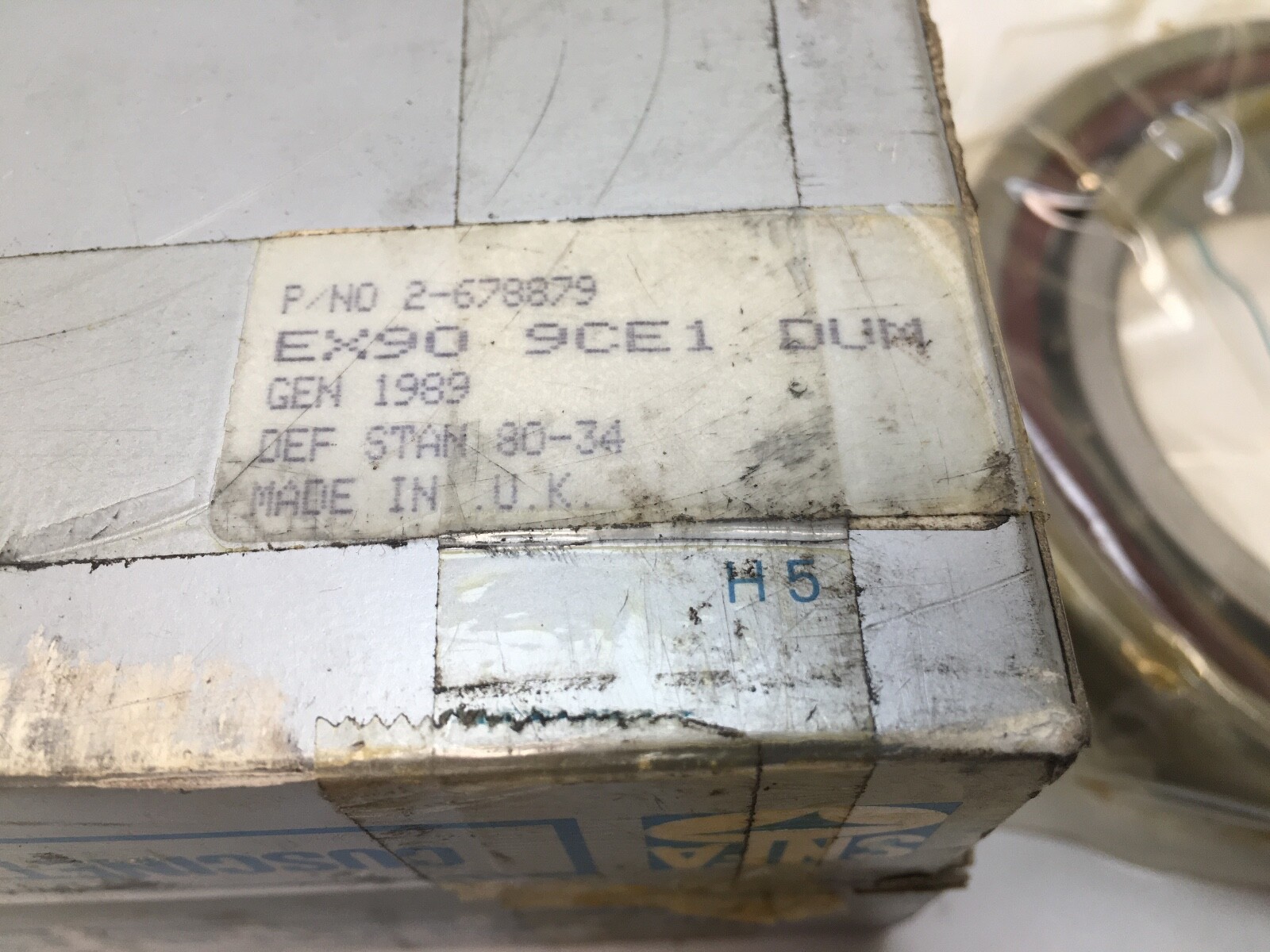

| Model | EX 90-9 CE 1 DUM |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 90 mm |
| OD | 140 mm |
| Width | 24 mm |
| Series | SNFA EX (ISO 10) |
|---|---|
| Preload | Medium (M) |
| Cage Type | Machined, outer-ring located |
| Dynamic Load Rating | 6,790 daN (C33, per bearing) |
| Static Load Rating | 8,400 daN (C0, per bearing) |
| Rolling Elements | Ball |
| Cage Material | Phenolic |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 15° |
| Base Number | 7018 |
| Overall Width | 24 mm |
| Mpn Variants | EX90-9CE1DUM, EX-90-9-CE-1-DUM, EX 90-9 CE 1 DUM, 7018-C, 2MM-9118 DUM |
| Arrangement Configuration | Duplex universal pair (DU) |
| Precision Class | ABEC 9 / P2 |
| Additional Attributes | Minimum chamfer Rmin 1.5 mm; rmin 1.0 mm |
| Cross Reference 1 | Fafnir 2MM9118WI DUM – ABEC 7, not ABEC 9 |
|---|
SNFA EX90-9CE1DUM is a duplex universal pair of super-precision angular contact ball bearings, SNFA EX series, ISO dimension series 10, size 7018. Bore Diameter: 90 mm. Outside Diameter: 140 mm. Overall Width: 24 mm. Contact Angle: 15°. Precision Class: ABEC 9 / P2. Preload: Medium.

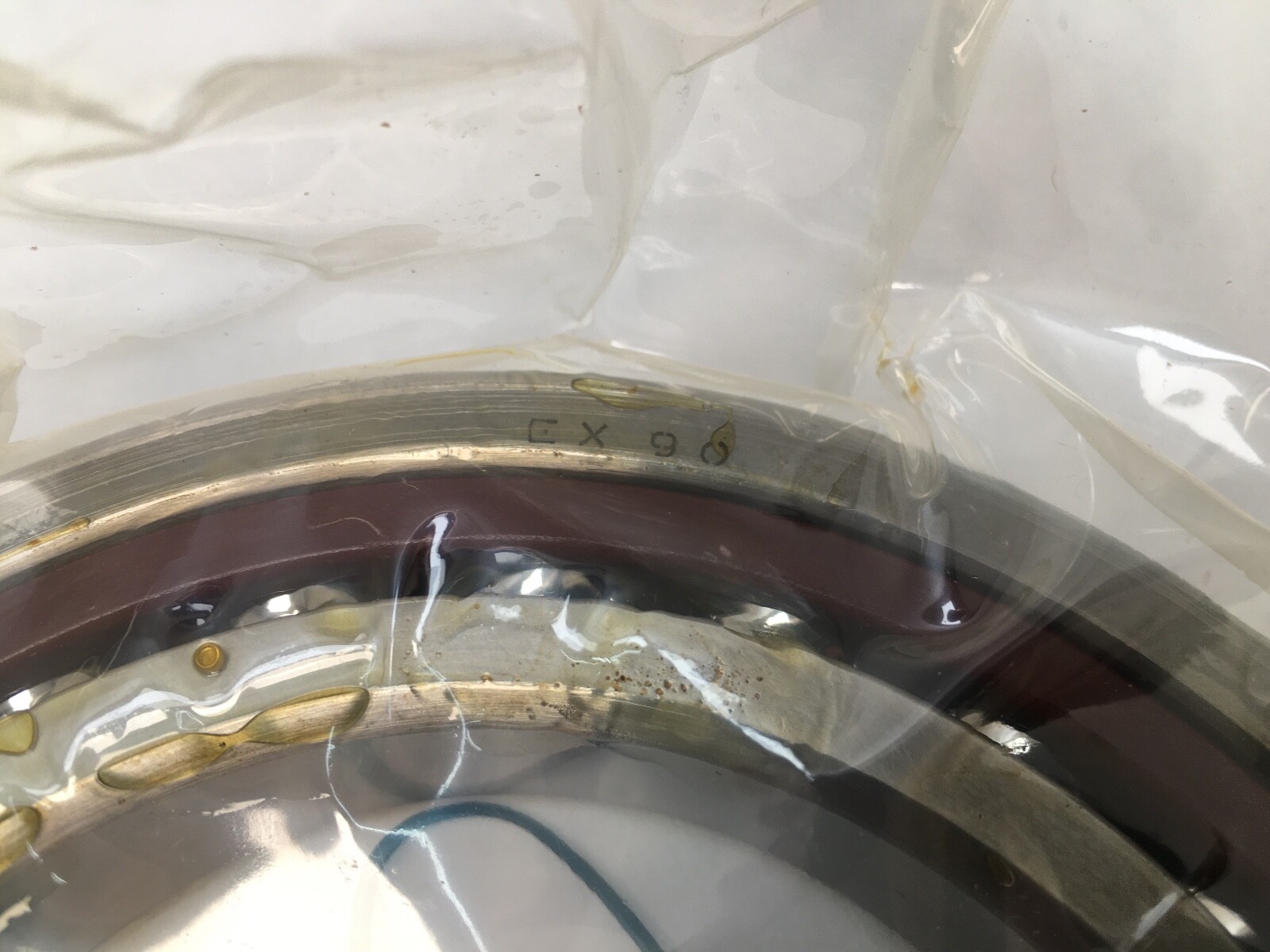

EX — SNFA EX series, ISO dimension series 10.
90 — bore diameter, 90 mm.
9 — ABEC 9 precision.
C — stratified textile resin (phenolic) cage.
E — cage located on the outer ring.
1 — 15° nominal contact angle.
DU — duplex universal. The pair mounts back-to-back, face-to-face or tandem.
M — medium preload.
Dynamic Load Rating: 6,790 daN per bearing (SNFA C33 rating). Static Load Rating: 8,400 daN per bearing (C0). Cage Material: Phenolic. Cage Type: Machined, outer-ring located. ABEC 9 is the tightest SNFA running-accuracy grade; the 15° angle favours spindle speed and radial stiffness.
Minimum chamfer, outer ring (Rmin): 1.5 mm. Minimum chamfer, inner ring (rmin): 1.0 mm. Bore Type: Straight. Closure Type: Open. Snap Ring: No.
Unit Quantity: 2 Pcs. A universally matched pair with medium preload.
ISO size 7018, 90 x 140 x 24 mm, 15°. Fafnir 2MM9118WI DUM shares the envelope, angle and preload level at ABEC 7 / P4 precision.
