Availability:
3 in stock
Super-precision angular contact ball bearing pair, 30 x 62 x 16 mm, 25° contact angle, ABEC 7 / P4, medium preload. SKF 7206 ACD/P4A equivalent.
List Price
$168.24
3 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SNFA |
|---|---|
| MPN | E230-7CE3DUM |
| Model | 3MM-206 WI DUM / 7206-A P4 DUM / E 230-7 CE 3 DU M |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 30 mm |
| OD | 62 mm |
| Width | 16 mm |
| Material | Bearing Steel |
|---|---|
| Series | E 200 (ISO 02) |
| Preload | Medium |
| Mpn Variants | E230-7CE3DUM, E 230 7CE3 DUM, E-230-7-CE-3-DUM, E 230-7 CE 3 DU M |
| Precision Class | ABEC 7 / P4 |
| Cage Type | Outer-ring guided |
| Dynamic Load Rating | 23,400 N |
| Static Load Rating | 15,300 N |
| Rolling Elements | Ball |
| Item Weight | 0.194 kg (0.43 lb) |
| Cage Material | Phenolic |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Limiting Speed | 20,000 rpm grease; 34,000 rpm oil |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 25° |
| Mounting Arrangement | Universal matched pair (back-to-back, face-to-face or tandem) |
| Cross Reference 1 | SKF 7206 ACD/P4ADGB – 25°, medium preload pair |
|---|---|
| Cross Reference 2 | NSK 7206A5TRDUMP4 – 25°, phenolic, medium preload pair |
| Cross Reference 3 | Fafnir 3MM206WICRDUM – 25°, medium preload pair |
| Cross Reference 4 | SKF 7206 ACDGB/P4A – single universal bearing, order 2 |
| Cross Reference 5 | FAG B7206-E-T-P4S-UM – single universal bearing, order 2 |

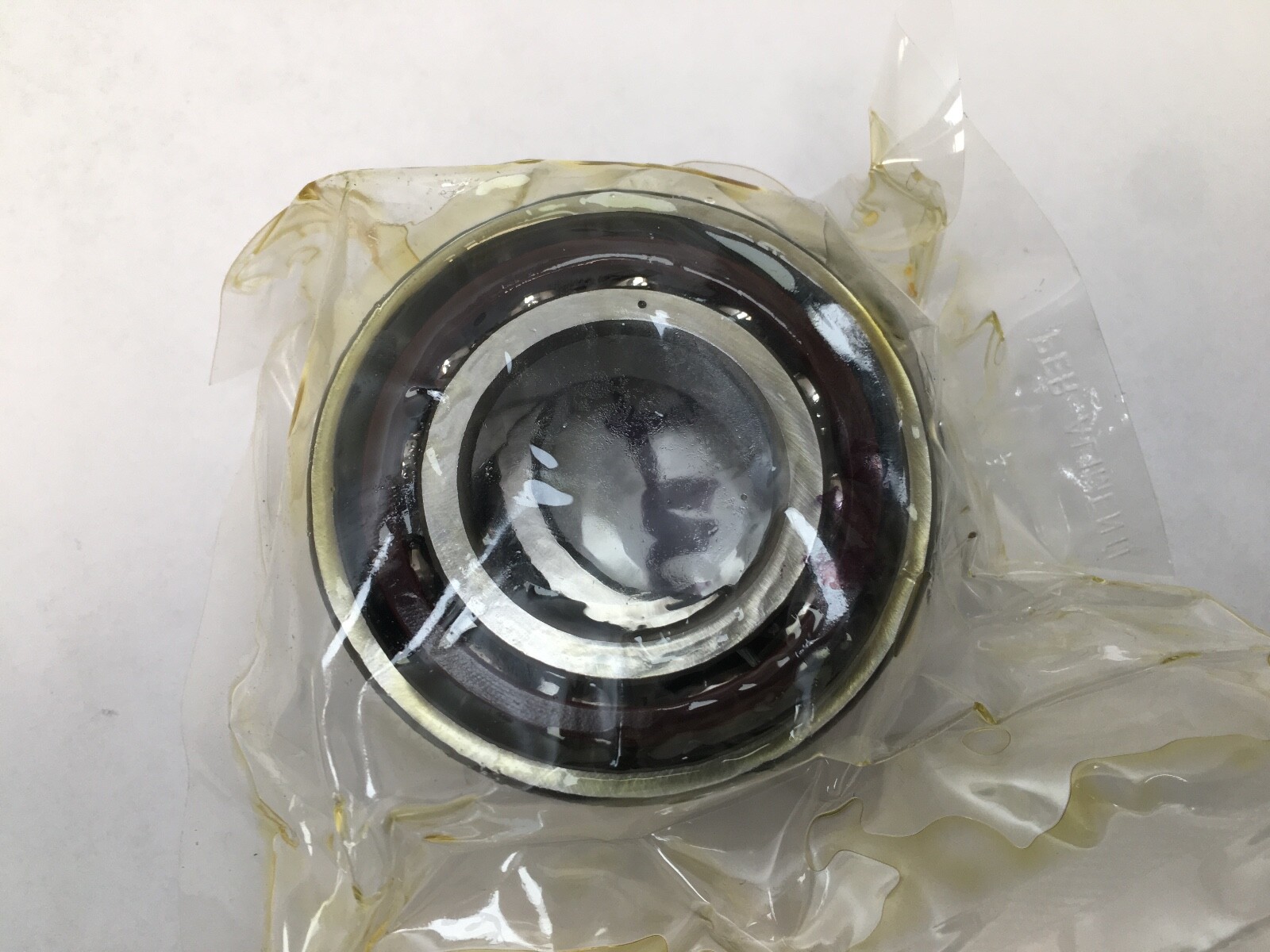

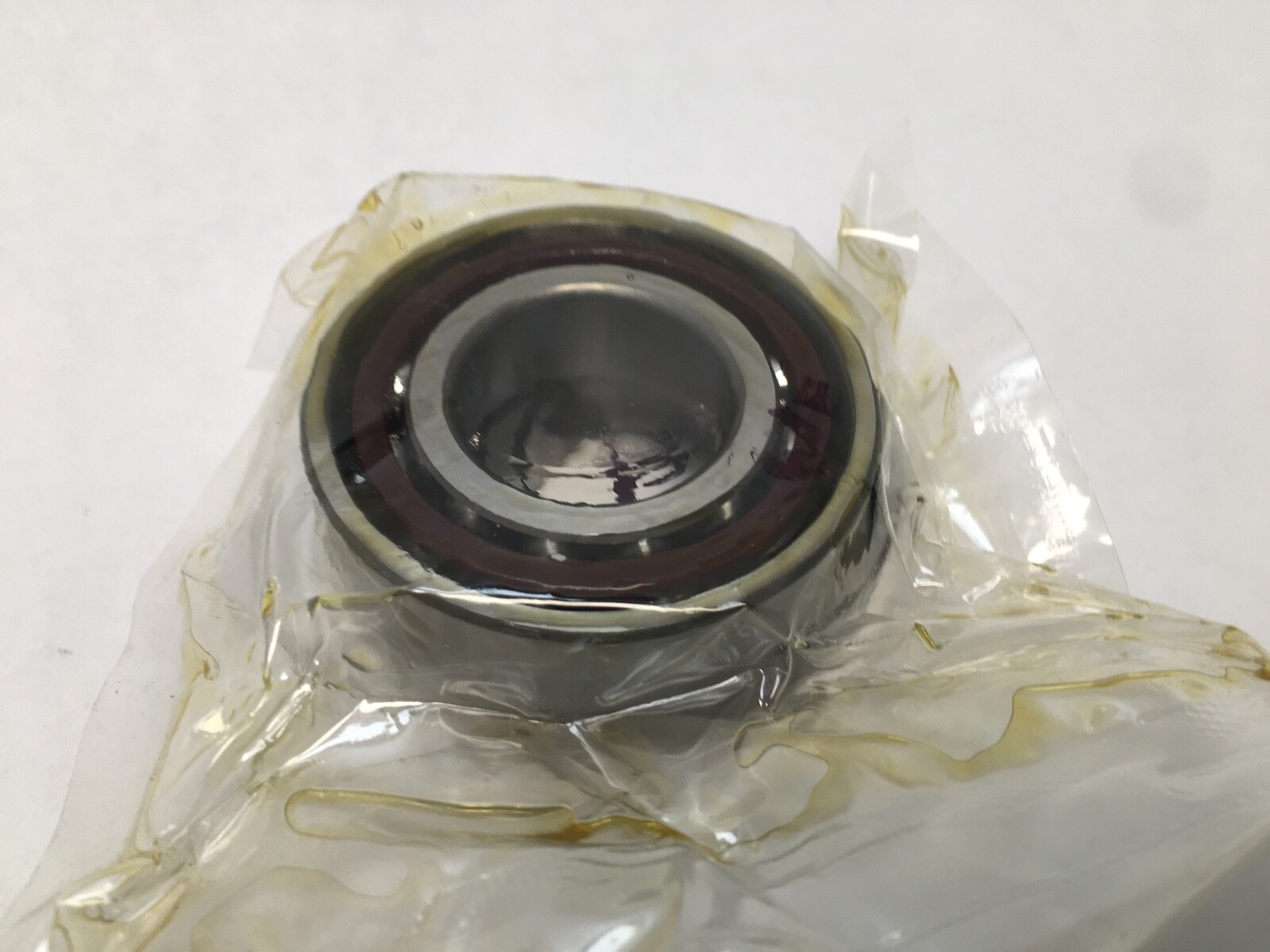

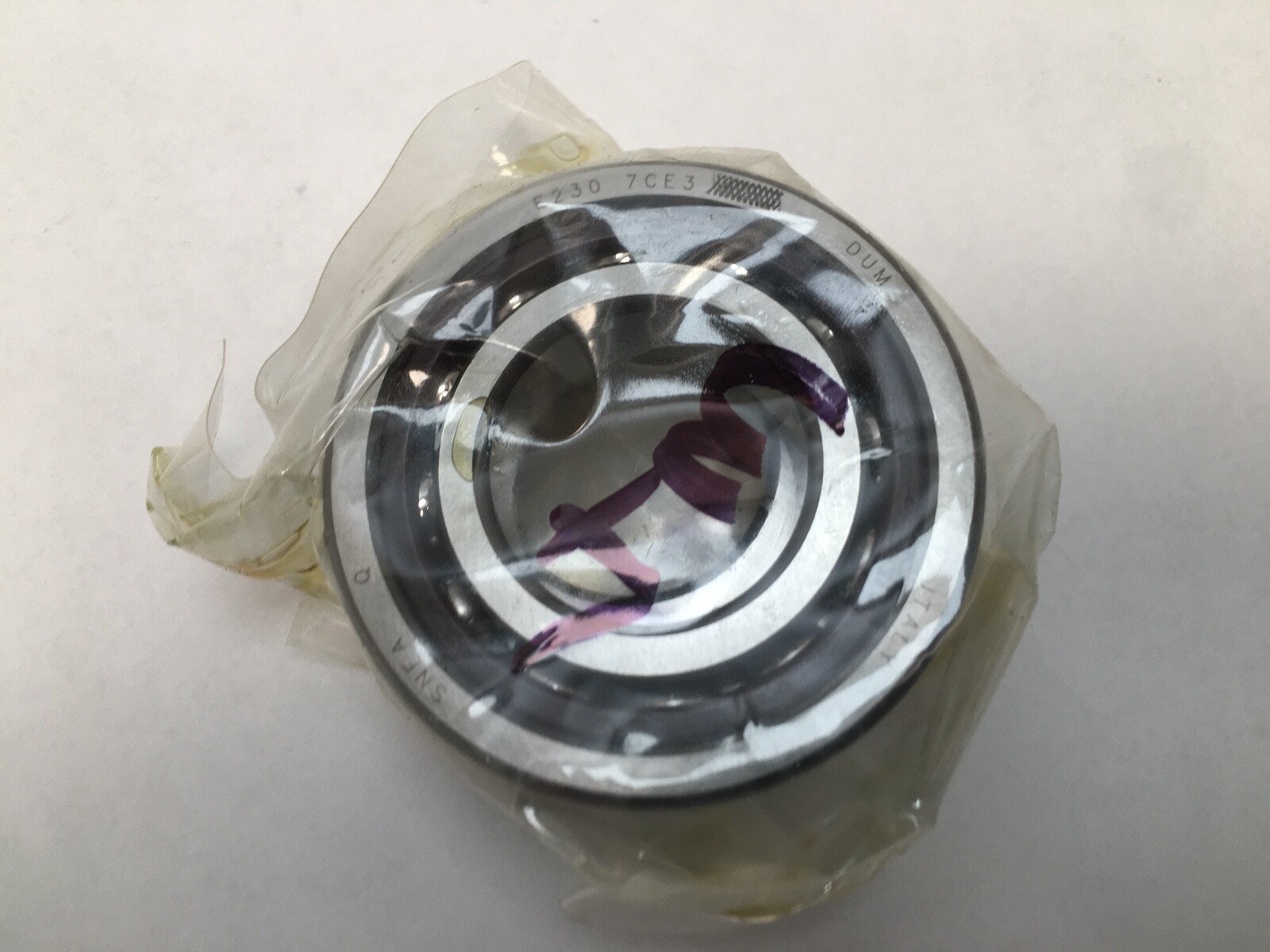

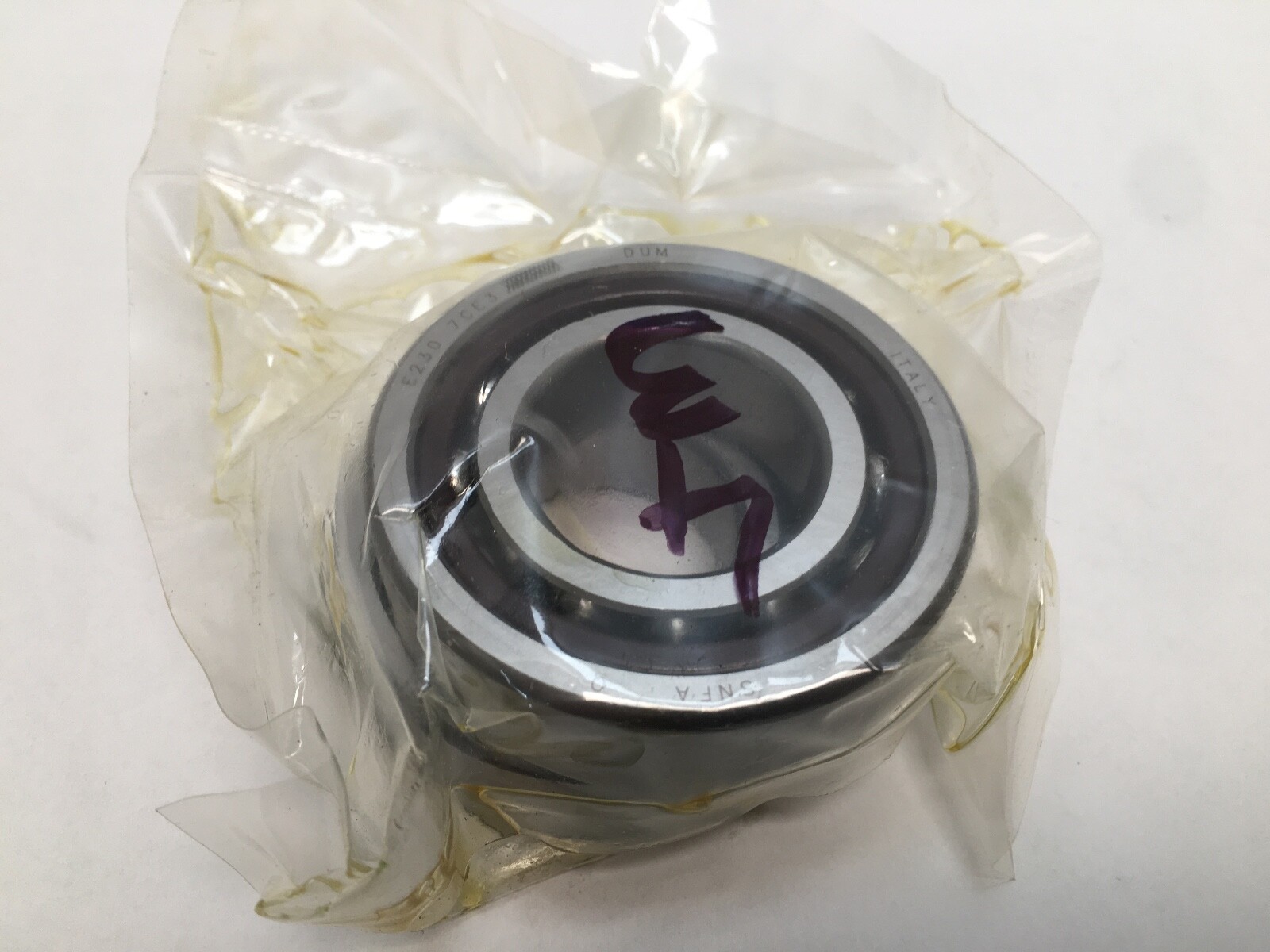

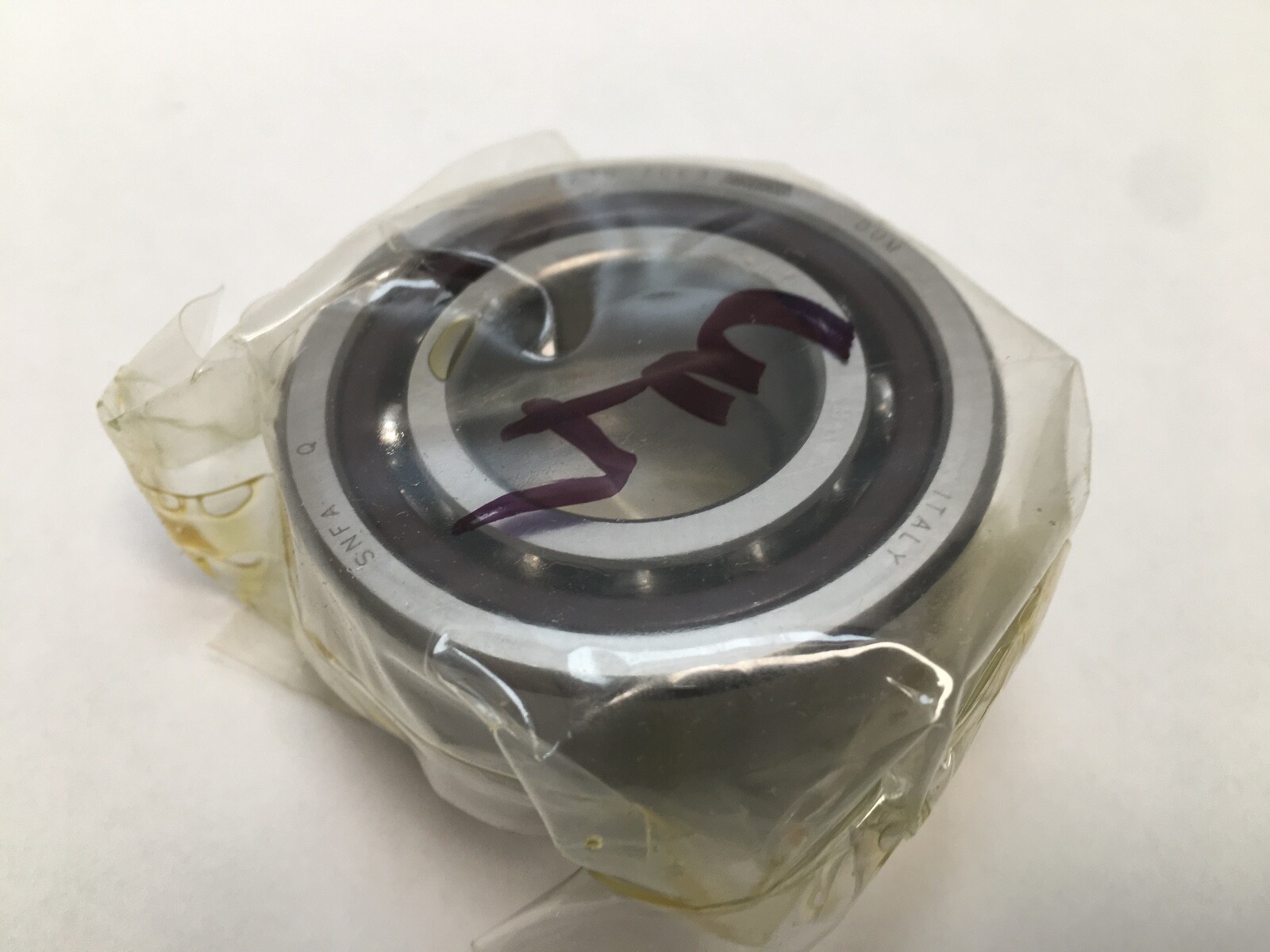

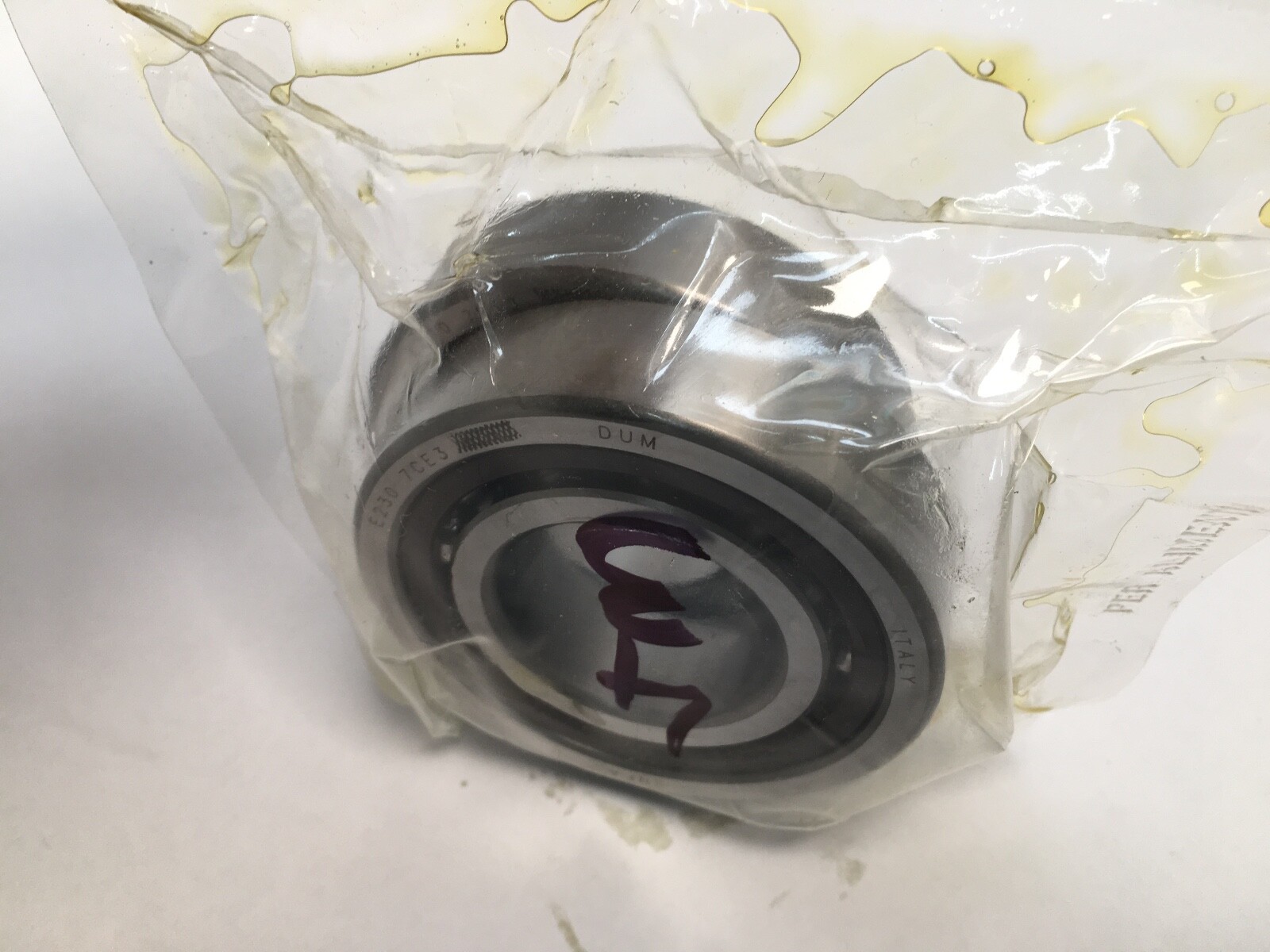

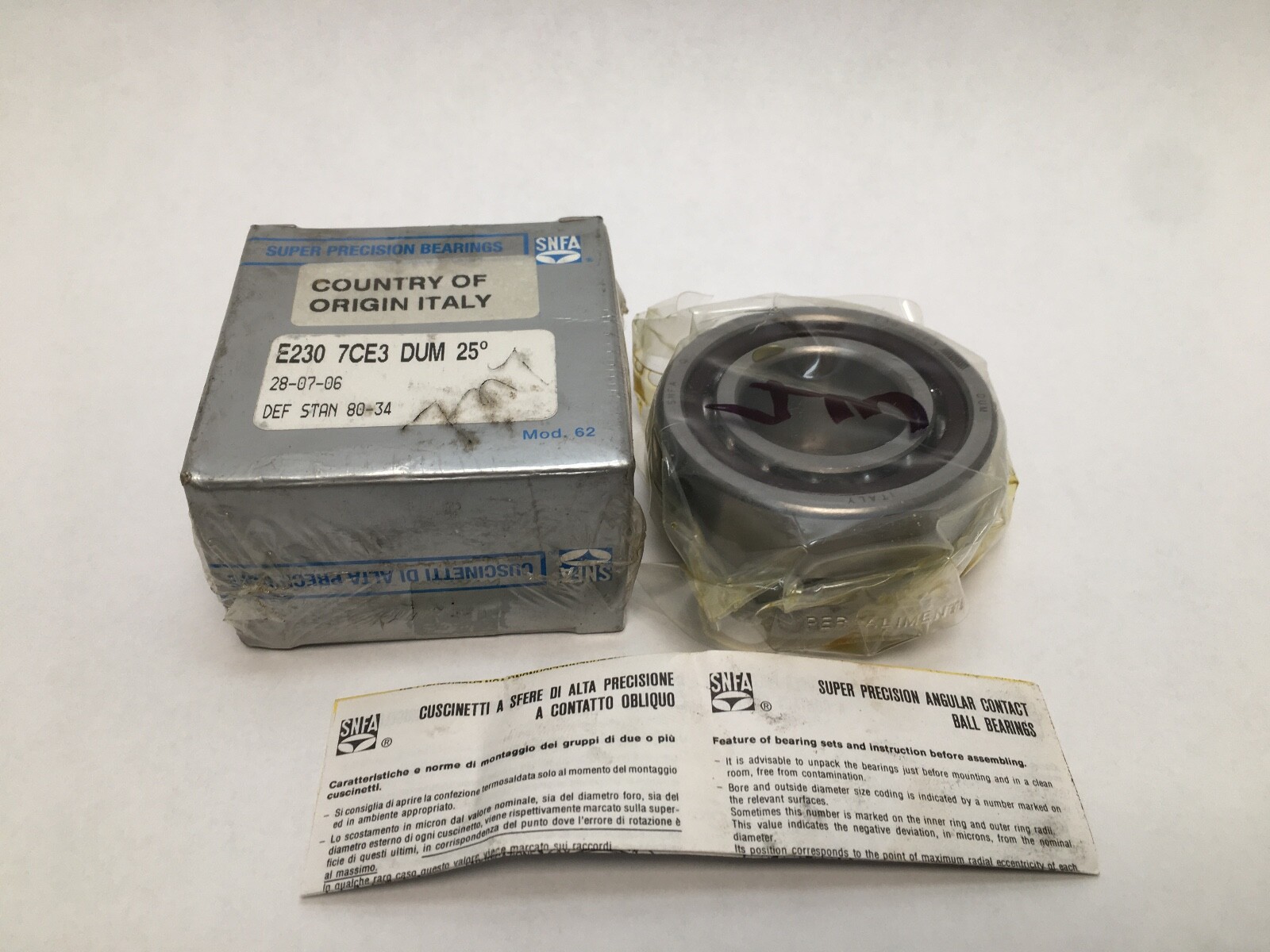

SNFA E230-7CE3DUM is a matched set of two super-precision single-row angular contact ball bearings from the SNFA E 200 series, ISO dimension series 02. Bore Diameter: 30 mm. Outside Diameter: 62 mm. Width: 16 mm per bearing. Contact Angle: 25°. Precision Class: ABEC 7 / P4. The current SKF equivalent is the 7206 ACD/P4A high-capacity D design.

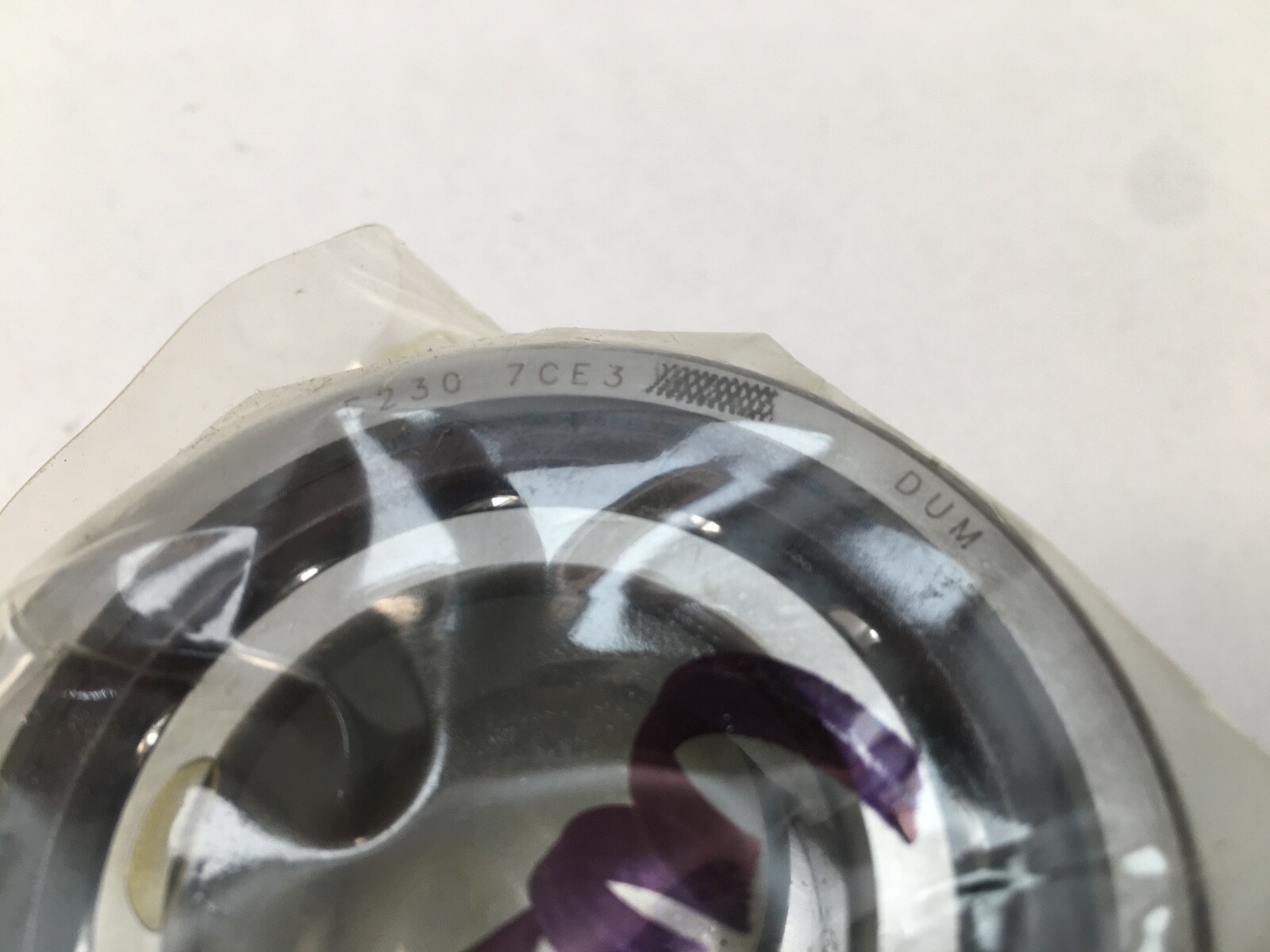

E2 — SNFA E 200 series, ISO dimension series 02 (72xx envelope).
30 — bore diameter in millimetres.
7 — SNFA precision grade, ABEC 7 (ISO P4).
C — phenolic resin cage.
E — cage centred on the outer ring.
3 — 25° contact angle.
DU — universal duplex set: two bearings ground for back-to-back, face-to-face or tandem mounting.
M — medium preload.
Dynamic Load Rating: 23,400 N per bearing. Static Load Rating: 15,300 N per bearing. Limiting Speed: 20,000 rpm grease; 34,000 rpm oil-air, single bearing. The 25° angle carries axial load in addition to radial load; medium preload balances stiffness against running temperature.
Item Weight: 0.194 kg (0.43 lb) per bearing. Cage Type: Outer-ring guided. Cage Material: Phenolic. Closure Type: Open.
Unit Quantity: 2 Pcs. Mounting Arrangement: Universal matched pair, back-to-back, face-to-face or tandem. Preload: Medium.
SKF owns SNFA, and the E 200 series corresponds to its 72 .. D range. Matched 25° medium-preload pairs at 30 x 62 x 16 mm: SKF 7206 ACD/P4ADGB, NSK 7206A5TRDUMP4 and Fafnir 3MM206WICRDUM. SKF 7206 ACDGB/P4A and FAG B7206-E-T-P4S-UM are single universal bearings, so order two to make the set.
