Double-row angular contact ball bearing, 30 x 72 x 37 mm, sealed both sides and grease filled. Chrome steel rings, polyamide cage, 7,500 rpm limit.
List Price
$75.45
5 in stock
5 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
Also Available From:
| MFR / Brand | SKF |
|---|---|
| MPN | BAHB636035A |
| GTIN | 7316570397468 |
| Model | BAHB 636035A |
| Bearing Type | Angular Contact Ball Bearing, Double Rubber Seal |
| ID | 30 mm |
| OD | 72 mm |
| Width | 37 mm |
| Material | Chrome Steel |
|---|---|
| Series | BAHB |
| Condition | New |
| Lubricant | Grease |
| Total Width | 37 mm |
| Industry Terms | Double row angular contact ball bearing; sealed wheel bearing unit; hub bearing |
| Mpn Variants | BAHB 636035 A; BAHB-636035-A; BAHB636035; 636035A |
| Rolling Elements | Ball |
| Number Of Rows | 2 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50 |

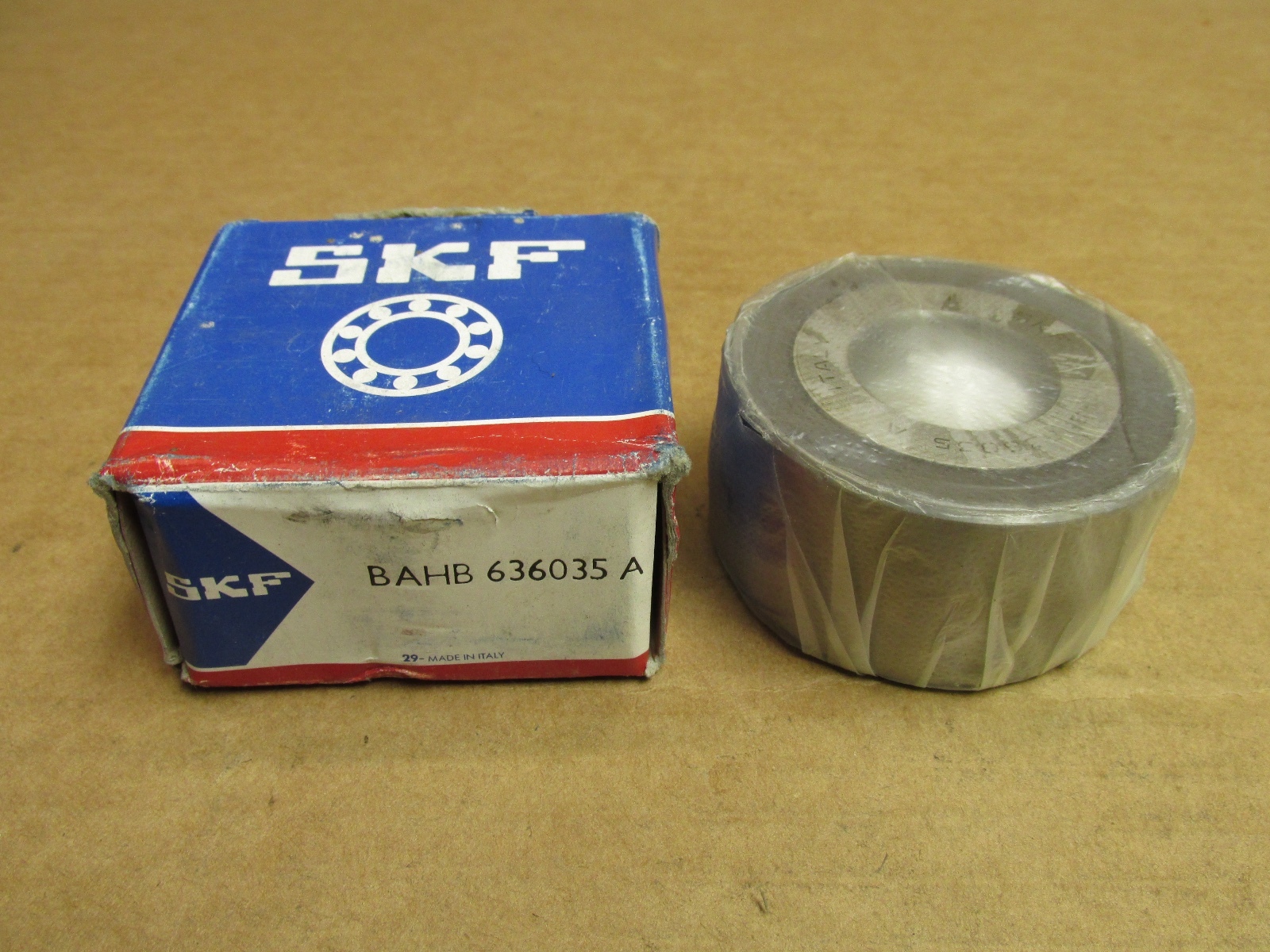

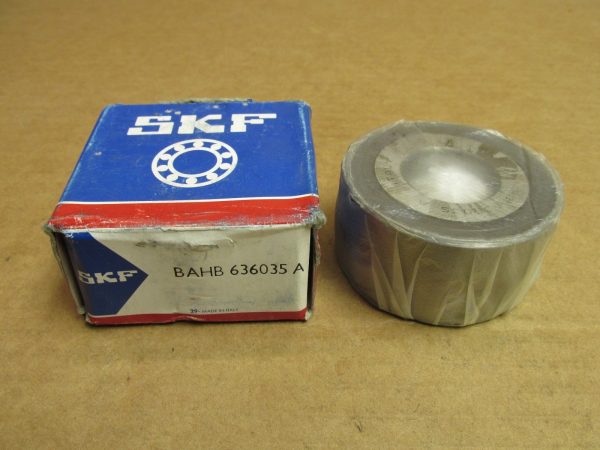

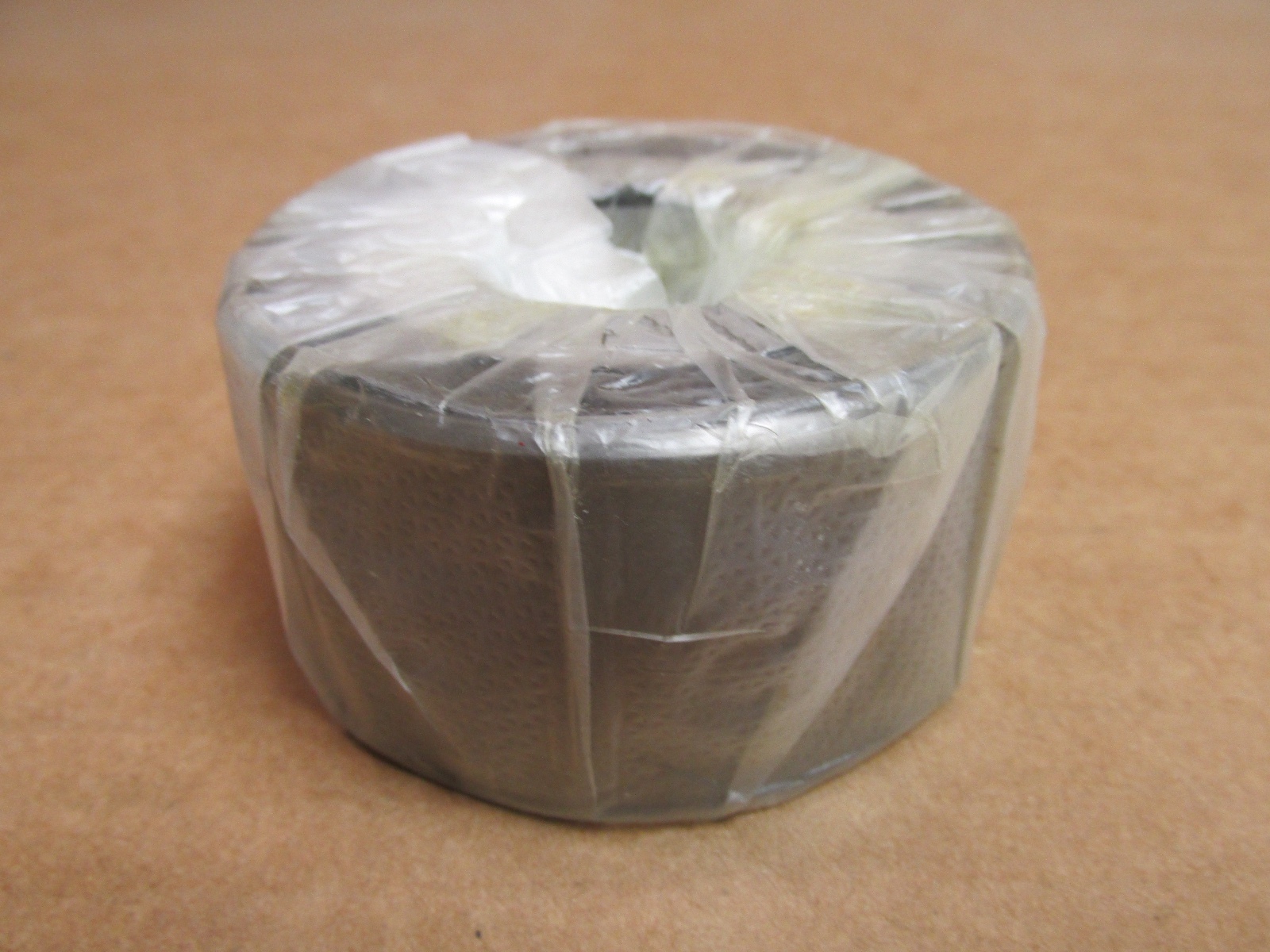

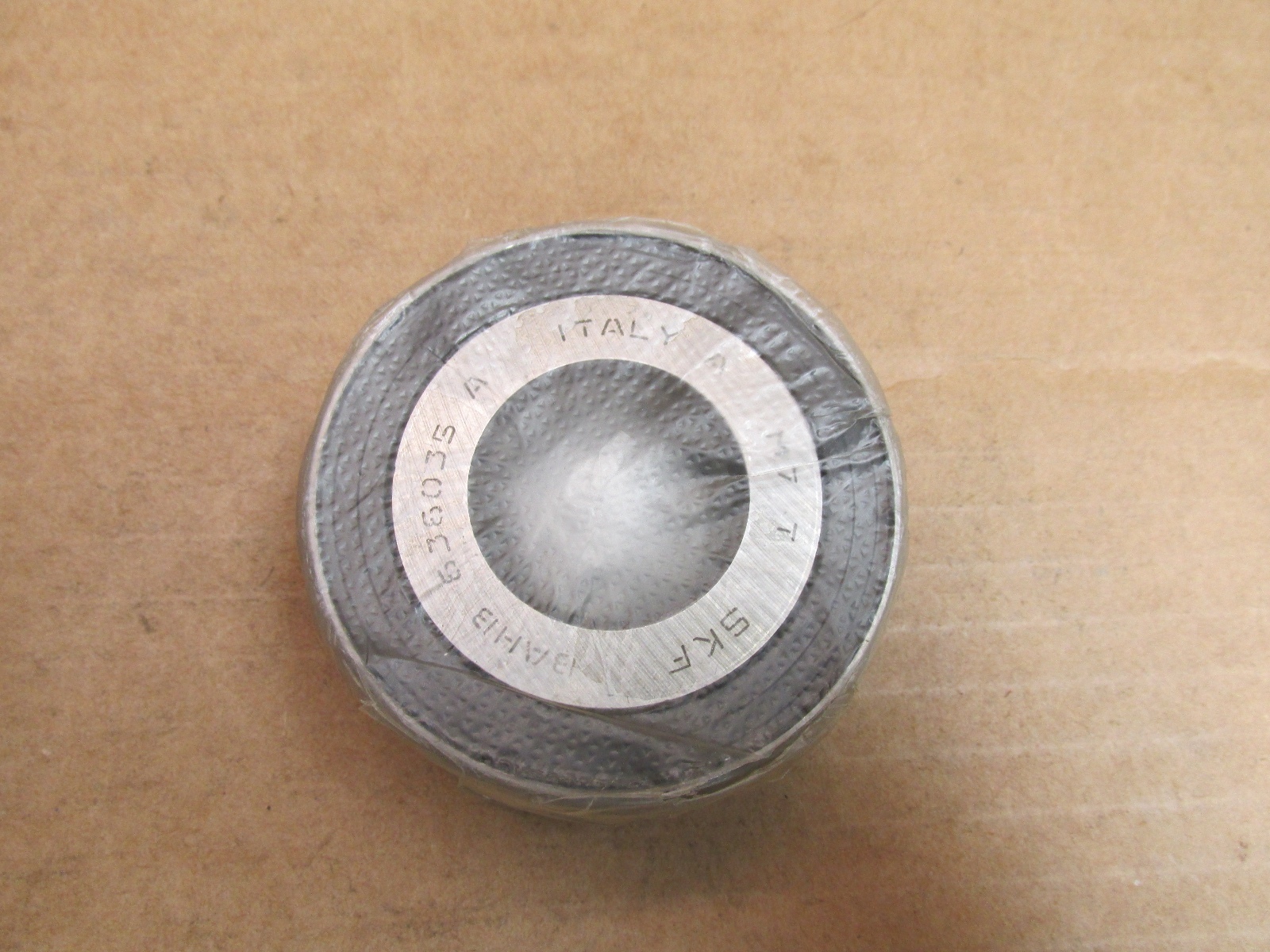

SKF BAHB636035A double-row angular contact ball bearing. Bore 30 mm, outside diameter 72 mm, overall width 37 mm. Series: BAHB. Chrome steel rings and balls, polyamide cage, rubber seal on each face, grease filled at the factory. Country of origin: Italy.
Dynamic load rating: 42.5 kN (9,550 lbf). Static load rating: 32 kN (7,190 lbf). Limiting speed: 7,500 rpm. Operating range: −30 °C to 120 °C. Mass: 1.60 lb.
Two ball rows set at opposing angles carry radial load and thrust in both directions in one envelope, which is why this construction is used on hub and wheel-end positions where a single row would need a second bearing beside it. The two rubber seals retain the factory grease charge and keep road and process contamination out of the raceways, so the unit runs as supplied with no relubrication provision needed.
Sold as a single sealed bearing unit. Unit quantity: 1 Pc.
Bore form: straight, 30 mm. Fitting force is applied to the ring being mounted, never transmitted through the ball rows.
Related designations on the same envelope: FAG 544307 and SNR GB10884. Searchable forms of the number: BAHB636035A, BAHB 636035 A, BAHB-636035-A and 636035A.
