Angular contact ball bearing, 100 x 180 x 34 mm, 15° contact angle, phenolic window cage, open both faces, ABEC 5 precision, 72 medium section.
List Price
$343.57
3 in stock
3 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
Also Available From:
| MFR / Brand | SKF |
|---|---|
| Model | 7220 CTC C78 / 2M220WI CR / ABEC5 |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 100 mm |
| OD | 180 mm |
| Width | 34 mm |
| Material | Bearing Steel |
|---|---|
| Series | 7200 |
| Condition | New – Open box |
| Base Number | 7220 |
| Industry Terms | angular contact bearing, spindle bearing, machine tool bearing, 15 degree bearing, phenolic cage bearing |
| Common Misspellings | SFK, S.K.F., 7220CTCC7B, 7220 CTCC78, 7220CTCC 78, 722OCTCC78 |
| Application Types | Machine tool spindles, grinding heads, precision gearboxes, pump and compressor shafts |

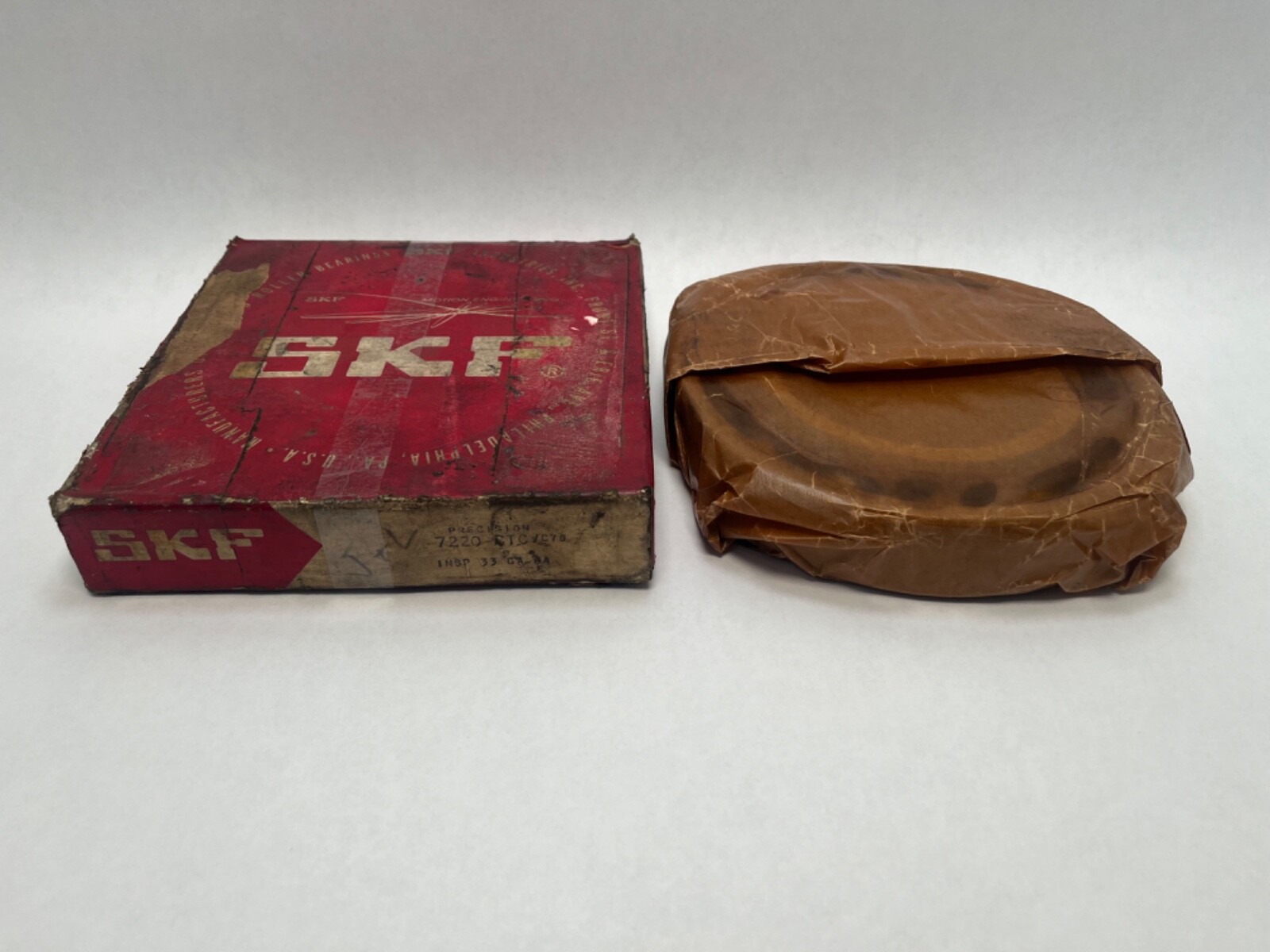

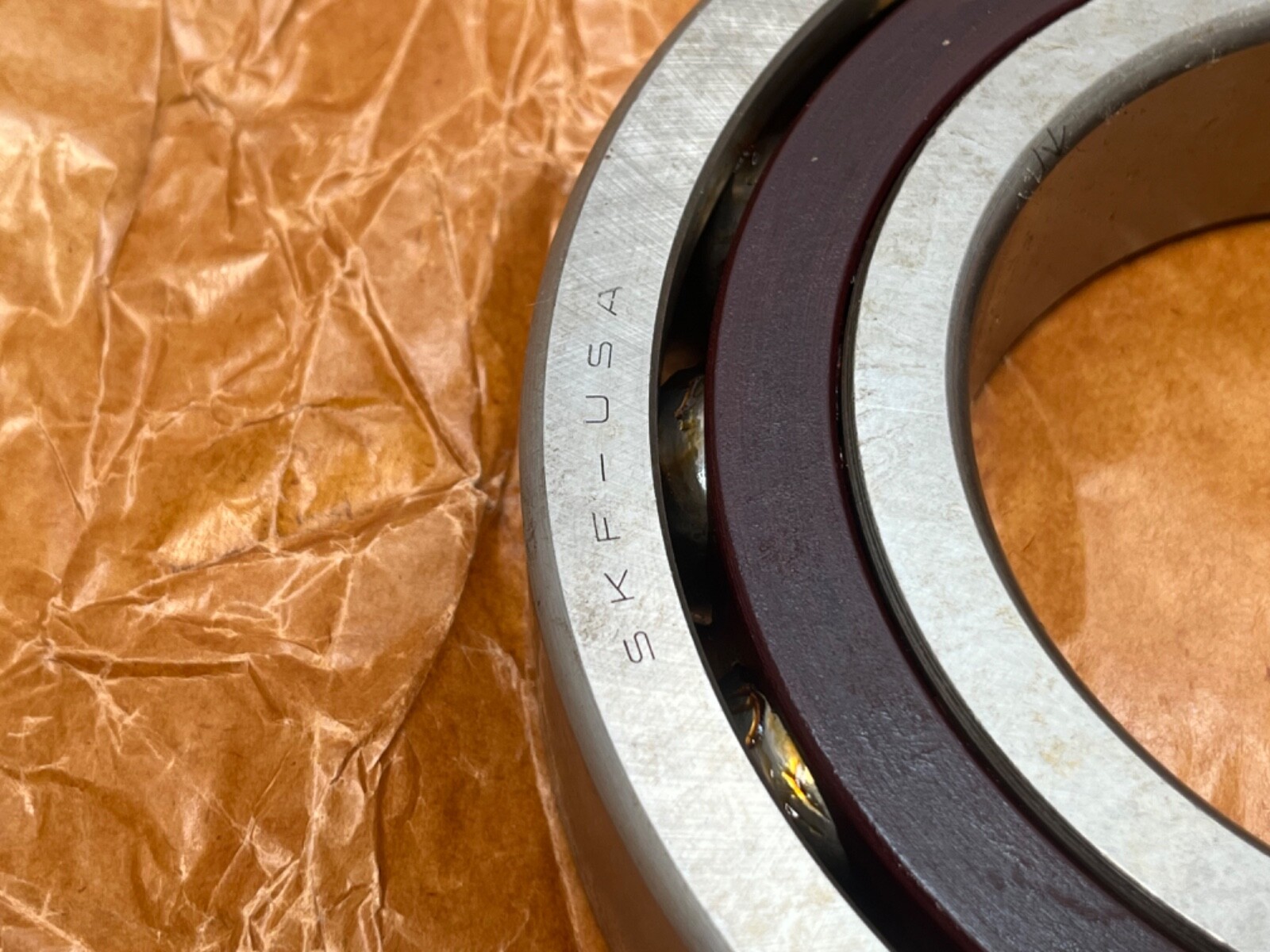

| Condition Note | Made In USA, New Old Stock |
| Overall Width | 34 mm (1.339 in) |
| Bore Shaft Size | 100 mm (3.937 in) |
| Mpn Variants | 7220CTCC78, 7220-CTC-C78, 7220 CTC C78, 7220CTC, 7220C, 7220 |
| Rolling Elements | Ball |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50 |
| Part Number | 7220 CTC C78 |
| Cross Reference 6 | 7220-C-P5 |
|---|

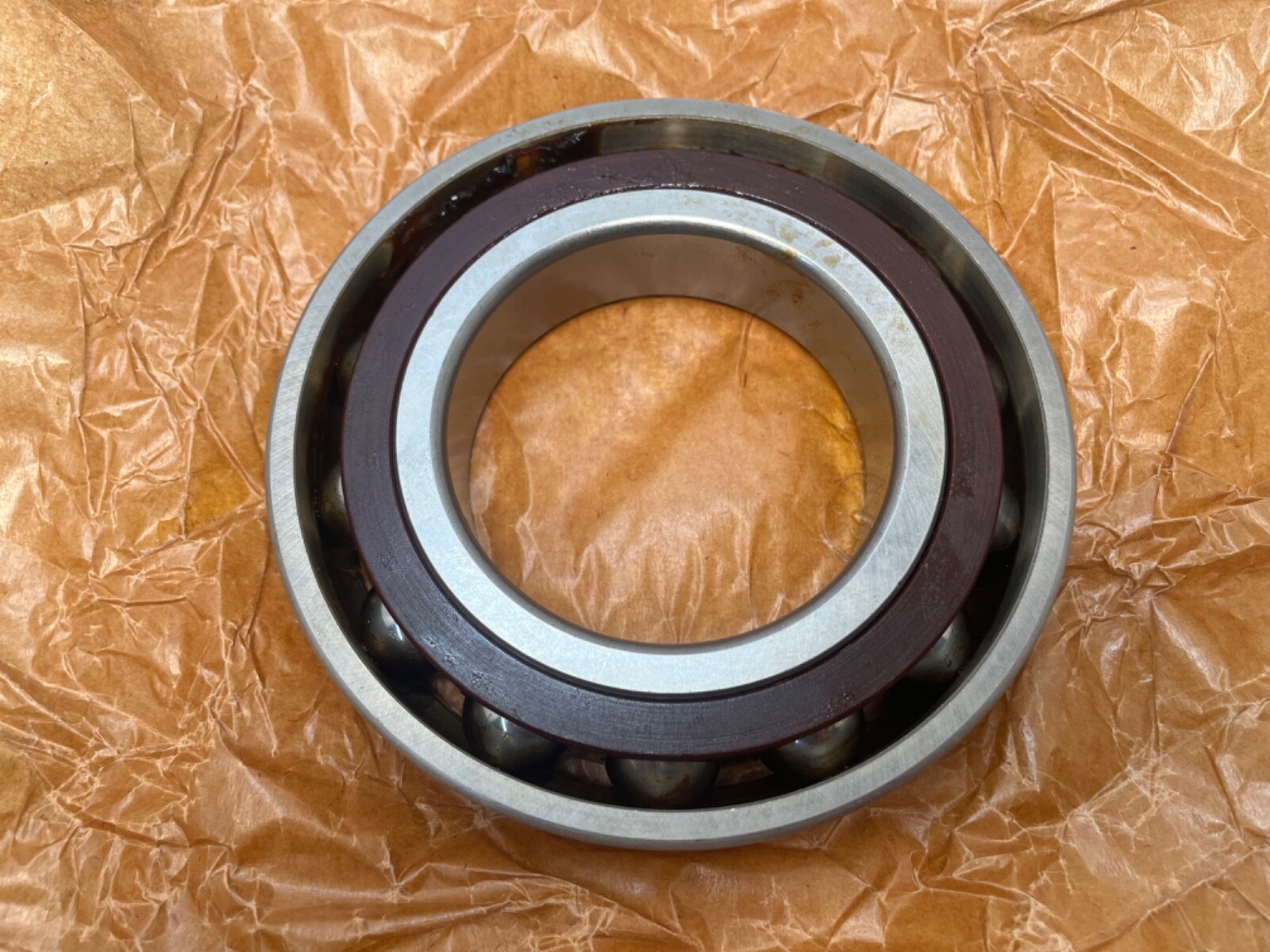

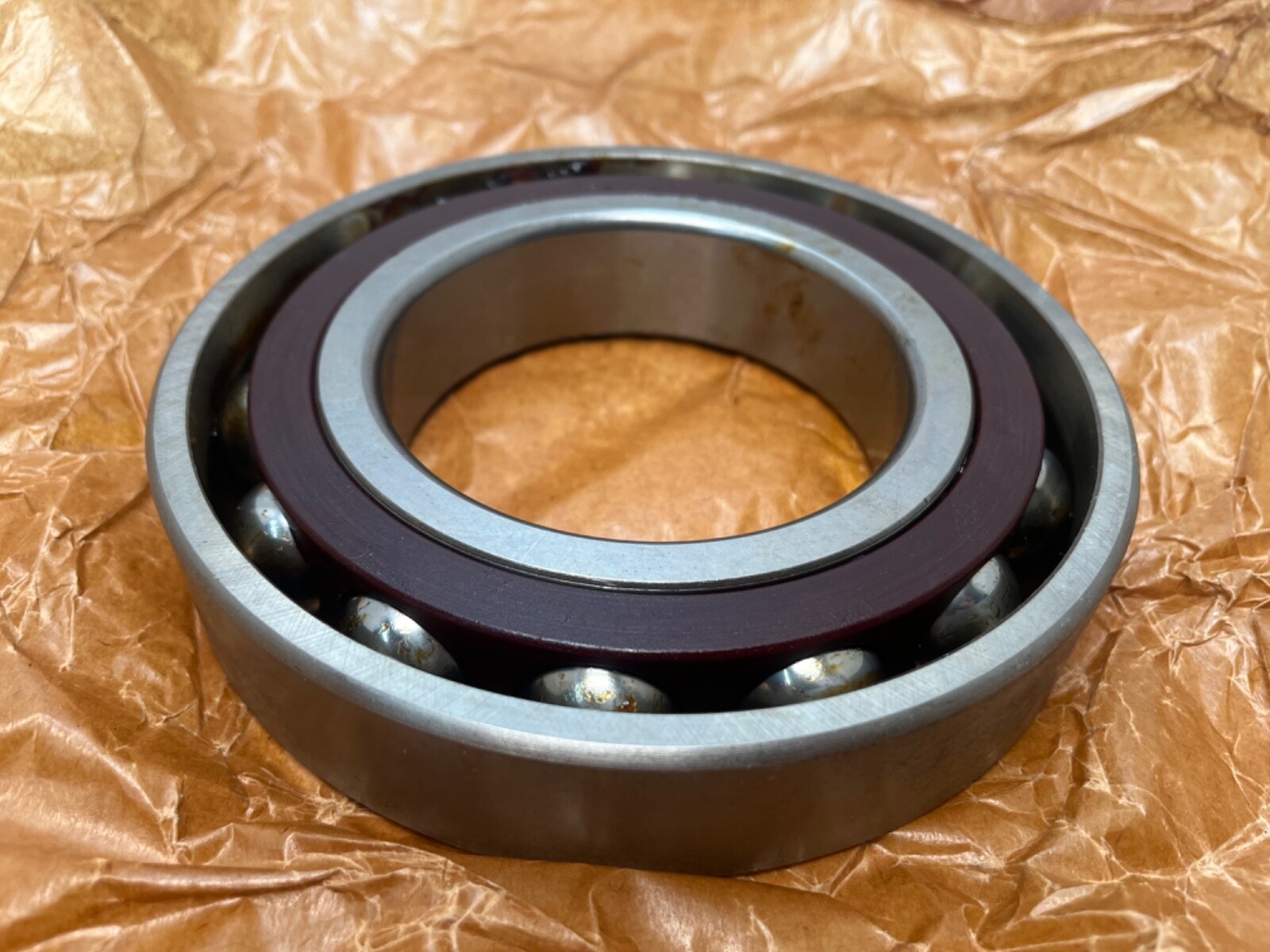

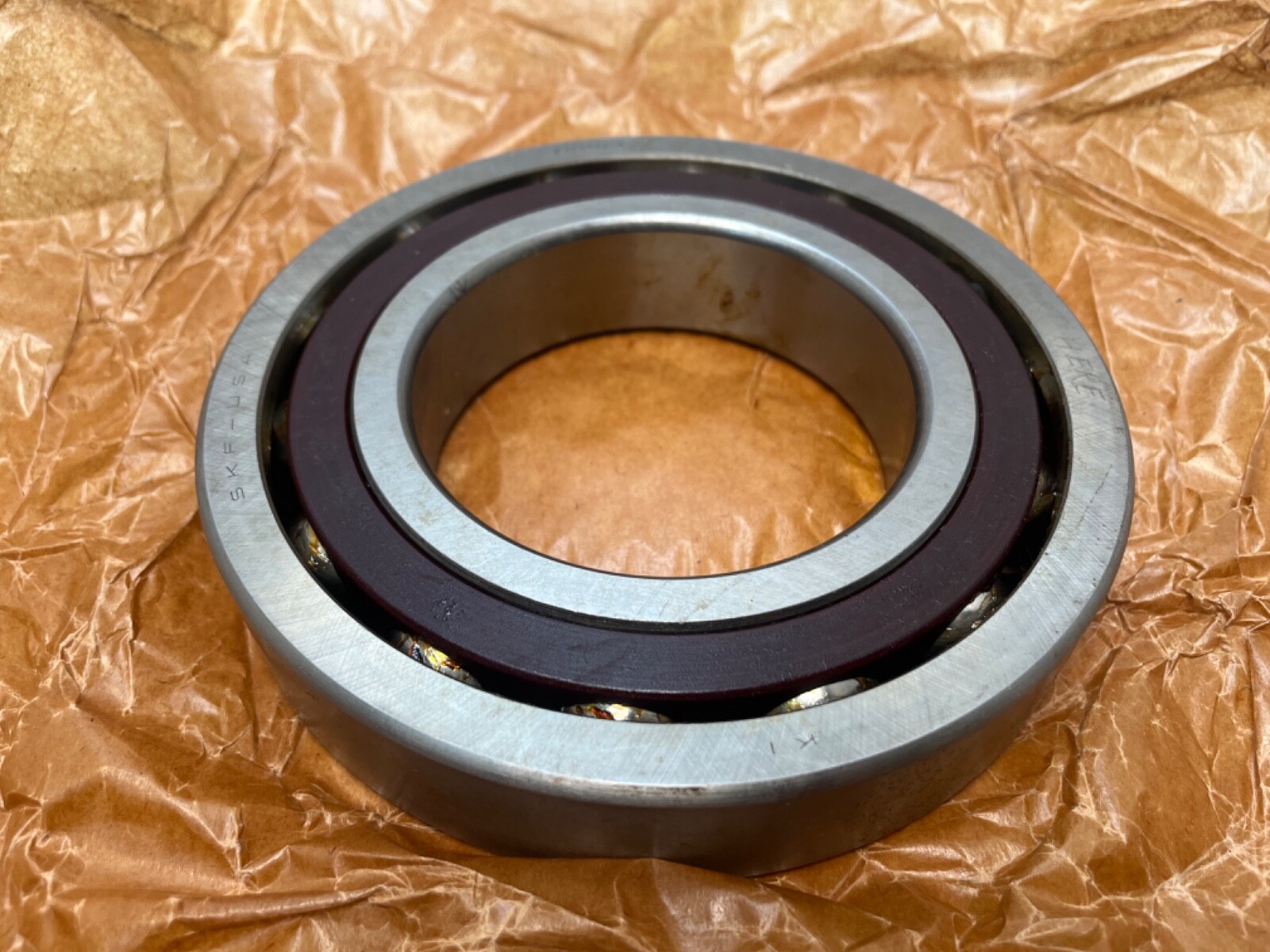

An SKF 7220 CTC C78 angular contact ball bearing in the 100 x 180 x 34 mm envelope. Single row, 15° contact angle, open on both faces. Bearing Type: single-row angular contact ball bearing. Base Number: 7220. Series: 72 medium (ISO 7200). Design Units: metric.
Bore: 100 mm (3.937 in). Outside Diameter: 180 mm (7.087 in). Overall Width: 34 mm (1.339 in). Bore Type: straight. Number Of Rows: 1. Rolling Elements: balls. Closure Type: open, both faces. Contact Angle: 15°. Cage Material: phenolic. Cage Type: window. Bearing Material: through-hardened chrome bearing steel. Precision Class: ABEC 5 / P5. Internal Clearance: CN. Item Weight: 7.50 lb. Maximum operating temperature: 120 °C. Harmonization Code: 8482.10.50.

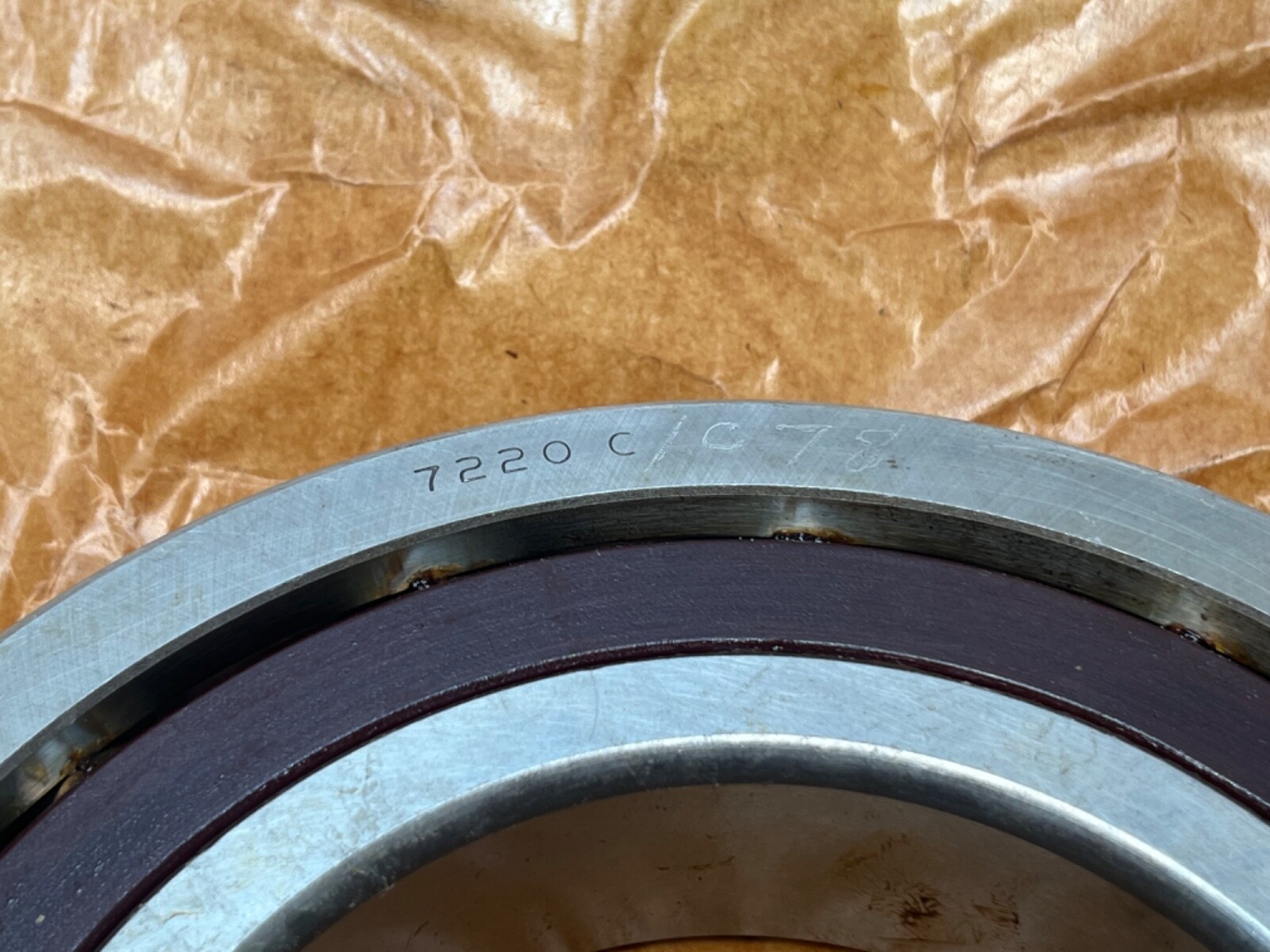

Series: 7220 — single-row angular contact ball bearing, 72 medium series, 100 mm bore. Contact Angle: 15°, from the C. Cage Material: phenolic fabric-laminate, from the TC. Searchable forms of the number include 7220CTCC78, 7220-CTC-C78, 7220 CTC C78, 7220CTC and 7220C. The C78 suffix is carried as an MPN variant for search.
A single-row angular contact ball bearing carries thrust in one direction together with a radial load. At 15° the thrust capacity is lower than a 25° or 40° bearing of the same envelope and the speed capability is higher, which is why 15° is the usual choice at the fast end of a spindle. The 72 medium section takes more load than a 70 light bearing of the same bore, in exchange for a larger outside diameter and greater mass. A phenolic window cage is quiet and dimensionally stable and holds oil in the cage body, giving a working ceiling of 120 °C. ABEC 5 tolerances hold bore, outside diameter and raceway runout to precision limits.
Unit Quantity: 1 Pc, a single bearing. Arrangement / Configuration: single bearing.
ISO envelope 7220 at 15°. Direct equivalents are other 7220 C bearings of matching cage and tolerance class, for example Fafnir 2MM220WI, NSK 7220CTY and 7220-C-P5. Same-envelope bearings at another angle — 7220 AC at 25°, 7220 B at 40° — are related sizes.
Application Types: machine tool spindles, grinding heads, precision gearboxes, pump and compressor shafts.
