Availability:
1 in stock

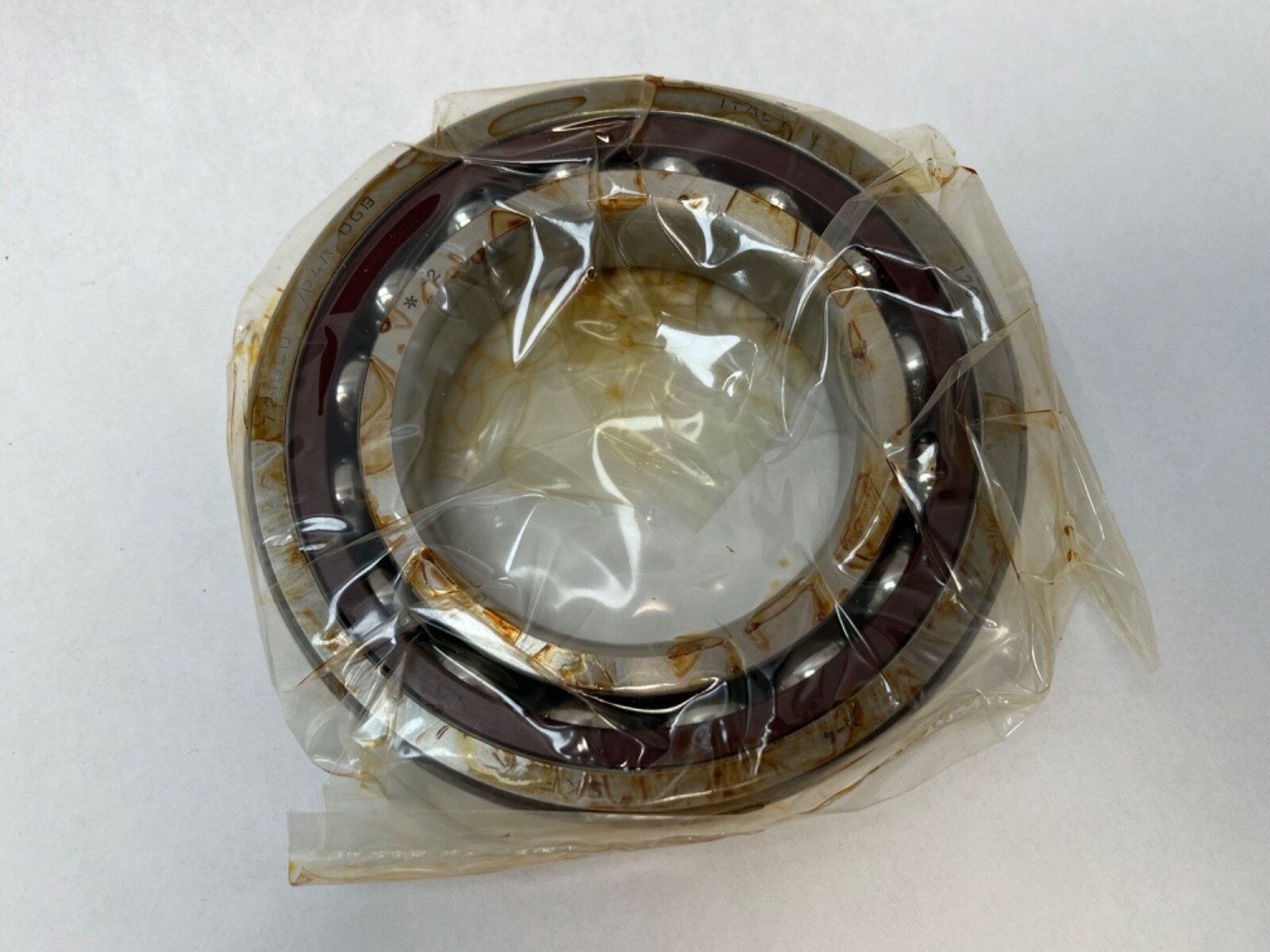

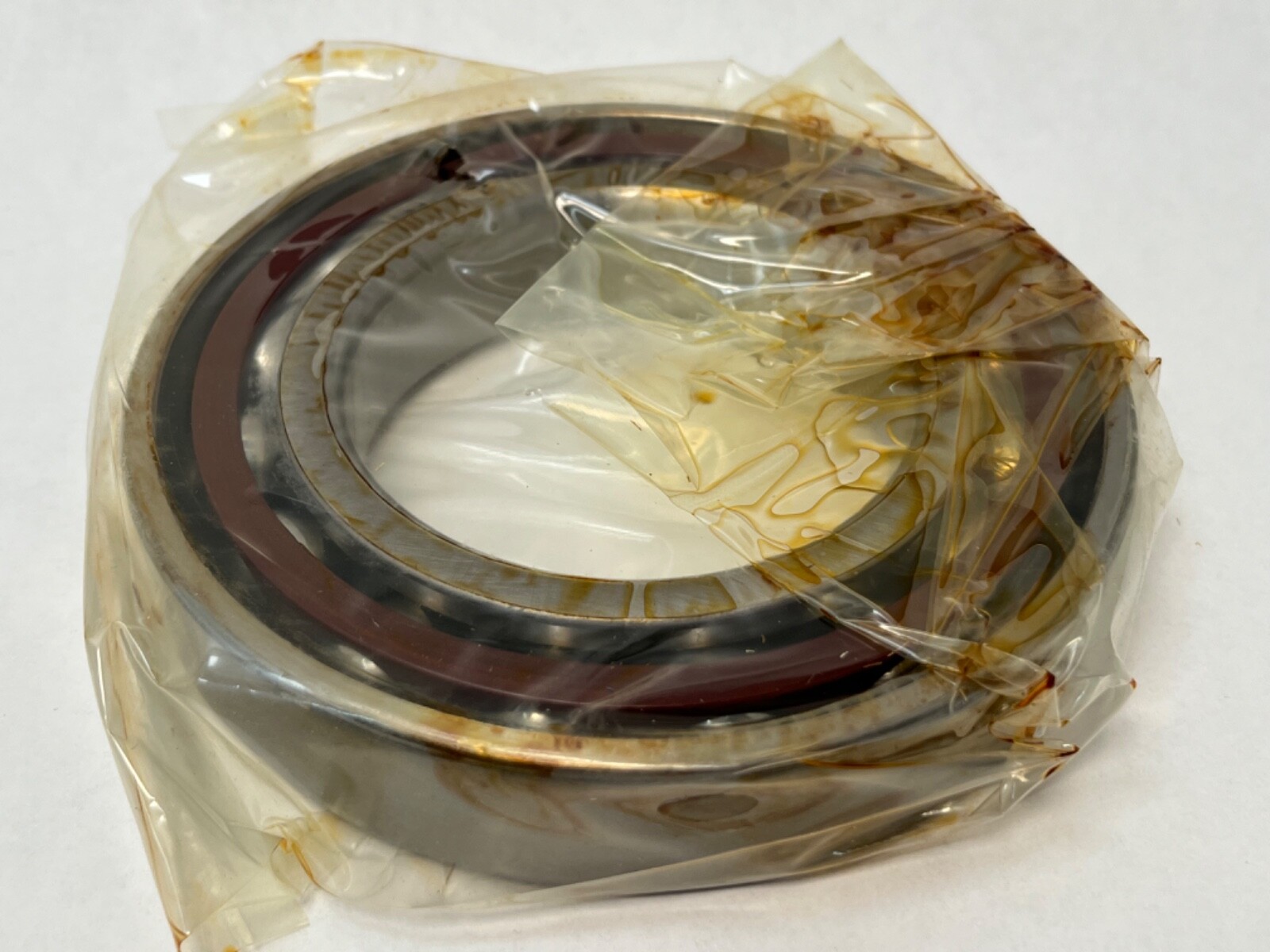

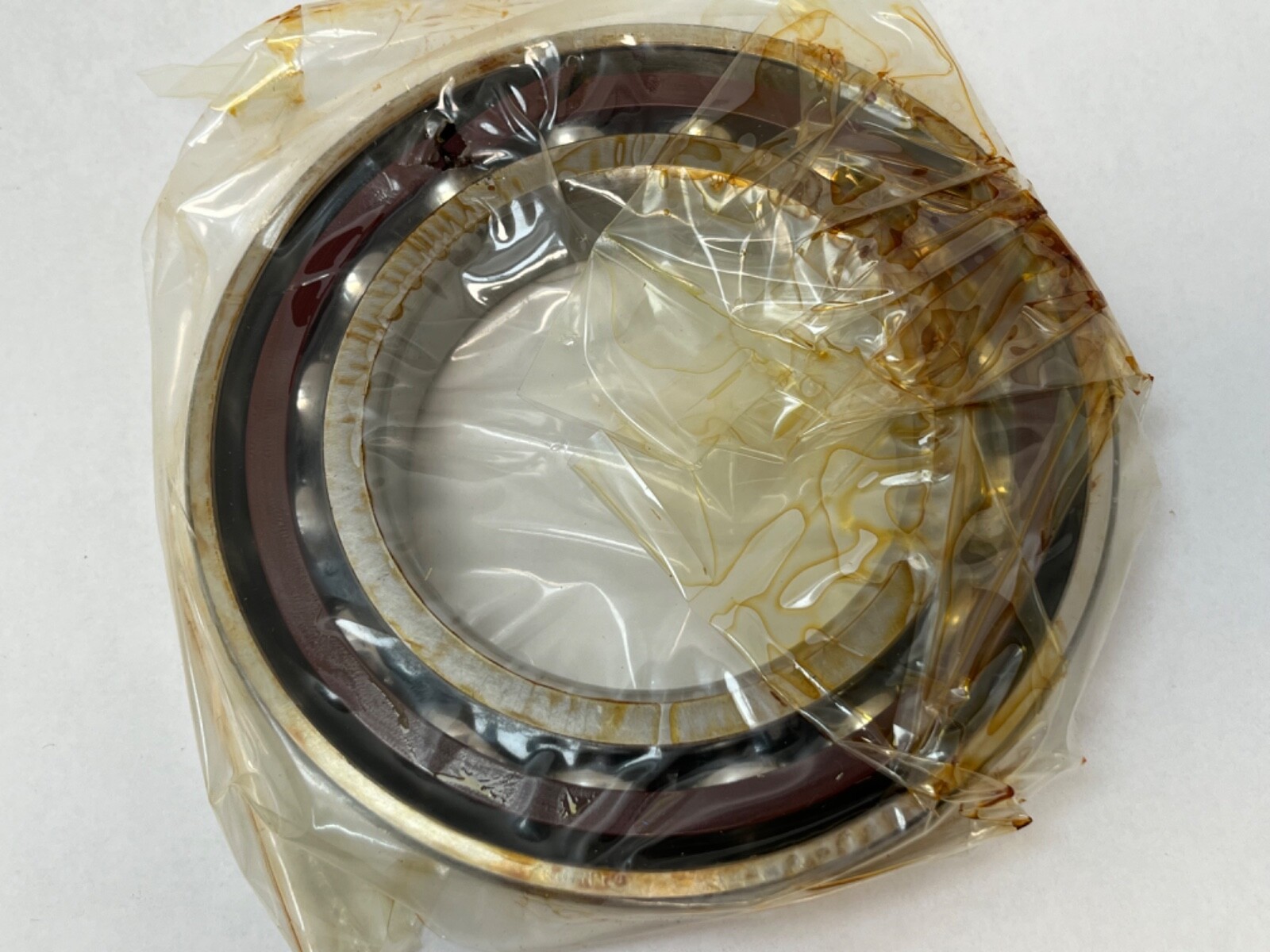

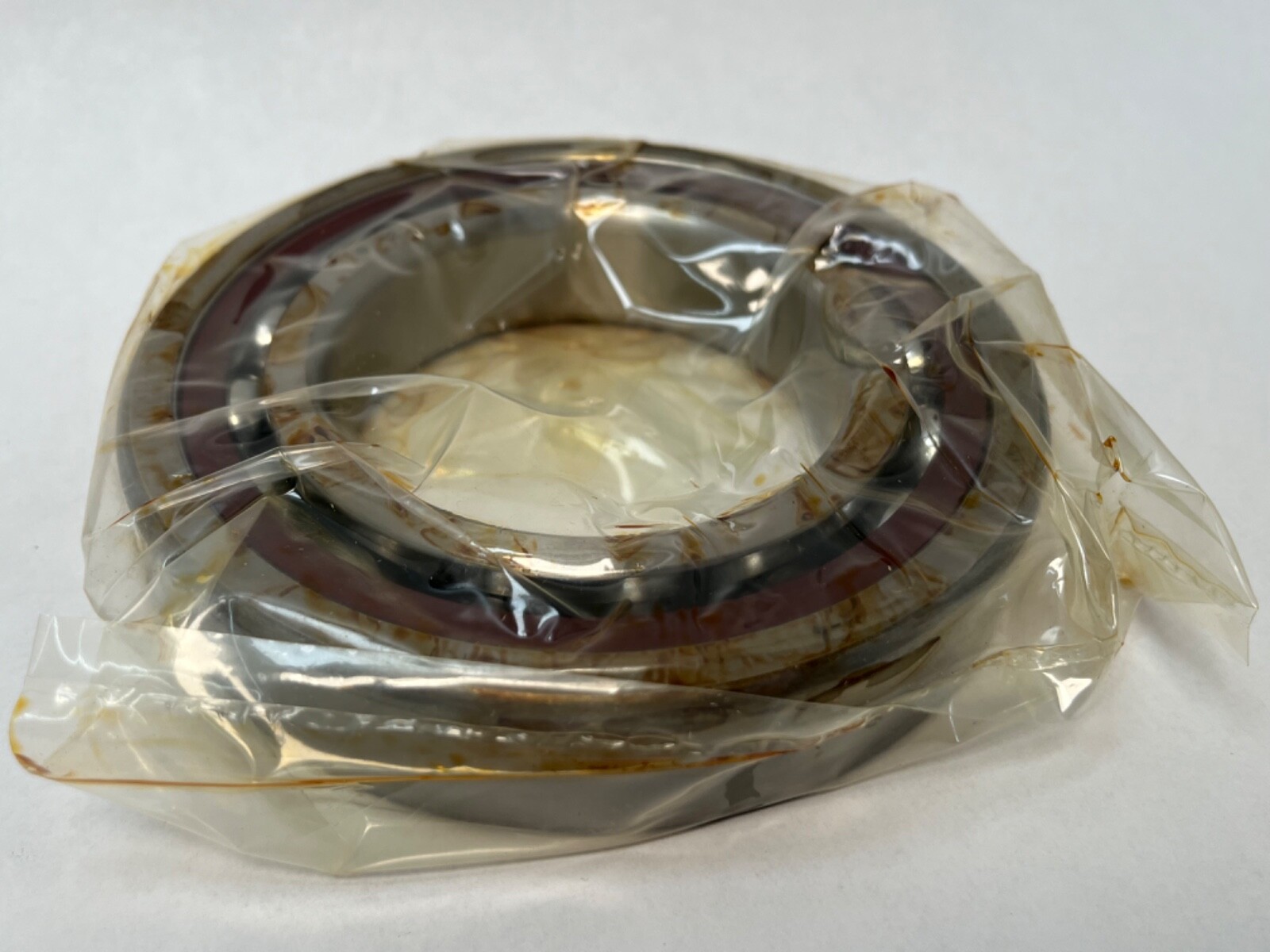

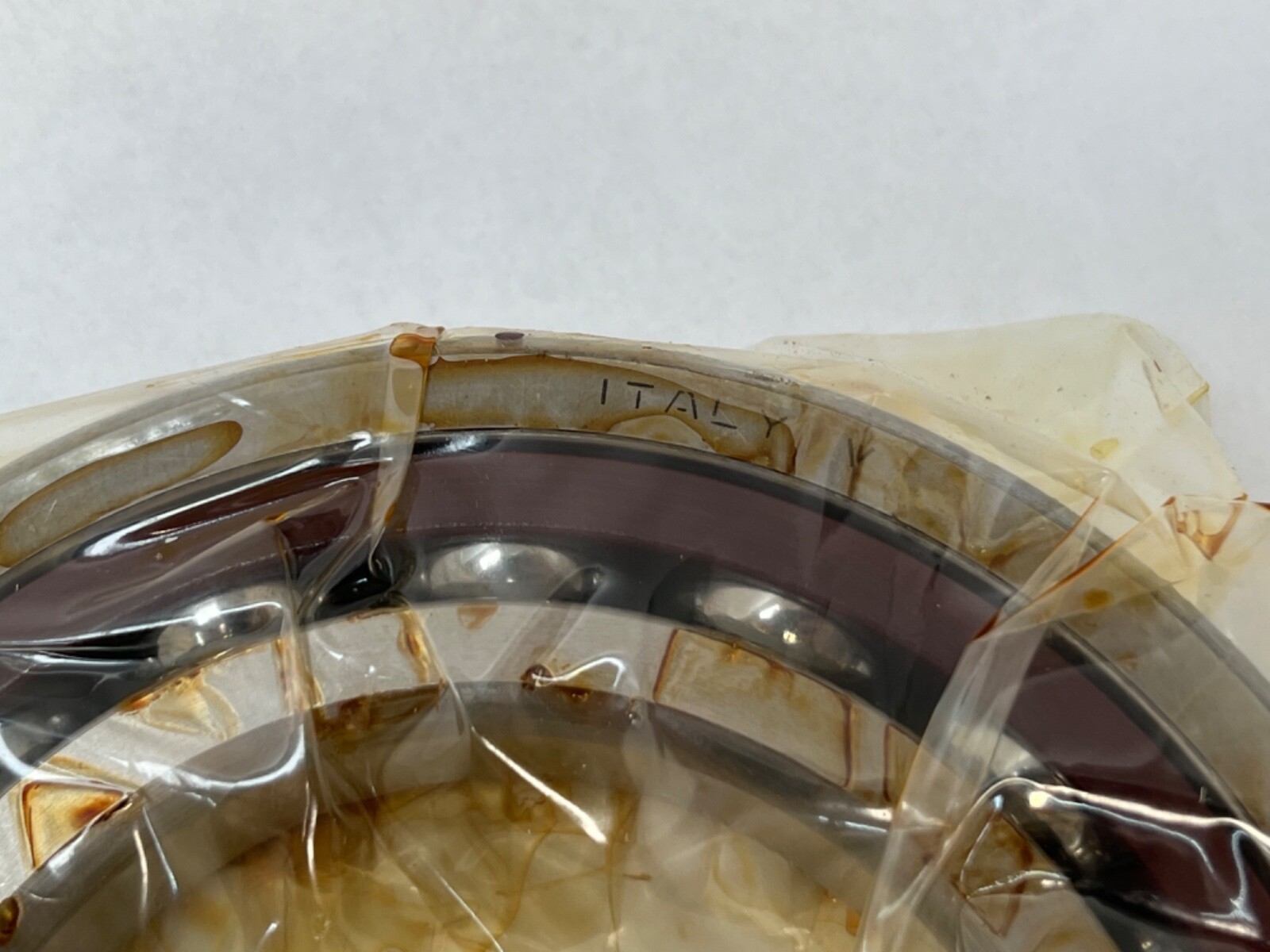

Super precision angular contact ball bearing, 80 x 140 x 26 mm, 15° contact angle, P4A tolerance, light preload (640 N). SKF high-capacity D design.
List Price
$290.22
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SKF |
|---|---|

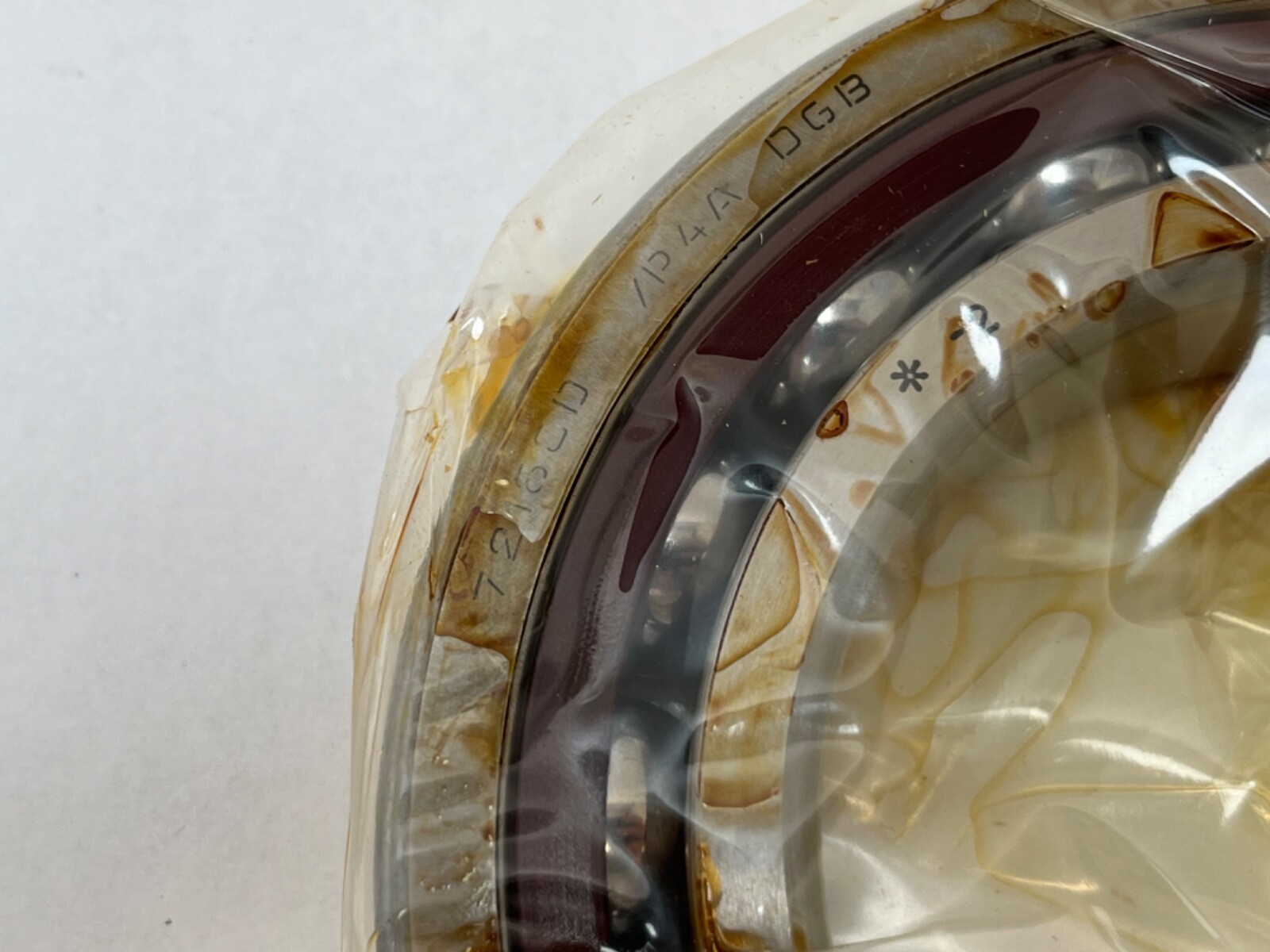

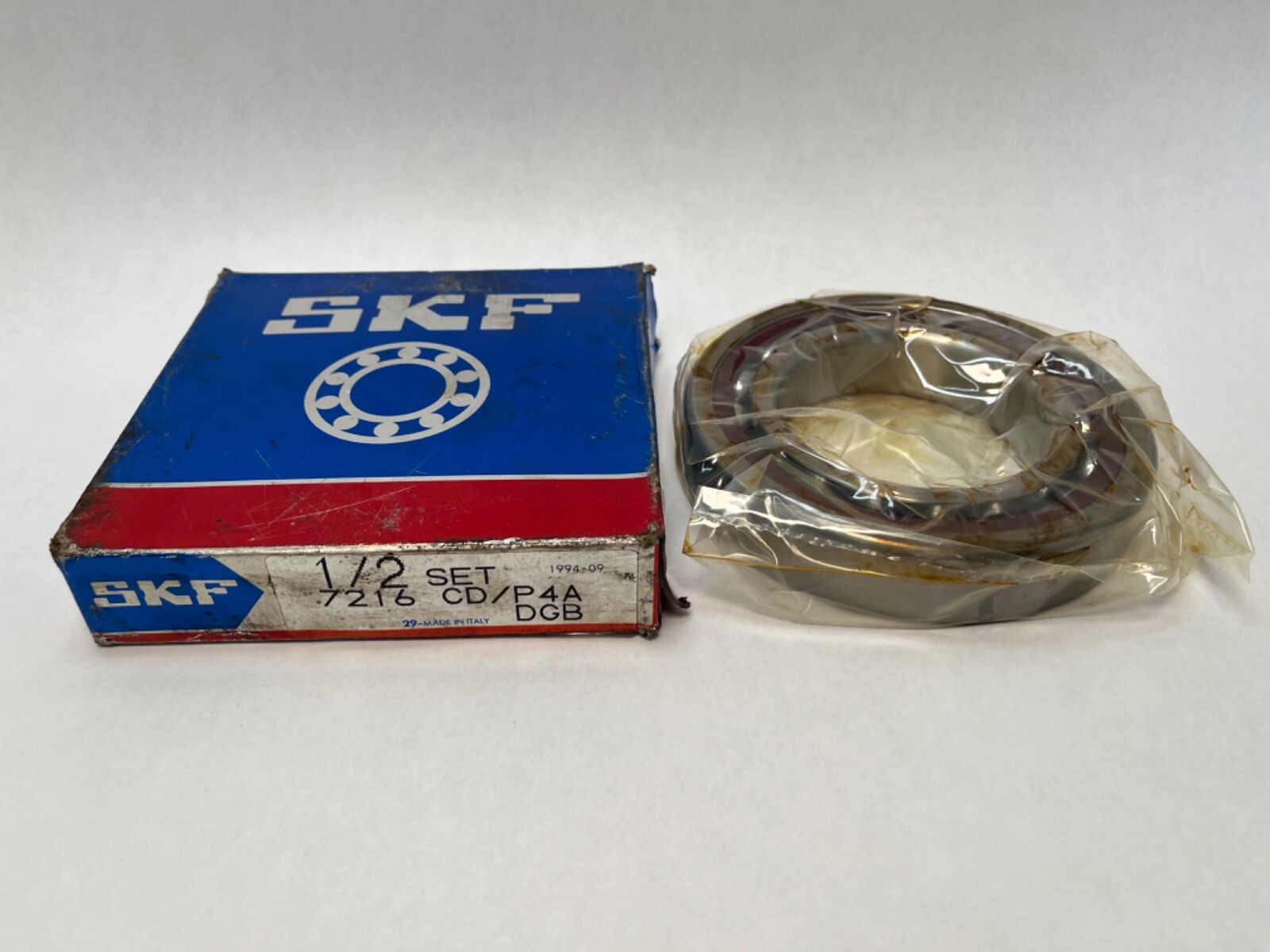

| Model | 7216 CD P4A DGB / 7216C P4A |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 80 mm |
| OD | 140 mm |
| Width | 26 mm |
| Material | Bearing Steel |
|---|---|
| Series | 7200 |
| Lubricant | Oil/Grease |
| Preload | Light (640 N) |
| Closure Type | Open |
| Mpn Variants | 7216-CDGB/P4A, 7216 CDGB/P4A, 7216CDGBP4A, 7216-CD-P4A-DGB, 7216-CD-GB-P4A, 7216C |
| Precision Class | ABEC 7 / P4A |
| Additional Attributes | Fatigue load limit 3,050 N; axial stiffness 130 N/µm; 17 balls of 17.462 mm; oil nozzle position 103.4 mm |
| Dynamic Load Rating | 85,200 N |
| Static Load Rating | 75,000 N |
| Rolling Elements | Ball |
| Item Weight | 1.46 kg (3.22 lb) |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 15° |
| Mounting Arrangement | Universally matchable: back-to-back, face-to-face or tandem |
| Bearing Material | Bearing steel |
| Cross Reference 1 | FAG B7216-C-T-P4S-UL |
|---|---|
| Cross Reference 2 | NSK 7216CTYNSULP4 |
| Cross Reference 3 | Timken 2MM216WI SUL |
SKF 7216 CDGB/P4A is a super-precision, high-capacity single row angular contact ball bearing from the SKF 72 series. It is universally matchable and can be combined back-to-back, face-to-face or in tandem to give a predetermined light preload without shims.
7216 — 72 series angular contact ball bearing, 80 mm bore, 140 mm outside diameter.
CD — high-capacity D design with a 15° contact angle.
GB — single bearing for universal matching, light preload.
P4A — SKF precision class: ISO P4 dimensional accuracy with tighter running accuracy.
Bore Diameter: 80 mm. Outside Diameter: 140 mm. Width: 26 mm. Contact Angle: 15°. Precision Class: ABEC 7 / P4A. Preload: Light, 640 N unmounted (back-to-back or face-to-face pair). Axial stiffness: 130 N/µm. Dynamic Load Rating: 85,200 N. Static Load Rating: 75,000 N. Fatigue load limit: 3,050 N. Ball diameter: 17.462 mm. Number of balls: 17. Reference grease quantity: 18.1 cm³. Item Weight: 1.46 kg (3.22 lb). Bearing Material: Bearing steel. Closure Type: Open. The 15° angle favours radial stiffness and speed for machine tool spindles.
Inner ring shoulder diameter d1: 99.5 mm. Outer ring shoulder diameter D1: 120.5 mm. Chamfer r1,2 min: 2 mm. Chamfer r3,4 min: 1 mm. Pressure point distance a: 27.8 mm. Shaft abutment da/db min: 91 mm. Housing abutment Da max: 129 mm; Db max: 134.4 mm. Fillet radius ra max: 2 mm; rb max: 1 mm. Oil nozzle position dn: 103.4 mm.
Unit Quantity: 1 Pc. Single universally matchable bearing.
Light-preload universal singles on the same 15° envelope: FAG B7216-C-T-P4S-UL, NSK 7216CTYNSULP4, Timken/Fafnir 2MM216WI SUL. Cage execution and exact class vary by maker.
