Availability:
1 in stock

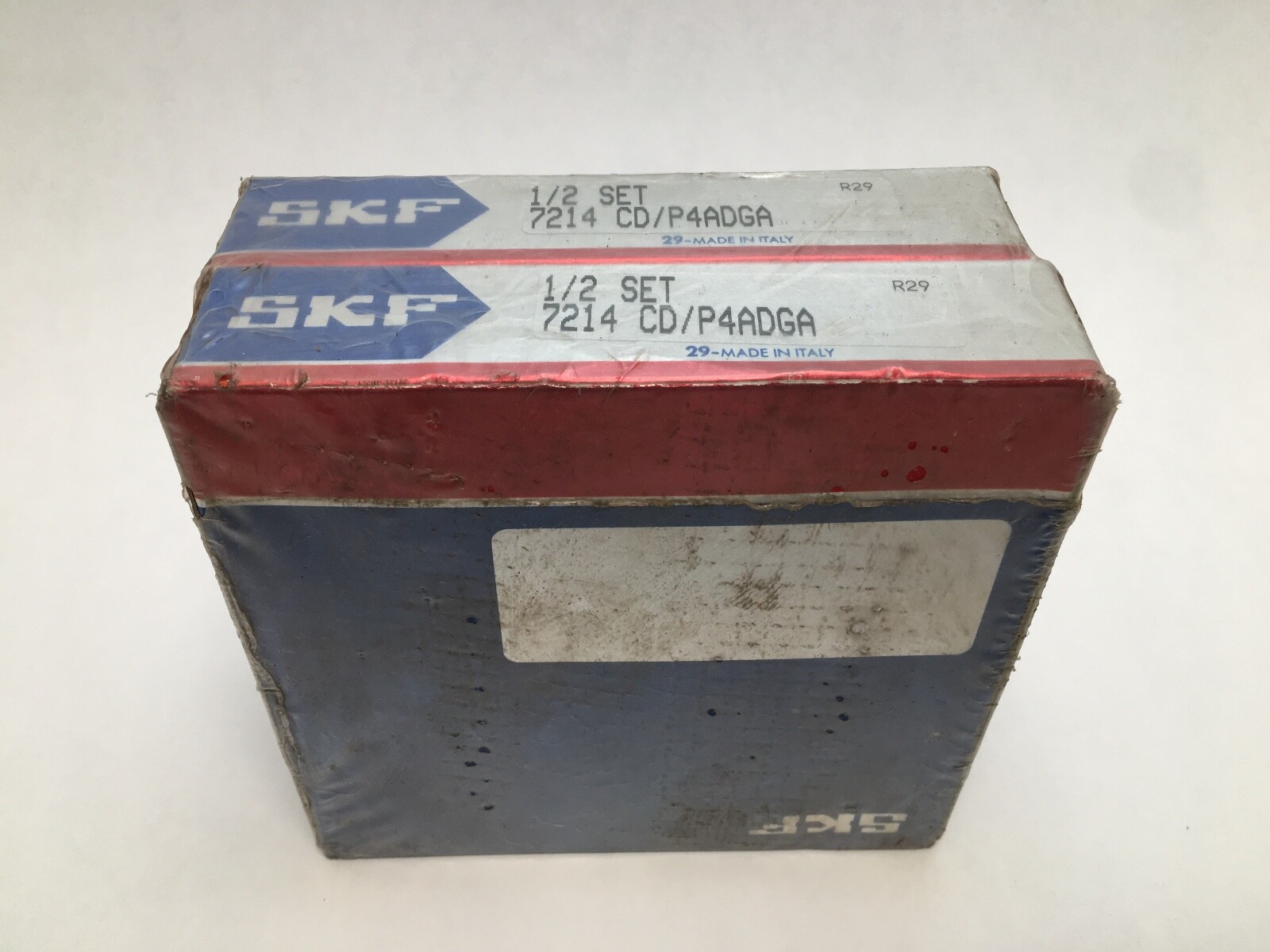

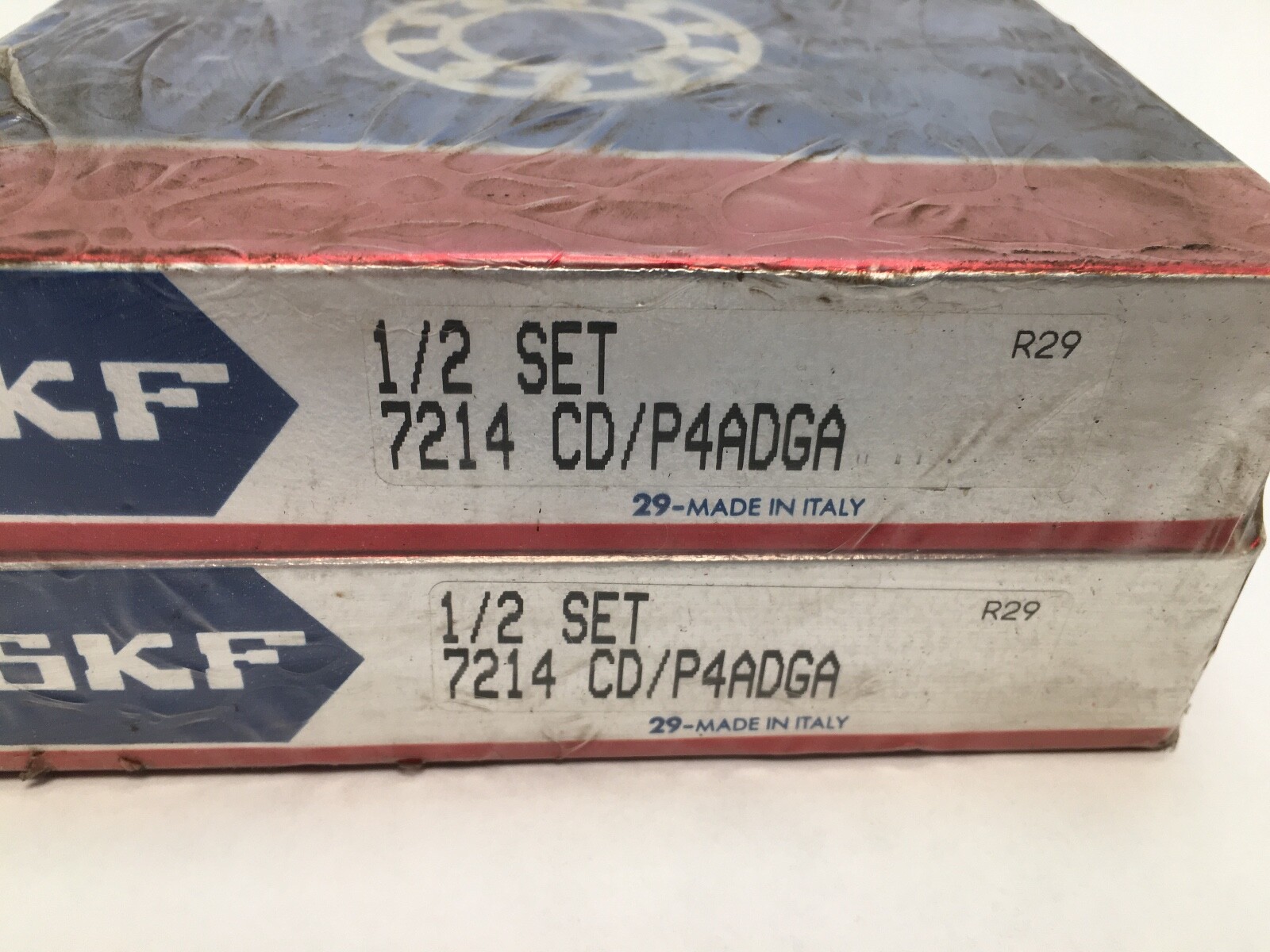

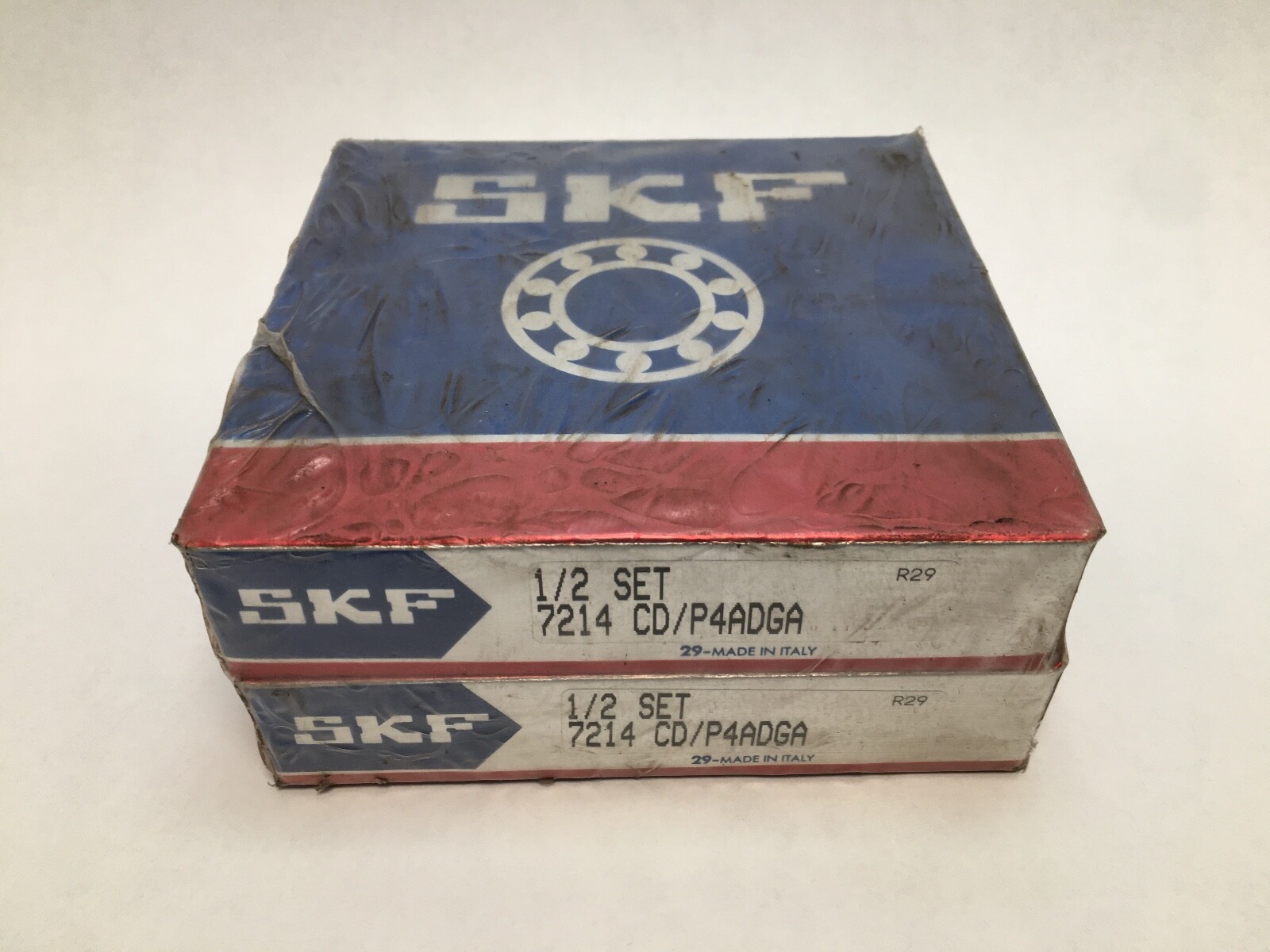

SKF 7214 CD/P4ADGA matched pair of super-precision angular contact bearings, 70 x 125 x 24 mm, 15°, extra light preload 260 N, P4A. Set rating C 112,000 N.
List Price
$458.60
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SKF |
|---|---|
| MPN | 7214CDP4ADGA |
| Model | 7214CD/P4A DGA |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 70 mm |
| OD | 125 mm |
| Width | 24 mm |
| Material | Bearing Steel |
|---|---|
| Series | 7200 |
| Preload | Extra light, 260 N |
| Total Width | 48 mm (set) |
| Mpn Variants | 7214 CD/P4ADGA, 7214-CD/P4ADGA, 7214-CD-P4A-DGA, 7214CDP4ADGA |
| Precision Class | P4A (ABEC 7 / P4 dimensional, P2 running accuracy) |
| Closure Type | Open |
| Dynamic Load Rating | 112,000 N (set) |
| Static Load Rating | 116,000 N (set) |
| Precision Rating | P4A (ABEC 7 / P4 dimensional, P2 running accuracy) |
| Rolling Elements | Ball |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Limiting Speed | 11,000 rpm grease; 18,000 rpm oil-air (single bearing, before arrangement factor) |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 15° |
| Mounting Arrangement | Universal pair: back-to-back, face-to-face or tandem |
| Bearing Material | Bearing steel |
| Cross Reference 1 | FAG B7214-C-T-P4S-DUL |
|---|---|
| Cross Reference 2 | NSK 7214CTYNDULP4 |
| Cross Reference 3 | Fafnir 2MM214WI DUL |
| Cross Reference 4 | RHP 7214CTDULP4 |
SKF 7214 CD/P4ADGA is a matched set of two super-precision, high-capacity single row angular contact ball bearings in the 72 series, with a 15° contact angle and extra light preload. The set is universally matchable and mounts back-to-back, face-to-face or in tandem in machine tool spindles.
72 — ISO dimension series 02, light section.
14 — bore code, 14 x 5 = 70 mm bore.
CD — 15° contact angle, high-capacity D design.
P4A — SKF tolerance class: ISO P4 dimensional accuracy with ISO P2 running accuracy.
DGA — set of two universally matchable bearings, extra light preload.
Bore Diameter: 70 mm. Outside Diameter: 125 mm. Width: 24 mm per bearing; 48 mm set total. Contact Angle: 15°. Dynamic Load Rating: 112,000 N (set). Static Load Rating: 116,000 N (set). Fatigue Load Limit: 4,900 N (set). Preload: Extra light, 260 N. Axial Stiffness: 83 N/µm. Attainable Speed: 11,000 rpm grease; 18,000 rpm oil-air (single bearing, before arrangement factor). Precision Class: P4A (ABEC 7 / P4 dimensional, P2 running accuracy). Ball Diameter: 15.875 mm. Number Of Balls: 16 per bearing. Bearing Material: Bearing steel. Closure Type: Open.
Shaft abutment diameter: 79 mm min. Housing abutment diameter: 116 mm max (large side), 120.8 mm max (small side). Fillet radius: 1.5 mm max (large side), 0.6 mm max (small side). Oil nozzle position: 91.6 mm. Reference grease quantity: 13.7 cm³ per bearing.
Unit Quantity: 2 Pcs. One matched set of two bearings.
15° contact angle, super-precision class, universally matchable: FAG B7214-C-T-P4S-DUL, NSK 7214CTYNDULP4, Fafnir 2MM214WI DUL, RHP 7214CTDULP4. MPN variants: 7214 CD/P4ADGA, 7214-CD/P4ADGA, 7214-CD-P4A-DGA, 7214CDP4ADGA. Harmonization Code: 8482.10.50.
