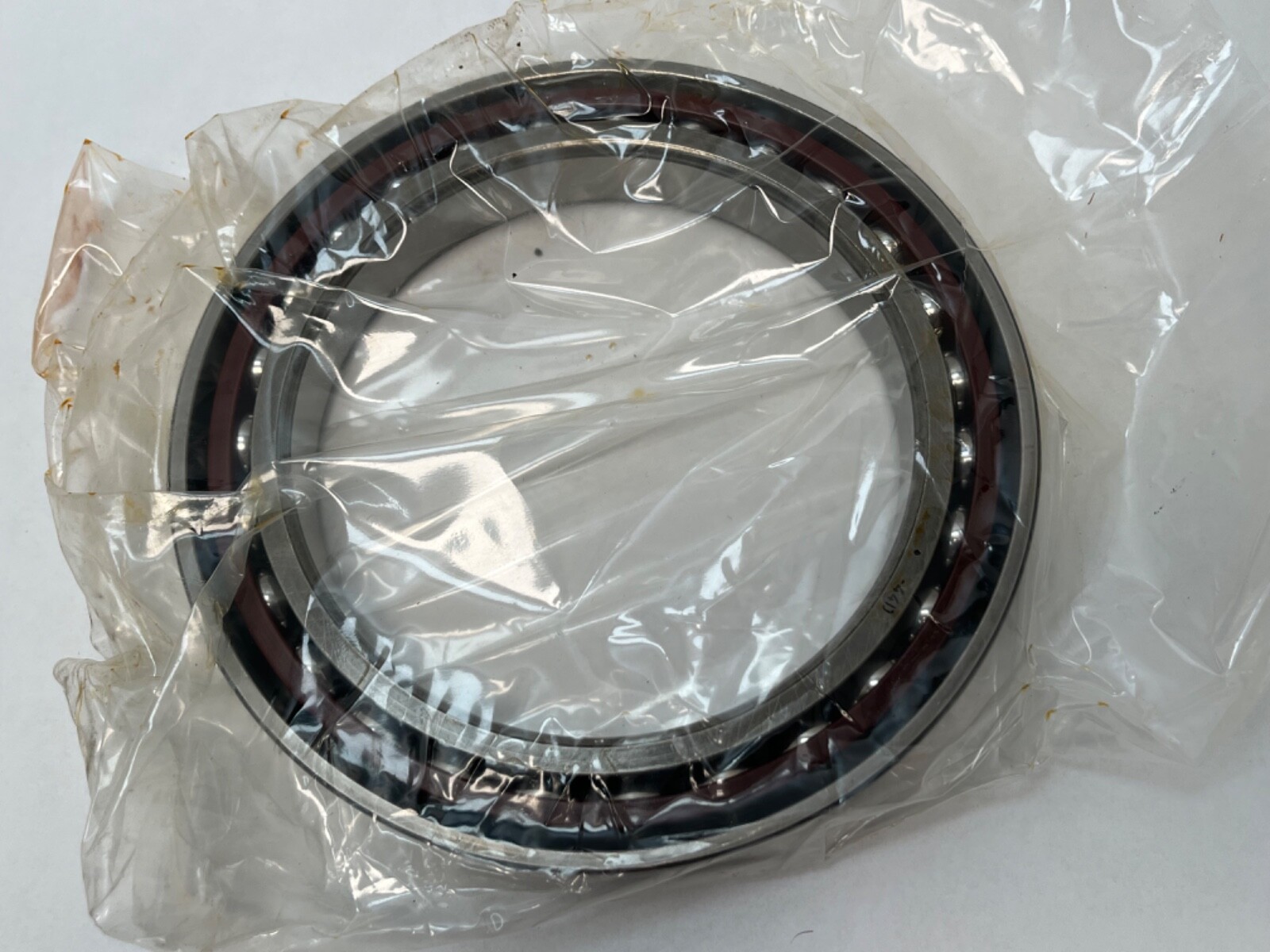

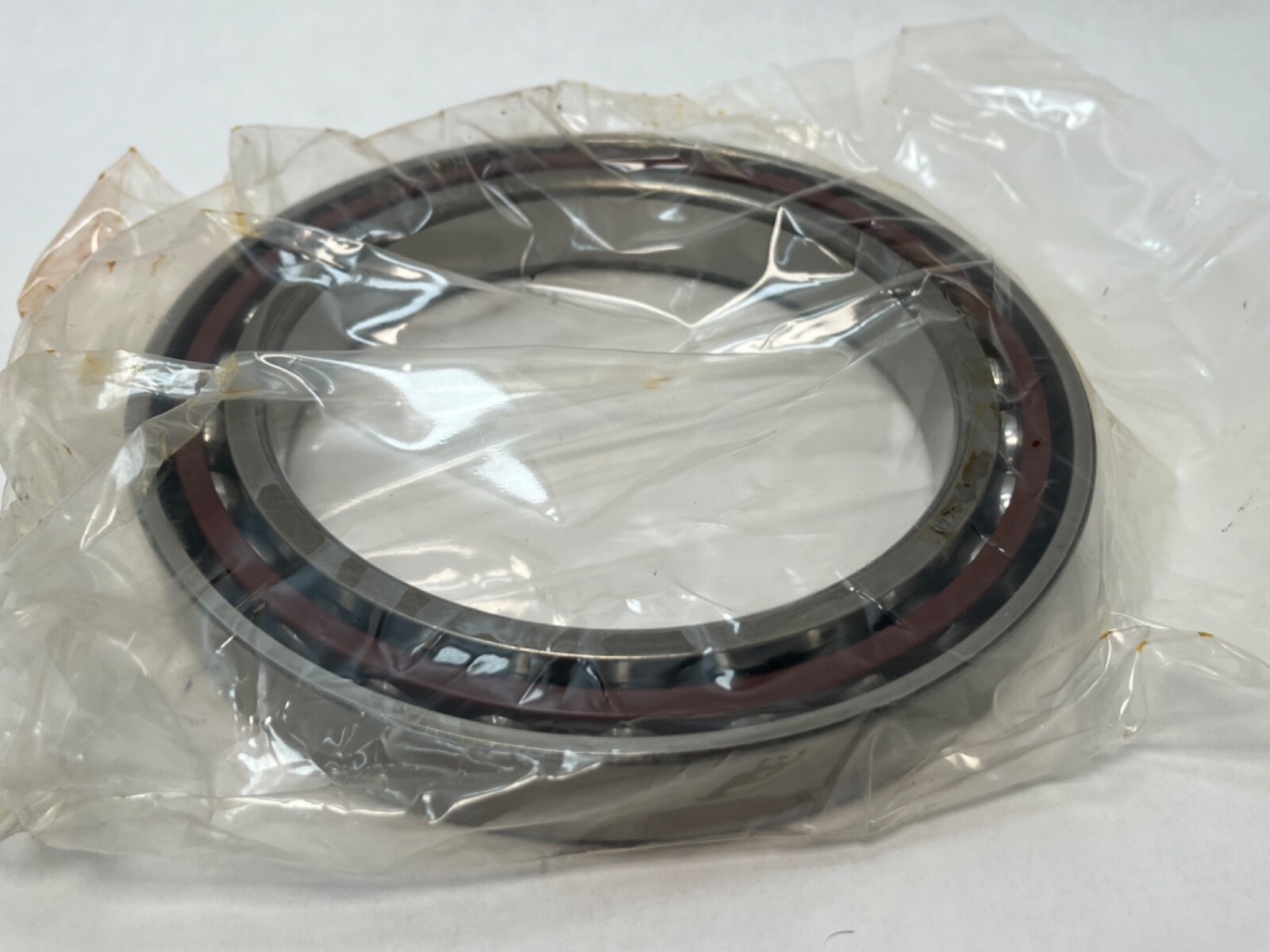

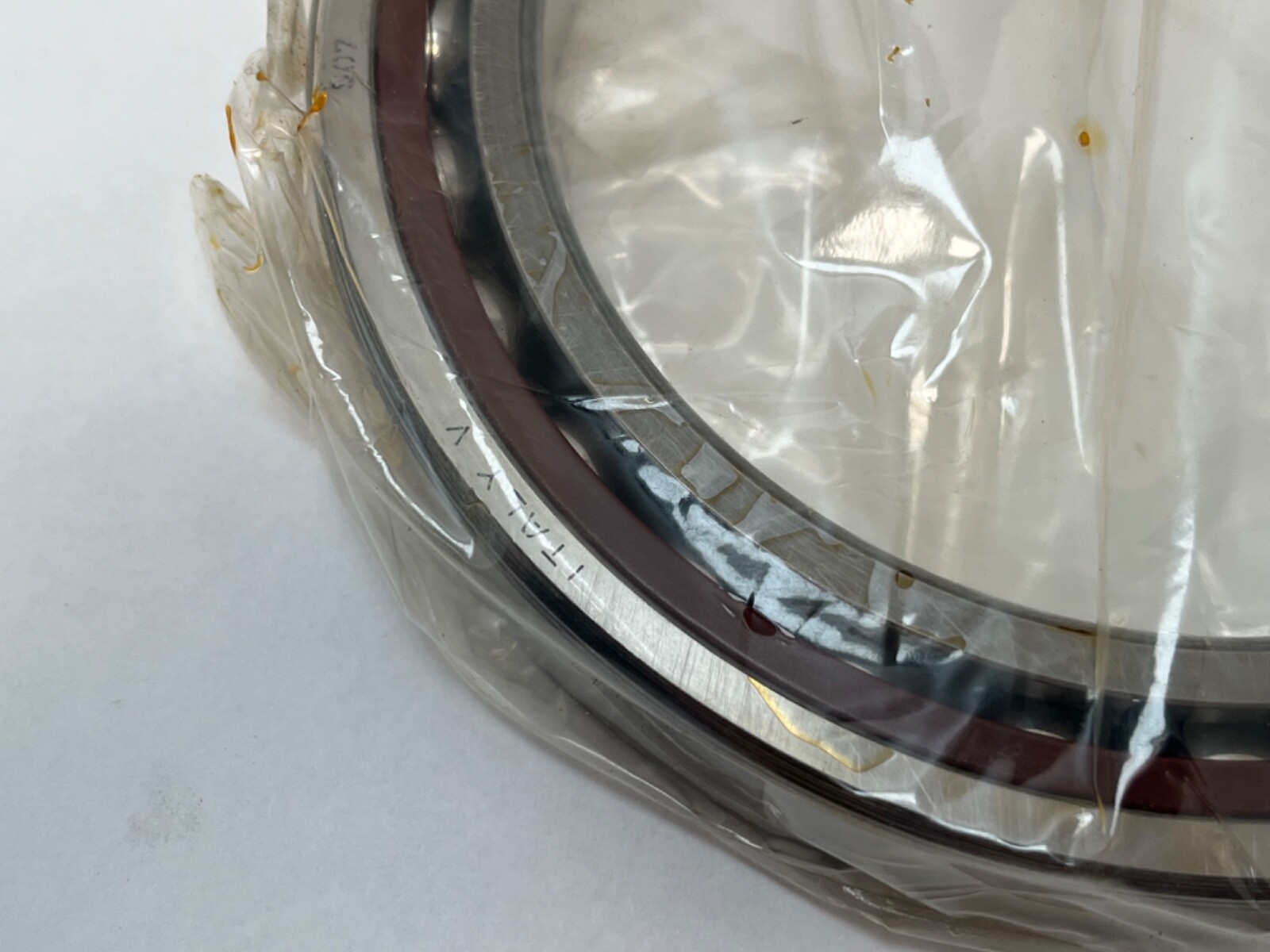

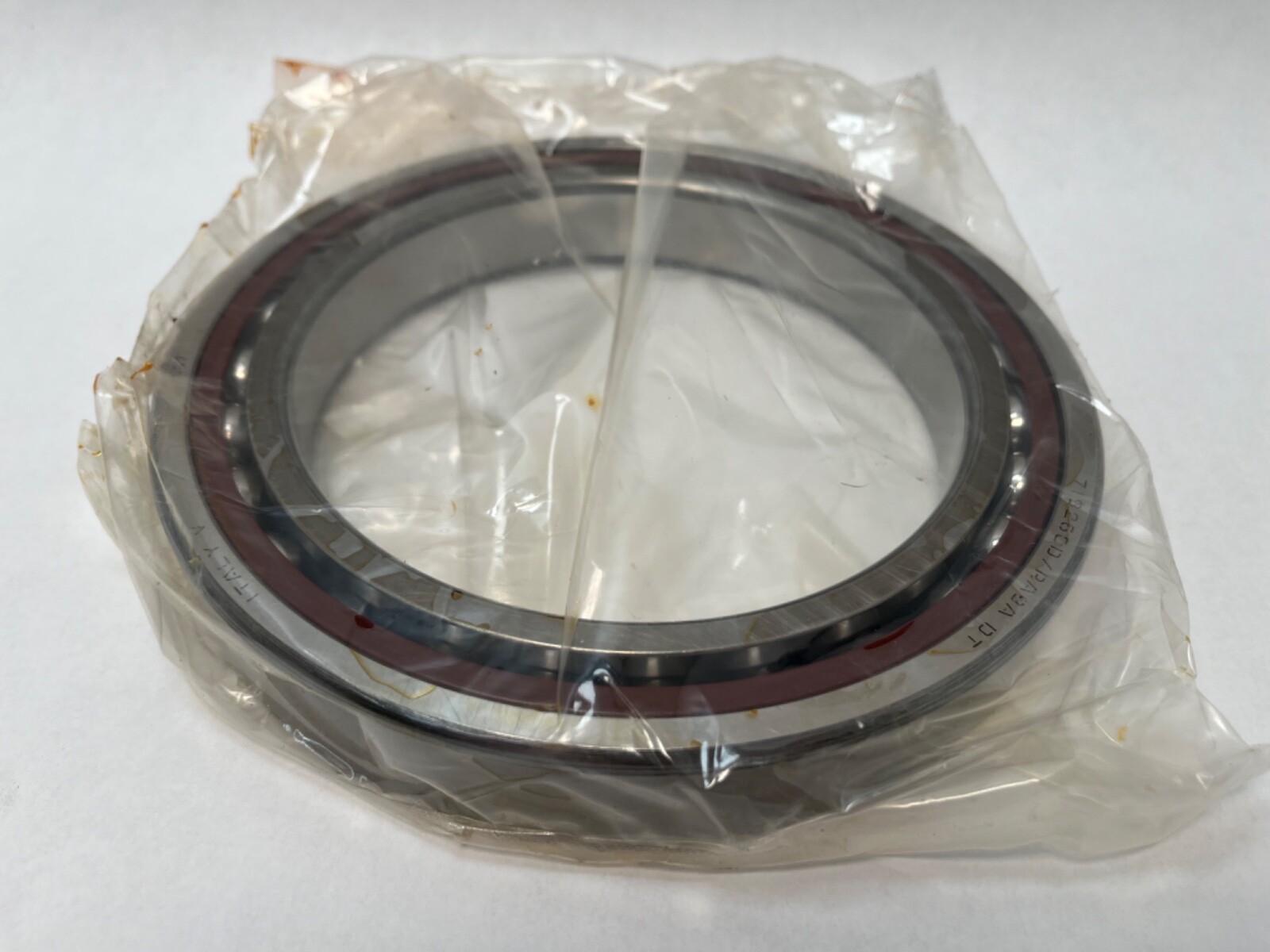

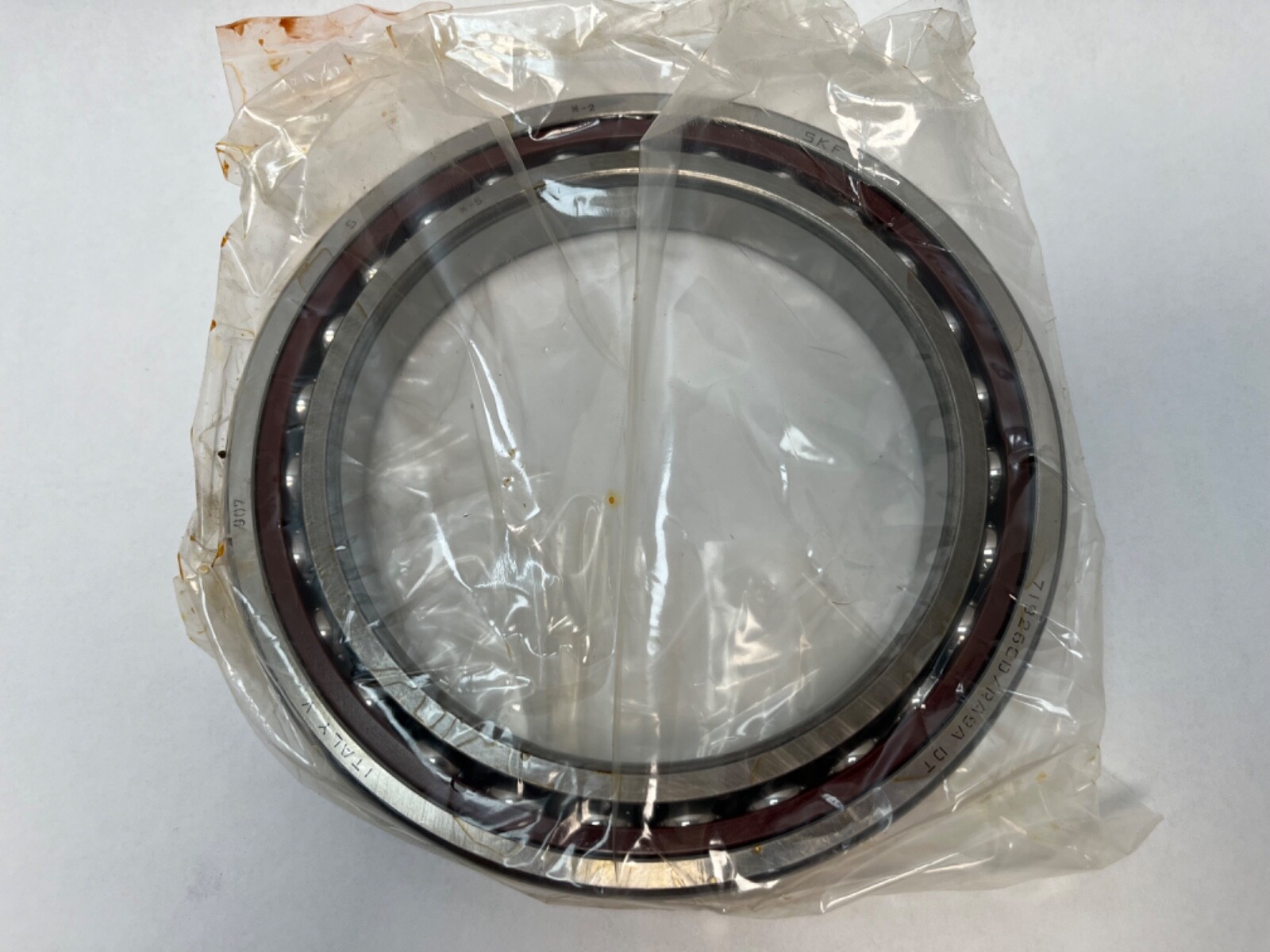

SKF 71926 CD/PA9ADT super-precision angular contact bearing, 130 x 180 x 24 mm, 15° angle, ABEC 9 / P2. One bearing from a tandem-matched pair. C 92,300 N.
List Price
$948.03
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SKF |
|---|---|
| MPN | 71926CDPA9ADT |
| Model | 71926-CD-PA9A-DT |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 130 mm |
| OD | 180 mm |
| Width | 24 mm |
| Material | Steel |
|---|---|
| Series | 71900 |
| Mpn Variants | 71926 CD/PA9ADT, 71926CDPA9ADT, 71926-CD-PA9A-DT, 71926C, 7926C |
| Precision Class | ABEC 9 / P2 |
| Dynamic Load Rating | 92,300 N |
| Static Load Rating | 108,000 N |
| Precision Rating | ABEC 9 / P2 |
| Rolling Elements | Ball |
| Item Weight | 1.53 kg (3.37 lb) |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 15° |
| Mounting Arrangement | Tandem (DT) |
| Bearing Material | Bearing steel |
| Cross Reference 1 | FAG B71926-C-T-P2 |
|---|---|
| Cross Reference 2 | NSK 7926C |
| Cross Reference 3 | GMN S61926 C |
| Cross Reference 4 | NTN 7926C |
SKF 71926 CD/PA9ADT is a super-precision, high-capacity single row angular contact ball bearing in the 719 ultra-light series, with a 15° contact angle and ABEC 9 tolerance. It is one bearing from a factory-matched tandem pair, used in high-speed machine tool spindles.
719 — ISO dimension series 19, ultra-light section.
26 — bore code, 26 x 5 = 130 mm bore.
CD — 15° contact angle, high-capacity D design.
PA9A — SKF tolerance class, ABEC 9 / ISO P2 dimensional and running accuracy.
DT — matched for tandem arrangement. Both bearings face the same direction and share the axial load.
Bore Diameter: 130 mm. Outside Diameter: 180 mm. Width: 24 mm. Contact Angle: 15°. Dynamic Load Rating: 92,300 N per bearing. Static Load Rating: 108,000 N per bearing. Precision Class: ABEC 9 / P2. Mounting Arrangement: Tandem (DT). Number Of Rows: 1. Design: High-capacity D. Bearing Material: Bearing steel. Closure Type: Open. Item Weight: 1.53 kg (3.37 lb).
ABEC 9 is the highest standard precision grade, for spindles where runout sets the finish.

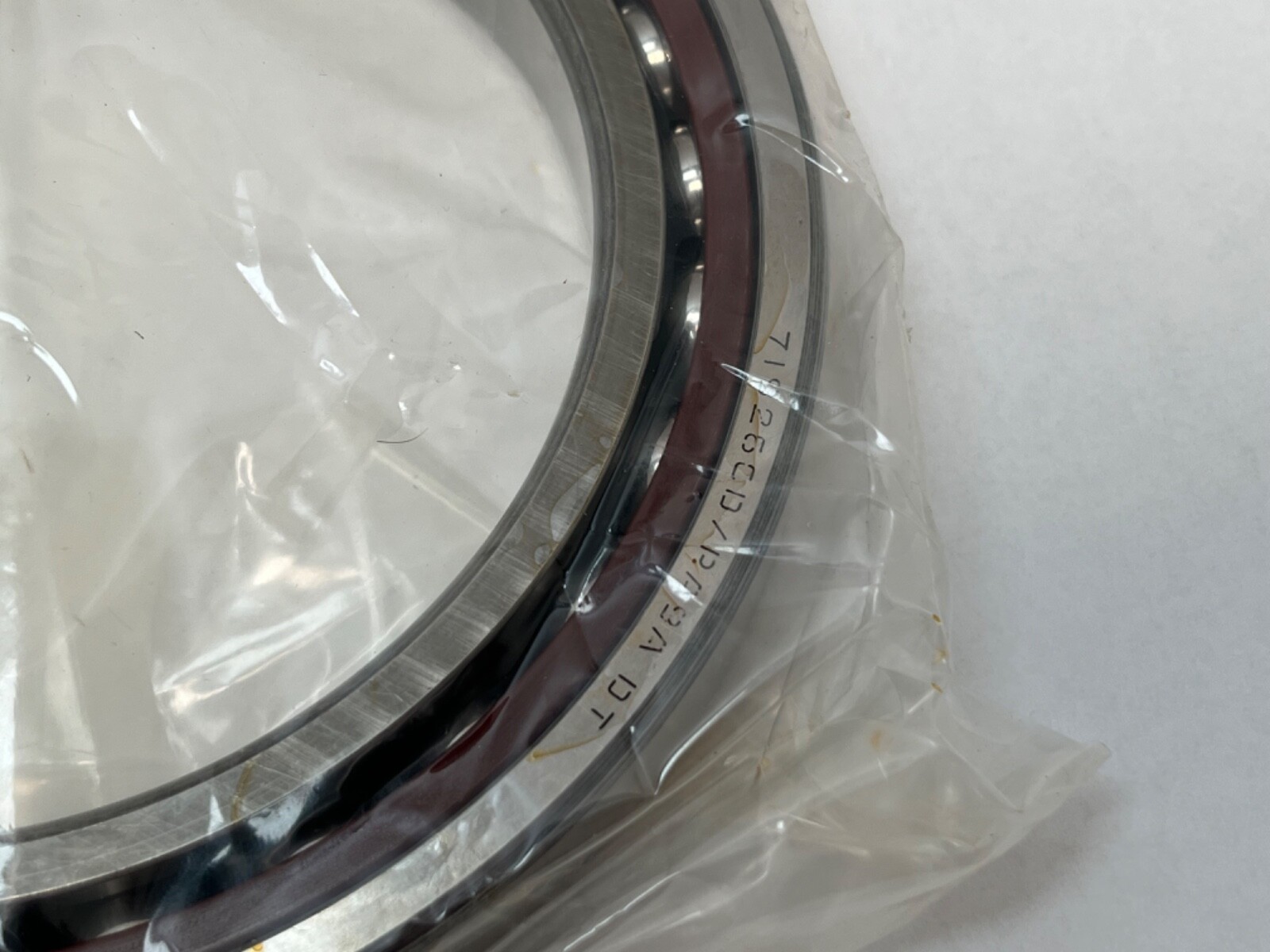

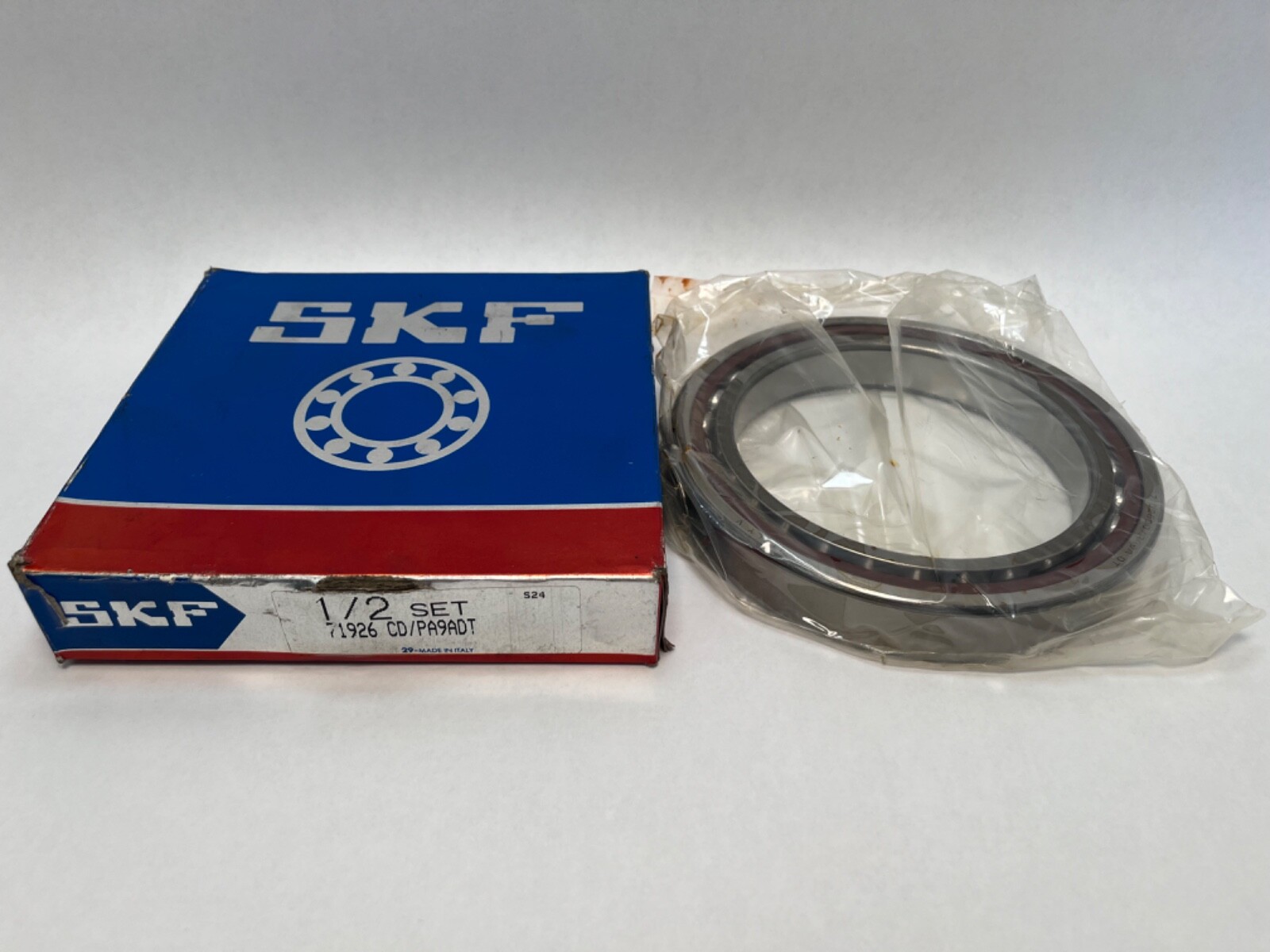

Unit Quantity: 1 Pc. One bearing from a factory two-bearing tandem set, marked 71926 CD/PA9ADT.
Same envelope, 15° angle: FAG B71926-C-T-P2, NSK 7926C, NTN 7926C, Fafnir 2MMV9326WI, GMN S61926 C. MPN variants: 71926 CD/PA9ADT, 71926CDPA9ADT, 71926-CD-PA9A-DT, 71926C, 7926C. Harmonization Code: 8482.10.50.
