Availability:
1 in stock

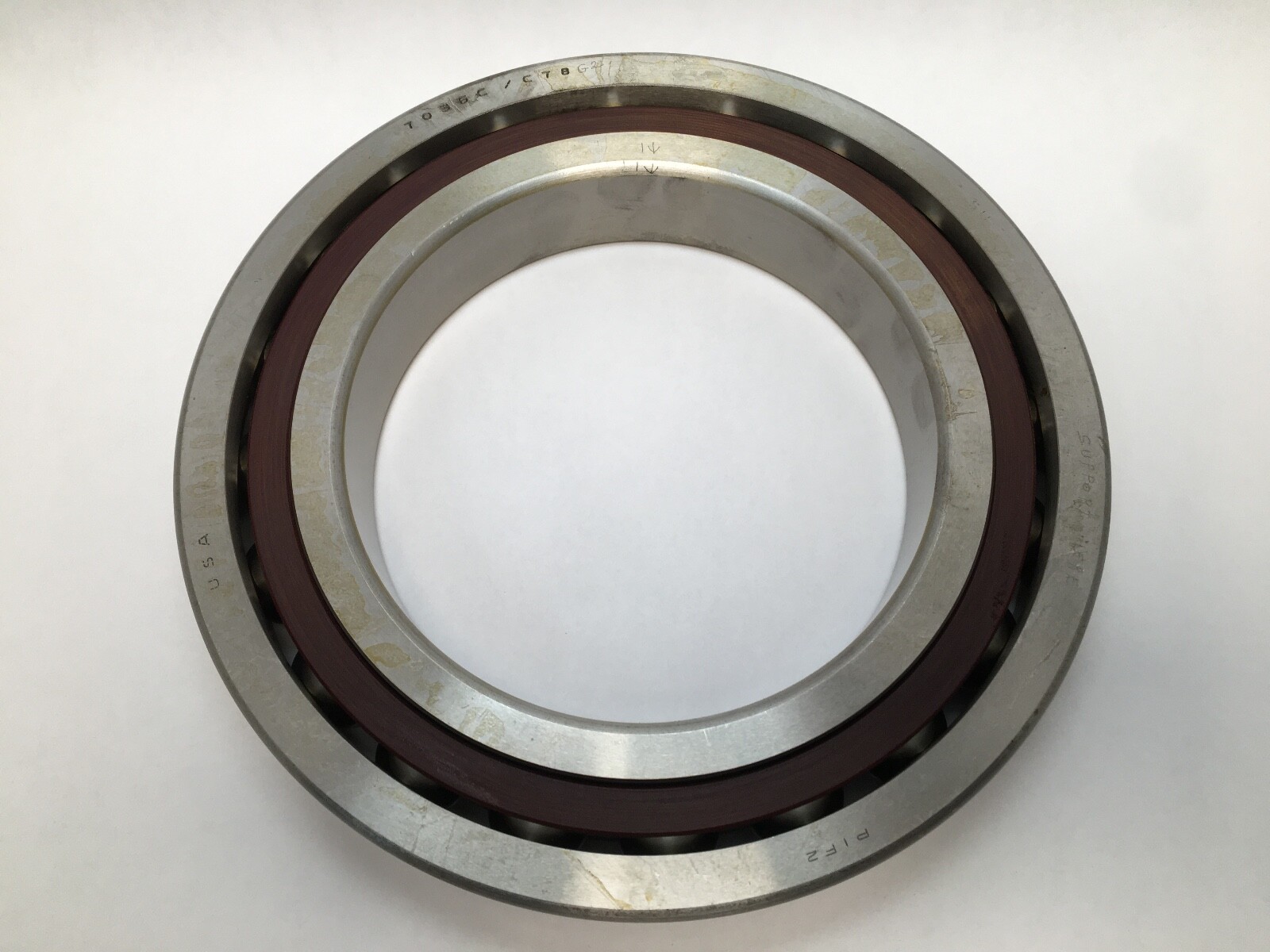

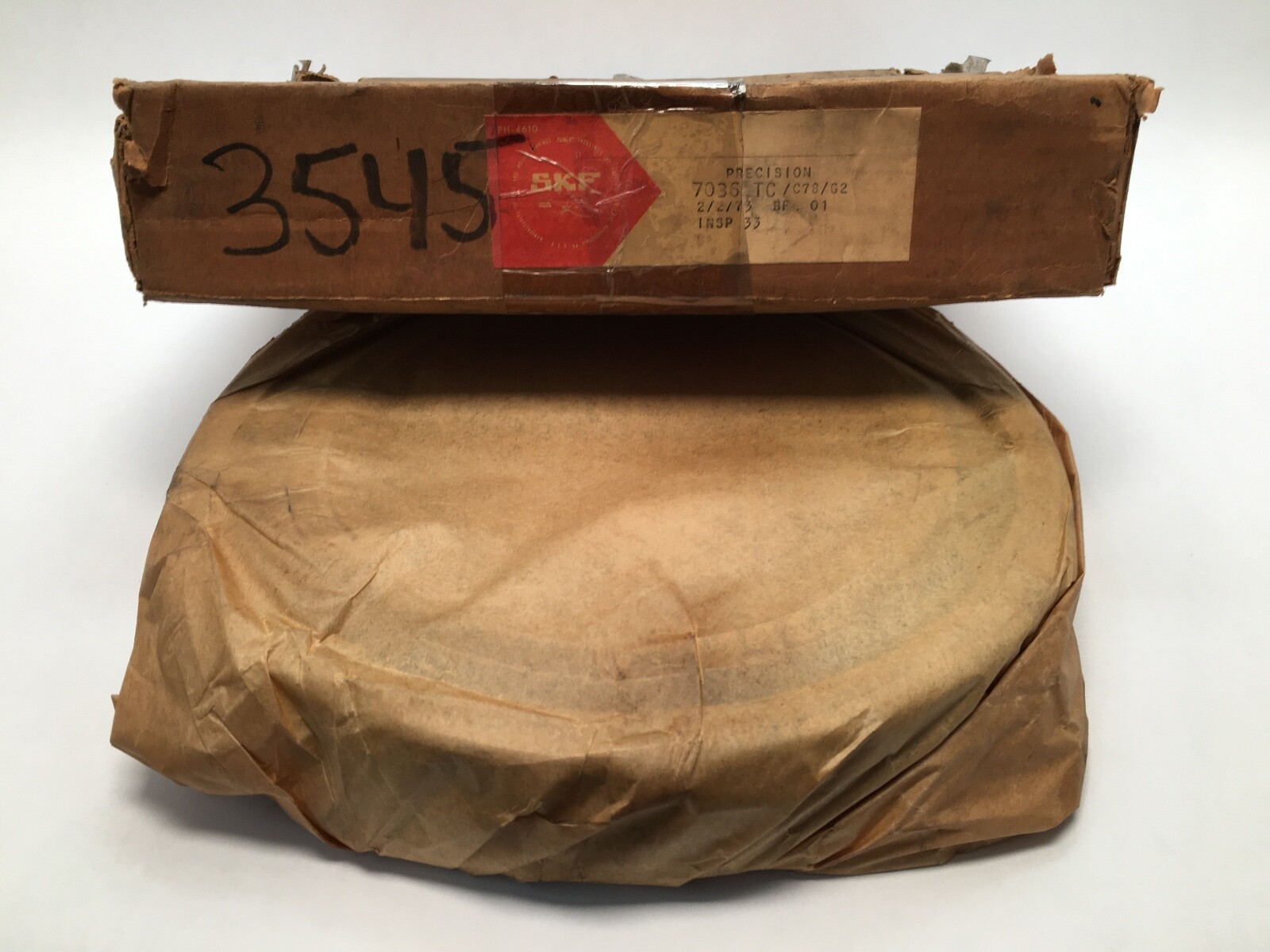

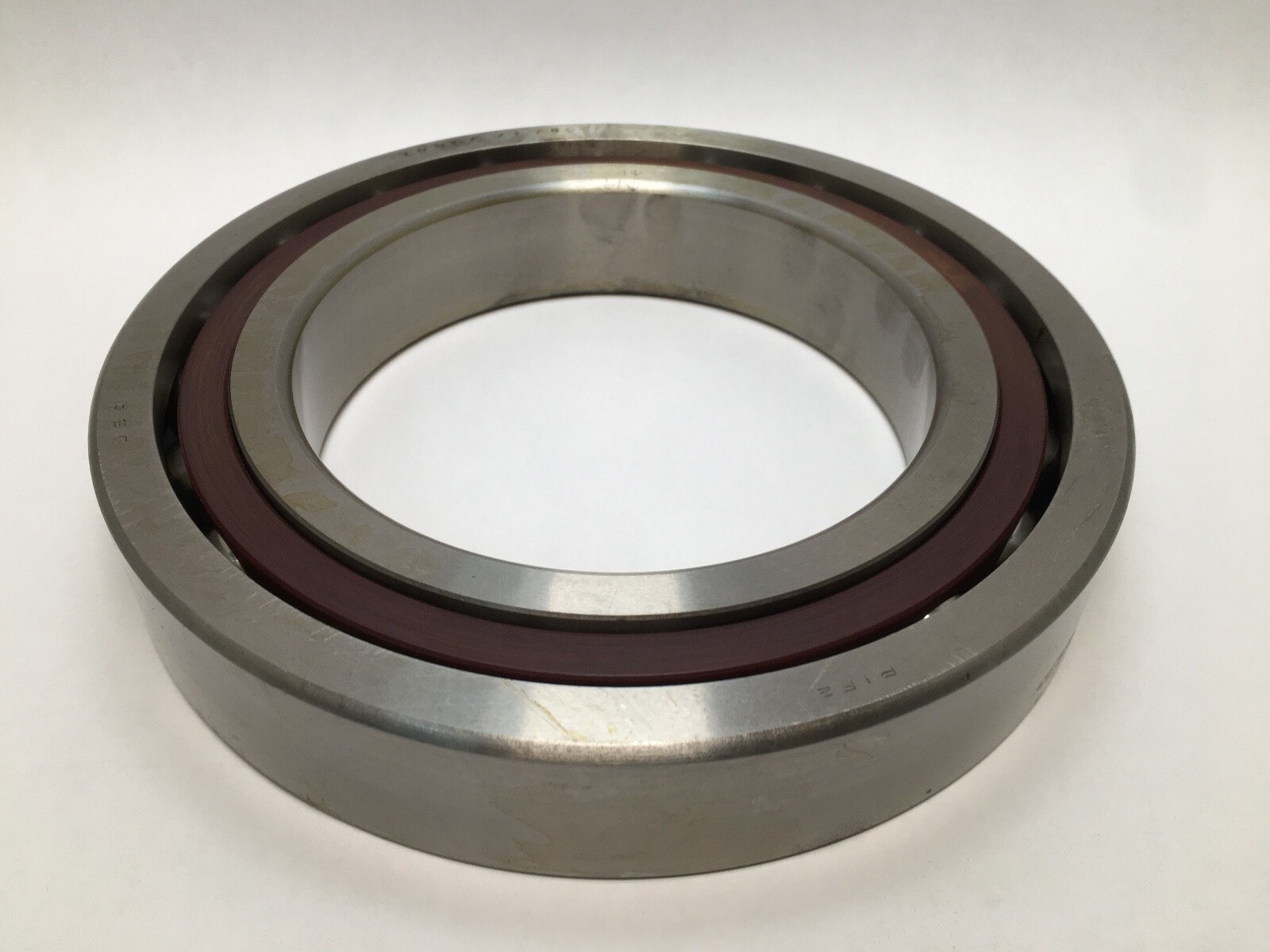

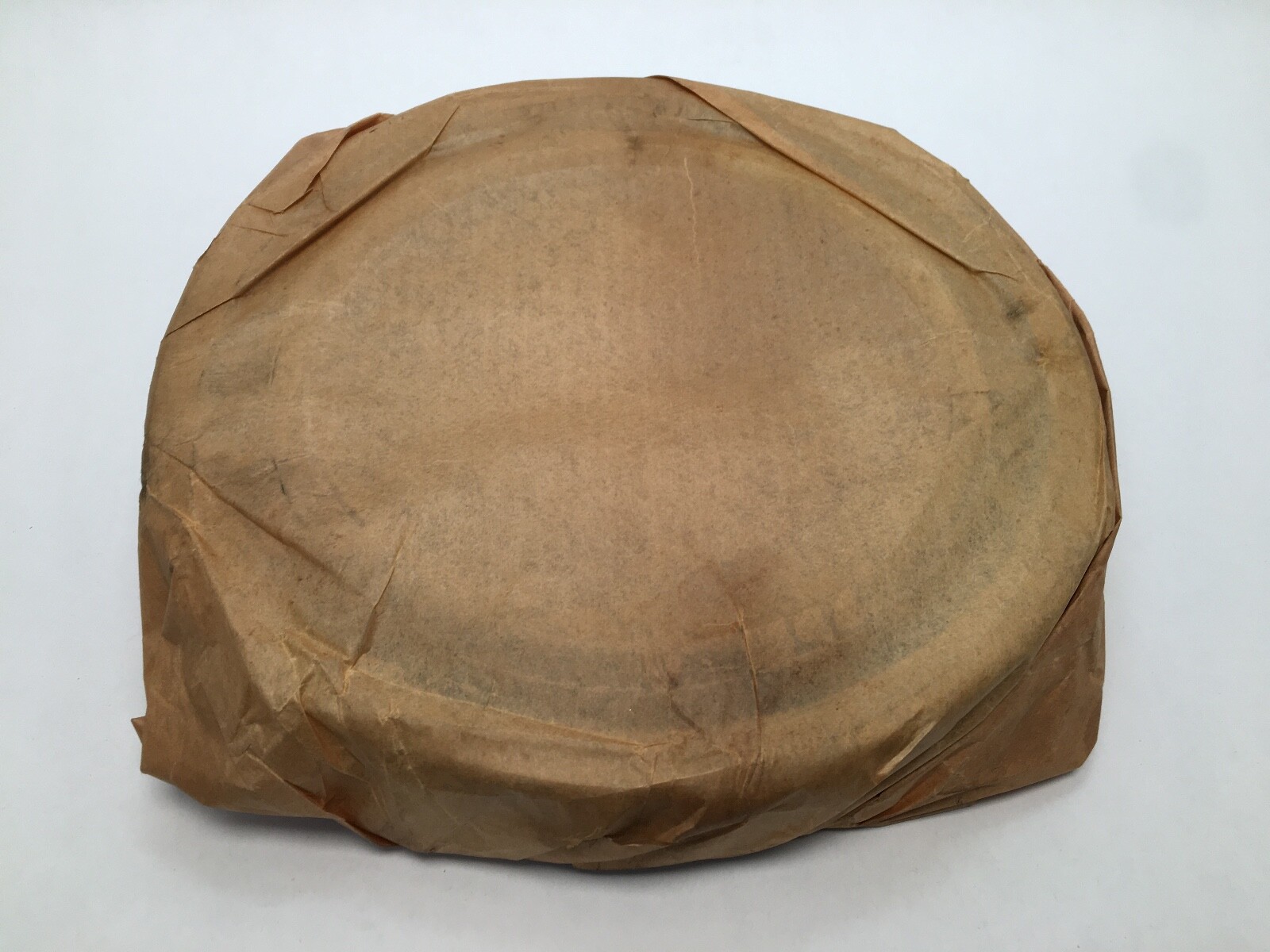

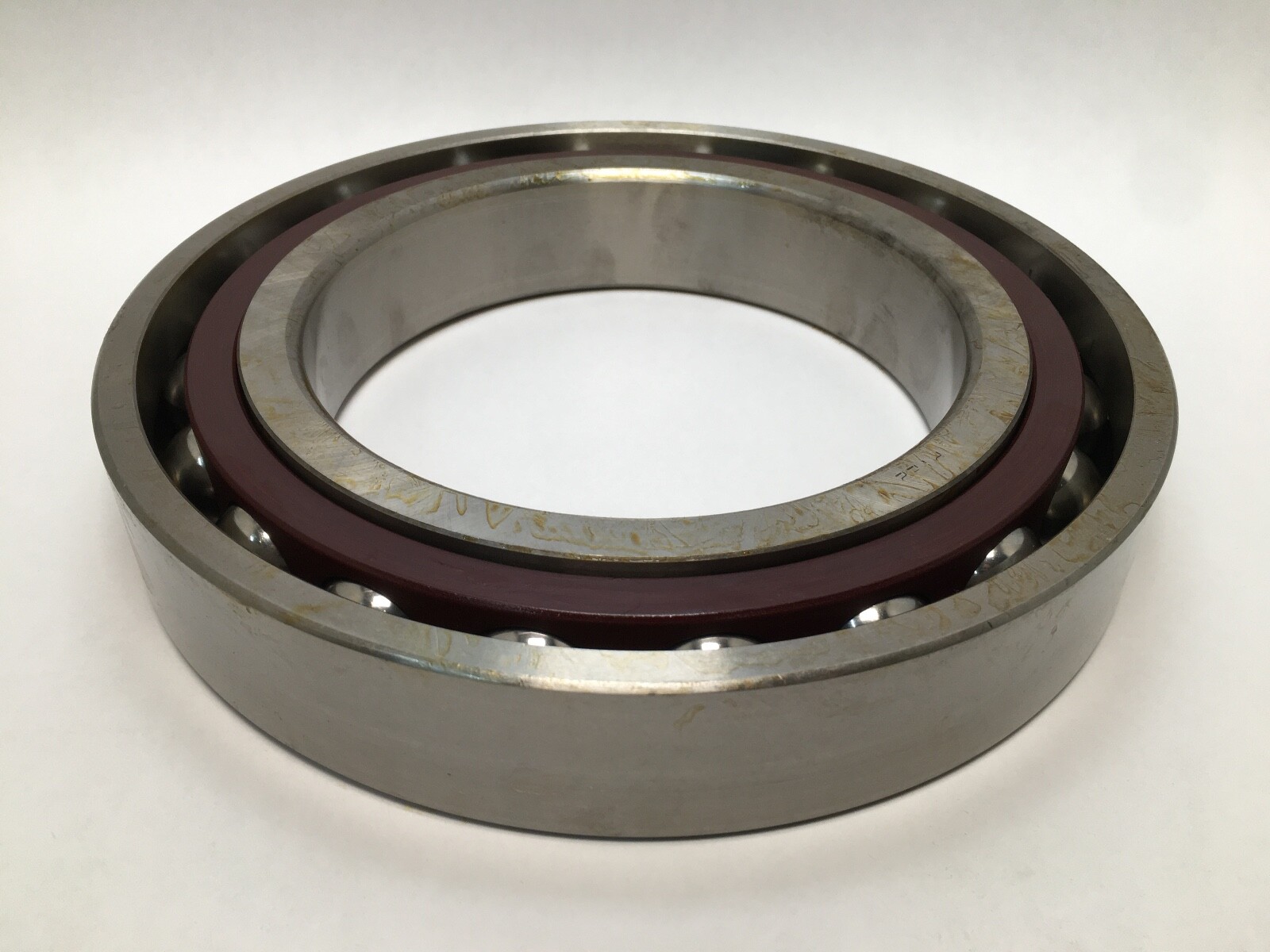

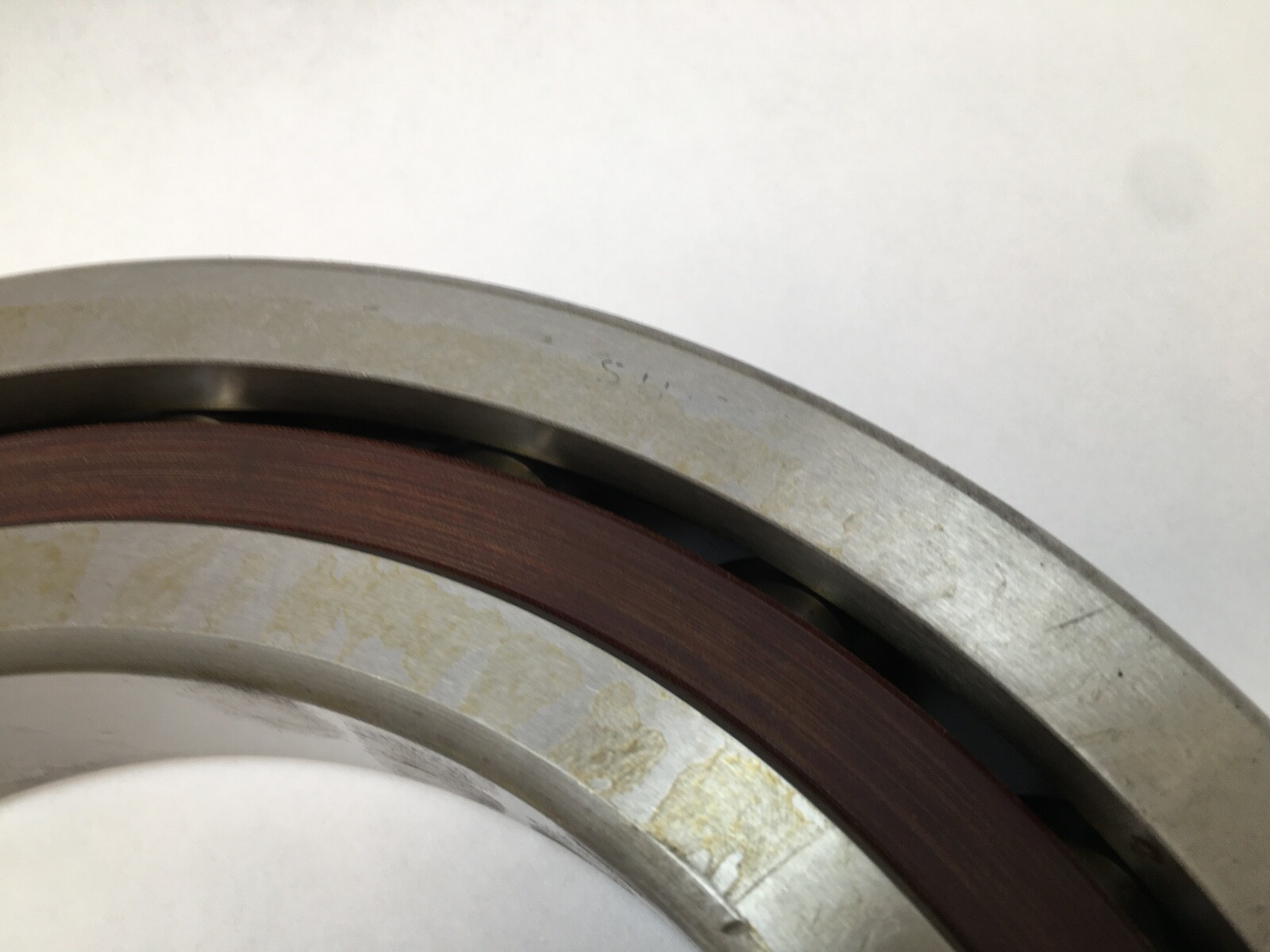

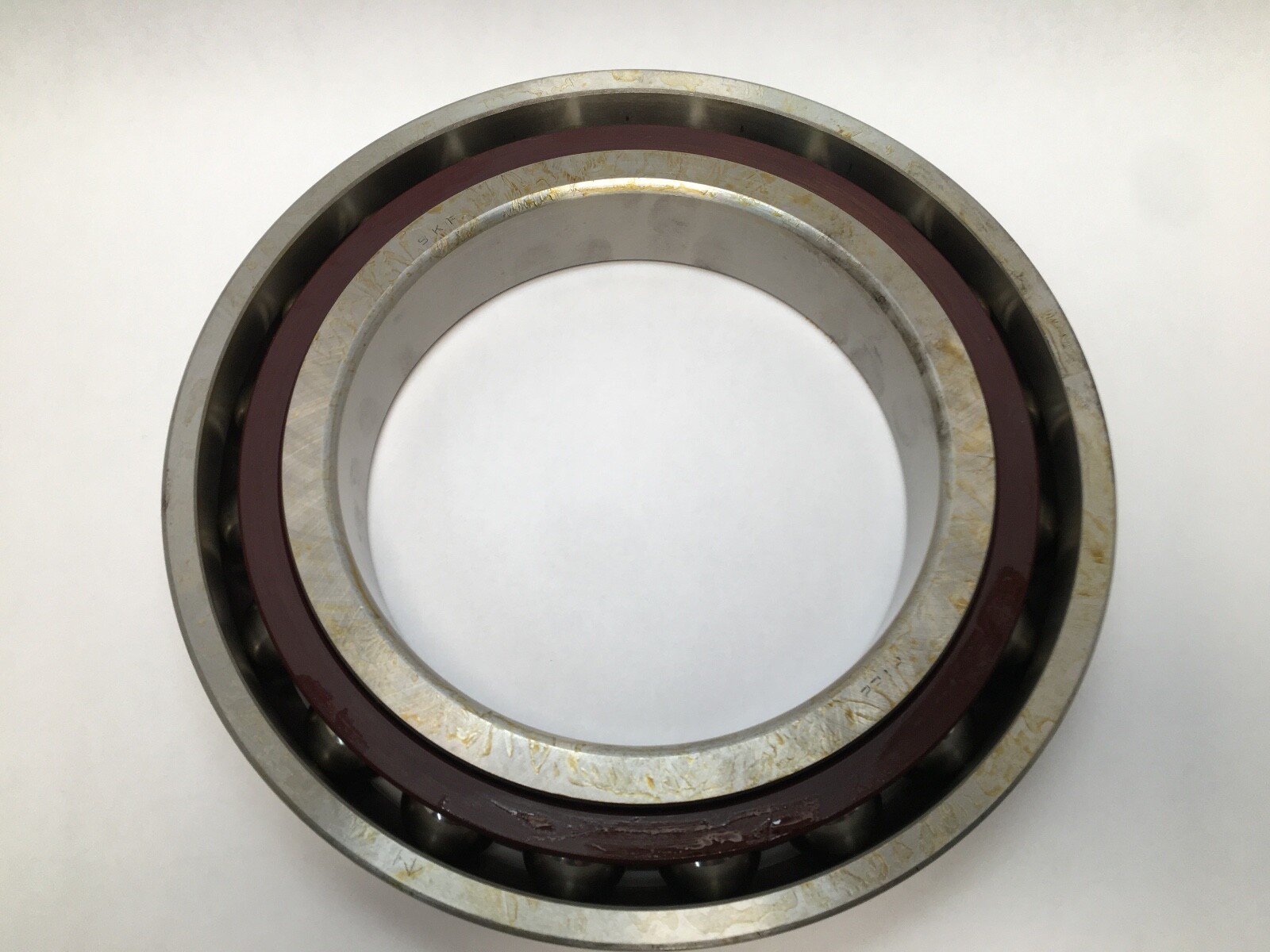

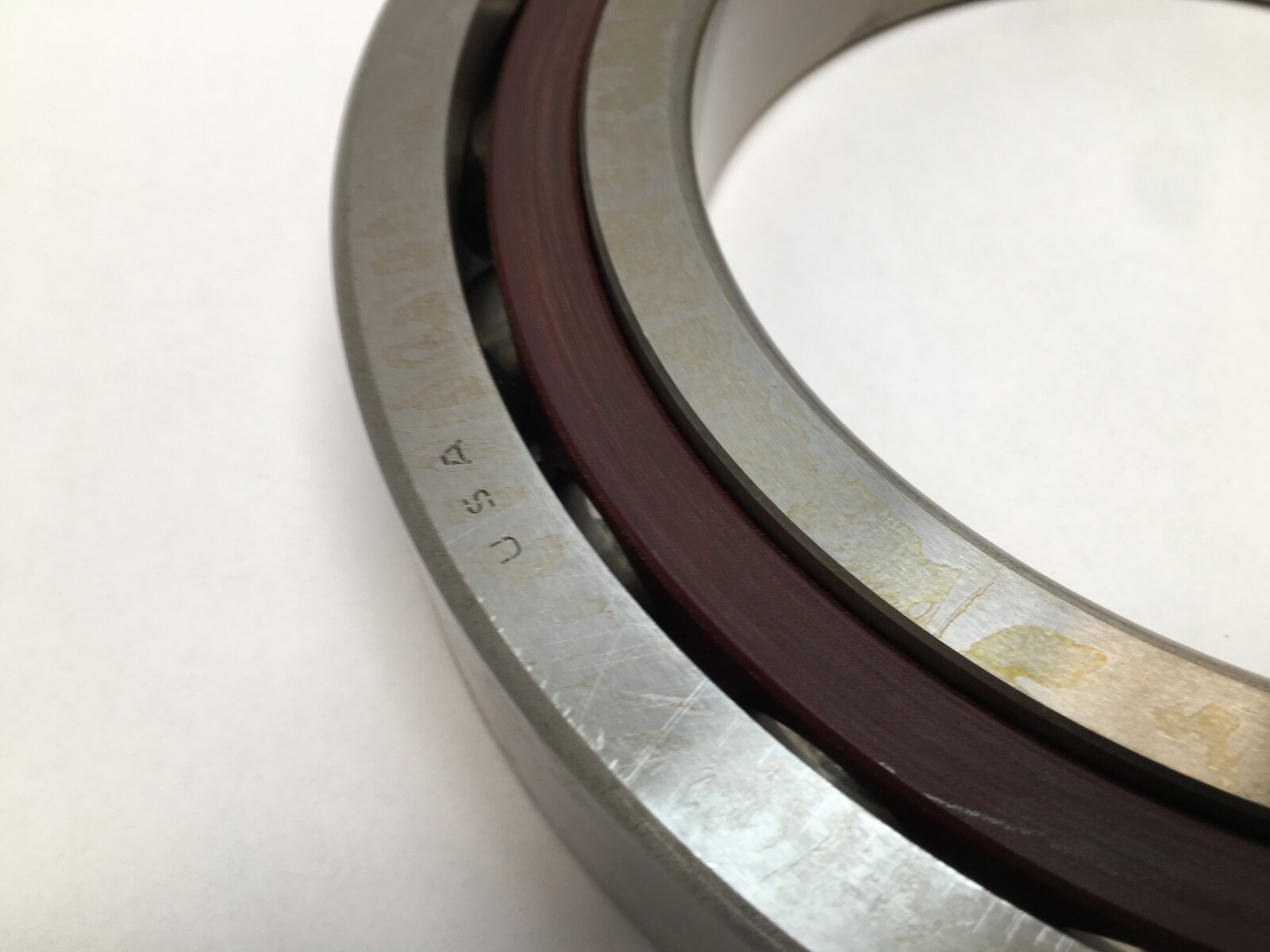

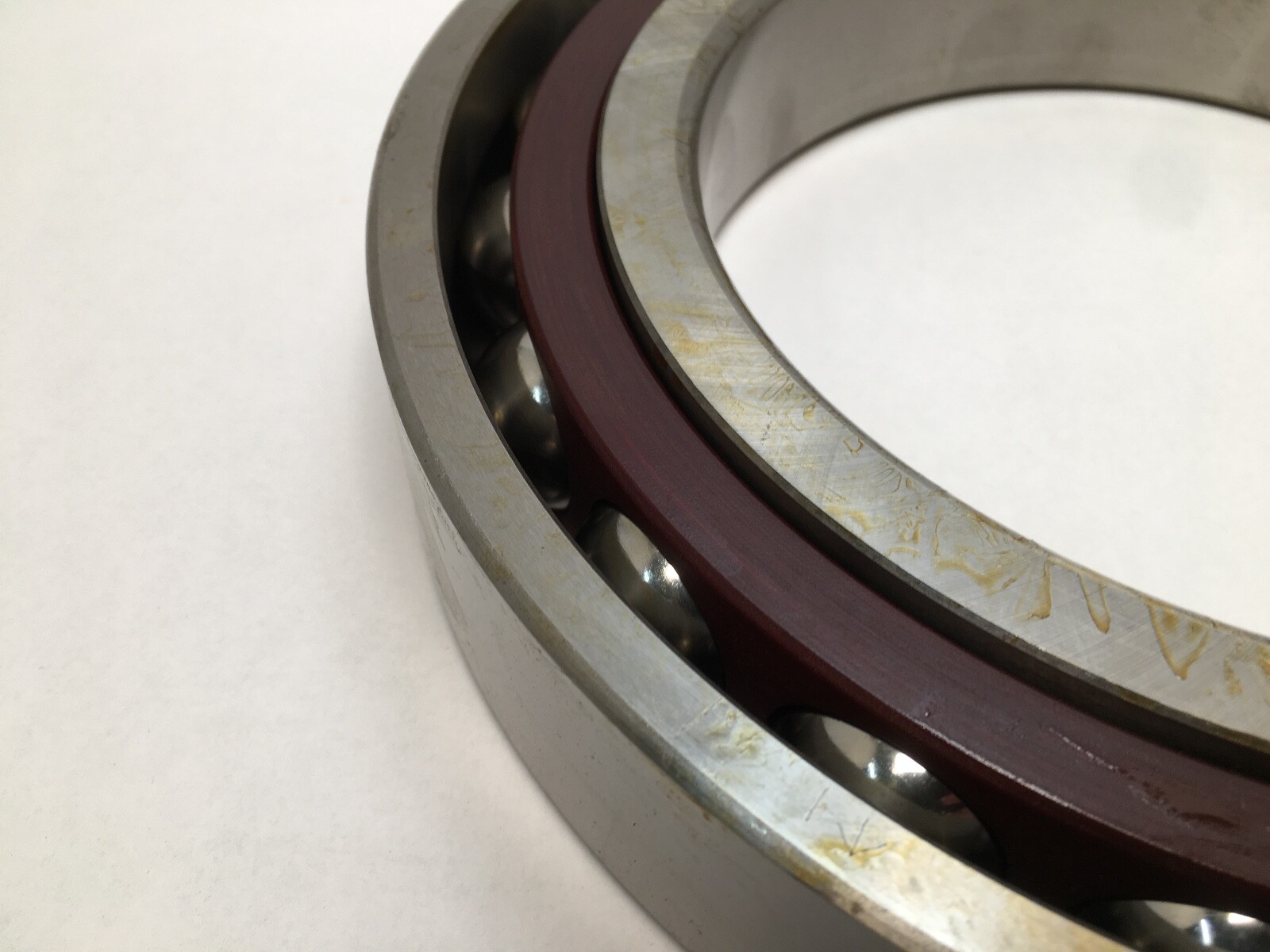

Single-row angular contact ball bearing, 180 x 280 x 46 mm, 15° contact angle, open, straight bore. SKF USA-built spindle bearing, new old stock.
List Price
$1,467.92
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SKF |
|---|---|
| MPN | 7036CTC78G2 |

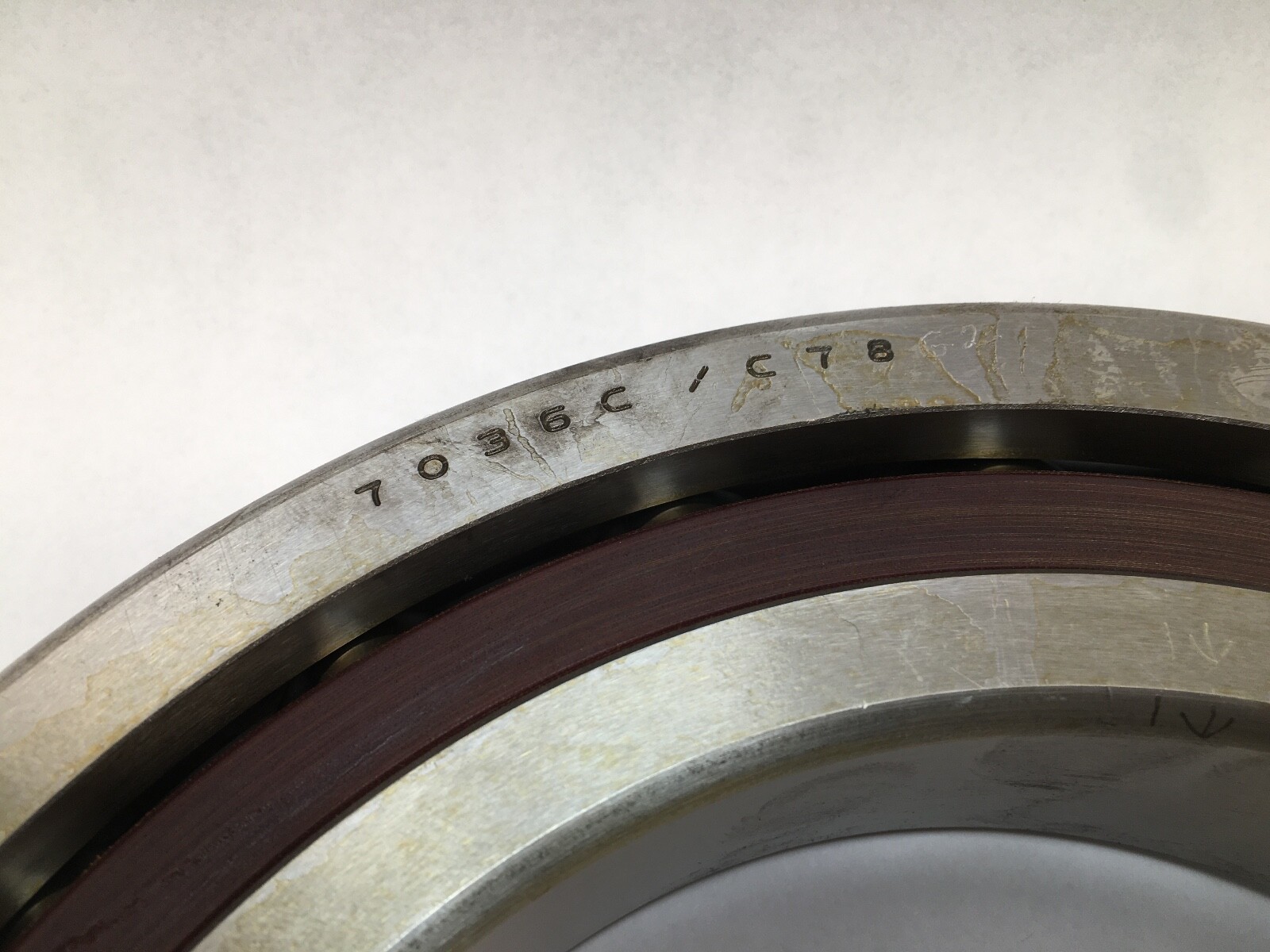

| Model | 7036 C TC C78 G2 |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 180 mm |
| OD | 280 mm |
| Width | 46 mm |
| Material | Bearing steel |
|---|---|
| Series | 7000 |
| Base Number | 7036 |
| Industry Terms | Spindle bearing; angular contact bearing; machine tool bearing; 15 degree angular contact; large bore spindle bearing; new old stock bearing |
| Common Misspellings | 7036 CTC78 G2; 7036CTC 78G2; 7036-CTC78G2; 7036 C TC78 G2; 7036CT C78G2 |
| Application Types | Machine tool spindles; grinding spindles; large-bore rotary tables; boring mills; vertical turret lathes |
| Overall Width | 46 mm |
| Mpn Variants | 7036CTC78G2; 7036-C-TC-C78-G2; 7036 C TC C78 G2; 7036CTCC78G2; 7036C; 7036 C |
| Rolling Elements | Ball |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 15° |
| Bearing Material | Bearing steel |
| Cross Reference 1 | Timken/Fafnir 2MM9136WI |
|---|---|
| Cross Reference 2 | FAG B7036-C |
| Cross Reference 3 | NSK 7036C |
| Cross Reference 4 | RHP 7036X2 |
SKF 7036 C TC C78 G2 single-row angular contact ball bearing, built by SKF in the United States and held as new old stock. Bore Diameter: 180 mm. Outside Diameter: 280 mm. Overall Width: 46 mm. Contact Angle: 15°. Bore Type: Straight. Closure Type: Open. Rolling Elements: Ball. Number Of Rows: 1. Bearing Material: Bearing steel. Snap Ring Included: No. Unit Quantity: 1 Pc.
70 — ISO light dimension series 10. A 180 mm bore carries a 280 mm outside diameter in a 46 mm section.
36 — bore code. 36 × 5 = 180 mm.
C — 15° contact angle. The shallow angle favours running speed and radial stiffness over axial load capacity.
Contact Angle: 15°. Radial load is carried together with axial load acting in one direction. A single angular contact bearing locates the shaft axially in that one direction; two set against each other locate it in both.
Closure Type: Open. The bearing arrives unsealed and unlubricated, for cleaning and grease or oil charging at build.
Overall Width: 46 mm across the 180 x 280 mm envelope. This is the ISO 70-series light section, the proportion chosen where shaft stiffness and speed matter more than raw load rating.
Bore Type: Straight, mounted by interference fit on the shaft journal. Bore Diameter: 180 mm. Outside Diameter: 280 mm. Overall Width: 46 mm. Snap Ring Included: No, so the outer ring seats against a housing shoulder rather than a ring groove. Harmonization Code: 8482.10.50.
Unit Quantity: 1 Pc. A single bearing, supplied as one piece.
Same 180 x 280 x 46 mm envelope and same 15° contact angle: Timken/Fafnir 2MM9136WI, FAG B7036-C, NSK 7036C, RHP 7036X2.
Those four are matched on envelope and contact angle. Preload class and tolerance class are part of a spindle bearing’s identity and are quoted separately for each of them, so confirm those two against the application before treating any of them as a drop-in.
