Availability:
1 in stock
Super precision angular contact ball bearing matched set, 90 x 140 x 24 mm each, 25° contact angle, P4A, Light preload (920 N). Two universally matched bearings.
List Price
$246.91
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SKF |
|---|---|
| MPN | 7018ACDP4ADGB |
| Model | 7018-ACD-P4A-DGB |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 90 mm |
| OD | 140 mm |
| Width | 24 mm |
| Material | Bearing Steel |
|---|---|
| Series | 7000 |
| Lubricant | Oil/Grease |
| Preload | Light (920 N) |
| Total Width | 48 mm (pair) |
| Mpn Variants | 7018-ACD/P4ADGB, 7018 ACD/P4ADGB, 7018ACDP4ADGB, 7018-ACD-P4A-DGB, 7018A, 7018A5 |
| Precision Class | ABEC 7 / P4A |
| Additional Attributes | Fatigue load limit 5,700 N (set); axial stiffness 321 N/µm; 20 balls of 15.875 mm per bearing; oil nozzle position 108.7 mm |
| Dynamic Load Rating | 121,000 N (matched set) |
| Static Load Rating | 143,000 N (matched set) |
| Rolling Elements | Ball |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Limiting Speed | 8,500 rpm grease; 13,000 rpm oil-air (single bearing basis) |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 25° |
| Mounting Arrangement | Universally matched set: back-to-back, face-to-face or tandem |
| Bearing Material | Bearing steel |
| Cross Reference 1 | FAG B7018-E-T-P4S-DUL - universal, light preload |
|---|---|
| Cross Reference 2 | NSK 7018A5TYNDULP4 - universal, light preload |
| Cross Reference 3 | Timken 3MM9118WI DUL - universal, light preload |

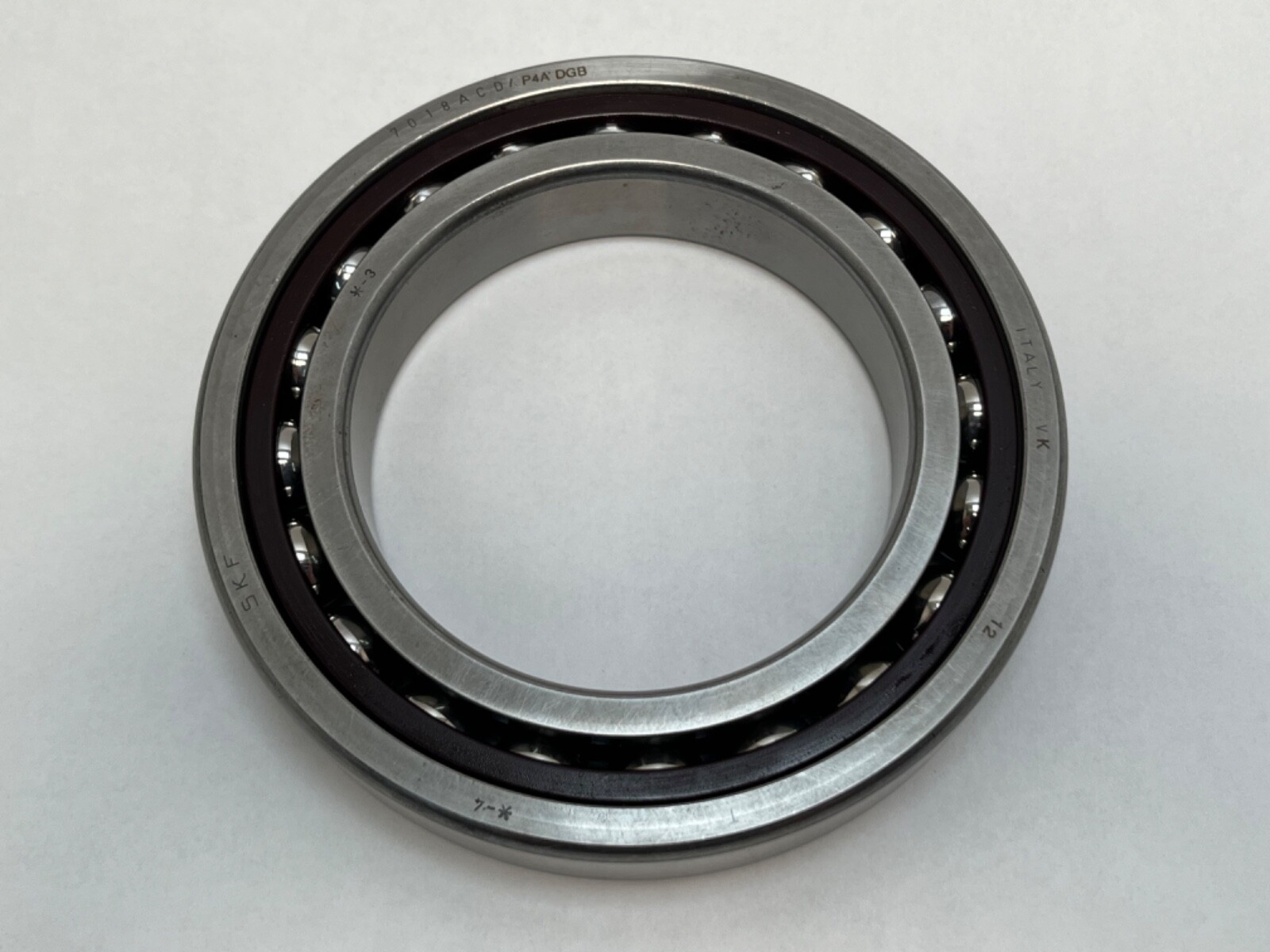

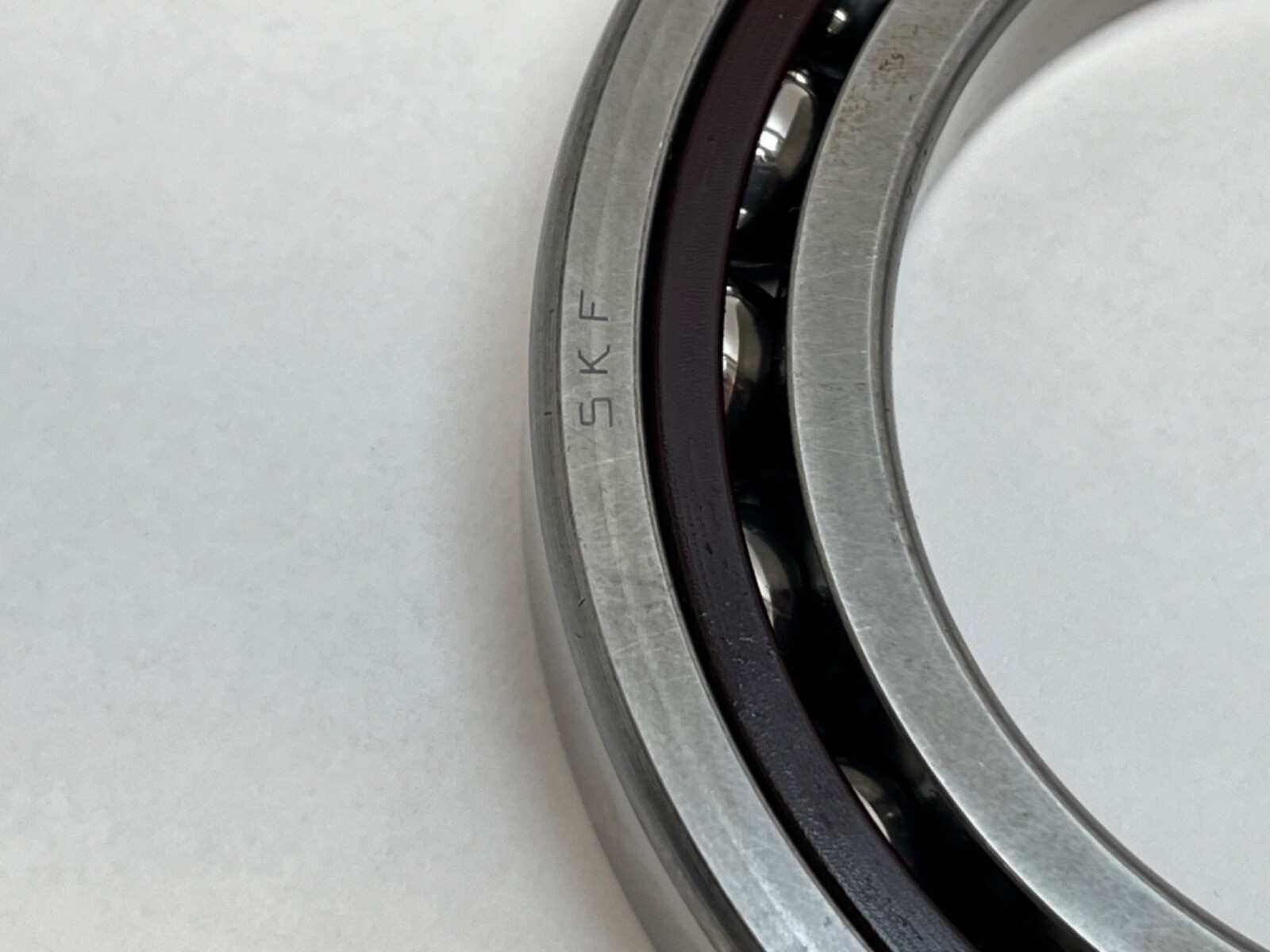

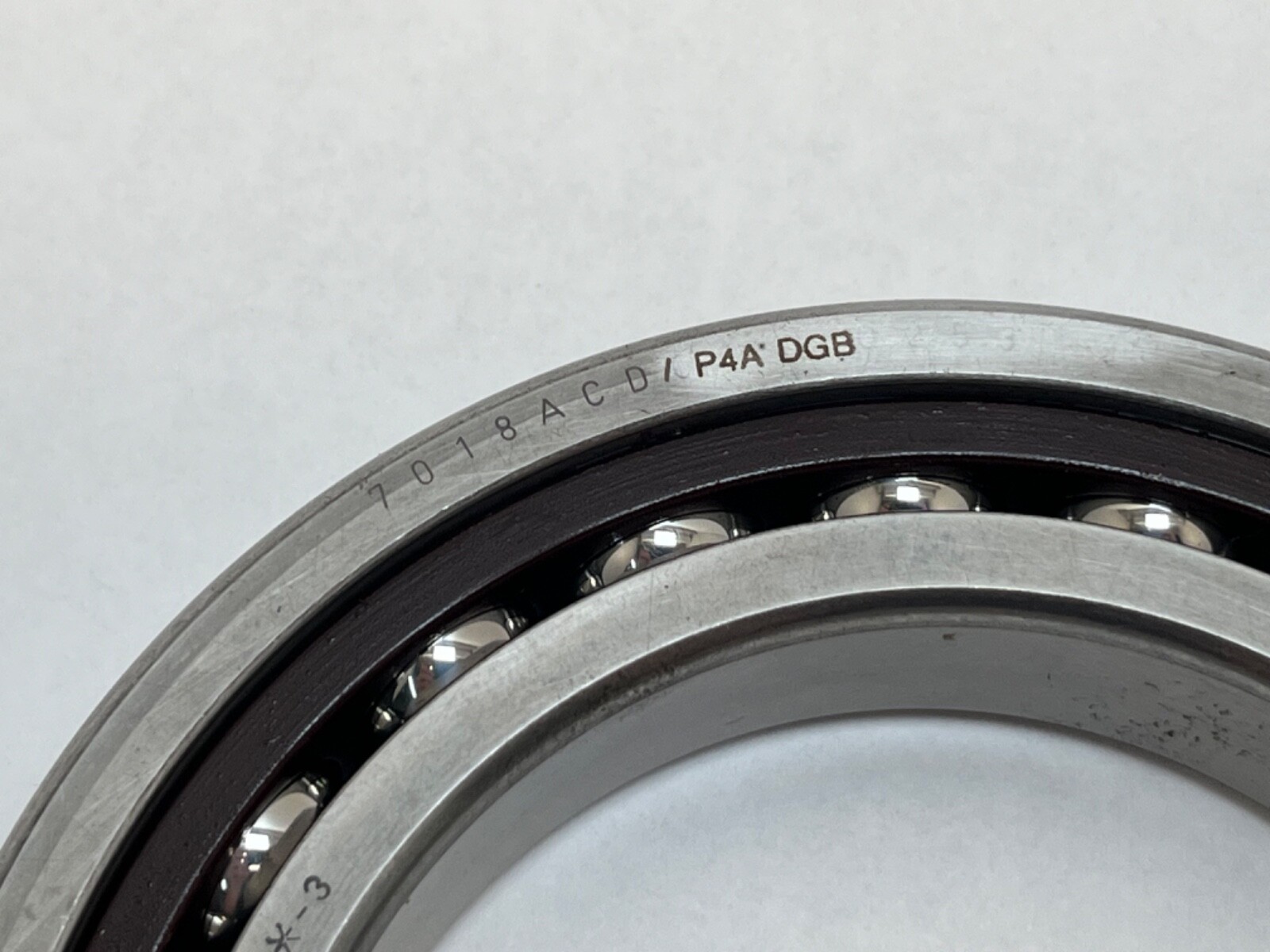

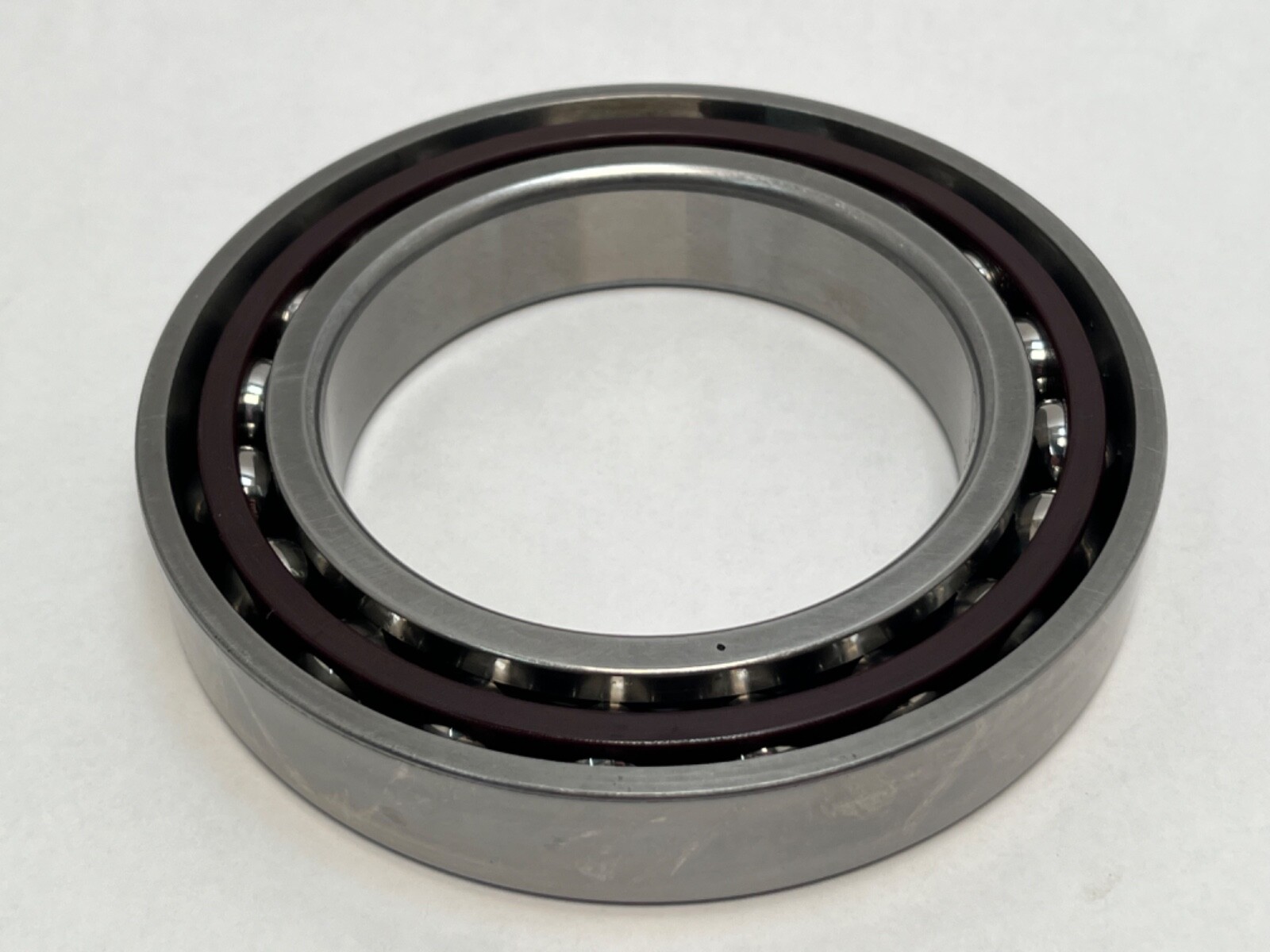

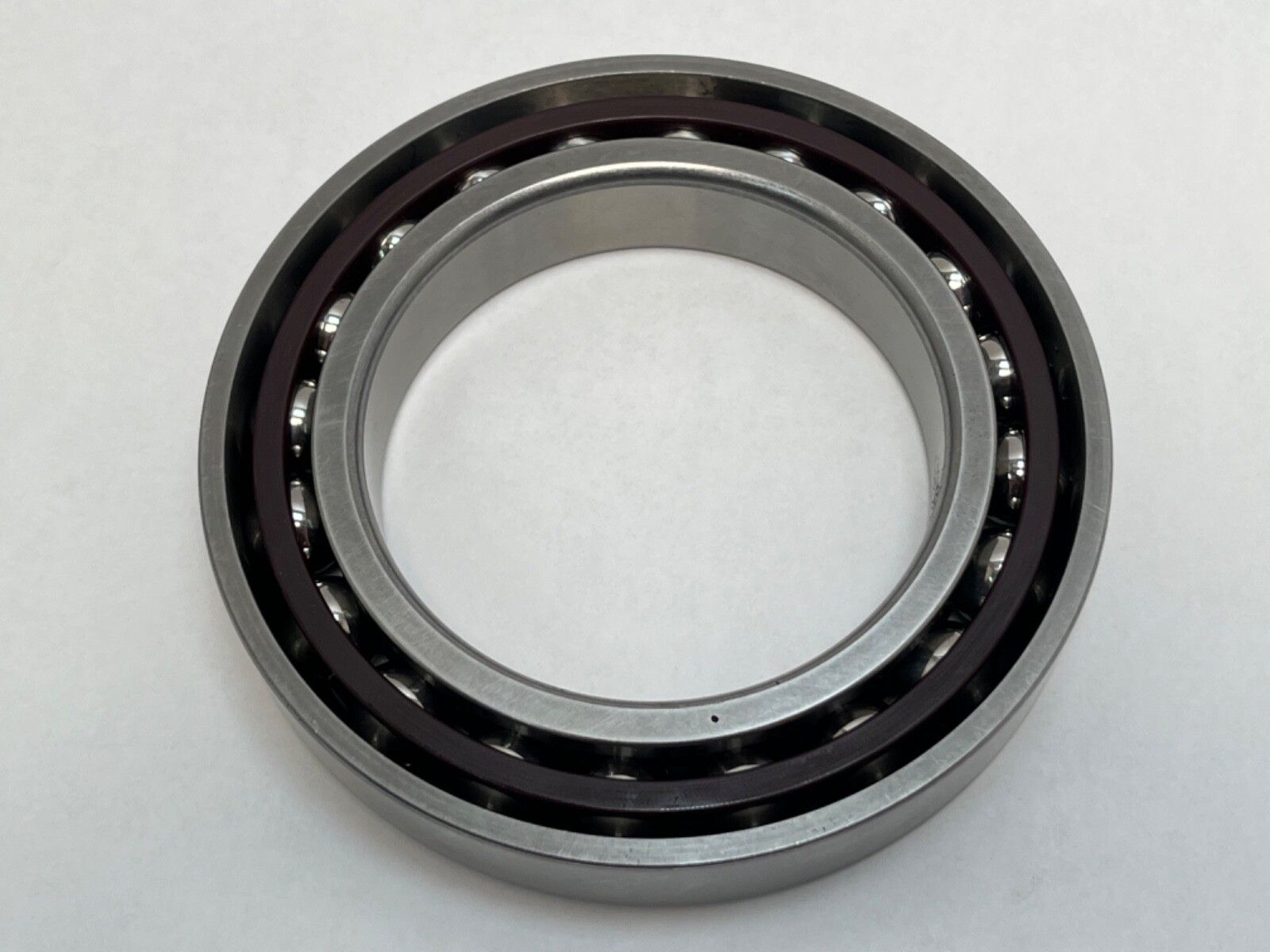

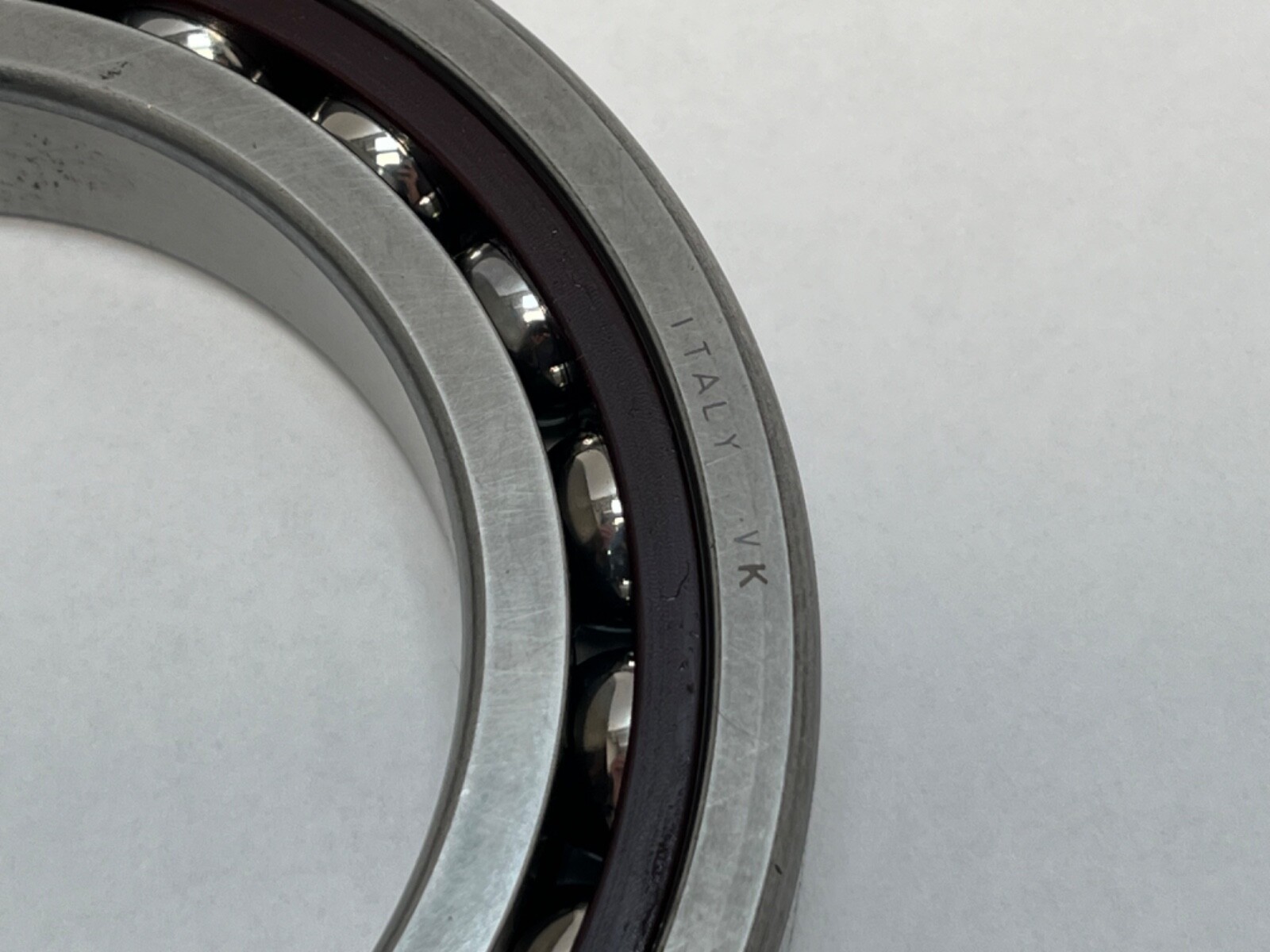

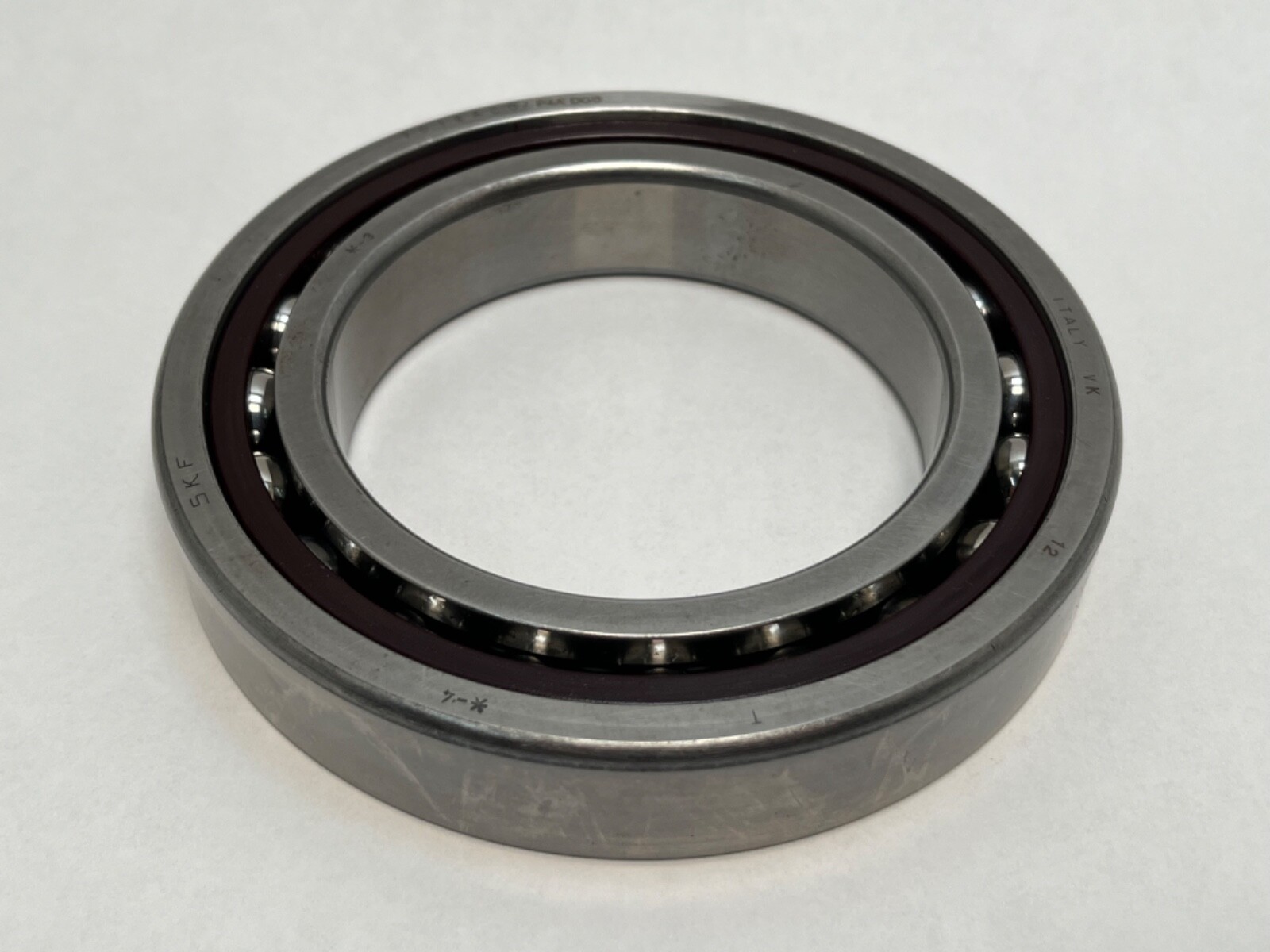

SKF 7018 ACD/P4ADGB is a matched set of two super-precision, high-capacity D design single row angular contact ball bearings from the SKF 70 series. The set is universally matched and can be arranged back-to-back, face-to-face or in tandem.
7018 — 70 series angular contact ball bearing, 90 mm bore, 140 mm outside diameter.
ACD — high-capacity D design with a 25° contact angle.
P4A — SKF precision class: ISO P4 dimensional accuracy with tighter running accuracy.
DGB — matched set of two bearings for universal matching, light preload.
Bore Diameter: 90 mm. Outside Diameter: 140 mm. Overall Width: 24 mm per bearing. Total Width: 48 mm (pair). Contact Angle: 25°. Precision Class: ABEC 7 / P4A. Preload: Light, 920 N (back-to-back or face-to-face). Axial stiffness: 321 N/µm (set). Dynamic Load Rating: 121,000 N (matched set). Static Load Rating: 143,000 N (matched set). Fatigue load limit: 5,700 N (set). Attainable speed, single bearing basis: 8,500 rpm grease; 13,000 rpm oil-air, before the SKF matched-set speed reduction factor. Ball diameter: 15.875 mm. Number of balls: 20 per bearing. Reference grease quantity: 15 cm³ per bearing. Bearing Material: Bearing steel. Closure Type: Open.
Inner ring shoulder diameter d1: 105.4 mm. Outer ring shoulder diameter D1: 124.6 mm. Chamfer r1,2 min: 1.5 mm. Chamfer r3,4 min: 1 mm. Shaft abutment da/db min: 97 mm. Housing abutment Da max: 133 mm; Db max: 136 mm. Fillet radius ra max: 1.5 mm; rb max: 1 mm. Oil nozzle position dn: 108.7 mm.

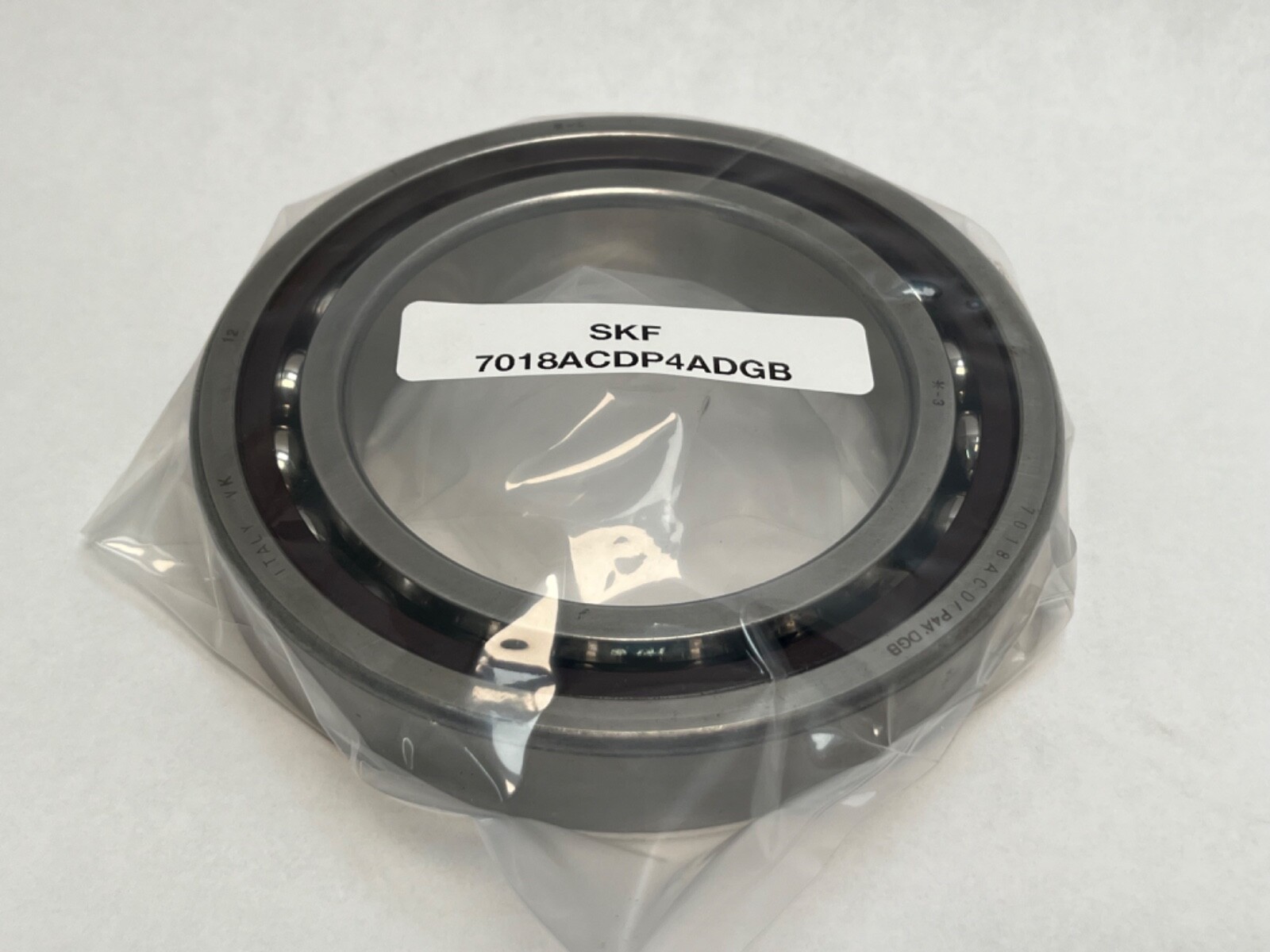

Unit Quantity: 2 Pcs. One universally matched set of two bearings. Condition: new old stock, open box.
25° duplex sets, universal matching, light preload: FAG B7018-E-T-P4S-DUL, NSK 7018A5TYNDULP4, Timken/Fafnir 3MM9118WI DUL. 15° executions such as 2MM9118WI and 7018 CD have a different contact angle.
