Availability:
1 in stock

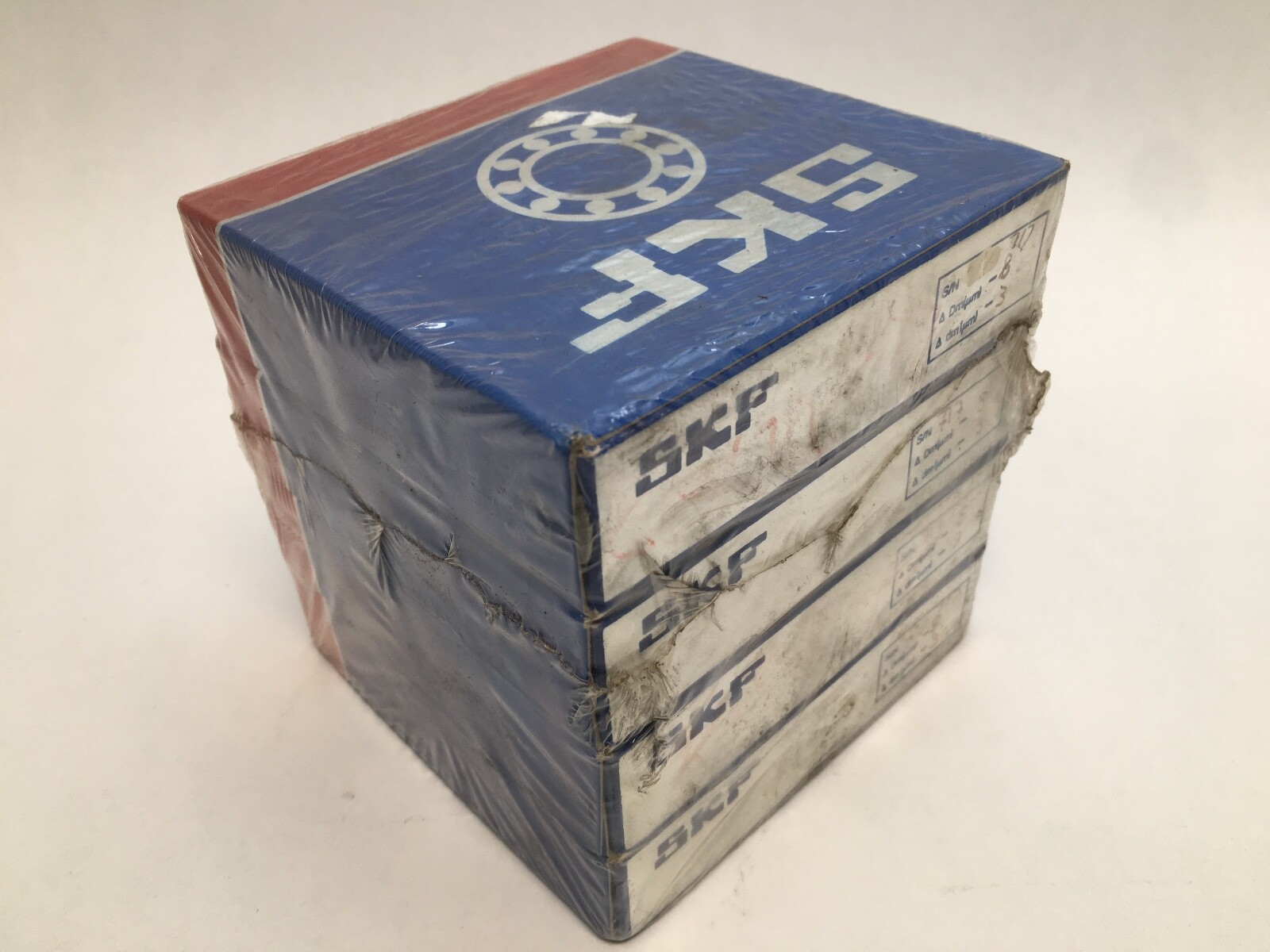

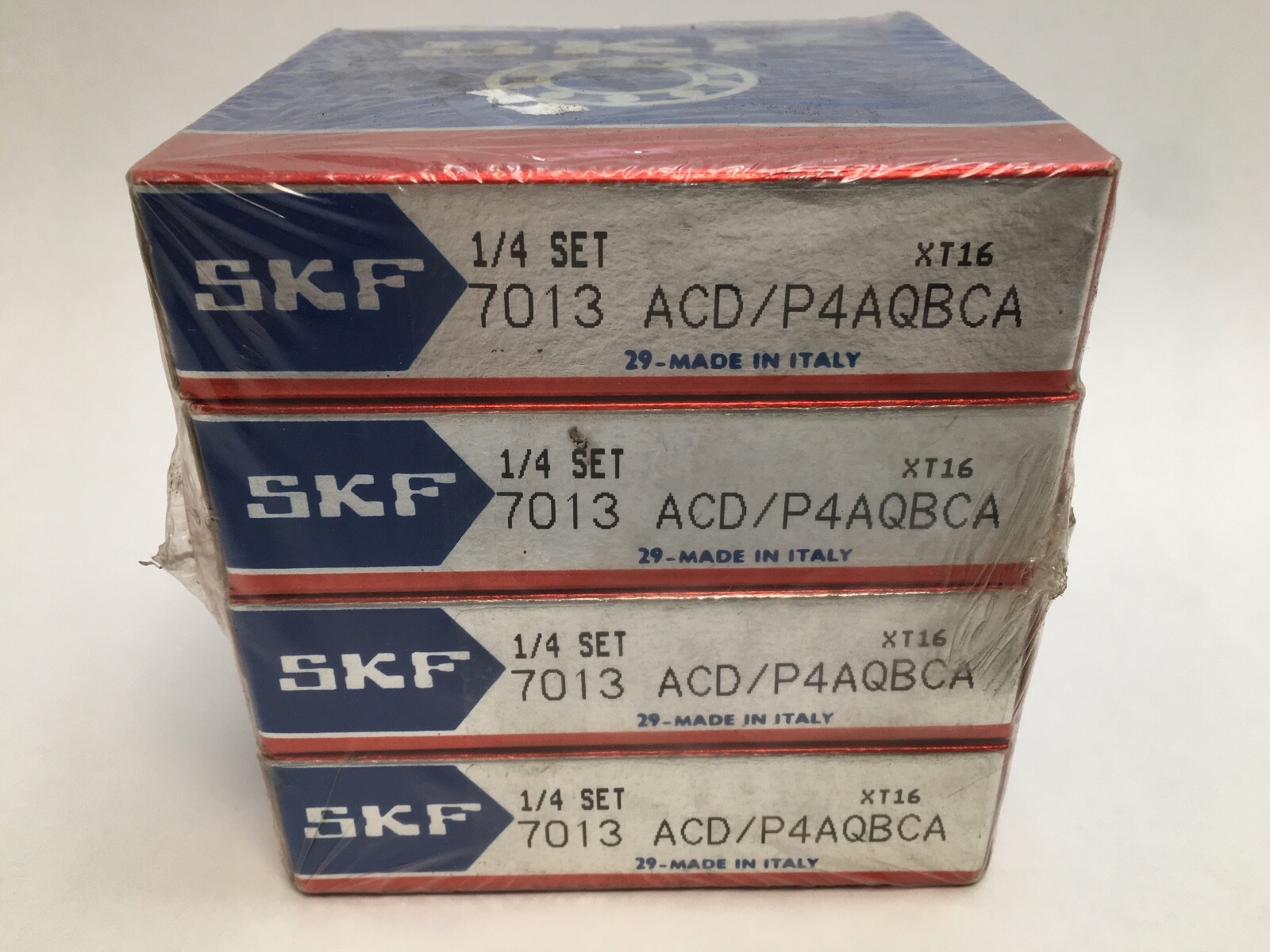

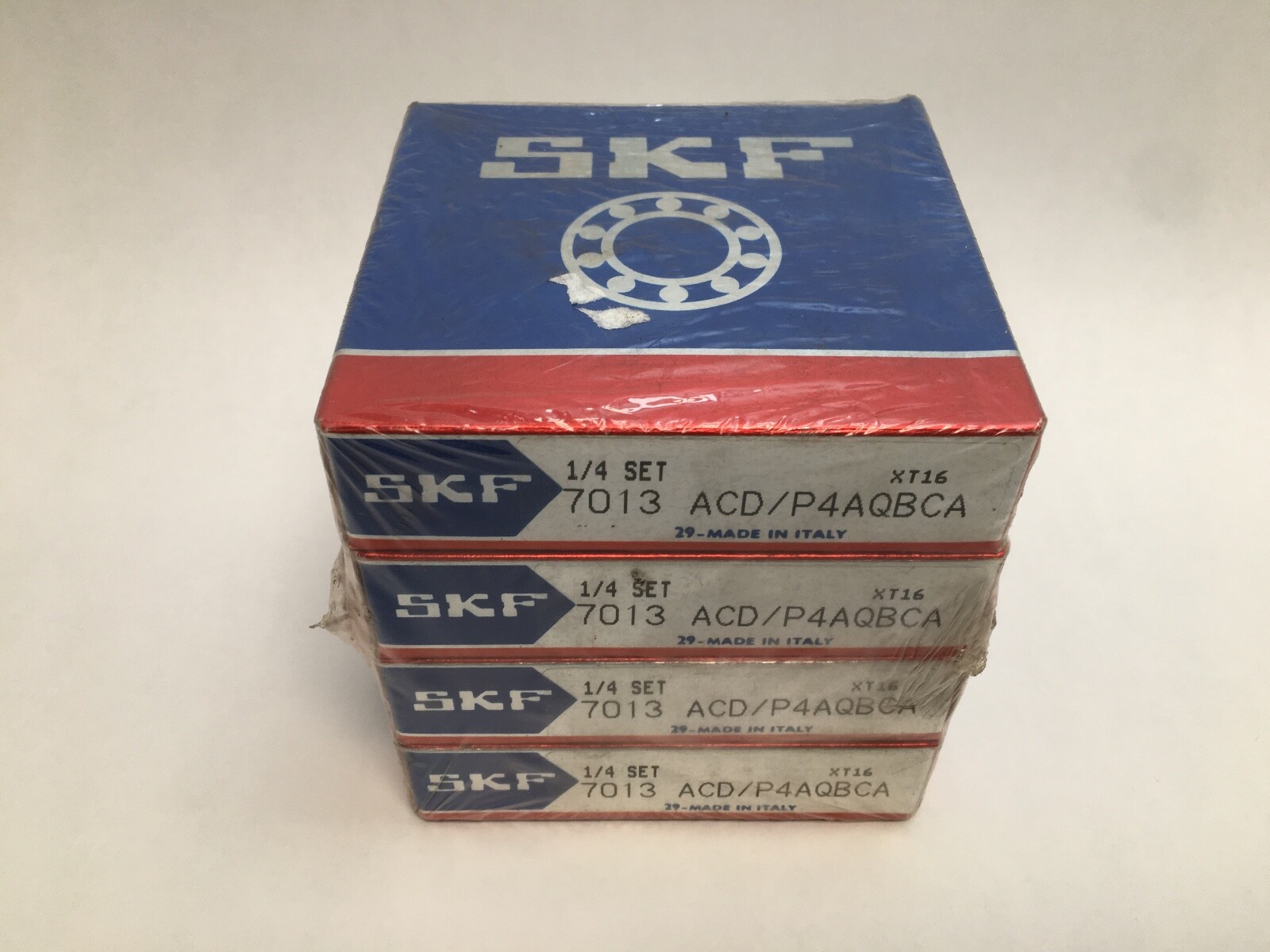

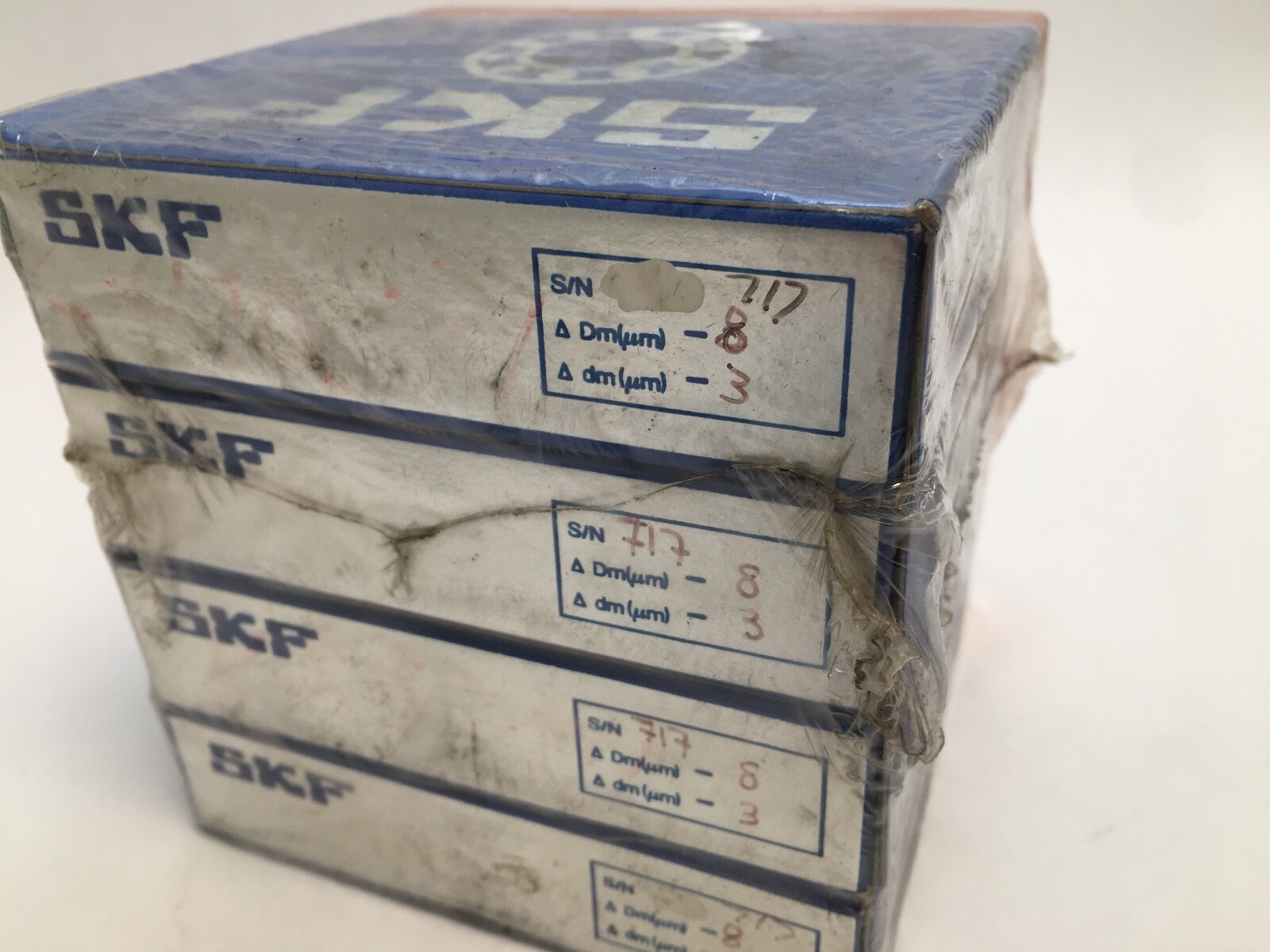

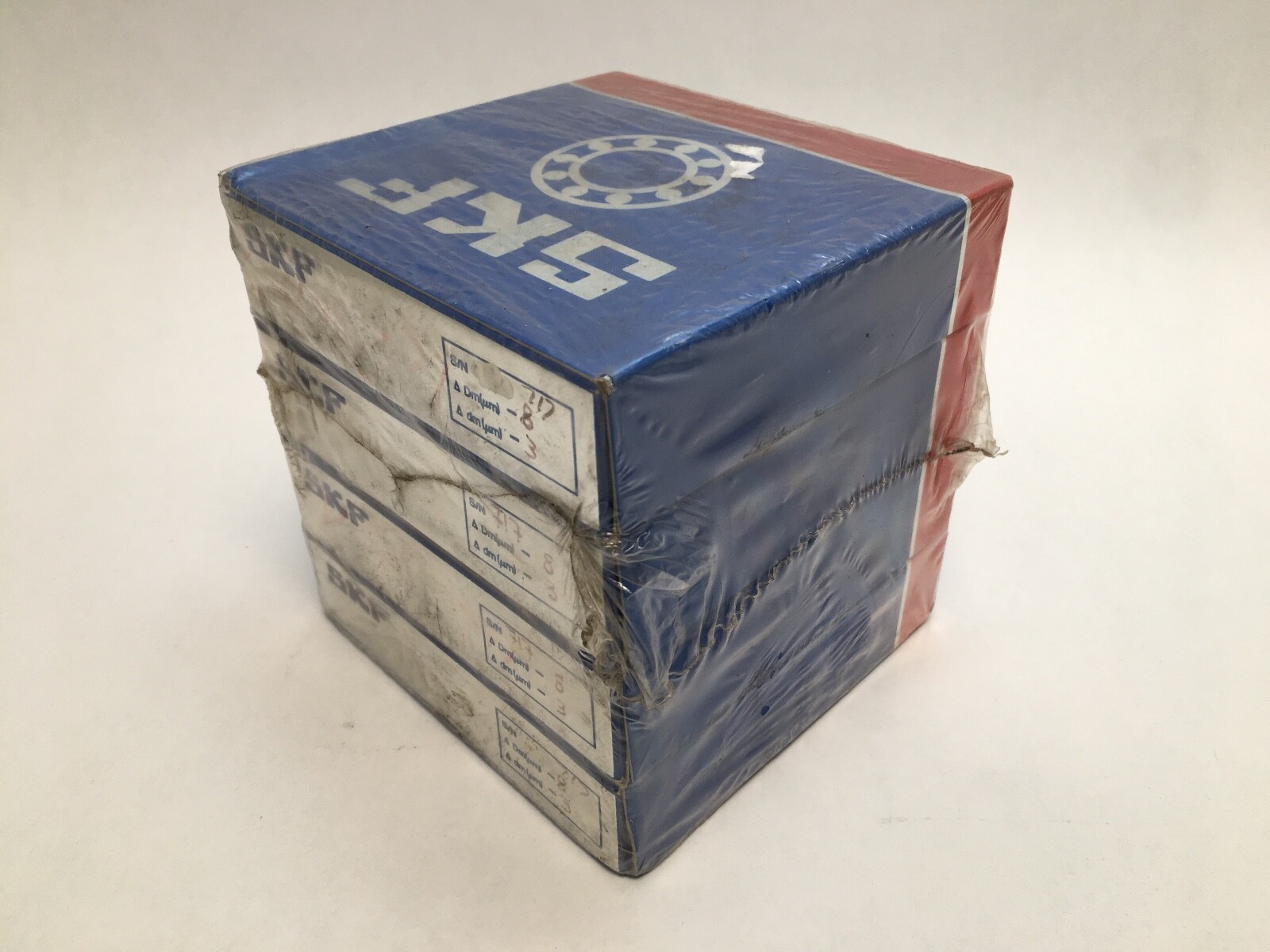

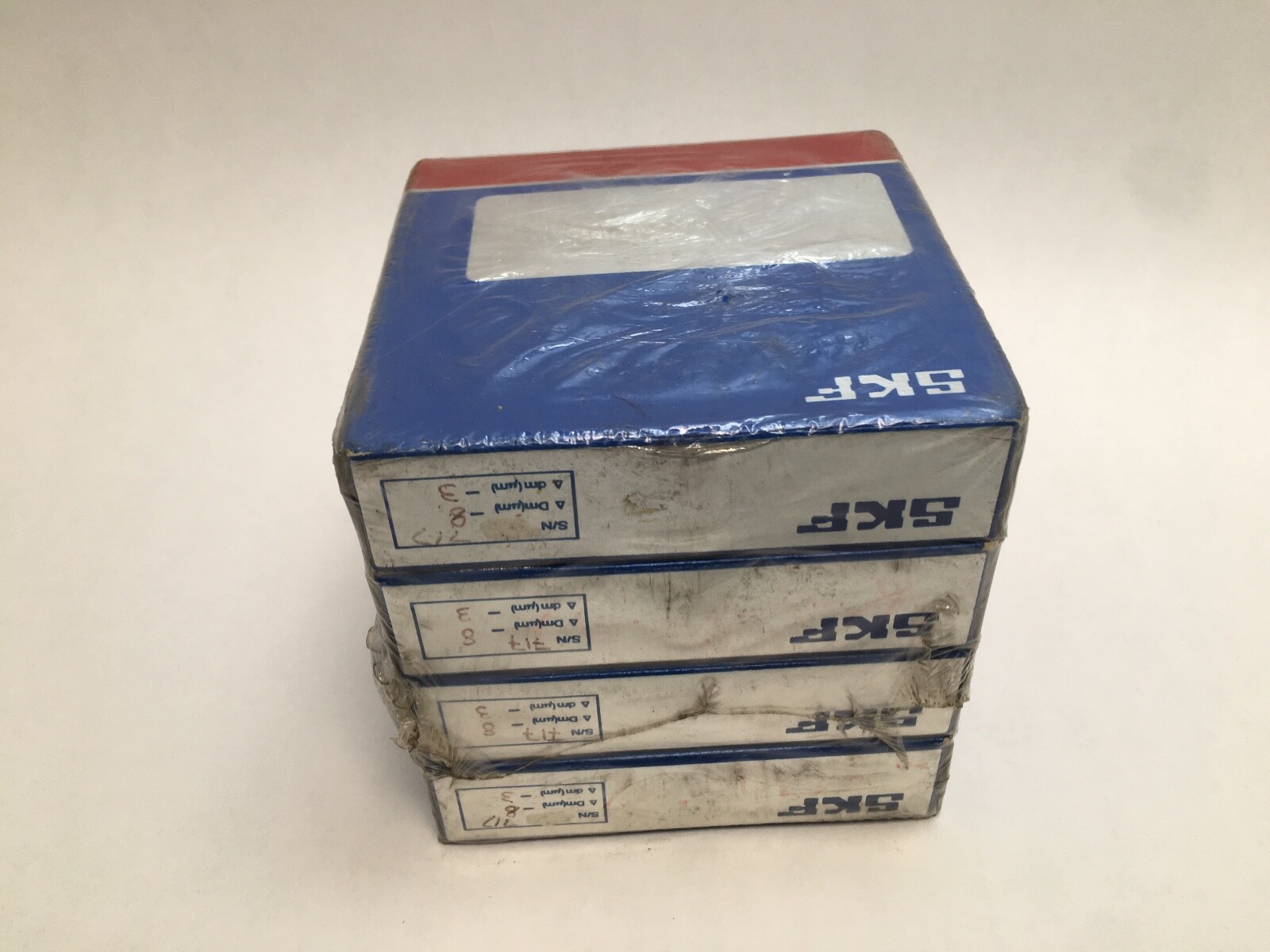

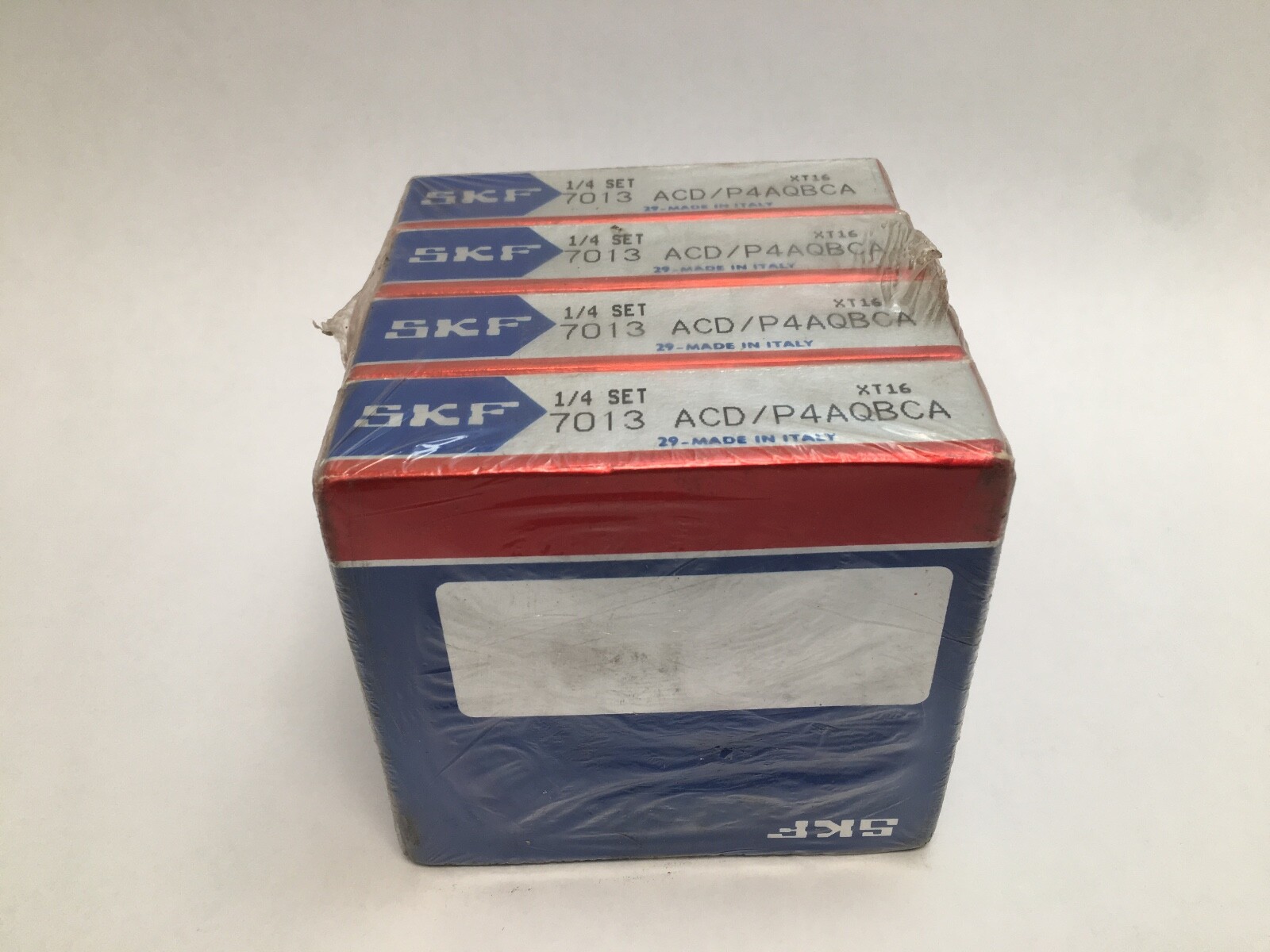

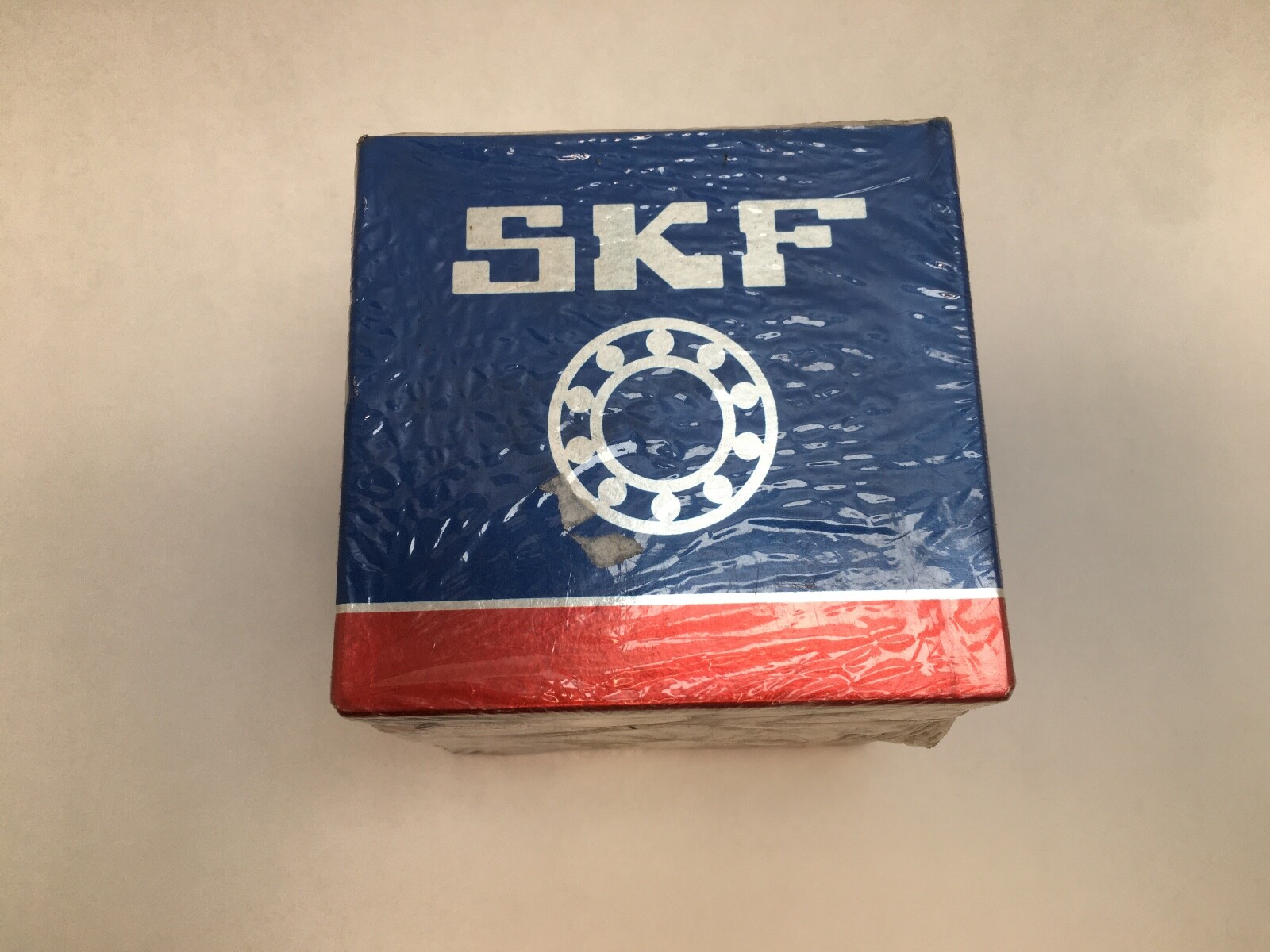

SKF 7013 ACD/P4AQBCA super-precision angular contact bearing set, 65 x 100 x 18 mm, 25°, tandem back-to-back, extra light preload 480 N, P4A. Set C 104,000 N.
List Price
$732.75
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SKF |
|---|---|
| MPN | 7013ACDP4AQBCA |
| Model | 7013ACD/P4A QBCA |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 65 mm |
| OD | 100 mm |
| Width | 18 mm |
| Material | Bearing Steel |
|---|---|
| Series | 7000 |
| Lubricant | Oil Preservative |
| Preload | Extra light, 480 N |
| Total Width | 72 mm (four-bearing set) |
| Mpn Variants | 7013 ACD/P4AQBCA, 7013-ACD/P4AQBCA, 7013-ACD-P4A-QBCA, 7013ACDP4AQBCA |
| Precision Class | P4A (ABEC 7 / P4 dimensional, P2 running accuracy) |
| Dynamic Load Rating | 104,000 N (four-bearing set) |
| Static Load Rating | 140,000 N (four-bearing set) |
| Precision Rating | P4A (ABEC 7 / P4 dimensional, P2 running accuracy) |
| Rolling Elements | Ball |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Limiting Speed | 12,000 rpm grease; 19,000 rpm oil-air (single bearing, before arrangement factor) |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 25° |
| Mounting Arrangement | Tandem back-to-back (QBC) |
| Bearing Material | Bearing steel |
| Cross Reference 1 | FAG B7013-E-T-P4S-QBCL |
|---|---|
| Cross Reference 2 | NSK 7013A5TRQBCLP4 |
| Cross Reference 3 | Fafnir 3MM9113WI QUL |
SKF 7013 ACD/P4AQBCA is a matched set of super-precision, high-capacity single row angular contact ball bearings in the 70 series, with a 25° contact angle and extra light preload, arranged tandem back-to-back. The factory QBCA set is four bearings: two tandem pairs mounted back-to-back, for high axial and radial stiffness in machine tool spindles.
70 — ISO dimension series 10, light section.
13 — bore code, 13 x 5 = 65 mm bore.
ACD — 25° contact angle, high-capacity D design.
P4A — SKF tolerance class: ISO P4 dimensional accuracy with ISO P2 running accuracy.
QBC — matched set of four bearings, tandem back-to-back arrangement.
A — extra light preload.
Bore Diameter: 65 mm. Outside Diameter: 100 mm. Width: 18 mm per bearing; 72 mm four-bearing set total. Contact Angle: 25°. Dynamic Load Rating: 104,000 N (four-bearing set). Static Load Rating: 140,000 N (four-bearing set). Fatigue Load Limit: 6,000 N (set). Preload: Extra light, 480 N. Axial Stiffness: 348 N/µm. Attainable Speed: 12,000 rpm grease; 19,000 rpm oil-air (single bearing; QBC class A arrangement factor 0.64). Precision Class: P4A (ABEC 7 / P4 dimensional, P2 running accuracy). Ball Diameter: 11.112 mm. Number Of Balls: 20 per bearing. Bearing Material: Bearing steel. Closure Type: Open.
Shaft abutment diameter: 71 mm min. Housing abutment diameter: 96.8 mm max. Fillet radius: 1 mm max (large side), 0.6 mm max (small side). Oil nozzle position: 78.1 mm. Reference grease quantity: 5.7 cm³ per bearing.
Mounting Arrangement: Tandem back-to-back (QBC). Bearings in a QBCA set are matched to each other and are not universally matchable.
Same envelope, 25° angle, super-precision class: FAG B7013-E-T-P4S-QBCL, NSK 7013A5TRQBCLP4, NTN 7013ADB, Fafnir 3MM9113WI QUL. MPN variants: 7013 ACD/P4AQBCA, 7013-ACD/P4AQBCA, 7013-ACD-P4A-QBCA, 7013ACDP4AQBCA. Harmonization Code: 8482.10.50.
