Availability:
1 in stock

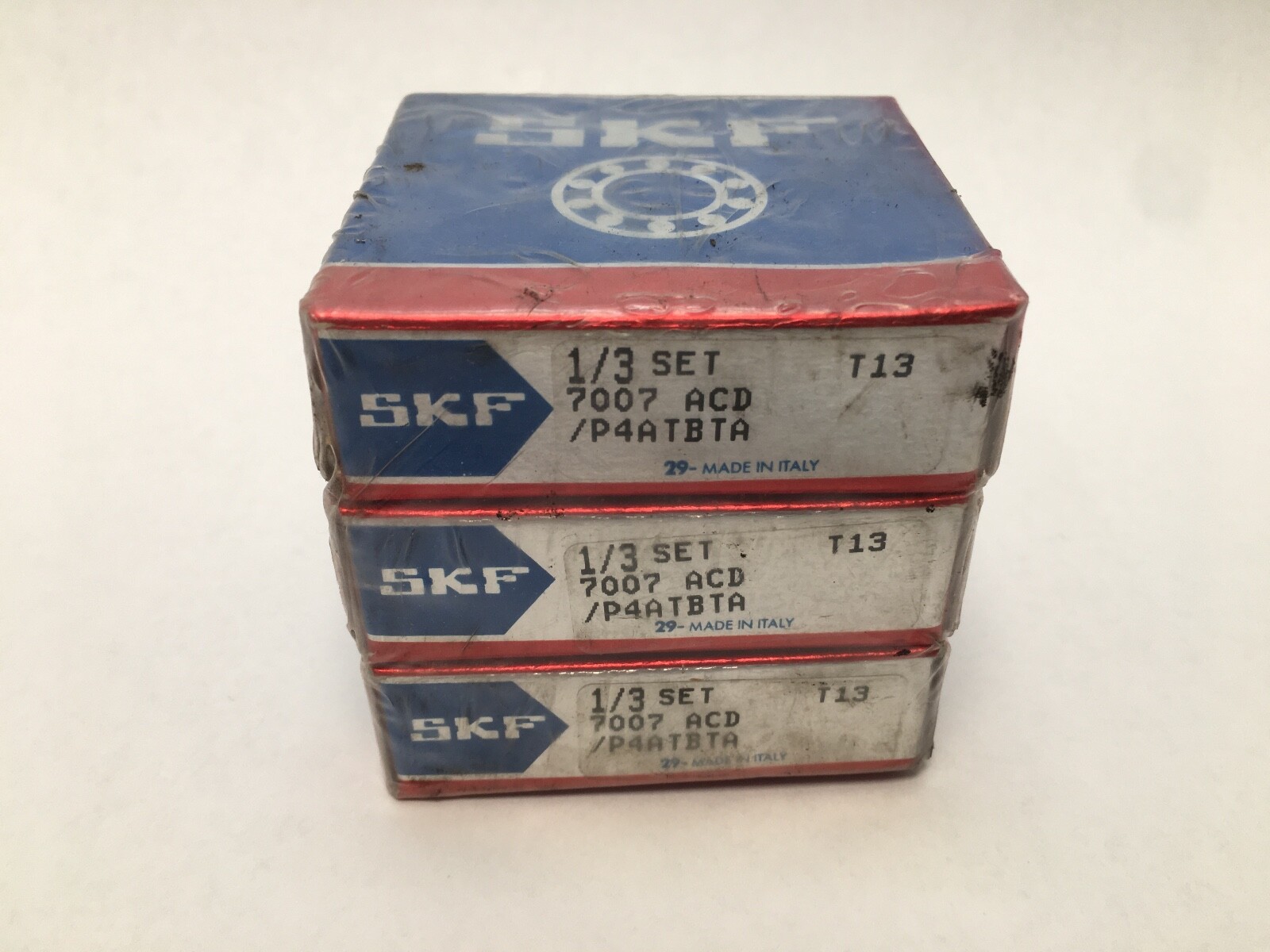

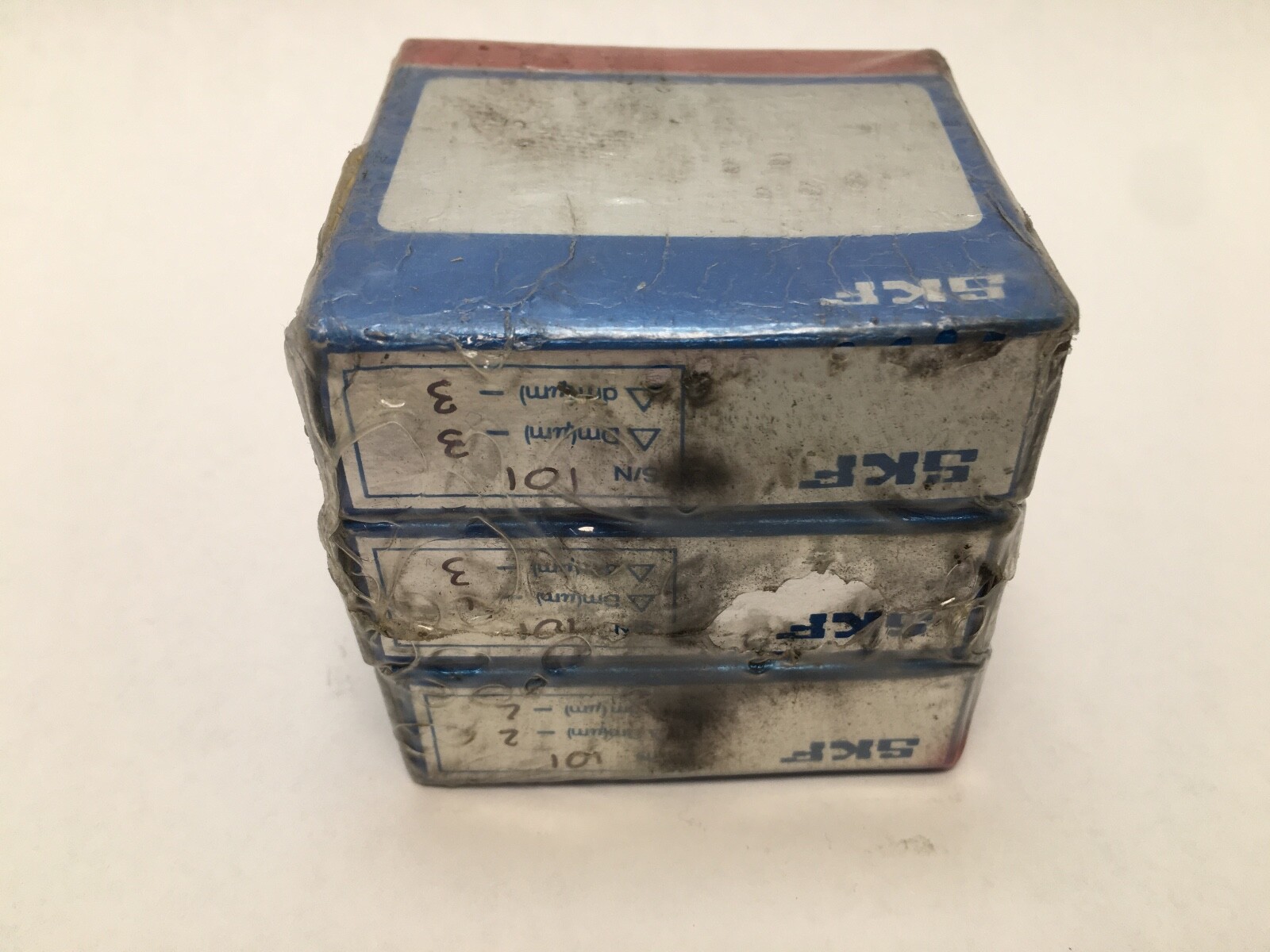

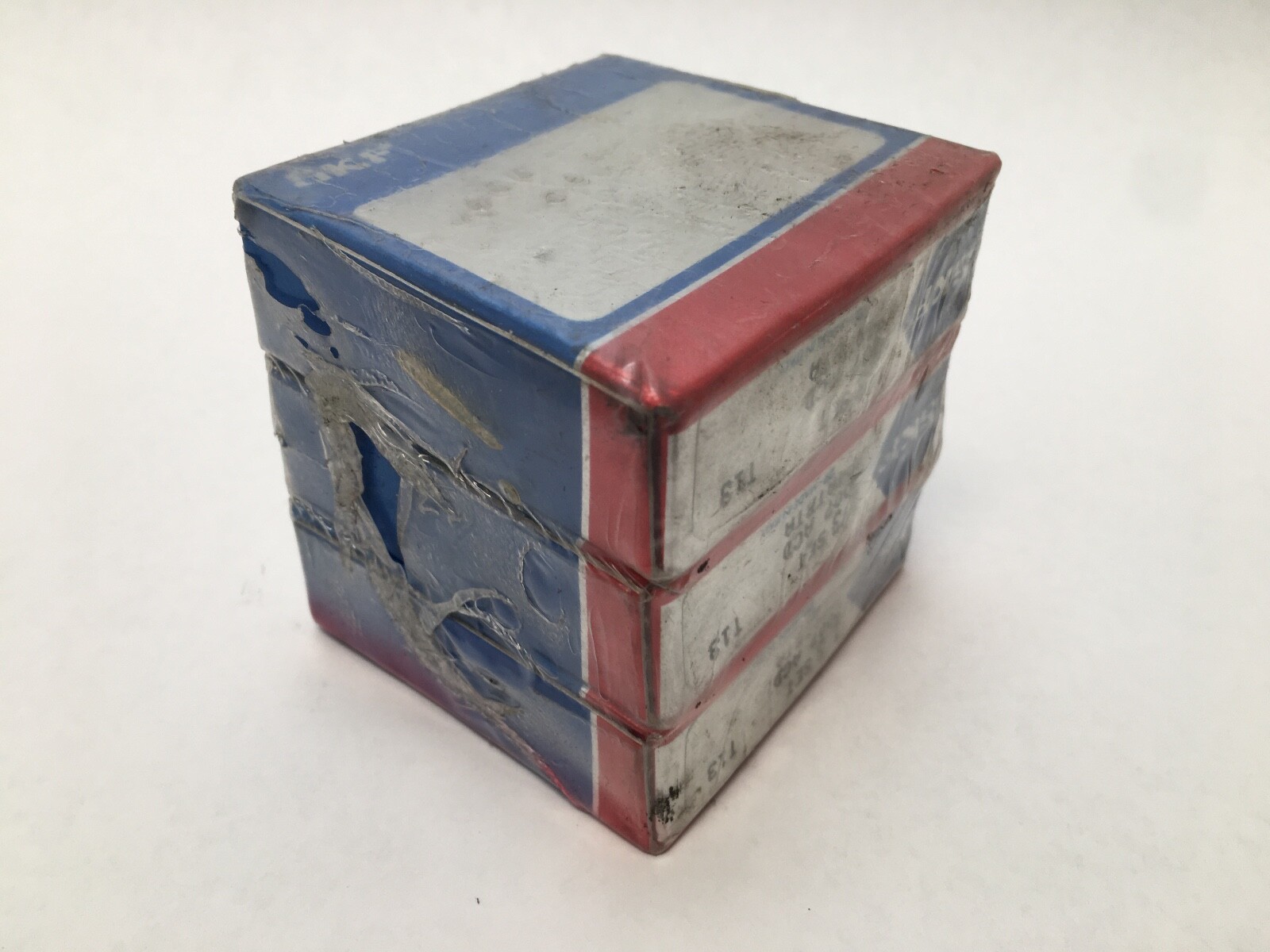

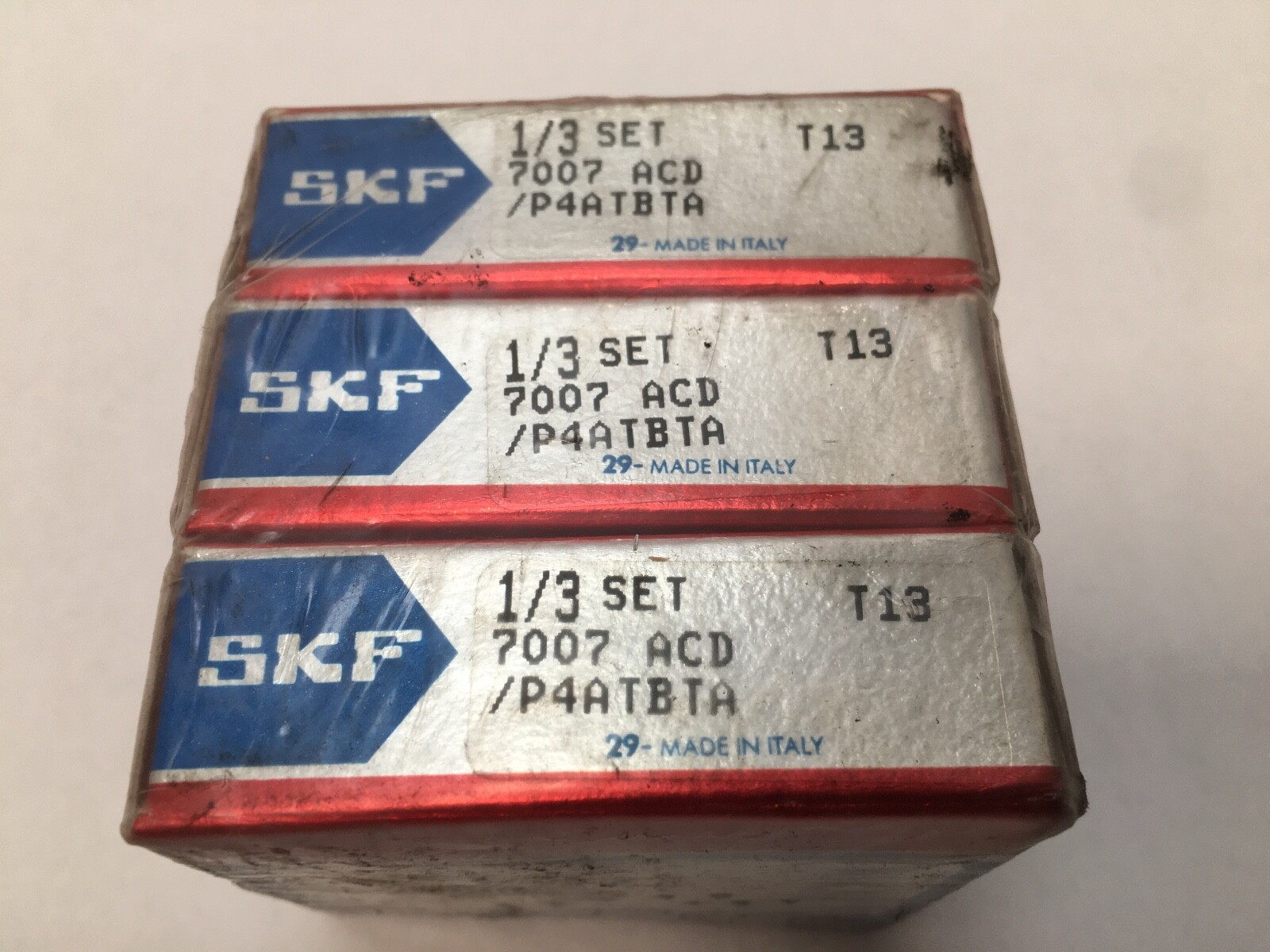

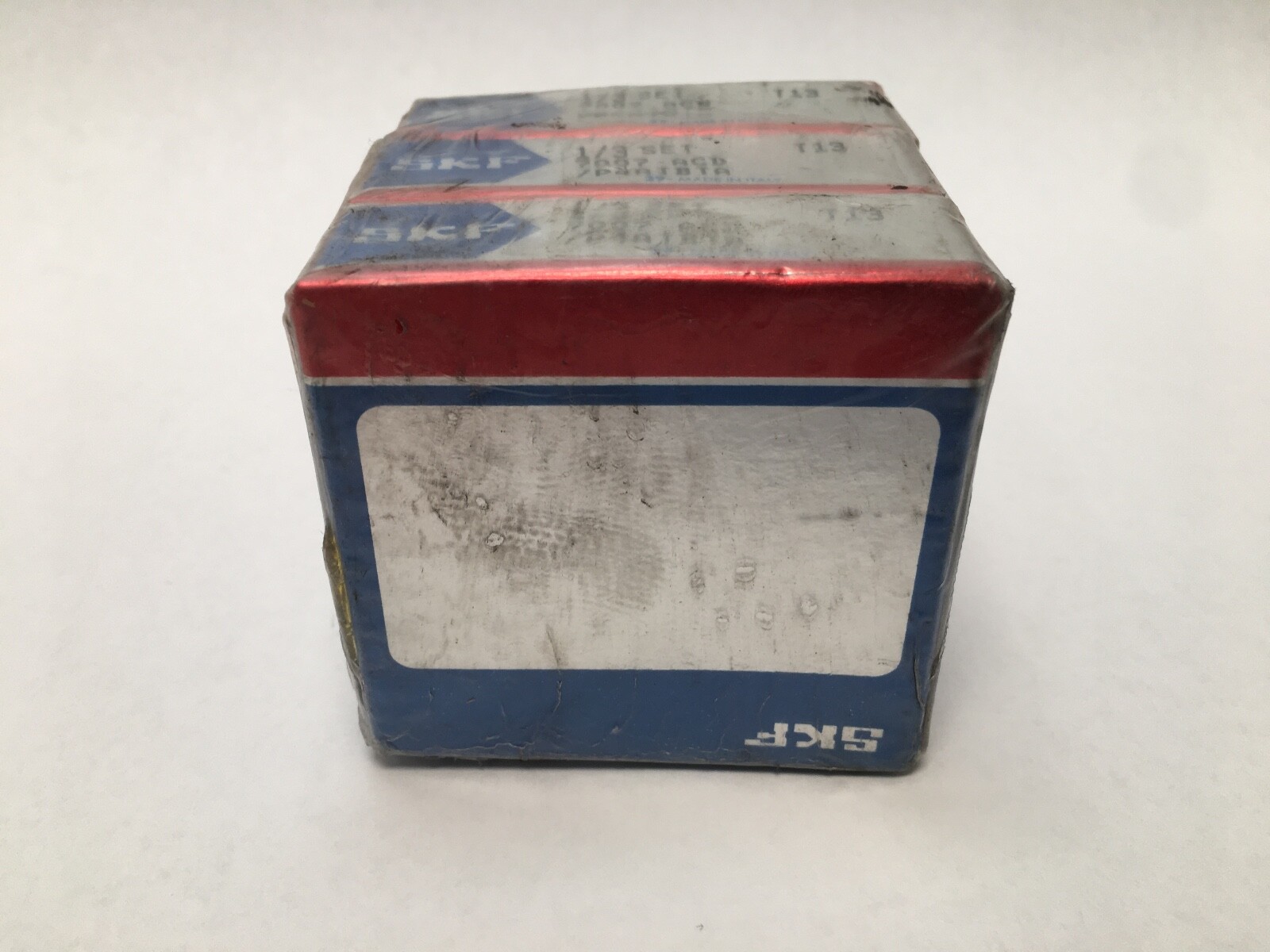

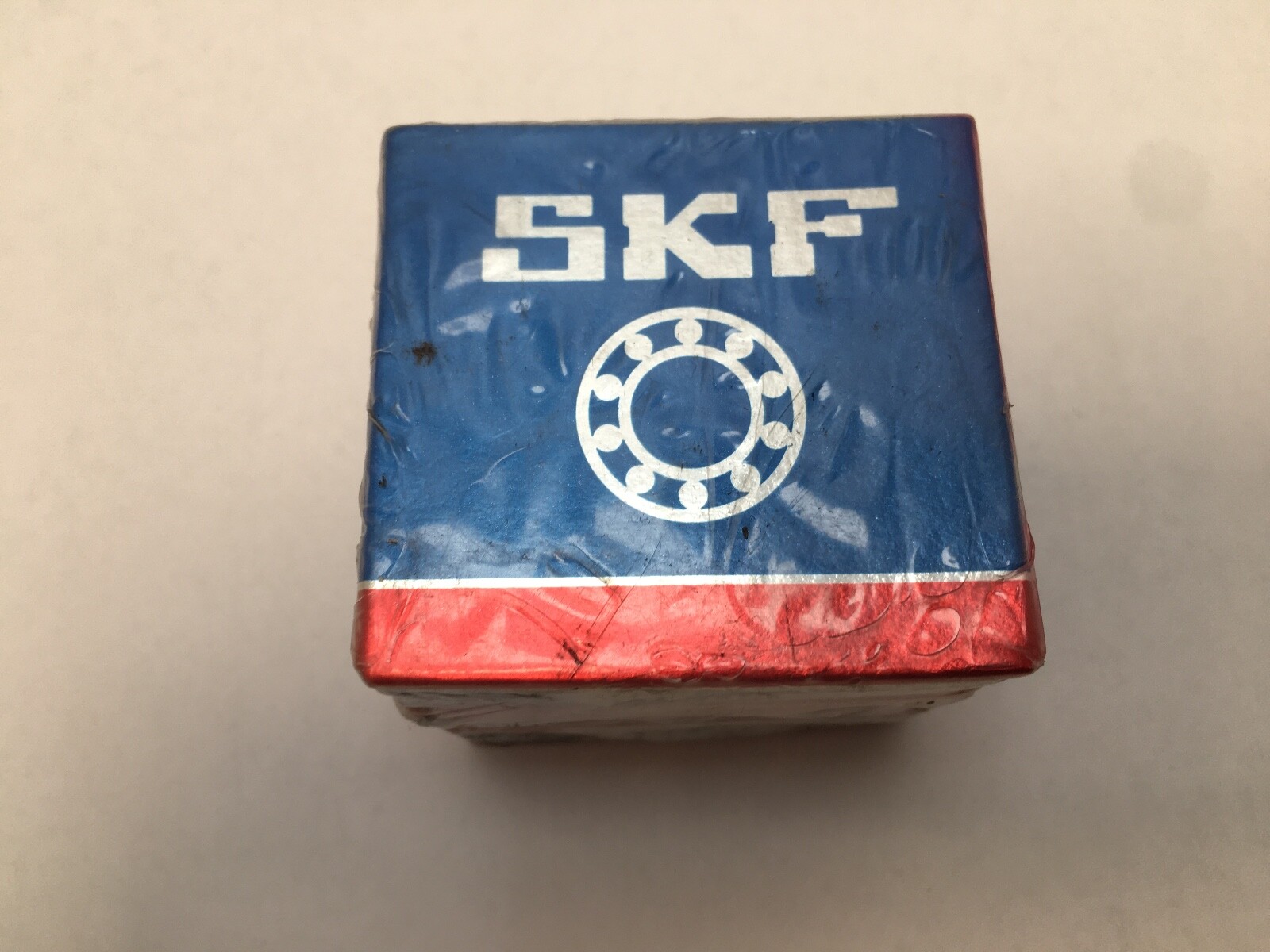

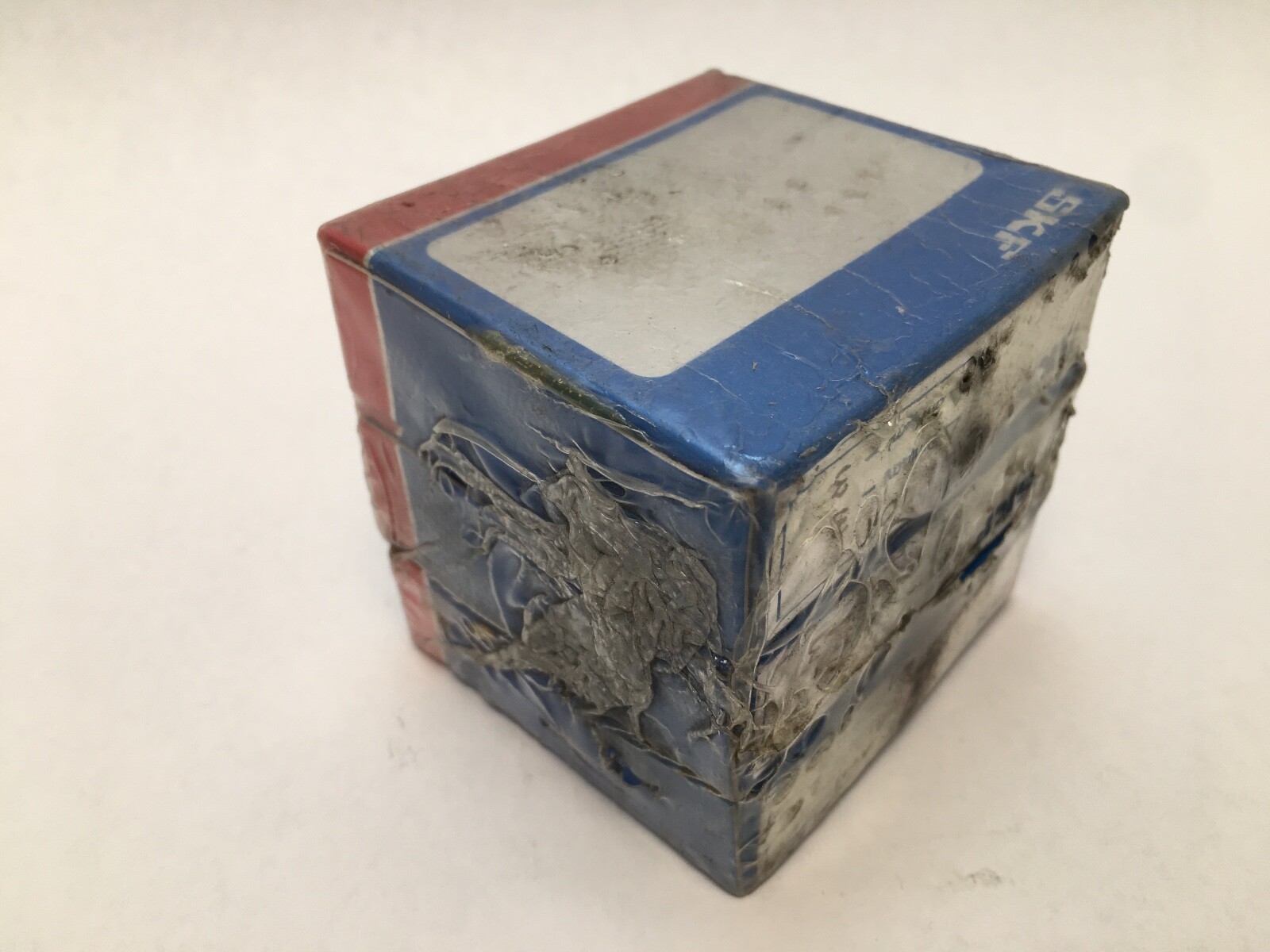

Super-precision angular contact ball bearings, 35 x 62 x 14 mm, 25° contact angle, extra light preload, P4A. Two pieces from an SKF TBT three-bearing matched set.
List Price
$332.74
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SKF |
|---|---|
| Model | 7007 ACD P4A TBTA |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 35 mm |
| OD | 62 mm |
| Width | 14 mm |
| Material | Bearing Steel |
|---|---|
| Series | 7000 |
| Preload | Extra light, 122 N (factory set of three) |
| Mpn Variants | 7007 ACD/P4ATBTA, 7007-ACD/P4ATBTA, 7007ACDP4ATBTA, 7007 ACD P4A TBTA |
| Precision Class | ABEC 7 / P4A |
| Dynamic Load Rating | 32,500 N (factory set of three) |
| Static Load Rating | 27,000 N (factory set of three) |
| Rolling Elements | Ball |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 25° |
| Mounting Arrangement | TBT set: back-to-back and tandem |
| Cross Reference 1 | FAG B7007-E-T-P4S – 25°; single bearing, check preload |
|---|---|
| Cross Reference 2 | NSK 7007A5TYNP4 – 25°; single bearing, check preload |
| Cross Reference 3 | Fafnir 3MM9107WI CR – 25°; single bearing, check preload |
SKF 7007 ACD/P4ATBTA super-precision, high-capacity D design single row angular contact ball bearings. Two pieces from a factory three-bearing matched set. Bore Diameter: 35 mm. Outside Diameter: 62 mm. Width: 14 mm per bearing. Contact Angle: 25°.
7007 — ISO 70 light series, 35 mm bore.
ACD — 25° contact angle, SKF high-capacity D internal design.
P4A — SKF tolerance class: ISO P4 dimensional accuracy with P2 running accuracy.
TBT — matched set of three bearings, arranged back-to-back and tandem.
A — extra light preload.
Dynamic Load Rating: 32,500 N (factory set of three). Static Load Rating: 27,000 N (factory set of three). Preload: Extra light, 122 N (factory set of three). Axial Stiffness: 125 N/µm (factory set of three). Precision Class: ABEC 7 / P4A. Ball Diameter: 7.938 mm. Number of Balls: 16 per bearing.
Shaft Abutment Diameter (da min): 39.6 mm. Housing Abutment Diameter (Db max): 60 mm. Fillet Radius (ra max): 1 mm. Chamfer (r1,2 min): 1 mm. Oil Nozzle Position (dn): 45.3 mm. Reference Grease Quantity: 2 cm³ per bearing.
Unit Quantity: 2 Pcs. Two pieces from a factory TBT three-bearing set, extra light preload. Factory set width: 42 mm.
Other makers’ 25°, P4-level single bearings in 35 x 62 x 14 mm: FAG B7007-E-T-P4S, NSK 7007A5TYNP4 and Fafnir 3MM9107WI CR. Check the preload class and matching on each.
