Availability:
1 in stock

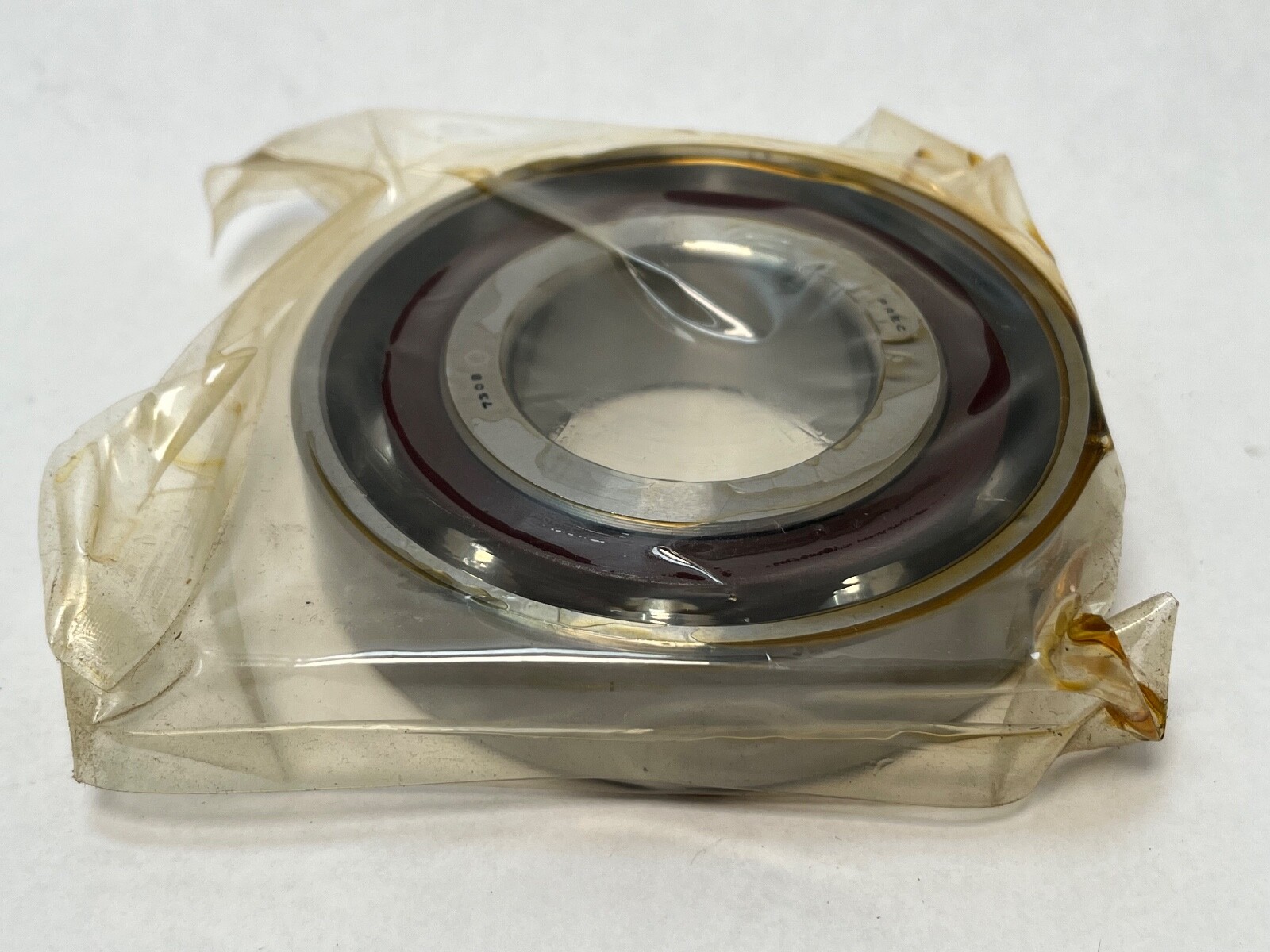

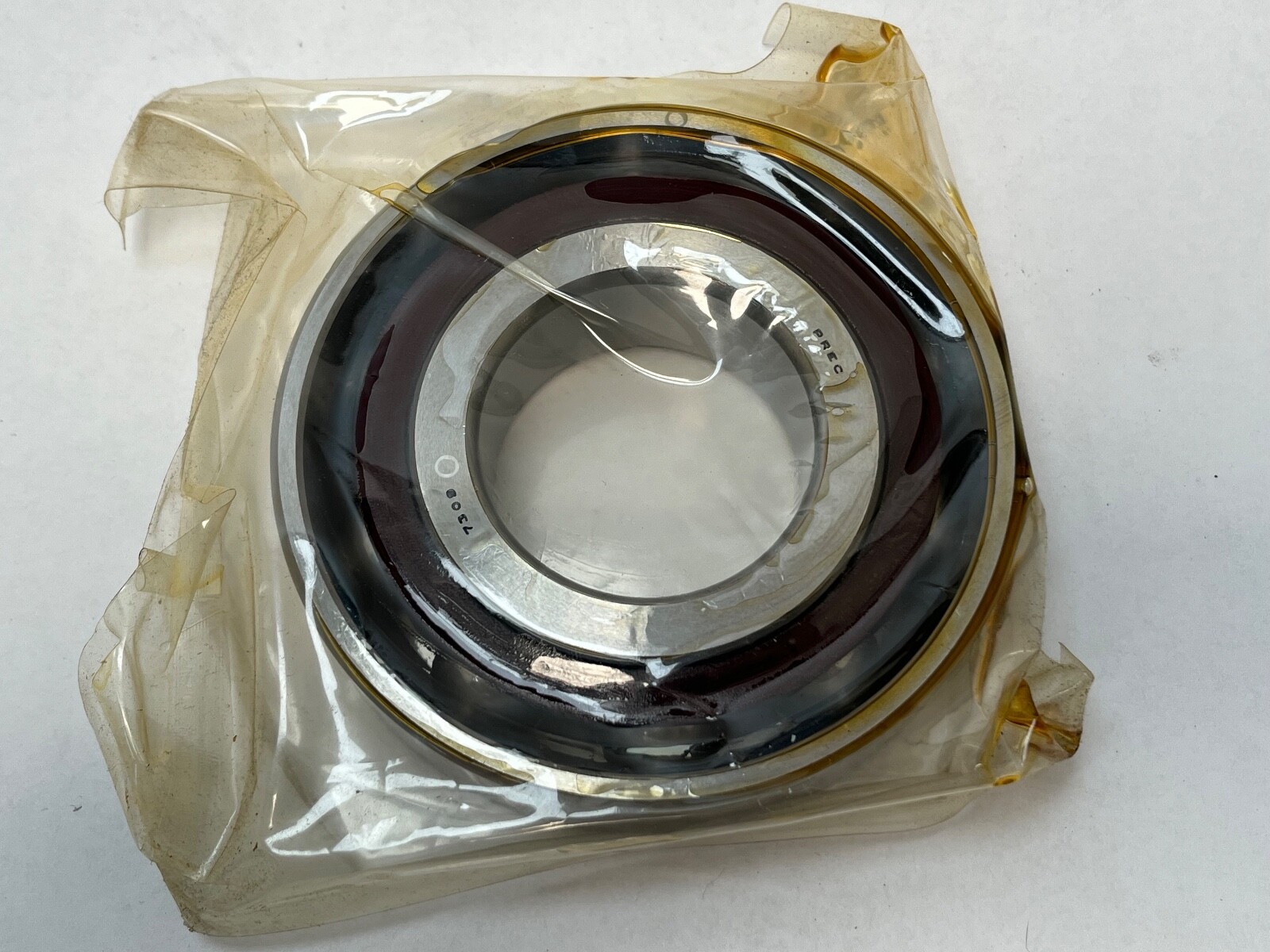

Super-precision angular contact ball bearing, 45 x 100 x 25 mm, ABEC 5. One-piece machined laminated phenolic cage, inner-ring centred, ground for light preload.
List Price
$114.72
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | RHP |
|---|---|
| MPN | 7309TDULP5 |
| Model | 7309 TB DUL P5 / 7309TDUEP5 / 7309B |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 45 mm |
| OD | 100 mm |
| Width | 25 mm |
| Material | Bearing Steel |
|---|---|
| Series | 7300 |
| Preload | Light |
| Industry Terms | Super precision angular contact bearing; machine tool spindle bearing; duplex matched pair |
| Application Types | Machine tool spindles; grinding spindles; high-speed gearboxes |
| Overall Width | 25 mm |
| Mpn Variants | 7309TDULP5; 7309-TB-DUL-P5; 7309B; 7209-T-DU-EP5 |
| Precision Class | ABEC 5 / P5 |
| Cage Type | One-piece machined, inner-ring centred |
| Precision Rating | ABEC 5 / P5 |
| Rolling Elements | Ball |
| Cage Material | Phenolic |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50.68 |
| Mounting Arrangement | Duplex, universally ground |
| Bearing Material | Bearing Steel |
| Cross Reference 1 | NSK 7309 super-precision range (related, same 45x100x25 mm envelope) |
|---|---|
| Cross Reference 2 | FAG B7309 range (related, same 45x100x25 mm envelope) |
| Cross Reference 3 | SKF 7309 range (related, same 45x100x25 mm envelope) |

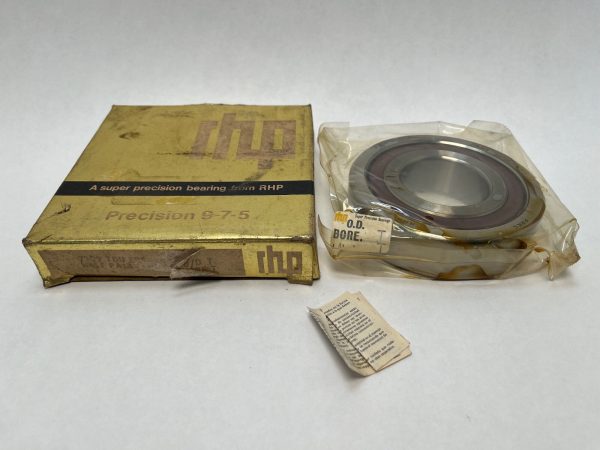

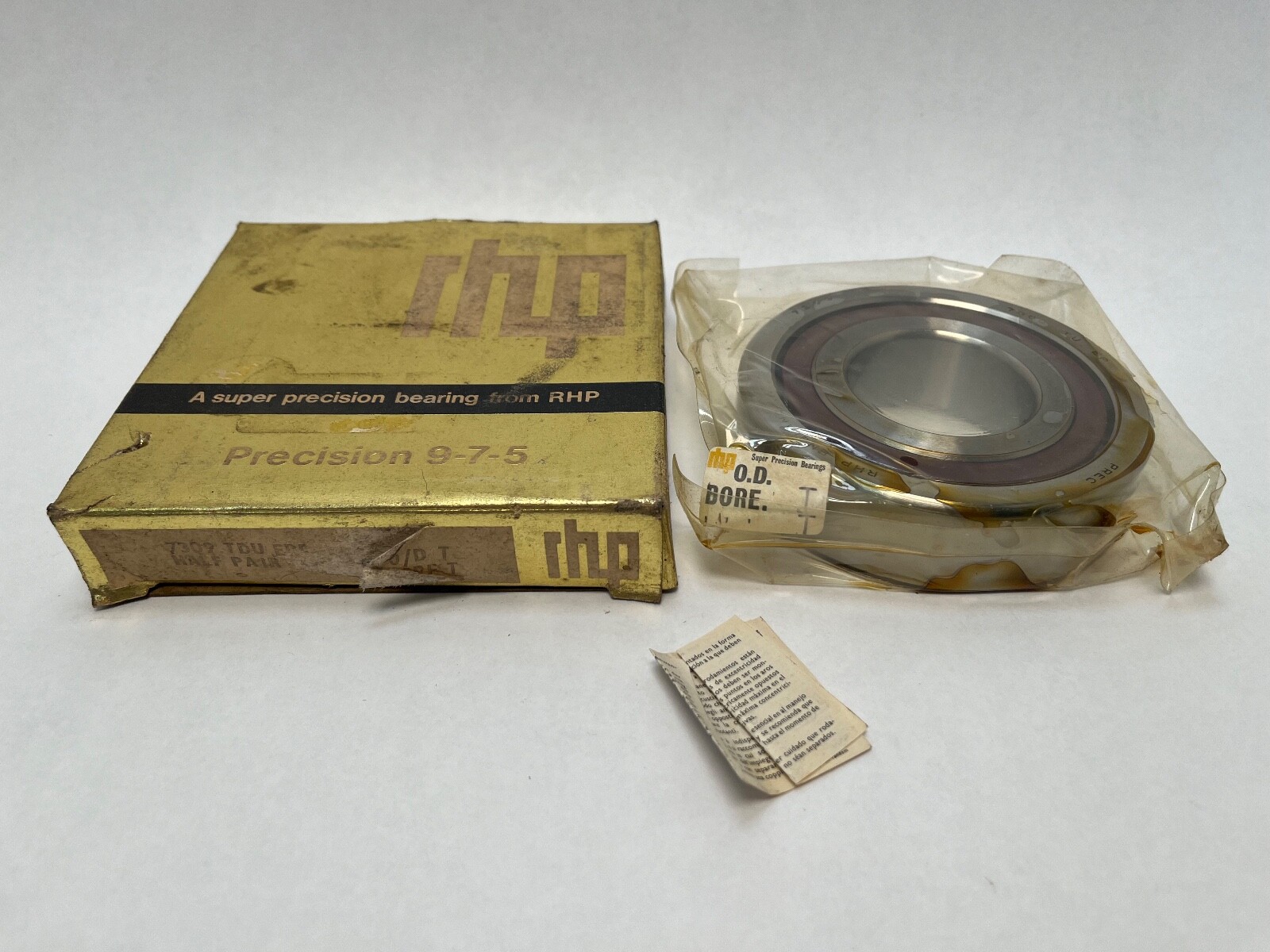

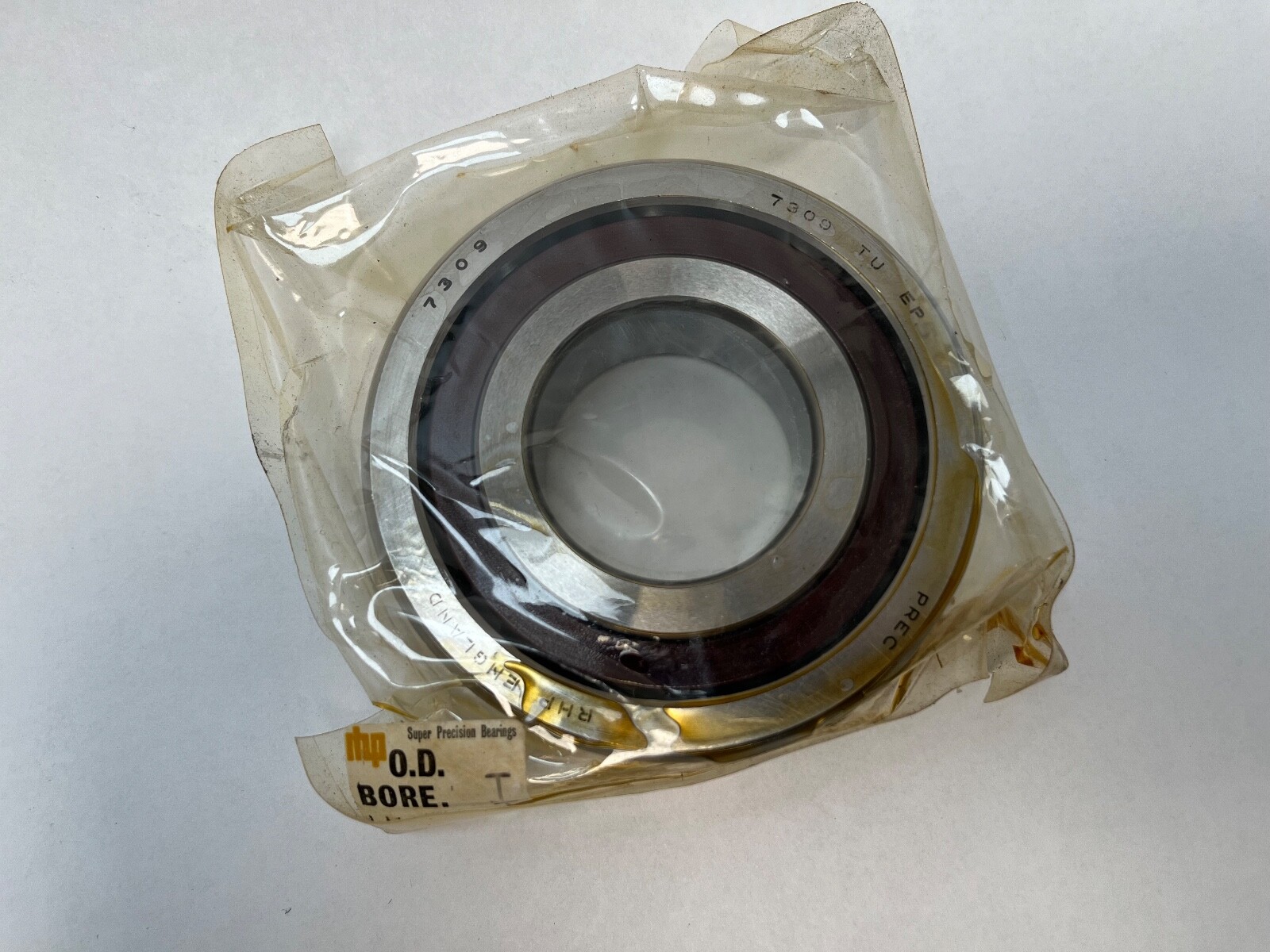

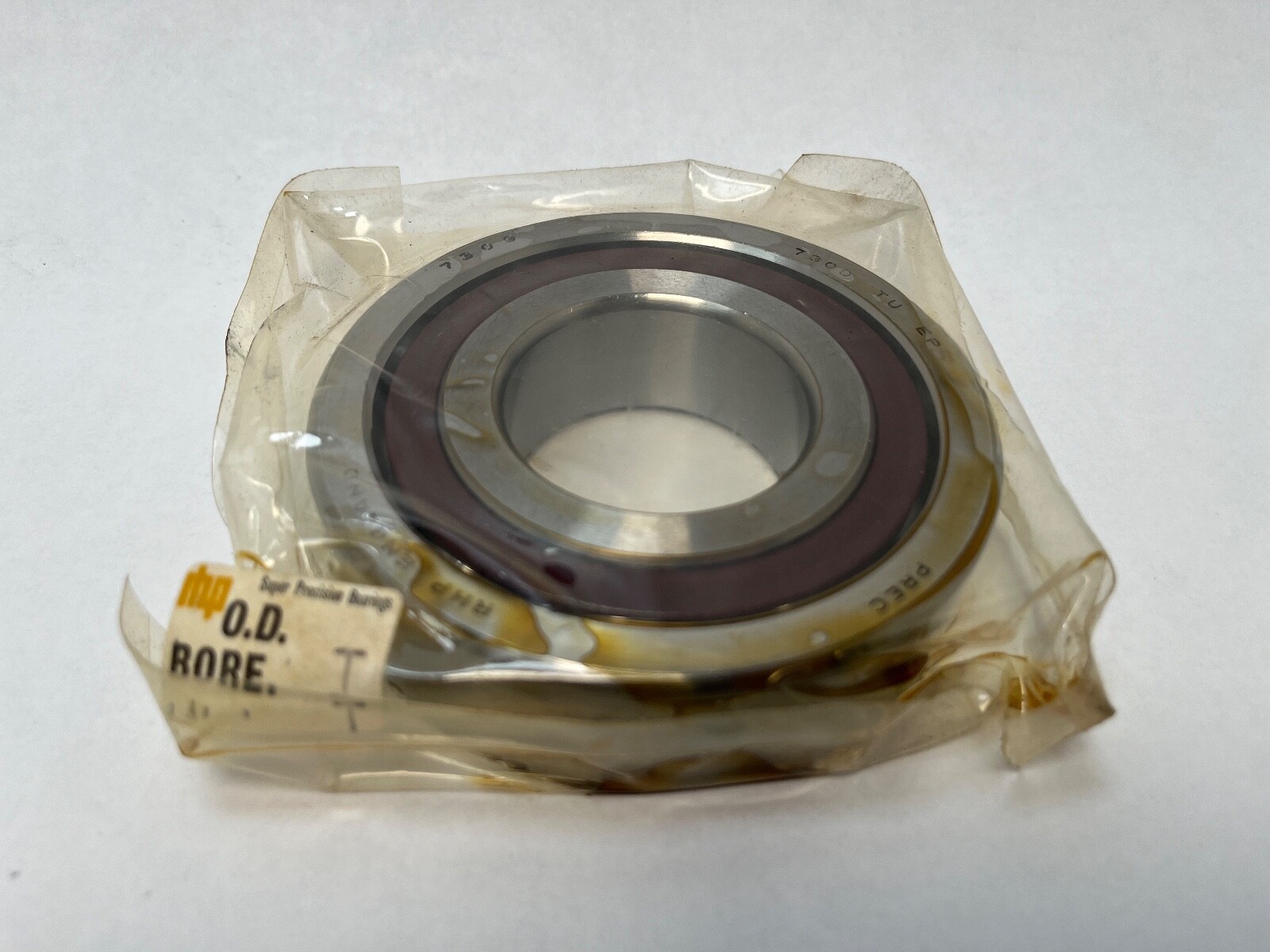

RHP 7309-TB-DUL-P5 super-precision angular contact ball bearing. Bore Diameter: 45 mm. Outside Diameter: 100 mm. Overall Width: 25 mm. Precision Class: ABEC 5 / P5. Rolling Elements: Ball. Number Of Rows: 1. Bore Type: Straight. Closure Type: Open. Bearing Material: Bearing steel. Series: 7300.

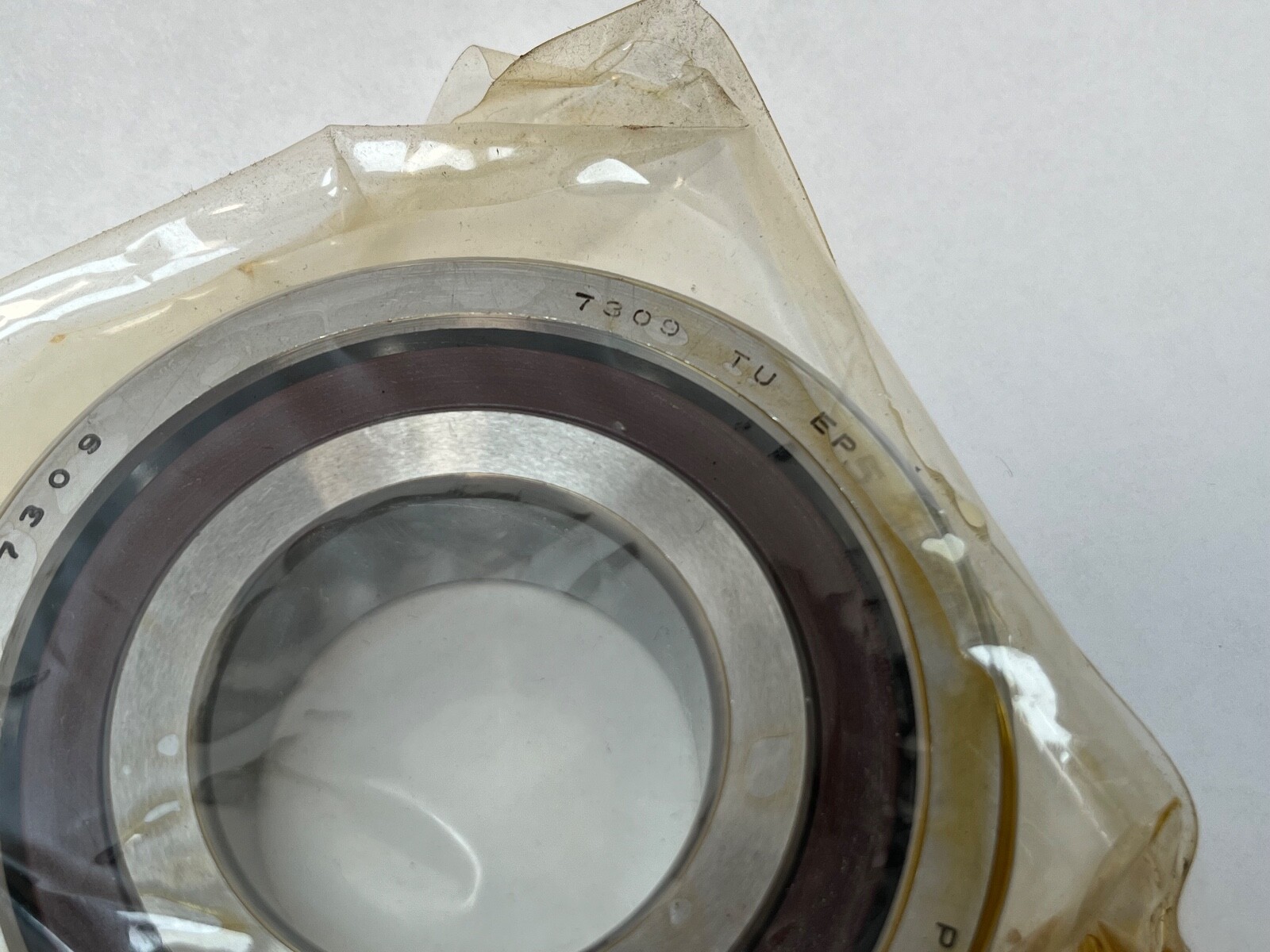

7309 — ISO series 03 angular contact ball bearing, 45 mm bore, 100 mm outside diameter, 25 mm width.
TB — one-piece machined laminated phenolic cage, centred on the inner ring.
DU — duplex universal. The faces are ground so that any two bearings from the range mount back-to-back, face-to-face or in tandem.
L — light preload.
P5 — ISO precision class 5, equivalent to ABEC 5.
Cage Material: Phenolic. Cage Type: One-piece machined, inner-ring centred. Inner-ring centring locates the cage on the faster-moving ring, which holds it concentric under the centrifugal load of a high-speed spindle.
Preload: Light. A light preload removes internal play with the least axial force, holding running temperature down at speed.
Precision Class: ABEC 5 / P5. Tighter bore, outside diameter and running-accuracy tolerances than a standard-class bearing.
Mounting Arrangement: Duplex, universally ground. Bore Type: Straight. Snap Ring Included: No.
Same 45 x 100 x 25 mm ISO 7309 envelope in other makers’ super-precision ranges: NSK 7309 series, FAG B7309 series, SKF 7309 range, NTN 7309 range. Each is offered in more than one contact angle, so the equivalent is selected by the angle the machine calls for.
