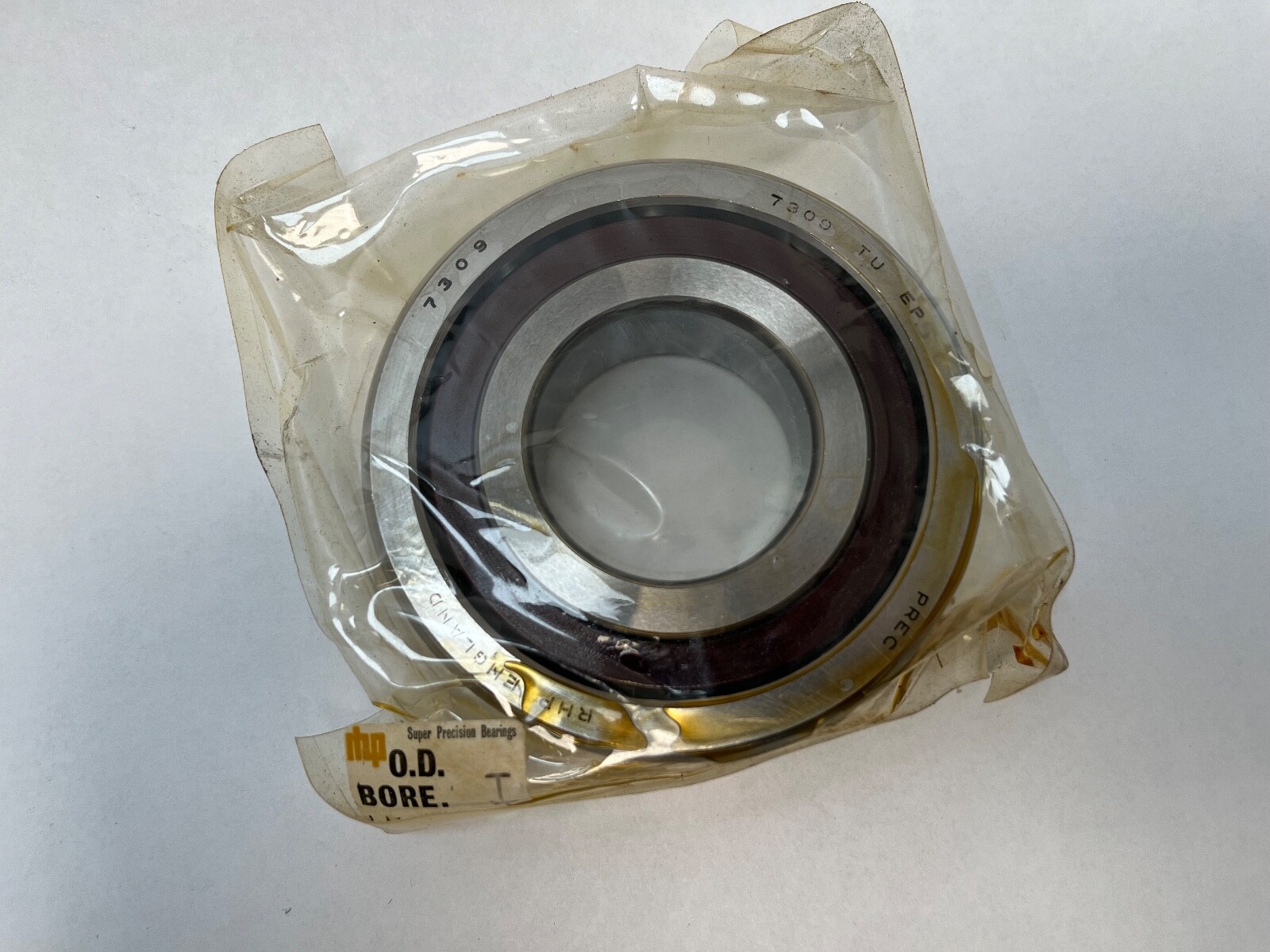

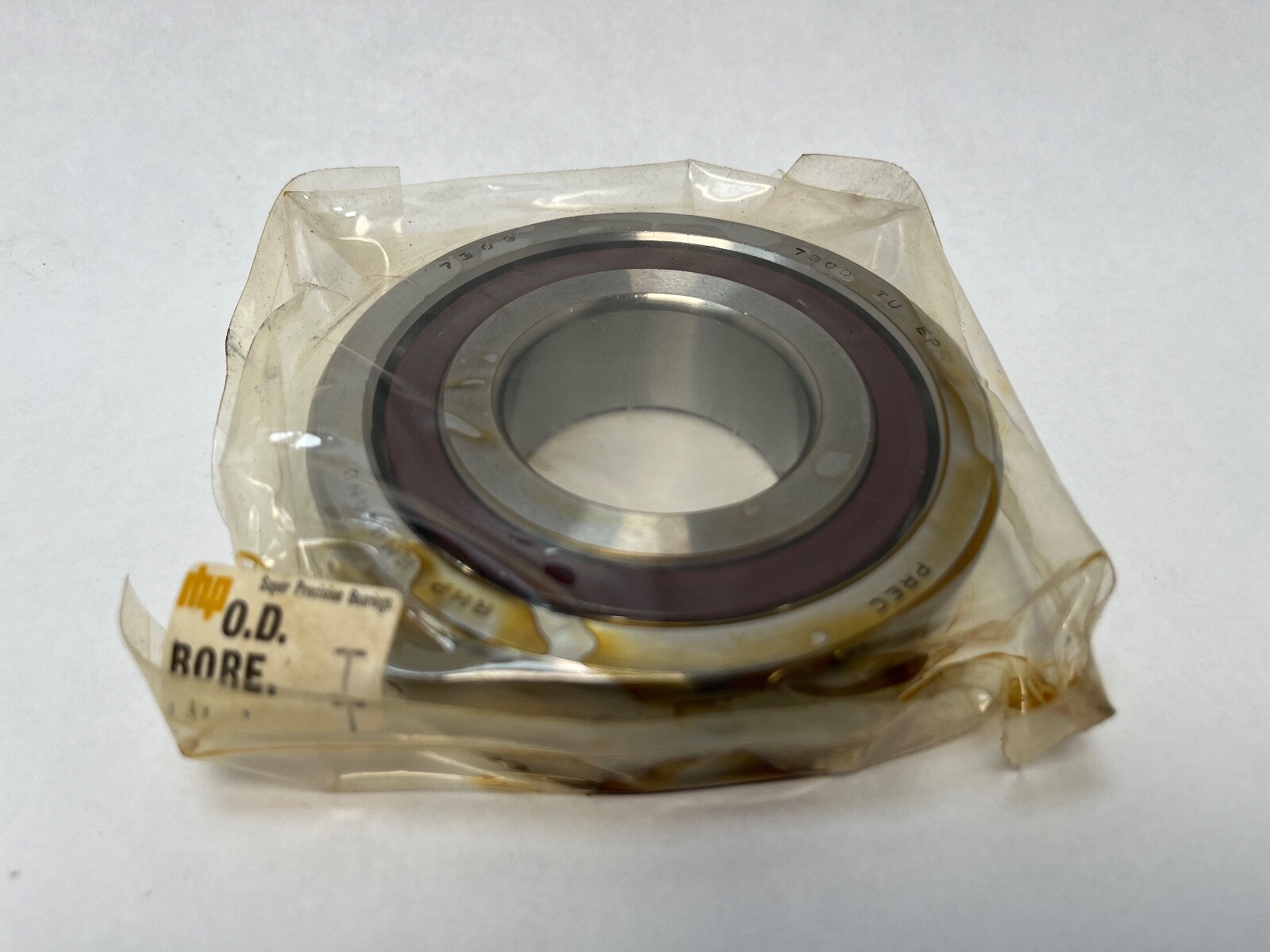

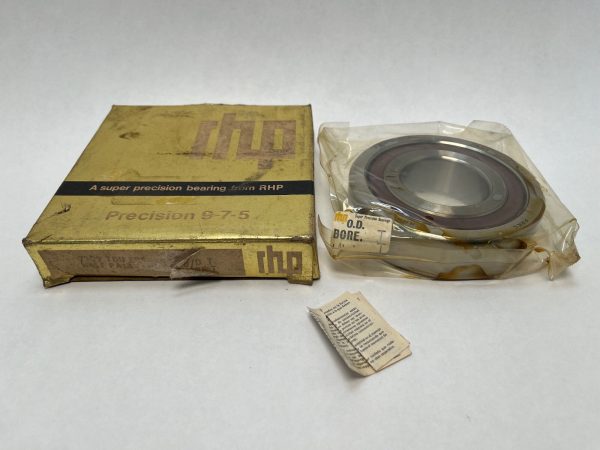

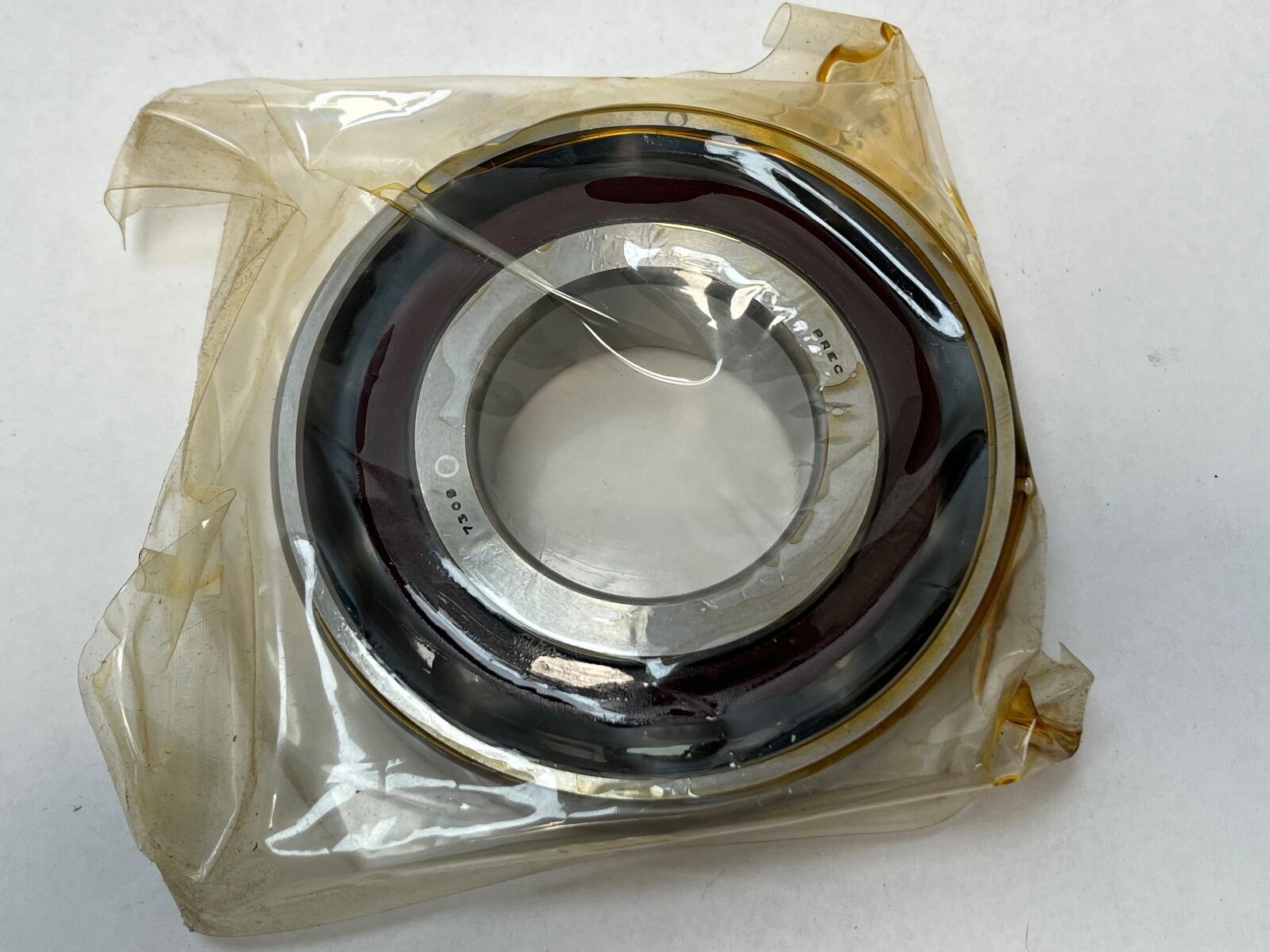

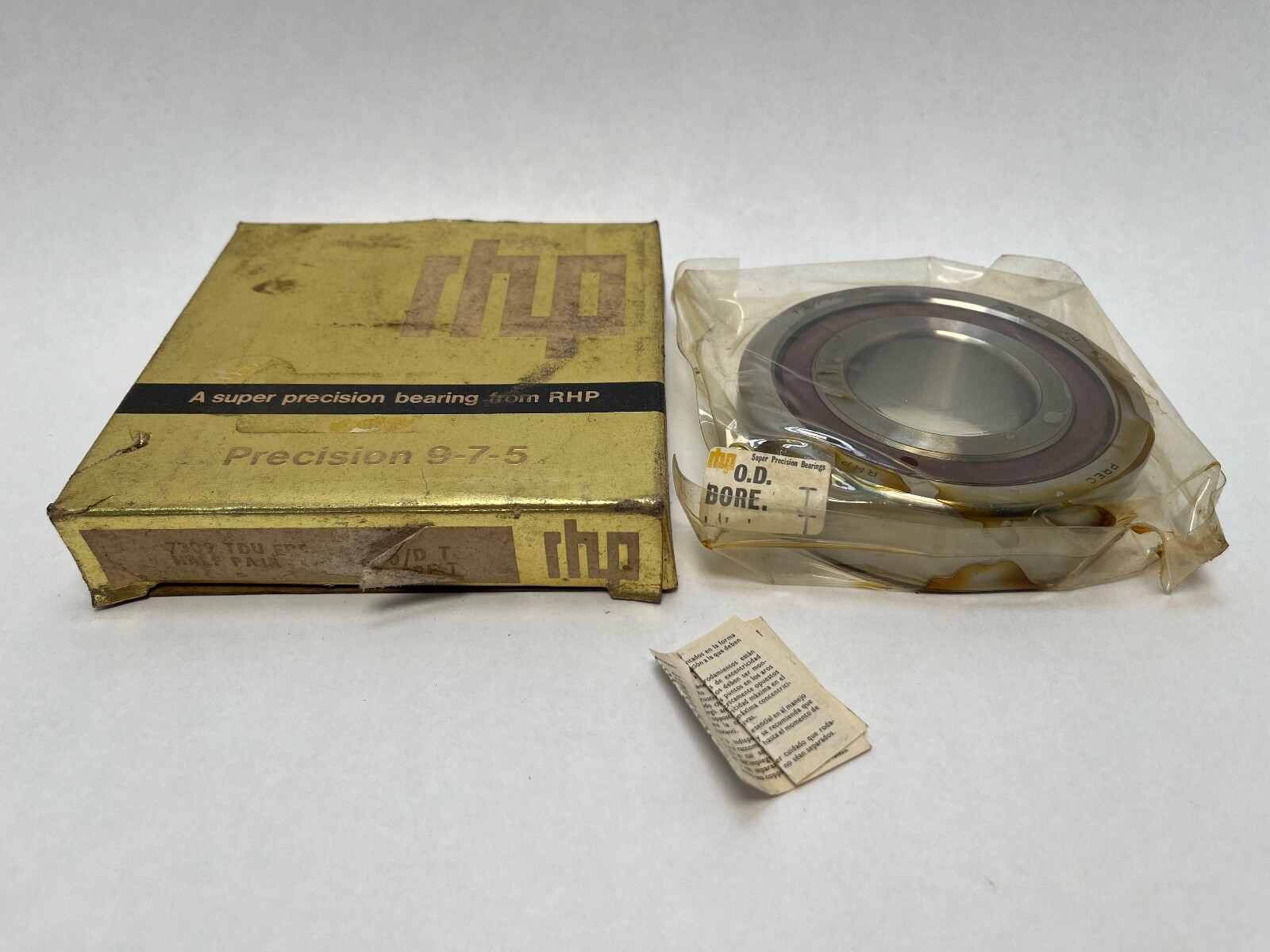

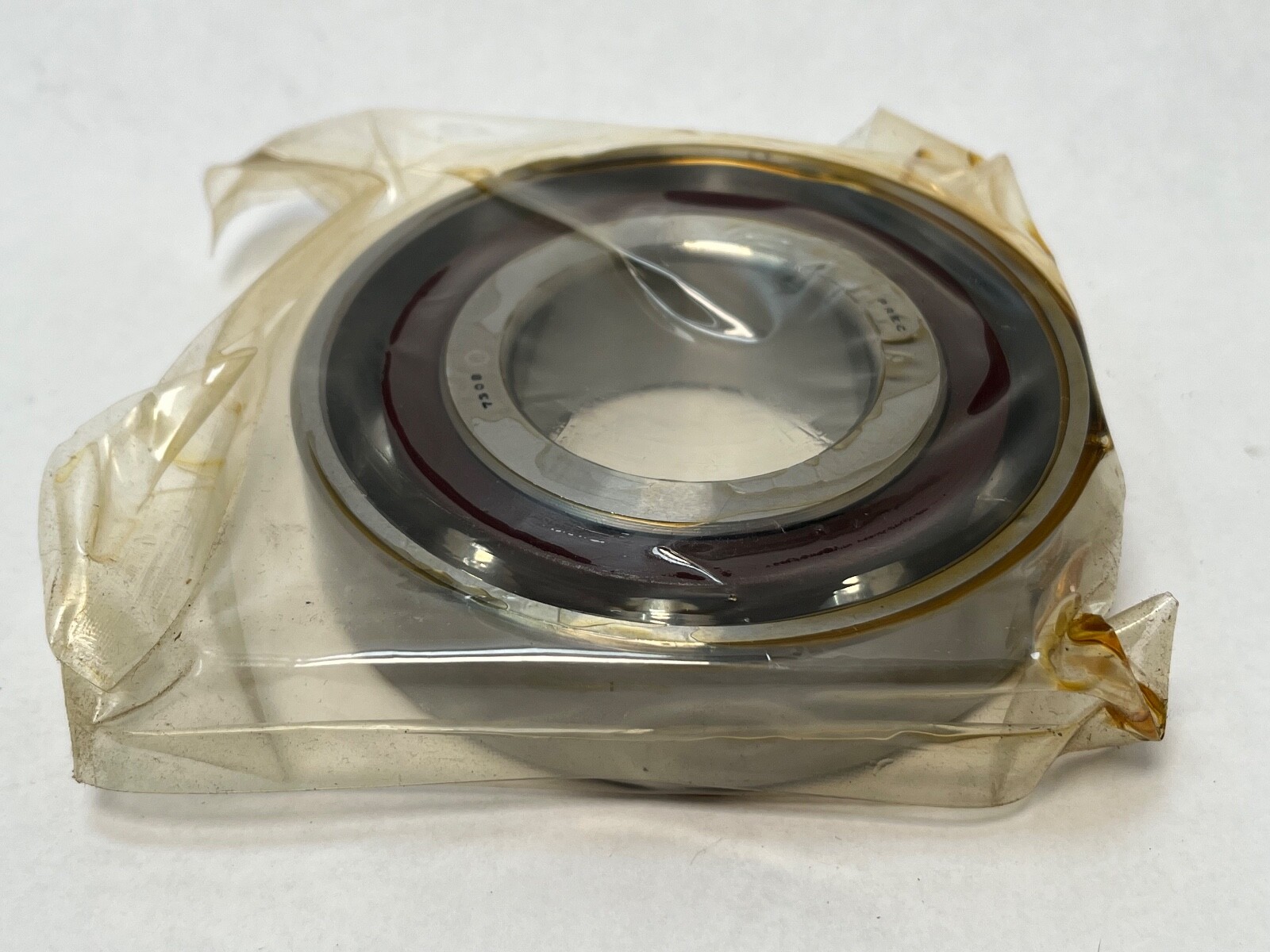

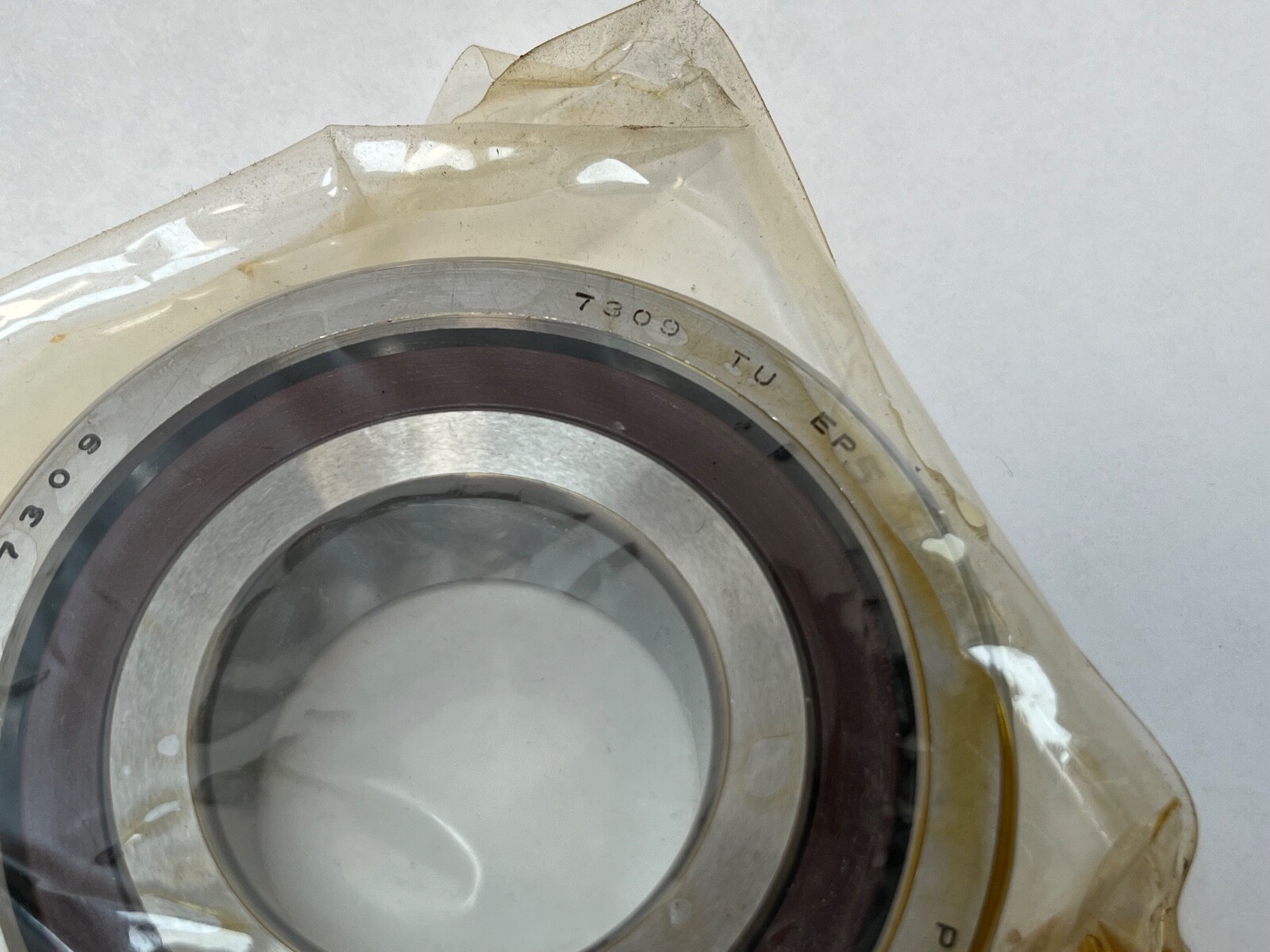

RHP7309-TB-DUL-P5Angular Contact Ball Bearing — 45 mm ID, 100 mm OD, 25 mm Width, ABEC 5, Light Preload, Open

Condition: New

Availability:

1 in stock

RHP 7309-TB-DUL-P5 super-precision angular contact ball bearing, 45 x 100 x 25 mm, ABEC 5, machined phenolic cage, universally ground for light preload.

Same day shipment

List Price

$108.99

1 in stock

Prefer eBay? Buy this item on our store (opens in a new tab)

Small green outline icon of a shipping box with a clock, indicating delivery time
Availability

1 in stock

On the Shelf & Ready to Ship

Green shield badge reading "Same-Day Shipping" with box and delivery truck icons
Free US Shipping

Ships same day by 6pm ET

Green shield icon with box and arrow graphic labeled "Free Returns"
Free Returns

No Risk, No Hassle

Specifications

Key Specifications

MFR / BrandRHP
MPN7309-TB-DUL-P5
Model7309 TB DUL P5 / 7309TDUEP5 / 7309B
Bearing TypeAngular Contact Ball Bearing, Open
ID45 mm
OD100 mm
Width25 mm

Technical Specifications

MaterialBearing Steel
Series7300
PreloadLight
Industry TermsSuper precision angular contact bearing; machine tool spindle bearing; duplex matched pair
Application TypesMachine tool spindles; grinding spindles; high-speed gearboxes
Overall Width25 mm
Mpn Variants7309TDULP5; 7309-TB-DUL-P5; 7309B; 7209-T-DU-EP5
Precision ClassABEC 5 / P5
Cage TypeOne-piece machined, inner-ring centred
Precision RatingABEC 5 / P5
Rolling ElementsBall
Cage MaterialPhenolic
Number Of Rows1
Bore TypeStraight
Snap Ring IncludedNo
Harmonization Code8482.10.50.68
Mounting ArrangementDuplex, universally ground
Bearing MaterialBearing Steel
Closure TypeOpen
Seller Part Number: B-C7#B2VC3C

Product Description

What this part is:

RHP 7309-TB-DUL-P5 is a super-precision angular contact ball bearing, single row, open, with a one-piece machined laminated phenolic cage, universally ground for light preload. Bore Diameter: 45 mm. Outside Diameter: 100 mm. Overall Width: 25 mm. Precision Class: ABEC 5 / P5.

Decoding the designation:

7309 — ISO series 03 angular contact ball bearing, 45 mm bore, 100 mm outside diameter, 25 mm width.

TB — one-piece machined laminated phenolic cage, centred on the inner ring.

DU — duplex universal. The faces are ground so that any two bearings from the range mount back-to-back, face-to-face or in tandem.

L — light preload.

P5 — ISO precision class 5, equivalent to ABEC 5.

Specifications:

Bearing Type: Angular Contact Ball Bearing. Bore Diameter: 45 mm. Outside Diameter: 100 mm. Overall Width: 25 mm. Number Of Rows: 1. Rolling Elements: Ball. Bore Type: Straight. Closure Type: Open. Cage Material: Phenolic. Cage Type: One-piece machined, inner-ring centred. Preload: Light. Precision Class: ABEC 5 / P5. Material: Bearing Steel. Series: 7300. Harmonization Code: 8482.10.50.68. Snap Ring Included: No.

Dimensions and mounting:

Mounting Arrangement: Duplex, universally ground. Bore Type: Straight. Snap Ring Included: No.

Compatibility and replacement:

Designation variants: 7309TDULP5, 7309-TB-DUL-P5, 7309B, 7209-T-DU-EP5.

Frequently asked questions:

What are the dimensions of the RHP 7309-TB-DUL-P5?

Bore Diameter: 45 mm. Outside Diameter: 100 mm. Overall Width: 25 mm.

What does DUL mean?

DU is duplex universal: the faces are ground for back-to-back, face-to-face or tandem mounting. L is light preload.

What precision class is it?

Precision Class: ABEC 5 / P5.
