Central Surplus Bearing Finder
A faster way to search our bearing inventory Today we’re launching the Central Surplus Bearing
Availability:
1 in stock
Super precision angular contact ball bearing, 17 x 47 x 14 mm, 25 degree contact angle. ABEC 7 / P4 class, phenolic cage, universally ground faces.
List Price
$61.00
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | RHP |
|---|---|
| MPN | 7303-E-T-SUL-P4 |
| Model | 7303 E T DUL P4 / 3MM303 WI CR DUL |
| Bearing Type | Angular Contact Ball Bearing |
| ID | 17 mm |
| OD | 47 mm |
| Width | 14 mm |
| Material | Steel |
|---|---|
| Series | 7300 |
| Preload | Light |
| Base Number | 7303 |
| Industry Terms | Super precision bearing; spindle bearing; heavy series angular contact; 25 degree angular contact; ABEC 7 bearing |
| Common Misspellings | 7303 E T SUL P4; 7303ETSULP-4; 7303 ET SUL; RHP 7303TSUL P4; 7303 E T SUL P-4 |
| Application Types | Compact high-load spindles; gearbox output shafts; pumps; electric motors; indexing heads |
| Overall Width | 14 mm |
| Mpn Variants | 7303ETSULP4; 7303-E-T-SUL-P4; 7303E; 7303ET; 7303X3 |
| Precision Class | ABEC 7 / P4 |
| Cage Type | Machined |
| Precision Rating | ABEC 7 / P4 |
| Rolling Elements | Ball |
| Cage Material | Phenolic |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Lubricant | Grease or oil |
| Harmonization Code | 8482.10.50.28 |
| Contact Angle | 25° |
| Mounting Arrangement | Universally ground for pairing |
| Bearing Material | Bearing steel |
| Cross Reference 1 | NSK 7303A - 30 deg vs 25 deg |
|---|---|
| Cross Reference 2 | SKF 7303 BECBP - 40 deg vs 25 deg |
| Cross Reference 3 | FAG 7303-B-TVP - 40 deg vs 25 deg |

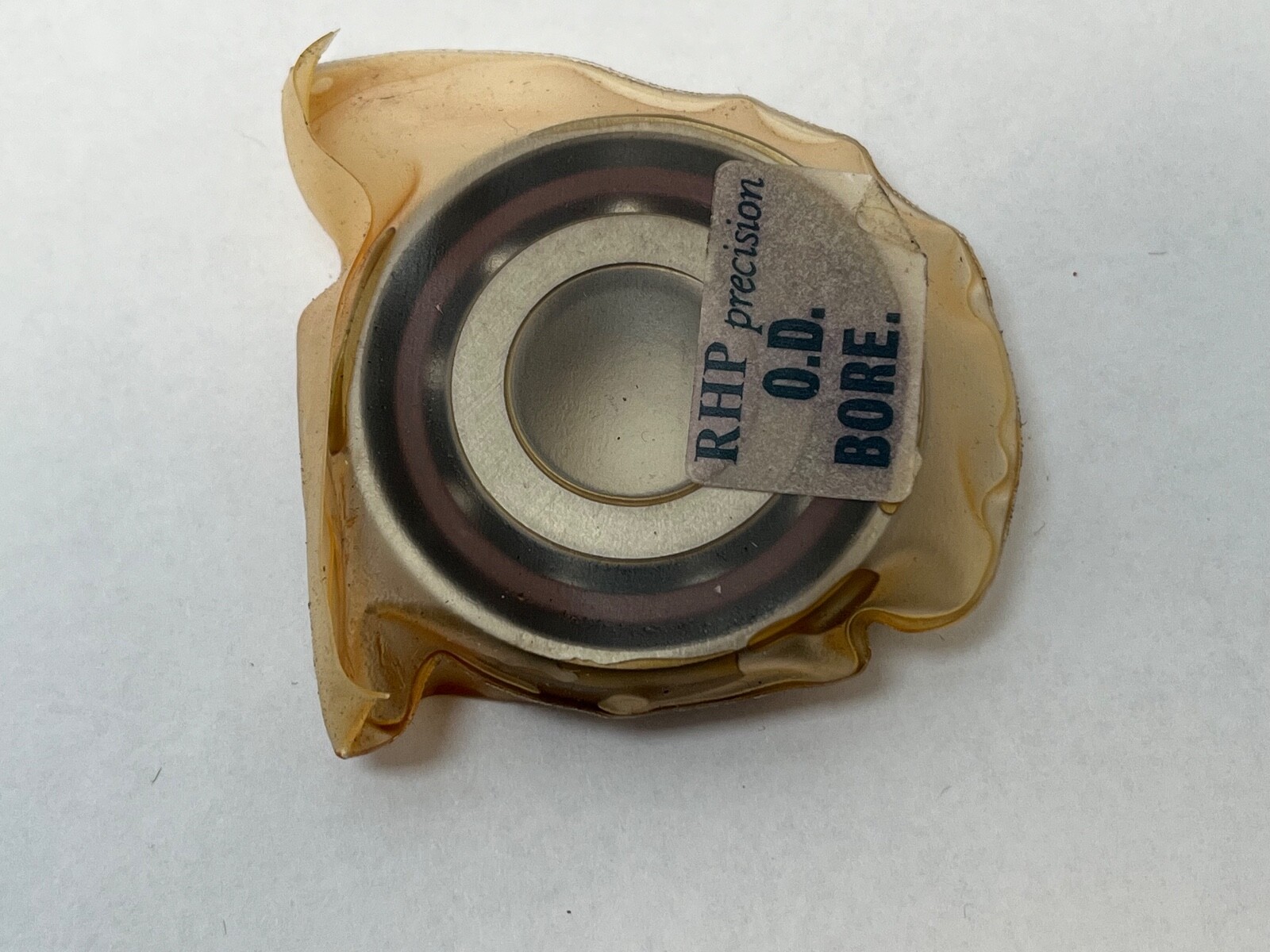

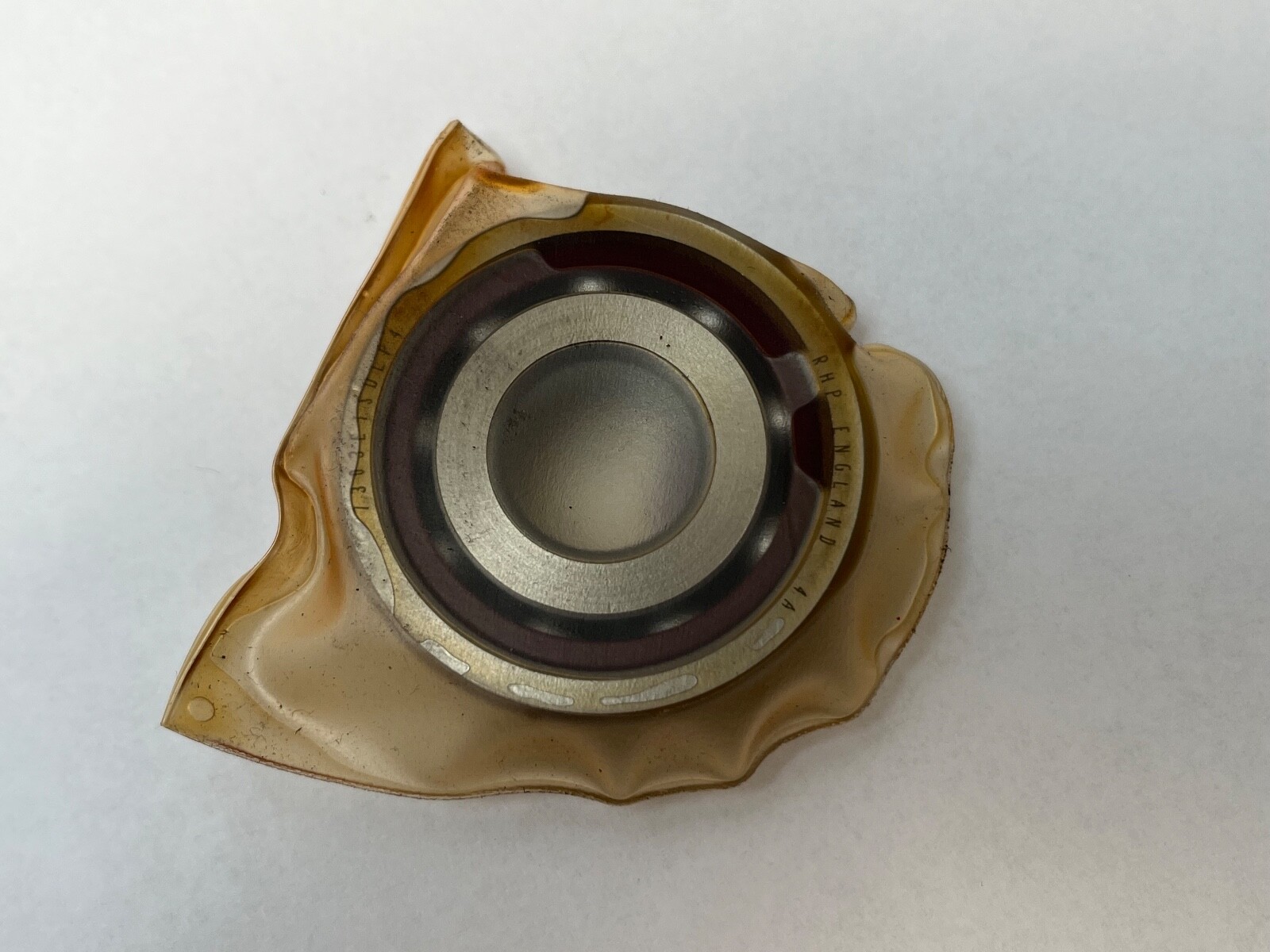

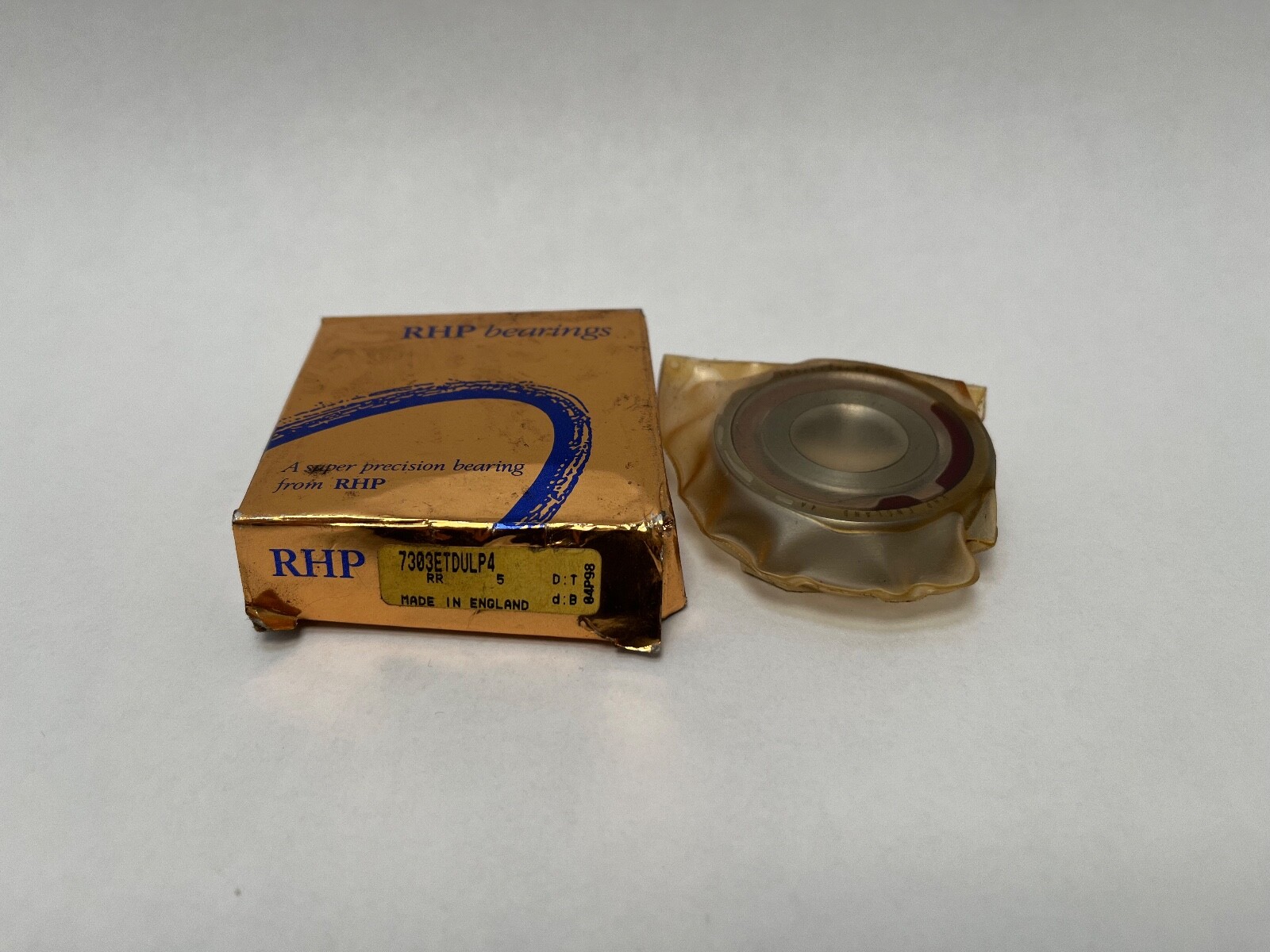

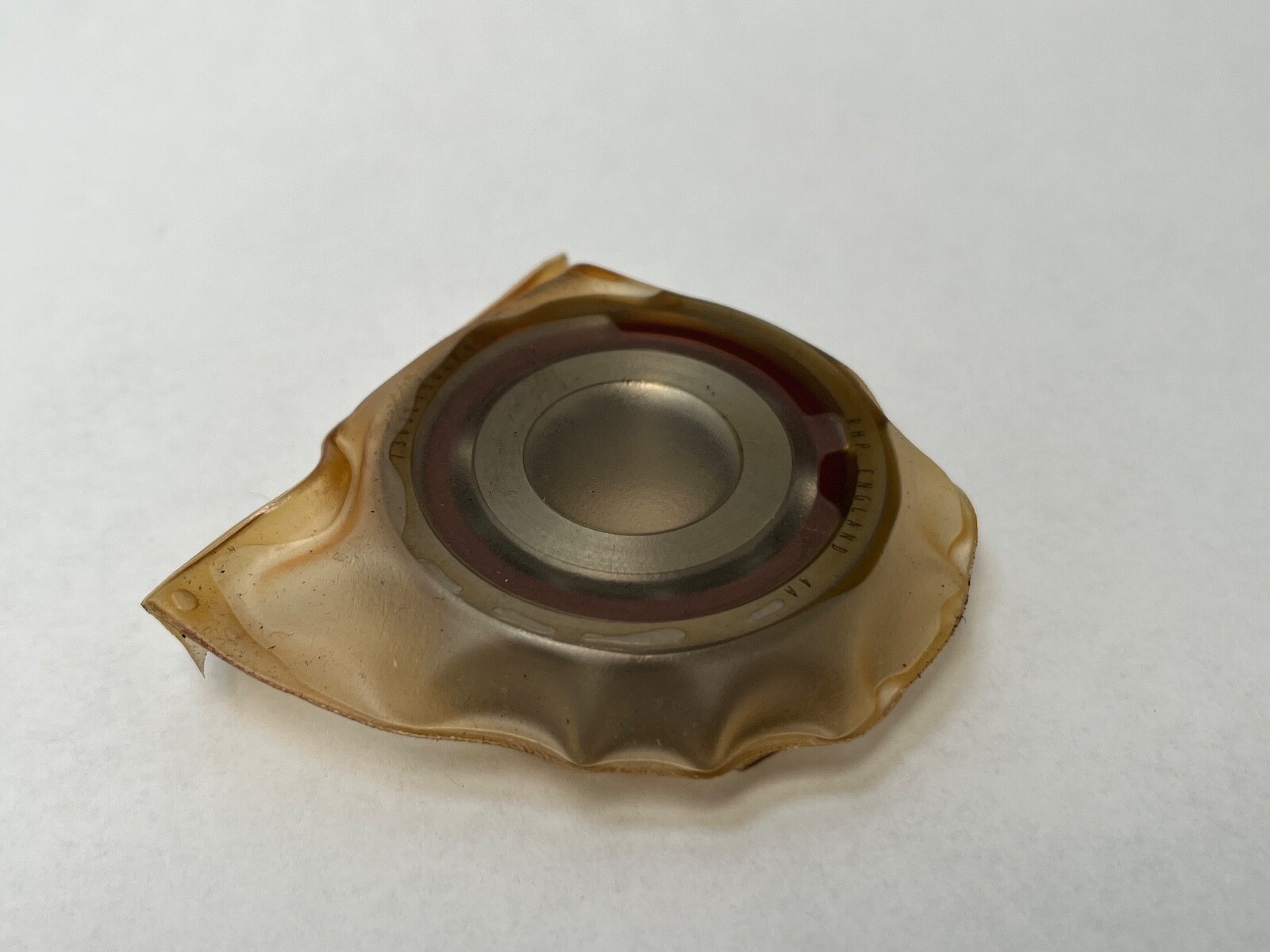

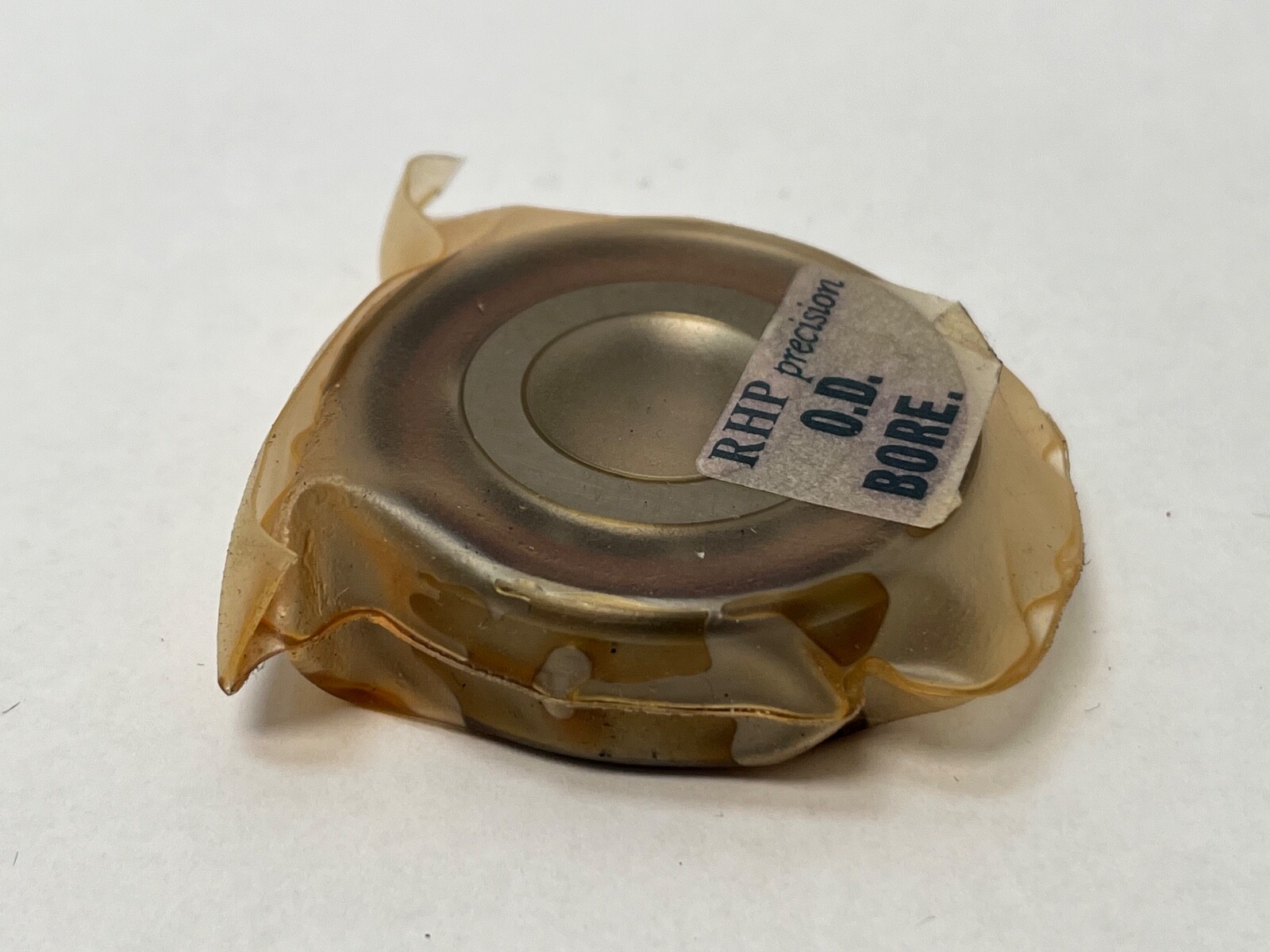

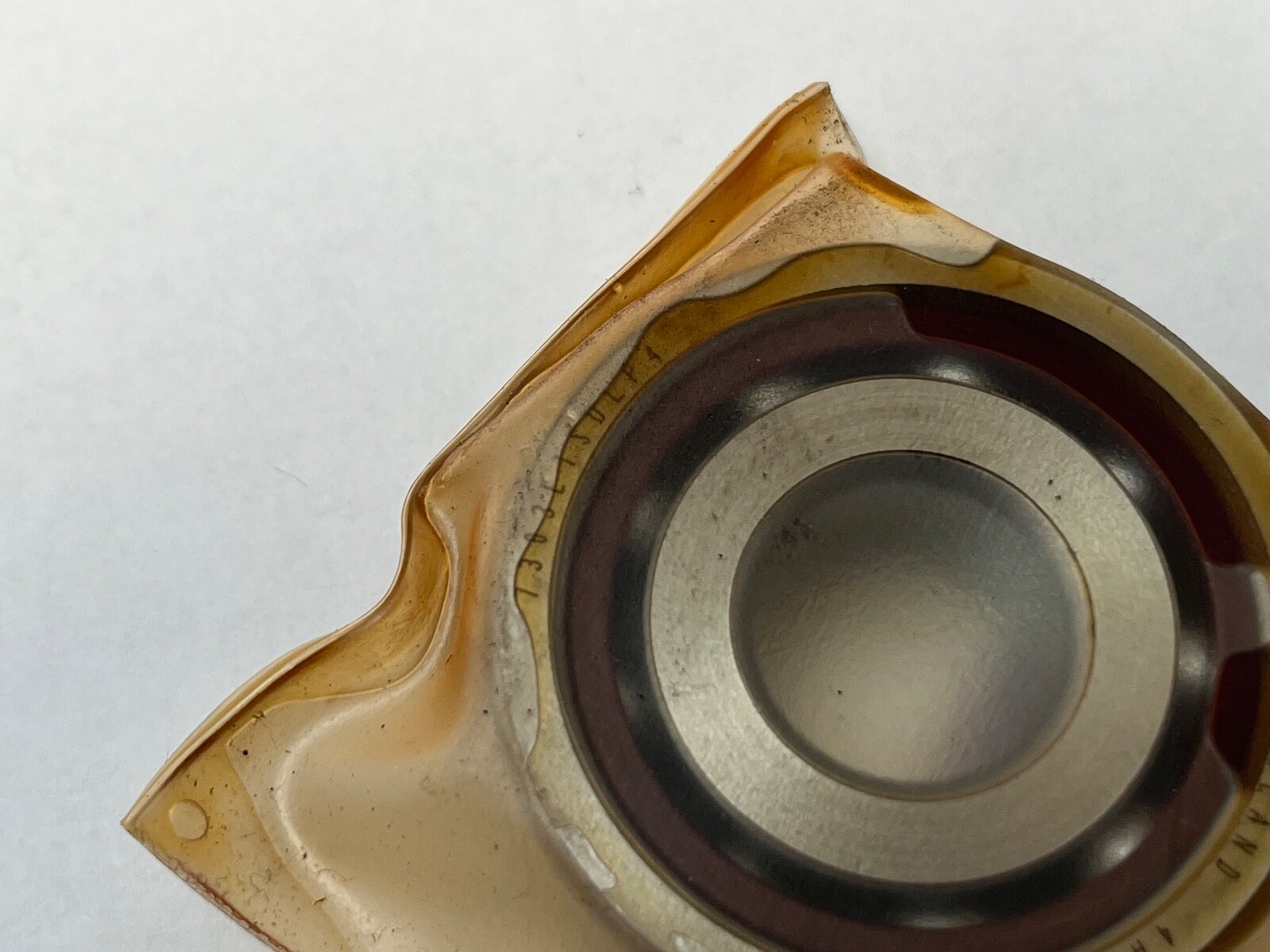

RHP 7303-E-T-SUL-P4 single-row super precision angular contact ball bearing: 17 mm bore, 47 mm outside diameter, 14 mm width, 25° contact angle, ABEC 7 / P4, phenolic cage, universally ground faces, open.
73 — ISO dimension series 03, the heavy section.
03 — bore code, 17 mm bore.
E — 25° contact angle, the legacy RHP code for the execution now designated A5.
T — machined laminated phenolic cage.
SU — universal face control. Faces are ground so that any two bearings from the range stack back-to-back, face-to-face or in tandem.
L — light preload class for a universal pair.
P4 — RHP tolerance class P4, equivalent to BS 292 EP7 and ABEC 7.
Bore Diameter: 17 mm. Outside Diameter: 47 mm. Overall Width: 14 mm. Contact Angle: 25°. Precision Class: ABEC 7 / P4. Number Of Rows: 1. Rolling Elements: Ball. Bore Type: Straight. Closure Type: Open. Cage Material: Phenolic. Cage Type: Machined. Bearing Material: Bearing steel. Preload: Light. Lubricant: grease or oil. Series: 7300. Unit Quantity: 1 Pc.
Envelope: 17 x 47 x 14 mm (bore x outside diameter x width). Mounting Arrangement: Universally ground for pairing.
Cross-references at a different contact angle: NSK 7303A at 30°, SKF 7303 BECBP at 40°, FAG 7303-B-TVP at 40°. Also written 7303ETSULP4, 7303E, 7303ET and 7303X3.
25°, given by the E in the designation.
Bore Diameter: 17 mm. Outside Diameter: 47 mm. Width: 14 mm.
P4, equivalent to ABEC 7.
