Availability:
1 in stock

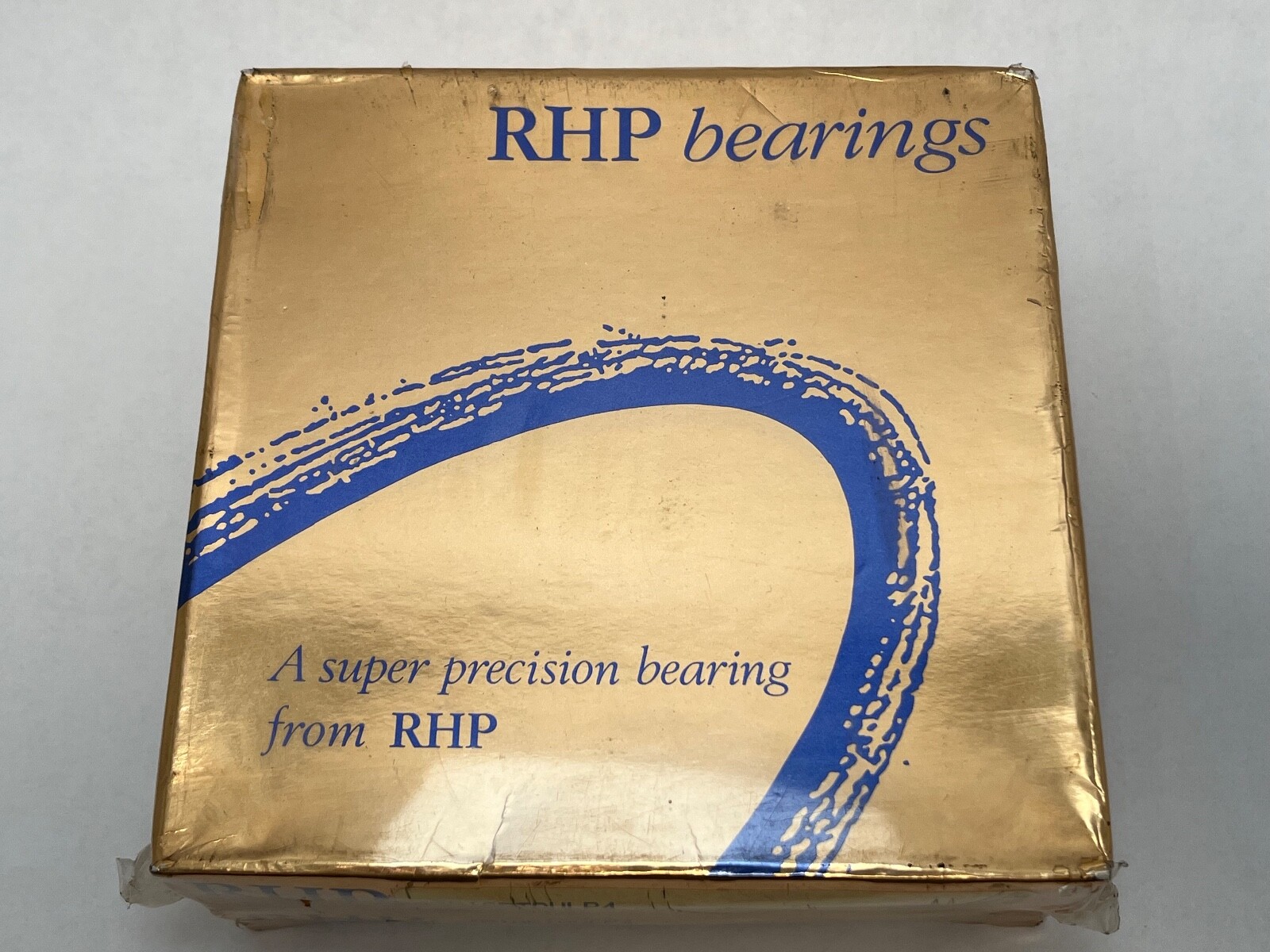

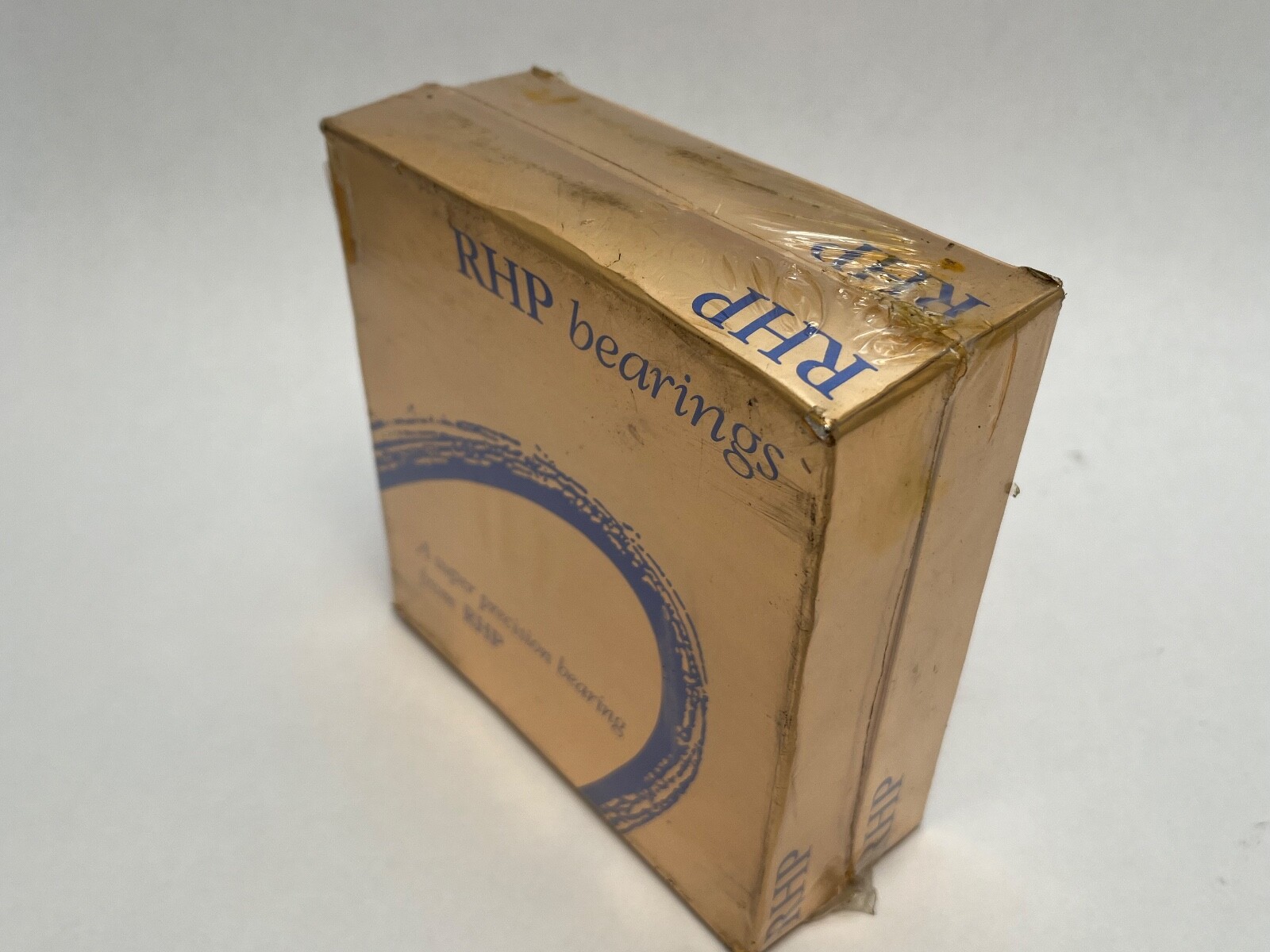

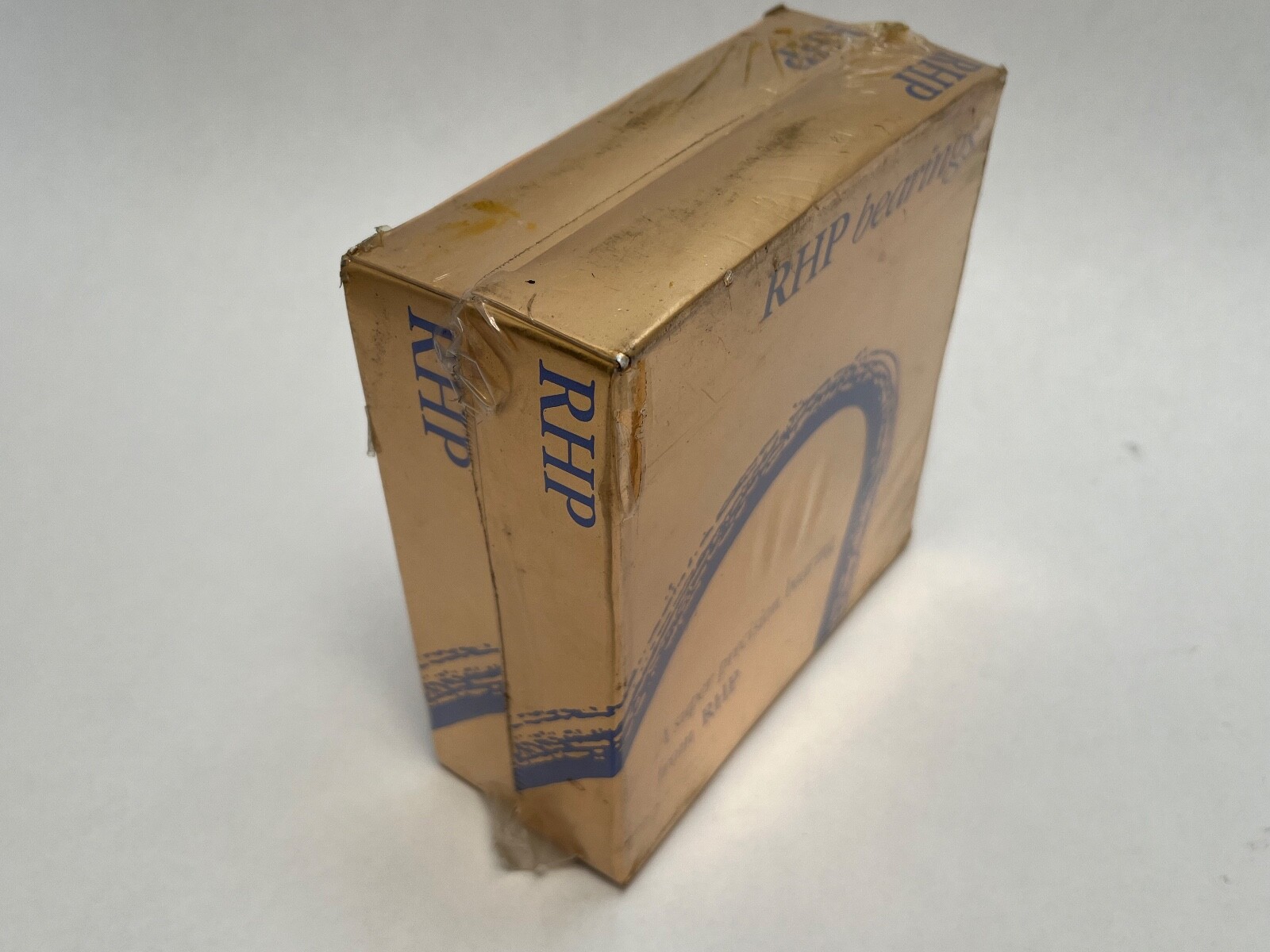

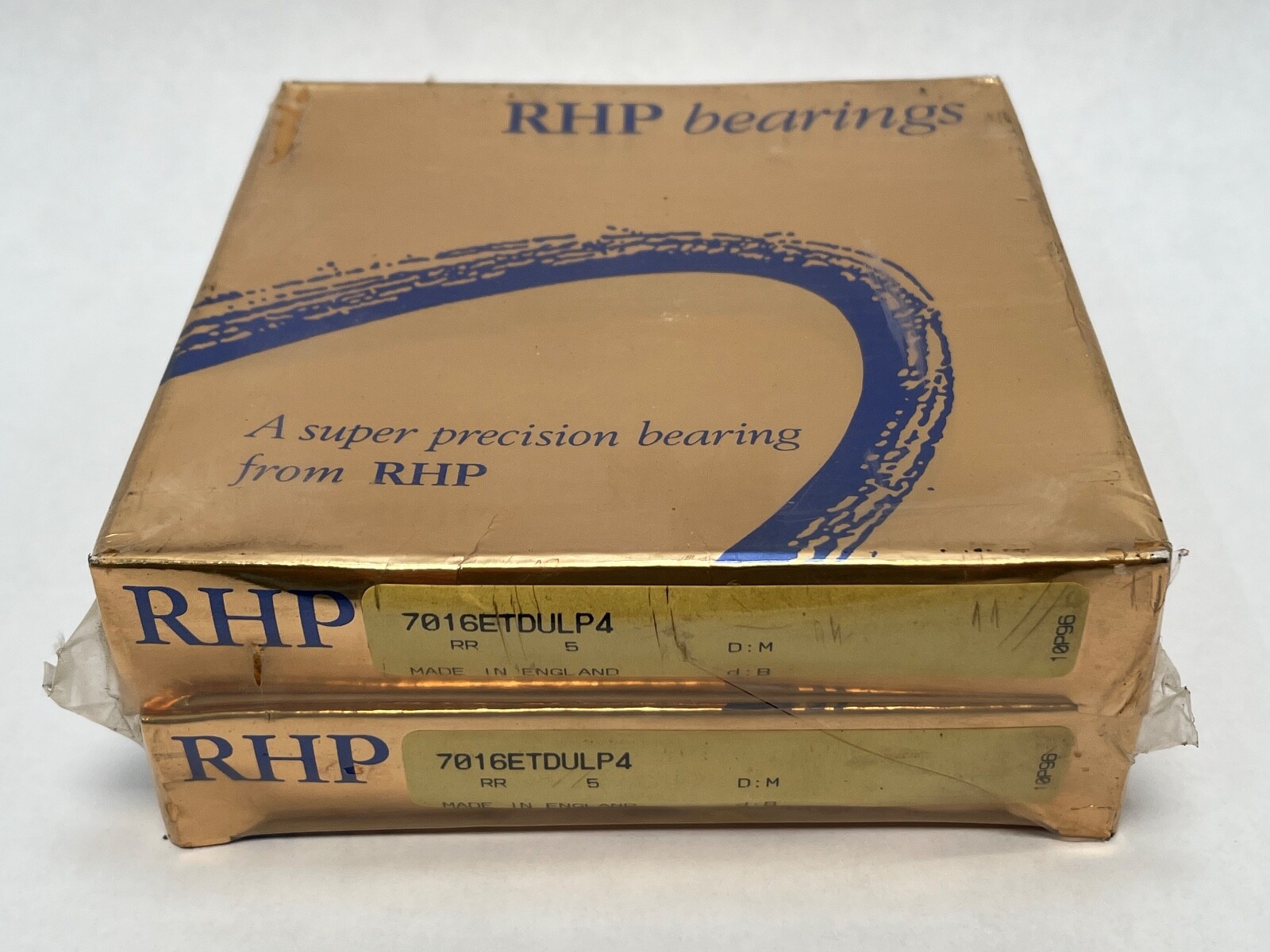

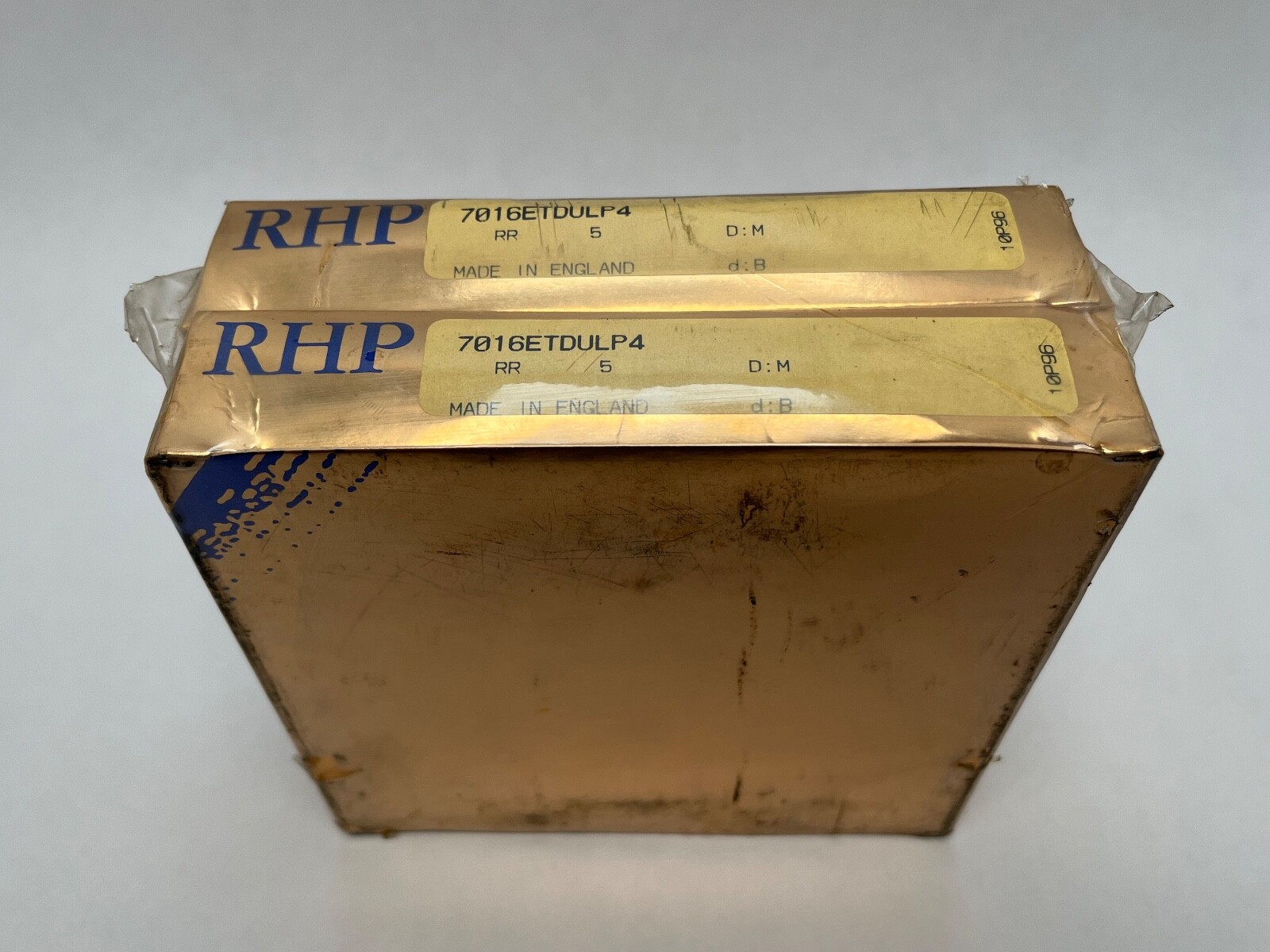

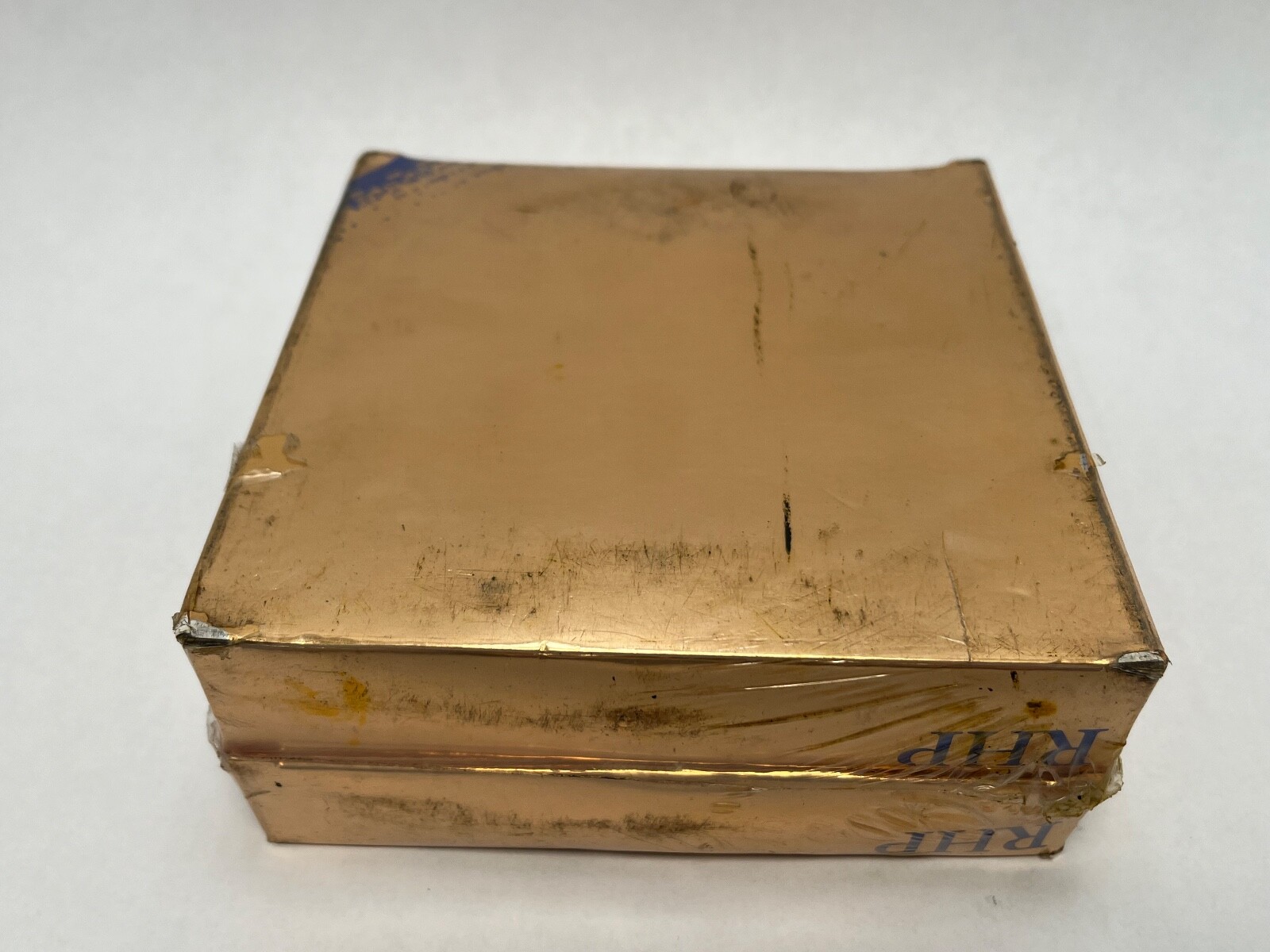

Super precision angular contact ball bearing pair, 80 x 125 x 22 mm, 25° contact angle, open, phenolic cage, light preload, ABEC 7 tolerance.
List Price
$404.51
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | RHP |
|---|---|
| MPN | 7016ETDULP4 |
| Model | 7016 E T DUL P4 / 3MM9116WI CR DUL / 7016A 7016A5 7016ACD |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 80 mm |
| OD | 125 mm |
| Width | 22 mm |
| Material | Chrome steel |
|---|---|
| Series | 70 (7000) |
| Lubricant | Oil/Grease |
| Base Number | 7016 |
| Industry Terms | spindle bearing, super precision angular contact, matched pair, machine tool bearing, 25 degree angular contact |
| Common Misspellings | 7016 ETDULP4, 7016ET DULP4, RPH 7016ETDULP4 |
| Bore Shaft Size | 80 mm (3.1496 in) |
| Mpn Variants | 7016ETDULP4, 7016-E-T-DUL-P4, 7016 E T DUL P4, 7016E, 7016ET DUL P4 |
| Rolling Elements | Ball |
| Number Of Rows | 1 per bearing |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Harmonization Code | 8482.10.50 |
| Part Number | 7016ETDULP4 |
| Cross Reference 1 | Fafnir 3MM9116WI-CR-DUL |
|---|---|
| Cross Reference 2 | NSK 7016A5TYDULP4 |
| Cross Reference 3 | FAG B7016E.T.P4S.UL |
| Cross Reference 4 | SKF 7016 ACD/P4ADGB |
| Cross Reference 5 | FAG B7016C.T.P4S.DUL - 15 deg vs 25 deg contact angle |
RHP 7016ETDULP4 super precision angular contact ball bearing. Bore: 80 mm. Outside Diameter: 125 mm. Width: 22 mm per bearing. Series: 70, light section. Single row of balls per bearing, open on both faces. Rolling Elements: chrome steel balls.
Contact Angle: 25°. Cage: machined laminated phenolic, outer-ring guided. Preload: light. Precision Class: P4, equal to ABEC 7 and to RHP class EP7. Configuration: duplex, universally ground. The same bearing is designated 7016-E-T-DUL-P4, 7016E and 3MM9116WI-CR-DUL.
A 25° contact angle carries more thrust and less speed than a 15° bearing on the same envelope. Dynamic Load Rating: 53.0 kN. Static Load Rating: 47.5 kN. Limiting Speed: 11,000 rpm. Light preload runs coolest and fastest of the three preload grades. P4 tolerance holds bore, outside diameter and running accuracy to super precision limits, giving lower runout at the spindle nose.
Unit Quantity: 2 Pcs. Universally ground faces allow the pair to be mounted back-to-back, face-to-face or in tandem, and the ground offsets set the preload when the rings are clamped. Total width of the pair: 44 mm.
Preloaded sets are supplied without internal clearance, so Internal Clearance is N/A. Clamping is against the ground faces of both rings. Phenolic cages are rated to 120 °C and suit oil or grease lubrication.
Closest matches at 25°, P4, light preload: Fafnir 3MM9116WI-CR-DUL, NSK 7016A5TYDULP4, FAG B7016E.T.P4S.UL, SKF 7016 ACD/P4ADGB (SKF DGA is extra light). Near match: 7016C and FAG B7016C.T.P4S.DUL at 15°, same envelope, higher speed and lower thrust capability.
$760.47
16 in stock
