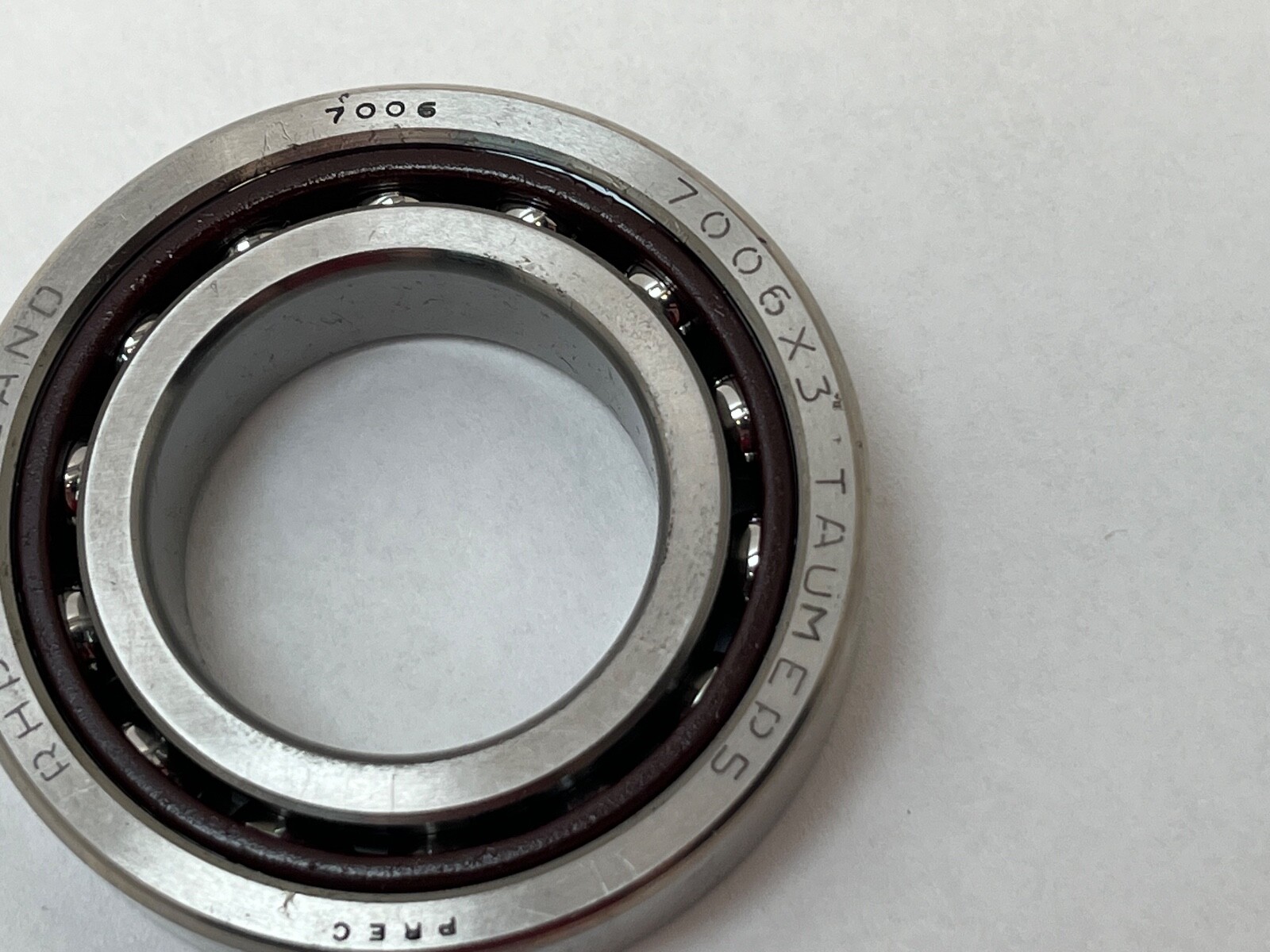

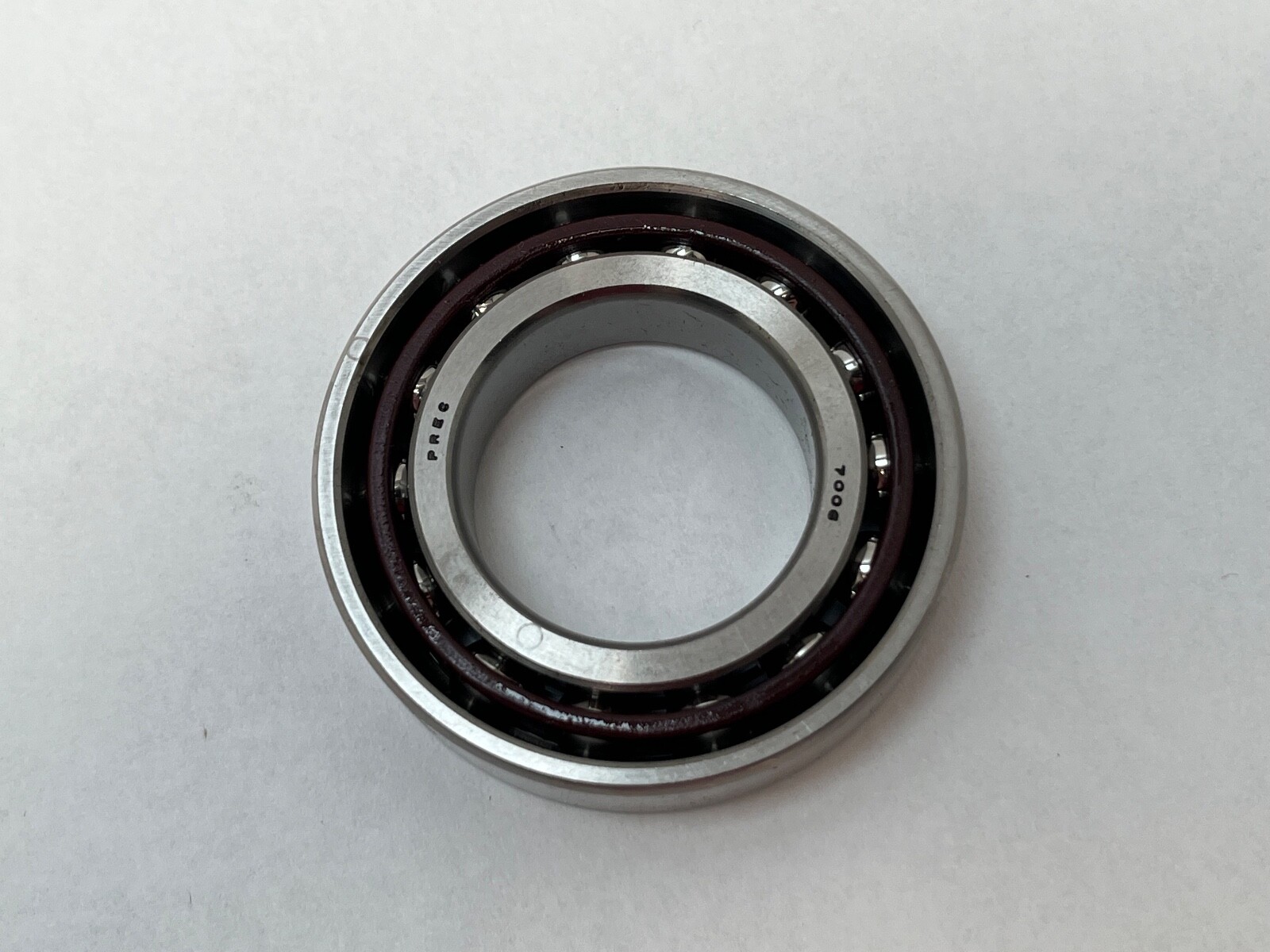

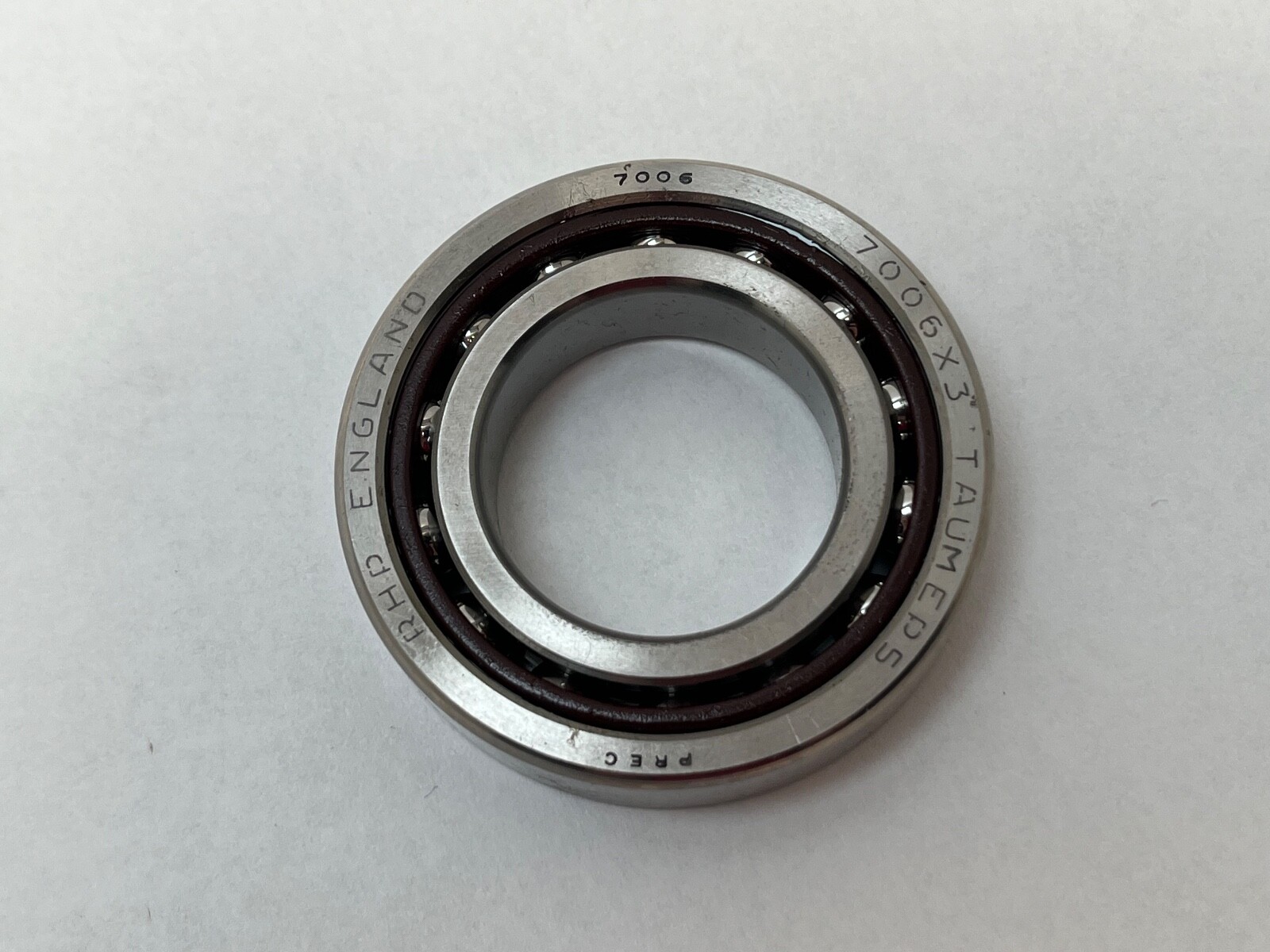

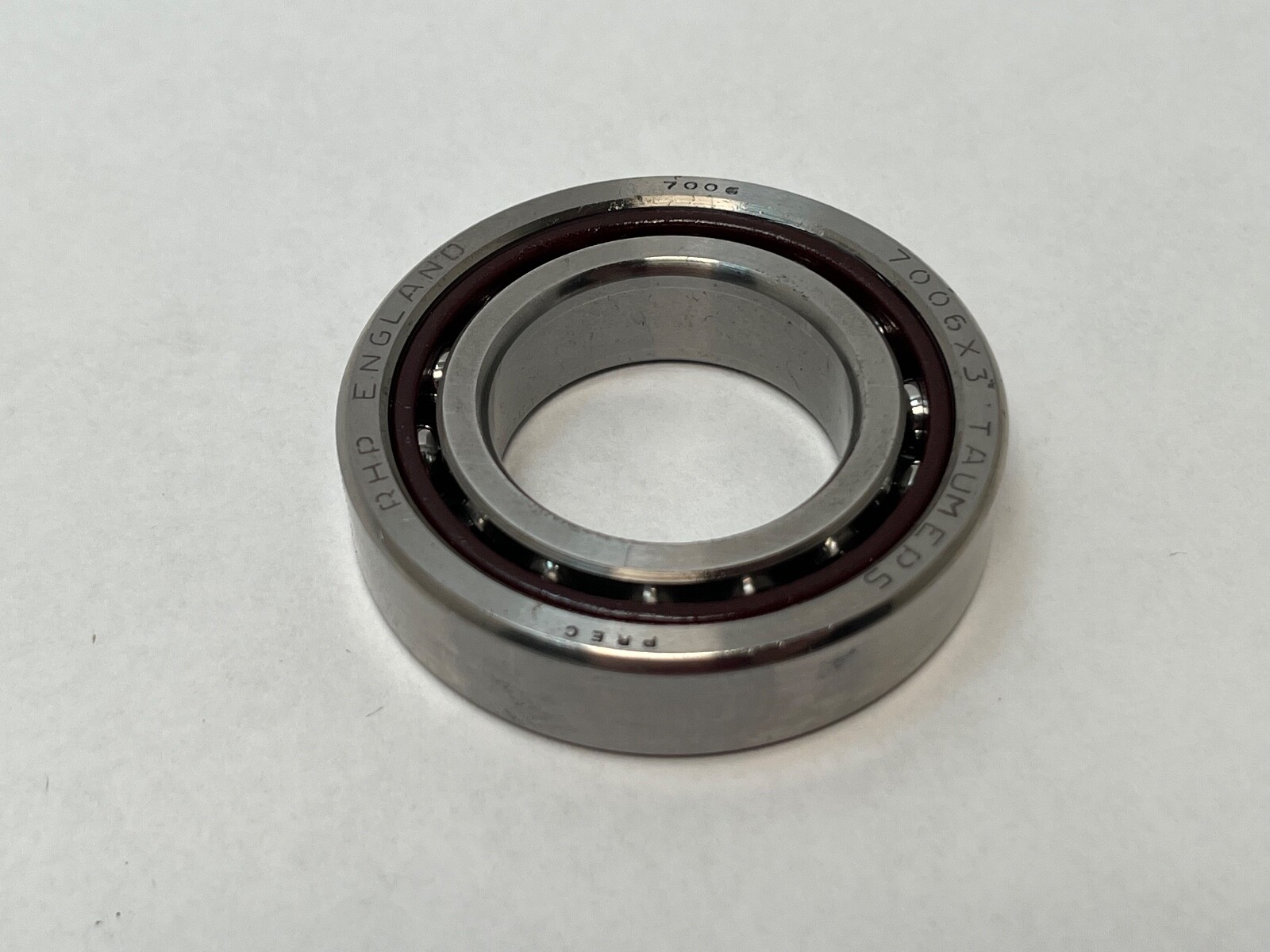

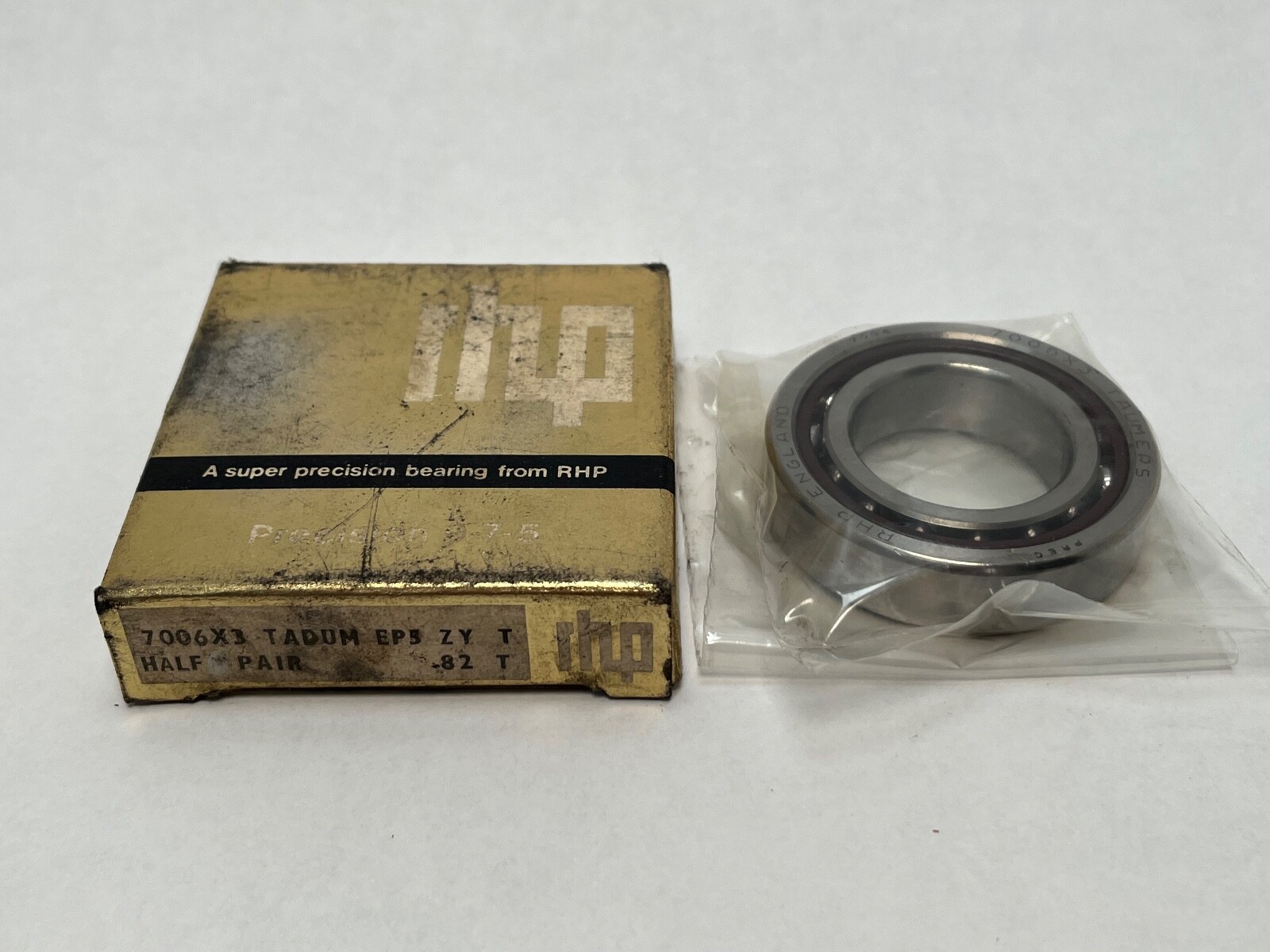

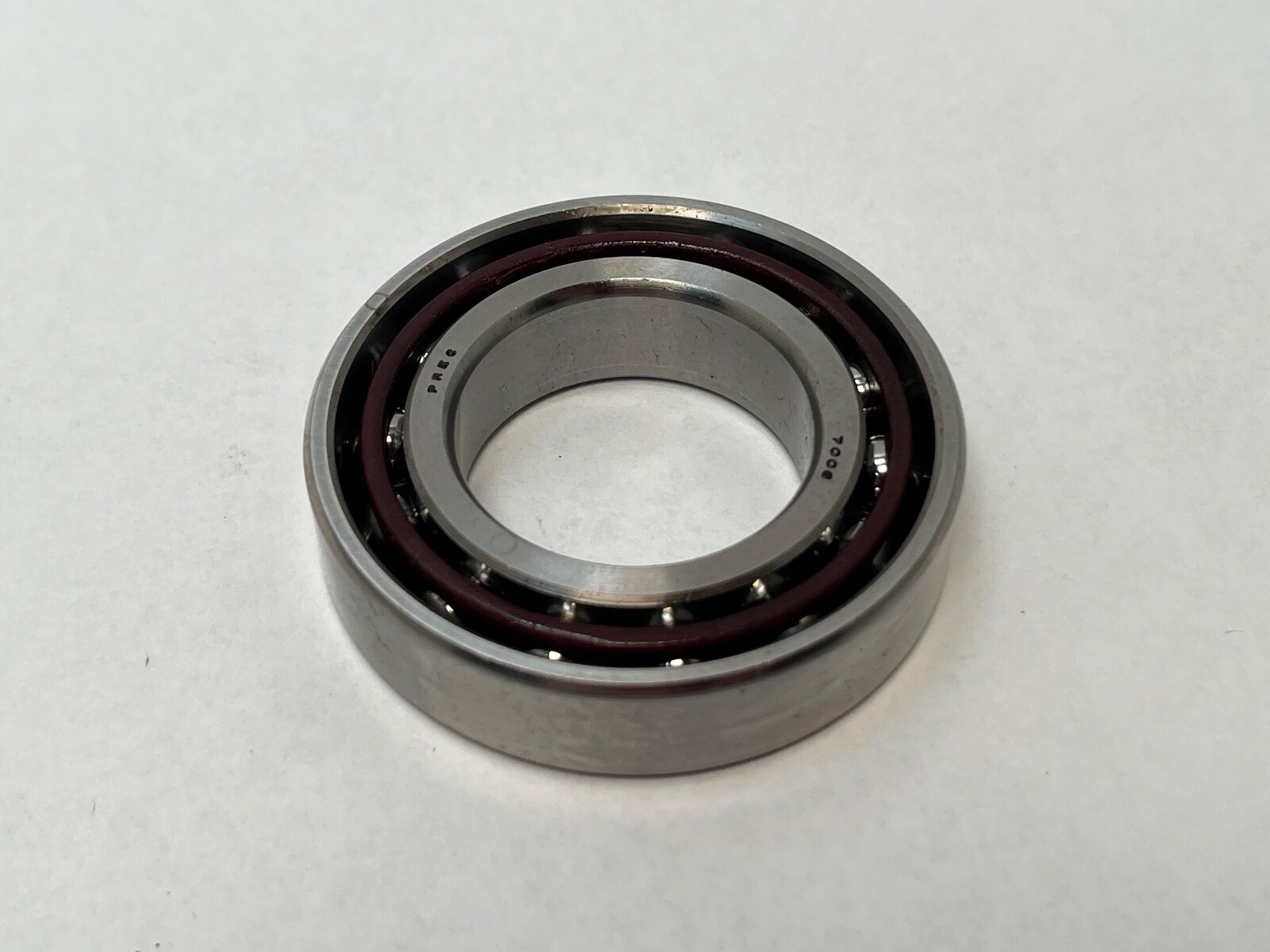

RHP 7006ETDUMP4 angular contact ball bearing, 30 mm bore, 55 mm OD, 13 mm width, 25° contact angle, ABEC 7 / P4, medium preload duplex pair, single bearing.
List Price
$38.17
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | RHP |
|---|---|
| MPN | 7006ETDUMP5 |
| Model | B7006X3TADUMEP7 / 7006 E T DUM P5 / 3M9106WI CR DUM |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 30 mm |
| OD | 55 mm |
| Width | 13 mm |
| Series | 7000 |
|---|---|
| Lubricant | Oil Preservative |
| Preload | Medium |
| Material | Chrome Steel |
| Precision Class | ABEC 7 / P4 |
| Rolling Elements | Ball |
| Cage Material | Phenolic |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Duty Type | Precision |
| Contact Angle | 25° |
Angular contact ball bearing, single row, extra-light (10) dimension series. Bore 30 mm, outside diameter 55 mm, width 13 mm. One bearing from a duplex-ground, medium-preload factory pair.
7006 — ISO size code for the 30 x 55 x 13 mm extra-light envelope.
E — RHP’s legacy notation for a 25° contact angle, equivalent to the current A5 code.
T — generic phenolic cage.
DUM — duplex, medium preload. Two single-row bearings ground as a matched pair, mounted facing the same direction.
EP7 — RHP’s alternate code for ABEC 7 / P4, carried on this part’s own alternate designation.
Bore Diameter: 30 mm. Outside Diameter: 55 mm. Overall Width: 13 mm. Contact Angle: 25°. Precision Class: ABEC 7 / P4. Cage Material: Phenolic. Cage Type: Machined, outer-ring guided. Preload: Medium, 200 N axial preload force. Dynamic Load Rating: 14,400 N. Static Load Rating: 9,800 N. Limiting Speed: 22,900 rpm grease; 37,000 rpm oil.
Unit Quantity: 1 Pc, one bearing from a duplex-ground factory pair.
