Central Surplus Bearing Finder
A faster way to search our bearing inventory Today we’re launching the Central Surplus Bearing
Availability:
1 in stock

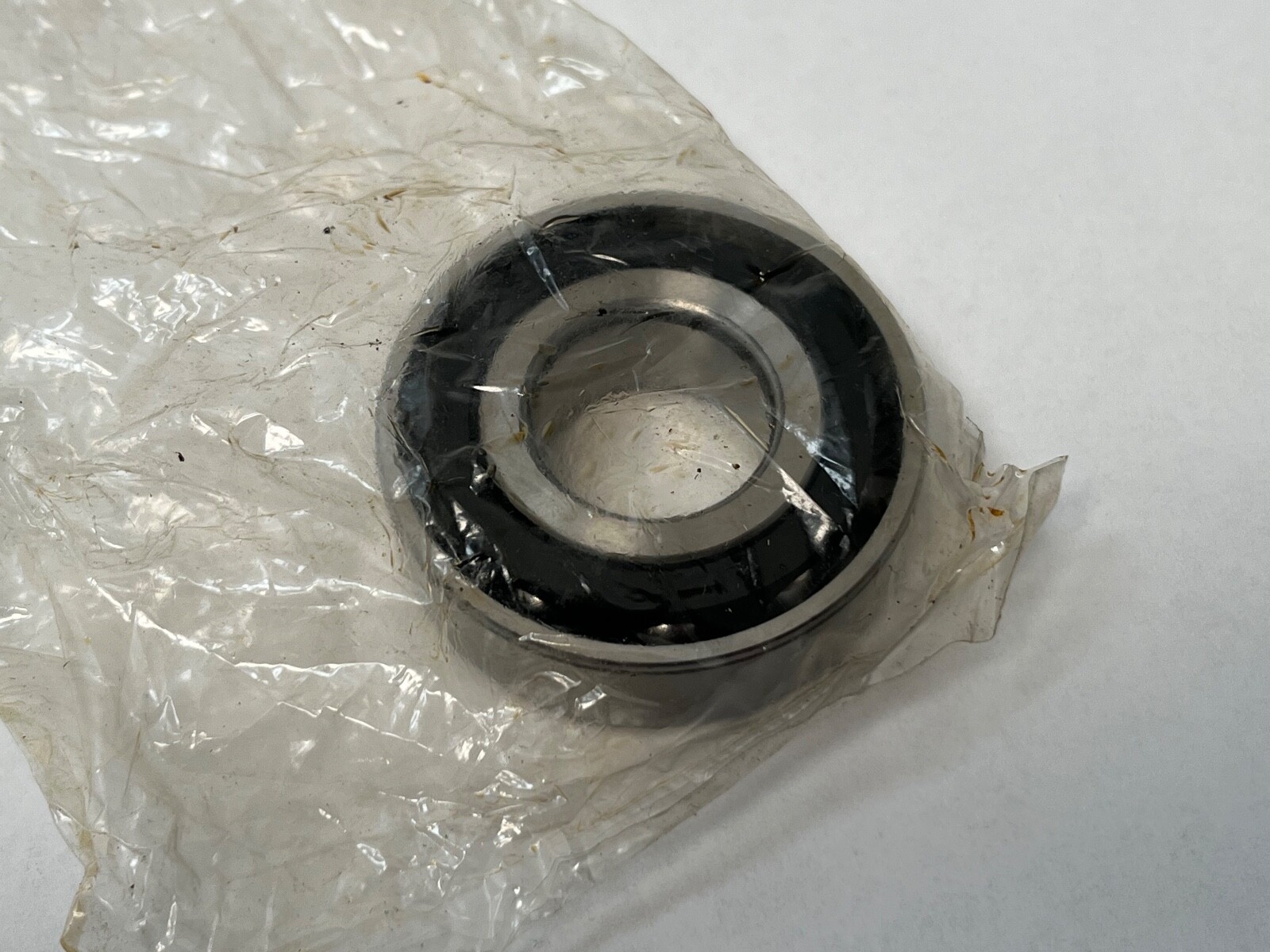

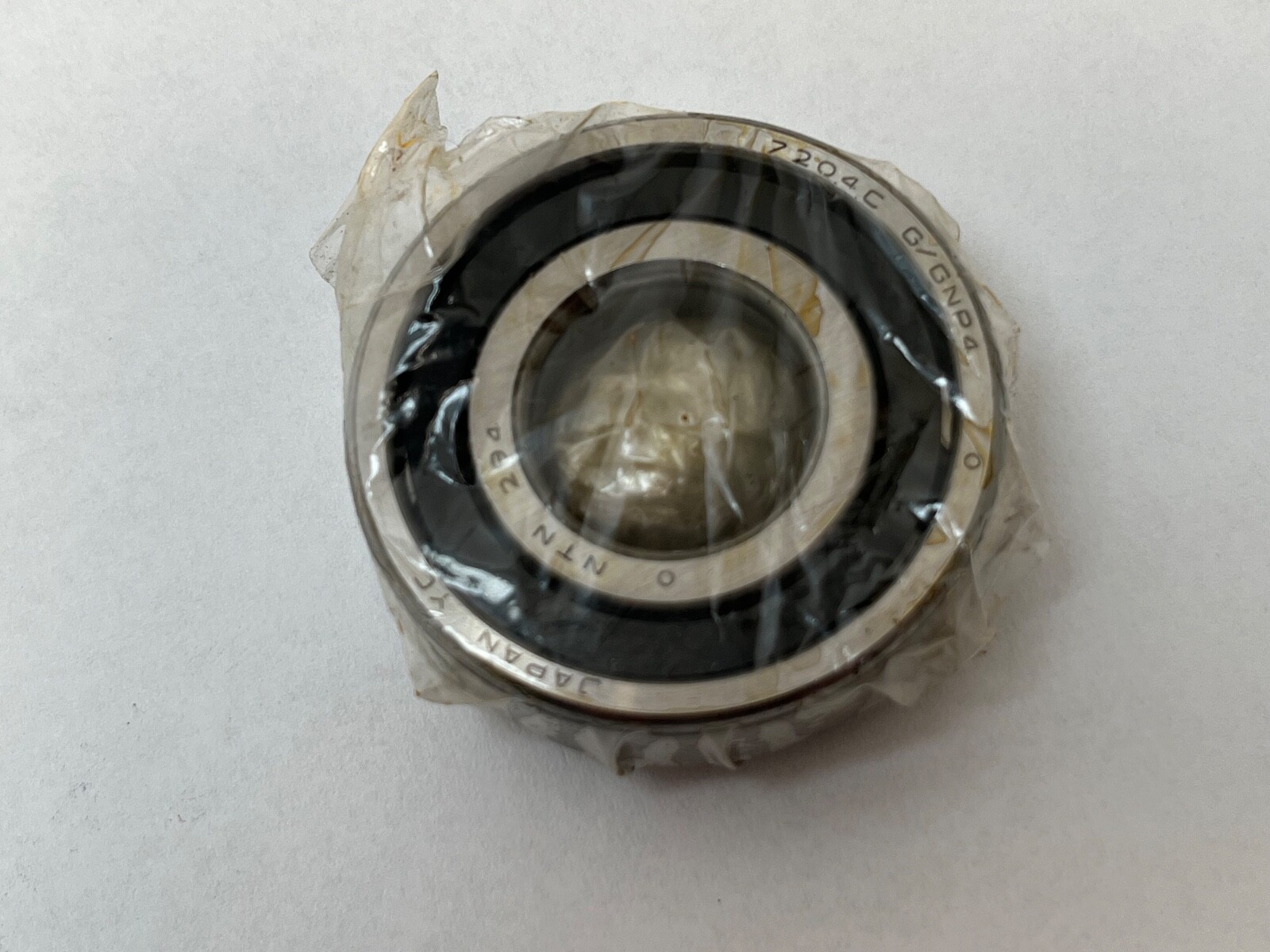

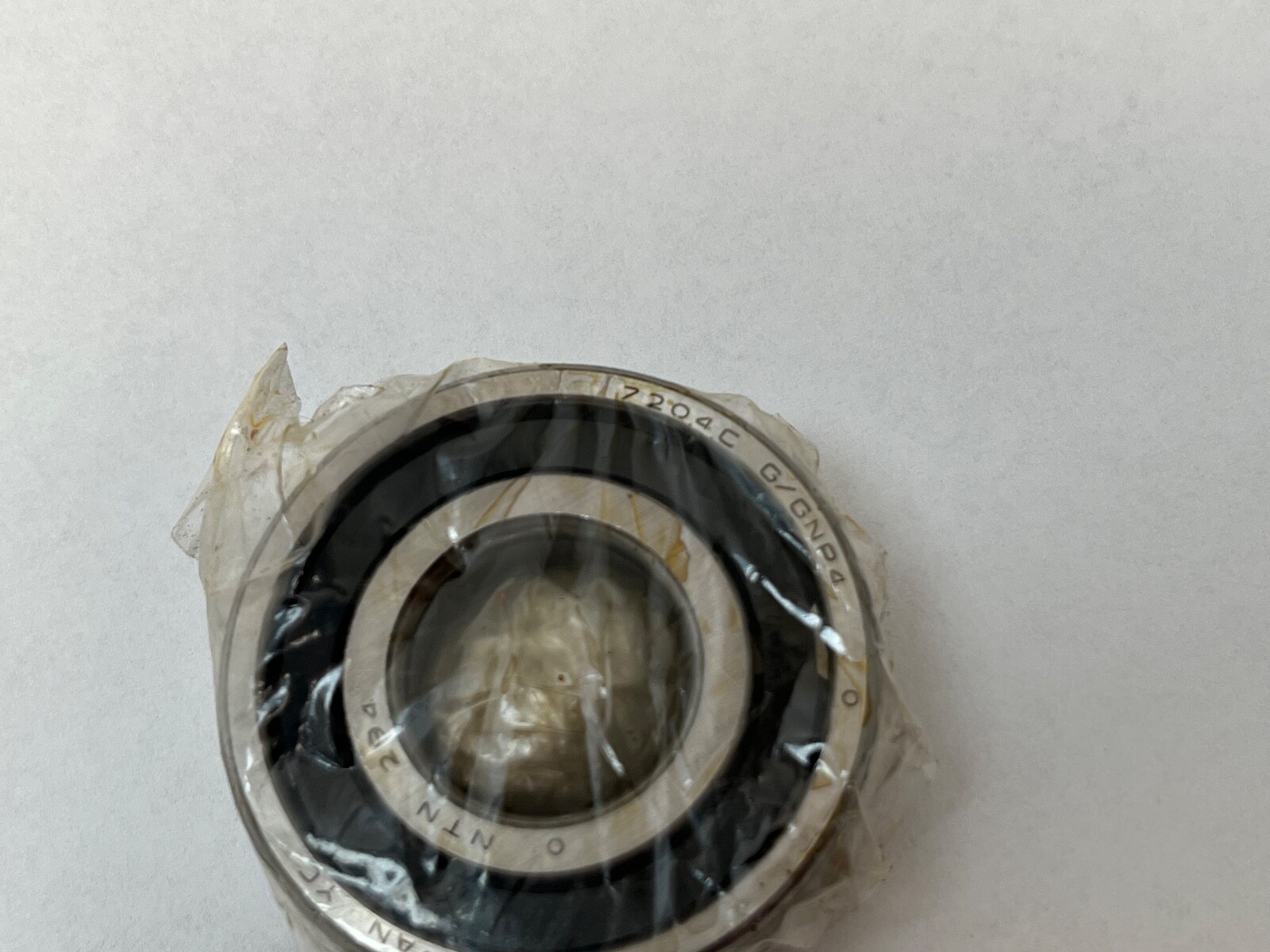

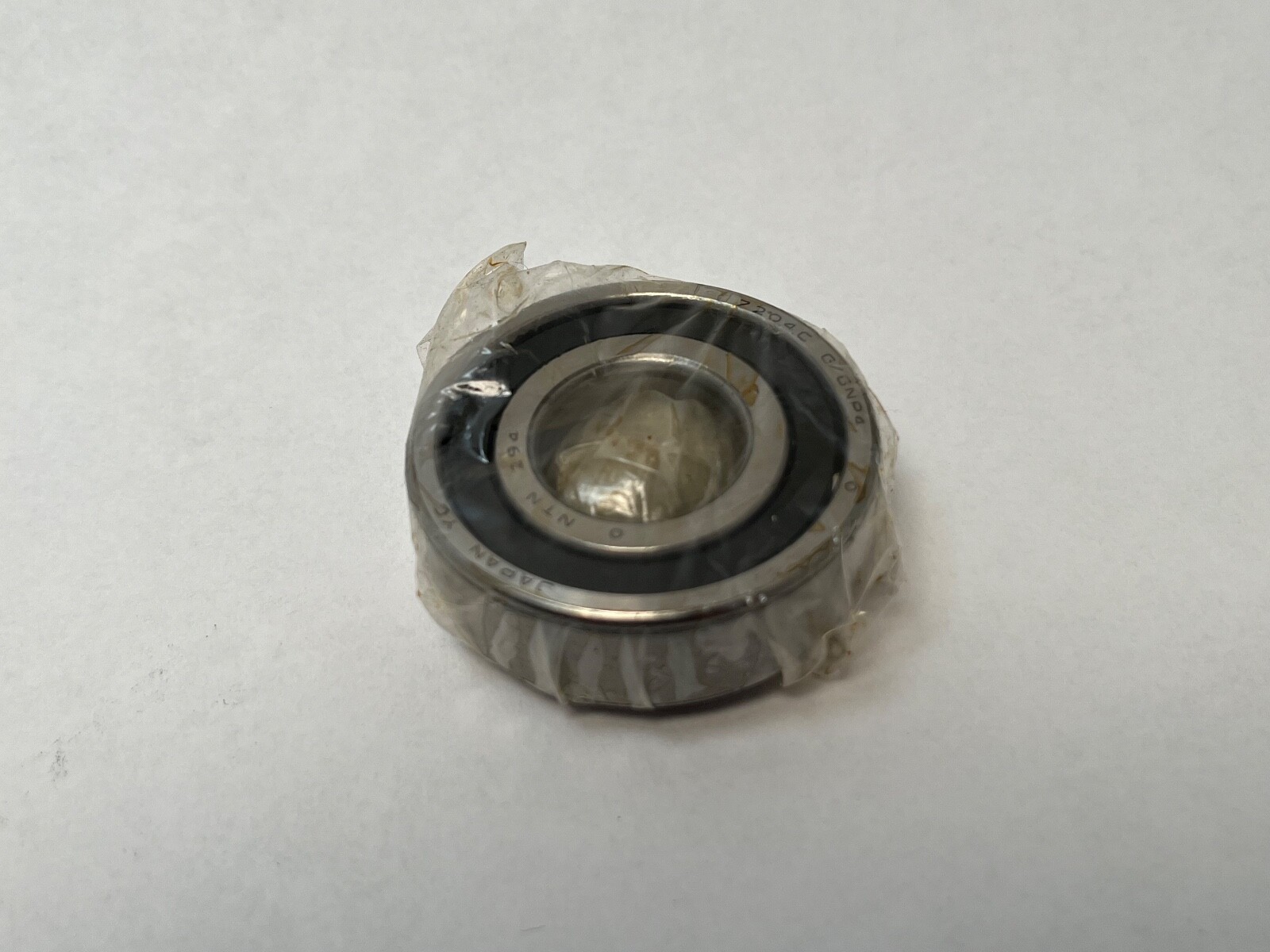

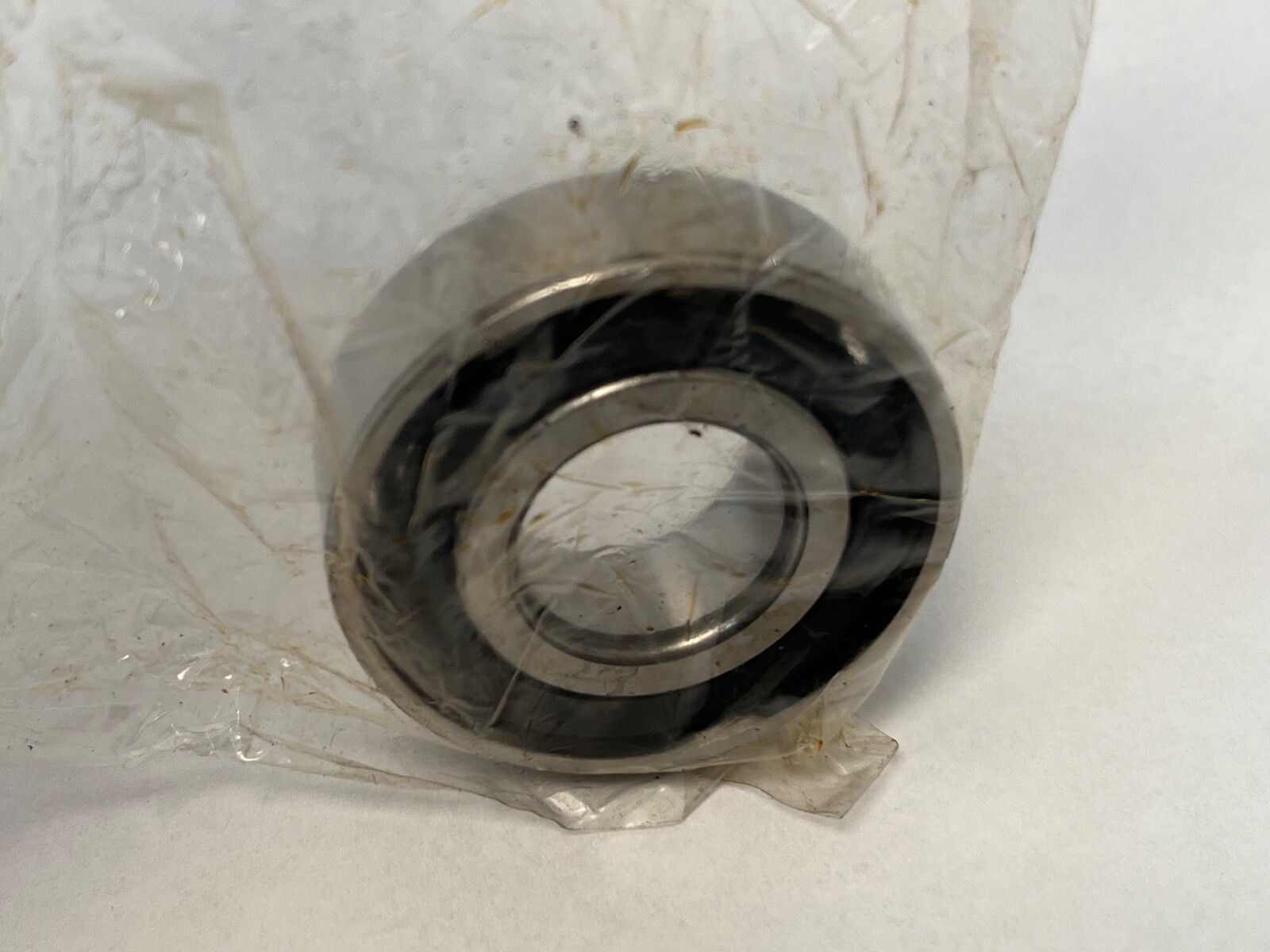

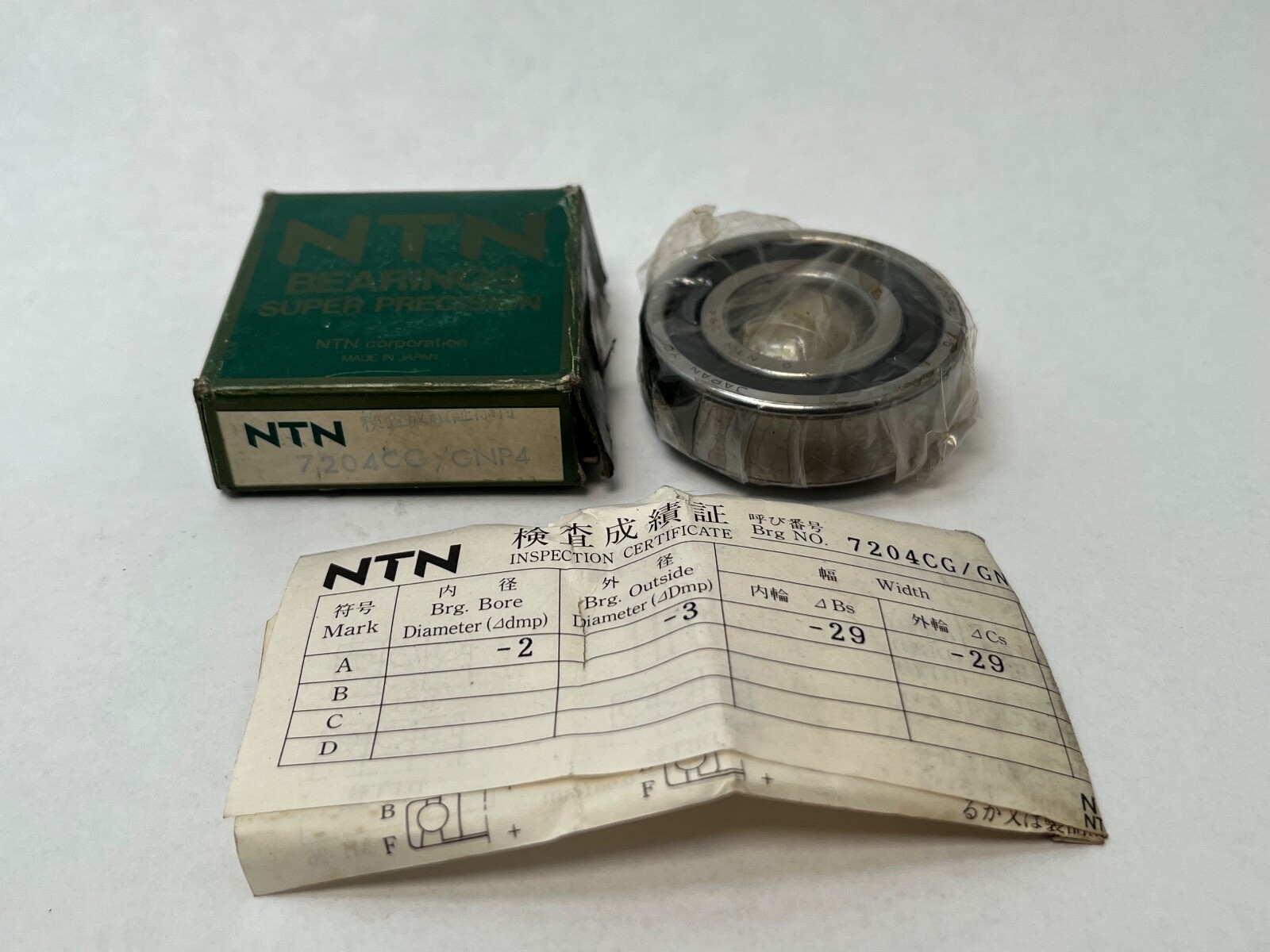

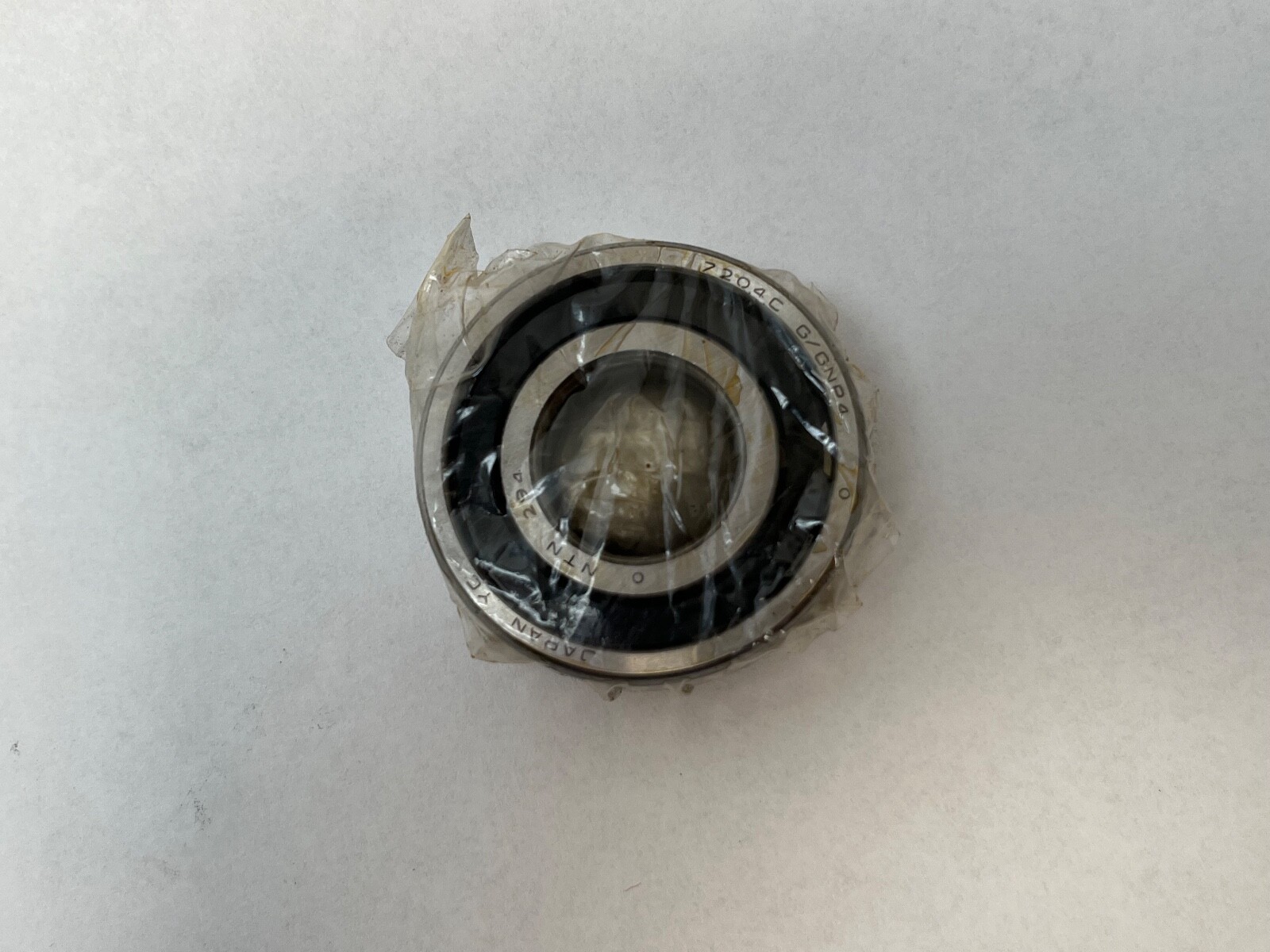

Single-row angular contact ball bearing, 20 x 47 x 14 mm, 15° contact angle, open, ABEC 7 / P4 precision, universal flush-ground faces for duplexing.
List Price
$72.49
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | NTN |
|---|---|
| MPN | 7204CG/GNP4 |
| Model | 7204 C G GN P4 2MM204 WI CR DU |
| Bearing Type | Angular Contact Ball Bearing, single row, 15°, Open |
| ID | 20 mm |
| OD | 47 mm |
| Width | 14 mm |
| Material | Bearing Steel |
|---|---|
| Base Number | 7204 |
| Common Misspellings | 7204CGGNP4 bearring, 7204 CG GNP4, 7204CGGNP-4, 7024CGGNP4, angualr contact bearing, anglular contact ball bearing |
| Application Types | Machine tool spindles, grinding spindles, high-speed motor spindles, precision rotary tables, ball screw support, pump and compressor shafts, test and measurement rigs |
| Bore Shaft Size | 20 mm (0.7874 in) |
| Mpn Variants | 7204CGGNP4, 7204CG/GNP4, 7204 C G GN P4, 7204-C-G-GN-P4, 7204CGNP4, 7204C, 7204 C |
| Precision Class | ABEC 7 / P4 |
| Rolling Elements | Balls |
| Number Of Rows | 1 |
| Bore Type | Straight (cylindrical) |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.10.40 |
| Contact Angle | 15° |
| Part Number | 7204CG/GNP4 |
| Cross Reference 1 | SKF 7204 CD/P4A - 15 deg, P4 |
|---|---|
| Cross Reference 2 | FAG B7204-C-T-P4S - phenolic cage |
| Cross Reference 3 | NSK 7204CTYNDULP4 - duplex pair code, light preload |
| Cross Reference 6 | NTN 7204 - 30 deg contact angle |
| Cross Reference 7 | NTN 7204B - 40 deg contact angle |
NTN 7204CG/GNP4 is a single-row angular contact ball bearing, 20 mm bore by 47 mm outside diameter by 14 mm width, open on both faces, ground to ABEC 7 running accuracy. It belongs to the 72 dimension series, the standard-section angular contact family. Unit Quantity: 1 Pc, one bearing with a 20 mm cylindrical bore.
72 — the dimension series. 04 is the bore code, 04 × 5 = 20 mm.
C — 15° nominal contact angle in the NTN scheme.
G — the rings are universally flush ground, so two or more bearings of this designation stack directly against one another in any arrangement without a ground spacer.
P4 — precision class, equivalent to ABEC 7.
Bearing Type: Angular Contact Ball Bearing. Bore Diameter: 20 mm (0.7874 in). Outside Diameter: 47 mm. Overall Width: 14 mm. Contact Angle: 15°. Precision Class: ABEC 7 / P4. Number Of Rows: 1. Rolling Elements: Balls. Closure Type: Open. Series: 72 (7200 series). Base Number: 7204. Harmonization Code: 8482.10.10.40.
Envelope: 20 x 47 x 14 mm with a cylindrical bore. The universally flush-ground faces allow DB, DF or DT pairing with another bearing of the same designation.
Cross-references: SKF 7204 CD/P4A and FAG B7204-C-T-P4S share the 20 x 47 x 14 mm envelope and the 15° angle; the FAG carries a phenolic cage. NSK 7204CTYNDULP4 is the NSK-scheme designation, where C also denotes 15°. NTN 7204 and 7204B are the same envelope at 30° and 40° respectively, related sizes.
15°. C is the NTN code for 15°.
Precision class equivalent to ABEC 7.
20 mm bore, 47 mm outside diameter, 14 mm width.
