Availability:
1 in stock

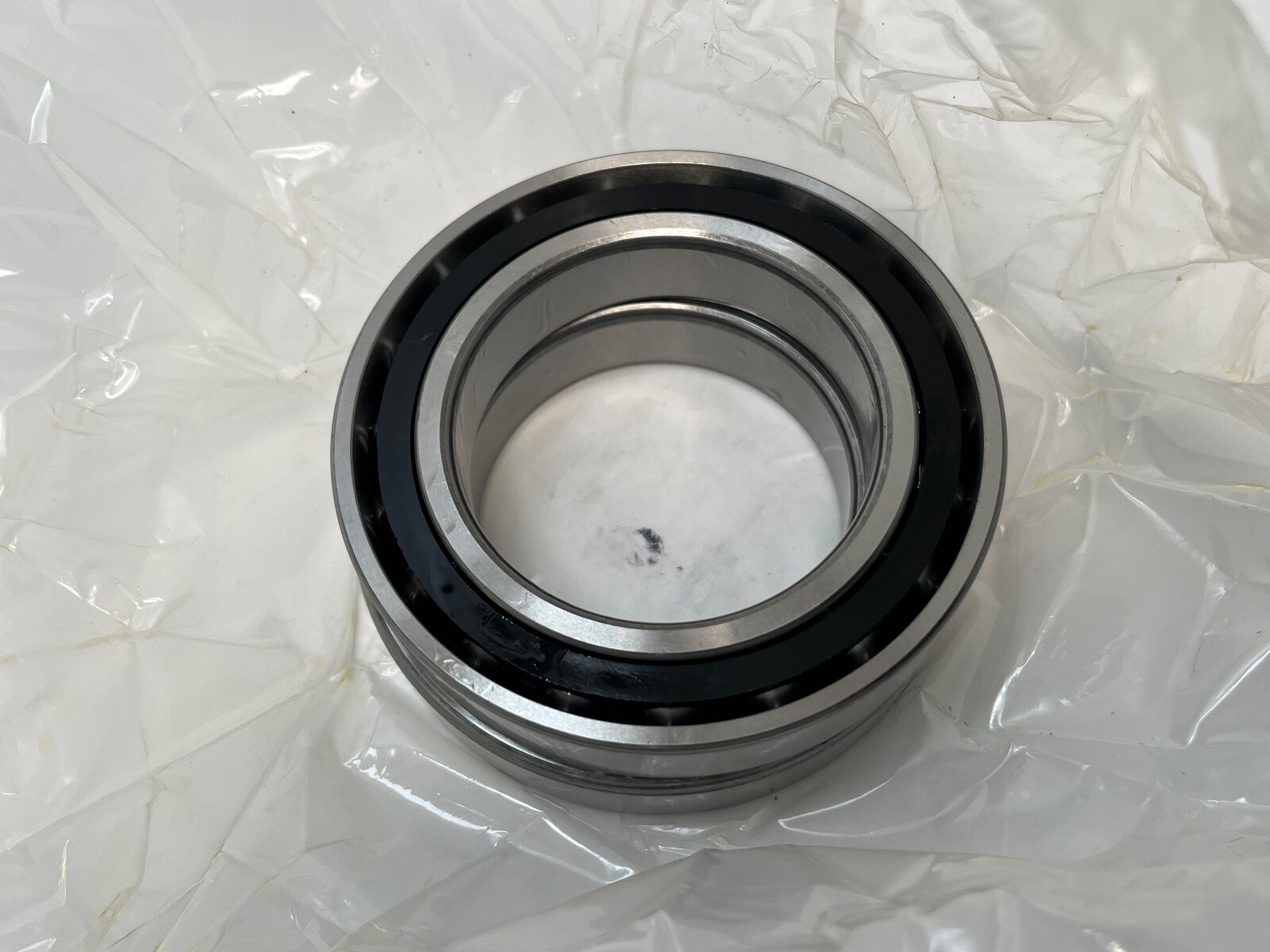

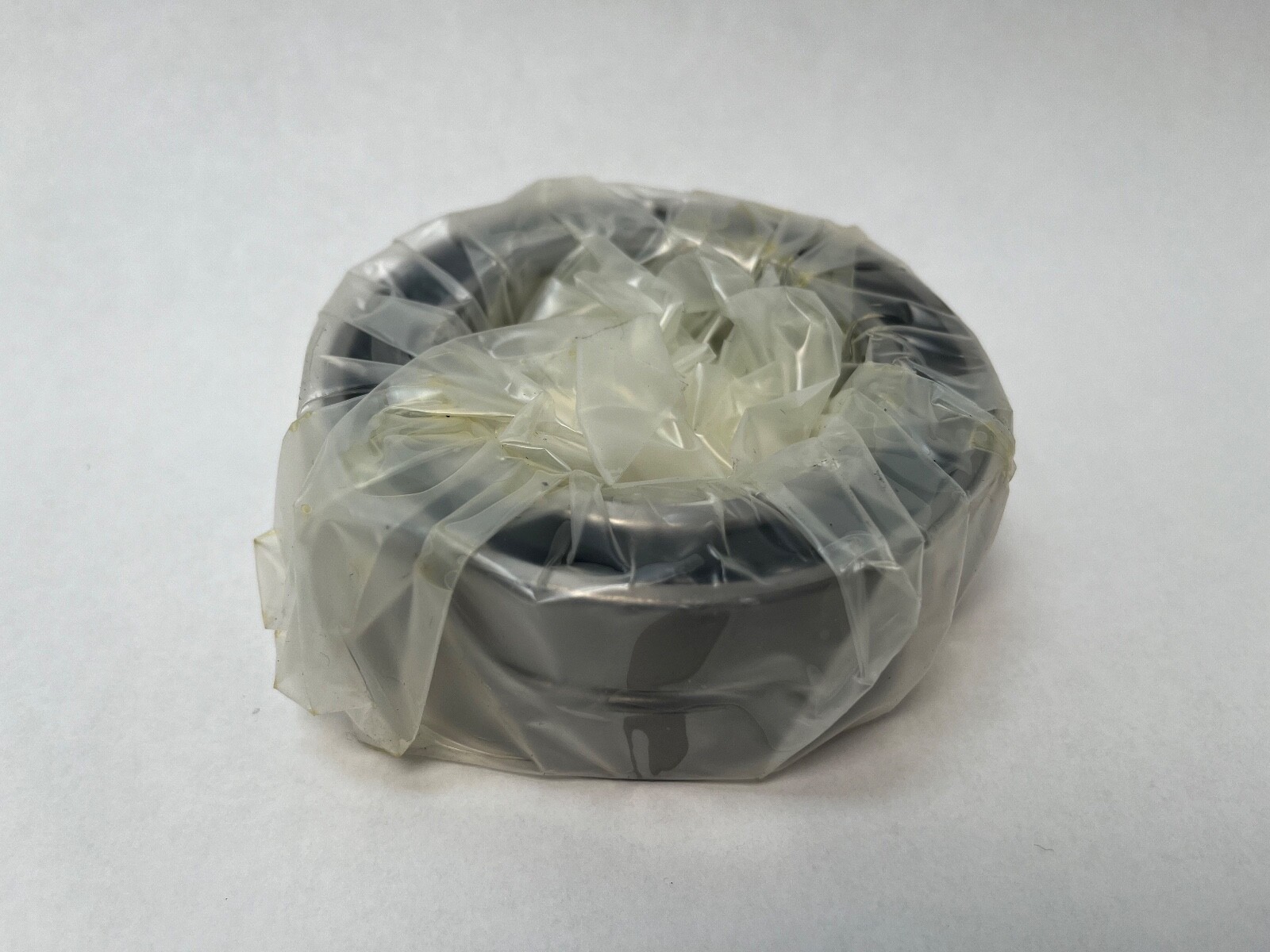

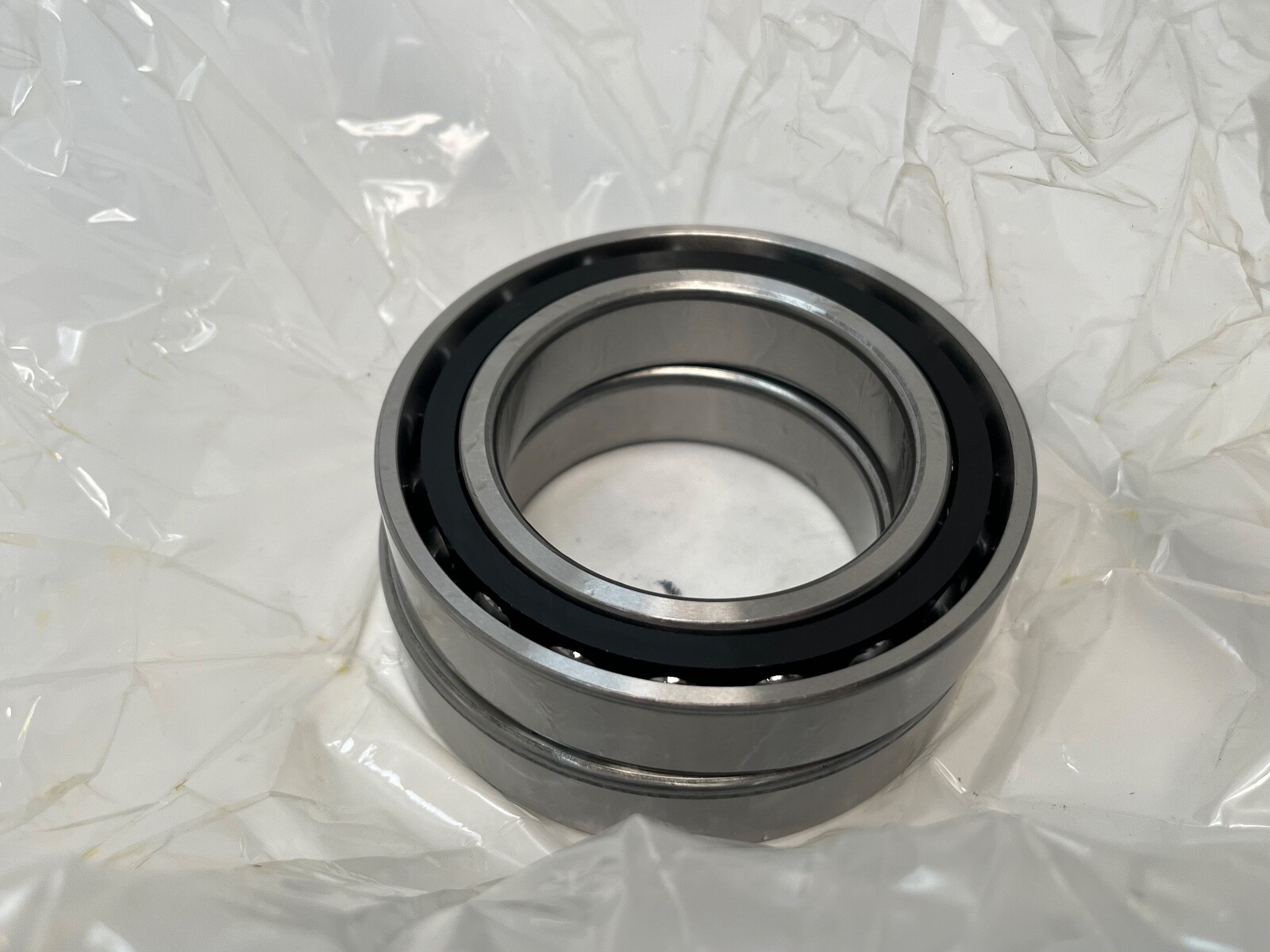

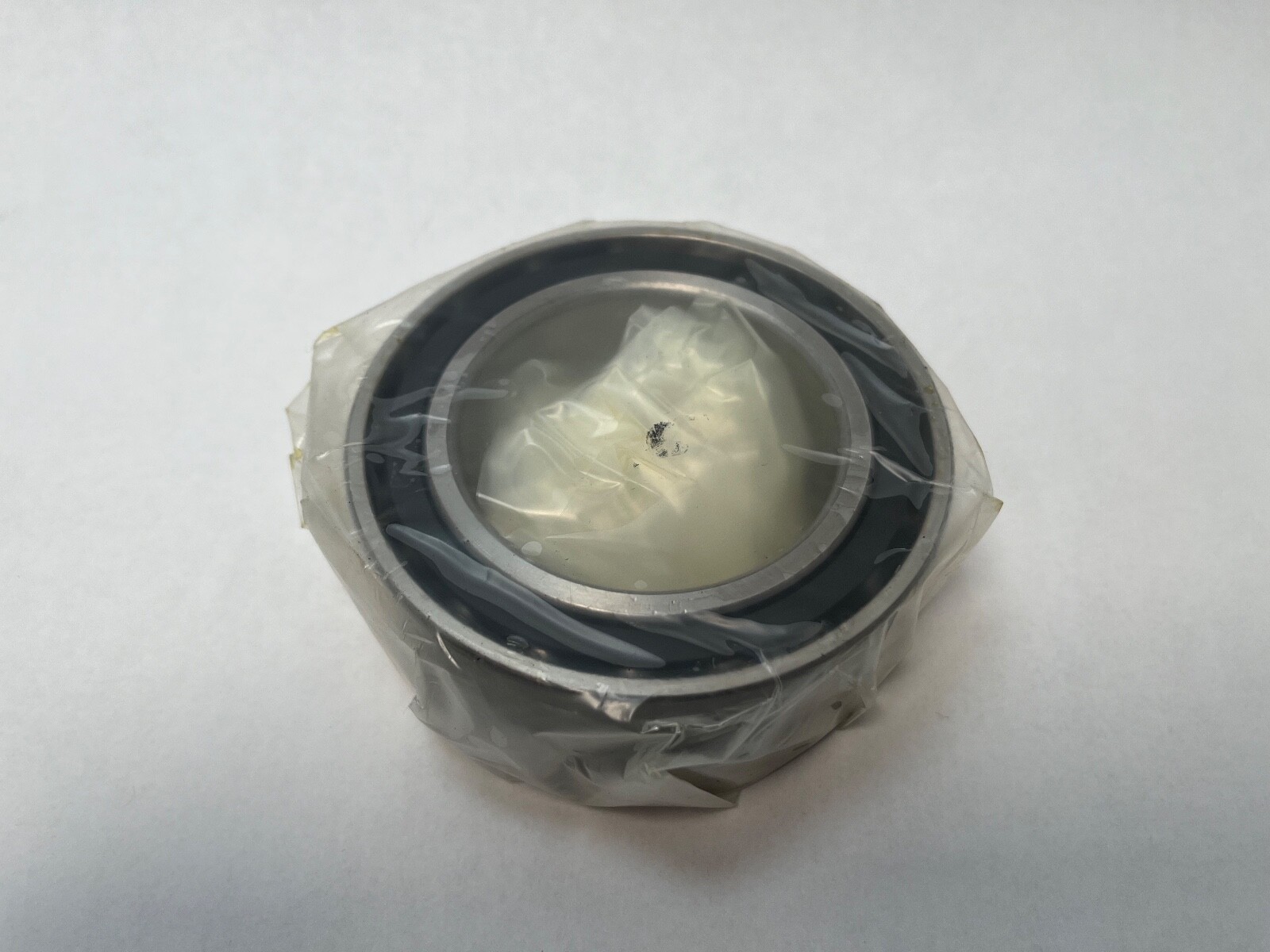

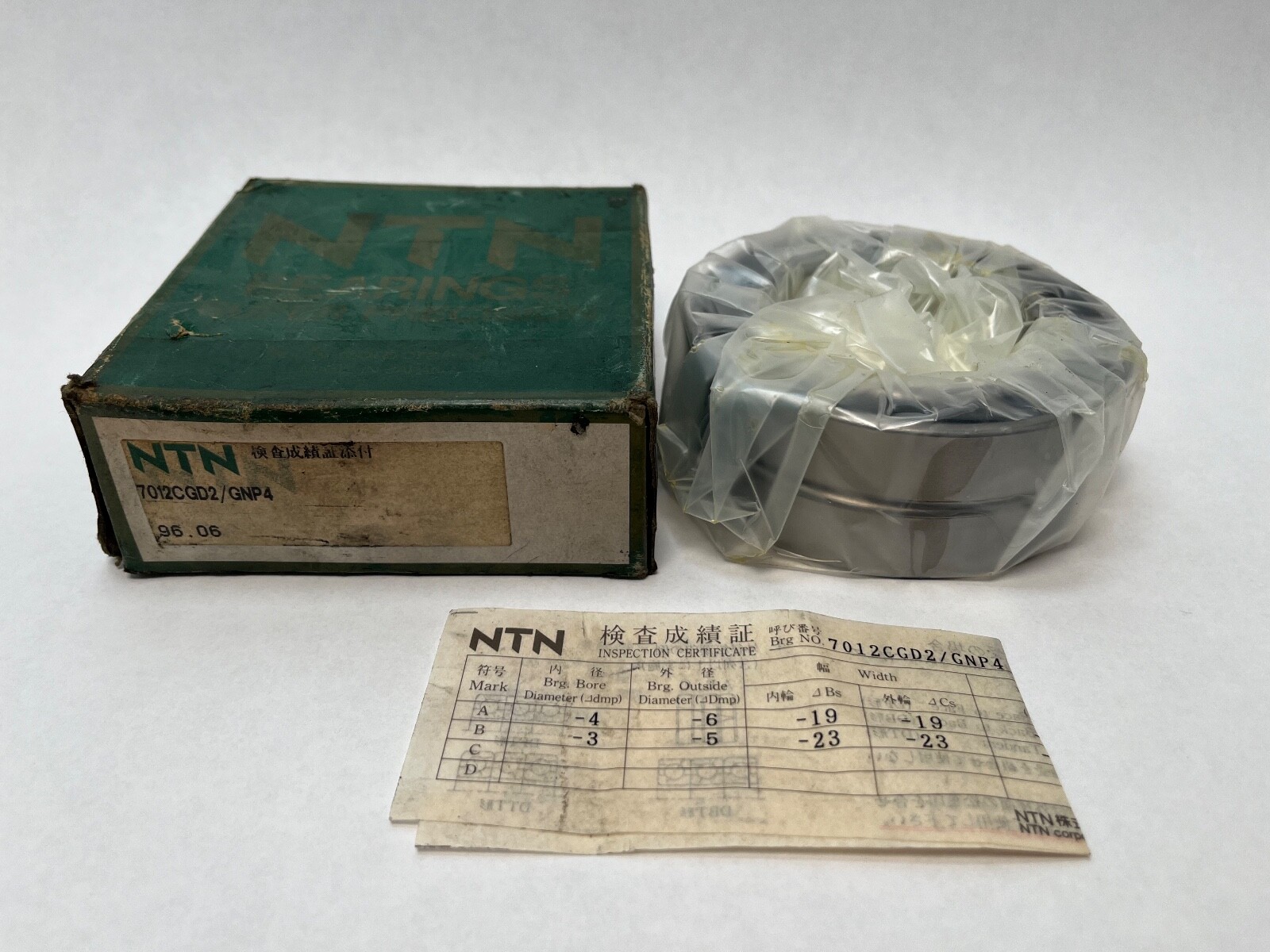

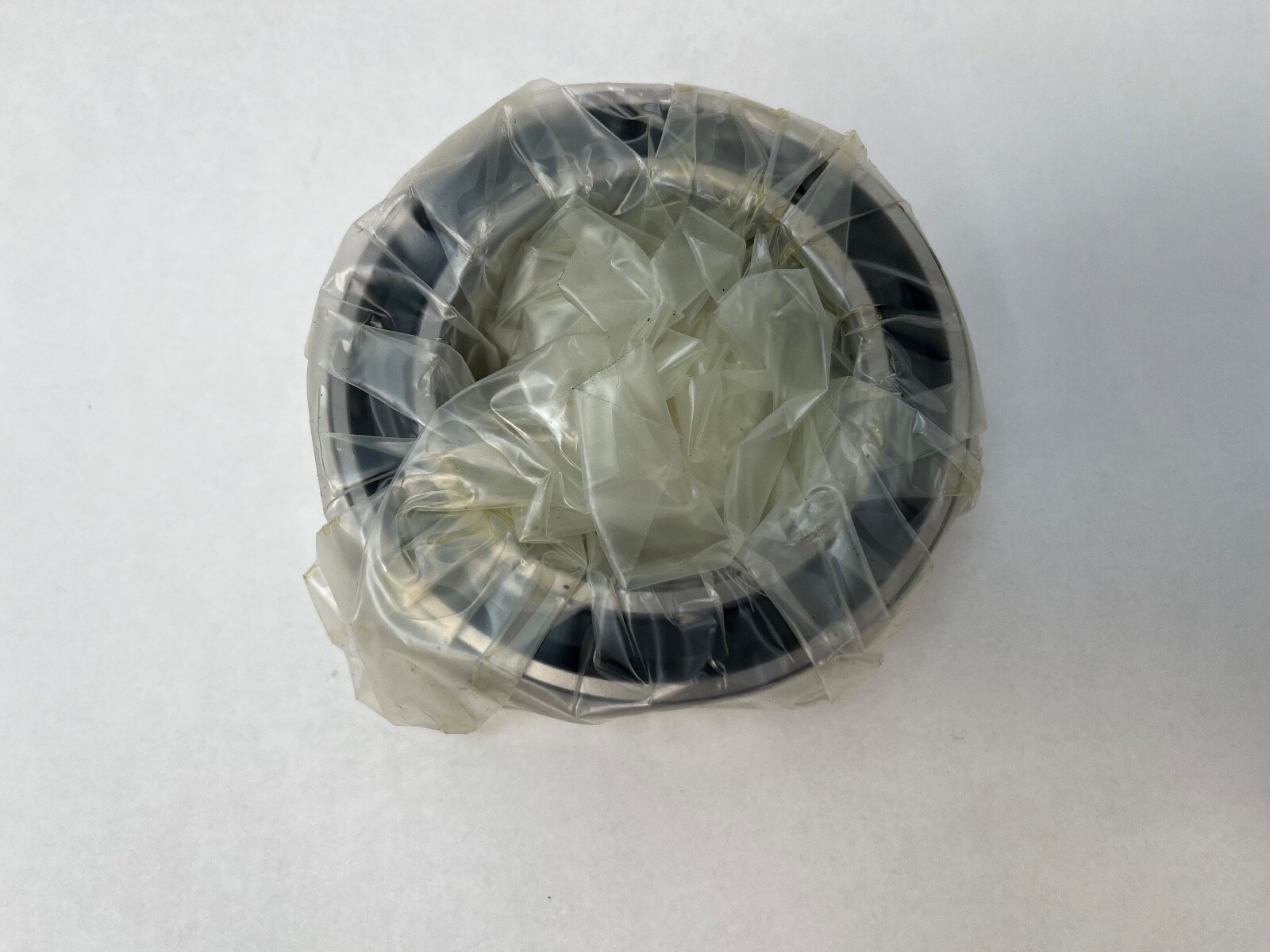

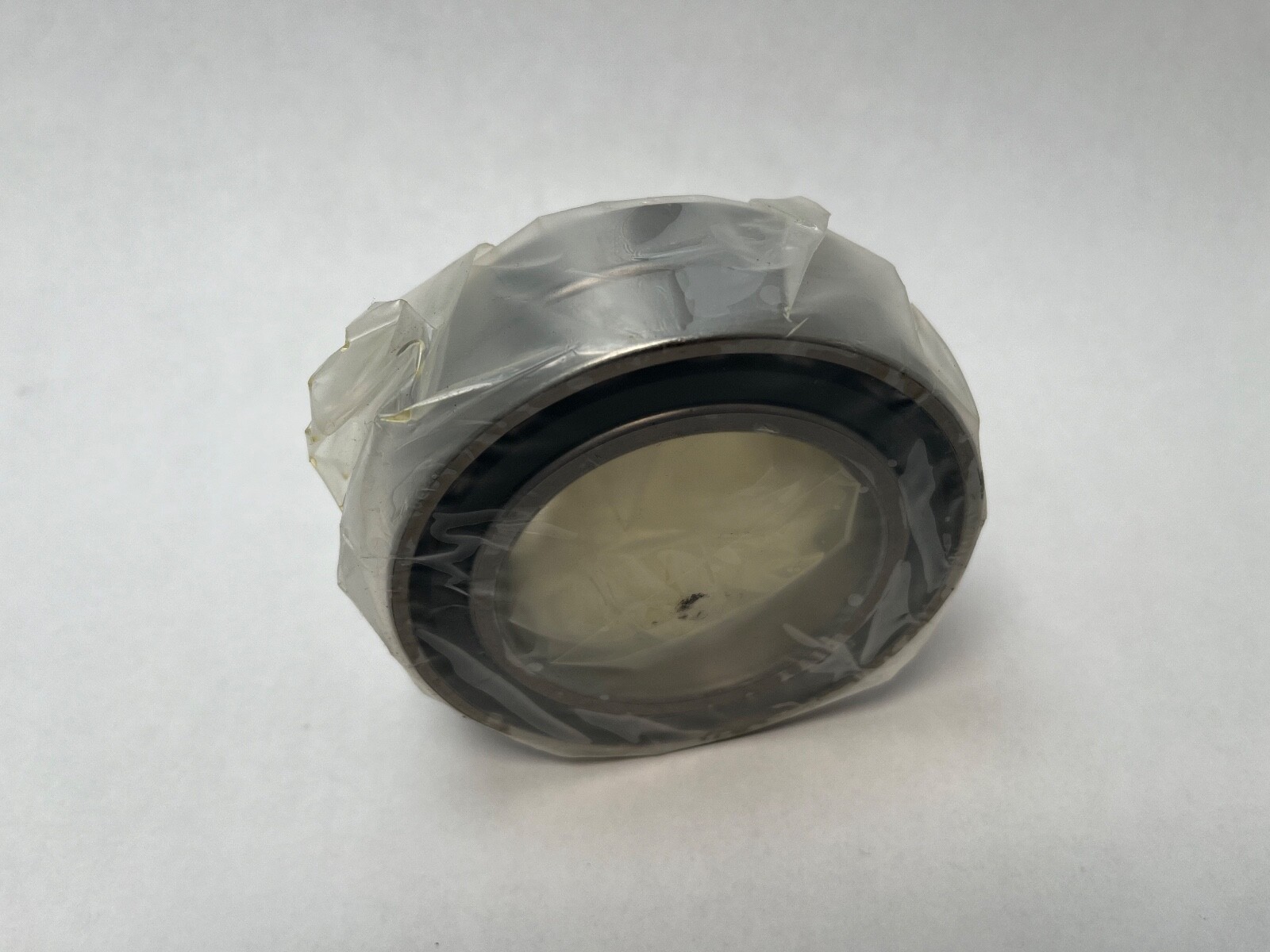

Angular contact ball bearing pair, 60 x 95 x 18 mm, 15° contact angle, ISO P4. NTN 7012CGD2/GNP4 universal flush-ground duplex set, 2 pieces.
List Price
$305.23
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | NTN |
|---|---|
| Model | 7012 C GD2 GN P4 2MM9112 WI CR DU |
| Bearing Type | Angular Contact Ball Bearing |
| ID | 60 mm |
| OD | 95 mm |
| Width | 18 mm |
| Total Width | 36 mm |
|---|---|
| Mpn Variants | 7012CGD2GNP4, 7012CGD2/GNP4, 7012 C GD2 GN P4, 7012C |
| Precision Class | ABEC 7 / P4 |
| Min Temp | -40 °C |
| Dynamic Load Rating | 57,650 N (pair) |
| Static Load Rating | 60,000 N (pair) |
| Precision Rating | ABEC 7 / P4 |
| Series | 7000 |
| Max Temp | 120 °C |
| Item Weight | 0.80 kg (1.76 lb) pair |
| Limiting Speed | 12,080 rpm grease; 19,360 rpm oil |
| Snap Ring Included | No |
| Lubricant | Grease or oil |
| Contact Angle | 15° |
| Mounting Arrangement | Universal pair (DB, DF or DT) |
| Cross Reference 1 | FAG B7012-C-T-P4S-UL - universal pair, light preload |
|---|---|
| Cross Reference 2 | NSK 7012CTYNDULP4 - universal pair, light preload |
| Cross Reference 3 | Fafnir 2MM9112WI DUL - universal pair, light preload |
| Cross Reference 4 | SKF 7012 CD/P4ADGA - universal pair, extra light preload |
NTN 7012CGD2/GNP4 super-precision angular contact ball bearings, supplied as a universal flush-ground duplex pair. Bore Diameter: 60 mm. Outside Diameter: 95 mm. Width: 18 mm per bearing, 36 mm for the pair. Contact Angle: 15°. Precision Class: ABEC 7 / P4.
7012 — ISO 70 series (light section), 60 mm bore.
C — 15° contact angle.
GD2 — universal flush-ground duplex set of two bearings, mountable back-to-back, face-to-face or in tandem.
P4 — ISO Class 4 precision, comparable to ABEC 7.
Figures for the pair, from NTN. Dynamic Load Rating: 57,650 N. Static Load Rating: 60,000 N. Limiting Speed: 12,080 rpm grease; 19,360 rpm oil. Item Weight: 0.80 kg (1.76 lb) for the pair. Operating Temperature: -40 °C to 120 °C. A 15° pair gives high radial stiffness and speed capability for machine-tool spindles.
Shaft abutment da min: 67 mm. Housing abutment Da max: 88 mm. Fillet ras max: 1.0 mm; r1as max: 0.6 mm.
Unit Quantity: 2 Pcs. Mounting Arrangement: Universal pair (DB, DF or DT).
Other makers’ 60 x 95 x 18 mm, 15°, P4 class universal pairs: FAG B7012-C-T-P4S-UL, NSK 7012CTYNDULP4 and Timken / Fafnir 2MM9112WI DUL, all at light preload; SKF 7012 CD/P4ADGA at extra light preload. NTN’s GN preload is normal.
