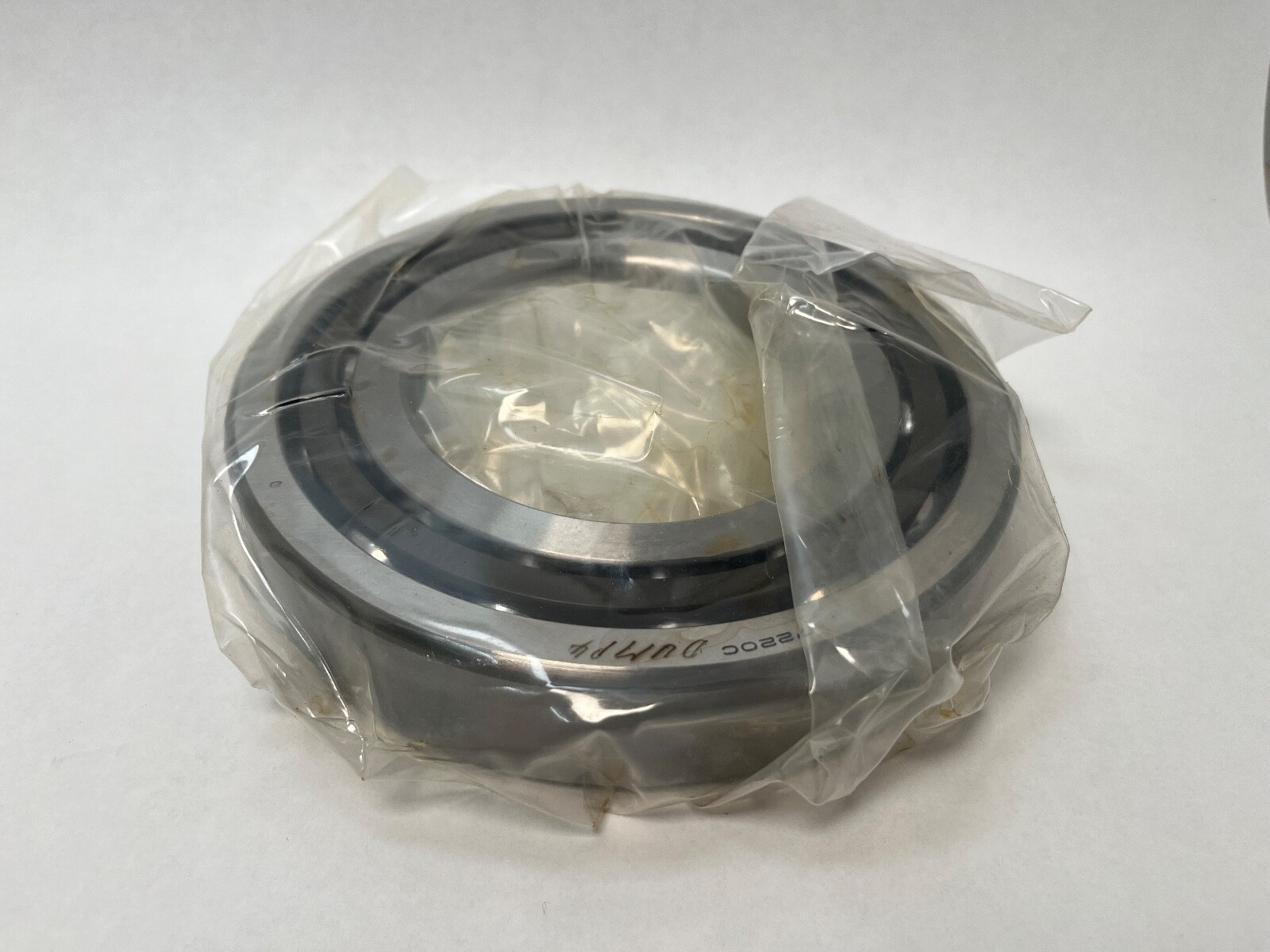

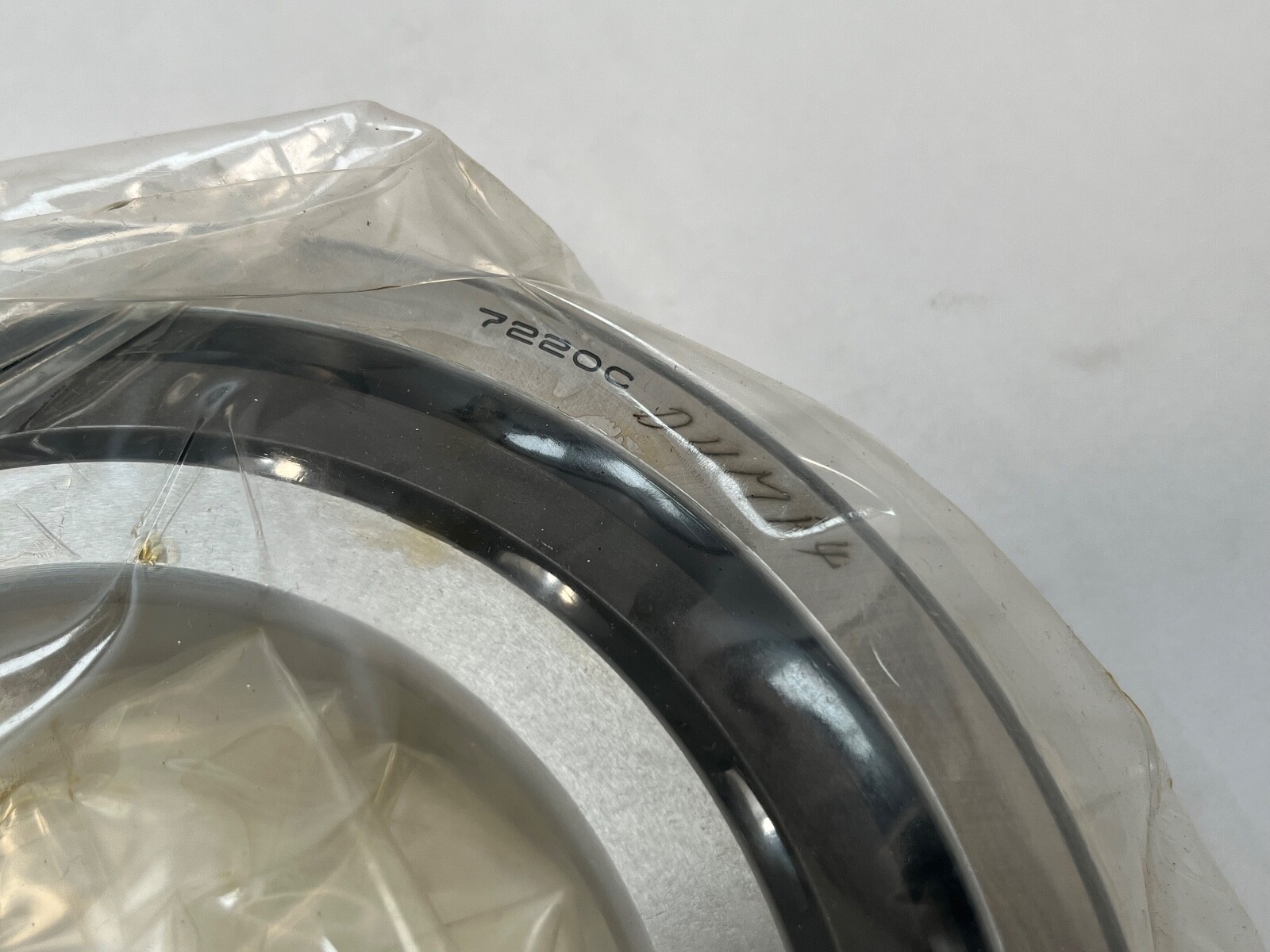

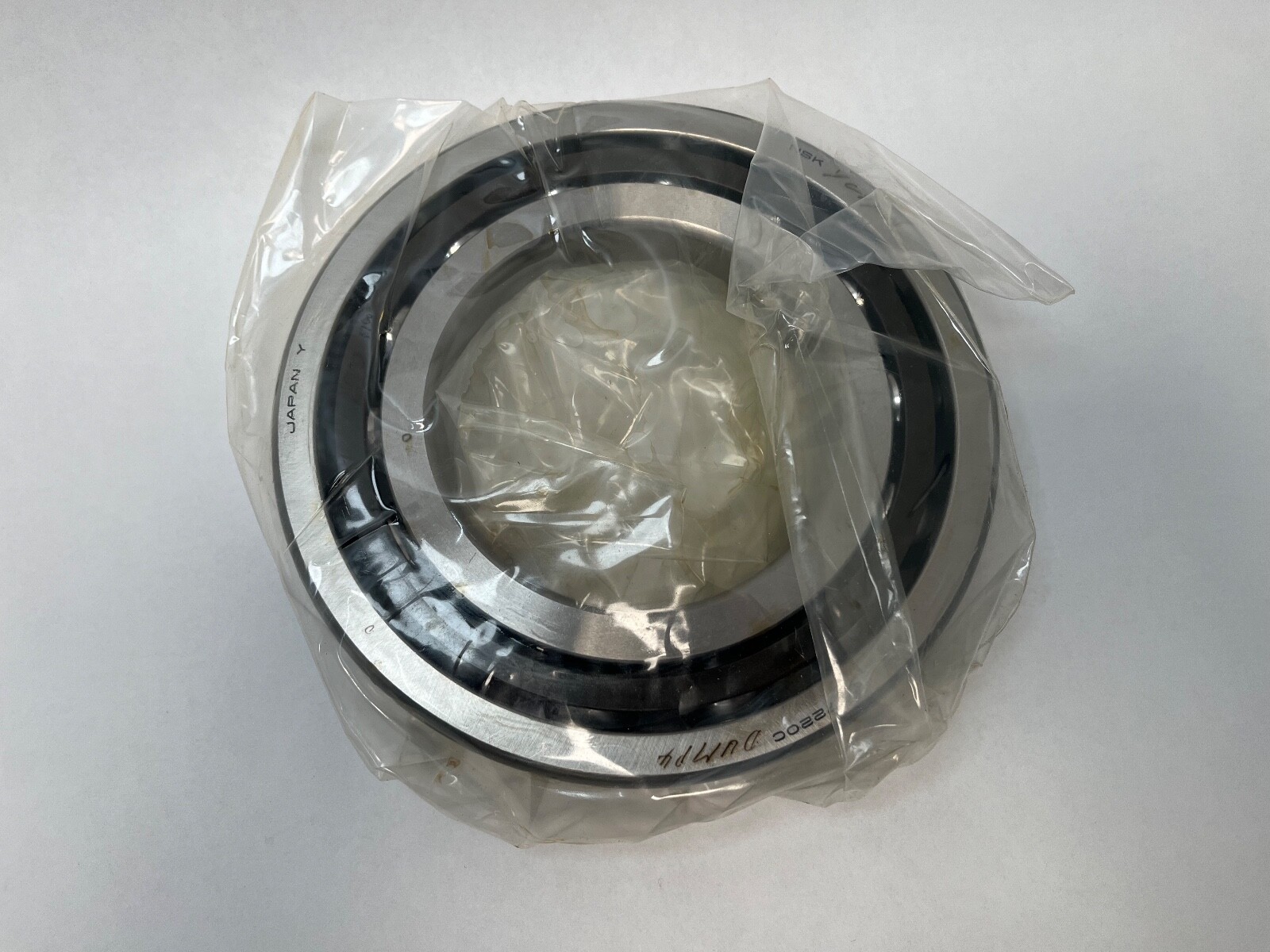

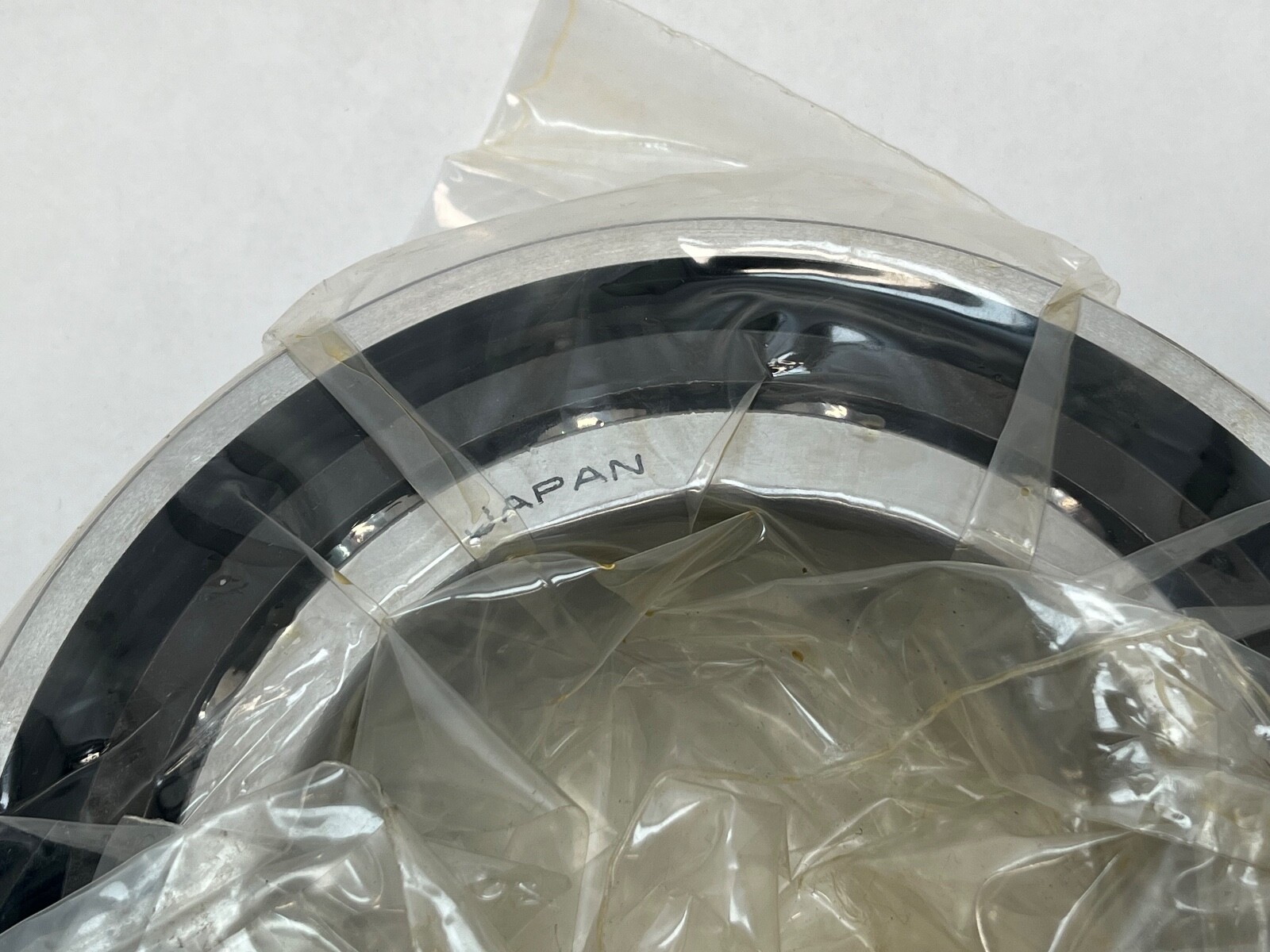

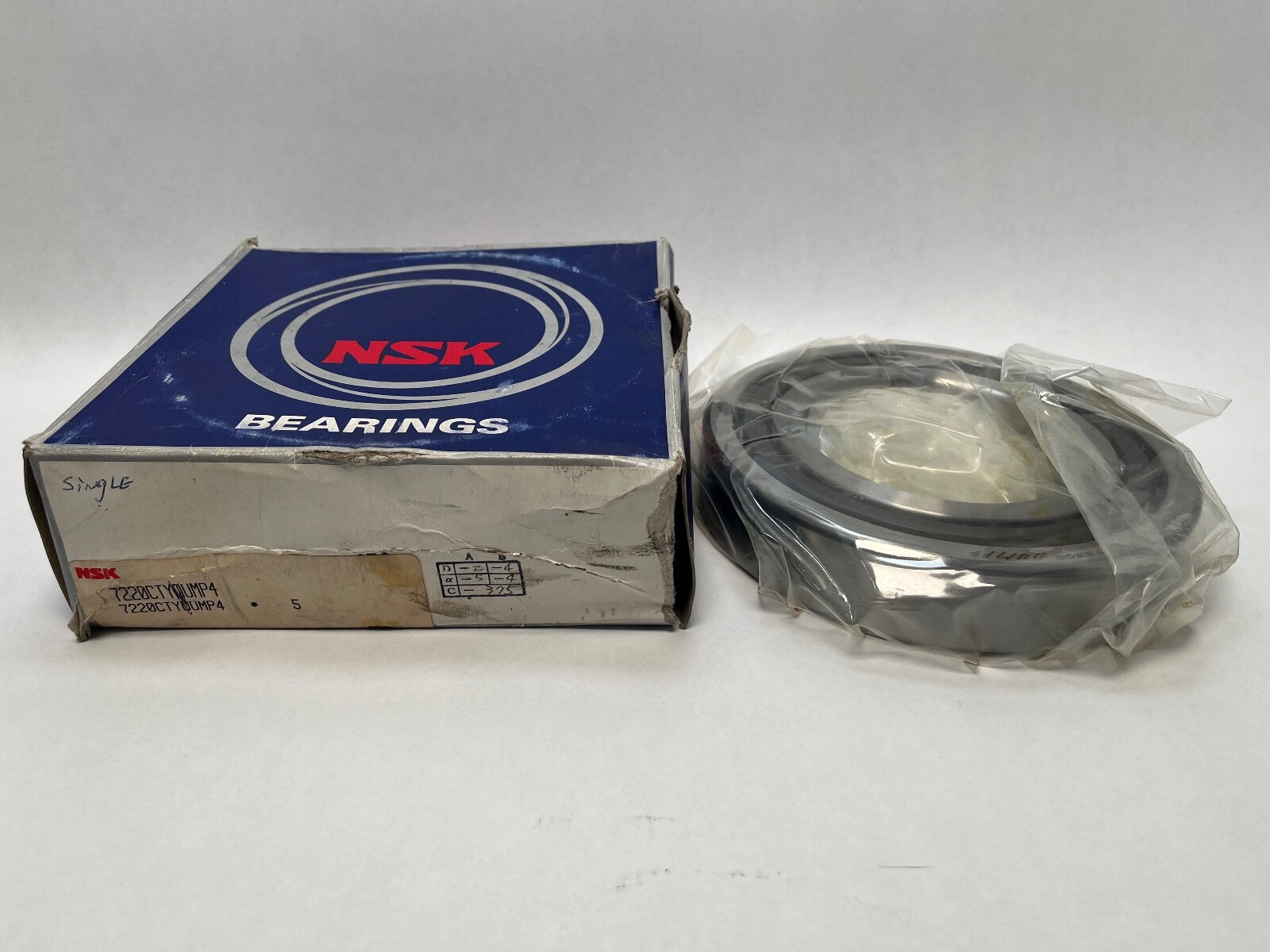

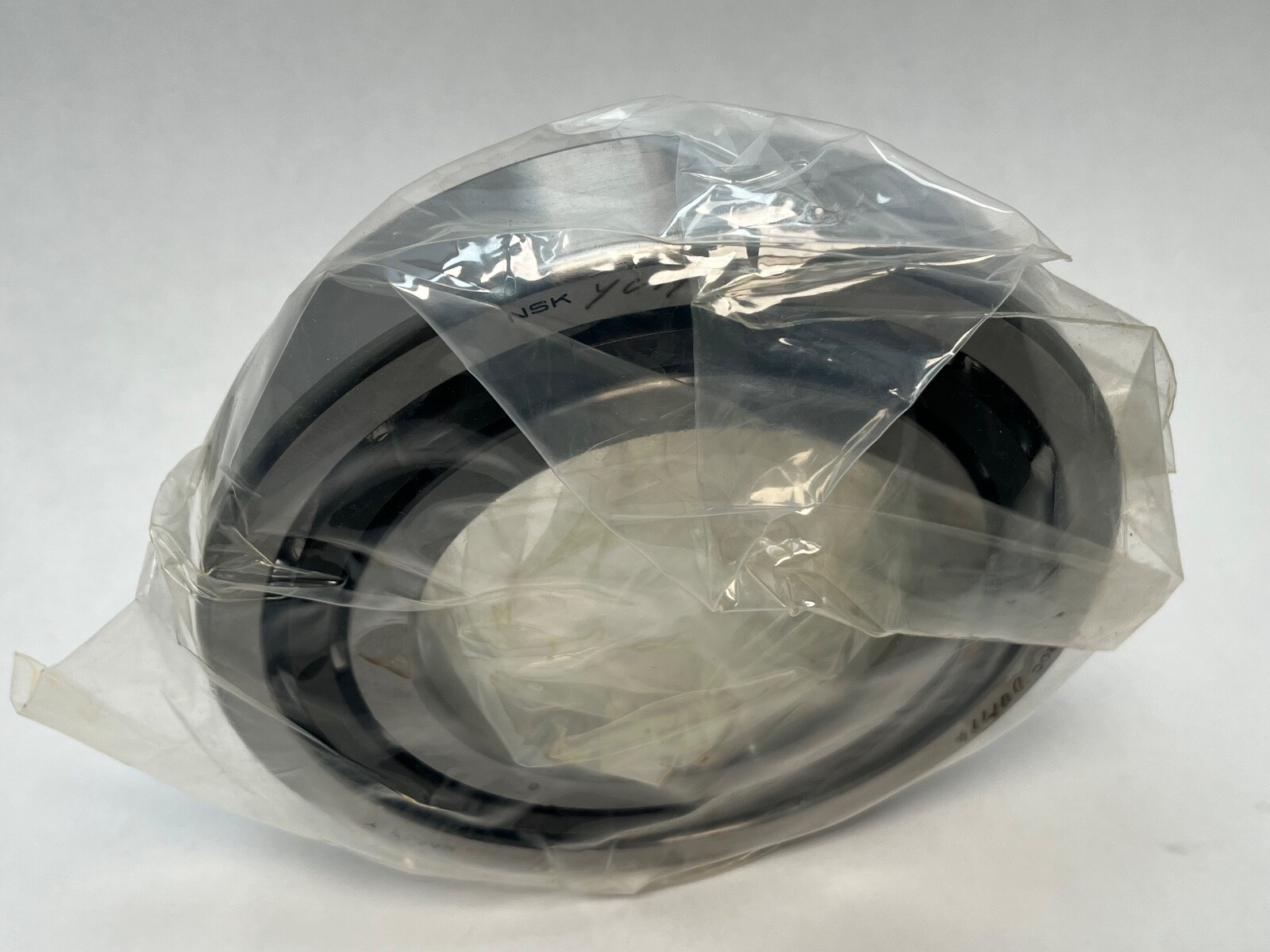

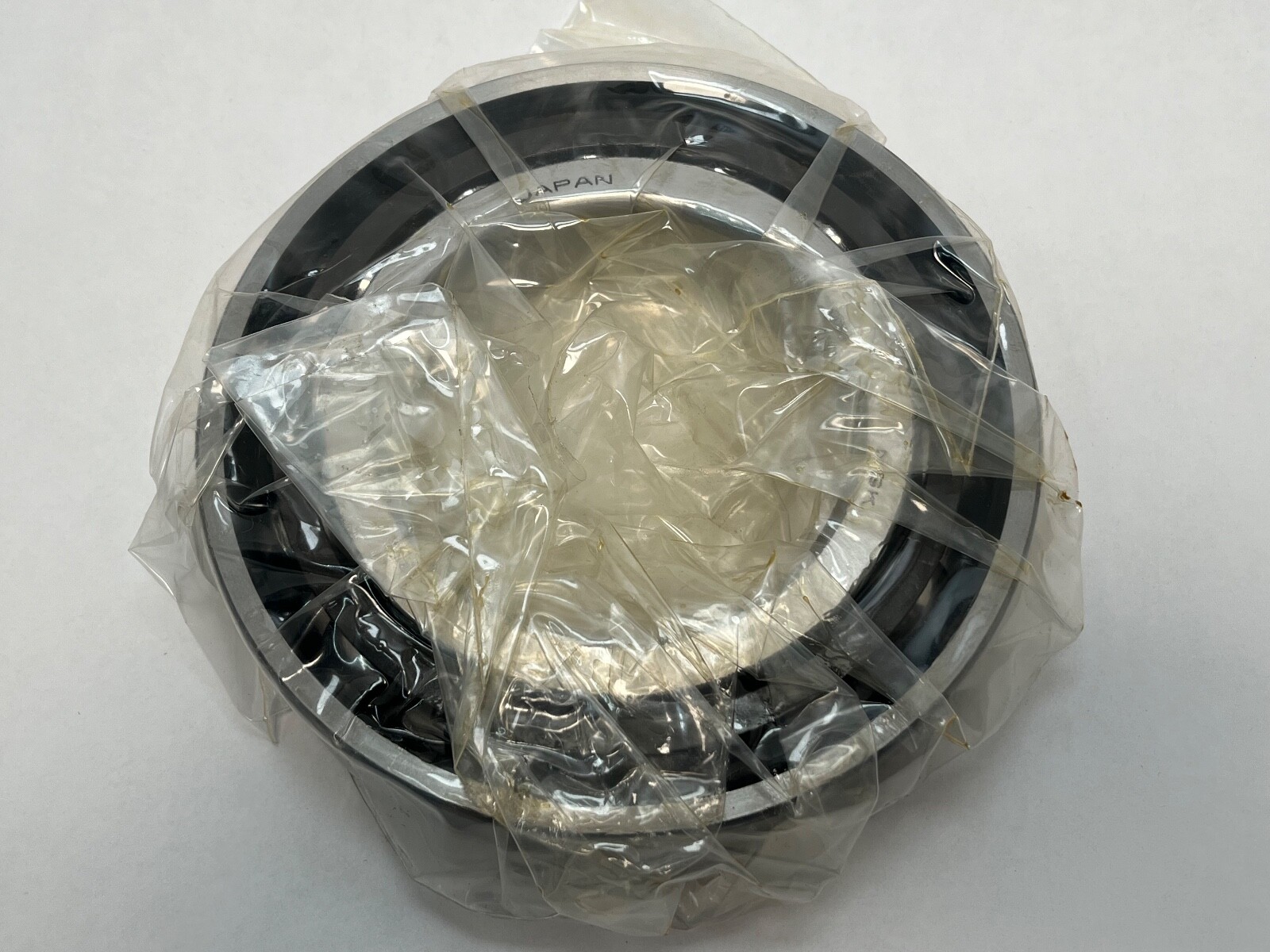

NSK7220CTYSUMP4Angular Contact Ball Bearing, Super Precision — 100 mm ID, 180 mm OD, 34 mm Width, 15° Contact Angle, Medium Preload, ABEC 7 / P4

Condition: New

Availability:

1 in stock

Super-precision angular contact ball bearing, 100x180x34 mm, 15° contact angle, ball-guided cage, medium preload, ABEC 7 / P4 accuracy grade.

Same day shipment

List Price

$467.99

1 in stock

Prefer eBay? Buy this item on our store (opens in a new tab)

Small green outline icon of a shipping box with a clock, indicating delivery time
Availability

1 in stock

On the Shelf & Ready to Ship

Green shield badge reading "Same-Day Shipping" with box and delivery truck icons
Free US Shipping

Ships same day by 6pm ET

Green shield icon with box and arrow graphic labeled "Free Returns"
Free Returns

No Risk, No Hassle

Specifications

Key Specifications

MFR / BrandNSK
MPN7220CTYSUMP4
Model7220C TY SUM P4
Bearing TypeAngular Contact Ball Bearing, Open
ID100 mm
OD180 mm
Width34 mm

Technical Specifications

MaterialBearing Steel
Series72 Series
PreloadMedium (M)
Base Number7220C
Industry TermsSuper precision bearing; spindle bearing; ABEC 7 bearing; angular contact ball bearing; 72 series; 15 degree contact angle; universally ground; ball-guided cage; machine tool bearing
Common Misspellings7220CTYSUMP4; 7220CTYSMUP4; 722OCTYSUMP4; 7220CTYSUM P4; 7220 CTY SUM P4; NSK 7220 CTYSUMP4
Application TypesMachine tool spindles; heavy-duty milling and turning centres; grinding spindles; precision rotary tables; gearbox and pump shafts; industrial automation and motion control
Overall Width34 mm
Mpn Variants7220CTYSUMP4; 7220C TY SUM P4; 7220-CTY-SUM-P4; 7220 C TY SUM P4; 7220CTYSUMP4Y
Precision ClassABEC 7 / P4
Additional AttributesEffective load centre a: 35.7 mm; permissible axial load Pa: 88.5 kN; da min: 112 mm; Da max: 168 mm; Db max: 173 mm; ra max: 2 mm; rb max: 1 mm; r min: 2.1 mm; r1 min: 1.1 mm; recommended grease quantity: 18 g per bearing; calculation factor f0: 14.5; cage options catalogued: TYN/TYNX polyamide ball-guided, TR/T/TX/TA phenolic outer-ring guided, TSR PPS outer-ring guided, MY brass ball-guided; accuracy grades catalogued: P5, P4, P4Y, P3; preload classes catalogued: EL, L, M, H
Closure TypeOpen
Cage TypeBall-guided
Dynamic Load Rating188,000 N per bearing
Static Load Rating127,000 N per bearing
Precision RatingABEC 7
Rolling ElementsBall
Item Weight3.18 kg (7.01 lb) per bearing
Number Of RowsSingle Row
Bore TypeStraight
Limiting Speed8,300 rpm grease; 12,500 rpm oil
LubricantGrease or oil / oil-air
Harmonization Code8482.10.5028
Contact Angle15°
Mounting ArrangementSingle, universally ground (SU)
Bearing MaterialBearing Steel

Cross-References

Cross Reference 1Fafnir 2MM220WI-SUM – 15°, medium preload, phenolic cage
Cross Reference 2FAG B7220-C-T-P4S-UM – 15°, medium preload, phenolic cage
Cross Reference 3RHP 7220CTSUMP4 – 15°, medium preload, phenolic cage
Cross Reference 4NSK 7220CTRSUMP4 – phenolic outer-guided vs ball-guided cage
Cross Reference 5NSK 7220CTYSULP4 – light vs medium preload
Cross Reference 6SKF 7220 CD/P4A – 15°, single, not universal ground
Cross Reference 7Koyo 7220C – 15°, standard class, not universal ground
Seller Part Number: B-J5#N7P9O9

Product Description

What this part is:

NSK 7220CTYSUMP4 single-row super-precision angular contact ball bearing, 72 series, single bearing universally ground (SU). Unit Quantity: 1 Pc. Bore Diameter: 100 mm. Outside Diameter: 180 mm. Overall Width: 34 mm. Contact Angle: 15°. Rolling Elements: Ball. Bore Type: Straight. Closure Type: Open. Number Of Rows: Single Row. Bearing Material: Bearing Steel. Series: 72 Series. Base Number: 7220C.

Decoding the designation:

7220 — 72 series super-precision angular contact ball bearing on a 100 mm bore.

C — 15° contact angle.

TY — ball-guided cage.

SU — single bearing, universally ground.

M — medium preload class.

P4 — NSK precision grade, ABEC 7 / P4.

Specifications:

Dynamic Load Rating: 188,000 N per bearing. Static Load Rating: 127,000 N per bearing. Limiting Speed: 8,300 rpm grease; 12,500 rpm oil. Item Weight: 3.18 kg (7.01 lb) per bearing. Precision Class: ABEC 7 / P4. Preload: Medium (M). Cage Type: Ball-guided. Lubricant: Grease or oil / oil-air. Mounting Arrangement: Single, universally ground (SU).

Dimensions and mounting:

Effective load centre a: 35.7 mm. Permissible axial load Pa: 88.5 kN. Minimum shaft abutment diameter da: 112 mm. Maximum housing abutment diameter Da: 168 mm. Maximum housing abutment diameter Db: 173 mm. Maximum shaft fillet radius ra: 2 mm. Maximum housing fillet radius rb: 1 mm. Minimum chamfer dimension r: 2.1 mm. Minimum chamfer dimension r1: 1.1 mm. Recommended grease quantity: 18 g per bearing. Calculation factor f0: 14.5.

Compatibility and replacement:

Cross-references: Fafnir 2MM220WI-SUM (15°, medium preload, phenolic cage); FAG B7220-C-T-P4S-UM (15°, medium preload, phenolic cage); RHP 7220CTSUMP4 (15°, medium preload, phenolic cage); NSK 7220CTRSUMP4 (phenolic outer-guided cage versus ball-guided); NSK 7220CTYSULP4 (light versus medium preload); SKF 7220 CD/P4A (15°, single, not universally ground); Koyo 7220C (15°, standard class, not universally ground). Harmonization Code: 8482.10.5028.

Frequently asked questions:

What are the dimensions of the NSK 7220CTYSUMP4?

Bore 100 mm, outside diameter 180 mm and width 34 mm.

What do the SU, M and P4 letters mean?

SU is a single bearing, universally ground; M is medium preload; P4 is precision grade ABEC 7 / P4.

What are the load ratings and speeds?

Dynamic 188,000 N and static 127,000 N per bearing; limiting speed 8,300 rpm with grease and 12,500 rpm with oil.
