Super-precision angular contact ball bearing pair, 85 x 150 x 28 mm, 15° contact angle, ABEC 7 (P4), back-to-back matched set, open. Cr 135 kN.
List Price
$534.51
1 in stock
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
Also Available From:
| MFR / Brand | NSK |
|---|---|
| MPN | 7217C1TDBP4 |
| Model | 7217 C1 T DB P4 7217-C |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 85 mm (3.3465 in) |
| OD | 150 mm (5.9055 in) |
| Width | 28 mm |
| Material | Bearing Steel |
|---|---|
| Series | 7200 |
| Condition | New |
| Preload | Medium |
| Base Number | 7217C |
| Industry Terms | Super precision spindle bearing, machine tool angular contact bearing, back-to-back matched pair, DB set, ABEC 7 ball bearing |
| Total Width | 56 mm (2.2047 in) |
| Bore Shaft Size | 85 mm (3.3465 in) |
| Mpn Variants | 7217C1TDBP4, 7217-C1-T-DB-P4, 7217 C1 T DB P4, 7217C1T DB P4, 7217C, 7217-C, C1 |
| Arrangement Configuration | DB back-to-back matched pair |
| Precision Class | P4 (ABEC 7) |
| Min Temp | -30 °C |
| Cage Type | Not specified |
| Dynamic Load Rating | 135 kN per bearing |
| Static Load Rating | 90.5 kN per bearing |
| Precision Rating | ABEC 7 / P4 |
| Rolling Elements | Ball |
| Max Temp | 120 °C |
| Item Weight | 1.79 kg (3.95 lb) per bearing |
| Cage Material | Phenolic |
| Limiting Speed | 9,500 rpm (grease) / 12,000 rpm (oil-air) |
| Number Of Rows | 1 (single row per bearing; 2 rows in the DB pair) |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Internal Clearance | N/A (preloaded matched set) |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 15° |
| Mounting Arrangement | Back-to-back (DB), matched pair |
| Design Units | Metric |
| Part Number | 7217C1TDBP4 |
| Cross Reference 1 | SKF 7217 CD/P4A |
|---|---|
| Cross Reference 2 | FAG B7217-C-T-P4S |
| Cross Reference 3 | 7217A5 (related size, 25° contact angle) |

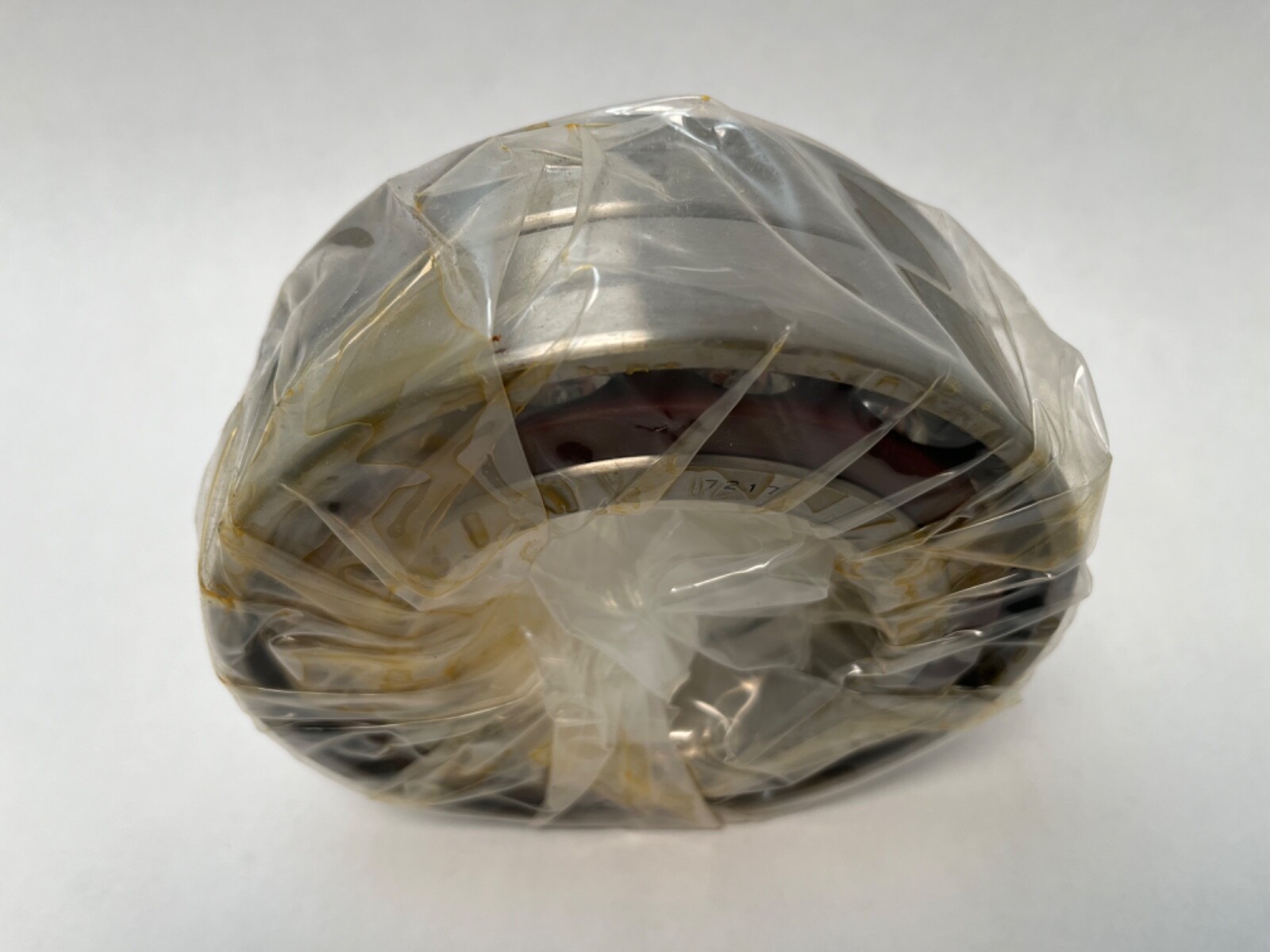

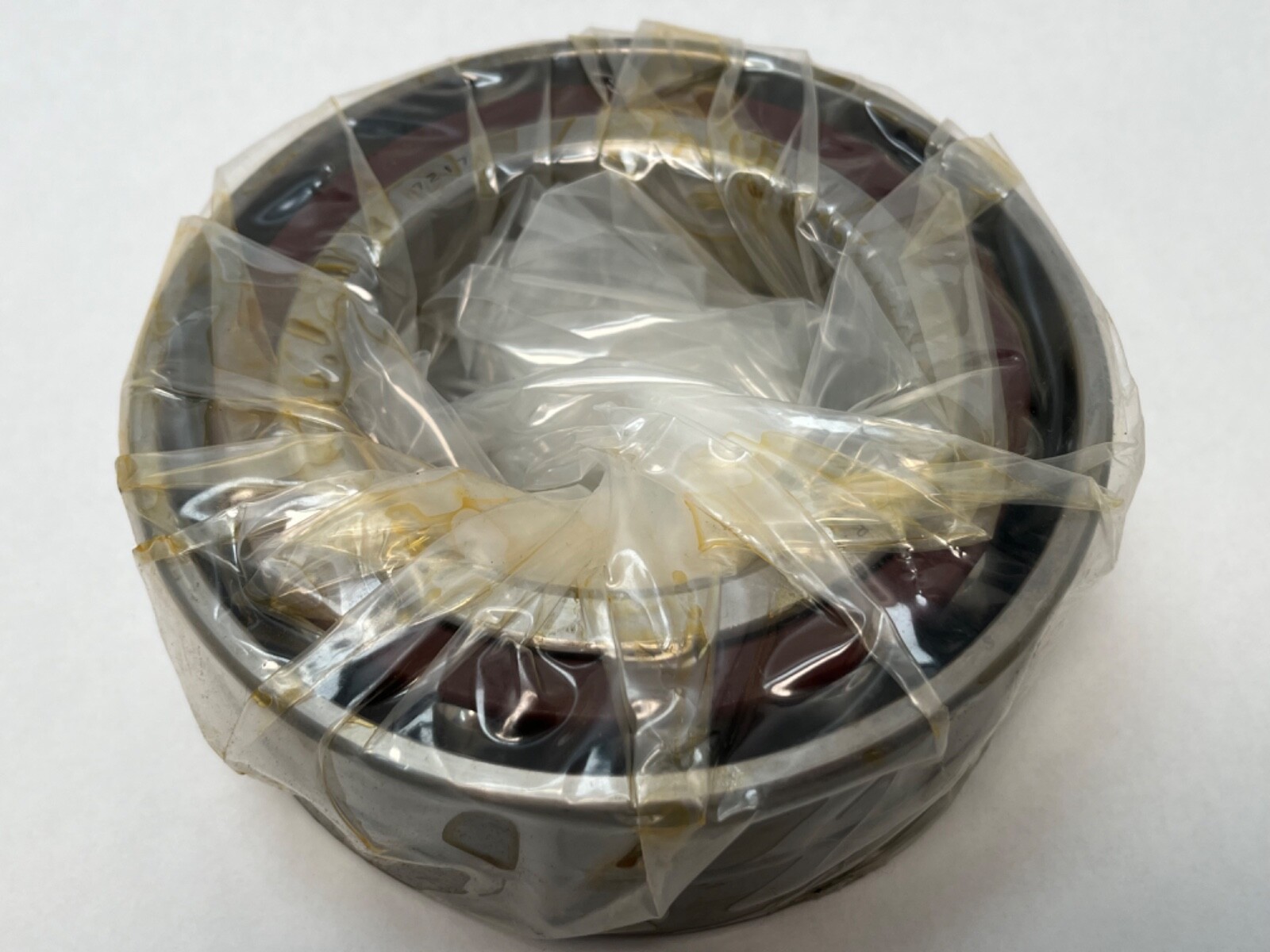

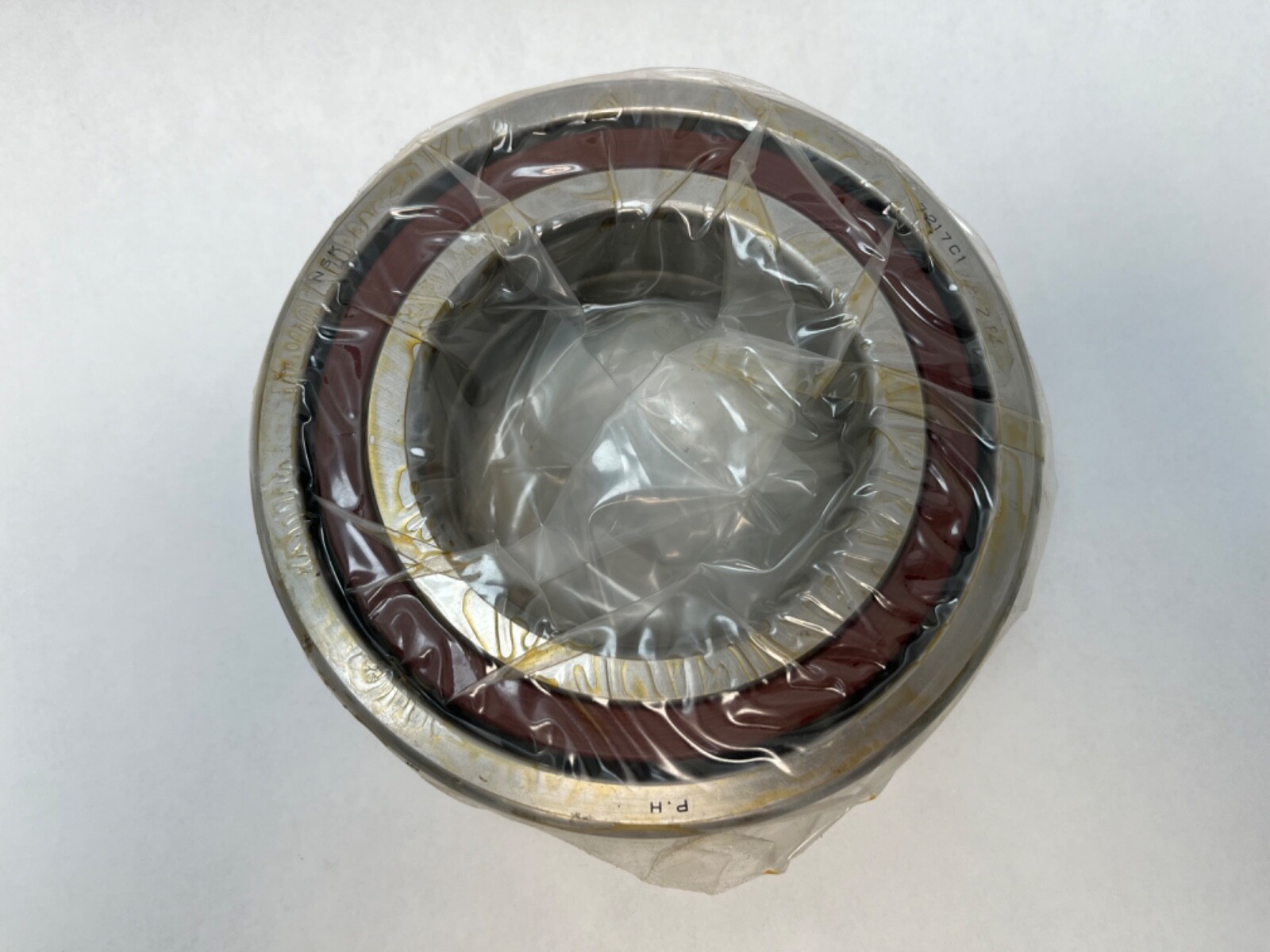

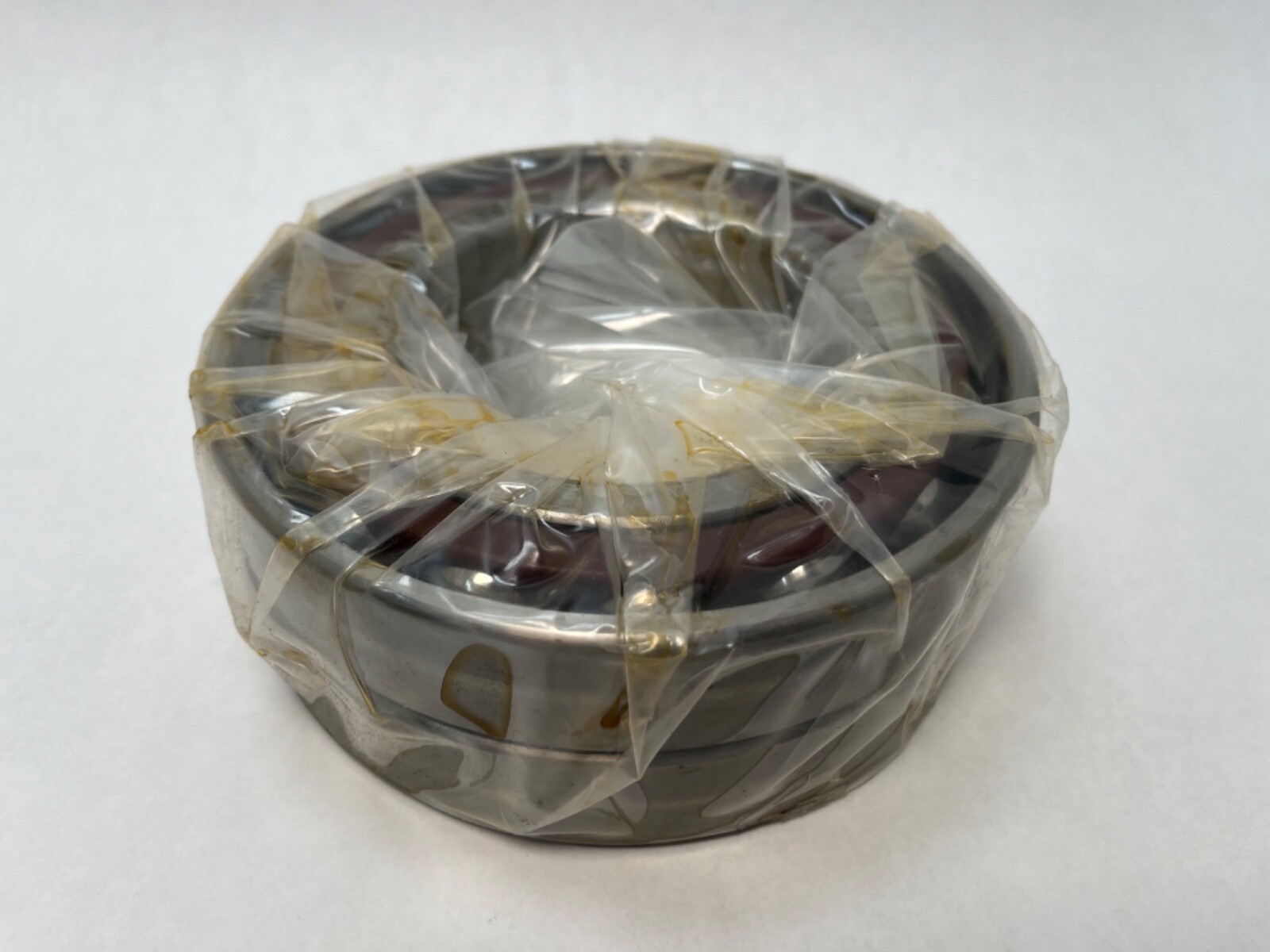

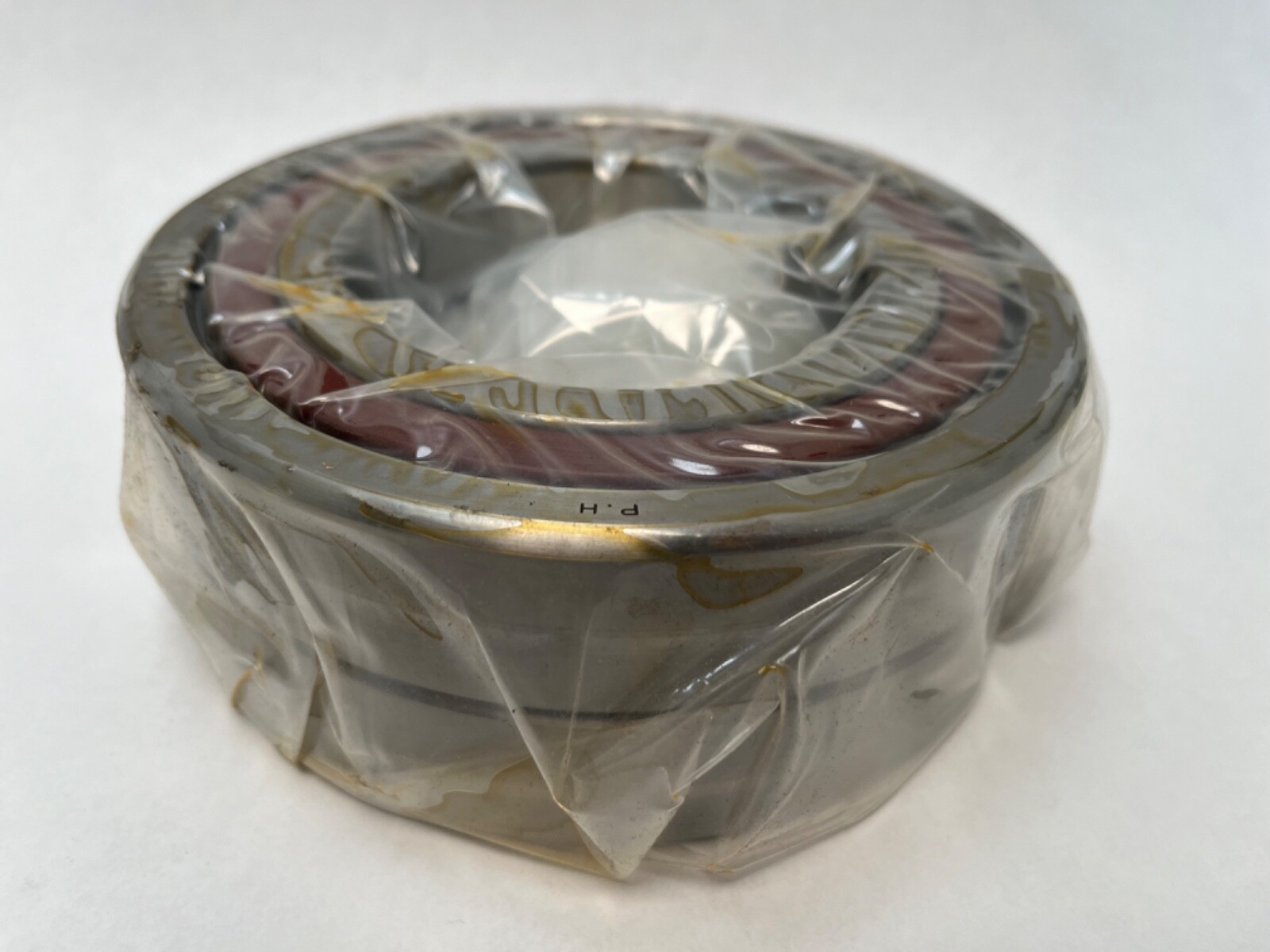

NSK 7217C1TDBP4 super-precision angular contact ball bearing, 85 mm bore × 150 mm outside diameter × 28 mm width. Series: 7200. Contact Angle: 15°. Precision Class: P4, ABEC 7. Straight bore, open on both faces. Supplied as a back-to-back matched pair, 2 pieces.

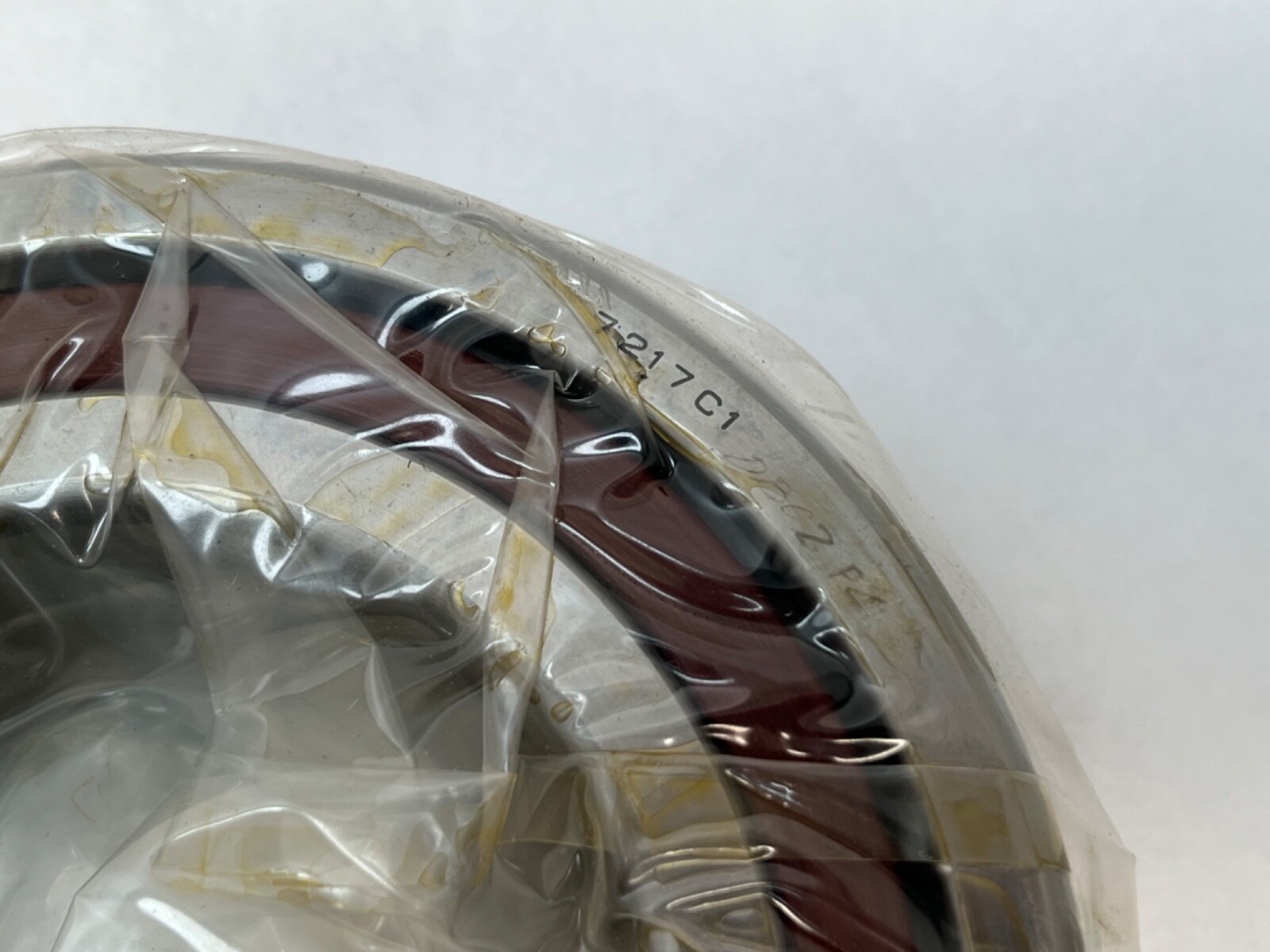

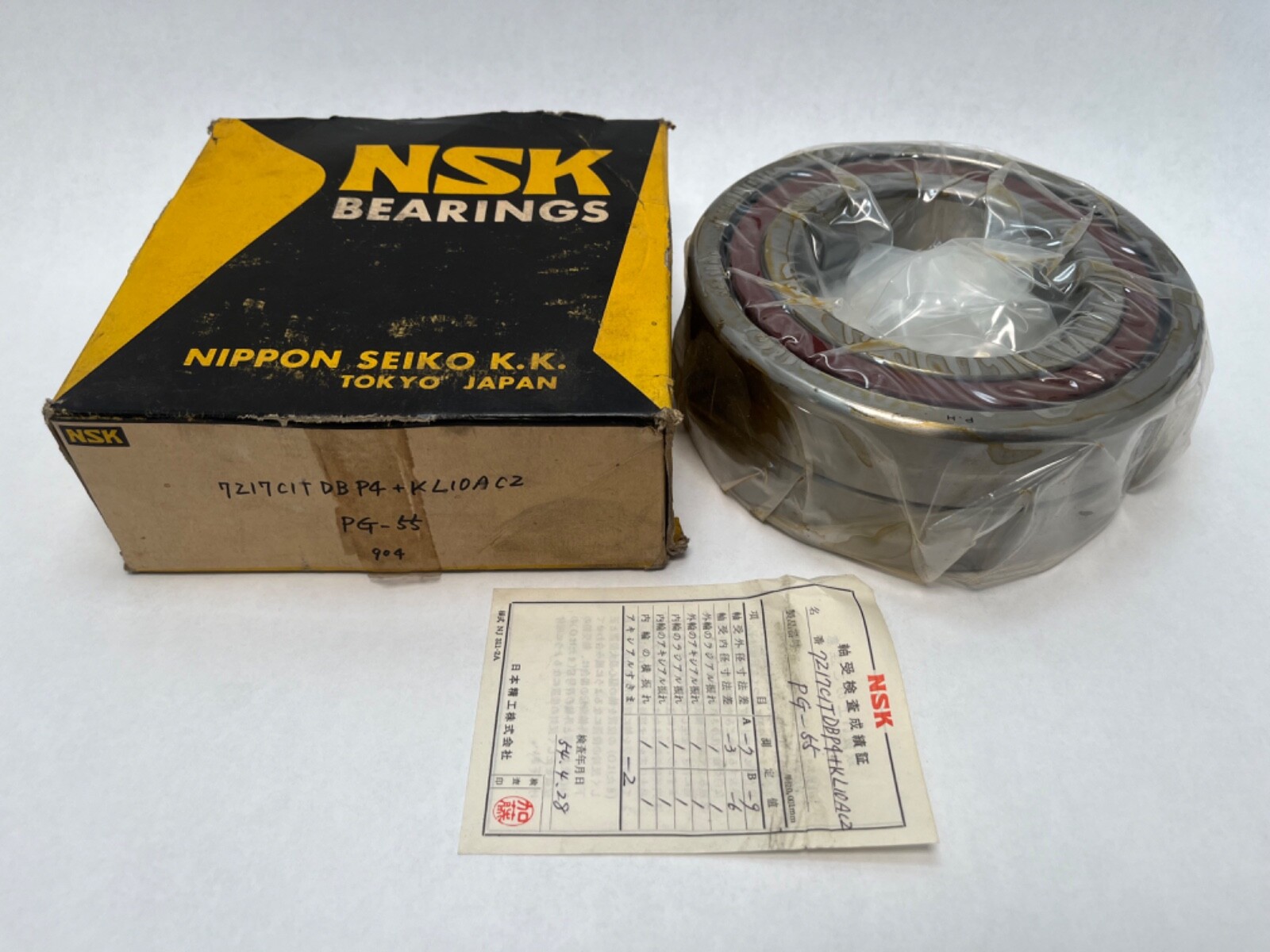

Base Number: 7217C, also marked 7217-C on the carton. C: 15° contact angle. DB: back-to-back matched arrangement, 2 bearings. P4: ISO Class 4, ABEC 7. The number is also written 7217-C1-T-DB-P4, 7217 C1 T DB P4 and 7217C1T DB P4.
A 15° contact angle favours speed and radial stiffness over thrust capacity. A back-to-back pair sets the load lines apart, which carries moment loads and locates a shaft axially in both directions. Basic Dynamic Load Rating: 135 kN per bearing. Basic Static Load Rating: 90.5 kN per bearing. Limiting Speed: 9,500 rpm on grease, 12,000 rpm on oil or oil-air. Mass: 1.79 kg per bearing.
Two bearings, ground and matched as a back-to-back set. Total width of the pair: 56 mm. Matched sets are supplied without a running clearance.
The pair is fitted as a unit, marked faces together, with the inner rings clamped on the shaft and the outer rings clamped in the housing so the ground offset is held.
SKF 7217 CD/P4A covers the same envelope and 15° angle. FAG B7217-C-T-P4S is the Schaeffler equivalent on the same envelope and angle. A 7217A5 on the same envelope carries a 25° contact angle and is a related size.
