Availability:
6 in stock

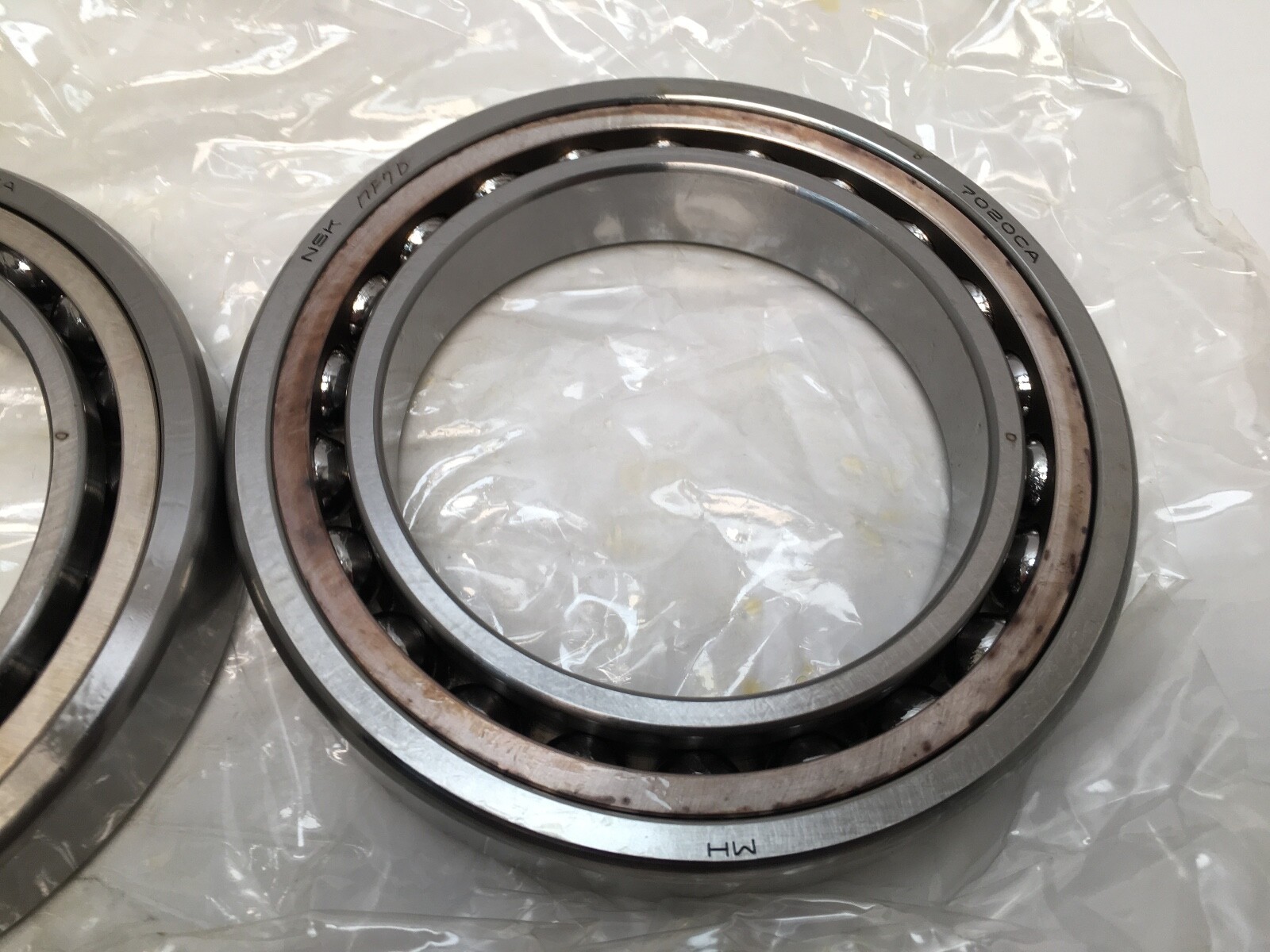

NSK 7020C angular contact ball bearing — 100 mm bore, 150 mm OD, 24 mm width, 15° contact angle, ABEC 7 precision. Matched back-to-back duplex pair.
List Price
$644.88
6 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | NSK |
|---|---|
| MPN | 7020CAMADBBP4A |
| Model | 7020CA MA DBB P4A |
| Bearing Type | Angular Contact Ball Bearing |
| ID | 100 mm |
| OD | 150 mm |
| Width | 24 mm |
| Precision Class | ABEC 7 / P4 |
|---|---|
| Dynamic Load Rating | 75,500 N |
| Static Load Rating | 77,000 N |
| Item Weight | 1.46 kg (3.22 lb) |
| Limiting Speed | 6,300 rpm grease; 9,000 rpm oil |
| Contact Angle | 15° |
| Mounting Arrangement | Back-to-Back |
| Cross Reference 1 | NTN 7020C |
|---|---|
| Cross Reference 2 | SNR 7020C |
| Cross Reference 3 | Koyo 7020C |
| Cross Reference 4 | RHP 7020C |
What this part is

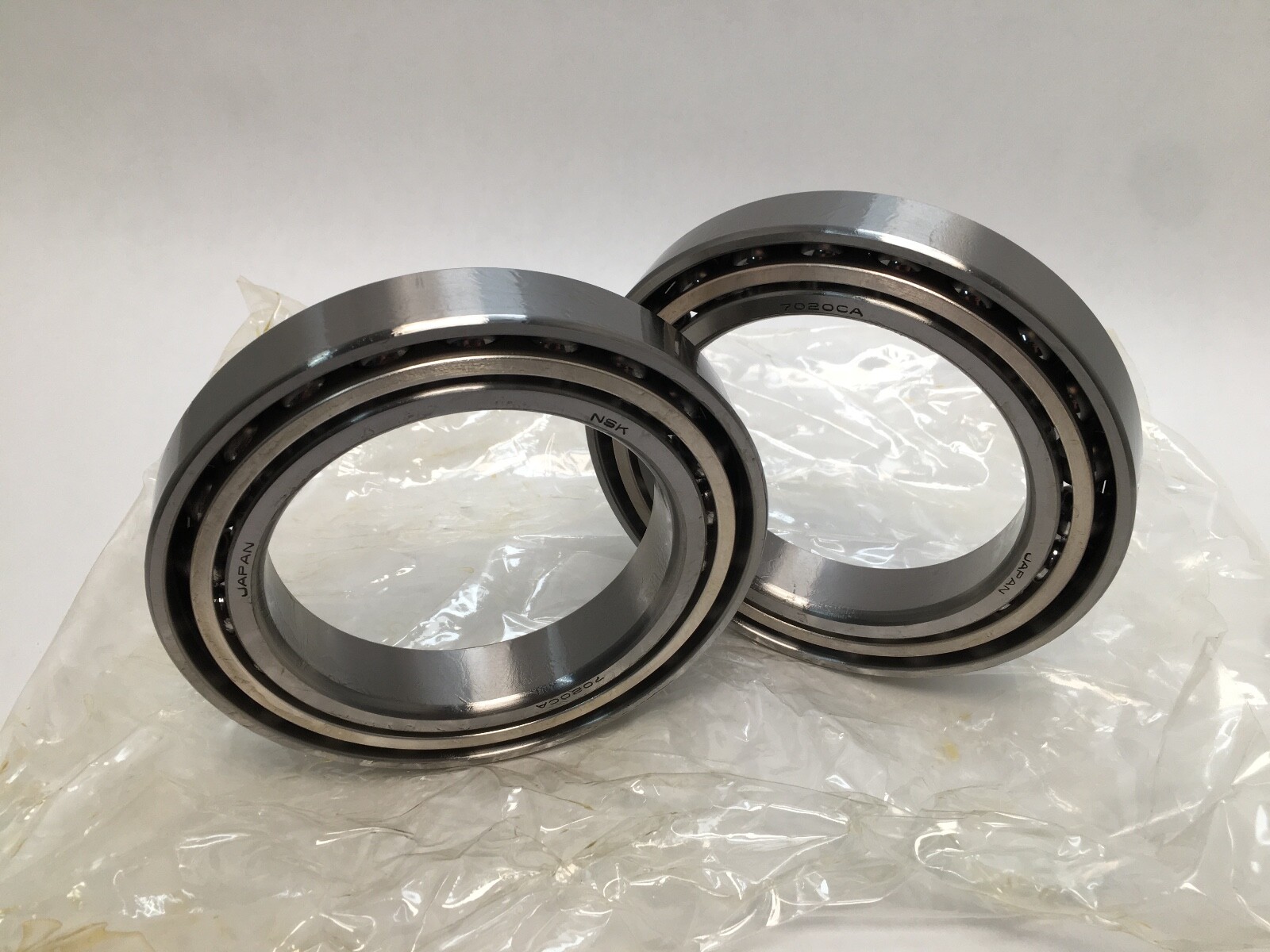

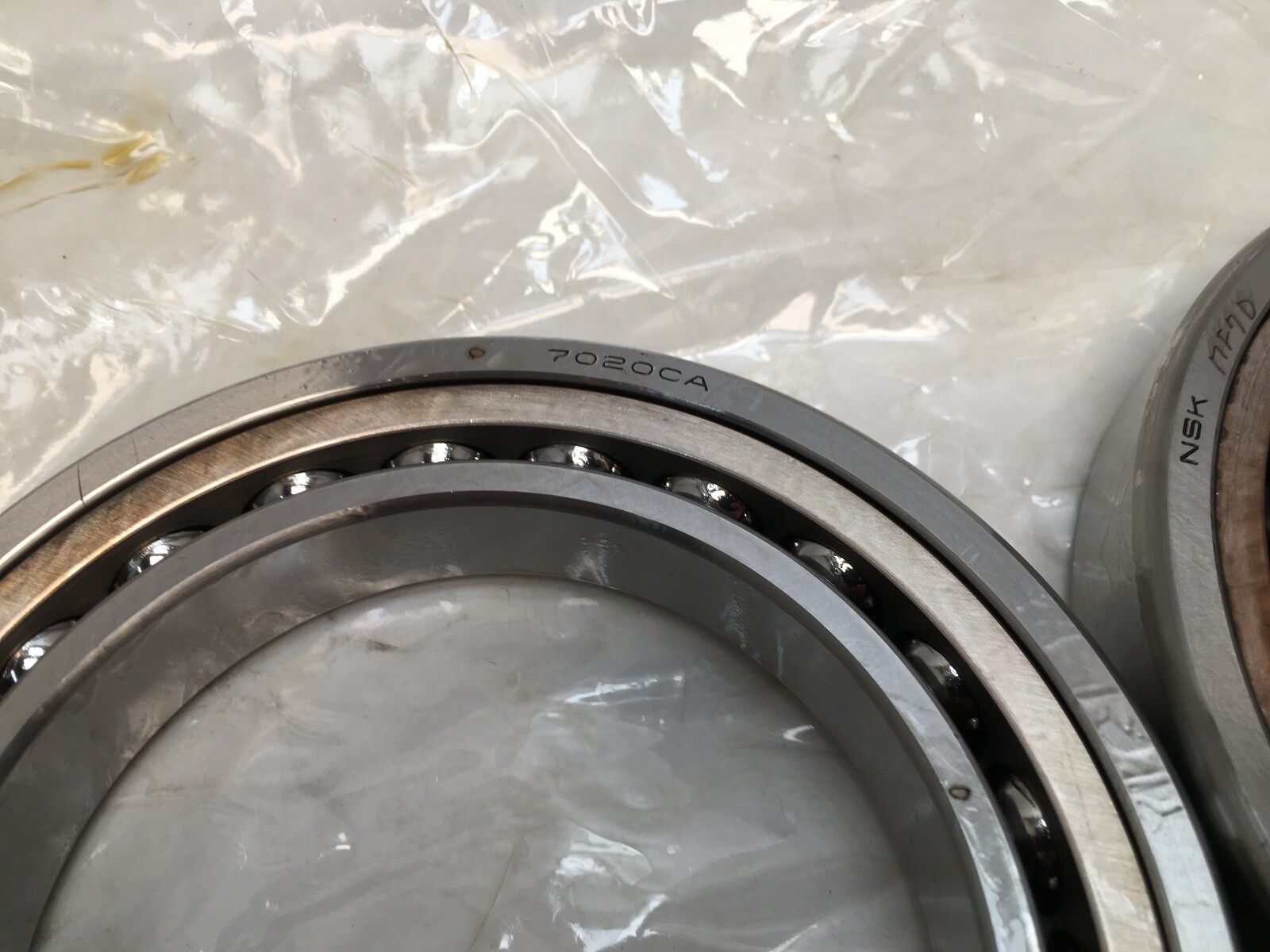

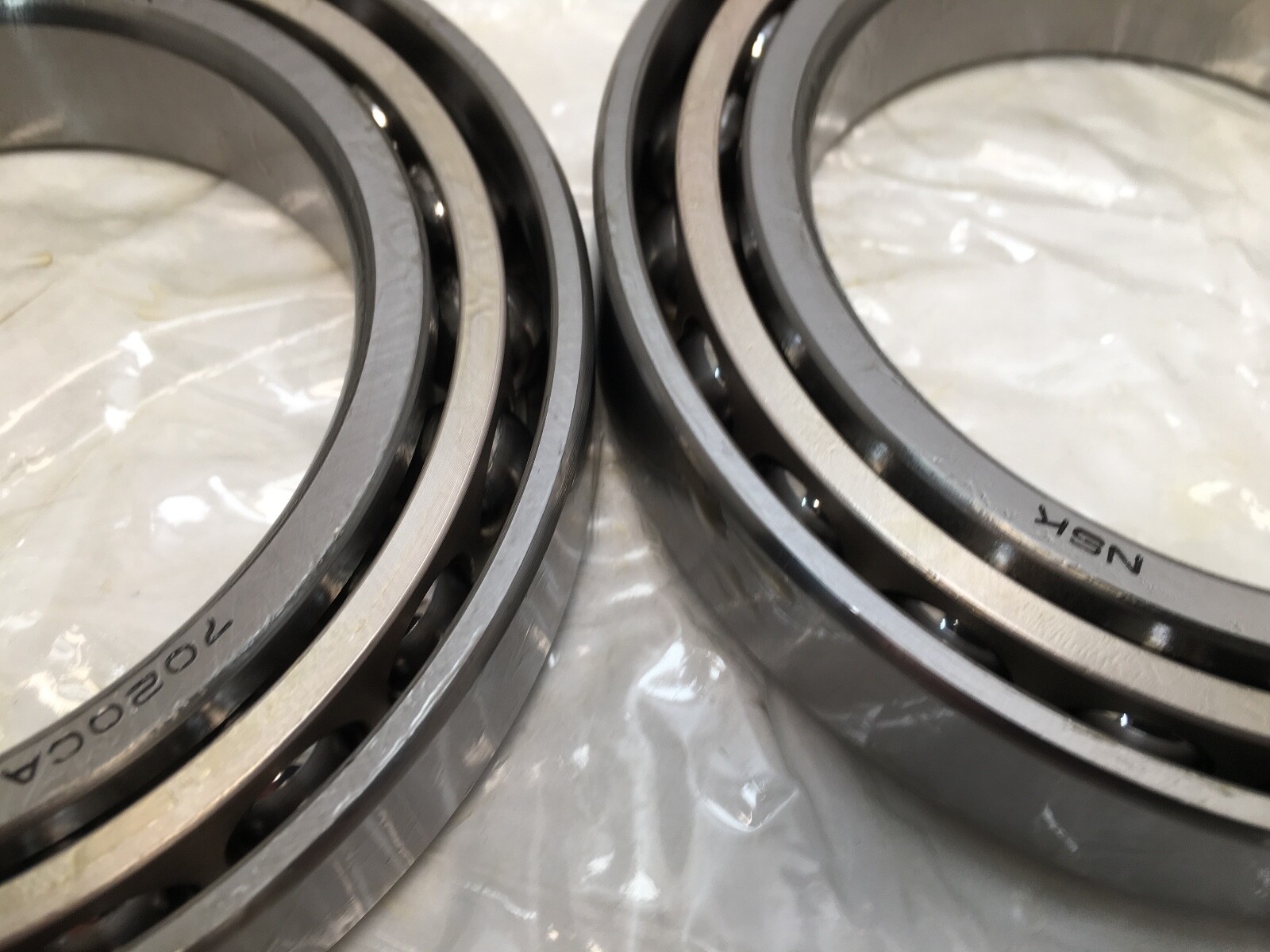

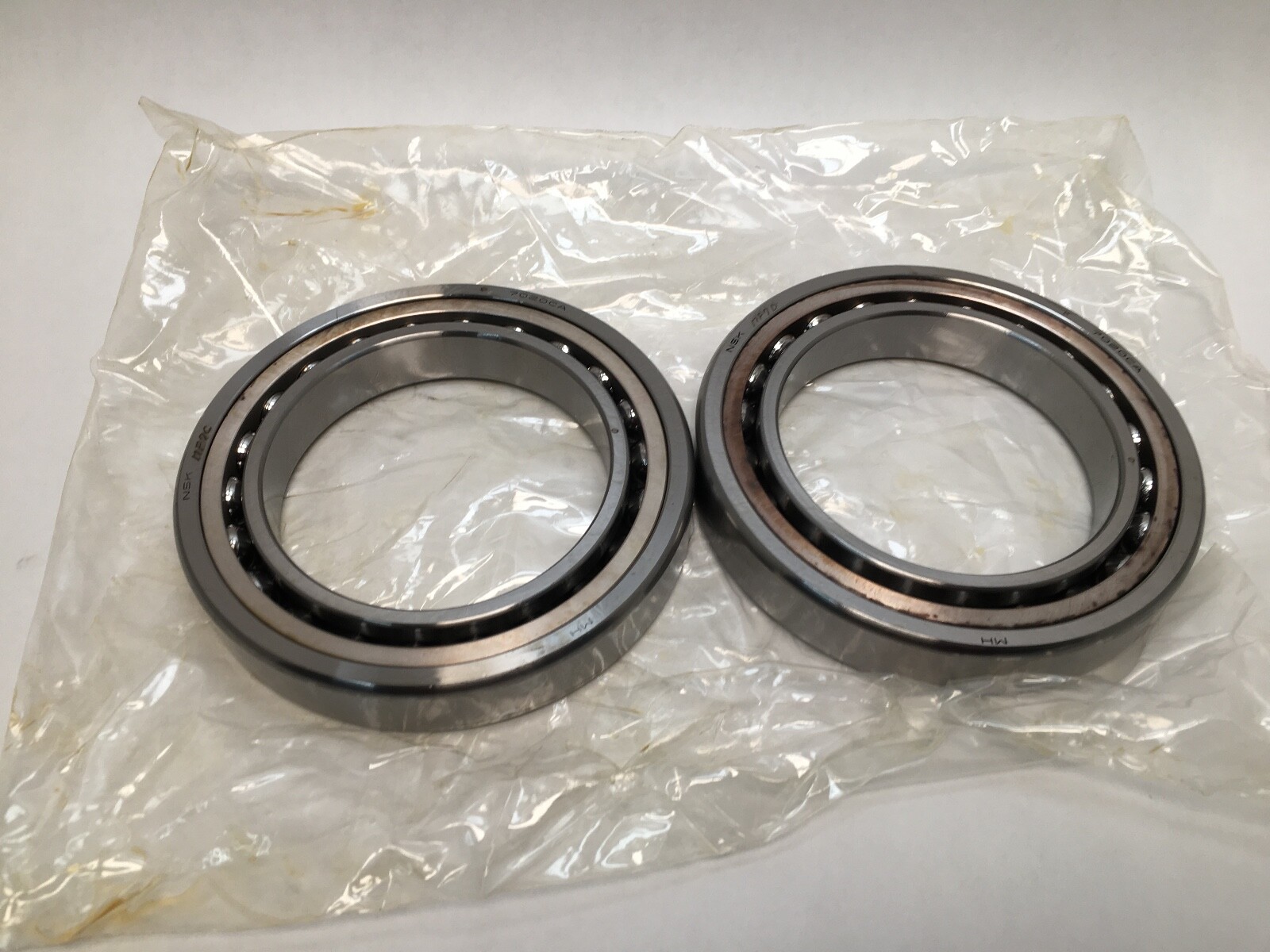

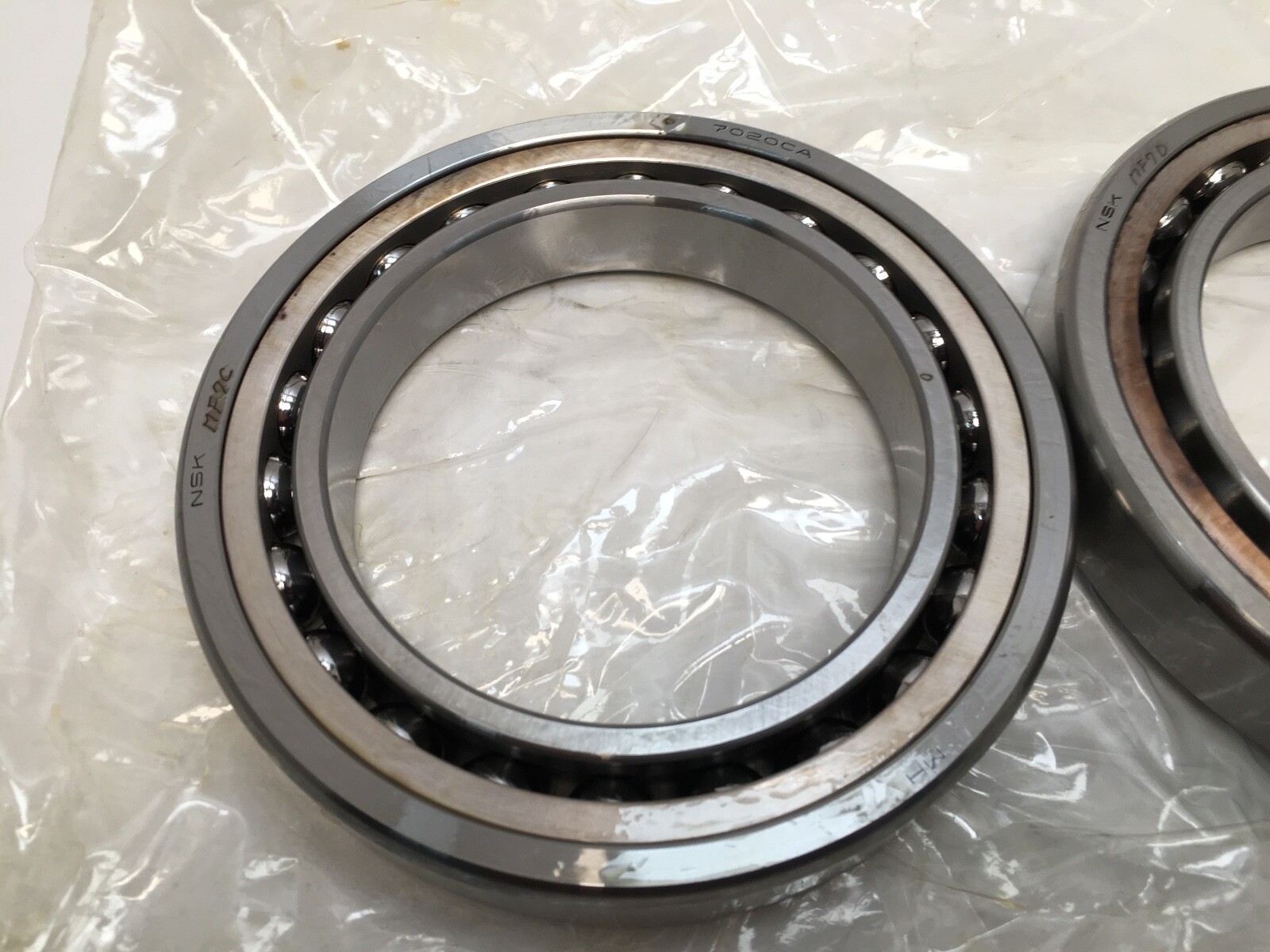

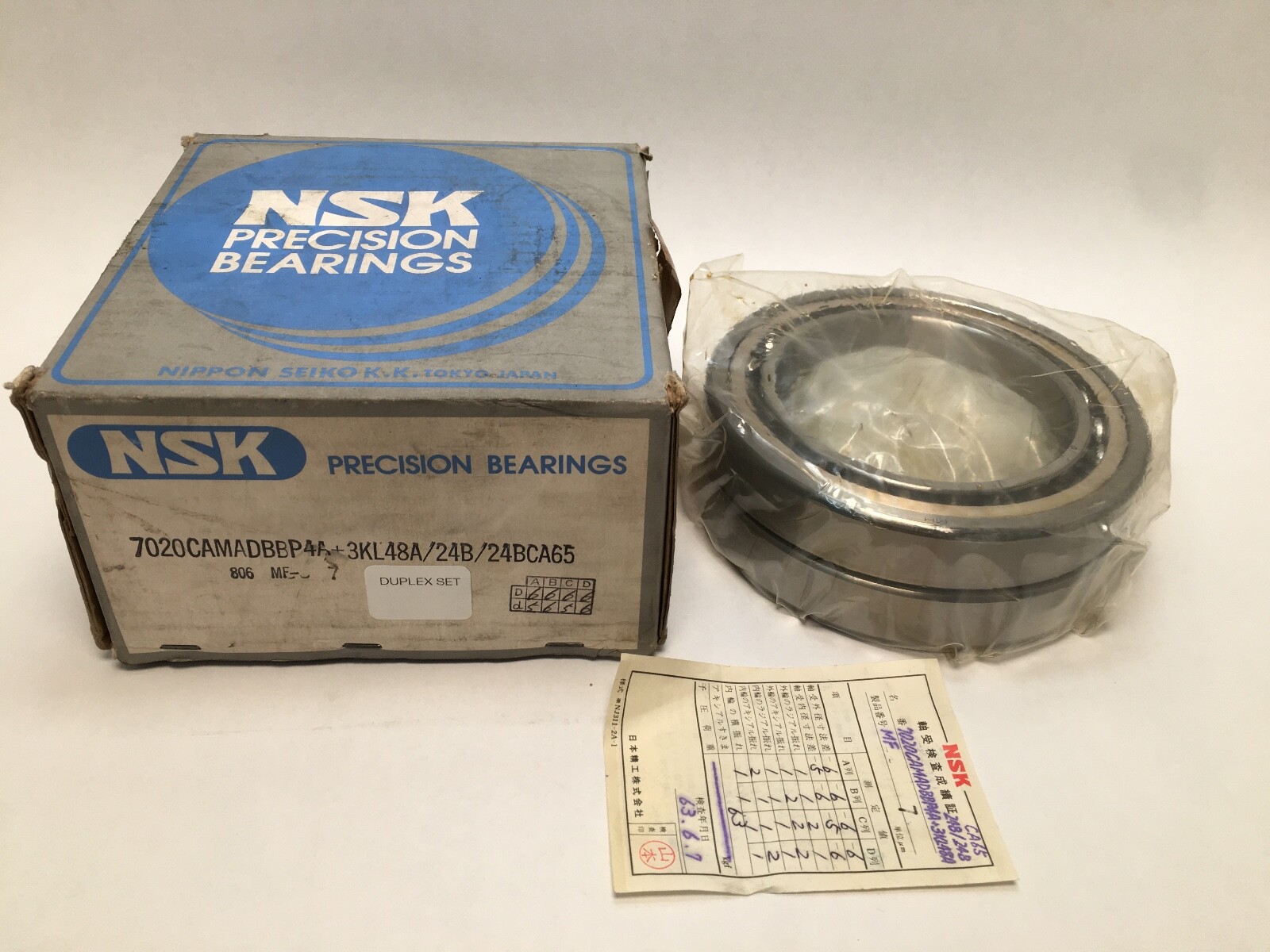

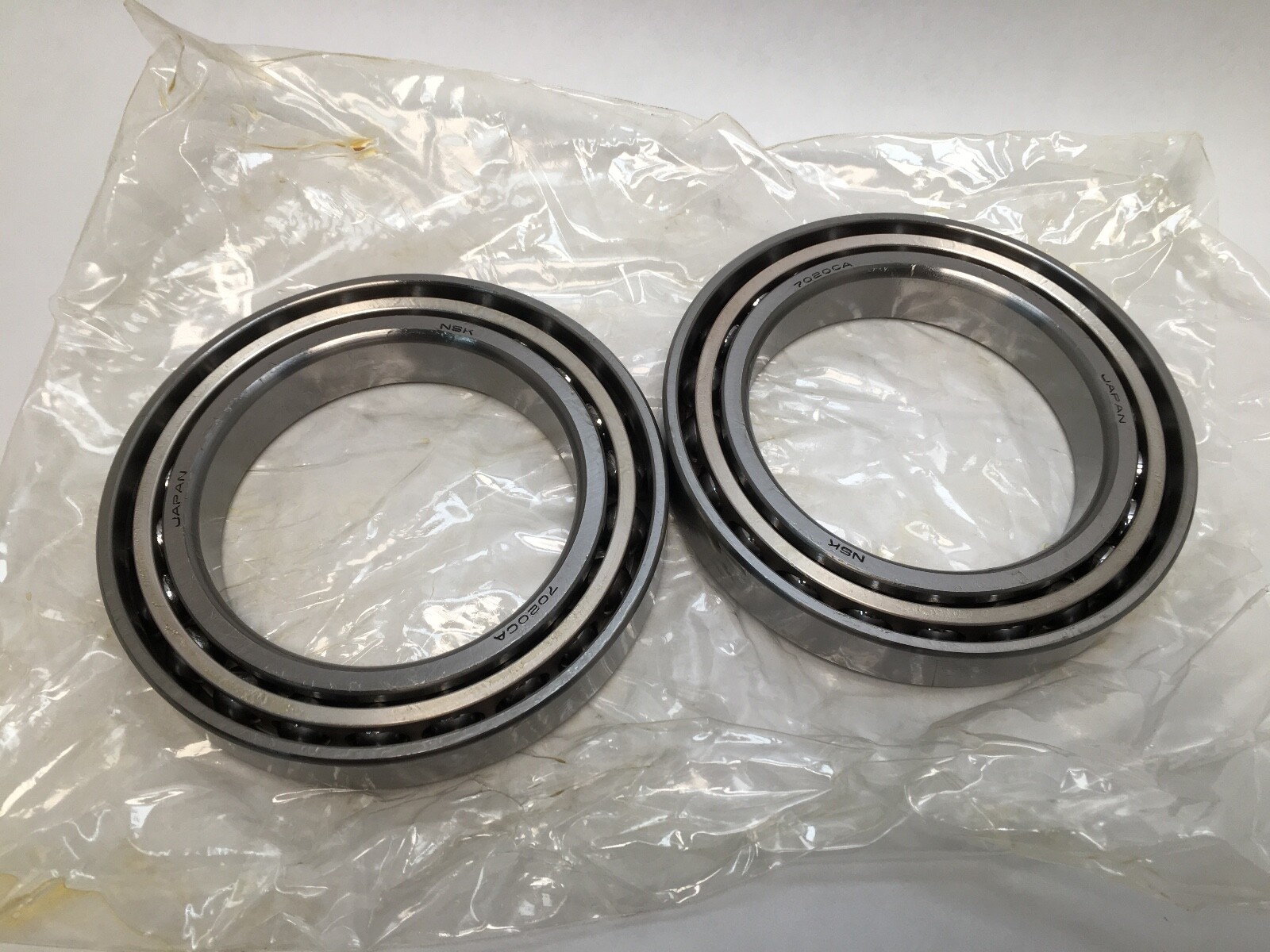

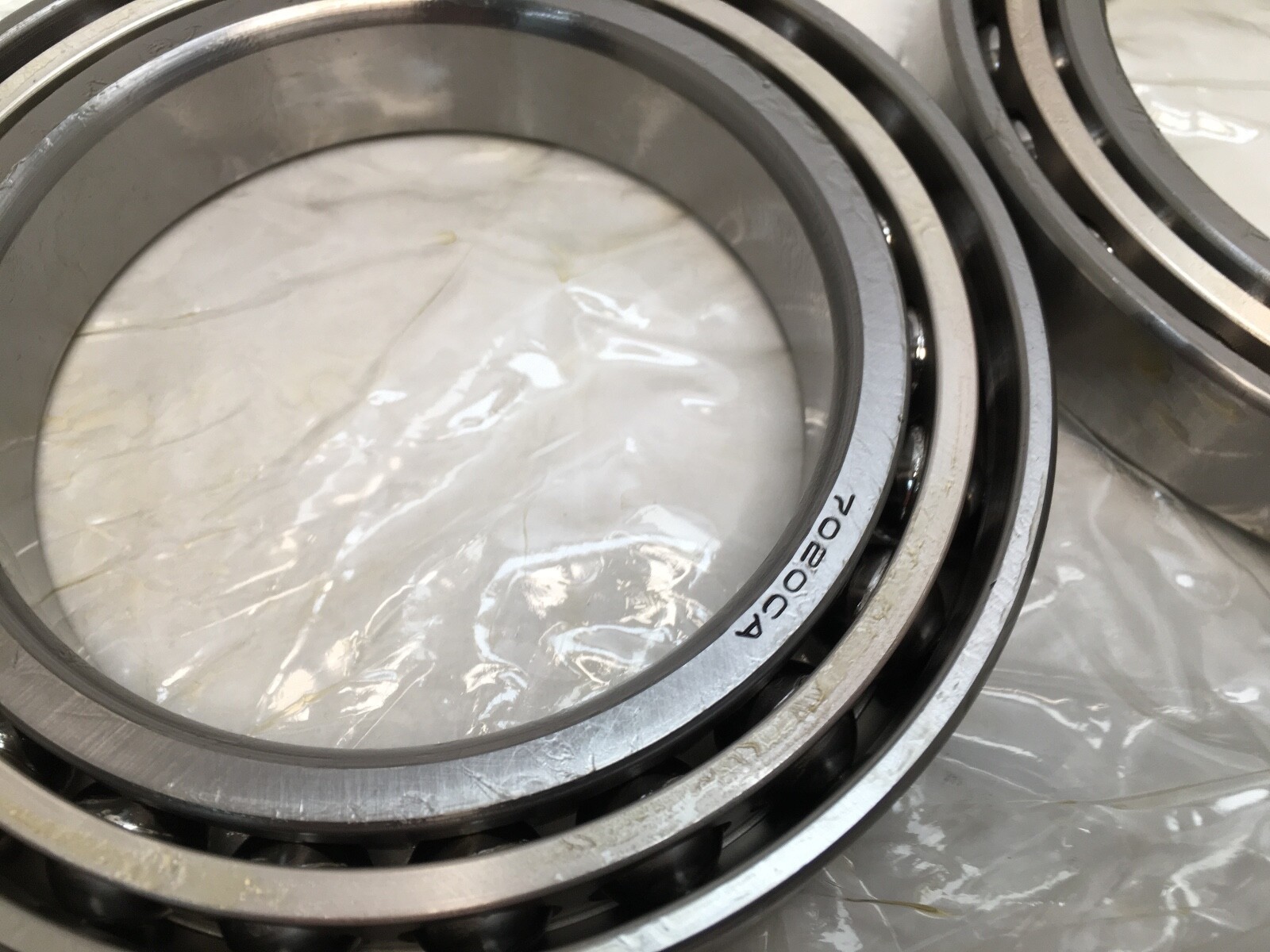

An NSK 7020CAMADBBP4A single-row angular contact ball bearing, supplied as a matched back-to-back duplex pair. Bore 100 mm, outside diameter 150 mm, width 24 mm per bearing. Contact angle 15°, precision class ABEC 7 / P4. Made in Japan.
Decoding the designation
7020 — NSK’s ISO 72-series number for this envelope, 100 x 150 x 24 mm.
C — 15° contact angle.
DBB — back-to-back duplex mounting; the two bearings are ground as a matched pair.
P4A — ABEC 7 / P4 precision.
What these specs mean in practice
Dynamic Load Rating: 75,500 N. Static Load Rating: 77,000 N. Limiting Speed: 6,300 rpm grease; 9,000 rpm oil. Item Weight: 1.46 kg (3.22 lb) per bearing.
Quantity and configuration

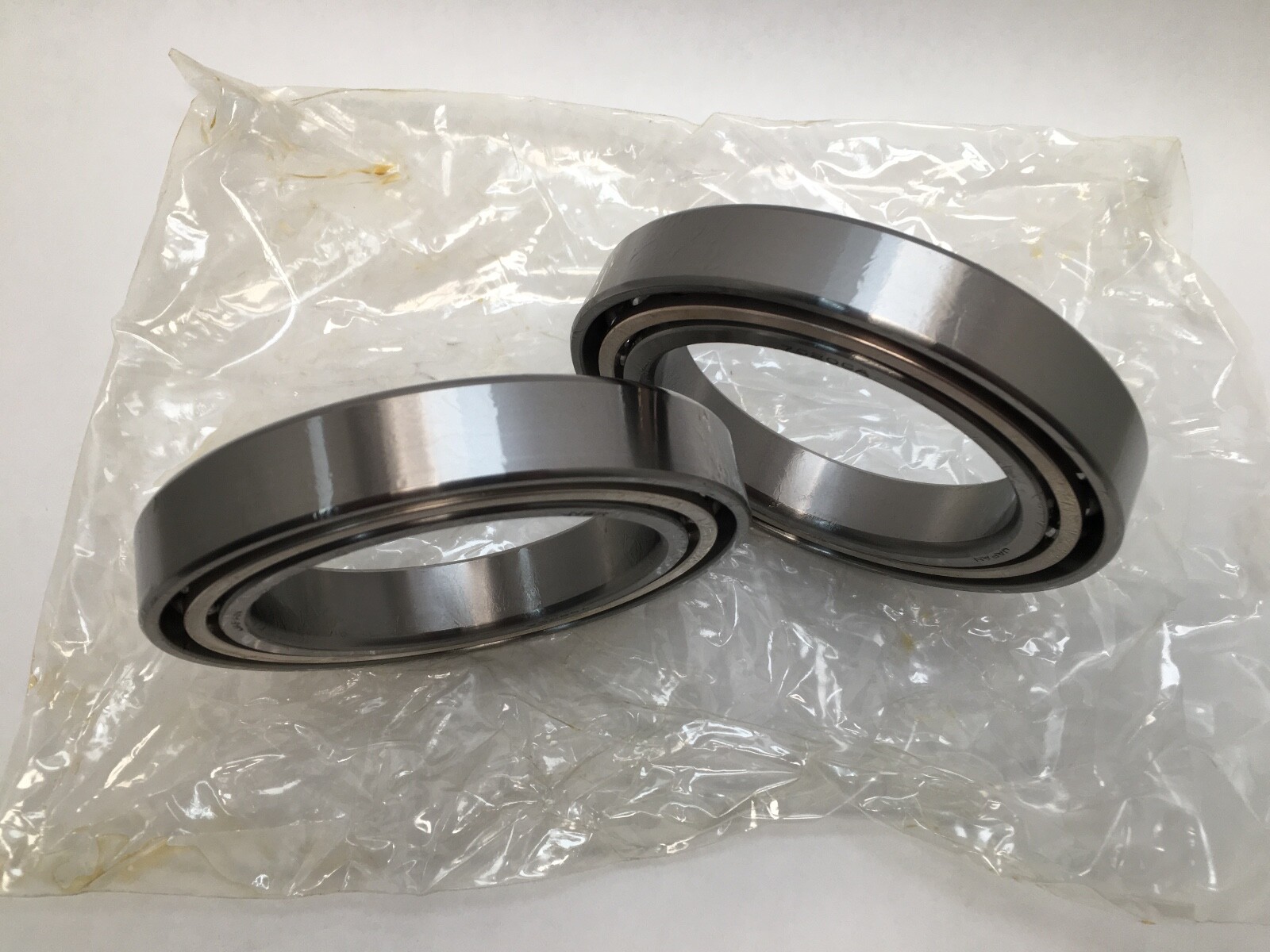

Unit Quantity: 2 Pcs, back-to-back duplex pair.
Interchange guidance
Same envelope and 15° contact angle: NTN 7020C, SNR 7020C, Koyo 7020C, RHP 7020C.
$1,284.41
2 in stock
$1,284.41
2 in stock
