Single-row 29° angular contact ball bearing, 75 mm bore x 160 mm OD x 37 mm wide, universally ground so it can be stacked into a matched set — a heavy medium-series bearing for shafts carrying high combined radial and thrust load. One bearing.
List Price
$92.99
3 in stock
3 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
Also Available From:
| MFR / Brand | MRC |
|---|---|
| Model | 7315DU |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 75 mm |
| OD | 160 mm |
| Width | 37 mm |
| Material | Bearing Steel |
|---|---|
| Series | 7300-D |
| Condition | New |
| Lubricant | Oil |
| Preload | Light Preload |
| Base Number | 7315 |
| Industry Terms | Angular contact bearing, universally ground bearing, duplexable single, thrust and radial ball bearing |
| Common Misspellings | M.R.C., MCR 7315DU, 7315 D U, 7315DUU, MRC7315-D |
| Application Types | Pump and compressor shafts, blower shafts, gearbox shafts, vertical spindles |
| Bore Shaft Size | 75 mm |
| Mpn Variants | 7315DU, 7315 DU, 7315-DU, 7315D, MRC7315DU |
| Arrangement Configuration | Universally ground single; stackable DB, DF or DT |
| Additional Attributes | MRC contact angle scheme differs from SKF/NSK; do not mix angles in a matched set |
| Cage Type | Machined |
| Dynamic Load Rating | 121 kN / 27202 lbf |
| Static Load Rating | 93.1 kN / 20929 lbf |
| Precision Rating | ABEC 1 / P0 |
| Rolling Elements | Ball |
| Max Temp | 232°C |
| Item Weight | 6.80 lbs |
| Cage Material | Bronze |
| Limiting Speed | 6300 rpm |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | Not specified |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 29 degrees (MRC scheme) |
| Design Units | Metric |
| Part Number | 7315DU |
| Cross Reference 1 | 7315D |
|---|---|
| Cross Reference 2 | MRC 7315DU (TRW / SKF era) |
| Cross Reference 3 | 7315 universally ground single (29 degree) |

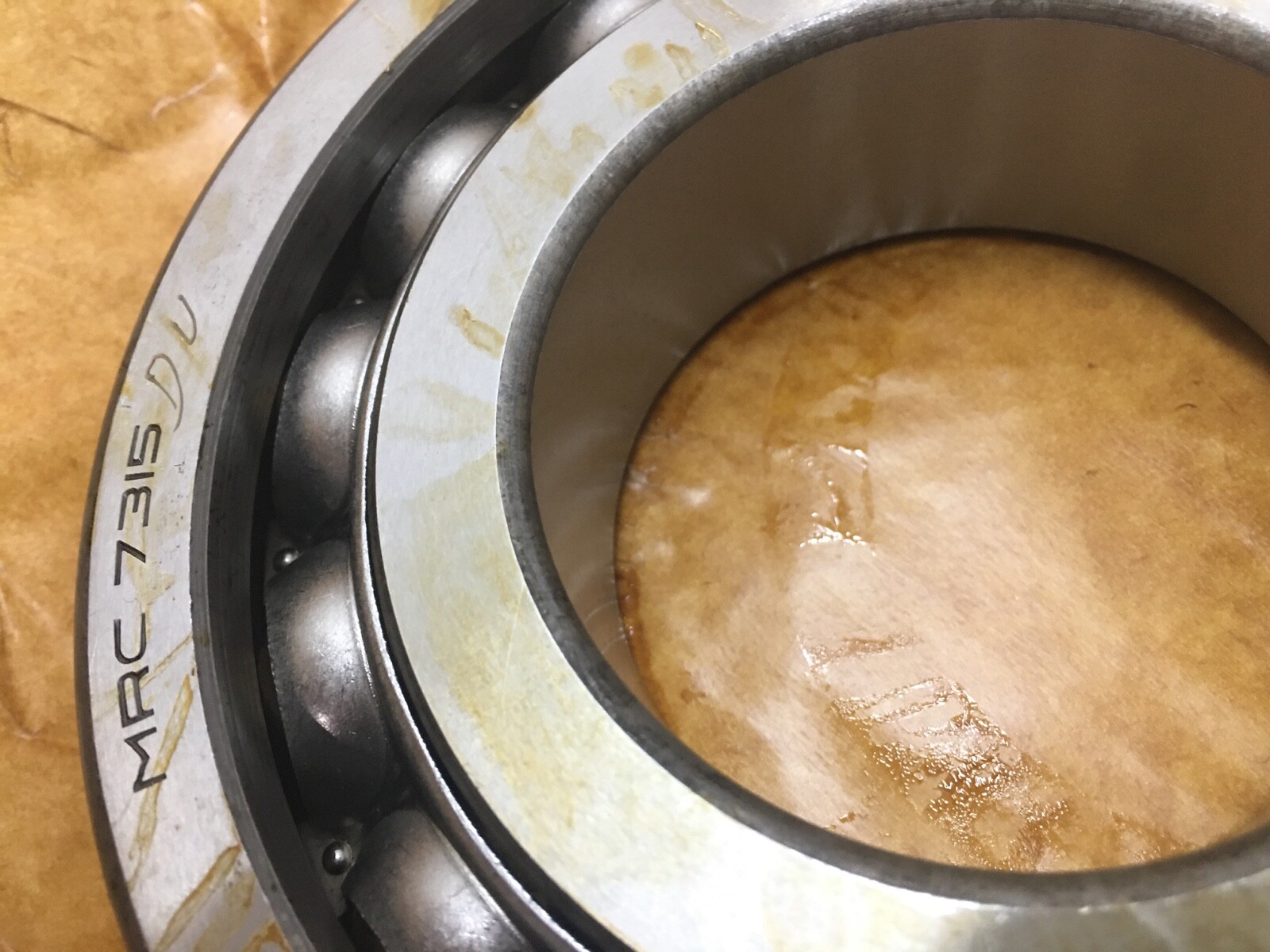

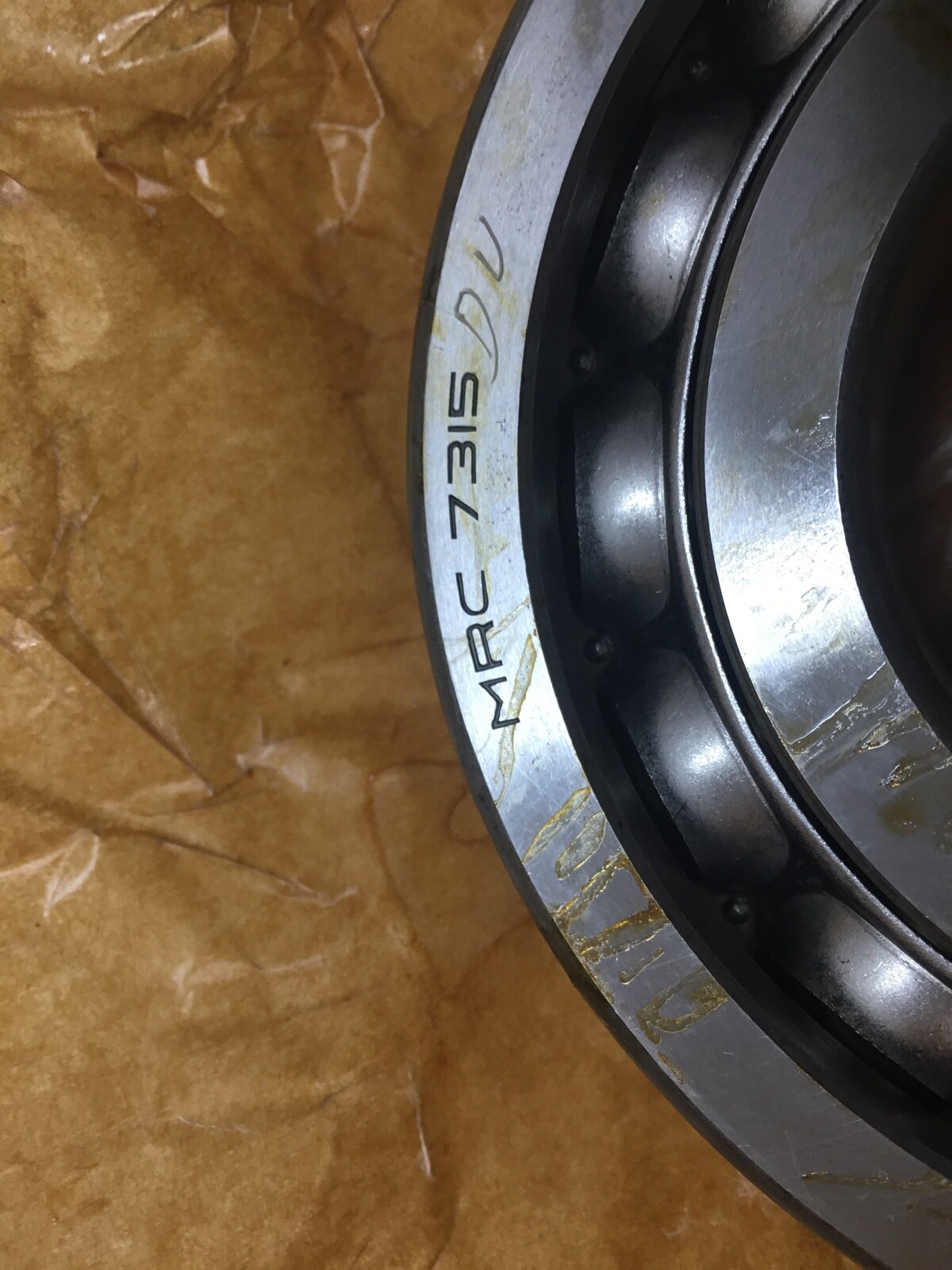

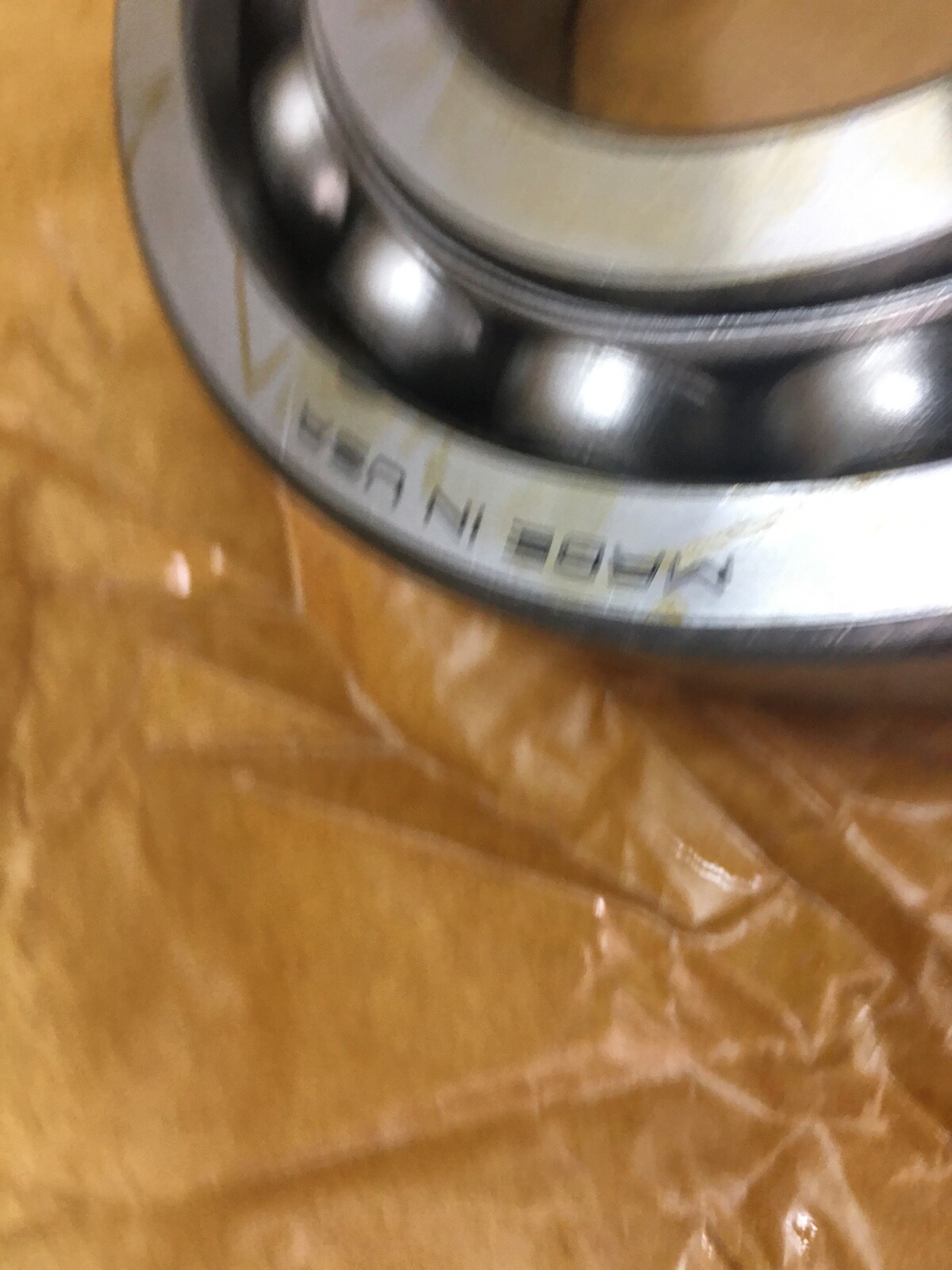

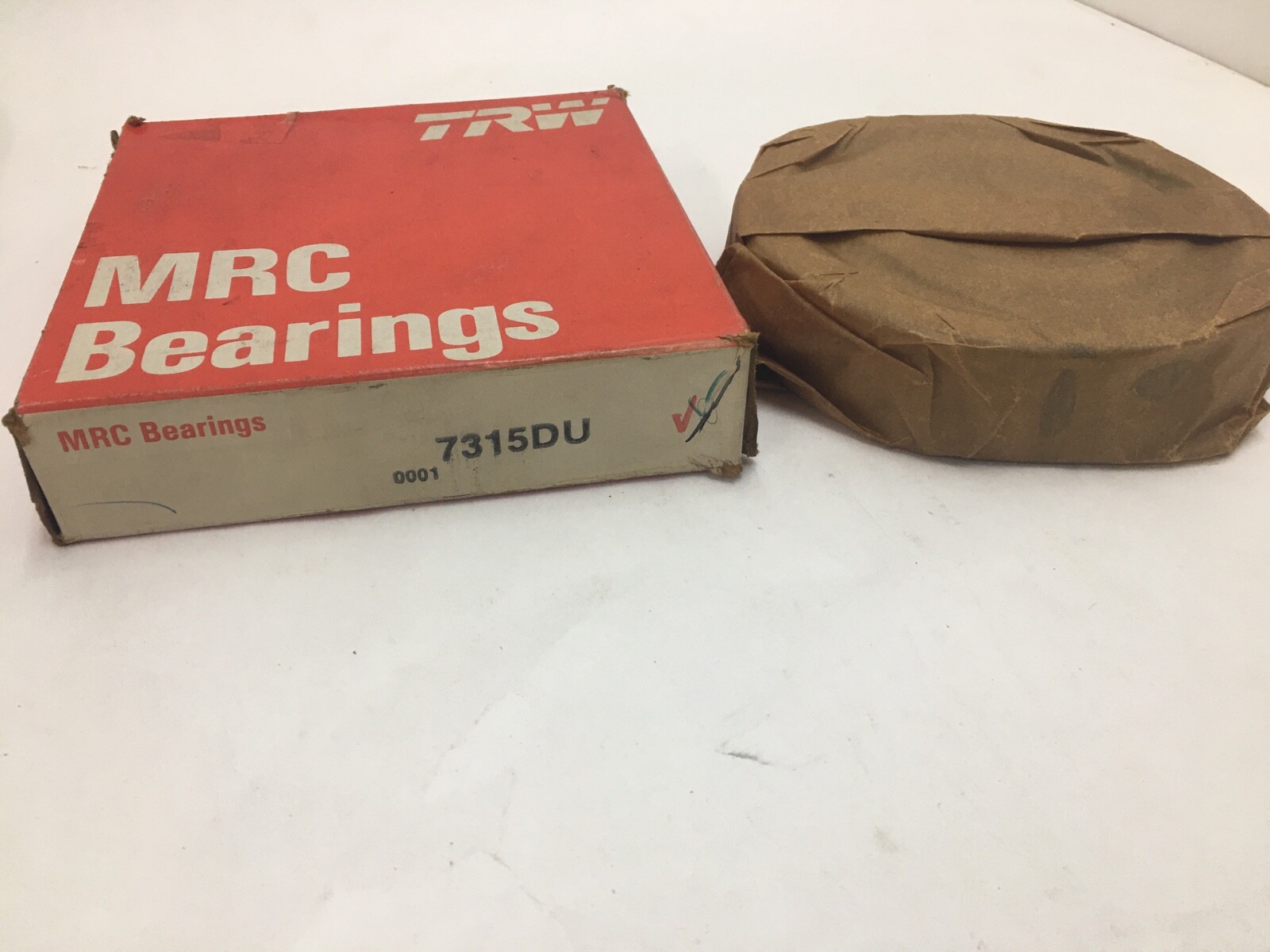

A single-row MRC 7315DU angular contact ball bearing: 75 mm bore, 160 mm OD, 37 mm wide. The rings are universally ground, so the bearing can run on its own or be stacked with identical bearings to form a duplex, triplex or quad set without a ground spacer. The 7300 medium series is the heavy-duty end of the angular contact range at this bore, and typically sits on pump, blower, compressor and gearbox shafts that see high radial load together with substantial thrust.
7315 — ISO angular contact envelope, medium series, 75 x 160 x 37 mm.
MRC 7000-series contact angle is 29° — MRC uses its own scheme, so this is not the 25° or 40° of other makers’ 7300 numbers.
DU — universally ground for duplex mounting.
29° is a genuinely different angle from the 25° that most catalogues assume for a 7300-series bearing, and it matters: contact angle sets the split between radial and axial capacity and controls how the axial load is shared in a paired arrangement. An MRC 29° bearing and another maker’s 25° or 40° bearing of the same number do not share load in a matched set. Universally ground rings are what make stacking possible; the ground offsets produce the intended preload automatically.
Bore: 75 mm.
Outside diameter: 160 mm.
Width: 37 mm.
Contact angle: 29° (MRC scheme).
Series: 7300, medium.
Rows: single.
Ring grinding: universal, for duplex mounting.
Closure: open.
Cage: machined bronze.
Dynamic load rating: 121 kN / 27202 lbf.
Static load rating: 93.1 kN / 20929 lbf.
Limiting speed: 6300 rpm.
Precision rating: ABEC 1 / P0.
Mass: 6.80 lbs.
One bearing. Mounted alone it takes thrust in one direction only. Two mounted back-to-back (DB) or face-to-face (DF) locate the shaft axially in both directions; two or three in tandem (DT) carry heavy thrust in one direction. Because the rings are universally ground, any of those arrangements works without a matched spacer.
Same-specification alternatives are other MRC 7315DU / 7315D universally ground singles, and the 7315DU, 7315 DU and 7315-DU forms of this number. Related but NOT interchangeable: an SKF 7315 ACD (25°) or a 7315B (40°) is a different contact angle and will not share load with this bearing in a set; a plain 7315 without DU is not universally ground and cannot be stacked. MRC was absorbed by SKF via TRW, so MRC-marked cartons and SKF-era part numbers both appear on this bearing.
